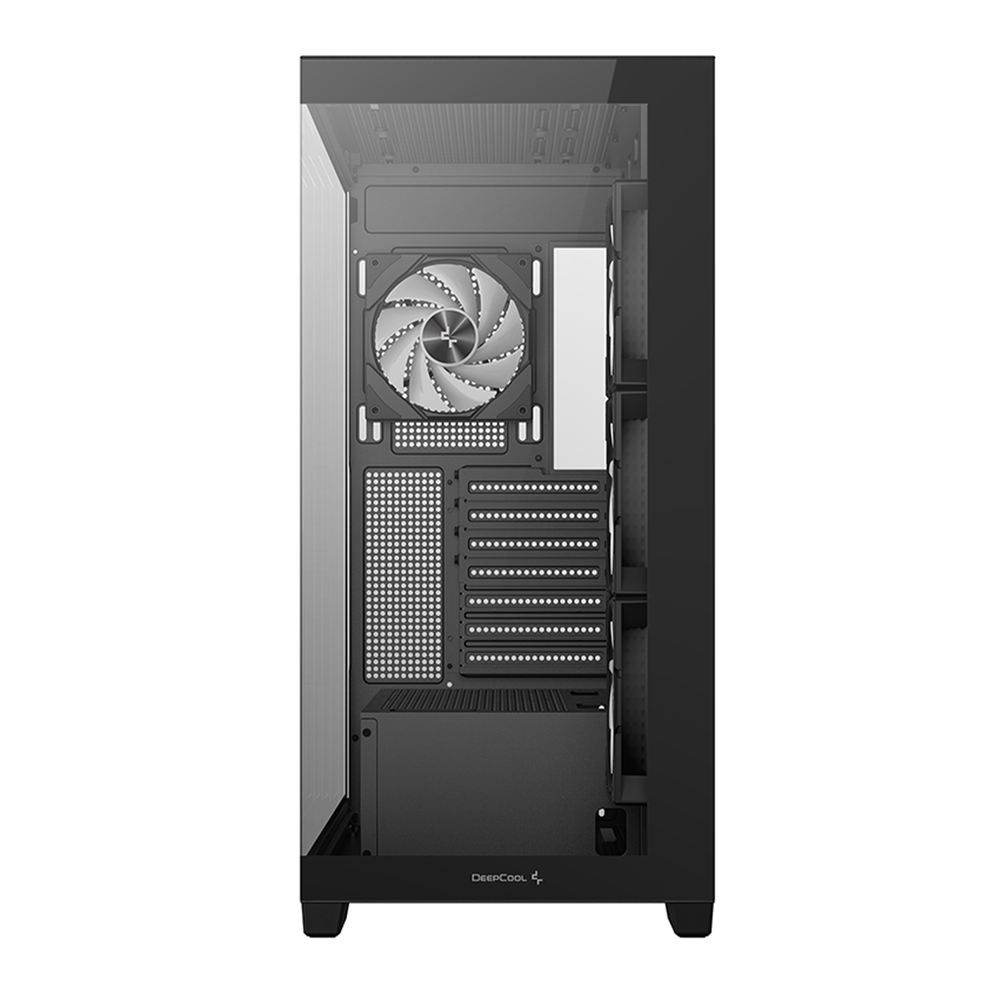

DEEPCOOL CG580 4F Black Panoramic ATX Case

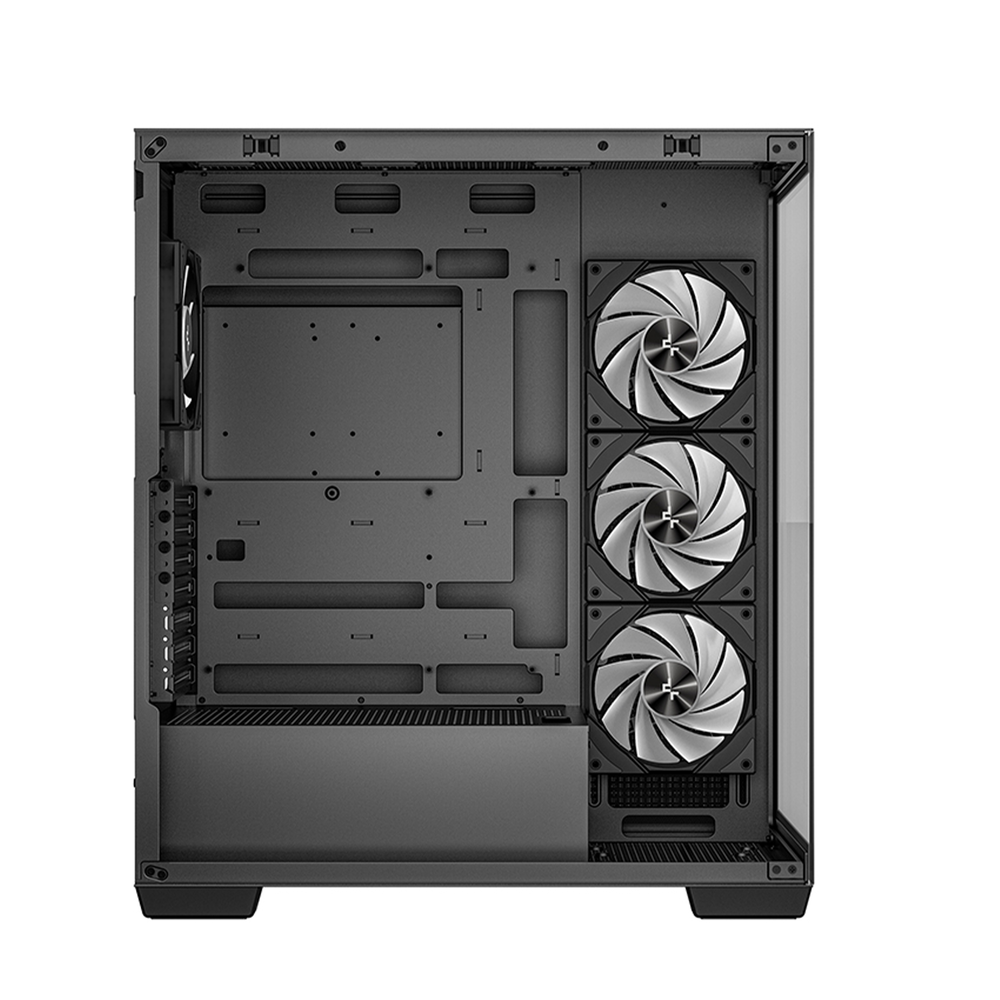

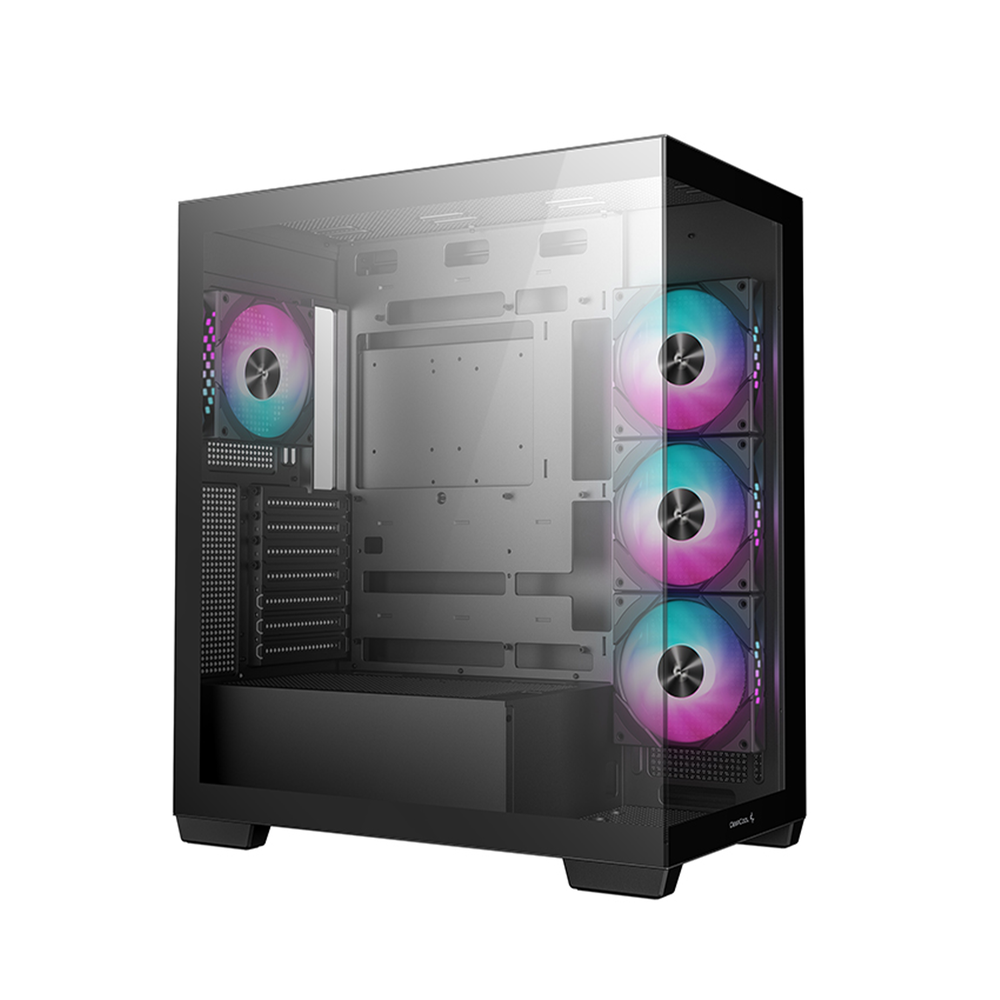

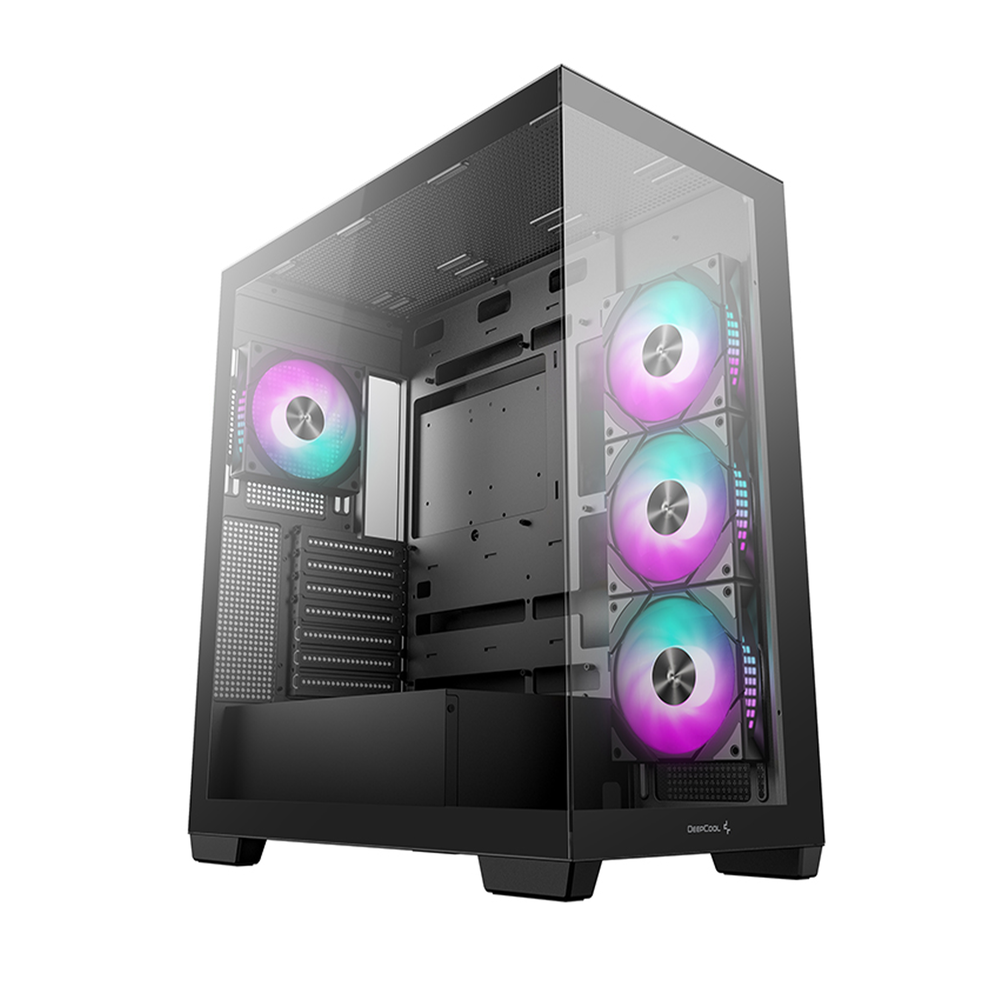

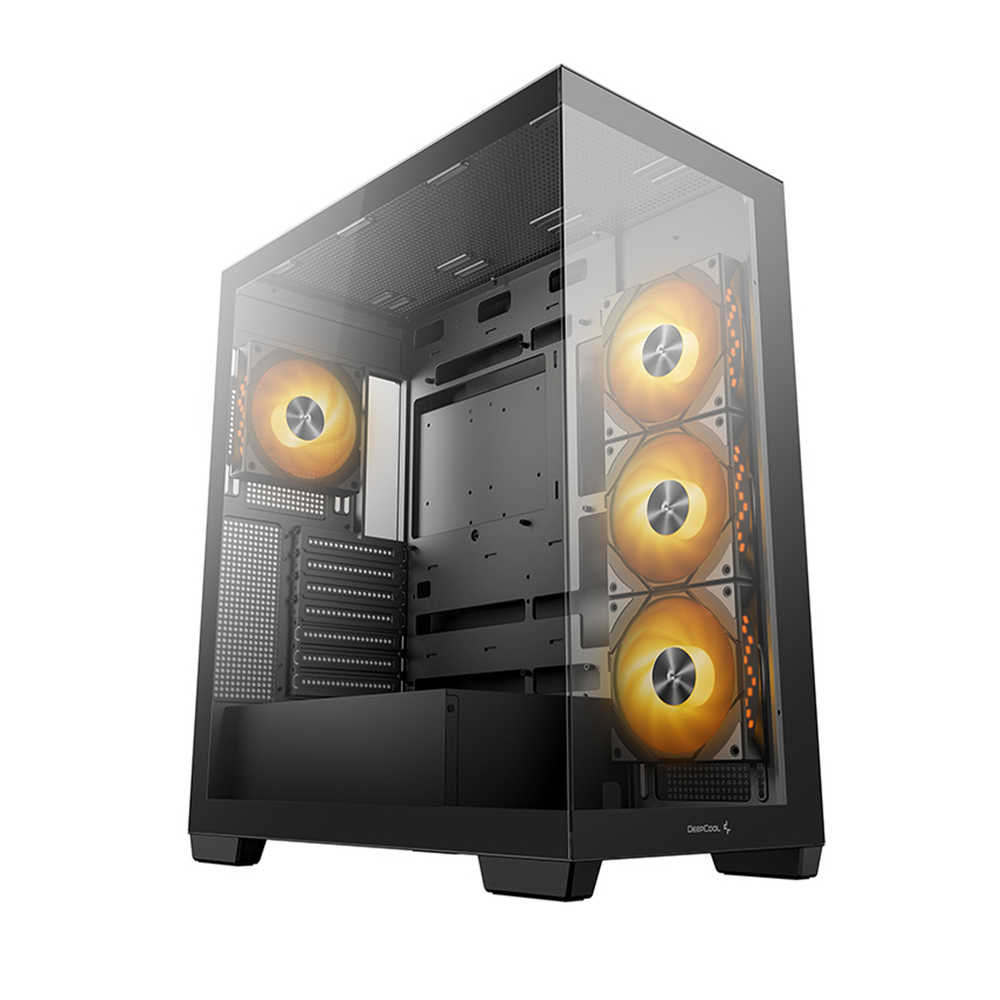

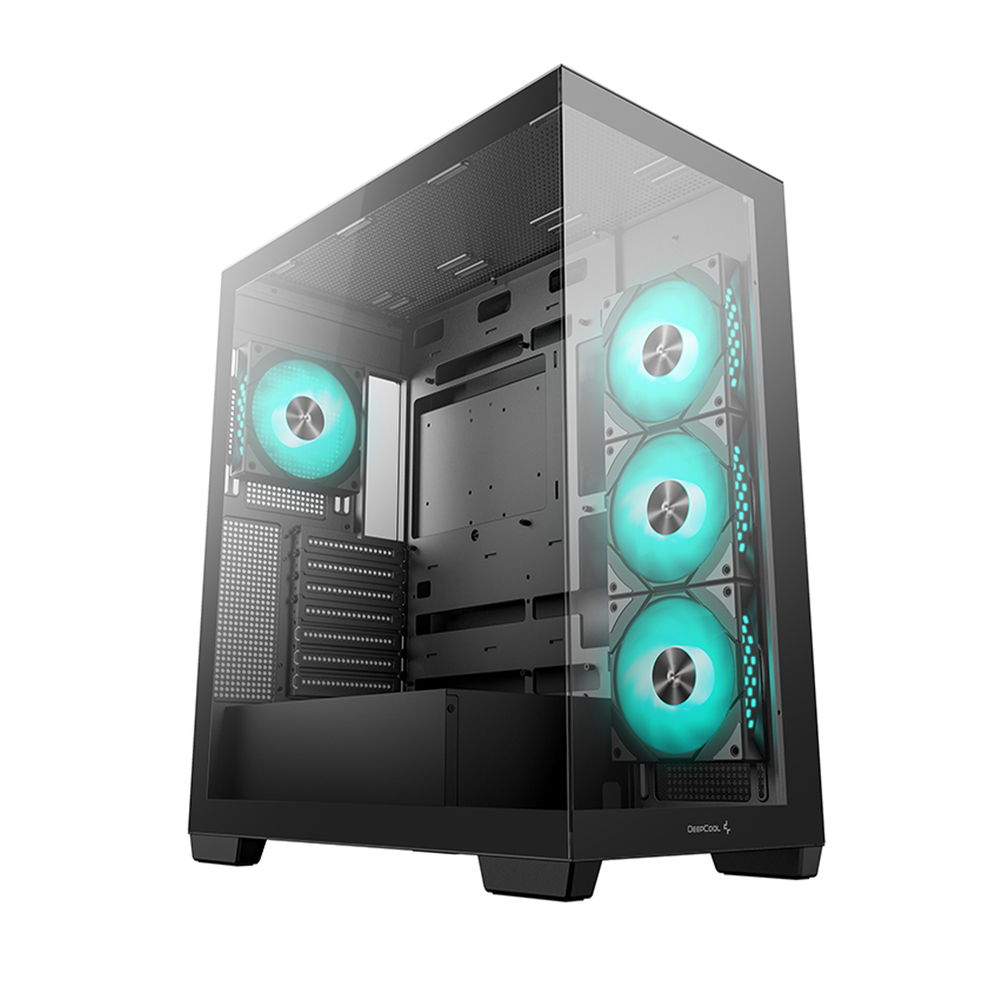

The DeepCool CG580 4F Black is a panoramic single‑chamber ATX case designed to showcase your core components with a clean “fish‑tank” style layout and 270° glass view. With three reverse‑blade ARGB fans on the side and one standard ARGB fan at the rear, it delivers strong directed airflow across the GPU and CPU while creating a striking lighting wall inside the case. The front is kept solid/clean for aesthetics, while the side, top, and rear handle cooling, giving you both visual impact and airflow in a balanced way.

Supporting ITX, Micro‑ATX, and ATX (including rear‑connector boards), the CG580 4F fits GPUs up to 410 mm, CPU coolers up to 176 mm, and PSUs up to 210 mm, covering everything from mid‑range to high‑end gaming builds. It provides 2 × 3.5" and 2 × 2.5" drive bays plus 7 expansion slots, enough for multi‑drive setups and larger GPUs without crowding. With support for 360 mm radiators on the top and side, plus multiple fan locations including PSU shroud fans, it is ready for advanced air or liquid‑cooling configurations.

Key Specifications

• Model: DeepCool CG580 4F Panoramic ATX Case (Black)

• Form factor: ATX mid tower, single‑chamber panoramic design

• Motherboard support: ITX, Micro‑ATX, ATX, ATX (rear connector), Micro‑ATX (rear connector)

• GPU clearance: Up to 410 mm (limited to around 262 mm if a 360 mm side radiator + fans are installed)

• CPU cooler clearance: Up to 176 mm

• PSU support: ATX PS2, up to 210 mm, bottom‑mounted

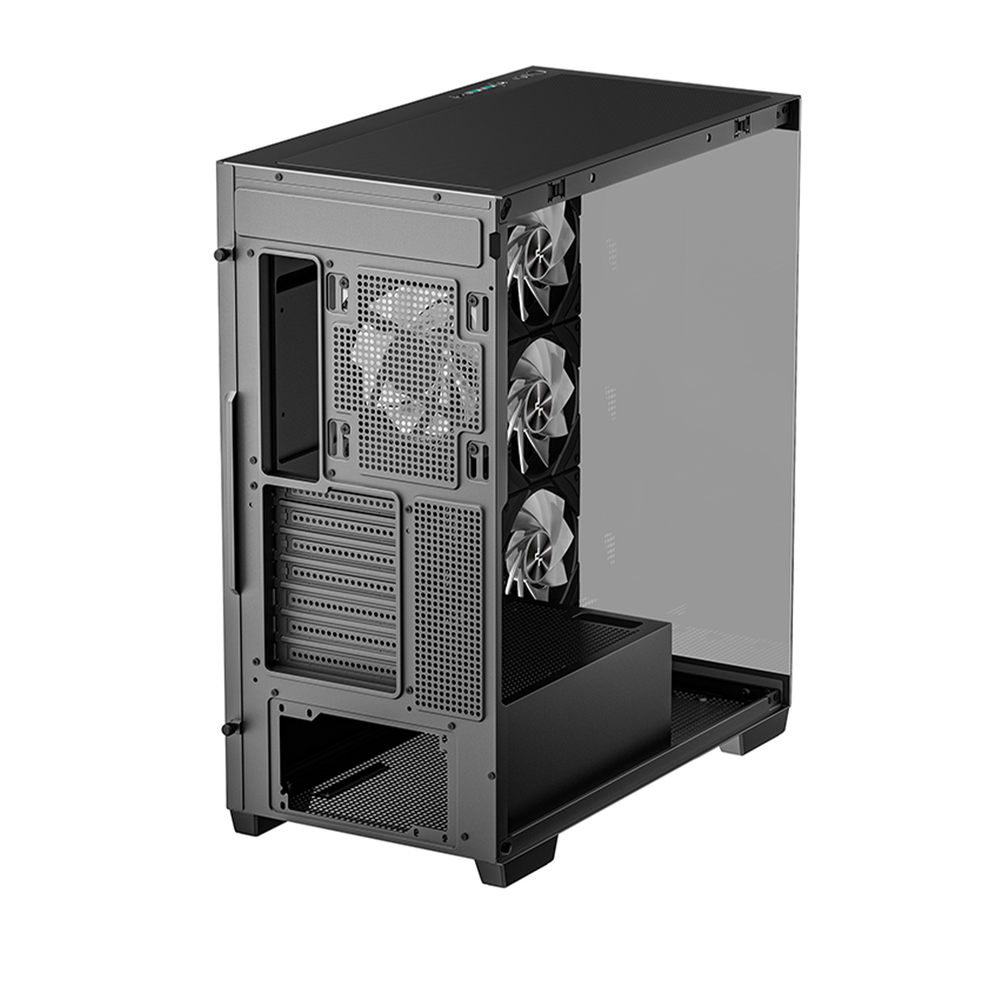

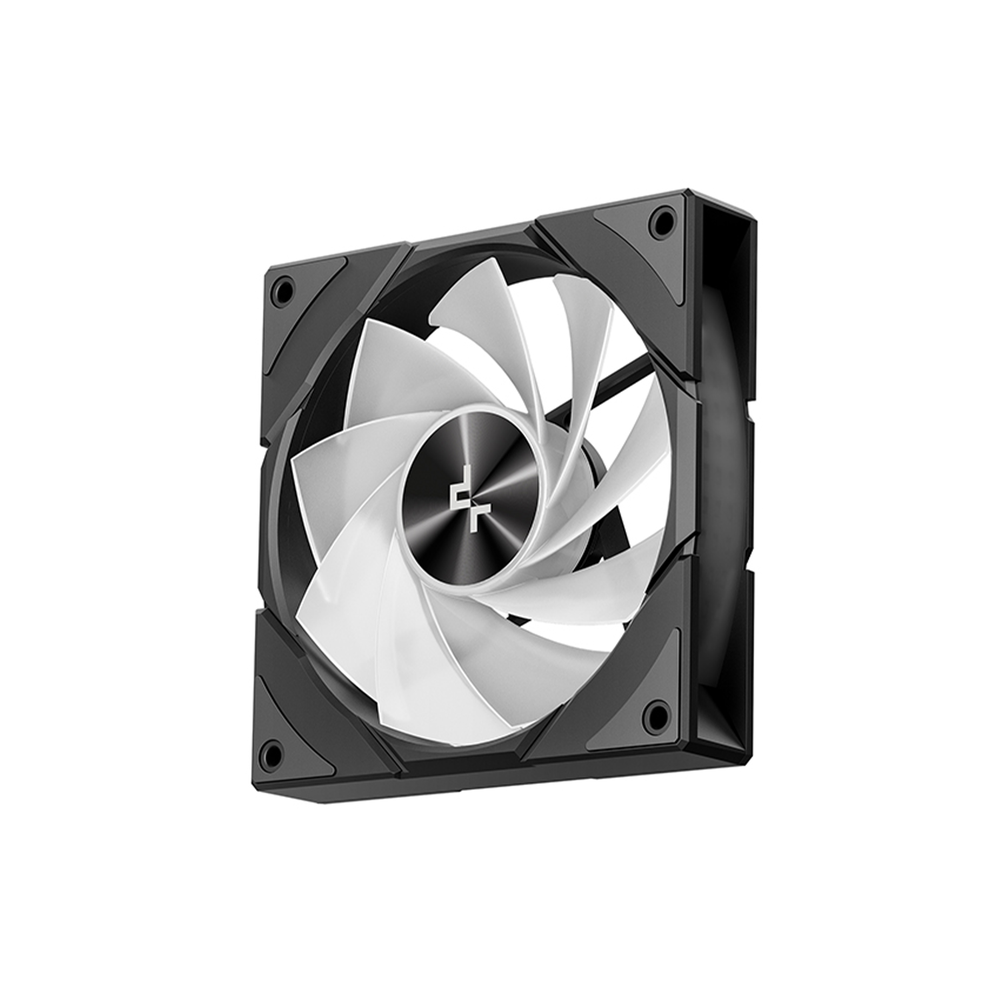

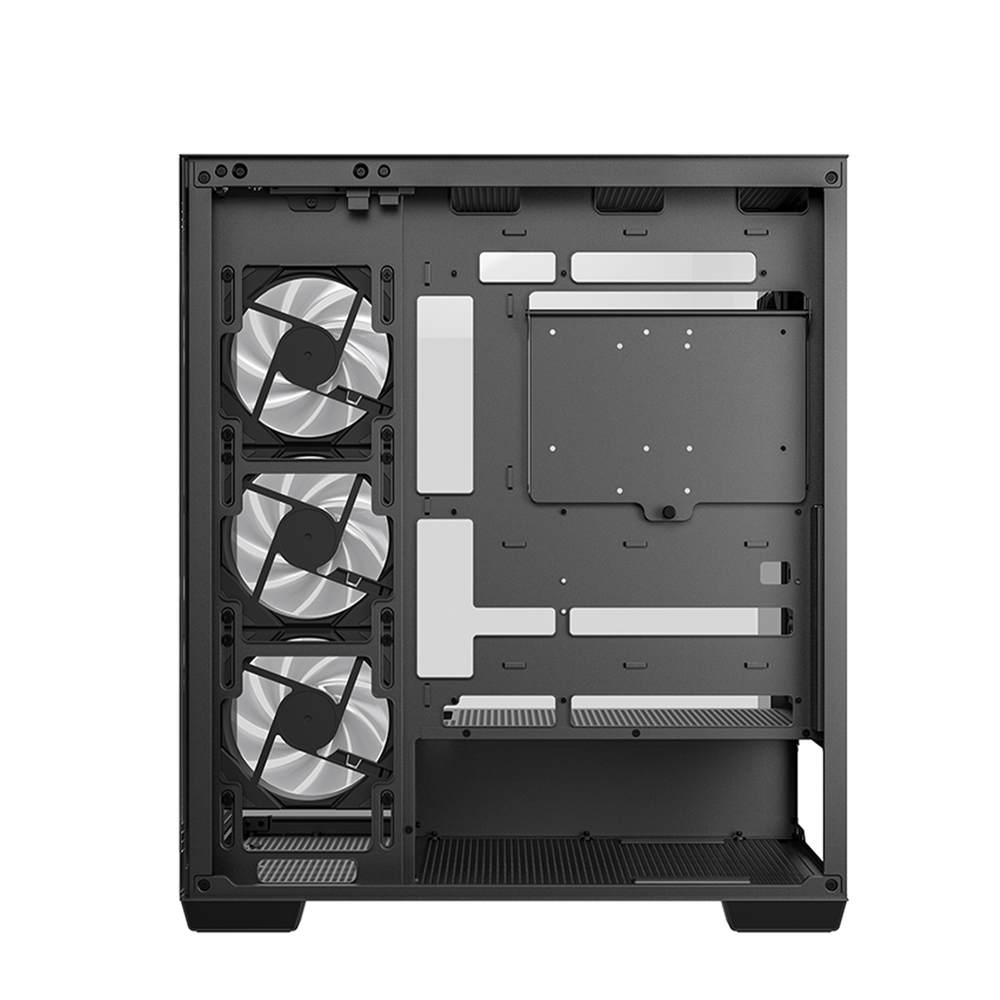

• Pre‑installed fans: 4 × 120 mm PWM ARGB (3 × side reverse‑blade, 1 × rear standard)

• Fan support: Front: N/A; Top: 3 × 120 mm or 2 × 140 mm; Side: 3 × 120 mm; Rear: 1 × 120 / 1 × 140 mm; Bottom: 1 × 120 mm (shared with 3.5" HDD position); PSU shroud: 2 × 120 mm

• Radiator / AIO support: Front: N/A; Top: 120 / 140 / 240 / 280 / 360 mm; Side: 120 / 240 / 360 mm; Rear: 120 / 140 mm

• Drive support: 2 × 3.5" HDD + 2 × 2.5" SSD

• Expansion slots: 7

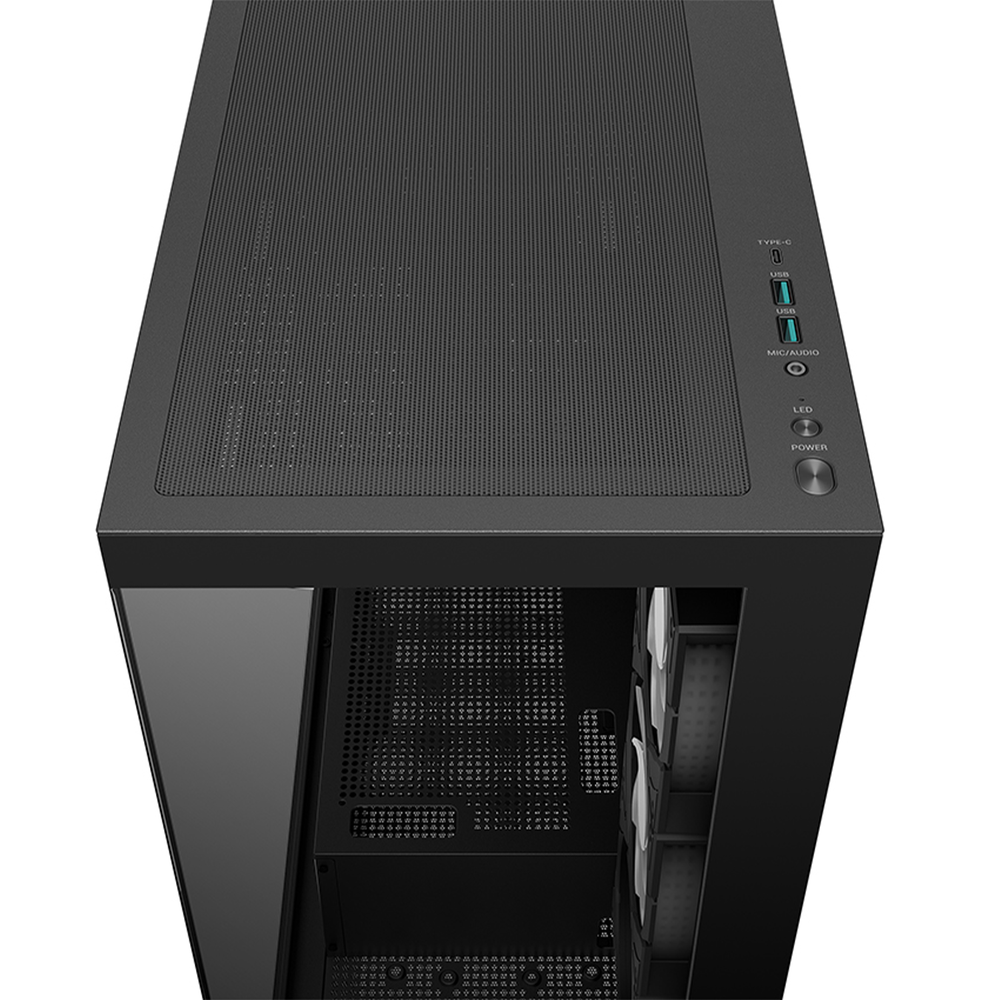

• Front I/O: 2 × USB 3.0, 1 × USB Type‑C (Gen2), 1 × combo audio & mic, power + RGB control buttons

• Dimensions: 437 × 235 × 501 mm (L × W × H)

• Net weight: Approx. 8.7 kg (some listings show ~7.9 kg; use what matches your stock spec sheet)

• Materials: ABS, SGCC/SPCC steel, tempered glass

• Side/front panels: Panoramic tempered glass (side + front area, no A‑pillar)

• Dust filters: Top and bottom dust filters

• Color options: Black (this listing); white variant sold separately

• Warranty: Typically 1 year limited warranty (match your store policy)

About the DEEPCOOL CG580 4F Black
The CG580 4F Black targets builders who want a fish‑tank‑style ATX case that shows off the GPU, cooling, and lighting while keeping cables and drives minimal and hidden. With four PWM ARGB fans included, full 360 mm top and side radiator support, and modern front I/O with USB‑C, it is ideal for premium gaming rigs, creator PCs, or café showcase builds where visuals and airflow both need to be top‑tier.
