Upgrading your PC cooling setup often comes down to choosing the right case fans, and ARCTIC has established itself as the go-to brand for high-performance, budget-friendly cooling. However, navigating their lineup—from the standard P12 and high-speed P12 Max/Pro to the ultra-thin P12 Slim, larger P14, and airflow-focused F12—can quickly become confusing.
Whether you are building a custom liquid-cooling loop, optimizing air resistance on a dense radiator, or assembling a Small Form Factor (SFF) rig, choosing the right fan shape, blade pressure design, and size directly impacts both thermal performance and acoustic levels.
In this comprehensive buying guide, we compare the ARCTIC P12, P12 Pro (Max), P12 Slim, P14, and F12 across technical specifications, real-world application scenarios, and current prices in India to help you pick the perfect setup.
Technical Specifications & Comparison
Before picking a fan model, it is crucial to understand the fundamental difference between Static Pressure (P-series) and Airflow (F-series).
-
Static Pressure (mmH₂O): The force fan blades exert to push air through tight spaces like liquid cooling radiators, heatsinks, or dusty mesh filters.
-
Airflow (CFM): The volume of air moved per minute when there are few or no obstacles in front of or behind the fan.
| Fan Model | Size | Speed Range (RPM) | Airflow (CFM) | Static Pressure (mmH₂O) | Typical Price (India) | Best Use Case |
| ARCTIC P12 PWM PST | 120 mm | 200 – 1,800 RPM | 56.3 CFM | 2.20 mmH₂O | ₹750 – ₹850 | Radiators, CPU Coolers, Restrictive Front Mesh |
| ARCTIC P12 Max / Pro | 120 mm | 200 – 3,300 RPM | 81.04 CFM | 4.35 mmH₂O | ₹1,050 – ₹1,250 | Heavy Overclocking, Dense Water Cooling Radiators |
| ARCTIC P12 Slim PWM PST | 120 mm (15mm thickness) | 300 – 2,100 RPM | 42.1 CFM | 1.45 mmH₂O | ₹800 – ₹950 | SFF / ITX Cases, Tight GPU Clearance |
| ARCTIC P14 PWM PST | 140 mm | 200 – 1,700 RPM | 72.8 CFM | 2.40 mmH₂O | ₹900 – ₹1,100 | 140mm Radiators & High Airflow Front Intake |
| ARCTIC F12 PWM PST | 120 mm | 230 – 1,350 RPM | 53.0 CFM | 1.00 mmH₂O | ₹450 – ₹650 | Unobstructed Case Exhaust & Open Mesh Intake |
Detailed Model Breakdown
1. ARCTIC P12 PWM PST: The Gold Standard for Budget Cooling
The standard ARCTIC P12 is one of the most celebrated case fans in PC building history. Featuring five curved blades designed specifically to overcome air resistance, it delivers impressive static pressure at an accessible price point.
-
Key Strengths: Outstanding price-to-performance ratio, Fluid Dynamic Bearing (FDB) for long life, and PWM PST (PWM Sharing Technology) that allows daisy-chaining multiple fans to a single motherboard header.
-
When to Buy: Ideal for mounting onto CPU air coolers, liquid cooling radiators (AIOs), or behind dense dust filters on case intake panels.

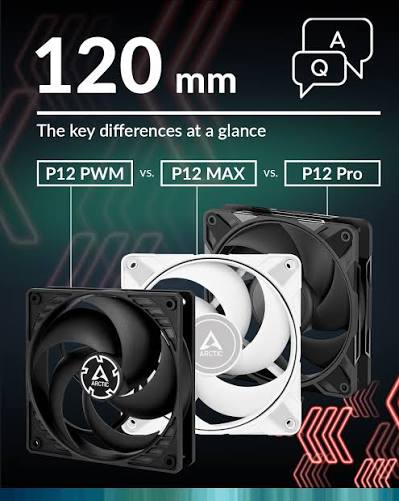

2. ARCTIC P12 Max / P12 Pro: High-RPM Performance Monster
The P12 Max (and P12 Pro variants) upgrades the standard P12 design with a closed outer wheel ring for blade stability, dynamic dual ball bearings, and a massive speed range up to 3,300 RPM.
-
Key Strengths: Monster static pressure (4.35 mmH₂O) capable of pushing air through thick custom water-cooling radiators. Features a 0 dB mode where the fan completely stops when PWM signal drops below 5%.
-
When to Buy: Pick this model if you need maximum cooling performance for heavy workstation or gaming workloads and do not mind higher sound output at peak RPMs.
3. ARCTIC P12 Slim PWM PST: Ultra-Thin for SFF Builds
At just 15mm thick compared to standard 25mm fans, the P12 Slim is engineered specifically for space-constrained Mini-ITX chassis and Small Form Factor cases.
-
Key Strengths: Saves 10mm of critical clearance for oversized GPUs or top-mounted radiators without sacrificing basic static pressure performance.
-
When to Buy: Essential for Small Form Factor (SFF) enclosures (such as the NR200 or FormD T1) where standard 25mm fans contact the GPU or motherboard heatsinks.
4. ARCTIC P14 PWM PST: Higher Airflow at Lower RPMs
If your PC case supports 140mm fan mounts, the ARCTIC P14 offers significantly higher airflow (72.8 CFM) while spinning at lower speeds than its 120mm sibling, resulting in quieter overall operation.
-
Key Strengths: Moves significantly more volume of air per rotation than 120mm fans while maintaining solid static pressure for 280mm or 420mm liquid cooling radiators.
-
When to Buy: Best suited for PC cases with native 140mm front or top fan mounts.
5. ARCTIC F12 PWM PST: Unobstructed Airflow & Exhaust
Unlike the pressure-focused P-series, the ARCTIC F12 uses a multi-blade design optimized purely for moving air through wide-open spaces with minimal resistance.
-
Key Strengths: Moves steady volume at lower RPMs with minimal noise in unrestricted mounting points.
-
When to Buy: Ideal as a dedicated rear or top exhaust fan in cases where air flows out freely without passing through dense filters or radiators.
Recommended Case Fan Configurations for Common Builds
Mid-Tower Mesh Case (Lian Li 216, Corsair 4000D Airflow, Ant Esports 510)
-
Front Intake: 3x ARCTIC P12 PWM PST or 2x ARCTIC P14 PWM PST (overcomes mesh dust filter resistance).
-
Rear Exhaust: 1x ARCTIC F12 or 1x ARCTIC P12 PWM PST.
-
Top Exhaust: 2x ARCTIC P12 PWM PST.
Liquid Cooled Build (240mm or 360mm AIO Radiator)
-
Radiator Push/Pull Fans: Upgrade stock cooler fans to ARCTIC P12 Pro / Max or P12 PWM PST. Their high static pressure forces air efficiently through dense radiator fins.
Small Form Factor SFF / ITX Build
-
Bottom Intake (under GPU): 2x ARCTIC P12 Slim PWM PST.
-
Top Exhaust: 2x ARCTIC P12 Slim PWM PST or 120mm P12 depending on top radiator clearance.
Understanding ARCTIC PWM PST (Daisy-Chaining Made Simple)
Many ARCTIC fans carry the PST designation, which stands for PWM Sharing Technology.
Instead of requiring a separate fan hub or running individual cables back to your motherboard header, a PST fan features a built-in 4-pin splitter socket attached directly to its cable. This allows you to plug Fan 2 into Fan 1, Fan 3 into Fan 2, and so on.
You can chain up to 4 or 5 PST fans together onto a single 1A motherboard fan header, saving money on external hubs while keeping rear cable management clean.
Which ARCTIC Fan Should You Buy?
-
Best Overall for Most Builders: ARCTIC P12 PWM PST (or P12 5-Pack). It handles radiators, intakes, and exhausts reliably while offering unbeatable value.
-
Best for Custom Water Cooling & Heavy Workloads: ARCTIC P12 Max / Pro. It delivers maximum pressure when thermals matter more than acoustics at full load.
-
Best for Small Form Factor (ITX) Builds: ARCTIC P12 Slim. It resolves tight clearance issues underneath long graphics cards or above power supplies.
-
Best for 140mm Radiators & Large Cases: ARCTIC P14 PWM PST. Excellent air volume with a quieter, lower pitch sound profile.
-
Best Budget Rear Exhaust Fan: ARCTIC F12. Inexpensive and efficient for pushing warm air straight out the back of your chassis.
Frequently Asked Questions (FAQs)
Q: What is the difference between ARCTIC P12 and F12 fans?
The ARCTIC P12 is optimized for Static Pressure (pushing air through tight spaces like radiators, heatsinks, and dust filters), whereas the F12 is optimized for Airflow (moving large volumes of air through open, unobstructed spaces like rear case exhausts).
Q: What does "PST" mean on ARCTIC fans?
PST stands for PWM Sharing Technology. ARCTIC PST fans feature a built-in daisy-chain splitter socket attached to the cable, allowing you to connect multiple fans in a chain and control them using a single 4-pin PWM header on your motherboard.
Q: Can I use ARCTIC P12 pressure-optimized fans as regular case fans?
Yes! The ARCTIC P12 is versatile enough to work exceptionally well as a general intake or exhaust case fan, while giving you the added static pressure required if your case front panel has fine mesh or dust filters.
Q: Are ARCTIC P12 Slim fans good for liquid cooling radiators?
While the P12 Slim can be mounted to 120mm or 240mm radiators in tight ITX cases, standard 25mm thick P12 fans deliver superior static pressure. Only use the P12 Slim on radiators if physical clearance prevents using standard thickness fans.
