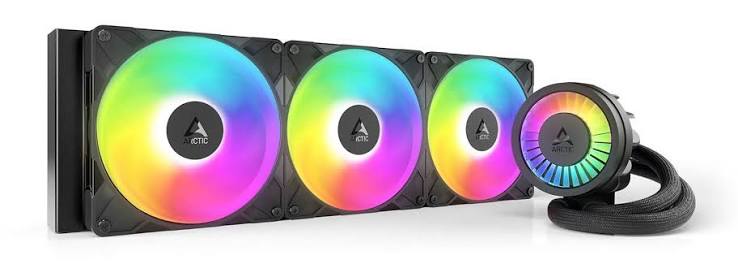

ARCTIC Liquid Freezer III Buying Guide: Pro vs Standard, A-RGB vs Non-RGB, 240mm vs 280mm vs 360mm vs 420mm Explained

Choosing the right all-in-one liquid CPU cooler requires balancing radiator size, case clearance, fan pressure, and aesthetics. The ARCTIC Liquid Freezer III lineup dominates price-to-performance charts, but navigating its expansive catalogue can be tricky. With standard and Pro tiers, multiple colorways, addressable RGB options, and radiator sizes ranging from 240mm to a massive 420mm, selecting the exact model for your build is vital to avoid fitment or cooling issues.

Whether you are evaluating a stealthy all-black 240mm setup or pairing a high-wattage processor with an industrial 420mm unit, this guide details performance variations, physical specs, and socket compatibility across the entire lineup.

Direct-Answer Decision Framework: Which Radiator Size and Tier Do You Need?

Matching your CPU’s thermal design power (TDP) and physical case dimensions to the correct Liquid Freezer III model prevents thermal throttling and unnecessary spending.

240mm Radiator Series (Small Form Factor & Mid-Range Desktop)

• Best CPU Pairings: Intel Core i5 (13400, 14400, 14600K), AMD Ryzen 5 (7600X, 9600X), AMD Ryzen 7 (7700X, 9700X)

• Primary Advantage: Fits almost all standard ATX, Micro-ATX, and many Mini-ITX cases without motherboard clearance issues.

• Consideration: Operates at higher fan speeds under heavy all-core workloads compared to larger radiators, producing slightly more noise.

280mm Radiator Series (High Surface Area for Compact Mid-Towers)

• Best CPU Pairings: AMD Ryzen 7 (7800X3D, 9800X3D), AMD Ryzen 9 (7900X, 9900X), Intel Core i7 (13700K, 14700K)

• Primary Advantage: Twin 140mm fans offer nearly 90% of the radiator surface area of a 360mm model while fitting in cases that lack 360mm top-mount support.

• Consideration: Requires a wider chassis frame. Check that your case explicitly supports 140mm-wide top radiators to avoid colliding with RAM heatsinks.

360mm Radiator Series (The Mainstream Gaming & Workstation Standard)

• Best CPU Pairings: Intel Core i7 (14700K), Intel Core Ultra 9 (285K), AMD Ryzen 9 (7950X, 7950X3D, 9950X, 9950X3D)

• Primary Advantage: The sweet spot for high-power thermal dissipation. Features three 120mm fans for lower noise profiles at high thermal loads.

• Consideration: The total length exceeds 398mm due to end-tanks. Ensure your case front or top panel handles long-format radiators.

420mm Radiator Series (Extreme Workstations & Enclosed Racks)

• Best CPU Pairings: Unlocked flagship CPUs running heavy multi-threaded rendering, heavy overclocking, or continuous 24/7 compute workloads.

• Primary Advantage: Massive thermal mass paired with three 140mm fans delivers low temperatures at minimal noise levels.

• Consideration: Extremely large dimensions (458mm length, 138mm width). Fits only specialized full-tower or dual-chamber enthusiast cases.

Complete Spec Comparison Across the 11 SKUs

The table below provides a comprehensive spec breakdown across the full ARCTIC Liquid Freezer III and Liquid Freezer III Pro family.

Liquid Freezer III vs Liquid Freezer III Pro: What the Pro Tier Adds

When evaluating liquid freezer iii vs pro, understanding the underlying hardware updates helps determine if the upgraded series fits your performance targets.

Standard Liquid Freezer III:
[5-Blade P-Fans (Up to 2000 RPM)] ---> [38mm Thick Radiator] ---> [Coldplate & VRM Fan]

Liquid Freezer III Pro:
[7-Blade P-Pro Fans (Up to 3000 RPM + Stabilizing Ring)] ---> [38mm Thick Radiator] ---> [Coldplate & VRM Fan]

1. Advanced 7-Blade Fan Architecture (P12 Pro Series)

The standard Liquid Freezer III uses 5-blade P12 or P14 static pressure fans. The Pro tier introduces the P12 Pro series, featuring a 7-blade geometric design with an outer stabilizing ring. This structural ring minimizes blade flexing at high RPMs, forcing air straight through the dense 38mm radiator fin stack rather than letting pressure bleed out the sides.

2. Expanded RPM Headroom and Higher Static Pressure

Standard P12 fans peak between 1,800 and 2,000 RPM. The P12 Pro fans expand this ceiling up to 3,000 RPM, producing significantly higher static pressure. This extra headroom keeps high-wattage CPUs cooler during heavy sustained renders.

3. Noise-Normalized Efficiency Gains

Because the 7-blade Pro fans generate greater airflow per revolution, they run quieter than standard 5-blade designs when set to equal noise levels. Internal thermal testing shows CPU temperature drops under heavy loads when comparing the Pro tier directly to standard models running at matching acoustic output.

A-RGB vs Non-RGB: Aesthetics vs Cooling Performance

A common concern when buying an AIO is whether adding lighting compromises fan geometry or thermal transfer.

Standard Non-RGB Fan:  [Opaque Blades] ---> [Maxized Blade Surface Area] ---> 100% Thermal Efficiency
A-RGB Illuminated Fan: [Translucent Blades + Hub LEDs] ---> [Identical Blade Surface Area] ---> 100% Thermal Efficiency

Identical Radiators, Pumps, and Coldplates

Every Liquid Freezer III variant—whether standard black, white A-RGB, or non-RGB—uses the exact same 38mm-thick aluminum radiator, in-house PWM pump, and micro-skived copper coldplate. There is zero difference in heat transfer capability between illuminated and non-illuminated models.

Standardized 3-Pin 5V Connections

ARCTIC avoids proprietary RGB controllers. The A-RGB variants utilize standard 3-pin 5V A-RGB headers that plug straight into motherboards from ASUS, MSI, Gigabyte, and ASRock, allowing full lighting customization via software without extra hub modules.

Radiator Sizing Matrix: Matching Radiators to CPU TDP and Case Clearance

The Liquid Freezer III lineup is thicker than standard AIOs. While most competitors use 27mm radiators, ARCTIC utilizes a 38mm radiator core. Adding 25mm fans brings the total depth to 63mm.

1. 240mm Radiator (Compact & Mid-Tower Friendly)

• Fitment: Compatible with almost all cases with top 240mm mounts.

• Best Use: Mid-range CPUs (up to 180W) or small form factor chassis where vertical clearance is limited.

2. 280mm Radiator (Maximum Area for Narrow Cases)

• Fitment: Requires 140mm-wide mounting tracks. Ensure your motherboard VRM heat spreaders or tall RAM sticks do not collide with the extra 18mm of radiator depth.

• Best Use: High-end CPUs (up to 230W) in cases that do not support 360mm radiators on top.

3. 360mm Radiator (The Enthusiast Standard)

• Fitment: Needs at least 400mm of internal clearance length. Check front-panel GPU clearance if front-mounting the radiator.

• Best Use: Unlocked CPUs running heavy workloads up to 280W.

4. 420mm Radiator (Ultimate Surface Area)

• Surface Area: $420 \text{ mm} \times 140 \text{ mm} = 58,800 \text{ mm}^2$ (36% larger surface area than a 360mm).

• Fitment: Requires specialized full-tower chassis.

• Best Use: Flagship CPUs running uninterrupted render workloads at minimal noise levels.

Recommendations by Build Type

To streamline your selection, match your system profile with these recommendations:

The Stealth Performance Build

• Selected Cooler: Liquid Freezer III 360 (Standard / Non-RGB)

• Why: Unmatched price-to-performance without extra lighting clutter. Ideal for dark chassis, workstation setups, and noise-sensitive spaces.

The All-White Gaming Rig

• Selected Cooler: Liquid Freezer III 240 / 360 A-RGB White

• Why: Matching white radiator frame, white sleeved tubing, and fully illuminated white fans create a clean look for modern dual-chamber glass cases.

The Heavy Overclocking & Rendering Setup

• Selected Cooler: Liquid Freezer III Pro 360

• Why: High static pressure from the 7-blade P12 Pro fans ensures low operational temperatures during long CPU renders.

The Space-Constrained Heavyweight

• Selected Cooler: Liquid Freezer III 280 A-RGB

• Why: Delivers cooling capacity close to a 360mm radiator while fitting into mid-tower cases that only accept 280mm top radiators.

Explore related PC cooling comparisons on our blog, including our complete air cooler comparison post to decide between air and liquid setups, or browse case comparison posts for radiator clearance details before ordering.

Frequently Asked Questions

Q: What's the difference between Liquid Freezer III and Liquid Freezer III Pro?

A: The main difference lies in fan technology and peak performance. Standard models feature 5-blade P-series fans running up to 1,800–2,000 RPM, while Pro models feature 7-blade P-Pro series fans with an outer stabilizing ring, reaching up to 3,000 RPM for higher static pressure and lower noise-normalized thermals.

Q: Does A-RGB affect cooling performance?

A: No. The radiator thickness, pump motor, coldplate, and overall fan blade profiles are functionally identical between non-RGB and A-RGB variants. Choosing A-RGB is purely an aesthetic choice.

Q: What radiator size do I need for a high-end CPU?

A: For CPUs like the Intel Core i7 14700K, Intel Core Ultra 9 285K, or AMD Ryzen 9 7950X, a 360mm or 280mm radiator is recommended to handle sustained thermal loads without throttling. Moderate gaming setups running Ryzen 5 or Core i5 chips can comfortably use a 240mm unit.
