Gamers stepping up from older mid-tier graphics cards often face a clear barrier: demanding native 1440p high-refresh targets and entry-level 4K gaming require significant compute density and memory bandwidth. AMD’s RDNA 4 architecture targets this exact sweet spot by introducing 3rd Gen Ray Tracing accelerators, hardware-based FSR 4 upscaling pipelines, and high-speed PCIe 5.0 bandwidth. The ASRock Radeon RX 9070 XT Challenger 16GB graphics card represents a value-focused execution of this high-tier GPU, swapping unnecessary RGB lighting for an aggressive thermal assembly and high-durability power delivery.
Built with a full 16GB GDDR6 memory buffer on a 256-bit bus, the Challenger variant ensures modern games running high-resolution texture packs operate without memory starvation. This asrock radeon rx 9070 xt challenger 16gb graphics card review covers the card's full technical layout, thermal assembly, power consumption, cabinet fitment, and overall purchase value for PC builders in India.
Direct-Answer Verdict: Who Is This Card For?
The ASRock Radeon RX 9070 XT Challenger 16GB is designed for competitive and AAA gamers seeking high-FPS 1440p performance alongside entry-level 4K capabilities. Listed at ₹66,199 (as of 13 Jul 2026), it prioritizes performance-per-Rupee by implementing a triple-fan cooling system, dual 8-pin PCIe power inputs, and a rigid metal backplate.
+---------------------------------------------------------------------------------------------+
| QUICK VERDICT GPU MAP |
+-----------------------------------+---------------------------------------------------------+
| Target Audience | High-FPS 1440p Gamers, Entry 4K Builders |
| Architecture / Node | AMD RDNA 4 / TSMC 4nm (Navi 48 XTX) |
| Key Highlight | 4096 Shaders + 16GB GDDR6 (256-Bit) + Triple-Fan 0dB |
| Core Value Position | Unlocked 9070 XT silicon in a non-RGB value shroud |
+-----------------------------------+---------------------------------------------------------+
Technical Specifications Breakdown
The RX 9070 XT Challenger features the fully configured Navi 48 XTX silicon. It pairs 4,096 stream processors with a 16GB GDDR6 memory buffer running across a 256-bit memory bus at 20 Gbps.
| Specification | Hardware Configuration |
| GPU Architecture | AMD RDNA 4 (Navi 48 XTX) |
| Compute Units / Shaders | 64 CUs / 4,096 Stream Processors |
| Ray Accelerators / AI Cores | 64 (3rd Gen RT) / 128 (2nd Gen AI Accelerators) |
| Engine Clocks | Game Clock: 2,400 MHz | Boost Clock: Up to 2,970 MHz |
| VRAM Capacity & Type | 16GB GDDR6 |
| Memory Bus & Bandwidth | 256-bit @ 20 Gbps (644.6 GB/s Bandwidth + 64MB Infinity Cache) |
| Bus Interface | PCI Express 5.0 x16 |
| Video Outputs | 3x DisplayPort 2.1a, 1x HDMI 2.1b |
| Physical Dimensions | 290mm (L) x 123mm (W) x 56mm (H) [2.8-Slot Form Factor] |
| Board Power & Connectors | 304W TBP | 2x 8-pin PCIe Power Connectors |
Checking current asrock radeon rx 9070 xt challenger 16gb graphics card price india metrics shows that stepping up to the "XT" variant grants 14% more compute units and higher boost clock ceilings than standard non-XT models.
Realistic Gaming Performance Target: 1440p High-FPS & Entry 4K
The RX 9070 XT 16GB targets demanding multi-resolution gaming workloads. Its 4,096 stream processors combined with 64MB of 3rd Gen Infinity Cache provide substantial rendering throughput.
[ 1080p Resolution ] ───► Overkill (For 240Hz/360Hz Competitive eSports)
[ 1440p Resolution ] ───► SWEET SPOT (Max Settings + High FPS + Heavy RT)
[ 4K Resolution ] ───► ENTRY 4K (60+ FPS via Native or FSR 4 Quality)
-
High-FPS 1440p Gameplay: Easily pushes past high-refresh-rate thresholds in modern titles at ultra graphic settings.
-
Entry-Level 4K Gaming: The 16GB VRAM buffer and 644.6 GB/s memory bandwidth handle 3840x2160 textures cleanly.
-
3rd Gen Ray Tracing & FSR 4: Dedicated ray accelerators handle real-time global illumination and complex reflections, while FSR 4 and Fluid Motion Frames boost frame delivery in heavy titles.
Cooling Architecture & Mechanical Quality
ASRock optimizes the Challenger's thermal setup to keep noise low while managing the 304W Total Board Power.
[ Triple Striped Axial Fans (0dB Silent Cooling) ]
│
▼
[ Direct-Contact Copper Baseplate & Dense Fin Array ]
│
▼
[ Dr. MOS Smart Power Stage (SPS) + Japanese SP-Caps ]
│
▼
[ High-Torque Screws & Rigid Metal Backplate ]
Thermal & Electrical Features
-
Triple Fan Layout with 0dB Silent Mode: Three Striped Axial fans route air through the aluminum fin stack, switching off completely during low-load tasks for silent desktop usage.
-
Direct-Contact Copper Heatsink: A high-density copper base contacts the GPU die and VRAM modules directly to speed up heat migration into composite heatpipes.
-
Dr. MOS Smart Power Stage (SPS): Monitors current and temperature across individual power phases to maintain clean Vcore delivery under full load.
-

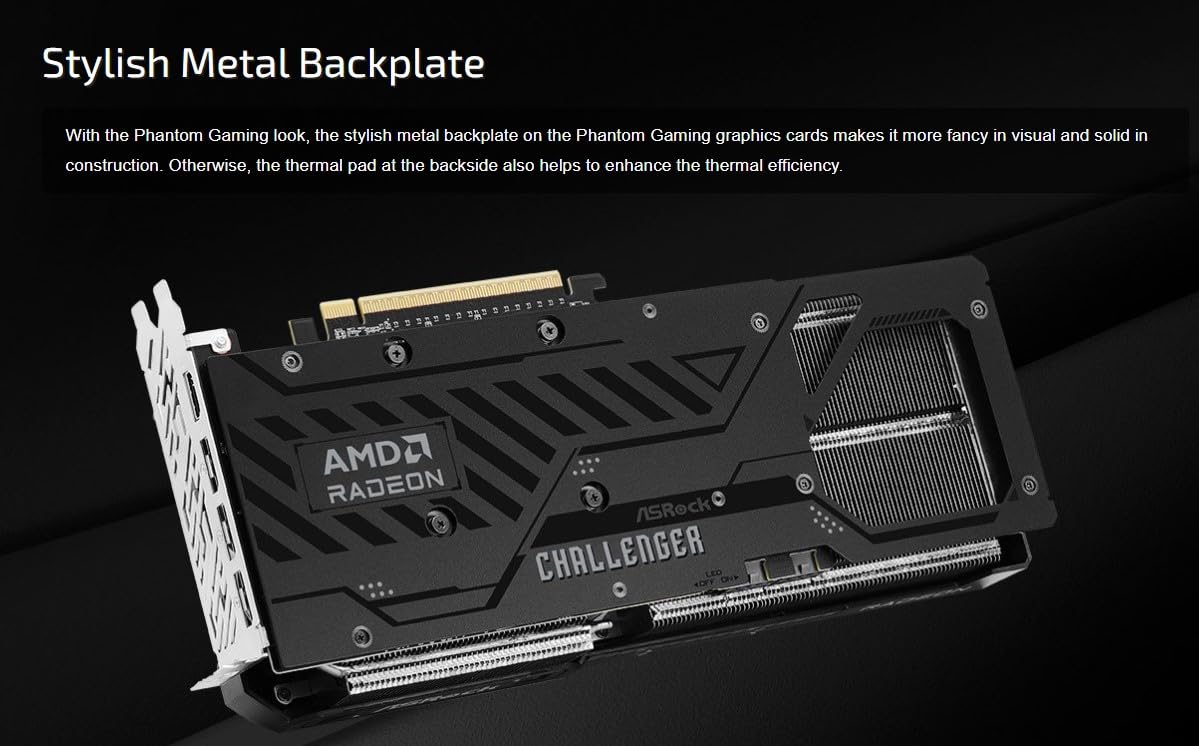

Metal Backplate: Reinforces the card against sagging while aiding heat dissipation across the back of the PCB.
Brand Comparison: AIB Partner Alternatives
Comparing the ASRock Challenger to alternative custom models highlights key thermal and sizing differences:
| Feature / Model | ASRock RX 9070 XT Challenger | ASRock RX 9070 XT Steel Legend | Sapphire PURE RX 9070 XT OC |
| Cooler Design | Triple-Fan (Matte Black) | Triple-Fan (ARGB / White) | Triple-Fan (Frost White) |
| Boost Clock | Up to 2,970 MHz | Up to 2,970 MHz+ Factory OC | Factory Overclocked |
| Card Length | 290 mm | 298 mm | ~320 mm |
| Slot Thickness | 2.8 Slot (56mm) | 3.0 Slot | ~3.0 Slot |
| Lighting | Stealthy / Minimal LED | ARGB Polychrome Sync | White LED Accent |
The Challenger variant provides full RX 9070 XT performance within a manageable 290mm length. To check real-time availability across various models, visit our [ASRock product page].
Power Requirements and Case Clearance
Verifying physical case dimensions and power supply capacity prevents installation bottlenecks.
PSU & Power Specs
-
Recommended Minimum PSU: 750W (80 PLUS Gold certified recommended).
-
Power Connectors: 2x 8-pin PCIe standard cables (no 12V-2x6 adapters required).
-
Total Board Power (TBP): 304 Watts maximum.
Physical Dimensions
-
Length: 290 mm — Standard length compatible with almost all mid-tower ATX and Micro-ATX cases.
-
Height: 123 mm — Fits comfortably without pressing power cables against side glass panels.
-
Thickness: 56 mm (2.8 slots) — Requires 3 expansion slots of clearance inside the cabinet.
For full system pairing recommendations, explore our [matching-tier build guide] to select the right CPU and power supply. You can also view our [RTX 50-series or RX 9000-series pricing post] for broad current-gen comparisons.
Why Choose StudBudPC for Your Custom Build?
Direct Hardware Sourcing & Stress-Tested Assembly
Sourcing high-performance graphics cards requires clear warranty backing and authentic distribution. At StudBudPC, operating out of Mumbai's Girgaon tech district, every component and custom gaming system is backed by 100% genuine sourcing, valid GST invoices, and comprehensive thermal benchmarking before dispatch. Whether you need single-part upgrades or full custom-built rigs, our team provides compatibility validation and nationwide technical support across India.
Is it Right for Your Build? (Buying Advice)
Buy This Card If:
-
You target high-FPS 1440p gaming or smooth entry 4K resolution.
-
You prefer standard 2x 8-pin PCIe power cables over 16-pin power adapters.
-
You need a powerful triple-fan GPU that fits within a 290mm length footprint.
-
You are looking for a performance-focused entry in the asrock graphics card india 2026 market.
Pass on This Card If:
-
You are on a strict 1080p budget (a lower-tier GPU like the RX 9070 non-XT offers better value for 1080p).
-
You want extensive ARGB lighting integrated directly onto the shroud.
Frequently Asked Questions
Q: What resolution is the ASRock Radeon RX 9070 XT Challenger 16GB best suited for?
It is engineered for high-refresh-rate 1440p (2560x1440) resolution and entry-level 4K (3840x2160) gaming. Its 16GB GDDR6 memory buffer and 644.6 GB/s memory bandwidth ensure smooth performance in high-texture titles.
Q: What PSU wattage does this card need?
ASRock and AMD recommend a minimum 750W power supply. The card draws up to 304W under full load and connects using two standard 8-pin PCIe power cables.
Q: How does this compare to the equivalent card from other brands in stock?
The ASRock Challenger provides the full 4096-shader RX 9070 XT silicon in a compact 290mm frame. While alternative models like the Steel Legend add ARGB lighting, the Challenger focuses strictly on cooling performance and affordability.
Final Thoughts
The ASRock Radeon RX 9070 XT Challenger 16GB delivers heavy-duty gaming compute for 1440p and 4K setups. Combining 16GB of GDDR6 memory, a 256-bit bus, a 290mm triple-fan cooler, and straightforward 8-pin power delivery, it remains a standout high-performance option for builders across India.
