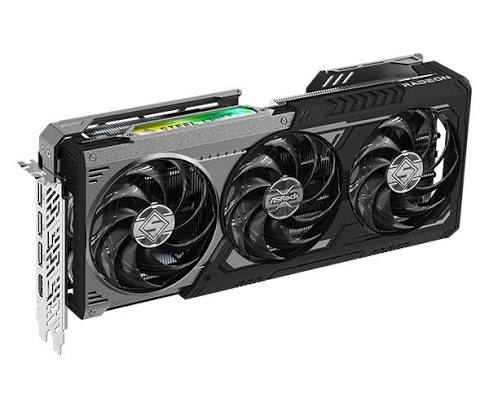

High-refresh 1440p gaming and entry-level 4K rendering require substantial raw compute density, efficient Ray Tracing pipelines, and generous video memory buffers. AMD’s RDNA 4 architecture targets this competitive tier by pairing 3rd Gen Ray Accelerators, 2nd Gen AI matrix acceleration, and PCI Express 5.0 speed. The ASRock Radeon RX 9070 XT Steel Legend Dark 16GB graphics card provides a refined interpretation of this silicon. It replaces white shrouds with a dark, stealthy matte finish, an all-metal backplate, and an aggressive triple-fan cooling system built for thermal endurance.
Featuring a full 16GB GDDR6 frame buffer across a 256-bit memory interface, the Steel Legend Dark variant is engineered to keep ultra-high resolution texture packs loading smoothly without memory starvation. This asrock radeon rx 9070 xt steel legend dark 16gb graphics card review evaluates the GPU’s physical construction, architectural layout, cooling design, power demands, cabinet clearance, and long-term purchase value for PC builders in India.
Direct-Answer Verdict: Who Is This Card For?
The ASRock Radeon RX 9070 XT Steel Legend Dark 16GB is built specifically for gamers and creators seeking high-FPS 1440p performance alongside entry 4K gaming. Listed at ₹71,663 (as of 13 Jul 2026), it prioritizes high thermal stability, a sleek non-white aesthetic, dual 8-pin PCIe power inputs, and a structural anti-sag backplate.
+---------------------------------------------------------------------------------------------+
| QUICK VERDICT GPU MAP |
+-----------------------------------+---------------------------------------------------------+
| Target Audience | High-FPS 1440p Gamers, Entry 4K Builders, Content Creators
| Architecture / Node | AMD RDNA 4 / TSMC 4nm (Navi 48 XTX) |
| Key Highlight | 4,096 Shaders + 16GB GDDR6 (256-Bit) + Triple Axial 0dB |
| Core Value Position | Unlocked 9070 XT performance in a dark stealth shroud |
+-----------------------------------+---------------------------------------------------------+
Technical Specifications Breakdown
The RX 9070 XT Steel Legend Dark utilizes the fully unlocked Navi 48 XTX die fabricated on TSMC's 4nm process. It combines 4,096 stream processors with a fast 16GB GDDR6 VRAM configuration running across a 256-bit bus at 20.1 Gbps.
| Specification | Hardware Configuration |
| GPU Architecture | AMD RDNA 4 (Navi 48 XTX) |
| Compute Units / Shaders | 64 CUs / 4,096 Stream Processors |
| Ray Accelerators / AI Cores | 64 (3rd Gen RT) / 128 (2nd Gen AI Accelerators) |
| Engine Clocks | Base Clock: 1,660 MHz | Game: 2,400 MHz | Boost: Up to 2,970 MHz |
| VRAM Capacity & Type | 16GB GDDR6 |
| Memory Bus & Bandwidth | 256-bit @ 20.1 Gbps (645 GB/s Bandwidth + 64MB Infinity Cache) |
| Bus Interface | PCI Express 5.0 x16 |
| Video Outputs | 3x DisplayPort 2.1a, 1x HDMI 2.1b |
| Physical Dimensions | 298mm (L) x 131mm (W) x 58mm (H) [3-Slot Form Factor] |
| Board Power & Connectors | 304W TBP | 2x 8-pin PCIe Power Connectors |
Examining current asrock radeon rx 9070 xt steel legend dark 16gb graphics card price india metrics confirms that stepping up to the Steel Legend Dark tier equips builders with a premium PCB layout, Dr. MOS power stages, and addressable LED controls over basic reference platforms.
Realistic Gaming Performance Target: 1440p High-FPS & Entry 4K
The RX 9070 XT 16GB handles demanding modern graphic pipelines cleanly. Its 4,096 stream processors and 64MB of 3rd Gen Infinity Cache maintain high frame rendering speeds across heavy resolutions.
[ 1080p Resolution ] ───► Overkill (Ideal for 240Hz+ Competitive eSports)
[ 1440p Resolution ] ───► SWEET SPOT (Max Settings + High FPS + RT Enabled)
[ 4K Resolution ] ───► ENTRY 4K (60+ FPS via Native or FSR 4 Quality)
-
Max-Setting 1440p Gaming: Easily exceeds high-refresh monitor thresholds in AAA titles with maximum graphic presets enabled.
-
Entry 4K UHD Capability: The 16GB GDDR6 frame buffer and 645 GB/s memory bandwidth handle 3840x2160 textures cleanly without triggering out-of-memory stutters.
-
3rd Gen Ray Tracing & FSR 4: Dedicated ray accelerators process complex reflections and real-time global illumination, while FSR 4 multi-frame generation boosts overall output in ray-traced workloads.
Cooling Architecture & Mechanical Build Quality
ASRock designs the Steel Legend Dark's thermal module to dissipate the 304W Total Board Power efficiently while keeping acoustic output low.
[ Triple Axial Ring Fans (0dB Silent Cooling) ]
│
▼
[ Direct-Contact Copper Heatsink & High-Density Fin Stack ]
│
▼
[ Dr. MOS Smart Power Stage (SPS) & Premium Chokes ]
│
▼
[ Addressable ARGB Header & Rigid Metal Backplate ]
Key Hardware Features
-
Triple Axial Fans with 0dB Silent Cooling: Three 90mm axial fans direct airflow across dense aluminum cooling fins, stopping completely during low-load tasks for silent desktop usage.
-
Direct-Contact Copper Heatsink: A high-density copper base makes direct contact with the Navi 48 die and GDDR6 VRAM chips to transfer thermal energy rapidly into heatpipes.
-
Dr. MOS Power Phases: Delivers monitored power delivery to the GPU cores, ensuring continuous stability under sustained gaming sessions.
-
Dark Metal Backplate: Provides structural support to prevent PCB sagging over time while serving as a passive heat spreader for rear-mounted components.
Brand Comparison: AIB Partner Alternatives
Comparing the Steel Legend Dark against alternative custom models on StudBudPC illustrates its structural and aesthetic advantages:
| Feature / Model | ASRock Steel Legend Dark | ASRock RX 9070 XT Challenger | Sapphire PURE RX 9070 XT |
| Aesthetic / Finish | Stealth Dark / Subtle ARGB | Matte Black / Minimal LED | All-White / Frost Lighting |
| Cooler Footprint | 3-Slot (298mm x 131mm) | 2.8-Slot (290mm x 123mm) | 3-Slot (~320mm) |
| Card Weight | 1,155 grams | 1,038 grams | ~1,250 grams |
| Boost Clock | Up to 2,970 MHz | Up to 2,970 MHz | Factory Overclocked |
| Power Connectors | 2x 8-pin PCIe | 2x 8-pin PCIe | 2x 8-pin PCIe |
The Steel Legend Dark delivers full RX 9070 XT compute power in a dark, high-rigidity 298mm frame. To review live availability across models, visit our ASRock product page.
Power Requirements and Case Clearance
Checking physical expansion clearance and power delivery before buying prevents installation issues.
Power & Electrical Specs
-
Recommended Minimum PSU: 750W (80 PLUS Gold certified recommended).
-
Power Connectors: 2x 8-pin PCIe standard cables (no 12V-2x6 power adapters required).
-
Board Power Draw: 304 Watts maximum.
Physical Dimensions & Case Fit
-
Length: 298 mm — Fits standard ATX mid-tower and M-ATX chassis.
-
Height: 131 mm — Standard height that allows comfortable side-panel glass clearance.
-
Thickness: 58 mm (3 full PCIe slots) — Requires three expansion slots of clearance inside the PC cabinet.
To view full PC build layouts, check out our matching-tier build guide to pair this card with workstation/gaming CPUs and certified power supplies. You can also view our RTX 50-series or RX 9000-series pricing post for broader comparisons across current-gen offerings.
Is it Right for Your Build? (Buying Advice)
Buy This Card If:
-
You target high-FPS 1440p gaming or smooth entry 4K resolution.
-
You prefer a dark, stealthy aesthetic with subtle ARGB lighting over bright white shrouds.
-
You want standard 2x 8-pin PCIe power inputs instead of high-power adapter dongles.
-
You are searching for a high-build-quality option in the asrock graphics card india 2026 catalog.
Pass on This Card If:
-
You are building a budget 1080p system (a lower-tier card like the RX 9070 non-XT offers better value for 1080p).
-
You are assembling an all-white PC build (the standard white Steel Legend variant matches white themes better).
Frequently Asked Questions
Q: What resolution is the ASRock Radeon RX 9070 XT Steel Legend Dark 16GB best suited for?
It is built primarily for high-refresh-rate 1440p (2560x1440) resolution and entry-level 4K (3840x2160) gaming. Its 16GB GDDR6 memory buffer and 645 GB/s memory bandwidth ensure smooth performance in modern high-texture games.
Q: What PSU wattage does this card need?
ASRock recommends a minimum 750W power supply. The card draws 304W under full load and connects via two standard 8-pin PCIe power cables.
Q: How does this compare to the equivalent card from other brands in stock?
The Steel Legend Dark delivers the full 4,096-shader RX 9070 XT silicon in a 298mm dark shroud with addressable ARGB and a reinforced metal backplate. It offers higher rigidity and superior cooling over entry models while avoiding white-themed aesthetics.
Final Thoughts
The ASRock Radeon RX 9070 XT Steel Legend Dark 16GB provides an excellent balance of raw compute power, dark styling, and thermal cooling for modern PC builds. Combining a 16GB GDDR6 buffer, a 256-bit bus, a 298mm triple-fan cooler, and straightforward 8-pin power connectivity, it stands out as a top-tier option for builders across India.
