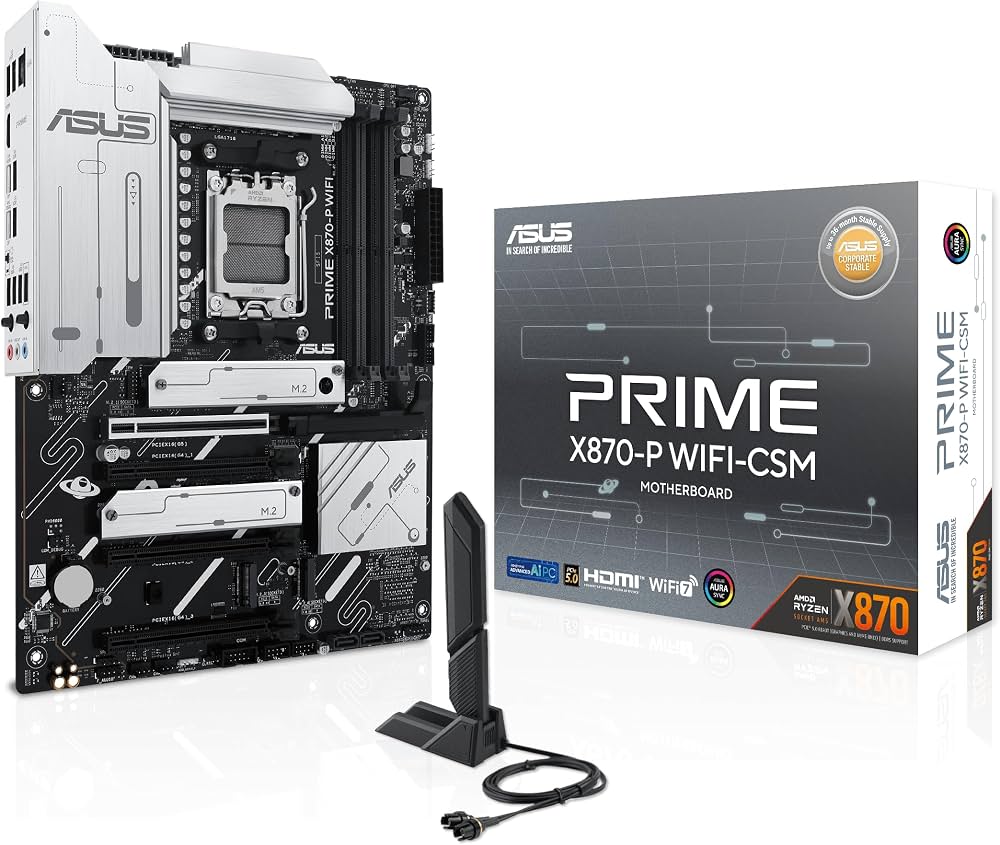

ASUS PRIME X870-P WIFI-CSM ATX Motherboard: X870 Motherboard Review and Buying Guide for India

AMD's Socket AM5 ecosystem enters its mature phase with the X870 chipset family, introducing mandatory USB4 support, refined PCIe 5.0 lane distribution, and next-generation wireless networking. Sitting right at the entry point of this high-end platform is the ASUS PRIME X870-P WIFI-CSM ATX motherboard.

Designed for builders who want future-proof platform capabilities without paying for flashy RGB cosmetics or extreme overbuilt heatsinks, this board balances core performance with corporate-grade stability features via the Corporate Stable Model (CSM) ecosystem.

Whether you are assembling a productivity workstation or a high-framerate gaming rig, this asus prime x870 p wifi csm atx motherboard review breaks down its VRM capabilities, connectivity suite, and absolute value position for buyers in India.

Direct-Answer Verdict: Who Is This Board For?

The ASUS PRIME X870-P WIFI-CSM targets builders assembling high-performance mid-range to upper-tier AMD Ryzen builds who require native USB4 ports, PCIe 5.0 GPU support, and Wi-Fi 7 connectivity. It strips away expensive cosmetic shrouds to deliver a rock-solid, functional board that handles multi-core workloads reliably.

+---------------------------------------------------------------------------------------------+
|                                    QUICK VERDICT BOARD MAP                                  |
+-----------------------------------+---------------------------------------------------------+
| Target Audience                   | Content Creators, Workstations, Mid-to-High Gaming Rigs |
| Platform Socket                   | AMD Socket AM5 (Ryzen 7000 / 8000 / 9000 Series)        |
| Key Highlight                     | Dual USB4 40Gbps Ports + Wi-Fi 7 + PCIe 5.0 Peg Slot    |
| Core Value Position               | Entry point into complete X870 platform feature-set     |
+-----------------------------------+---------------------------------------------------------+

Key Specs & Platform Overview

What the X870 Chipset Unlocks on AM5

Upgrading to an X870 motherboard introduces structural baseline changes compared to older 600-series chipsets. AMD made several previous optional features mandatory for X870 certification:

• Mandatory Dual 40Gbps USB4 Ports: Driven by discrete controllers or chipset integration, every X870 board features high-speed Type-C display and data outputs out of the box.

• Simultaneous PCIe 5.0 for GPU and M.2: The primary PCIe x16 slot and at least one M.2 storage slot operate on dedicated PCIe 5.0 lanes coming straight from the CPU without bandwidth splitting on 16-lane processors.

• Native Wi-Fi 7 Standard: Integrates high-bandwidth 160MHz network controllers for wireless throughput reaching up to 2.9 Gbps.

• Enhanced Memory Trace Layouts: Optimizations in multi-layer PCB design allow for higher stable memory overclocks using AMD EXPO profiles.

If you are looking for the best x870 motherboard india 2026 builds can utilize for long-term platform longevity, these platform updates ensure complete hardware compatibility with upcoming generations of storage drives and high-speed external capture devices. You can explore our dedicated [motherboard chipset guide] for an in-depth lane routing breakdown between B650, X670, and X870 platforms.

VRM Quality, Power Stages, and Thermal Performance

A critical aspect of any motherboard evaluation is determining whether its Voltage Regulator Module (VRM) can handle power-hungry flagship processors under sustained all-core stress tests.

       [ 8+8 Pin ProCool Power ]
                  │
                  ▼
   [ 14 + 2 + 1 Power Stage Array ]  ◄── (80A DrMOS per Phase)
                  │
                  ▼
   [ Dual Heavy Cut Aluminum Heatsinks ]
                  │
                  ▼
   [ AM5 Socket: Clean Power to CPU ]

The PRIME X870-P WIFI-CSM features a 14+2+1 power stage design, with each phase utilizing 80-Ampere DrMOS integrated MOSFETs. Power is delivered via dual 8-pin ProCool solid-pin connectors to ensure stable current flow without connector pin melt under heavy amperage draw.

VRM Thermal & Power Capabilities

• High-Load Sustained Power Handling: The 14 Vcore power stages easily deliver over 200W of continuous power. This makes the board fully capable of driving processors like the Ryzen 9 7950X or Ryzen 9 9950X at stock power limits or with Precision Boost Overdrive (PBO) engaged.

• Heatsink Surface Area: ASUS utilizes two thick silver-anodized aluminum VRM heatsinks connected via high-conductivity thermal pads over the MOSFETs and chokes. Even during extended video rendering loops, VRM temperatures stay well within safe operating limits.

• 8-Layer PCB Construction: The use of an 8-layer printed circuit board acts as a passive heat spreader, pulling thermal energy away from the VRM cluster while stabilizing signal integrity for high-speed DDR5 memory traces.

For mid-range processors like the Ryzen 7 7800X3D or Ryzen 7 9700X, this VRM configuration operates with complete thermal headroom, keeping fan profiles silent. Check out our comprehensive [matching CPU review] collection to pair the right processor with this motherboard.

Layout, DIY Features, and Storage Expansion

Building inside a modern PC chassis requires thoughtful motherboard component placement to avoid clearance issues with large graphics cards and liquid cooling radiators.

+-------------------------------------------------------------------------+
|  [Rear I/O + USB4]     [ AM5 SOCKET ]           [ 4x DDR5 DIMMs ]      |
|                        [ VRM HEATSINKS ]                                |
|                                                                         |
|  [PCIe 5.0 M.2 Shield]                                                  |
|  =====================================================================  |
|  [ PCIe 5.0 x16 SafeSlot (with Q-Release Button) ]                     |
|  =====================================================================  |
|     [ M.2 Slot 2 (PCIe 4.0) ]       [ Chipset Heatsink ]               |
|     [ M.2 Slot 3 (PCIe 4.0) ]       [ 2x SATA Ports ]                  |
|     [ M.2 Slot 4 (PCIe 3.0) ]                                          |
+-------------------------------------------------------------------------+

Storage Configuration Matrix

The board supports up to four M.2 NVMe drives simultaneously:

1. M.2_1 (Top Slot): Connected to CPU, supports up to PCIe 5.0 x4 (128 Gbps) speeds with a dedicated passive aluminum heatsink.

2. M.2_2 (Middle Slot): Connected to X870 Chipset, runs at PCIe 4.0 x4 speeds. Includes a movable flexible heatsink.

3. M.2_3 (Lower Slot): Connected to X870 Chipset, runs at PCIe 4.0 x4 speeds.

4. M.2_4 (Bottom Slot): Runs at PCIe 3.0 x2 speeds (Note: shares bandwidth with SATA6G_1/2 ports).

DIY-Friendly Mechanisms

ASUS has backported several premium ease-of-use innovations down to the PRIME series:

• PCIe Slot Q-Release: A mechanical latch button near the RAM slots releases the primary PCIe 5.0 x16 GPU latch automatically, eliminating the need to poke screwdrivers into tight spaces under massive graphics cards.

• M.2 Q-Latch: Uses simple plastic swivel locks to secure NVMe SSDs in place, completely eliminating tiny M.2 mounting screws.

• Pre-Mounted I/O Shield: Simplifies installation inside the cabinet while providing integrated grounding and protection for the rear ports.

• BIOS FlashBack Button: Allows you to update or recover the motherboard BIOS using just a USB flash drive and power supply connection—no CPU or RAM installation required.

Corporate Stable Model (CSM) Benefits for Workstations

The CSM designation in the product name denotes ASUS Corporate Stable Model certification. While aimed primarily at commercial deployments, it provides key advantages for individual system builders and professional freelancers in India:

+-------------------------------------------------------------------------+
|                       ASUS CSM VALUE STACK                              |
+------------------------------------+------------------------------------+
| Feature                            | Real-World User Benefit            |
+------------------------------------+------------------------------------+
| 36-Month Product Lifecycle         | Long-term replacement availability |
| 6-Month EOL Notification           | Advance notice for platform shifts |
| ASUS Control Center Express        | Enterprise-grade remote monitoring |
+------------------------------------+------------------------------------+

The included ASUS Control Center Express software license provides endpoint management, real-time hardware health checks, and automatic software update scheduling—making it ideal for home-office workstations, rendering farms, or small enterprise networks.

Comparison: PRIME X870-P WIFI-CSM vs. Platform Alternatives

Choosing the right motherboard requires placing it alongside lower-tier B650 options and higher-tier ROG Strix offerings.

Evaluating the competitive lineup shows that step-up boards like the ROG Strix X870-A add white aesthetic shrouding, slightly higher-amperage VRMs, and onboard audio upgrades. However, the PRIME X870-P WIFI-CSM delivers identical core bandwidth, Wi-Fi 7 speeds, and dual USB4 capabilities for significantly less money. Browse our full [Asus motherboard category] to view side-by-side specifications for all current AM5 boards.

Is it Right for Your Build? (Buying Advice)

Buy This Motherboard If:

• You want dual USB4 40Gbps ports for fast external storage arrays, capture cards, or multi-monitor setups.

• You plan to run powerful processors like the Ryzen 7 9800X3D or Ryzen 9 9900X and need clean, efficient power delivery.

• You need Wi-Fi 7 and 2.5Gb Ethernet for high-speed wireless networks and local NAS file transfers.

• You prefer a subtle black-and-silver workstation aesthetic over high-density RGB lighting.

Pass on This Motherboard If:

• You are building on a tight budget where a basic B650 board provides all the connectivity you need.

• You require optical audio output (S/PDIF out on the rear panel) or high-end discrete onboard audio DACs.

• You are building a themed white PC build (where options like the ROG Strix X870-A fit better visually).

Frequently Asked Questions

Q: What CPUs is the X870 chipset compatible with?

The X870 chipset uses AMD's AM5 socket and is natively compatible with AMD Ryzen 9000 series, Ryzen 8000 series, and Ryzen 7000 series desktop processors. AMD has committed to supporting Socket AM5 through 2027 and beyond, allowing you to drop in future processor upgrades on the same motherboard with a simple BIOS update.

Q: Is this board overkill or underpowered for a mid-range Ryzen build?

It hits the sweet spot. For a mid-range CPU like the Ryzen 5 7600X or Ryzen 7 9700X, the 14+2+1 80A power stages run completely cool and offer massive overclocking headroom. It is not underpowered for any flagship AM5 chip, nor is it overkill if you plan to keep your system for 4–5 years and want native USB4 and Wi-Fi 7 connectivity.

Q: Does this motherboard support memory overclocking (EXPO/XMP)?

Yes. The ASUS PRIME X870-P WIFI-CSM fully supports AMD EXPO (Extended Profiles for Overclocking) and Intel XMP profiles. It includes ASUS Enhanced Memory Profile (AEMP) to automatically optimize timing parameters for unbuffered DDR5 memory kits, supporting overclocked speeds up to DDR5-8000+.

Final Thoughts

The ASUS PRIME X870-P WIFI-CSM is a well-rounded, reliable AM5 motherboard. By focusing on modern connectivity standards—such as native USB4, PCIe 5.0 graphics support, Wi-Fi 7, and four M.2 slots—it delivers everything the X870 platform promises. Combined with corporate-grade software support and DIY mechanisms like Q-Release, it stands out as a dependable foundation for any high-performance PC build in India you can find your best pricing at studbudpc.
