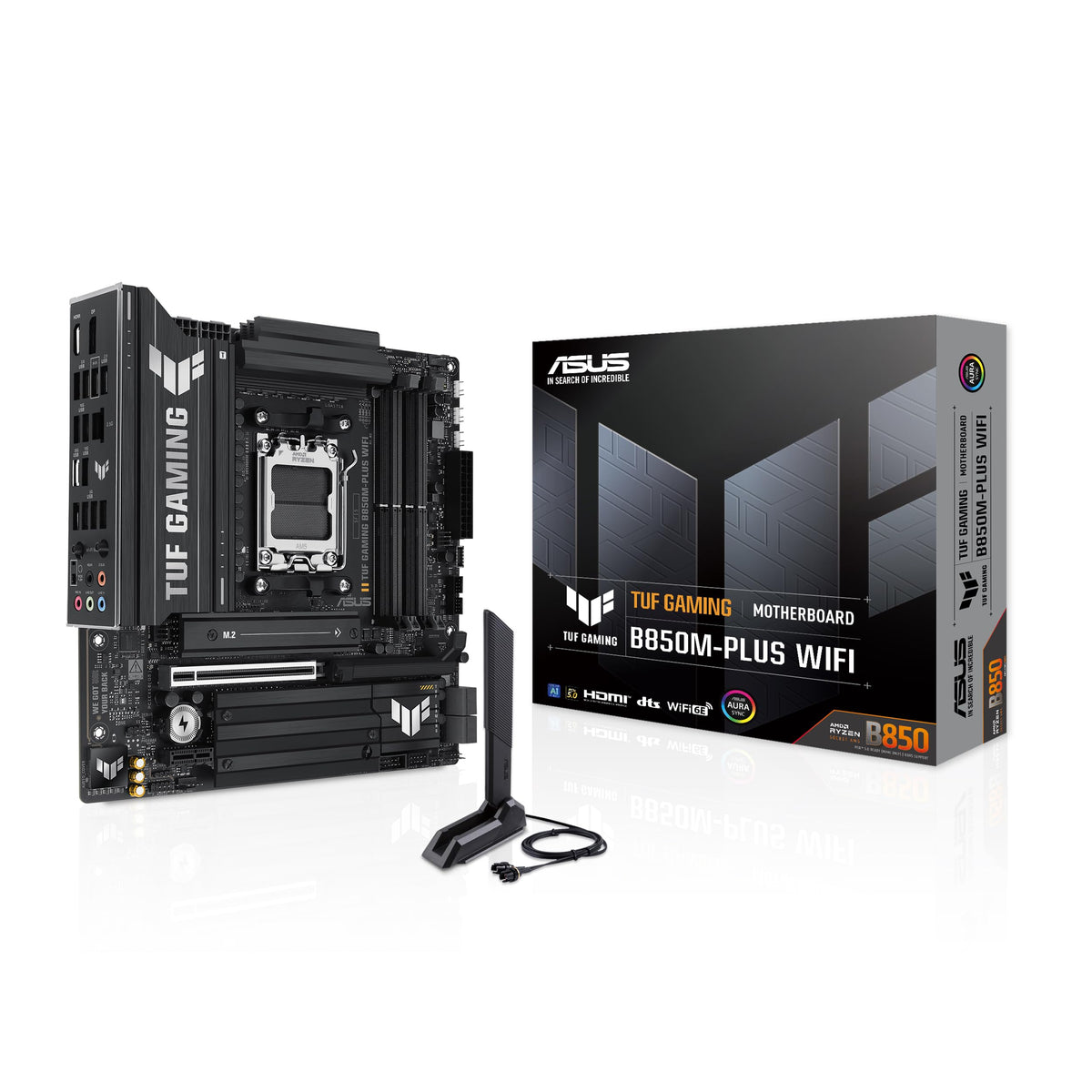

Compact PC builds no longer require compromises on VRM thermals or expansion capabilities. With AMD expanding its Socket AM5 chipset portfolio, Micro-ATX motherboards have become the preferred choice for builders wanting a high-density, space-saving PC without sacrificing performance. The ASUS TUF GAMING B850M-PLUS WIFI mATX motherboard leads this category by combining military-grade TUF components with the core feature set of the B850 platform.
Designed for gamers, content creators, and compact workstation users, this board delivers robust power delivery, native PCIe 5.0 graphics support, and high-speed wireless connectivity in a smaller footprint. This asus tuf gaming b850m plus wifi matx motherboard review evaluates the board's VRM capabilities, thermal design, slot layout, and overall value for buyers in India.
Direct-Answer Verdict: Who Is This Board For?
The ASUS TUF GAMING B850M-PLUS WIFI targets system builders assembling high-performance mid-range to high-end AMD Ryzen PCs inside compact mATX or small-form-factor chassis. Priced at ₹23,888 (as of 13 Jul 2026), it strips away unnecessary cosmetic accessories to offer a 14+2+1 80A power delivery system, full PCIe 5.0 GPU support, three M.2 slots, and Wi-Fi 7 networking.
+---------------------------------------------------------------------------------------------+
| QUICK VERDICT BOARD MAP |
+-----------------------------------+---------------------------------------------------------+
| Target Audience | Compact Workstation Builders, mATX Gamers, Streamers |
| Platform Socket | AMD Socket AM5 (Ryzen 7000 / 8000 / 9000 Series) |
| Key Highlight | 14+2+1 80A VRM + PCIe 5.0 x16 Peg Slot + Wi-Fi 7 |
| Core Value Position | Premium B850 bandwidth & thermals in a compact mATX size |
+-----------------------------------+---------------------------------------------------------+
Key Specs & Platform Overview
| Specification | Hardware Configuration |
| Form Factor | Micro-ATX / mATX (24.4 cm x 24.4 cm) |
| Power Delivery | 14(80A) + 2(80A) + 1(80A) DrMOS Power Stages |
| Memory Support | 4x DDR5 DIMM Slots (Up to 192GB/256GB, EXPO / AEMP Support) |
| Expansion Slots | 1x PCIe 5.0 x16 (SafeSlot with Q-Release), 1x PCIe 4.0 x1 |
| Storage Connectors | 1x M.2 PCIe 5.0 x4, 2x M.2 PCIe 4.0 x4, 4x SATA 6Gb/s |
| Networking | Realtek 2.5Gb Ethernet + Wi-Fi 7 (802.11be 2x2) + Bluetooth 5.4 |
| Rear USB Ports | 1x USB 20Gbps (Type-C), 2x USB 10Gbps, 1x USB 10Gbps Type-C, 4x USB 2.0 |
| Audio | Realtek ALC1220P 7.1 Surround Sound High Definition Audio Codec |
What the B850 Chipset Unlocks on AM5
Upgrading to a B850 motherboard provides essential platform baseline changes over older B650 generation boards:
-
Native PCIe 5.0 Graphics Card Support: Ensures full 16-lane PCIe 5.0 bandwidth for next-generation GPUs without lane-splitting compromises.
-
Full CPU & Memory Overclocking: Supports AMD Precision Boost Overdrive (PBO), manual CPU core ratio adjustments, and high-frequency DDR5 memory running EXPO profiles.
-
Integrated Wi-Fi 7 Standard: Supports ultra-wide wireless radio channels and multi-link operations for lower latency and wider bandwidth.
-
Optimized Trace Layouts: An 8-layer PCB improves electrical signal integrity, enabling higher stable memory overclocks and improved thermal dissipation.
If you are looking for the best b850 motherboard india 2026 market offers for space-efficient builds, this platform provides long-term hardware support through AMD's Socket AM5 commitment. Check out our detailed [motherboard chipset guide] for an architectural lane routing breakdown between B650, B850, and X870 motherboards.
VRM Quality, Power Stages, and Thermal Performance
Voltage Regulator Module (VRM) quality determines how well a Micro-ATX motherboard handles power-demanding processors under extended rendering loops or gaming sessions.
[ Dual 8-Pin ProCool Power Inputs ]
│
▼
[ 14 + 2 + 1 Power Stage Array ] ◄── (80A DrMOS per Phase)
│
▼
[ Enlarged Aluminum VRM Heatsinks ]
│
▼
[ AM5 Socket: Clean Power to CPU ]
The TUF GAMING B850M-PLUS WIFI uses a 14+2+1 power stage design, featuring 80-Ampere DrMOS integrated power stages for the Vcore, SoC, and Misc power rails. Dual 8-pin ProCool solid-pin power connectors prevent thermal hotspots at PSU cable terminal points.
VRM Thermal & Power Capabilities
-
High-Load Sustained Power Handling: The 14 Vcore power stages deliver clean continuous power, allowing multi-threaded CPUs like the Ryzen 9 7950X or Ryzen 9 9900X to run sustained multi-core workloads without thermal throttling.
-
Large Surface Area Cooling: Extended silver-anodized aluminum VRM heatsinks cover the MOSFETs and chokes. Integrated high-conductivity thermal pads draw heat directly into the metal mass.
-
8-Layer PCB Passive Heat Dissipation: The thick printed circuit board acts as a passive heat spreader, transferring thermal energy away from the voltage regulator zone while protecting DDR5 memory signal traces.
For top gaming CPUs like the Ryzen 7 7800X3D or Ryzen 7 9800X3D, this VRM system operates with ample thermal headroom, allowing fan profiles to stay quiet. Browse our [matching CPU review] index to pair your processor with this board.
Layout, DIY Features, and Storage Expansion
Designing a PC inside a compact Micro-ATX chassis requires efficient component positioning to prevent GPU and CPU cooler clearance issues.
+-------------------------------------------------------------------------+
| [Rear I/O + Wi-Fi 7] [ AM5 SOCKET ] [ 4x DDR5 DIMMs ] |
| [ VRM HEATSINKS ] |
| |
| [PCIe 5.0 M.2 Heatsink] |
| ===================================================================== |
| [ PCIe 5.0 x16 SafeSlot (with Q-Release Button) ] |
| ===================================================================== |
| [ M.2 Slot 2 (PCIe 4.0) ] [ Chipset Heatsink ] |
| [ M.2 Slot 3 (PCIe 4.0) ] [ 4x SATA Ports ] |
| [ PCIe 4.0 x1 Slot ] |
+-------------------------------------------------------------------------+
Storage Configuration Matrix
Despite its compact size, this board supports up to three M.2 NVMe SSDs simultaneously:
-
M.2_1 (Top Slot): Connected to CPU, supports up to PCIe 5.0 x4 (128 Gbps) speeds with a dedicated passive aluminum heatsink.
-
M.2_2 (Middle Slot): Connected to B850 Chipset, runs at PCIe 4.0 x4 speeds (supports 2242/2260/2280 form factors).
-
M.2_3 (Lower Slot): Connected to B850 Chipset, runs at dedicated PCIe 4.0 x4 speeds with a heatsink cover.
TUF DIY-Friendly Features
-
PCIe Slot Q-Release: A mechanical button releases the primary PCIe 5.0 x16 graphics card latch automatically, simplifying GPU removal in tight mATX cases.
-
M.2 Q-Latch: Uses simple plastic swivel locks to secure NVMe drives, eliminating tiny M.2 mounting screws.
-
ASUS WiFi Q-Antenna: Quick-attach directional antenna module snaps directly into the rear I/O connectors without needing brass thread rotation.
-
Pre-Mounted I/O Shield: Simplifies installation inside the cabinet while providing EMI shielding and port protection.
-
BIOS FlashBack Button: Update or recover the motherboard BIOS using just a USB drive and power supply connection—no CPU or RAM required.
Comparison: TUF GAMING B850M-PLUS WIFI vs. Alternatives
Comparing this board against full-sized ATX and alternative B650 motherboards highlights its relative value position.
| Feature / Model | ASUS TUF Gaming B650M-Plus WiFi | ASUS TUF GAMING B850M-PLUS WIFI | ASUS ROG STRIX B850-F GAMING WIFI |
| Form Factor | Micro-ATX | Micro-ATX | ATX |
| Chipset | AMD B650 | AMD B850 | AMD B850 |
| VRM Power Stages | 12+2 (60A) | 14+2+1 (80A) | 16+2+2 (80A) |
| PCIe 5.0 Support | M.2 Only | GPU (x16) + Primary M.2 | GPU (x16) + Dual M.2 |
| Wireless Standard | Wi-Fi 6E | Wi-Fi 7 | Wi-Fi 7 |
| Rear USB 20Gbps | 1x Type-C | 1x Type-C | 1x Type-C (Front + Rear 20G) |
| Audio Solution | Realtek ALC897 | Realtek ALC1220P | SupremeFX ALC4080 + Amp |
Checking the asus tuf gaming b850m plus wifi matx motherboard price india shows it provides an ideal entry point for builders wanting PCIe 5.0 GPU support, 14-stage 80A VRMs, Wi-Fi 7, and premium ALC1220P audio without paying ATX size premiums. Explore our full [Asus motherboard category] to view side-by-side specifications.
Is it Right for Your Build? (Buying Advice)
Buy This Motherboard If:
-
You are building a compact Micro-ATX or small footprint PC that requires high-end component support.
-
You plan to run powerful processors like the Ryzen 7 9800X3D or Ryzen 9 9900X with sustained cooling performance.
-
You want PCIe 5.0 GPU support and Wi-Fi 7 connectivity under a ₹25,000 budget.
-
You prefer durable, understated hardware design without high-density RGB elements.
Pass on This Motherboard If:
-
You need multiple full-length expansion slots for add-in sound cards, capture cards, or extra RAID controllers (an ATX board suits this better).
-
You require native dual USB4 40Gbps ports on the rear I/O for external high-speed storage arrays.
-
You are building on an entry-level budget where a basic B650M board covers your core requirements.
Frequently Asked Questions
Q: What CPUs is the B850 chipset compatible with?
The B850 chipset uses AMD's AM5 socket and natively supports AMD Ryzen 9000, 8000, and 7000 series desktop processors. AMD has committed to supporting Socket AM5 through 2027+, giving you simple drop-in upgrade compatibility for future CPU generations via BIOS updates.
Q: Is this board overkill or underpowered for a mid-range Ryzen build?
It offers a balanced baseline. For a mid-range CPU like the Ryzen 5 7600X or Ryzen 7 9700X, the 14+2+1 80A power stages run cool while leaving headroom for future upgrades. It carries enough power delivery to run top-tier Ryzen 9 chips without thermal limits, making it a reliable choice for compact gaming builds and workstations.
Q: Does this motherboard support memory overclocking (EXPO/XMP)?
Yes. The ASUS TUF GAMING B850M-PLUS WIFI supports AMD EXPO (Extended Profiles for Overclocking) and Intel XMP profiles. It includes ASUS Enhanced Memory Profile (AEMP) firmware to optimize timing and voltage parameters automatically, supporting DDR5 speeds up to DDR5-8000+.
