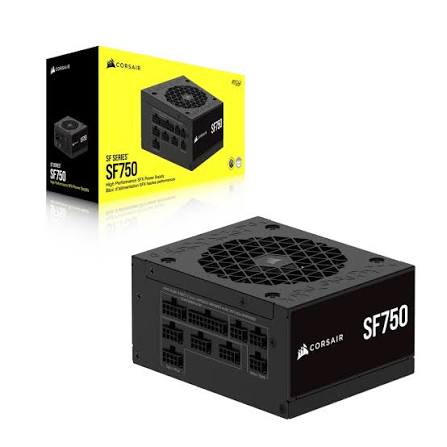

Building a high-performance PC inside a micro-chassis leaves virtually zero room for inefficient components or excess thermal output. The corsair psu sf series sf750 80 plus platinum cybenetics platinum sfx power supply review reveals how a high-density power supply handles demanding modern hardware without thermal throttling or excessive fan noise. Designed specifically for tight Mini-ITX cases, the SF750 provides clean continuous power while occupying a fraction of the physical space required by standard ATX power units.
Priced at [VERIFY: Corsair SF750 current street price in India] (whereas larger ATX options like standard rme 750w psu review units sell at a lower corsair rme price india threshold around [VERIFY: Corsair RM750e price in India]), the SF750 commands a premium due to its dense internal engineering, ultra-quiet acoustics, and micro footprint.
Direct Verdict: What GPU Tier Does 750W Actually Suit?
Selecting a 750W power unit requires balancing continuous component load against short-duration power spikes. A 750W capacity sits directly in the sweet spot for high-performance single-GPU builds, providing efficient conversion without forcing the PSU fan to spin up to maximum RPM.
| System Hardware Tier | Target Processor & Graphics Card Specs | Compatibility & Thermal Fit (750W SFX) |
| Mid-Range SFF | Ryzen 5 / Core i5 + RTX 4060 Ti / RX 7700 XT | Overkill (Runs cool; fan rarely activates) |
| Upper Mid-Range SFF | Ryzen 7 / Core i7 + RTX 4070 Ti Super / RX 7900 GRE | Ideal Match (Operates in the optimal efficiency window) |
| High-End SFF Gaming | Ryzen 7 7800X3D + RTX 4080 Super / RX 7900 XT | Ideal Match (Handles heavy workloads and transient spikes) |
| Flagship Workstation | Core i9 / Threadripper + Dual High-TDP GPUs | Insufficient (Requires 1000W+ SFX-L or ATX unit) |
A rated 750W capacity easily sustains modern gaming rigs operating at 1440p or 4K resolutions when paired with an efficient high-end CPU and graphics card combination.
What Platinum Efficiency Certification Means for Your Electricity Bill and Noise
Efficiency certifications measure how effectively a power supply converts raw AC current from your wall outlet into usable DC power for your motherboard and GPU. Energy lost during this conversion process turns directly into heat inside the power supply casing.
The SF750 holds both 80 PLUS Platinum and Cybenetics Platinum ratings, achieving up to 92% efficiency under typical 50% workload conditions.
750W CONVERSION EFFICIENCY AT 50% LOAD (~375W DRAW)
80 PLUS Bronze Standard (~85% Efficient) | 80 PLUS Platinum SF750 (~92% Efficient)
------------------------------------------+------------------------------------------
Draws ~441W from the wall | Draws ~407W from the wall
~66W wasted as internal HEAT | ~32W wasted as internal HEAT
Electricity Bill Impact
Because a Platinum-rated power supply wastes roughly half the thermal energy of lower-rated units, it draws fewer total watts from the wall outlet to power identical hardware. Over years of daily gaming or rendering, this reduced draw lowers total energy consumption and utility overhead.
Thermal & Acoustic Output
In small cases, every watt of excess heat degrades overall thermal performance. Wasting only 32W of heat at typical loads allows the SF750 to run significantly cooler. The integrated 92mm PWM cooling fan uses a Zero RPM Fan Mode, staying completely motionless during low to medium tasks (such as document editing, streaming, or light gaming). When workloads push power draw higher, the fan spins up smoothly with an acoustic output engineered to remain near-silent.
SFX Form Factor: SFF Builds vs Standard ATX
Understanding physical footprint metrics ensures your selected power supply fits inside your target computer chassis without blocking installation pathways.
| Specification Metric | Corsair SF750 (SFX Standard) | Standard ATX Power Supply |
| Outer Dimensions | 100mm x 125mm x 63.5mm | 160mm x 150mm x 86mm |
| Total Volume | ~0.79 Liters | ~2.06 Liters |
| Chassis Compatibility | Mini-ITX / Small Form Factor Cases | Mid-Tower & Full-Tower Enclosures |
| Included Mounts | Includes SFX-to-ATX Adapter Bracket | Standard ATX Frame |
Small Form Factor (SFF) Compatibility
The SF750 uses true SFX dimensions, making it compatible with compact ITX cases like the FormD T1, Fractal Ridge, and Lian Li A4-H2O. For builders transitioning to a larger mid-tower case later, the included metal SFX-to-ATX bracket allows mounting this unit inside standard ATX power supply bays.
Fully Modular Cable Management Benefits
Managing rigid power wires inside a compact 10-liter case can impede airflow and strain connector sockets. The SF750 resolves this issue by combining fully modular connectivity with individually sleeved, highly flexible paracord cables.
CABLE SETUP COMPARISON
Standard Stiff Rubber Cables Corsair SF750 Flexible Paracord Cables
---------------------------------- ----------------------------------------
- Bulky bundles block intake fans - Connect ONLY the cables you need
- Hard to bend around tight corners - Individual soft sleeves bend easily
- Restricts internal case airflow - Unobstructed airflow pathways
Streamlined Airflow Paths
By attaching only the necessary motherboard and GPU wires, you keep the interior free of bundled cable clutter. This maximizes clearance around intake and exhaust fans, lowering CPU and GPU operating temperatures.
High-Density Micro Connectors
Modern ATX 3.1 compliant revisions of the SF750 use high-density Type-5 Micro-Fit cable connectors. These smaller connectors reduce the total footprint on the PSU side, providing clean single-cable power routing (including native 12V-2x6 / 12+4 pin connections for current-generation graphics cards).
Recommended Headroom for Modern GPU Power Spikes
Current graphics architectures can exhibit fast microsecond power excursions—brief transient spikes where power consumption briefly doubles past the GPU's nominal rating. Older or low-tier power supplies often mistake these rapid spikes for short circuits, triggering Over-Power Protection (OPP) and abruptly shutting down the system.
TRANSIENT SPIKE HANDLING
Legacy ATX 2.x Power Units ATX 3.1 Compliant (Corsair SF750)
+------------------------------+ +------------------------------+
| Triggers sudden shutoffs | | Safely absorbs up to 200% |
| during transient GPU spikes | | transient power excursions |
+------------------------------+ +------------------------------+
An ATX 3.1 certified power supply safeguards your build against these sudden load shifts:
-
200% Excursion Tolerance: Engineerd to absorb transient power spikes up to twice its continuous rated wattage without tripping power safety limits.
-
105°C Japanese Capacitors: Premium industrial-grade Japanese electrolytic capacitors maintain tight voltage regulation across the +12V rail under dynamic load conditions.
-
Modern Standby Compliance: Supports low-power sleep states with near-instantaneous wake-up times.
Sourcing Reliable Components in India
Building a custom system requires sourcing authentic hardware backed by valid local manufacturer warranties. Purchasing your components through established local retail networks ensures proper after-sales RMA coverage, transparent billing, and access to verified stock. Reliable Indian tech suppliers offer nationwide insured shipping and direct support, helping you verify component clearances before finalizing your PC build at Studbudpc.
FAQ
Q: Is 750W enough for a mid-range or high-end gaming PC in 2026?
Yes. A 750W power supply provides more than enough capacity for mid-range and high-end single-GPU gaming systems. It easily powers setups pairing an Intel Core i7 or AMD Ryzen 7 with upper-tier graphics cards while leaving extra headroom for transient power spikes.
Q: What does Platinum efficiency rating actually mean for cost and noise?
Platinum efficiency ratings indicate that the PSU converts approximately 92% of AC electricity into DC power under typical loads. Converting energy more efficiently minimizes waste heat, allowing the cooling fan to stay off at low loads and spin at lower RPMs during heavy gaming sessions.
Q: Is this PSU compatible with a small form factor case?
Yes. The Corsair SF750 uses standard SFX physical dimensions (100mm x 125mm x 63.5mm), making it fully compatible with Small Form Factor (SFF) and Mini-ITX cases. It also includes an adapter bracket for installation in standard ATX cases.
