What does an audio interface actually do for your mic?
An audio interface converts the analog signal from an XLR microphone into digital audio for your PC, and powers/controls that mic along the way. For dynamic mics like Wave DX, it provides a clean, high‑gain preamp; for condenser mics, it adds 48V phantom power.
Wave XLR and its MK.2 successor do this while also acting as a control hub:
-
They provide up to 75–80 dB of ultra‑low‑noise gain, enough for gain‑hungry dynamics such as Shure SM7B.
-
They integrate with Elgato’s Wave Link mixer software, letting you route multiple audio sources (game, chat, music, mic) into different outputs.
-
They offer capacitive mute, a hardware dial and headphone output with low‑latency monitoring, so you hear yourself and control levels in real time.
XLR Dock MK.2 is essentially the same audio interface logic, just embedded in a module that docks directly into Stream Deck+, reducing cable clutter and keeping controls centralized.

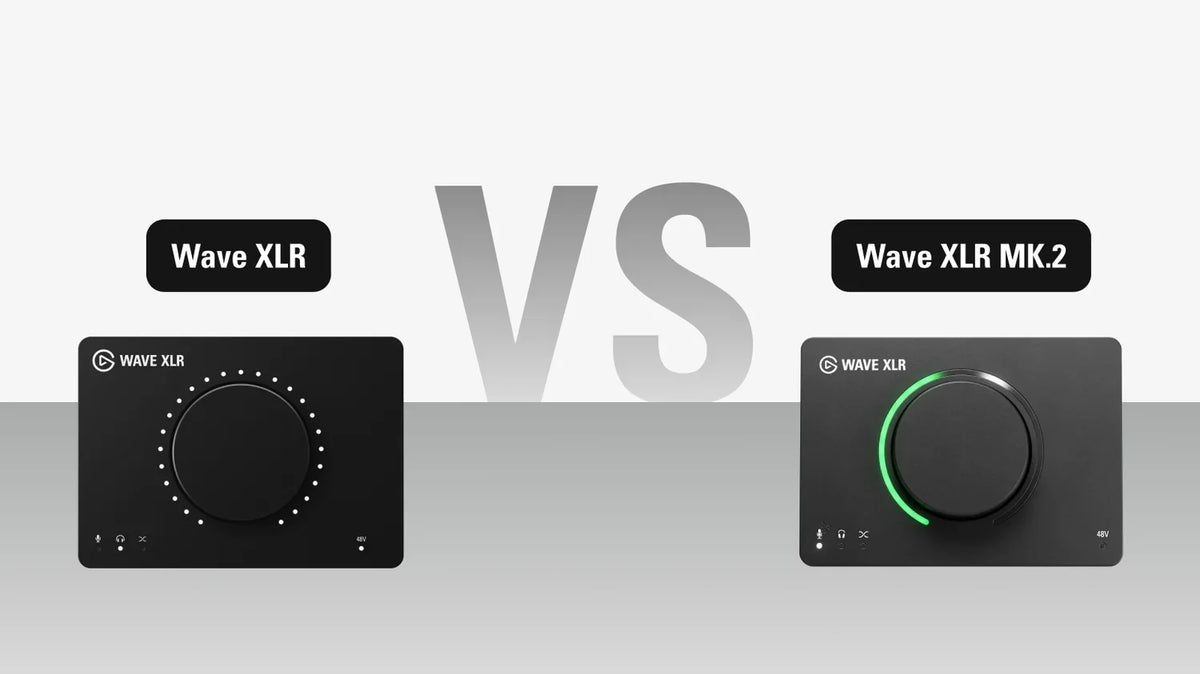

Wave XLR vs Wave XLR MK.2 – what actually changed?
Wave XLR (original) brought XLR mics into Elgato’s USB ecosystem with a straightforward design: one XLR input, capacitive mute, single multifunction dial, 24‑bit conversion, up to 48/96 kHz sampling, Clipguard and Wave Link integration. It delivers up to 75 dB of gain, enough for popular dynamic broadcast mics when paired with good settings.
Wave XLR MK.2 keeps the same I/O but adds:
-
80 dB of clean gain (up from 75 dB), specifically to handle gain‑hungry dynamics without needing inline boosters.
-
Wave FX Processor: onboard DSP engine running Clipguard 2.0, EQ, compressor, expander, low‑cut, and VST insert effects directly on hardware.
-
Clipguard 2.0 and increased dynamic range (around 135 dB vs the original’s ~100–120 dB), giving more headroom for sudden peaks.
-
Smarter hardware controls: enhanced dial functions (Voice Tune, mix, etc.), upgraded headphone amp and improved Wave Link integration.
In short:
-
Wave XLR = clean gain + simple USB interface + Clipguard 1.0 + Wave Link.
-
Wave XLR MK.2 = more gain + hardware DSP engine + Clipguard 2.0 + richer monitoring and control.
If you plan to use a single XLR mic lightly, original Wave XLR is fine; if you want best‑possible headroom and built‑in processing, MK.2 is clearly superior.
What is XLR Dock MK.2 and why is it built for Stream Deck+?
XLR Dock MK.2 is essentially Wave XLR MK.2’s audio path packaged as a dock module that attaches to the back of Stream Deck+, turning your control surface into a combined deck + audio interface. It offers 80 dB of ultra‑low‑noise gain, 48V phantom power, and the same onboard DSP and Clipguard 2.0 architecture as Wave XLR MK.2.
Key points:
-
It works with any XLR microphone, from very quiet dynamics to studio condensers, thanks to that 80 dB gain and phantom power.
-
It integrates with Wave Link in the same way Wave XLR MK.2 does, giving you Elgato’s familiar mixing and routing environment.
-
It is physically attached to Stream Deck+, reducing standalone boxes and cables; reviews note it “offers everything Wave XLR Mark II does” but via the deck instead of a separate interface.
So XLR Dock MK.2 is not a stripped‑down toy; it’s a full MK.2‑class interface engineered around Stream Deck+ integration.
How do Wave XLR, Wave XLR MK.2 and XLR Dock MK.2 compare on specs?
Use this table structure in your CMS and populate every [VERIFY: …] with live StudBudPC details before publishing. Core specs come from official materials.
If you stock other variants like Wave XLR Pro, include them in a separate row with dual inputs and specify their positioning.
Which interface should you pick by mic type and desk setup?
The best choice depends on what mic you own or plan to buy, and how crowded your desk is.
By microphone type
-
Single dynamic mic (Wave DX, SM7B, broadcast dynamics):
-
Wave XLR (original) is enough if you just want clean gain and basic routing.
-
Wave XLR MK.2 or XLR Dock MK.2 are better if you want onboard effects, extra gain headroom and Clipguard 2.0 protection.
-
-
Condenser mic for streaming/podcasting:
-
Wave XLR already handles condensers fine with phantom and 75 dB gain.
-
MK.2/Dock bring more dynamic range and processing, which helps if you want polished, processed sound without relying solely on software plugins.
-
-
Multiple XLR mics or advanced routing:
-
Consider Wave XLR Pro or other multi‑input interfaces; MK.2 and Dock are single‑mic devices.
-
By desk and workflow
For “elgato audio interface comparison” and “wave xlr mk.2 review india,” your default recommendation can be:
-
Wave XLR for first‑time XLR mic users who want to keep cost and complexity down.
-
Wave XLR MK.2 for creators who care about processing and pristine gain.
-
XLR Dock MK.2 if they already own—or plan to own—Stream Deck+ as their central control surface.
FAQ
Q: Do I need an audio interface if I already have a USB mic?
If you already have a USB microphone like Wave:3, you do not need an audio interface for that mic. USB mics include their own analog‑to‑digital conversion and appear directly as input devices on your PC without an external preamp or XLR interface.
Audio interfaces like Wave XLR, Wave XLR MK.2 and XLR Dock MK.2 are specifically for XLR microphones, which output analog signals and require external conversion, gain and (for condensers) phantom power. You only add an audio interface when you move to XLR mics or need advanced routing and DSP that your USB mic cannot provide.
Q: What's the difference between Wave XLR and Wave XLR MK.2?
Wave XLR and Wave XLR MK.2 share the same core function: they bring an XLR microphone into a USB workflow, with phantom power, capacitive mute, headphone monitoring and Wave Link integration. The original Wave XLR provides up to 75 dB of ultra‑low‑noise gain, 24‑bit conversion, Clipguard protection and 48/96 kHz sample rates.
Wave XLR MK.2 raises the gain to 80 dB and adds Wave FX Processor, which runs onboard DSP effects (EQ, compressor, expander, Voice Tune, low‑cut), Clipguard 2.0 and VST inserts in real time, along with a higher dynamic range around 135 dB. In short, MK.2 is the more powerful, processing‑focused version, while the original is a simpler, clean interface.
Q: Is the XLR Dock MK.2 only useful with a Stream Deck+?
XLR Dock MK.2 is designed to physically dock into Stream Deck+ and use that deck as its hardware control surface, so it makes the most sense when you already own—or plan to own—Stream Deck+. In that configuration, it effectively turns your Stream Deck+ into a combined macro controller and XLR audio interface, with shared Wave Link integration and on‑device DSP.
Functionally, its audio path, gain and DSP features mirror Wave XLR MK.2, so it’s not “less capable” for other XLR mics; it just assumes Stream Deck+ is part of your setup. If you do not use Stream Deck+, you’re better served by Wave XLR MK.2, which offers the same audio capabilities in a standalone box.
Compare Wave XLR, Wave XLR MK.2 and XLR Dock MK.2 on StudBudPC’s product pages, then pair your interface with the Wave DX mic and Stream Deck+ pillar hub to build the single‑mic audio chain that matches your budget and desk layout.
