Motherboard // MSI

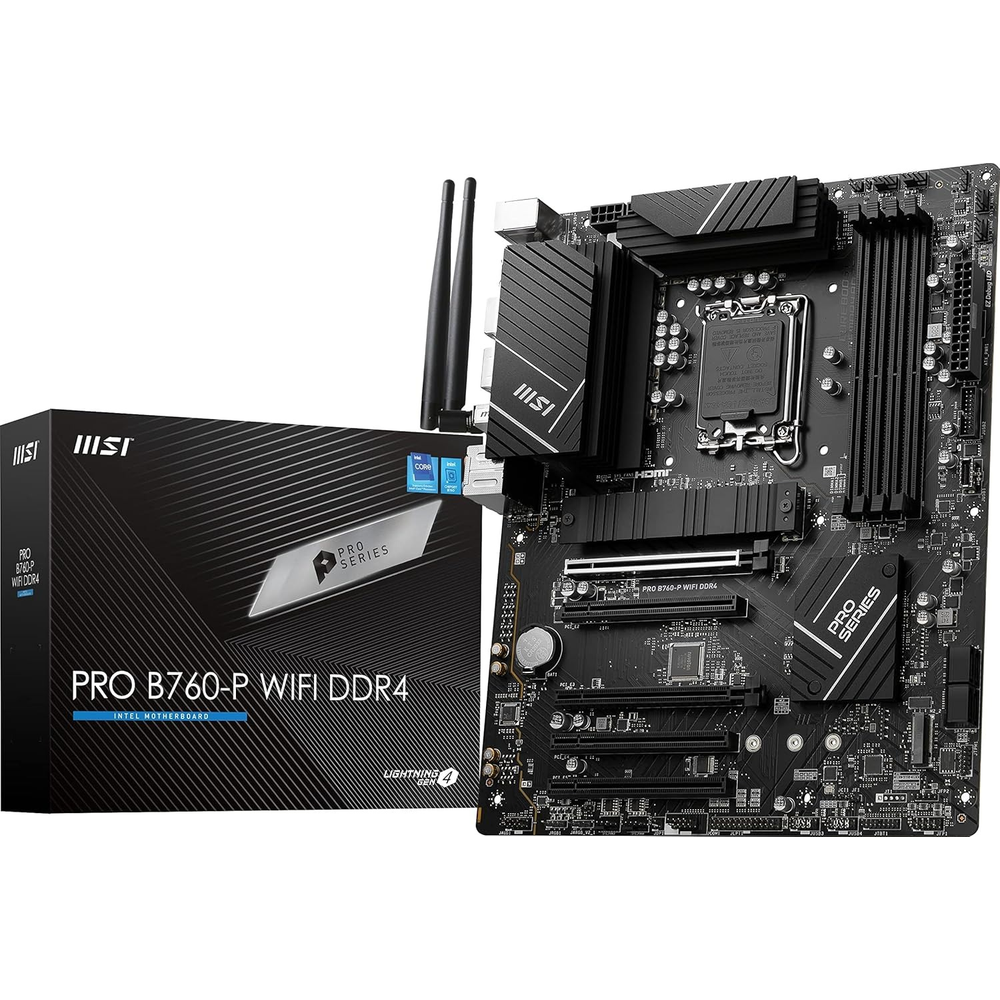

MSI PRO B760-P WIFI DDR4 Motherboard
Price inclusive of all taxes
Technical specification
Full-Size Intel B760 ATX DDR4 PRO Motherboard — Wi-Fi 6E, PCIe 4.0, DDR4 5333+, and Dual M.2 Gen4 for Intel Core 12th, 13th & 14th Gen.
The MSI PRO B760-P WIFI DDR4 is a full-size ATX professional-grade motherboard for Intel Core 12th, 13th, and 14th Gen processors on the LGA 1700 socket, designed for builders who want ATX expandability on a DDR4 platform. It features a 12+1 Duet Rail power system, Intel Wi-Fi 6E (up to 2.4Gbps), Realtek 2.5G LAN, PCIe 4.0 x16, 2x M.2 PCIe 4.0 slots, and DDR4 5333+ OC — delivering professional reliability at an accessible price.
-
>CPU Support: Intel Core 14th / 13th / 12th Gen + Pentium Gold / Celeron, LGA 1700 socket
>Power Delivery: 12+1 Duet Rail Power System, dual 8-pin CPU connectors, Core Boost, Memory Boost, Extended Heatsink
>Storage: 2x M.2 — M.2_1: PCIe 4.0 x4 (CPU, 22110/2280/2260/2242); M.2_2: PCIe 4.0 x4 / SATA (Chipset, 2280/2260/2242); 4x SATA 6G | RAID 0/1/5/10
>Connectivity: Intel Wi-Fi 6E (2.4/5/6GHz, 160MHz, up to 2.4Gbps), Realtek RTL8125BG 2.5G LAN, Bluetooth 5.3
>USB: Rear — 1x USB 10Gbps Type-C, 2x USB 5Gbps Type-A, 4x USB 2.0; Front — 2x USB 5Gbps Type-A, 1x USB 5Gbps Type-C, 4x USB 2.0
>Memory: 4x DDR4 UDIMM, up to 128GB, DDR4 5333+ MT/s (OC) / 3200–2133 MT/s (JEDEC)
>Audio: Realtek ALC897, 7.1-Channel HD Audio
| Specification | Details |
|---|---|
| Chipset | Intel B760 |
| Socket | LGA 1700 |
| Form Factor | ATX (243.84 x 304.8 mm) |
| Memory | 4x DDR4 UDIMM, up to 128GB, DDR4 5333+ MT/s (OC) / 3200–2133 MT/s (JEDEC) |
| Memory Standard | Intel XMP, Dual Channel, non-ECC unbuffered |
| PCIe Slots | PCI_E1: PCIe 4.0 x16 (CPU); PCI_E2: PCIe 3.0 x1 (Chipset); PCI_E3: PCIe 4.0 x4 (Chipset) |
| M.2 Slots | M.2_1: PCIe 4.0 x4 (CPU, 22110/2280/2260/2242); M.2_2: PCIe 4.0 x4 / SATA (Chipset, 2280/2260/2242) |
| SATA | 4x SATA 6G | RAID 0, 1, 5, 10 |
| LAN | Realtek RTL8125BG 2.5G LAN |
| Wireless | Intel Wi-Fi 6E (2.4/5/6GHz, 160MHz, up to 2.4Gbps), Bluetooth 5.3 |
| Thunderbolt | Not included |
| Rear USB | 1x USB 10Gbps Type-C, 2x USB 5Gbps Type-A, 4x USB 2.0 |
| Front USB Headers | 2x USB 5Gbps Type-A, 1x USB 5Gbps Type-C, 4x USB 2.0 |
| Video Output | 1x HDMI 2.1 (4K@60Hz), 1x DisplayPort 1.4 (4K@60Hz) |
| Audio | Realtek ALC897, 7.1-CH HD Audio |
| Fan Headers | 1x CPU Fan, 1x Pump Fan, 5x System Fan |
| RGB | 2x ARGB V2 headers, 1x RGB header, 4x EZ Debug LED |
| OS Support | Windows 11 / 10 64-bit |
