MSI PRO H610M-G WIFI DDR4 Motherboard
MSI PRO H610M-G WIFI DDR4 Motherboard
Intel H610 mATX Motherboard for LGA 1700 — DDR4 up to 3200MHz, Wi-Fi 5 AC (433Mbps), BT 4.2, Intel 1G LAN, PCIe 4.0 x4 M.2 (Chipset), PCIe 4.0 x16, HDMI...
Vendor:
MSIType:
MotherboardCouldn't load pickup availability
Estimated deliver 5-7 days
People are viewing this right now
Description
Intel H610 mATX Motherboard for LGA 1700 — DDR4 up to 3200MHz, Wi-Fi 5 AC (433Mbps), BT 4.2, Intel 1G LAN, PCIe 4.0 x4 M.2 (Chipset), PCIe 4.0 x16, HDMI + DisplayPort + VGA, USB 5Gbps, 12th / 13th / 14th Gen Intel Core Ready.
The MSI PRO H610M-G WIFI DDR4 is the affordable Intel H610 business mATX for DDR4 users — perfect for budget 12th/13th/14th Gen builds that reuse existing DDR4 memory. It features Core Boost VRM, Intel I219V 1G LAN, Wi-Fi 5 AC (433Mbps, BT 4.2), PCIe 4.0 M.2 from chipset, PCIe 4.0 x16 slot, triple video output (HDMI + DisplayPort + VGA), Audio Boost 7.1-CH, USB 5Gbps, and full Intel Core 14th/13th/12th Gen compatibility — the best-value DDR4 H610 mATX for professional and everyday use.
-
>CPU Support: Intel Core 14th / 13th / 12th Gen, Pentium Gold, Celeron — LGA 1700 socket
>Power Delivery: Core Boost, Memory Boost, 1x 8-pin CPU connector
>Storage: M2_1: PCIe 4.0/3.0 x4 + SATA (Chipset, 2280/2260/2242); 4x SATA 6G — Note: SATA port unavailable when M.2 SATA SSD installed
>Connectivity: Wi-Fi 5 AC (802.11 a/b/g/n/ac, up to 433Mbps), Bluetooth 4.2; Intel I219V 1G LAN
>USB: Rear — 2x USB 2.0, 2x USB 5Gbps Gen 1 Type-A; Front — 4x USB 2.0, 2x USB 5Gbps Gen 1 Type-A
>PCIe: PCI_E1: PCIe 4.0 x16 (CPU); PCI_E2: PCIe 3.0 x1 (Chipset)
>Audio: Realtek ALC897, 7.1-CH, Audio Boost, up to 192kHz
| Specification | Details |
|---|---|
| Chipset | Intel H610 |
| Socket | LGA 1700 |
| Form Factor | mATX (211 x 243.84 mm) |
| Memory | 2x DDR4 UDIMM, up to 64GB; DDR4 3200(MAX) / 2933 / 2666 / 2133 MHz (JEDEC); Dual Channel, Non-ECC Unbuffered |
| Memory Standard | Non-ECC Unbuffered DDR4, Dual Channel |
| PCIe Slots | PCI_E1: PCIe 4.0 x16 (CPU); PCI_E2: PCIe 3.0 x1 (Chipset) |
| M.2 Slots | M2_1: PCIe 4.0/3.0 x4 + SATA (Chipset, 2280/2260/2242) — 1 slot only |
| SATA | 4x SATA 6G (no RAID on H610); Note: 1 SATA disabled when M.2 SATA used |
| LAN | Intel I219V 1G LAN |
| Wireless | Wi-Fi 5 AC (802.11 a/b/g/n/ac, up to 433Mbps), Bluetooth 4.2, M.2 Key-E (pre-installed) |

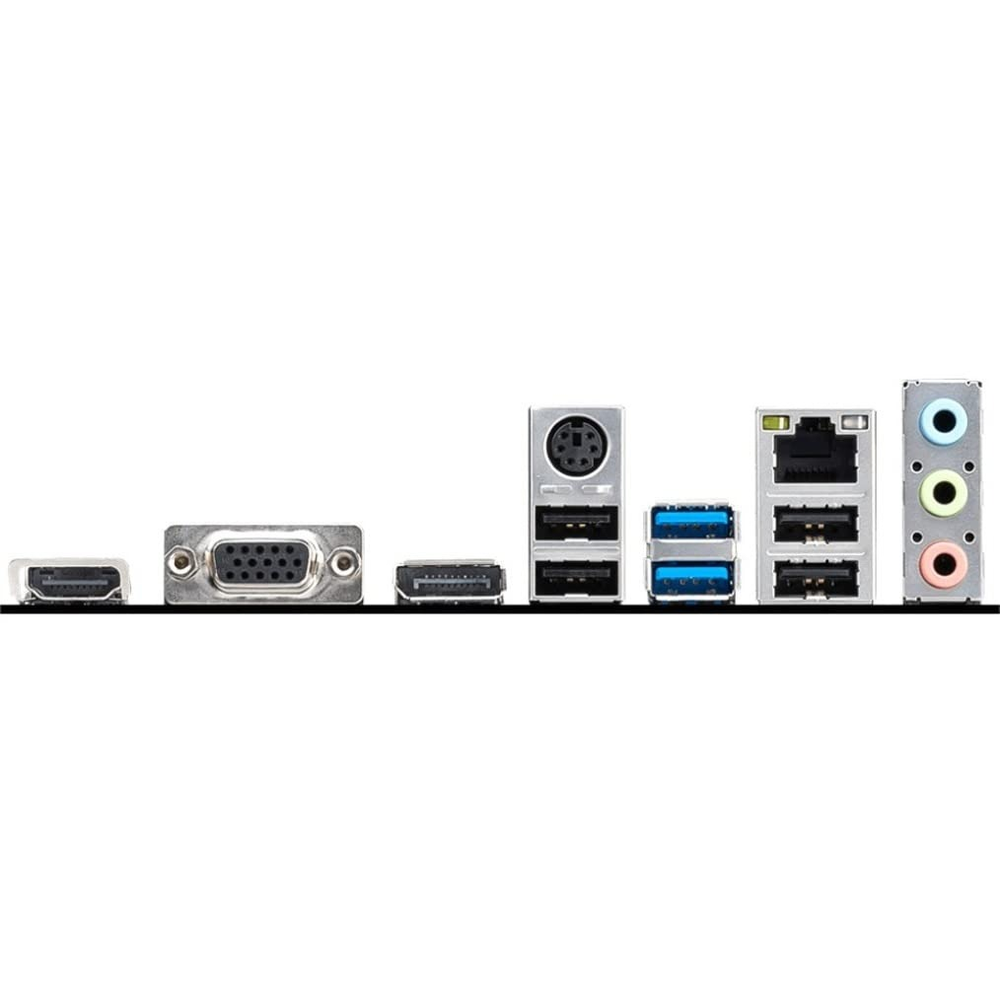

| Rear USB | 2x USB 2.0, 2x USB 5Gbps Gen 1 Type-A |
| Front USB Headers | 4x USB 2.0, 2x USB 5Gbps Gen 1 Type-A |
| Video Output | 1x HDMI + 1x DisplayPort + 1x VGA — iGPU only |
| Audio | Realtek ALC897, Audio Boost, 7.1-CH, up to 192kHz |
| Fan Headers | 1x CPU Fan, 1x System Fan |
| RGB | None |
| Extras | Click BIOS 5, TPM 2.0 header, Chassis Intrusion header, COM port (JCOM), PS/2 Keyboard/Mouse, I/O shield included |
| OS Support | Windows 11 64-bit, Windows 10 64-bit |
