MSI PRO Z890-S WIFI WHITE Motherboard
MSI PRO Z890-S WIFI WHITE Motherboard
All-White Intel Z890 ATX Motherboard — Clean Harmony Design with Wi-Fi 7, Thunderbolt 4, and PCIe 5.0. The MSI PRO Z890-S WIFI WHITE is the white variant of MSI's PRO...
Vendor:
MSIType:
MotherboardCouldn't load pickup availability
Estimated deliver 5-7 days
People are viewing this right now
Description
All-White Intel Z890 ATX Motherboard — Clean Harmony Design with Wi-Fi 7, Thunderbolt 4, and PCIe 5.0.

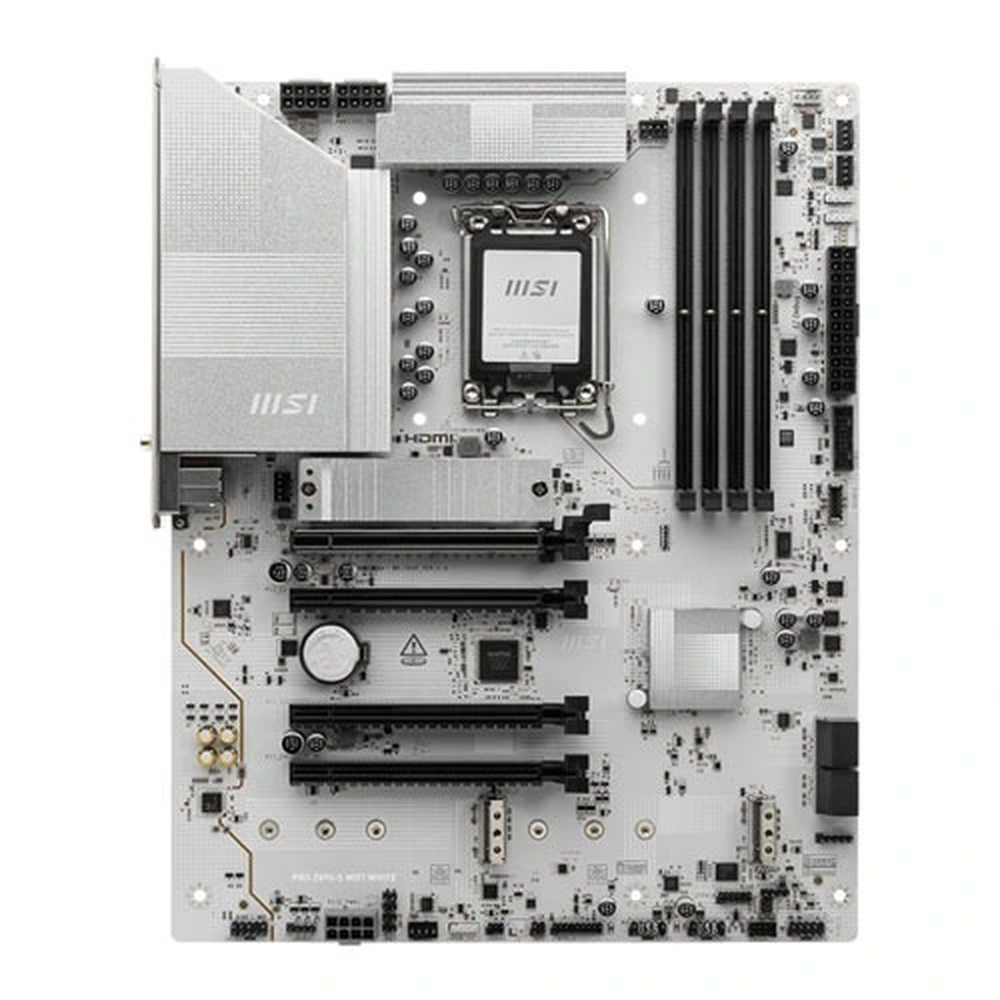

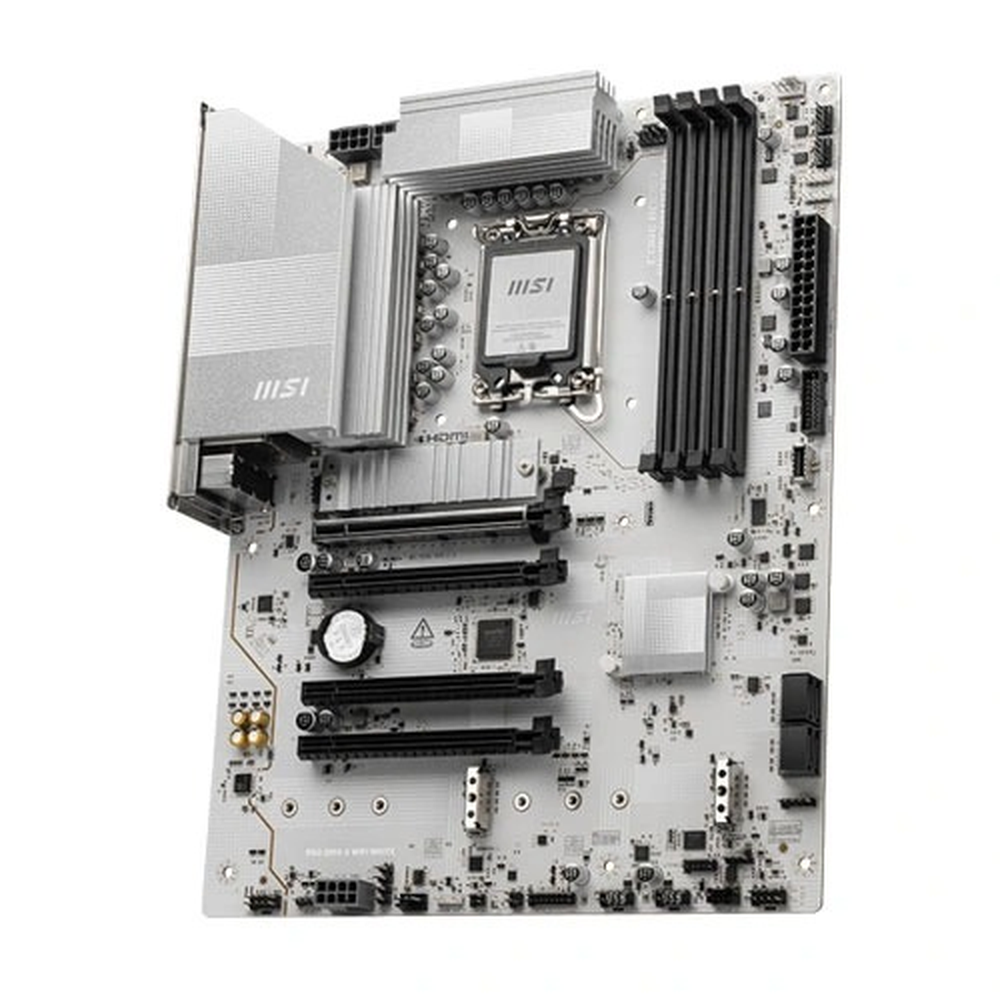

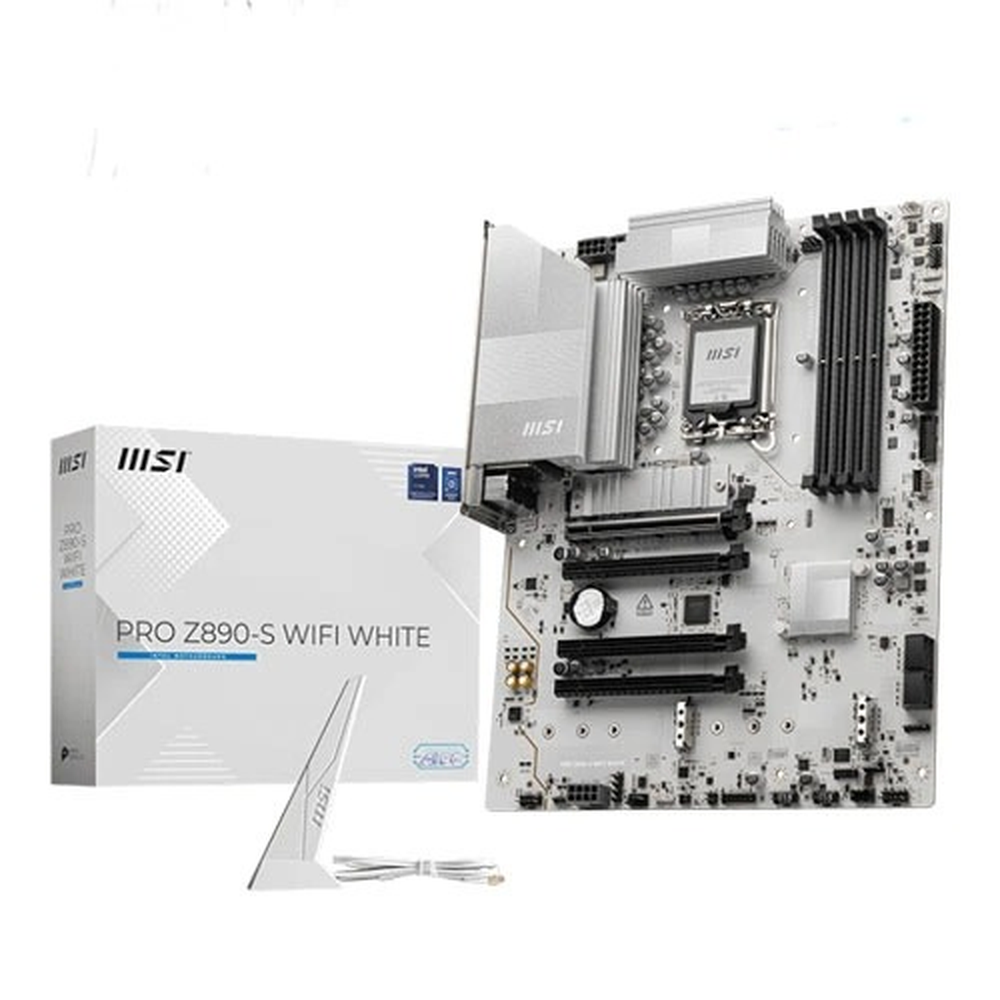

The MSI PRO Z890-S WIFI WHITE is the white variant of MSI's PRO Z890-S WIFI, sharing identical specs in a harmonious silver-white color scheme built for white PC builds. It supports Intel Core Ultra Series 2 processors on the LGA 1851 socket, with Intel Wi-Fi 7, 2.5G LAN, Thunderbolt 4, 3x M.2 slots including PCIe 5.0 Gen5, and a 12+1+1+1 Duet Rail power system on a server-grade 6-layer PCB.
-
>CPU Support: Intel Core Ultra Series 2, LGA 1851 socket
>Power Delivery: 12+1+1+1 Duet Rail Power System, dual 8-pin CPU connectors, PCIe Supplemental Power, 6-layer server-grade PCB
>Storage: 3x M.2 slots (1x PCIe 5.0 CPU, 2x PCIe 4.0 Chipset), 4x SATA 6G — RAID 0/1/5/10
>Connectivity: Intel Wi-Fi 7 (802.11be, up to 5.8Gbps), Realtek 2.5G LAN, 1x Thunderbolt 4 rear port
>USB: Rear — 1x USB 20Gbps Type-C, 6x USB 5Gbps Type-A; Front — 1x USB 20Gbps Type-C, 2x USB 5Gbps Type-A, 4x USB 2.0
>Design: Full white PCB and heatsink color scheme — built specifically for white/clean aesthetic builds
>Audio: Realtek ALC897, 7.1-Channel HD Audio
| Specification | Details |
|---|---|
| Chipset | Intel Z890 |
| Socket | LGA 1851 |
| Form Factor | ATX (243.84 x 304.8 mm) |
| Memory | 4x DDR5 UDIMM, up to 256GB, DDR5 8800+ MT/s (OC) / 6400–4800 MT/s (JEDEC) |
| Memory Standard | XMP 3.0, CUDIMM supported, Dual Channel |
| PCIe Slots | PCI_E1: PCIe 5.0 x16 (CPU); PCI_E2: PCIe 3.0 x1 (Chipset); PCI_E3: PCIe 4.0 x4 (Chipset); PCI_E4: PCIe 4.0 x4 (CPU) |
| M.2 Slots | 3x M.2 — M.2_1: PCIe 5.0 x4 (CPU); M.2_2: PCIe 4.0 x4 (Chipset); M.2_3: PCIe 4.0 x4 / SATA (Chipset) |
| SATA | 4x SATA 6G | RAID 0, 1, 5, 10 |
| LAN | Realtek 8125D 2.5G LAN |
| Wireless | Intel Wi-Fi 7 (2.4/5/6GHz, 320MHz, up to 5.8Gbps), Bluetooth 5.4 |
| Thunderbolt | 1x Thunderbolt 4 rear (40Gbps, DP 2.1 UHBR20, up to 8K display) |

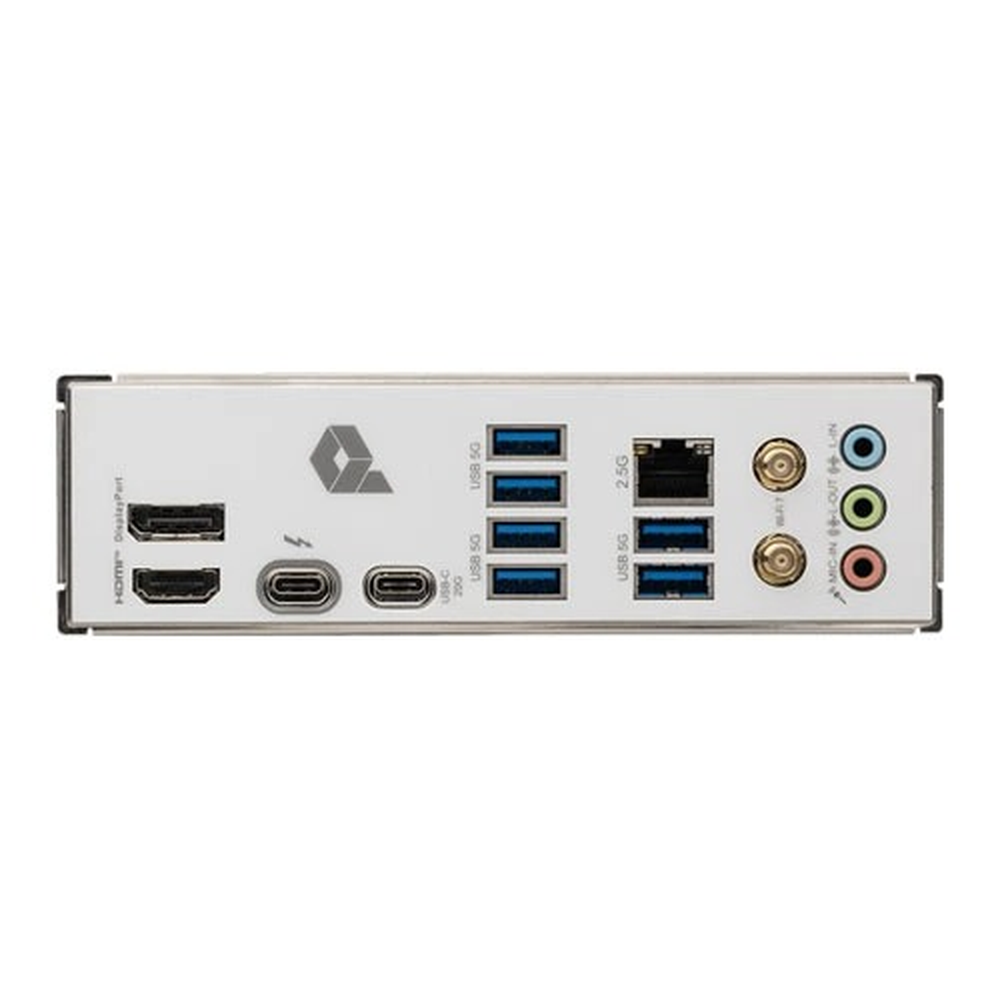

| Rear USB | 1x USB 20Gbps Type-C, 6x USB 5Gbps Type-A |
| Front USB Headers | 1x USB 20Gbps Type-C, 2x USB 5Gbps Type-A, 4x USB 2.0 |
| Video Output | 1x HDMI 2.1 (4K@60Hz), 1x DisplayPort 1.4 (4K@60Hz), 1x Thunderbolt 4 Type-C (DP 2.1 UHBR20, up to 8K@60Hz) |
| Audio | Realtek ALC897, 7.1-CH HD Audio |
| Fan Headers | 1x CPU Fan, 1x Pump/SYS Fan, 4x System Fan, 1x ARGB+FAN combo header |
| RGB | 3x ARGB V2 headers, 1x RGB header, 4x EZ Debug LED |
| OS Support | Windows 11 64-bit |
