HDR gaming is worth turning on only if your monitor has true HDR hardware—meaning high peak brightness (at least 600–1000 nits), full-array local dimming (FALD), Mini-LED, or an OLED panel. On budget monitors with basic DisplayHDR 400 badges and standard edge-lit backlights, enabling HDR usually results in a washed-out, dull, or overly bright gray image rather than better contrast.
What Is HDR Gaming and How Does It Actually Work?

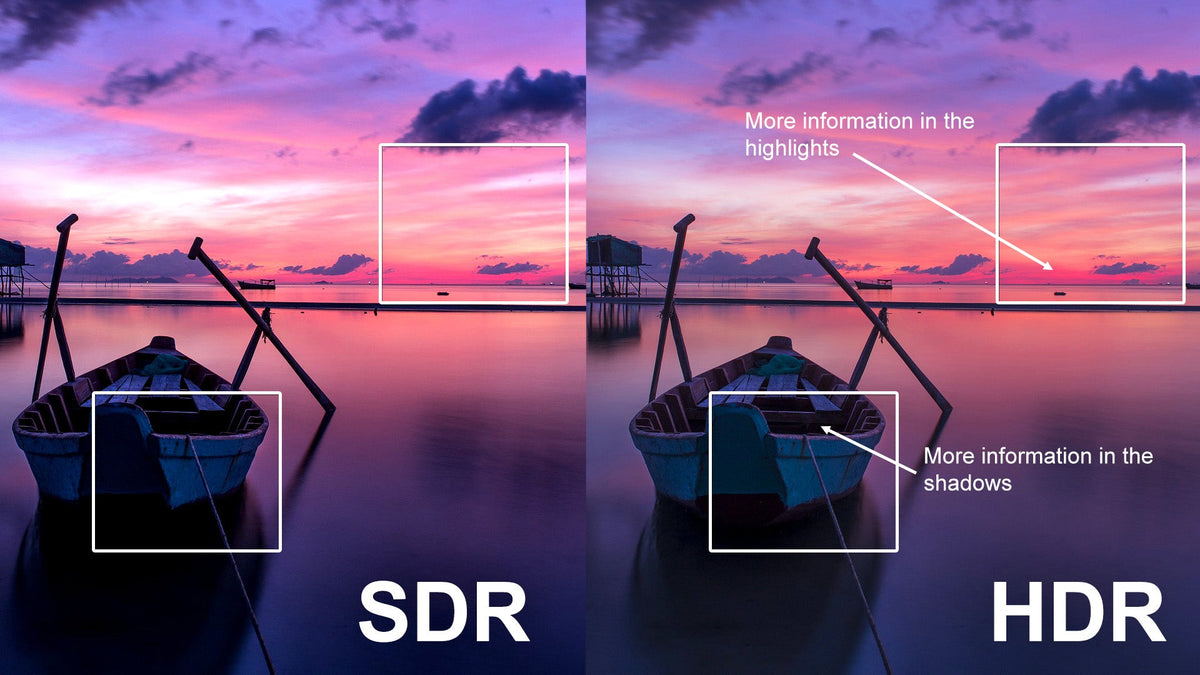

High Dynamic Range (HDR) expands the range between the darkest blacks and the brightest whites your monitor can display simultaneously. Standard Dynamic Range (SDR) limits your monitor to a narrow range of brightness and color depth (typically 8-bit color depth and around 250 to 300 nits of peak brightness). HDR content uses 10-bit or 12-bit color depth along with wider color spaces (like DCI-P3) to display subtle gradients, vivid highlights, and shadow detail that SDR simply clips or flattens.
In games, real HDR changes light sources dynamically. A beam of sunlight breaking through a dark cave, a fiery explosion at night, or neon reflections on wet asphalt gain realistic physical pop without making the rest of the dark scene look blown out or faded.
What Do VESA DisplayHDR Ratings (HDR400 vs HDR600 vs HDR1000) Mean?
To help buyers cut through marketing hype, VESA established official DisplayHDR tiers. These certifications define strict hardware requirements for peak brightness, continuous brightness, color gamut, and contrast control.
The Truth About DisplayHDR 400
DisplayHDR 400 is the most common tier found on budget gaming monitors, but PC enthusiasts often refer to it as "fake HDR". Because VESA CTS 1.2 specifications do not mandate local dimming for the 400 tier, these monitors boost the entire backlight uniformly to reach 400 nits. Without local dimming zones or self-lit pixels, the dark areas of your screen turn into an ugly gray
Why DisplayHDR 1000 and OLED Deliver "Real" HDR
Displays certified for DisplayHDR 1000 or DisplayHDR True Black use advanced panel tech. Mini-LED displays pack hundreds or thousands of localized backlight zones that brighten or dim independently behind the screen. OLED displays go further by shutting off individual pixels completely for infinite contrast. This hardware capability is what creates true dynamic range.
What Graphics Card and Cable Do You Need for HDR Gaming?
To output an HDR signal, your PC hardware must support 10-bit color depth at high resolutions and refresh rates without color compression.
-
GPU Hardware Requirements: Modern graphics cards from NVIDIA (GTX 10-series and newer) and AMD (Radeon RX 5000-series and newer) feature native display engines built for HDR output.
-
Display Cable Standards: Use a DisplayPort 1.4 (or DisplayPort 2.1) cable or an HDMI 2.0 (or HDMI 2.1) cable. Older HDMI 1.4 or DisplayPort 1.2 cables lack the total bandwidth required to push 4K or 144Hz resolutions with 10-bit HDR enabled simultaneously.
Why Does HDR Look Washed Out on Some PC Monitors?
If your screen looks dull, grey, or faded when you turn on HDR in Windows, one of four common issues is occurring:
-
Lack of Hardware Dimming: Your monitor is accepting a 10-bit HDR signal, but its physical backlight lacks local dimming zones. The monitor simply brightens its entire panel, ruining shadow contrast.
-
Uncalibrated Windows HDR: Windows requires proper tone mapping calibration. Run the free Windows HDR Calibration App from the Microsoft Store to map your display's exact minimum and maximum nit capabilities to Windows.
-
In-Game Setting Conflicts: Enabling HDR in Windows without enabling it in the game's display settings (or vice versa) causes double tone-mapping, which strips away color saturation.
-
SDR Content in HDR Mode: Standard desktop apps, web browsers, and SDR games are built for 8-bit color space. Running desktop Windows in permanent HDR mode forces SDR content into an artificial color space, making icons and text look muted. Use the
Win + Alt + Bkeyboard shortcut to toggle Windows HDR on only when launching supported games.
Frequently Asked Questions
Q: Does HDR require a special monitor or just a setting?
HDR requires a display built with dedicated HDR hardware, including high peak brightness panels (typically 600+ nits) and hardware contrast controls like Mini-LED local dimming or OLED pixels. While any modern monitor can accept an HDR software signal from Windows, displays without true HDR hardware will produce an oversaturated or washed-out image.
Q: What's the difference between HDR400 and HDR1000?
DisplayHDR 400 requires only 400 nits of peak brightness with standard edge-lit backlighting and no local dimming. DisplayHDR 1000 requires 1000 nits of peak brightness along with mandatory Full-Array Local Dimming (FALD) or Mini-LED technology, allowing bright highlights and dark shadows to exist simultaneously on screen.
Q: Why does HDR look washed out on some monitors?
HDR looks washed out when a monitor lacks local dimming zones or sufficient peak brightness to separate light areas from dark areas properly. It can also occur when the Windows HDR Calibration profile is missing or when the monitor's tone-mapping conflicts with in-game SDR video settings.
