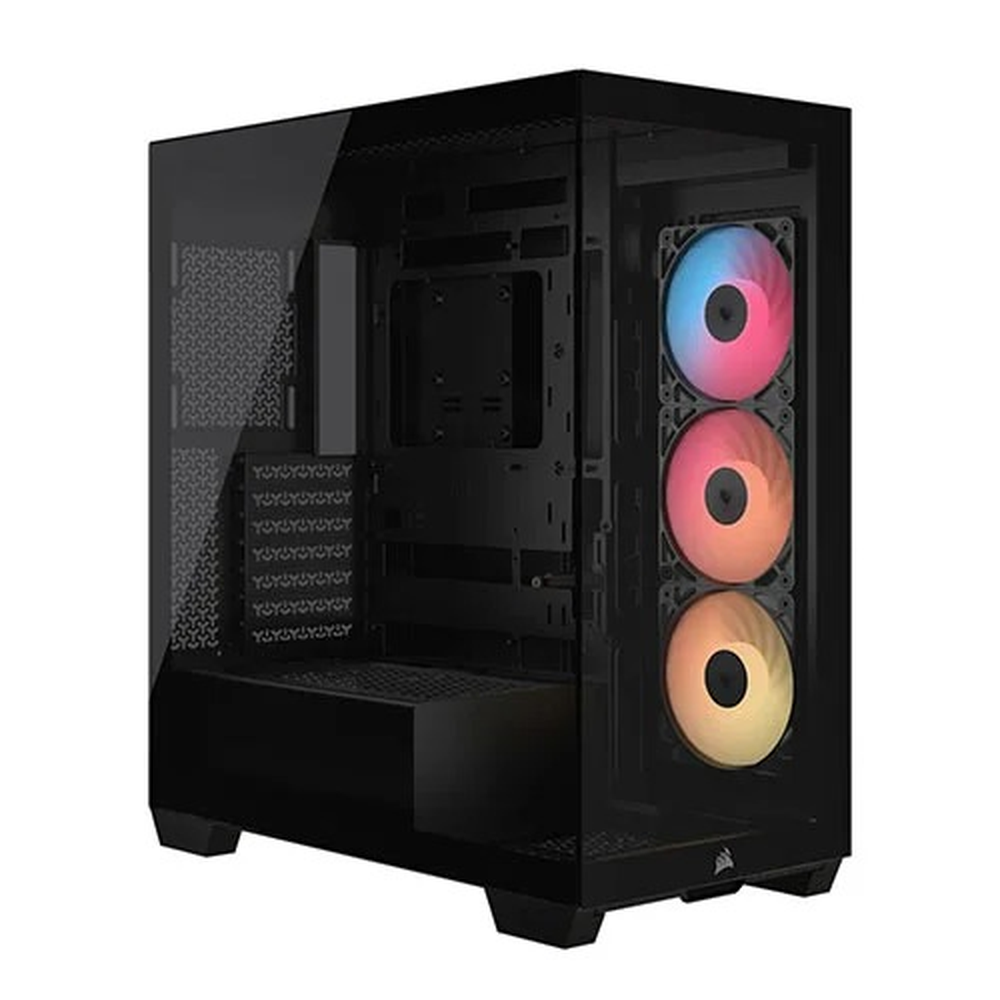

3500X RSR ARGB Tempered Glass Mid-Tower, Black

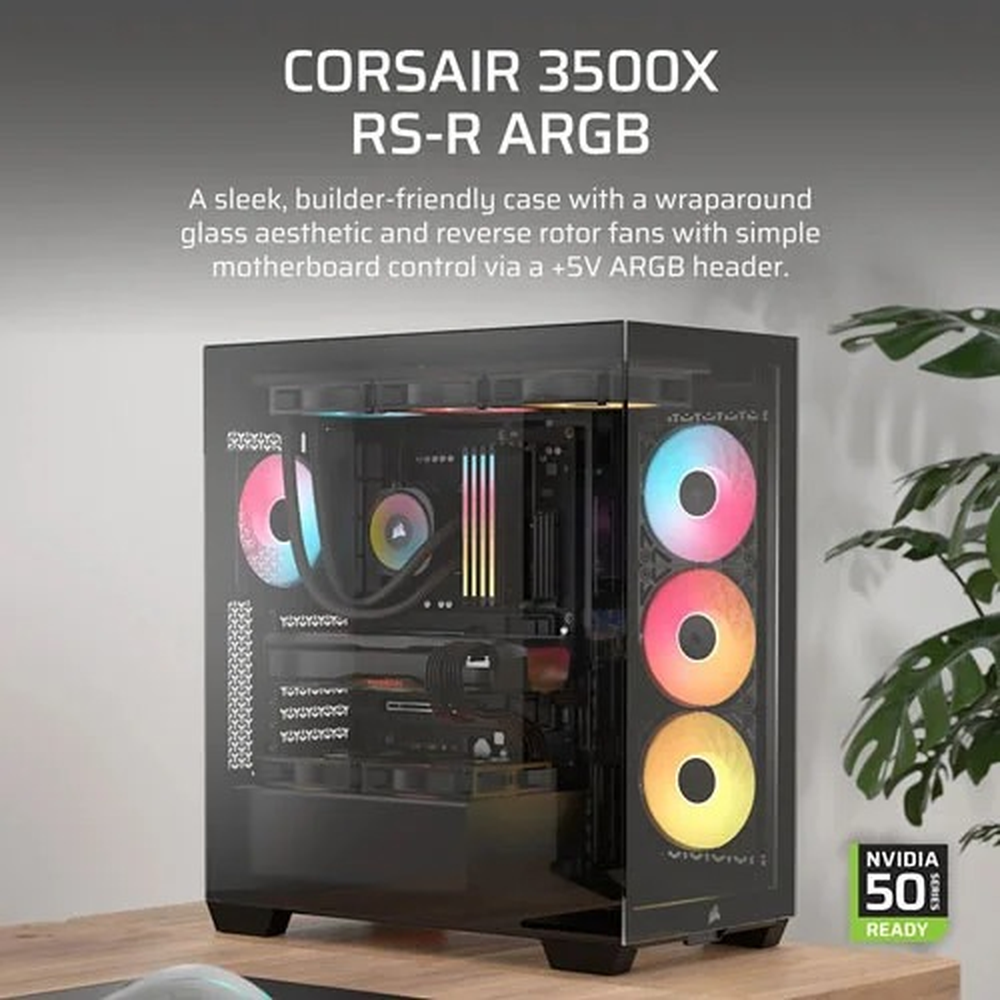

The Corsair 3500X RS-R ARGB Black is an innovative mid-tower PC case featuring wraparound tempered glass front and side panels that provide an unobstructed panoramic view of your build. With three pre-installed RS120-R reverse rotor ARGB fans, GPU anti-sag stabilization arm, support for motherboards from Mini-ITX to E-ATX, compatibility with reverse-connector motherboards, up to 10x 120mm fan mounting locations, multiple radiator support, and a sleek black finish, this builder-friendly case delivers exceptional aesthetics, unobstructed RGB lighting, and cooling performance.

Key Features:

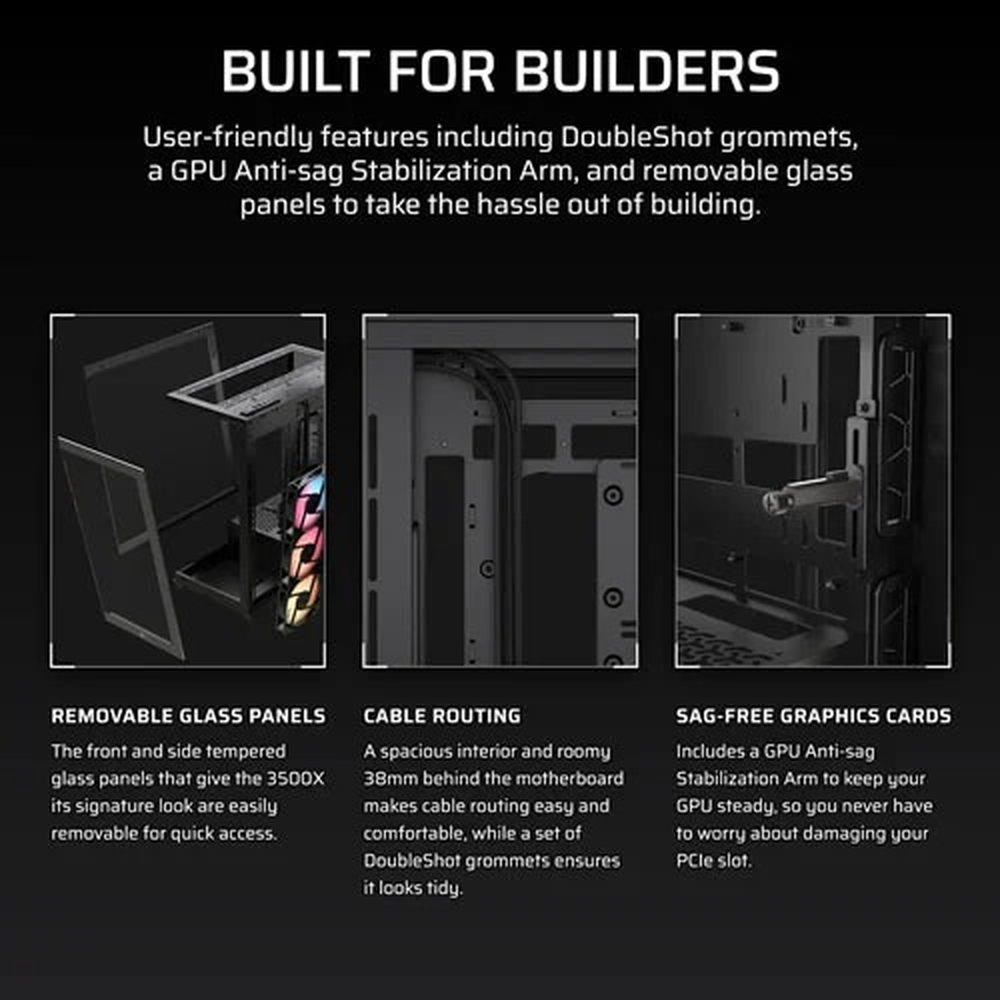

>Wraparound tempered glass front and left side panels for seamless panoramic views of your build >Three pre-installed RS120-R reverse rotor ARGB fans (120mm) with unobstructed RGB lighting >Reverse rotor fan design positions RGB LEDs on the rear of fan blades for crystal-clear, unobstructed lighting effects >Simple addressable RGB control via standard +5V ARGB motherboard header (ASUS AURA Sync, MSI Mystic Light, ASRock Polychrome RGB, GIGABYTE RGB Fusion compatible) >Daisy-chain fan connections for simplified cable management >CORSAIR Magnetic Dome bearings and AirGuide technology for exceptional cooling performance >Easily removable front and side tempered glass panels for quick build access and maintenance >Compatible with reverse-connector motherboards (ASUS BTF, MSI Project Zero, GIGABYTE Project Stealth) for cable-free aesthetics >Integrated GPU anti-sag stabilization arm protects graphics cards from PCIe slot damage >DoubleShot grommets improve cable routing for cleaner builds >High cooling capacity with up to 10x 120mm fan mounting locations (side, top, PSU shroud, rear, bottom) >Top radiator support up to 360mm for powerful AIO cooling >Side radiator support up to 360mm for CPU or GPU cooling >Bottom radiator support up to 120mm >No front fan mounting (solid glass front panel for pure aesthetics) >Supports Mini-ITX, Micro-ATX, ATX, and E-ATX motherboards up to 305mm x 277mm >Accommodates graphics cards up to 410mm in length >CPU cooler clearance up to 170mm height >PSU support up to 180mm length (ATX, not included) >Storage options: 2x 3.5" HDD, 2x 2.5" SSD >7 horizontal or 4 vertical expansion slots >Vertical GPU mount support for showcasing graphics cards >Ultra-modern front I/O with 1x USB 3.2 Gen 2 Type-C, 2x USB 3.2 Gen 1 Type-A ports >Built-in dust filtration for component protection >Premium steel and tempered glass construction with sleek black finish >Compact mid-tower footprint for space-efficient builds

Technical Specifications:

Model Number	CC-9011322-WW
Brand	Corsair
Series	3500X RS-R ARGB
Form Factor	Mid-Tower ATX
Color	Black
Materials	Steel, Tempered Glass

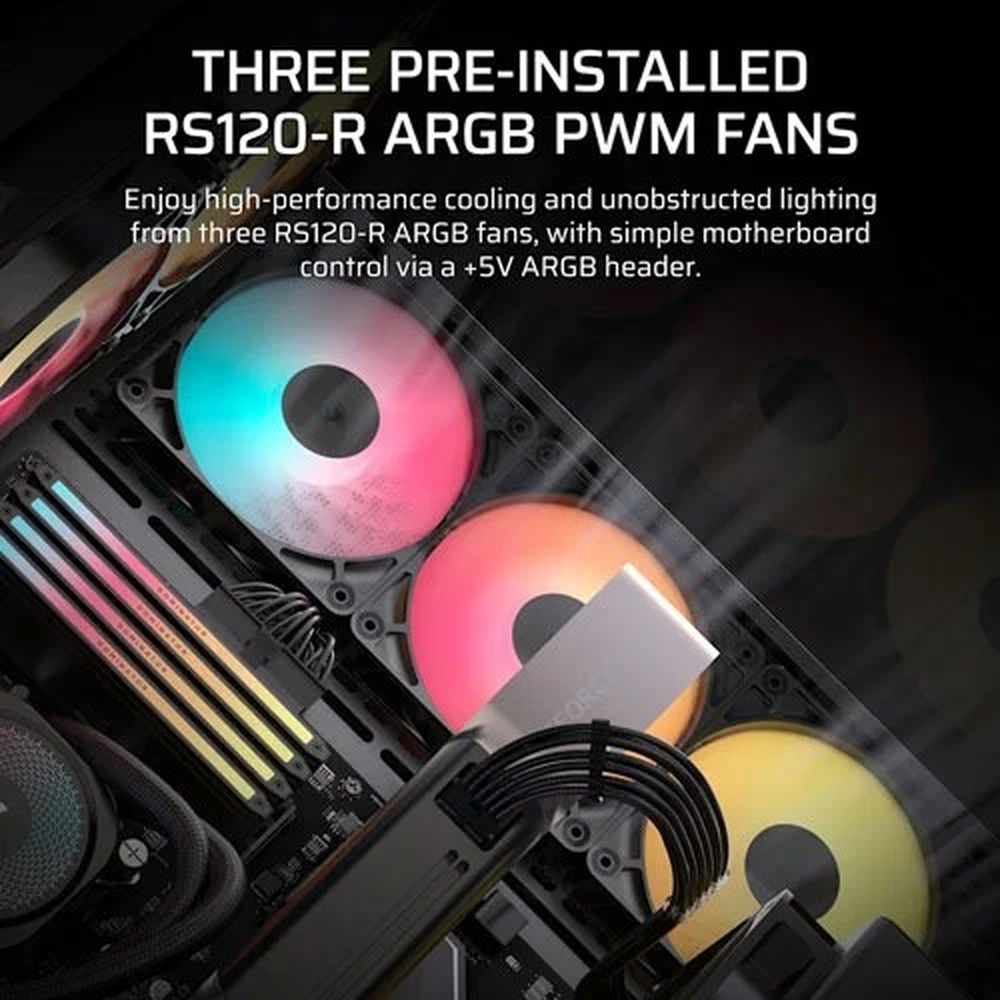

Included Fans	3x RS120-R Reverse Rotor ARGB Fans (120mm)
Fan Technology	Reverse Rotor Design, Magnetic Dome Bearings, AirGuide Technology
Maximum Fan Support	10x 120mm

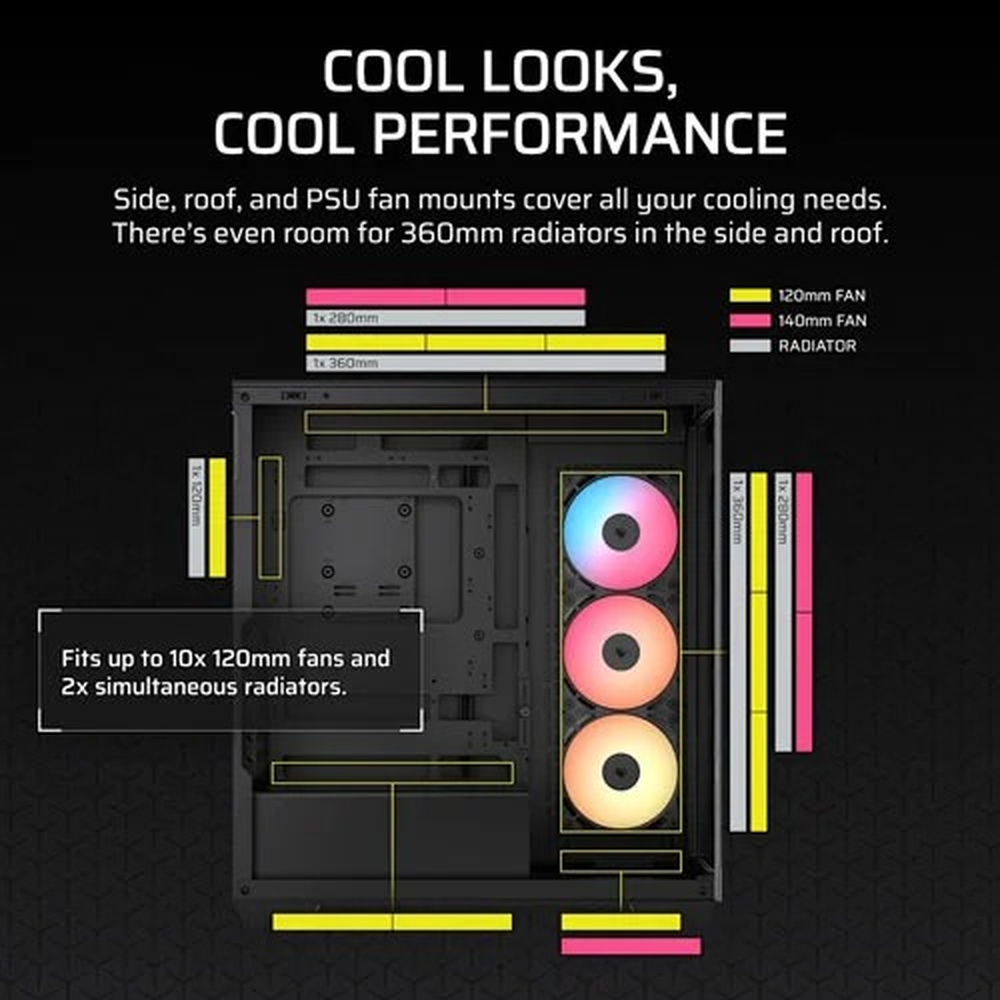

Fan Mounting Locations	Front: None (Glass Panel), Top: 3x 120mm or 2x 140mm, Side: 3x 120mm or 2x 140mm, Rear: 1x 120mm, Bottom: 1x 120mm or 1x 140mm, PSU Shroud: 2x 120mm
Radiator Support - Front	None (Glass Panel)
Radiator Support - Top	360mm, 280mm, 240mm
Radiator Support - Side	360mm, 280mm, 240mm
Radiator Support - Bottom	120mm
Radiator Support - Rear	120mm
Radiator Compatibility	120mm, 140mm, 240mm, 280mm, 360mm
Motherboard Compatibility	Mini-ITX, Micro-ATX, ATX, E-ATX (305mm x 277mm)

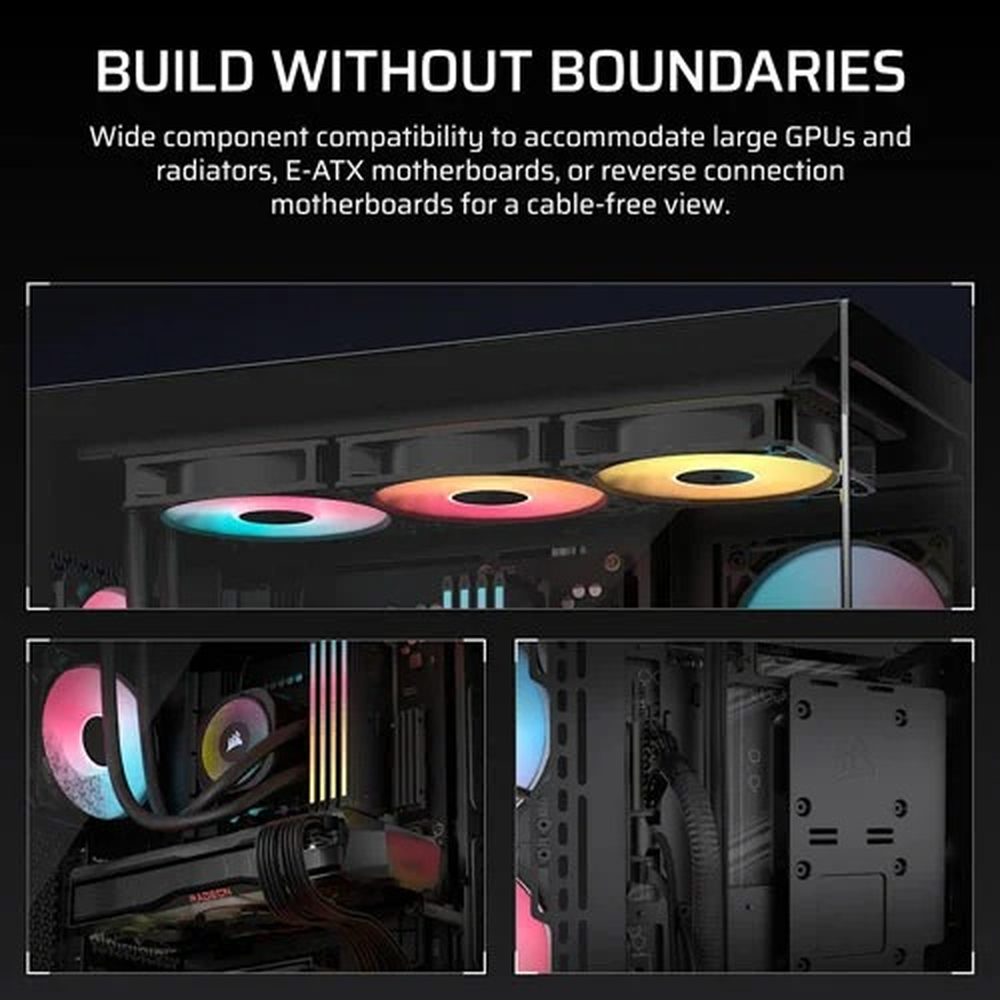

Reverse-Connector Compatible	Yes (ASUS BTF, MSI Project Zero, GIGABYTE Project Stealth)
Expansion Slots	7 Horizontal or 4 Vertical

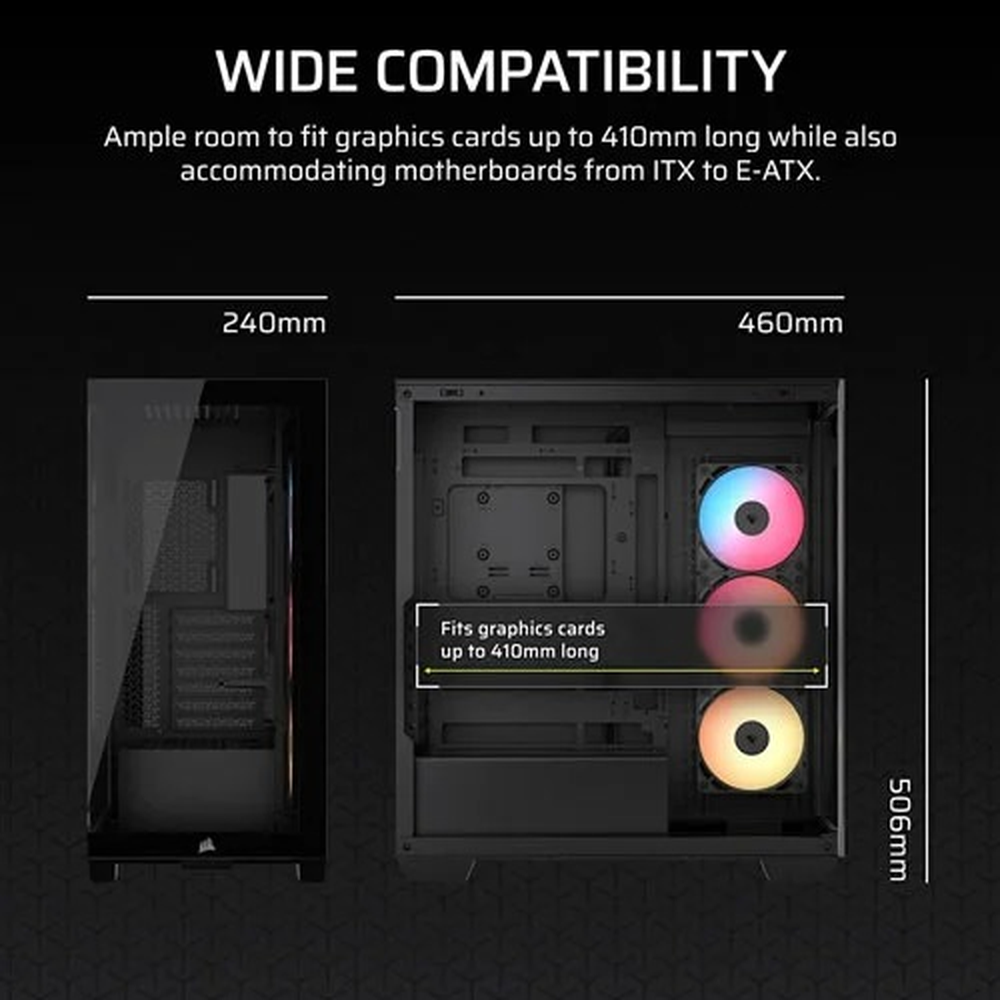

Maximum GPU Length	410 mm
Maximum CPU Cooler Height	170 mm
Maximum PSU Length	180 mm
PSU Type	ATX (not included)
Drive Bays	2x 3.5" HDD, 2x 2.5" SSD

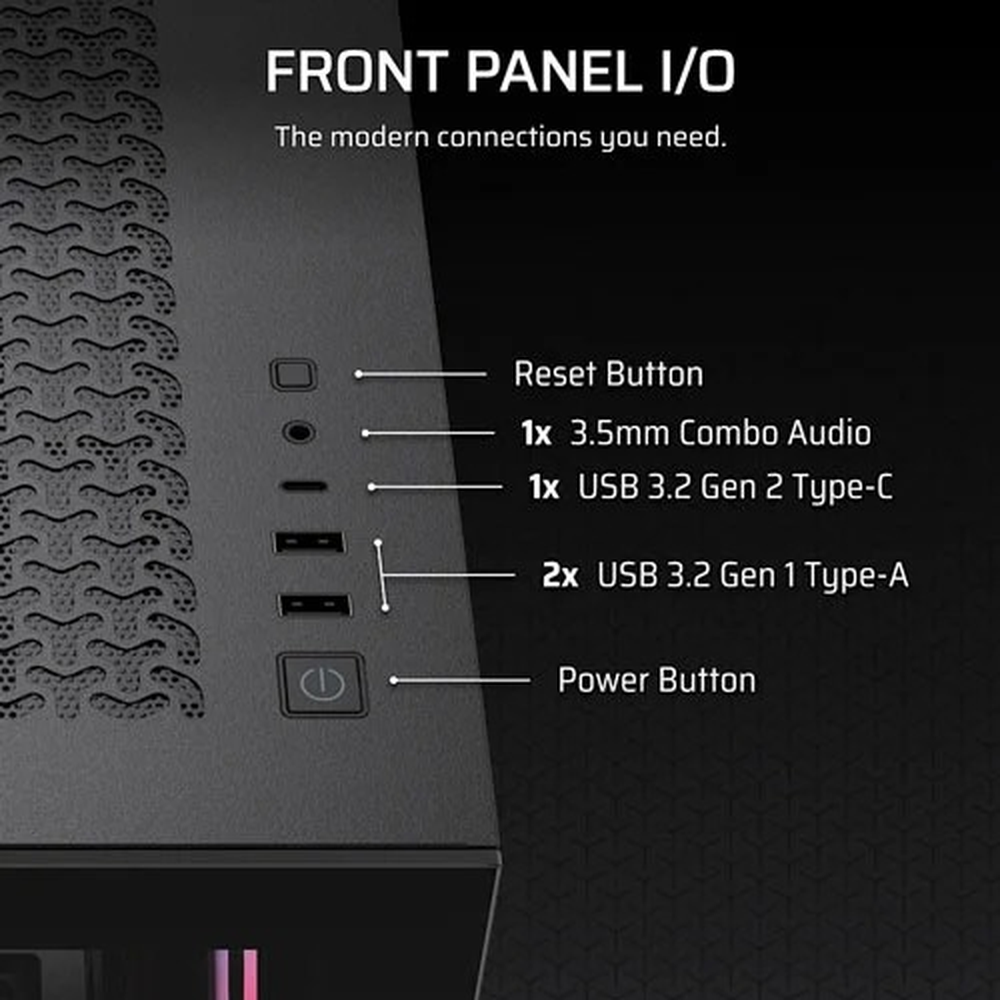

Front I/O	1x USB 3.2 Gen 2 Type-C, 2x USB 3.2 Gen 1 Type-A, 1x Audio/Mic Combo Jack
Left Side Panel	Tempered Glass (Wraparound with Front)
Front Panel	Tempered Glass (Wraparound with Side)

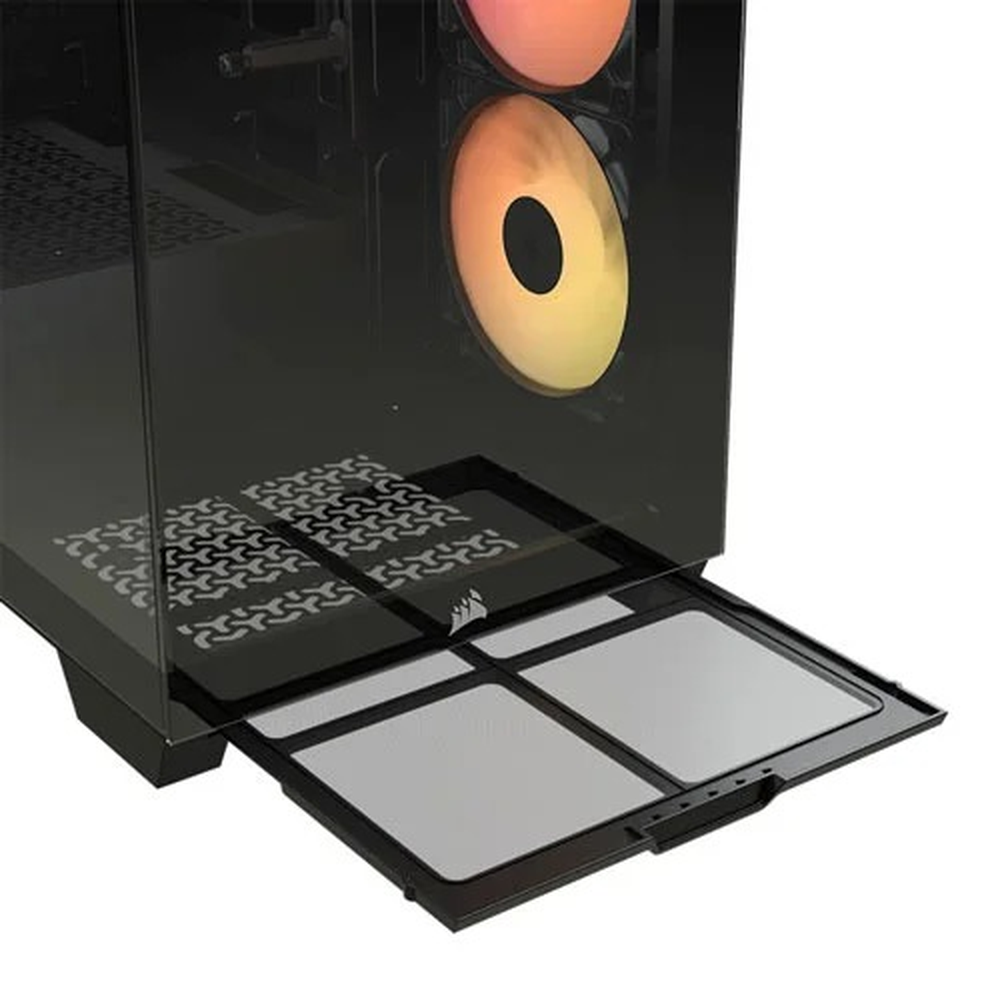

Dust Filtration	Yes (Top, Bottom, Side, PSU Shroud)
Dimensions (H x L x W)	506 x 460 x 240 mm / 19.9 x 18.1 x 9.5 inches
Weight	10.54 kg / 23.2 lbs
Compatible Liquid Coolers	H60, H100, H115, H150, NAUTILUS, TITAN (All Series)
Warranty	2 Years

Package Contents:

>3500X RS-R ARGB Case (Black) >3x RS120-R Reverse Rotor ARGB Fans (120mm, pre-installed) >Wraparound Tempered Glass Front and Side Panel >GPU Anti-Sag Stabilization Arm >DoubleShot Cable Management Grommets >Mounting Hardware and Screws >Cable Ties >User Manual

Note: Power supply (PSU) not included.

Perfect for gaming PC builders, RGB lighting enthusiasts, ATX and E-ATX system builders, first-time builders seeking simplicity, reverse-rotor fan enthusiasts, and anyone who wants stunning panoramic glass aesthetics with crystal-clear, unobstructed RGB lighting and excellent out-of-the-box cooling performance in a sleek black finish. The Corsair 3500X RS-R ARGB Black elevates the acclaimed 3500X series with innovative reverse rotor ARGB fans that deliver a significant aesthetic advantage over traditional fans. The defining innovation is the three pre-installed RS120-R reverse rotor ARGB fans—unlike standard fans where the motor hub obstructs the center of the RGB lighting, the reverse rotor design positions the RGB LEDs on the rear of the fan blades with the motor mounted behind them, creating crystal-clear, fully visible, and completely unobstructed RGB lighting effects that shine brilliantly through the panoramic tempered glass without any dark spots or motor hub blocking the view. This reverse rotor design doesn't sacrifice performance—these fans incorporate CORSAIR Magnetic Dome bearings for silent operation and longevity, AirGuide technology that focuses airflow for improved cooling efficiency, and custom-engineered fan blades that deliver exceptional cooling performance for both radiator and case setups. Simple daisy-chain connections make installation straightforward, while standard +5V ARGB motherboard header control ensures compatibility with popular RGB software ecosystems including ASUS AURA Sync, MSI Mystic Light, ASRock Polychrome RGB, and GIGABYTE RGB Fusion—synchronizing your fans with RGB RAM, motherboards, AIO coolers, and peripherals for cohesive lighting effects. The wraparound tempered glass front and left side panels eliminate the traditional seam between front and side panels, creating a seamless panoramic fish-tank showcase of your components and those stunning reverse rotor RGB fans from nearly every viewing angle. The easily removable front and side glass panels make building and accessing your system straightforward—no tools required to remove panels, speeding up installation and future upgrades. Despite the solid glass front panel (no front fan mounting), the 3500X RS-R offers exceptional cooling potential with up to 10x 120mm fan mounting locations across side, top, PSU shroud, rear, and bottom positions. Versatile radiator support includes up to 360mm on both top and side—perfect for dual 360mm radiator custom water cooling loops or powerful AIO liquid coolers. The spacious interior supports motherboards from Mini-ITX all the way to E-ATX (up to 305mm x 277mm), accommodates graphics cards up to 410mm (like RTX 4090 models), tower CPU coolers up to 170mm, and PSUs up to 180mm. Full compatibility with reverse-connector motherboards from ASUS BTF, MSI Project Zero, and GIGABYTE Project Stealth allows cables to route directly behind the motherboard tray, creating impossibly clean builds where only components and RGB lighting are visible through the glass. The integrated GPU anti-sag stabilization arm prevents graphics card droop and protects expensive GPUs from PCIe slot damage over time, while DoubleShot grommets improve cable routing for cleaner, more professional-looking builds. The case supports both 7 horizontal expansion slots for traditional GPU mounting or 4 vertical slots for vertical GPU mounting (accessory sold separately), allowing you to showcase your graphics card's front-facing RGB lighting alongside the reverse rotor fans. Build a stunning, high-performance ATX or E-ATX system with unobstructed reverse rotor RGB fans and seamless panoramic glass in the Corsair 3500X RS-R ARGB Black.
