Server RAM // ADATA

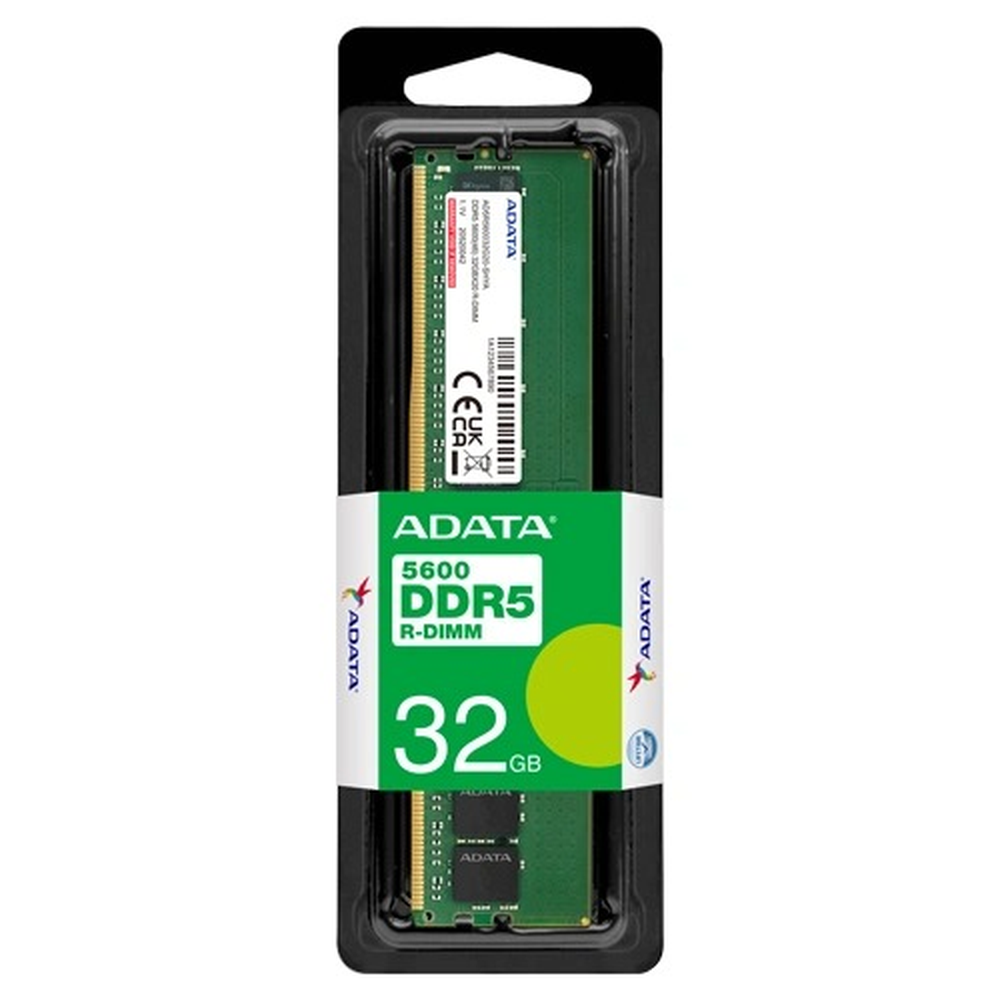

ADATA DDR5 R-DIMM 32GB 5600MHz CL46 ECC Server/Workstation RAM
Technical specification
ADATA DDR5 R-DIMM — 32GB, 5600MHz, CL46, ECC Registered, 288-pin, 1.1V, designed for Intel Xeon and AMD Ryzen Threadripper PRO workstations and servers.
The ADATA AD5R560032G20-SHYA is a professional-grade DDR5 32GB R-DIMM module built for heavy workstation and server workloads. With a 5600 MT/s data rate, CL46 latency, and 1.1V operating voltage, it delivers high bandwidth and better efficiency than previous DDR generations. As a registered ECC DIMM, it includes both on-die and side-band ECC plus a register/clock driver for improved signal integrity, making it ideal for 3D rendering, video post-production, data science, virtualization, and AI workloads on supported Xeon and Threadripper PRO platforms.
- 32GB DDR5 R-DIMM module for workstations and servers
- High speed 5600 MT/s for demanding professional applications
- ECC Registered design (R-DIMM) with on-die and side-band ECC for maximum stability
- Operates at just 1.1V for improved power efficiency versus DDR4
- 288-pin DIMM form factor with 30µ gold-plated contacts for durability
- Supports Intel Xeon W-2400/W-3400/W-2500/W-3500 and AMD Ryzen Threadripper PRO 7000WX/7000 workstation platforms
- Features temperature sensor for thermal monitoring in 24/7 environments
- Ideal for content creation, CAD/CAM, simulation, and enterprise workloads
| Spec | Detail |
|---|---|
| Brand | ADATA |
| Series | DDR5 R-DIMM |
| Model Number | AD5R560032G20-SHYA |
| Capacity | 32GB (1 x 32GB) |
| Memory Type | DDR5 |
| Module Type | R-DIMM (Registered ECC) |
| Speed | 5600 MT/s |
| CAS Latency | CL46 |
| Voltage | 1.1V |
| ECC Support | On-die ECC and side-band ECC |
| Form Factor | 288-pin DIMM |
| Operating Temperature | 0°C to 85°C (typical) |
| Compatibility | Intel Xeon W-2400/W-3400/W-2500/W-3500, AMD Ryzen Threadripper PRO 7000WX/7000 |
| Additional Features | Register/clock driver, temperature sensor, 30µ gold-plated contacts |
| EAN Code | 4711085949110 |
| Warranty | Limited Lifetime |
