Server RAM // ADATA

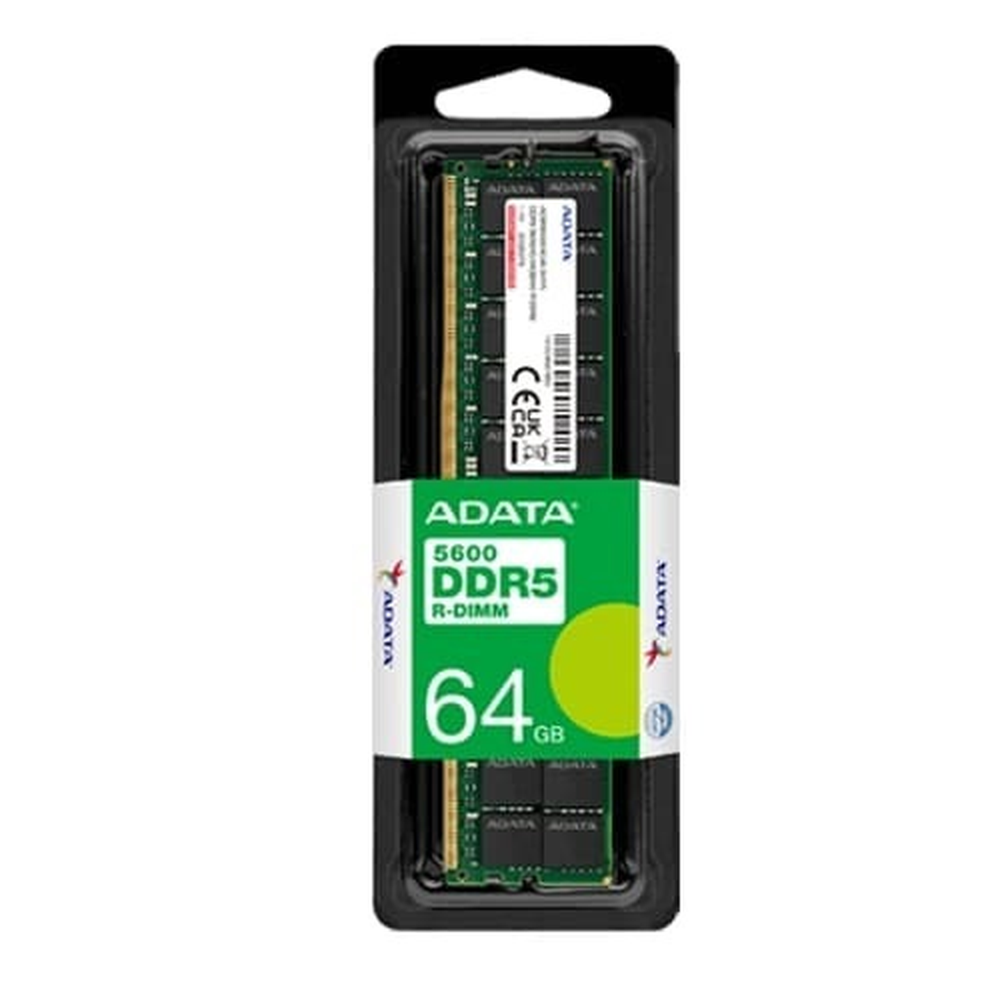

ADATA DDR5 R-DIMM 64GB 5600MHz CL46 ECC Server/Workstation RAM
Technical specification
ADATA DDR5 R-DIMM — 64GB, 5600MHz, CL46-45-45, ECC Registered, 288-pin, 1.1V, built for Intel Xeon and AMD Ryzen Threadripper PRO workstations and servers.
The ADATA AD5R560064G40-SHYA is a high-capacity DDR5 64GB R-DIMM module engineered for professional workstations, servers, and enterprise NAS systems. With a 5600 MT/s data rate, CL46 timings, and 1.1V operating voltage, it delivers massive bandwidth and improved power efficiency compared to DDR4, making it ideal for AI workloads, 3D rendering, video post-production, simulation, and virtualization. As an ECC Registered DIMM, it combines on-die and side-band ECC with a register/clock driver for superior signal integrity and stability on Intel Xeon W-2400/W-3400/W-2500/W-3500 and AMD Ryzen Threadripper PRO 7000/7000WX platforms.
- 64GB DDR5 R-DIMM module for high-end workstations, servers, and NAS
- High speed 5600 MT/s bandwidth for demanding professional applications
- ECC Registered design (R-DIMM) with on-die and side-band ECC for maximum reliability
- Operates at 1.1V for better efficiency than previous-generation DDR4 memory
- 288-pin DIMM form factor with 30µ gold-plated contacts for long-term durability
- Supports Intel Xeon W-2400/W-3400/W-2500/W-3500 and AMD Ryzen Threadripper PRO 7000/7000WX platforms
- Equipped with temperature sensor for thermal monitoring in 24/7 environments
- Perfect for AI, data analytics, scientific computing, CAD/CAM, and content creation
| Spec | Detail |
|---|---|
| Brand | ADATA / XPG (enterprise line) |
| Series | DDR5 R-DIMM |
| Model Number | AD5R560064G40-SHYA |
| Capacity | 64GB (1 x 64GB) |
| Memory Type | DDR5 |
| Module Type | R-DIMM (Registered ECC) |
| Speed | 5600 MT/s (PC5-44800) |
| CAS Latency | CL46-45-45 |
| Voltage | 1.1V |
| ECC Support | On-die ECC and side-band ECC |
| Form Factor | 288-pin DIMM |
| Operating Temperature | 0°C to 85°C (standard); industrial options up to 95°C |
| Compatibility | Intel Xeon W-2400/W-3400/W-2500/W-3500, AMD Ryzen Threadripper PRO 7000WX/7000 |
| Additional Features | Register/clock driver, temperature sensor, 30µ gold-plated contacts |
| EAN Code | 4711658150295 |
| Warranty | Limited Lifetime |
