Cabinet // Antec

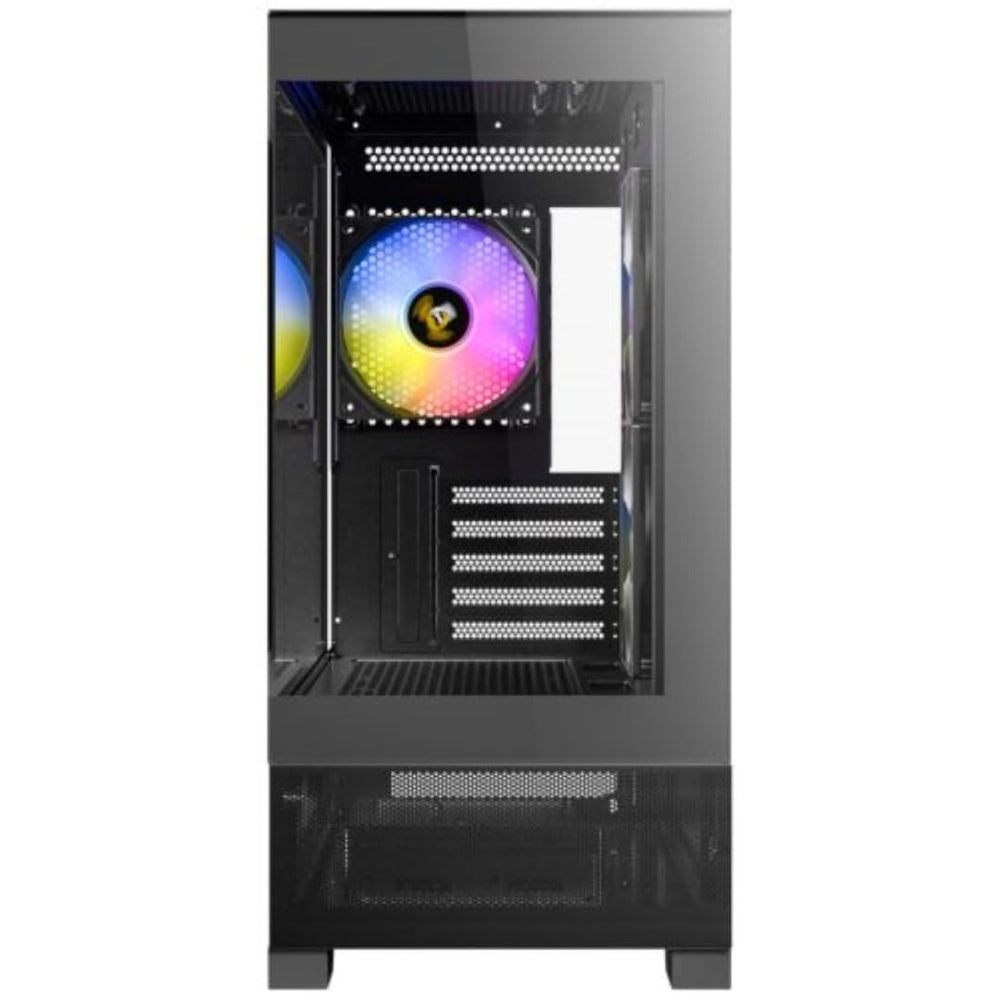

Antec CX500M RGB Micro-ATX Mini Tower Gaming Cabinet (Black)
Technical specification
Micro‑ATX Mini Tower Gaming Cabinet — Panoramic 270° Tempered Glass Front & Side, Vertical Cooling with Massive Air Intake, 3 x Pre‑Installed 120mm RGB Fans (2 Reverse Side + 1 Rear), Supports up to 9 x 120mm Fans, Top 360mm Radiator Support, 415mm GPU Clearance, 165mm CPU Cooler Clearance, 210mm PSU Clearance (with HDD), USB Type‑C 3.2 Gen 2 Front I/O, mATX / ITX Support.
The Antec CX500M RGB Black is a compact aquarium‑style micro‑ATX mini tower that showcases your build through seamless steel‑tempered glass front and side panels, delivering a panoramic 270° view while maintaining strong airflow.[web:1584][web:1587][web:1588] Bottom‑up vertical airflow via large mesh intakes on the lower front, lower left and right side accelerates heat dissipation for modern GPUs and CPUs.[web:1588][web:1589]
Out of the box, CX500M RGB includes three 120mm fixed‑mode RGB fans — two reverse‑blade fans on the right side as main intake, plus one standard RGB exhaust at the rear — with support for up to 9 fans total and a 360mm radiator on the top, making it a surprisingly capable chassis for high‑performance, small‑footprint gaming builds.[web:1587][web:1588][web:1593] With GPU clearance up to 415mm, CPU cooler height support up to 165mm and PSU length up to 210mm including cables (with HDD cage installed), it easily handles current RTX 40‑series class hardware.[web:1587][web:1588][web:1590]
- Panoramic 270° full‑view glass — Seamless steel‑tempered glass front and 4mm tempered glass side panel offer an unobstructed aquarium‑style view of your components.[web:1584][web:1587][web:1588]
- Vertical cooling with massive intake — Bottom‑up airflow path through mesh at lower front, left and right side accelerates heat dissipation and feeds GPUs with fresh air.[web:1588][web:1589]
- 3 x pre‑installed 120mm RGB fans — Includes 2 x 120mm fixed‑mode RGB reverse fans on the right side for intake and 1 x 120mm fixed‑mode RGB fan at the rear for exhaust.[web:1584][web:1588][web:1593]
- Supports up to 9 x 120mm fans — Top (3 x 120mm or 2 x 140mm), Side (2 x 120mm), PSU shroud (3 x 120mm), Rear (1 x 120mm) enable extremely robust cooling for a compact tower.[web:1587][web:1589]
- Top 360mm radiator support — Supports 120/140/240/280/360mm radiators at the top, making it ideal for 360mm AIO liquid coolers even with tall RAM.[web:1587][web:1589]
- RTX 40‑series ready — GPU clearance up to 415mm allows installation of the longest triple‑fan RTX 40‑series graphics cards.[web:1587][web:1588][web:1593]
- 165mm CPU cooler height — Supports tower air coolers up to 165mm tall for high‑performance air‑cooled builds.[web:1587][web:1588]
- Ample PSU and cable space — PSU up to 210mm including cables with HDD cage installed; up to 270mm without HDD cage, plus approximately 23mm cable management space.[web:1587][web:1588][web:1590]
- Tool‑free glass panels — Fixing‑stud design on the side and front panels simplifies assembly/disassembly and reduces risk of glass damage.[web:1588][web:1592]
- Full reusable PCI slot covers & EVA PSU pads — All PCI slot covers are reusable, and EVA foam pads under the PSU help reduce vibration and noise.[web:1588][web:1593]
- Modern front I/O with USB‑C — Includes USB Type‑C 3.2 Gen 2, dual USB 3.0 ports, LED button and combo audio jack for convenience and future‑proofing.[web:1587][web:1588]
| Spec | Detail |
|---|---|
| Model | Antec CX500M RGB Black |
| SKU | CX500M-RGB-BLACK |
| Color | Black |
| Form factor | Mini Tower |
| Motherboard support | Micro‑ATX, Mini‑ITX |
| Case dimensions (D x W x H) | 436 x 210 x 446 mm |
| Materials | Steel + Tempered Glass |
| Side panel | 4mm Tempered Glass |
| Front panel | Steel‑tempered glass with side mesh intake |
| Front / Top I/O | Power, LED Control Button, 1 x USB Type‑C 3.2 Gen 2, 2 x USB 3.0, Headphone/Mic Combo Jack |
| Expansion slots | 5 |
| Drive bays | 2 x 3.5"/2.5" combo + 1 x 2.5" SSD |
| Max GPU length | ≤ 415mm |
| Max CPU cooler height | ≤ 165mm |
| Max PSU length | ≤ 210mm (with HDD cage, incl. cable) / ≤ 270mm (without HDD, excl. cable) |
| Fan support — Top | 3 x 120mm or 2 x 140mm |
| Fan support — Side | 2 x 120mm |
| Fan support — PSU shroud | 3 x 120mm |
| Fan sup |
