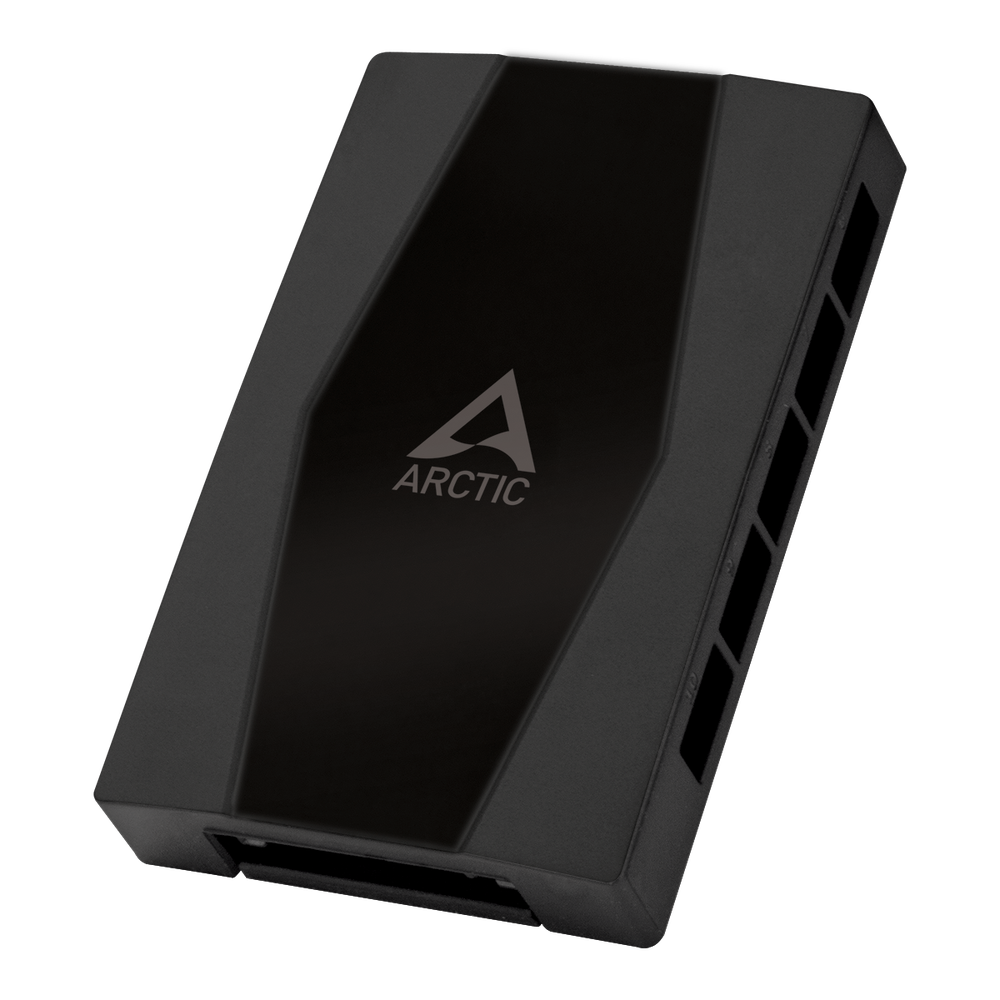

ARCTIC Case Fan Hub – 10 Port PWM Fan Hub with SATA Power (Black)
Rs. 1,118.00
10 port
acfan00175a
arctic
case fan hub
Genuine & warrantedAuthorised stock, brand warranty
83560 26438Contact for querries
Secure checkoutUPI · cards · EMI
Fast shippingTracked · 5–7 days
01 — Datasheet
Technical specification
ARCTIC Case Fan Hub (ACFAN00175A) is a compact 10‑port PWM fan hub with SATA power, designed to centralise cable management and let you control up to ten case fans from a single motherboard PWM header.
-
>Centralised cable management: Includes adhesive pads and magnetic strips so you can mount the hub anywhere in the case and route all fan cables to a single, hidden point
>10× PWM fan headers: Supports up to ten 4‑Pin PWM fans, passing the motherboard’s PWM signal to all connected fans for synchronized speed control
>SATA‑powered fans: Fans draw power directly from your PSU via SATA, preventing overload of the motherboard fan header and avoiding voltage drop at higher loads
>Single PWM control cable: Only one 4‑Pin cable runs to the motherboard; the RPM of fan socket 1 is reported back for monitoring
>Compact & lightweight: Slim 86.3 × 55.6 × 14.3 mm design, only 50 g, easy to tuck behind the motherboard tray or in cable‑management channels
| Specification | Detail |
|---|---|
| Brand | ARCTIC |
| Model | Case Fan Hub |
| Part Number | ACFAN00175A |
| Colour | Black |
| Dimensions | 86.3 (L) × 55.6 (W) × 14.3 (H) mm |
| Weight (Hub) | 50 g |
| Input – Power | SATA Power (≤4.5 A) |
| Input – Control | 1 × 4‑Pin Fan Header (PWM signal + RPM feedback) |
| Outputs | 10 × 4‑Pin PWM fan sockets (up to 1 A per port) |
| Supported Fans | 12 V PWM fans (case / radiator fans) |
| Operating Temp | 0 – 40 °C |
| Warranty | 6 Years |
| Packaging Weight | 0.075 kg (approx. with packaging) |
| Box Contents | ARCTIC Case Fan Hub, PWM connection cable, adhesive pads, magnetic strips, documentation |
