CPU Air Cooler // ARCTIC
ARCTIC Freezer 4U-M Rev.2 4U Server CPU Air Cooler
Rs. 7,600.00
120mm
350w tdp
4u
acfre00133b
Genuine & warrantedAuthorised stock, brand warranty
83560 26438Contact for querries
Secure checkoutUPI · cards · EMI
Fast shippingTracked · 5–7 days
01 — Datasheet
Technical specification

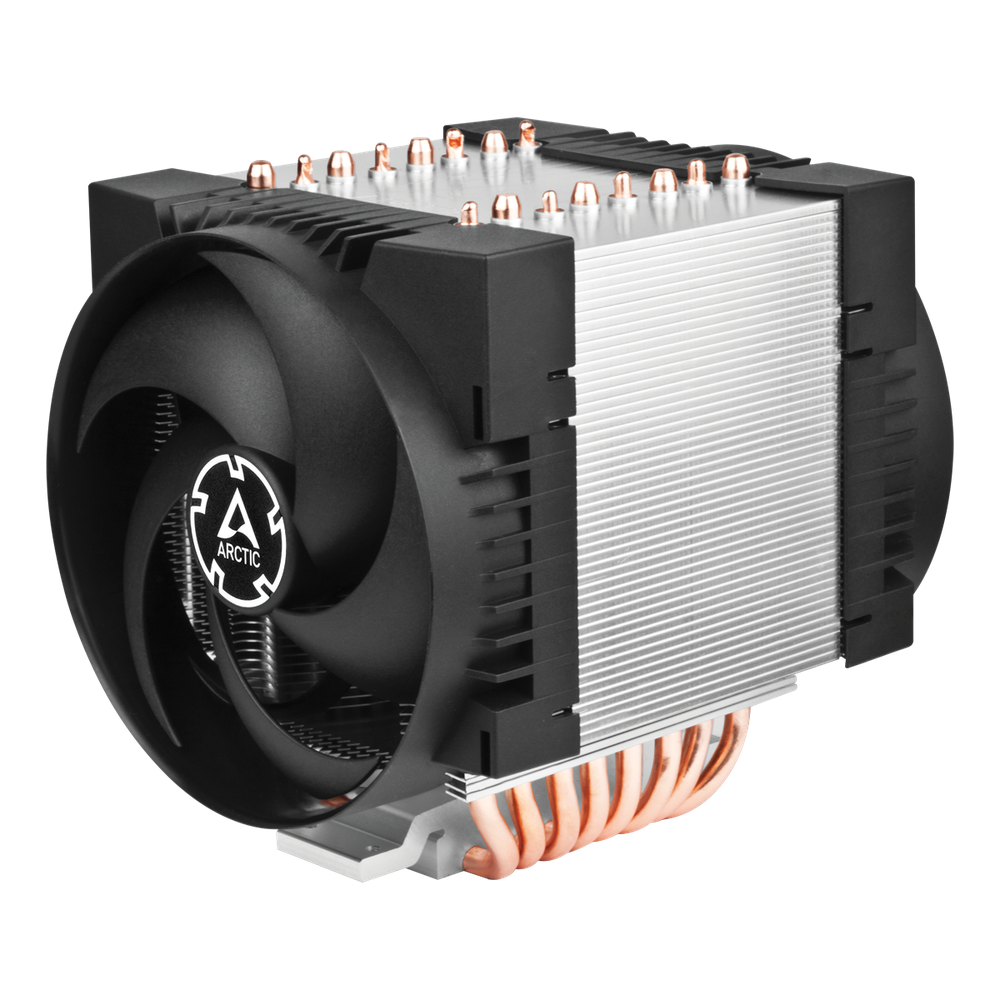

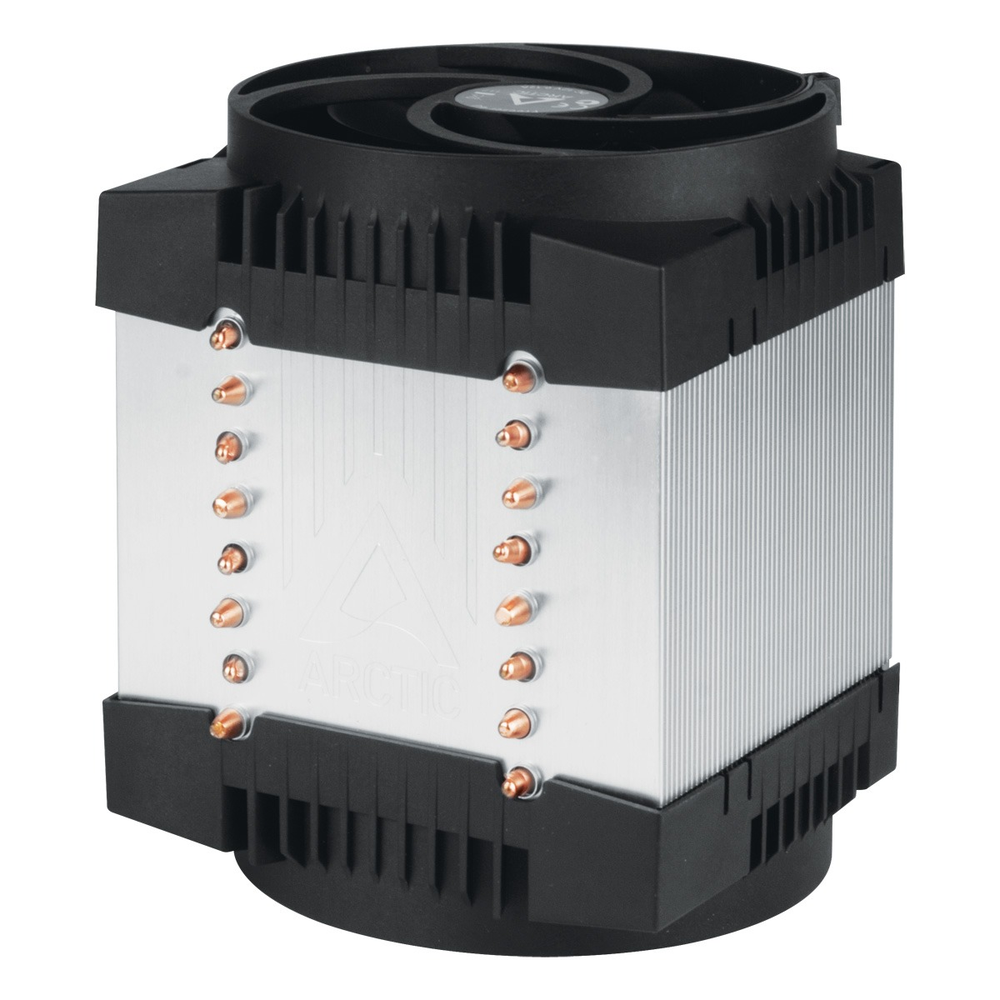

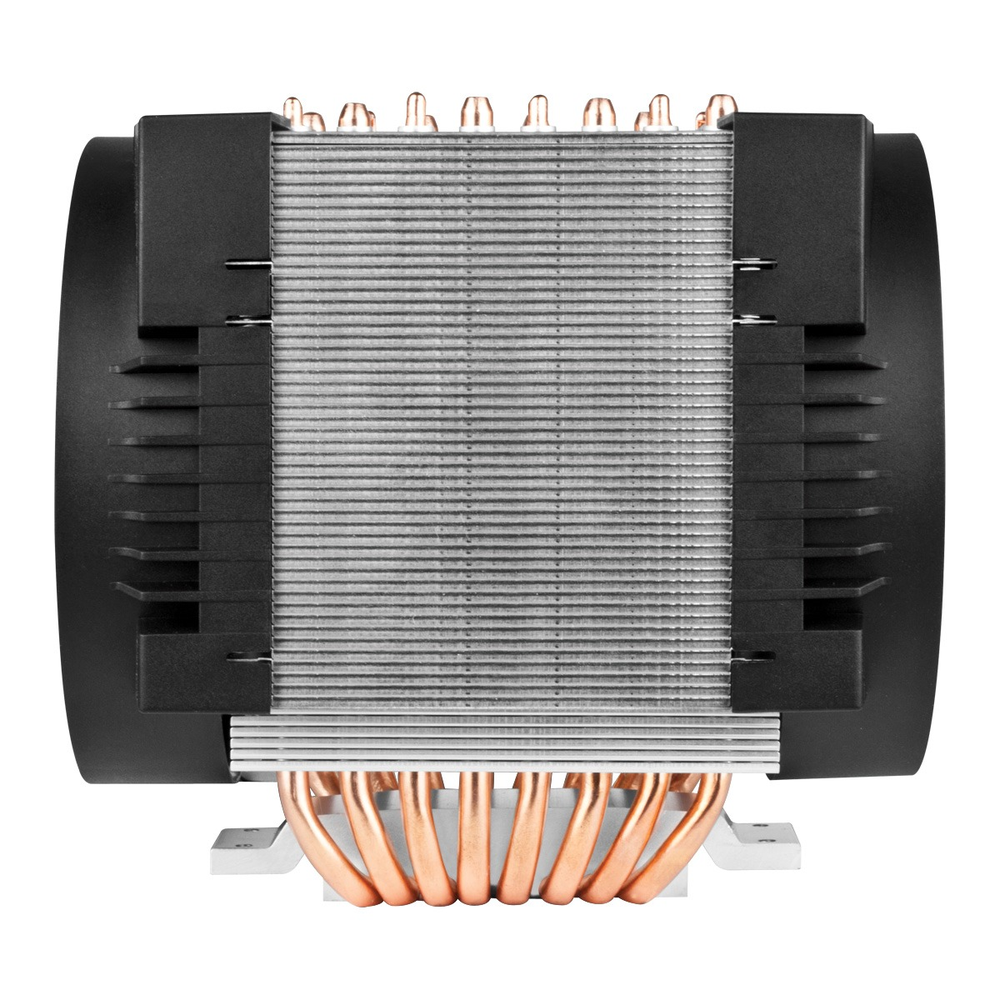

ARCTIC Freezer 4U-M Rev.2 (ACFRE00133B) — a multi‑compatible 4U server CPU air cooler designed for Intel and AMD platforms with up to 64 cores and TDPs up to 350W, featuring eight direct‑touch copper heatpipes, a dense aluminium fin stack, and dual 120mm P‑series PWM fans with durable dual ball bearings for reliable 24/7 operation in workstations, servers, and render nodes.
- 4U Server Design: Optimised 145mm height for standard 4U racks and most 4U consumer cases, with a compact 156 × 124mm footprint suitable for dual‑socket boards
- High TDP Support: Engineered to cool CPUs up to 350W TDP, ideal for high‑core workstation and server processors

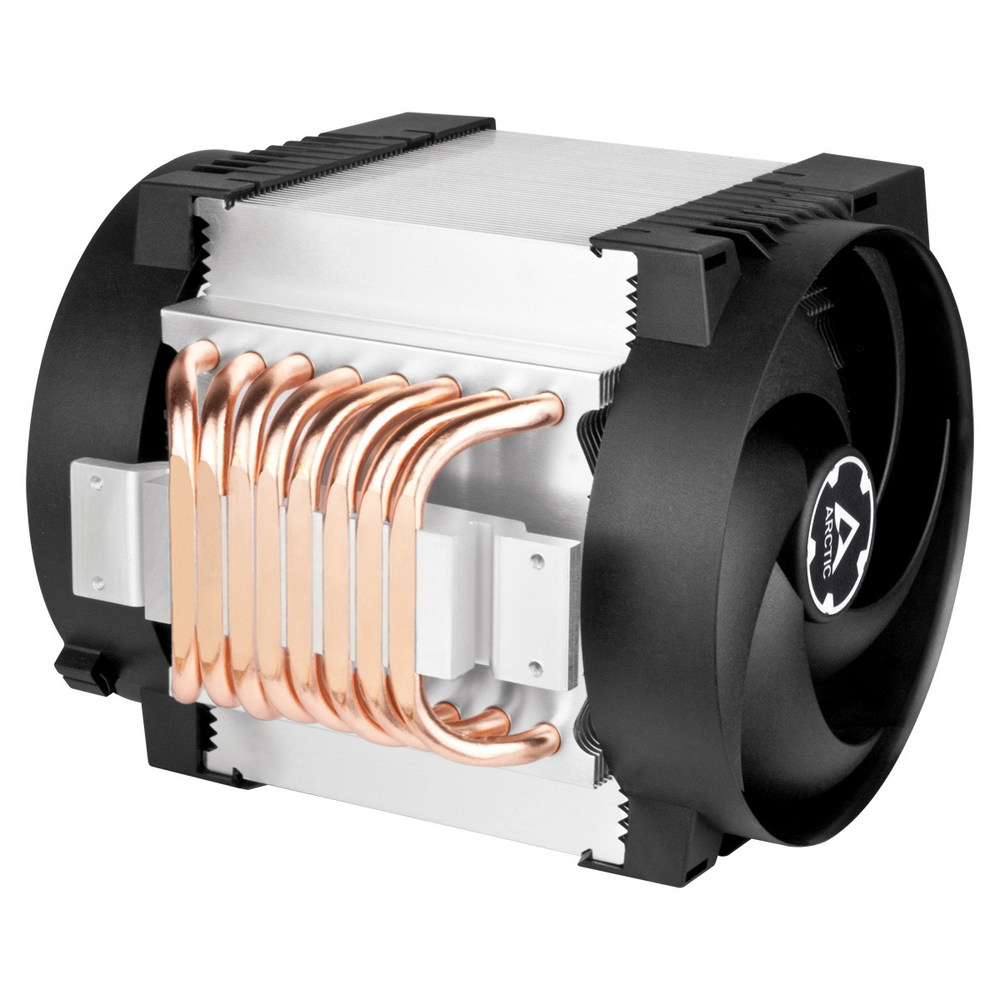

- Eight Heatpipes: 8× 6mm direct‑touch copper heatpipes and 57 aluminium fins for high surface area and efficient heat dissipation

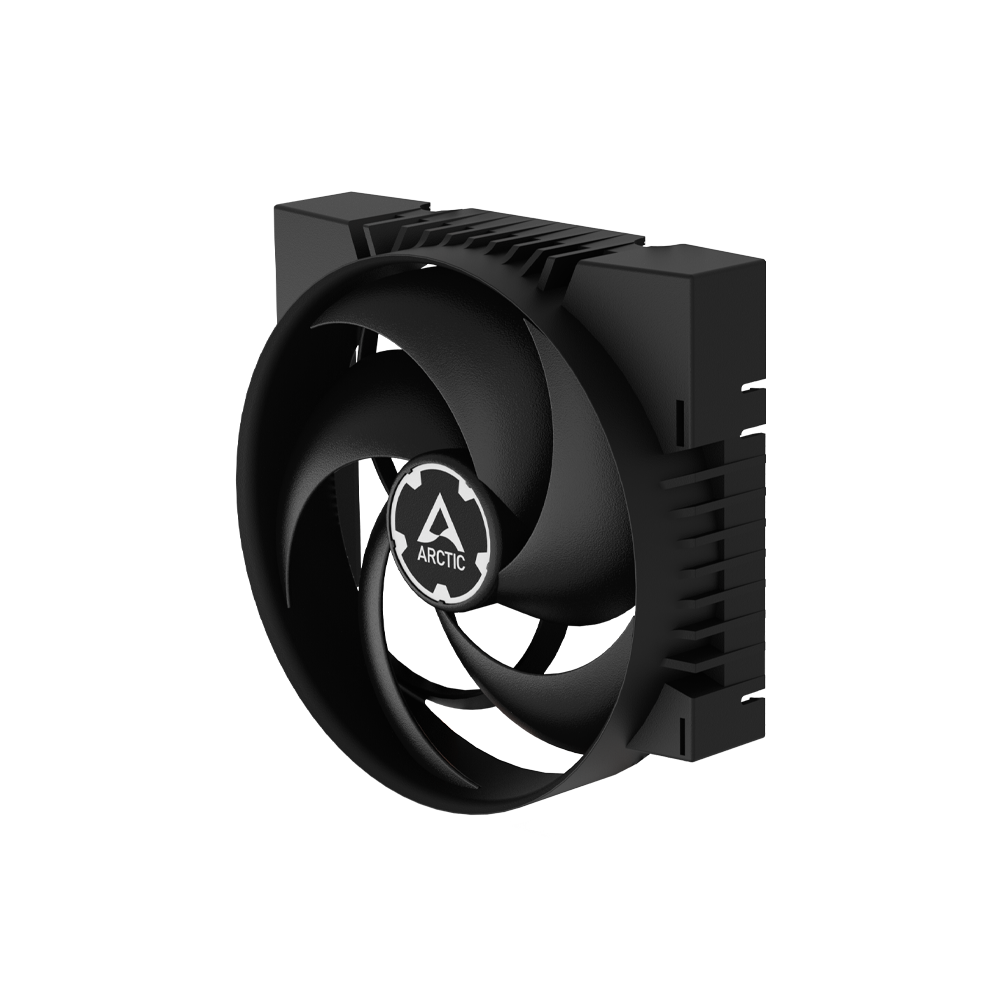

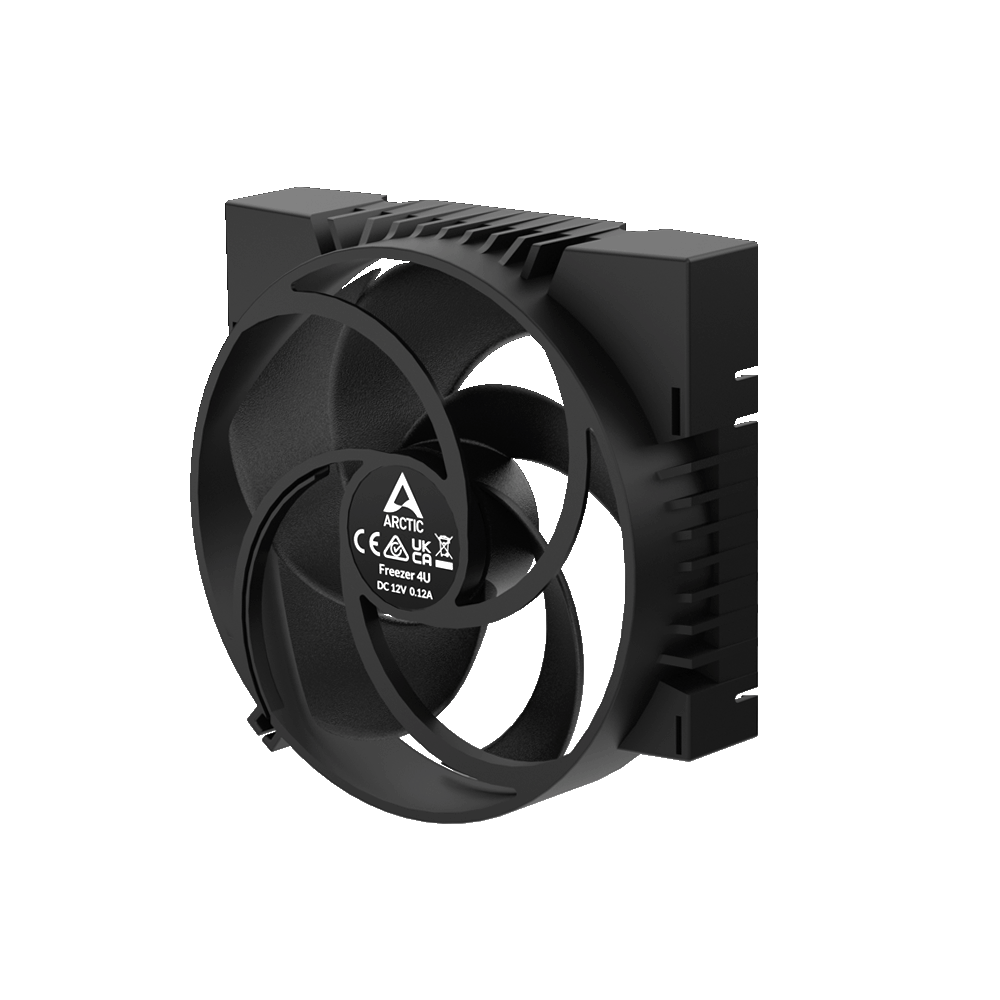

- Dual 120mm P‑Series Fans: 2× 120mm PWM fans (400–2300 RPM) optimised for static pressure and dense fins in push‑pull configuration
- Dual Ball Bearings: Server‑grade dual ball bearings on both fans for long‑life 24/7 continuous operation and high temperature tolerance
- Wide Socket Support: Compatible with Intel LGA4710 / LGA4677 / LGA4189 and AMD SP6 / sTR5 / SP3 / TR4 / sTRX4 / sWRX8
- RAM Clearance: 53mm memory clearance allows the use of modules with moderate heatsinks while maintaining airflow
- Energy Efficient: Only ~2.88W fan power consumption while delivering strong cooling performance
- Premium TIM: Includes ARCTIC MX‑6 high‑performance thermal paste (0.8g)
| Specification | Detail |
|---|---|
| Brand | ARCTIC |
| Model | Freezer 4U-M Rev.2 |
| SKU | ACFRE00133B |
| Type | 4U Server CPU Air Cooler |
| Application | Workstations, servers, 24/7 continuous operation |
| TDP Support | Up to 350W |
| Heatsink Dimensions | 124 (L) × 156 (W) × 145 (H) mm |
| Heatsink Material | Aluminium fins with copper heatpipes |
| Heatpipes | 8× 6mm Ø, direct‑touch copper |
| Number of Fins | 57 aluminium fins |
| Fans | 2× 120mm PWM P‑series (push‑pull) |
| Fan Speed | 400–2300 RPM (PWM controlled) |
| Airflow | 71.9 CFM / 122.16 m³/h (per fan) |
| Static Pressure | 3.30 mmH₂O |
| Noise Level | Up to ~40 dBA |
| Fan Bearing | Dual Ball Bearing (24/7 rated) |
| Fan Connector | 4‑Pin PWM |
| Fan Current / Voltage | 0.12 A / 12V DC |
| Startup Voltage | 8V DC |
| Supported Sockets (Intel) | LGA4710, LGA4677, LGA4189 |
| Supported Sockets (AMD) | SP6, sTR5, SP3, TR4, sTRX4, sWRX8 |
| Server Rack Unit | 4U & above |
| RAM Clearance | 53mm |
| Cooler Weight | 1332g |
| Packaging Dimensions | 211 (L) × 160 (W) × 141 (H) mm |
| Packaging Weight | ≈1.55kg |
| Included TIM | ARCTIC MX‑6 (0.8g) |
| Operating Temp | 0°C – 40°C |
| Warranty | 6 Years |
