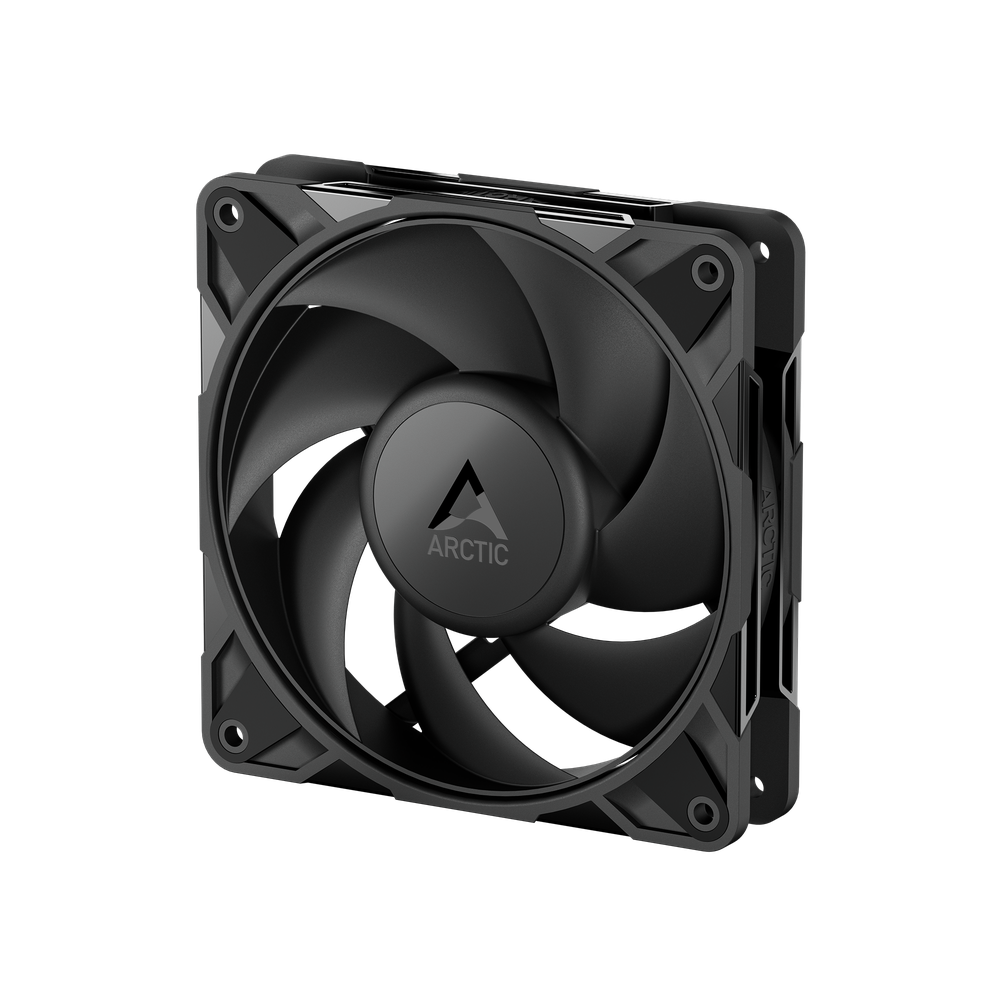

ARCTIC P12 Pro A-RGB 120mm Case Fan (Black)
Rs. 999.00
120mm
a-rgb
acfan00309a
arctic
Genuine & warrantedAuthorised stock, brand warranty
83560 26438Contact for querries
Secure checkoutUPI · cards · EMI
Fast shippingTracked · 5–7 days
01 — Datasheet
Technical specification
ARCTIC P12 Pro A-RGB (ACFAN00309A) is a high-performance 120mm A‑RGB PWM case fan with a reinforced Pro rotor, extreme 6.9 mmH₂O static pressure, and 12 Gen2 A‑RGB LEDs, designed for radiators, mesh fronts, and filtered intakes in performance PC builds.
-
>Pro rotor & high pressure: Revised P‑series blade design and tight clearances deliver up to 6.9 mmH₂O static pressure for radiators, perforated panels and dust filters
>Strong yet quiet: 600–3000 RPM PWM range with 0 RPM below 5% PWM, tuned to deliver high airflow at around 25 dB(A) under normalized noise conditions
>12x Gen2 A‑RGB LEDs: Individually addressable LEDs in the hub, compatible with 5 V 3‑Pin A‑RGB headers from all major motherboard brands
>PWM daisy‑chain (PST): 4‑Pin fan plug plus 4‑Pin socket allow multiple P12 Pro fans to be chained and controlled from a single header
>Durable FDB bearing: Fluid Dynamic Bearing with extended shaft and advanced motor controller reduces vibration, motor noise and protects against inrush current and reverse polarity
| Specification | Detail |
|---|---|
| Brand | ARCTIC |
| Model | P12 Pro A-RGB |
| SKU | ACFAN00309A |
| Colour | Black |
| Fan Size | 120 × 120 × 25 mm |
| Net Fan Weight | 185 g |
| Bearing | Fluid Dynamic Bearing (FDB) |
| Fan Speed | 600–3000 RPM (PWM), 0 RPM below 5% PWM |
| Airflow | 77 CFM | 131 m³/h |
| Static Pressure | 6.9 mmH₂O |
| Noise Level | ~25 dB(A) (normalised) |
| Fan Connector | 4‑Pin Fan Plug + 4‑Pin Fan Socket (PWM daisy‑chain) |
| Fan Cable Length | 400 mm + 80 mm daisy‑chain cable |
| Fan Voltage / Current | 12 V DC / 0.33 A |
| Start‑Up Voltage | 3.3 V DC |
| LEDs | 12× A‑RGB Gen2 LEDs |
| A‑RGB Connector | 3‑Pin A‑RGB Plug + 3‑Pin Socket (5 V) |
| A‑RGB Voltage / Current | 5 V DC / 0.40 A |
| Operating Temp | 0 – 40 °C |
| Warranty | 6 Years |
| Box Dimensions | 127 (L) × 125 (W) × 30 (H) mm |
| Gross (Boxed) Weight | 0.221 kg |
| Box Contents | P12 Pro A‑RGB (Black) ×1, mounting screws, PWM & A‑RGB daisy‑chain leads |
