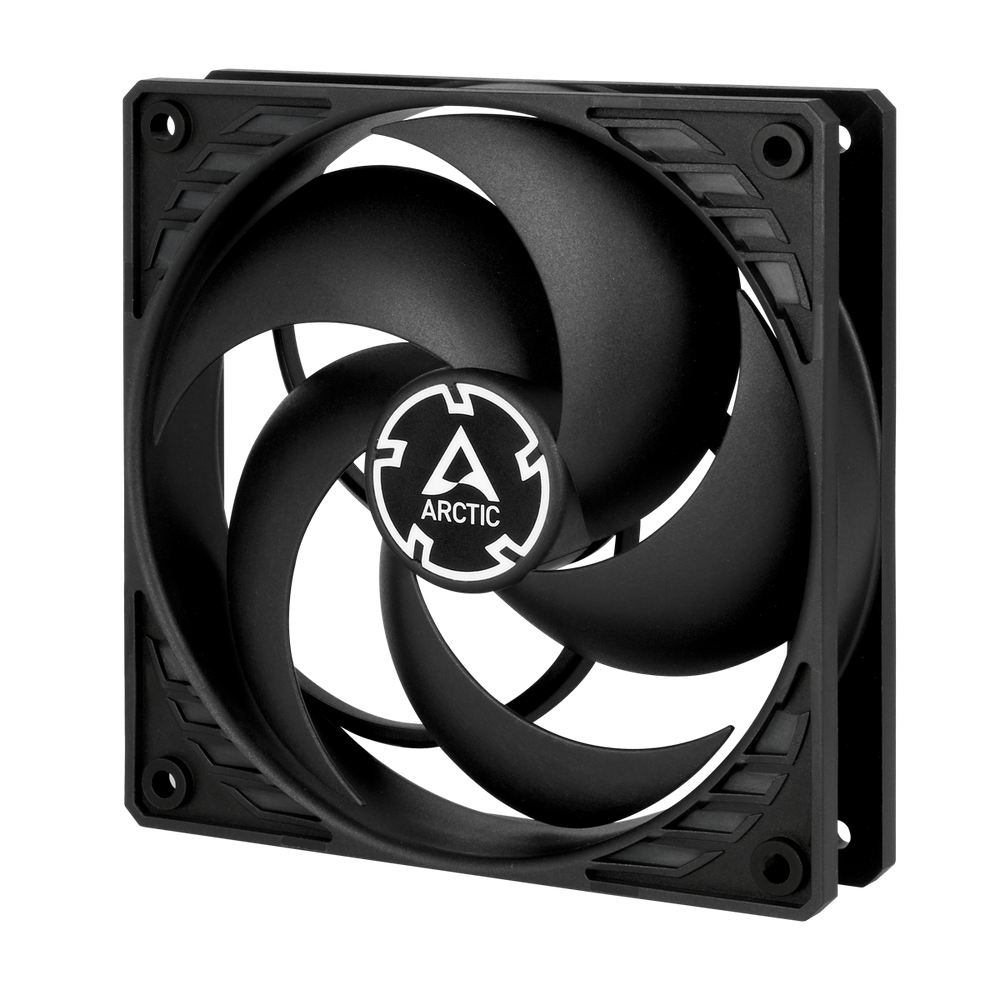

ARCTIC P12 PWM PST 120mm Case Fan (Black) – 5 Pack
Rs. 2,299.00
120mm
5 pack
acfan00137a
arctic
Genuine & warrantedAuthorised stock, brand warranty
83560 26438Contact for querries
Secure checkoutUPI · cards · EMI
Fast shippingTracked · 5–7 days
01 — Datasheet
Technical specification
ARCTIC P12 PWM PST 5-Pack (Black) is a value bundle of five 120mm pressure‑optimised PWM case fans with PST daisy‑chain, delivering high static pressure and quiet operation for radiators, heatsinks and case airflow-focused builds.
- Optimised for static pressure: P‑series blade design and focused airstream provide strong cooling even through radiators, dense mesh fronts and dust filters
- PWM PST daisy‑chain: Each fan includes a 4‑Pin PWM connector plus 4‑Pin socket so multiple P12 fans can be chained and controlled from a single header
- Wide PWM range: 200–1800 RPM (0 RPM below 5% PWM) lets you tune for silent idle and strong airflow under load
- Quiet FDB motor: Fluid Dynamic Bearing and efficient new‑generation motor keep noise around 0.3 Sone while extending service life
- Great value bundle: Five identical 120mm black fans give you a complete case or radiator fan setup in one pack
| Specification | Detail |
|---|---|
| Brand | ARCTIC |
| Model | P12 PWM PST – 5 Pack |
| Part Number | ACFAN00137A (Black/Black) |
| Colour | Black |
| Fan Size | 120 × 120 × 25 mm (each fan) |
| Quantity | 5 fans per pack |
| Bearing | Fluid Dynamic Bearing (FDB) |
| Fan Speed | 200–1800 RPM (PWM, 0 RPM below 5% PWM) |
| Airflow | 56.3 CFM | 95.7 m³/h per fan |
| Static Pressure | 2.20 mmH₂O per fan |
| Noise Level | 0.3 Sone (low noise) |
| Control Type | PWM PST (PWM Sharing Technology) |
| Fan Connector | 4‑Pin Connector + 4‑Pin Socket (per fan) |
| Cable Length | 400 mm (plus short PST link) |
| Typical Voltage | 12 V DC |
| Start‑Up Voltage | 3.9 V DC |
| Current | 0.10 A per fan |
| Operating Temp | 0 – 40 °C |
| Warranty | 6 Years |
| Packaging Dimensions | 123 (L) × 130 (W) × 127 (H) mm (value pack) |
| Gross (Boxed) Weight | 0.80 kg (5‑pack) |
| Box Contents | 5× ARCTIC P12 PWM PST 120mm Fans (Black), mounting screws |
