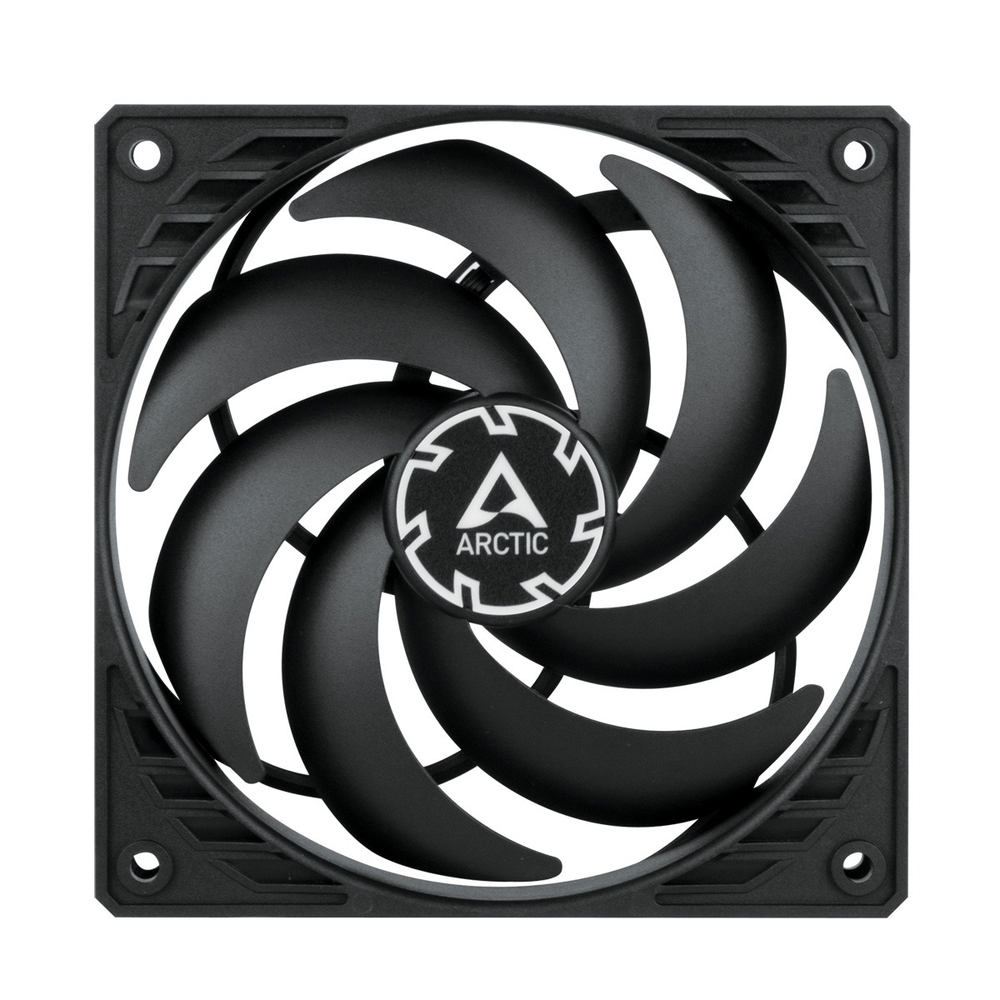

ARCTIC P12 Slim PWM PST 120mm Low-Profile Case Fan
Rs. 849.00
120mm
15mm
acfan00187a
arctic
Genuine & warrantedAuthorised stock, brand warranty
83560 26438Contact for querries
Secure checkoutUPI · cards · EMI
Fast shippingTracked · 5–7 days
01 — Datasheet
Technical specification
ARCTIC P12 Slim PWM PST (ACFAN00187A) — a 120mm low-profile case fan with just 15mm thickness, optimised for high static pressure and quiet operation, ideal for SFF builds, tight radiator mounts, and restricted intakes where standard 25mm fans don’t fit.
- Only 15mm thick: Slim 120mm design solves clearance issues in small form factor cases, behind front panels, or on radiators above motherboard components
- Static-pressure optimised: Focused airflow and 1.33 mmH₂O static pressure deliver efficient cooling through dust filters, radiators, and restrictive grills
- PWM PST daisy-chain: 4‑Pin PWM plug + 4‑Pin socket allow multiple fans to share one header and follow the same control curve
- Wide speed range: 200–2100 RPM PWM‑controlled with 0 RPM below 9% PWM for silent idle and strong cooling under load
- Quiet & durable: Fluid Dynamic Bearing and refined motor design keep noise low (≈0.3 Sone) and extend lifespan
| Specification | Detail |
|---|---|
| Brand | ARCTIC |
| Model | P12 Slim PWM PST |
| SKU | ACFAN00187A |
| Fan Size | 120 × 120 × 15 mm |
| Thickness | 15 mm (slim) |
| Bearing | Fluid Dynamic Bearing (FDB) |
| Speed | 200–2100 RPM (PWM), 0 RPM below 9% PWM |
| Airflow | 34.51 CFM | 58.62 m³/h |
| Static Pressure | 1.33 mmH₂O |
| Noise Level | ≈0.3 Sone (low) |
| Connector | 4‑Pin PWM connector + 4‑Pin PWM socket (PST) |
| Cable Length | 400 mm |
| Rated Voltage | 12 V DC |
| Current | 0.12 A |
| Starting Voltage | 5 V DC |
| Operating Temp | 0 – 40 °C |
| Warranty | 6 Years |
| Box Dimensions | 123 (L) × 127 (W) × 16 (H) mm |
| Gross (Boxed) Weight | 0.11 kg |
| Box Contents | P12 Slim PWM PST ×1, radiator screws ×4, case screws ×4 |
