Description
ASRock RX 9060 XT Challenger 16GB OC — 2048 Stream Processors, 16GB GDDR6 128-bit 20Gbps, PCIe 5.0 x16, Boost 3290MHz / Game 2700MHz, 150W TDP, 1x 8-pin, 2x DP 2.1a + 1x HDMI 2.1b, 550W PSU Recommended.
The ASRock Radeon RX 9060 XT Challenger 16GB OC is a compact dual-fan AMD RDNA 4 GPU delivering an incredible 16GB GDDR6 in a slim 2.2-slot, 249mm body — making it one of the best value-per-VRAM cards for 1080p and 1440p gaming in 2025. With 2048 Stream Processors, 3rd-gen RT Cores, 2nd-gen AI Accelerators, FSR 4, and game clocks overclocked to 2700 MHz, it offers next-gen performance with outstanding energy efficiency at just 150W. The Challenger dual-fan design with Striped Axial fans, 0dB fan-stop, stylish metal backplate, and LED indicator keeps everything cool, quiet, and clean in any mid-range build.
-
>AMD RDNA 4 Architecture — 2048 Stream Processors, 32 Compute Units with 3rd-gen RT Cores and 2nd-gen AI Accelerators
>16GB GDDR6 — 128-bit, 20Gbps, 322 GB/s bandwidth — massive VRAM advantage at this price for 1440p and future titles
>Core Clocks: Boost 3290 MHz / Game 2700 MHz (170 MHz above reference game clock)

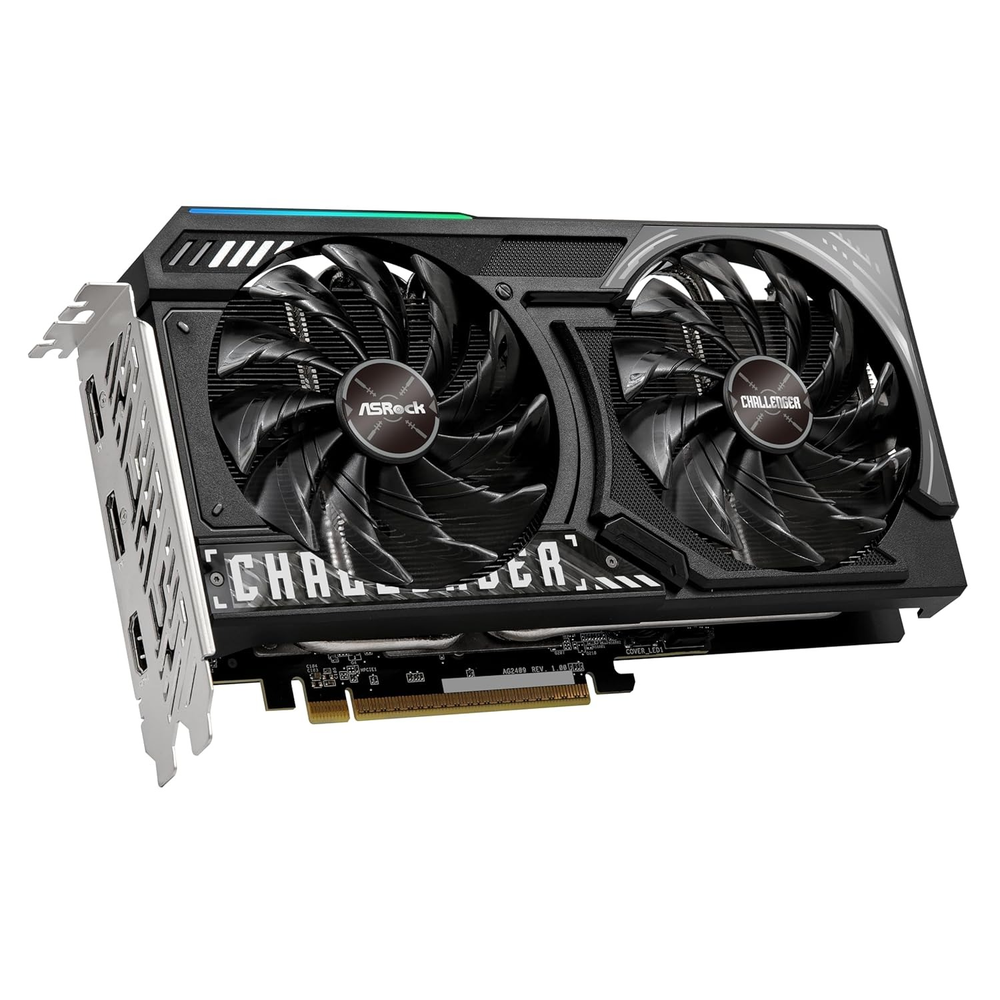

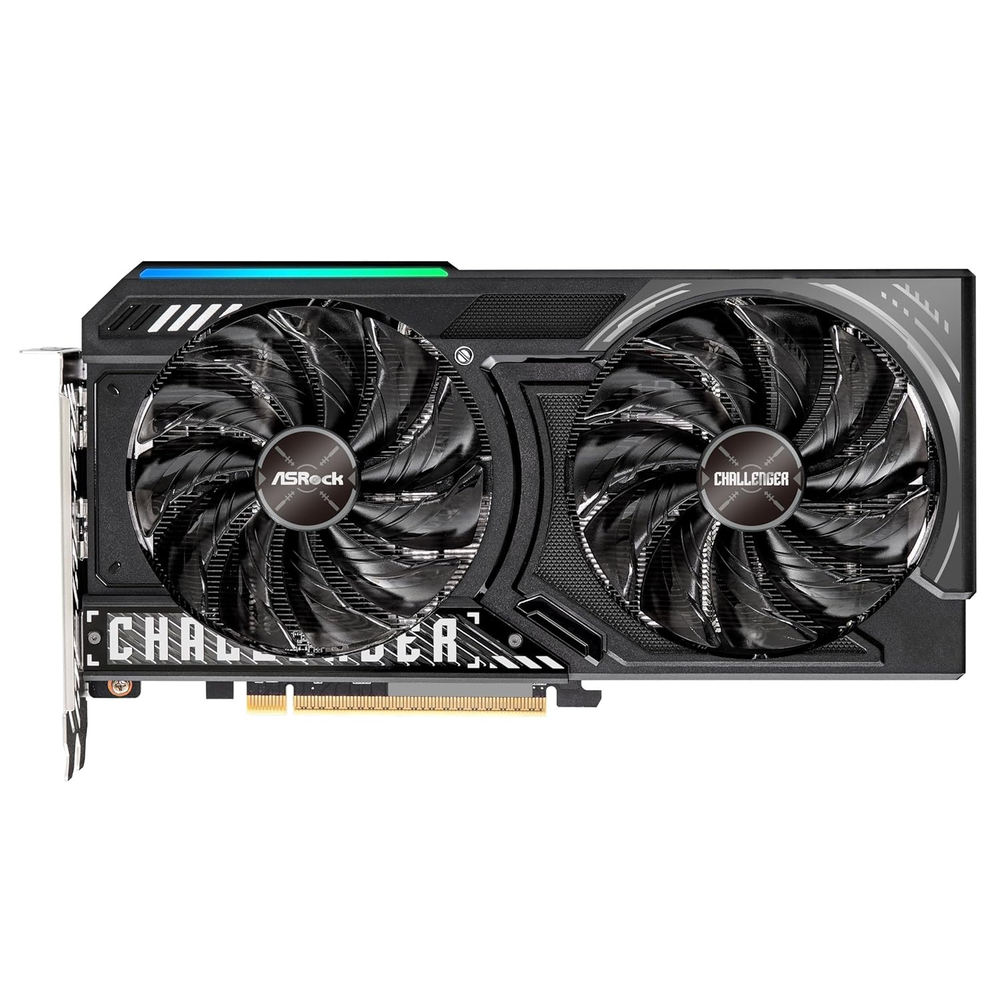

>Challenger Dual-Fan Cooler — Striped Axial fans, 0dB silent fan-stop at idle
>150W TDP — 1x 8-pin PCIe connector, 550W PSU recommended

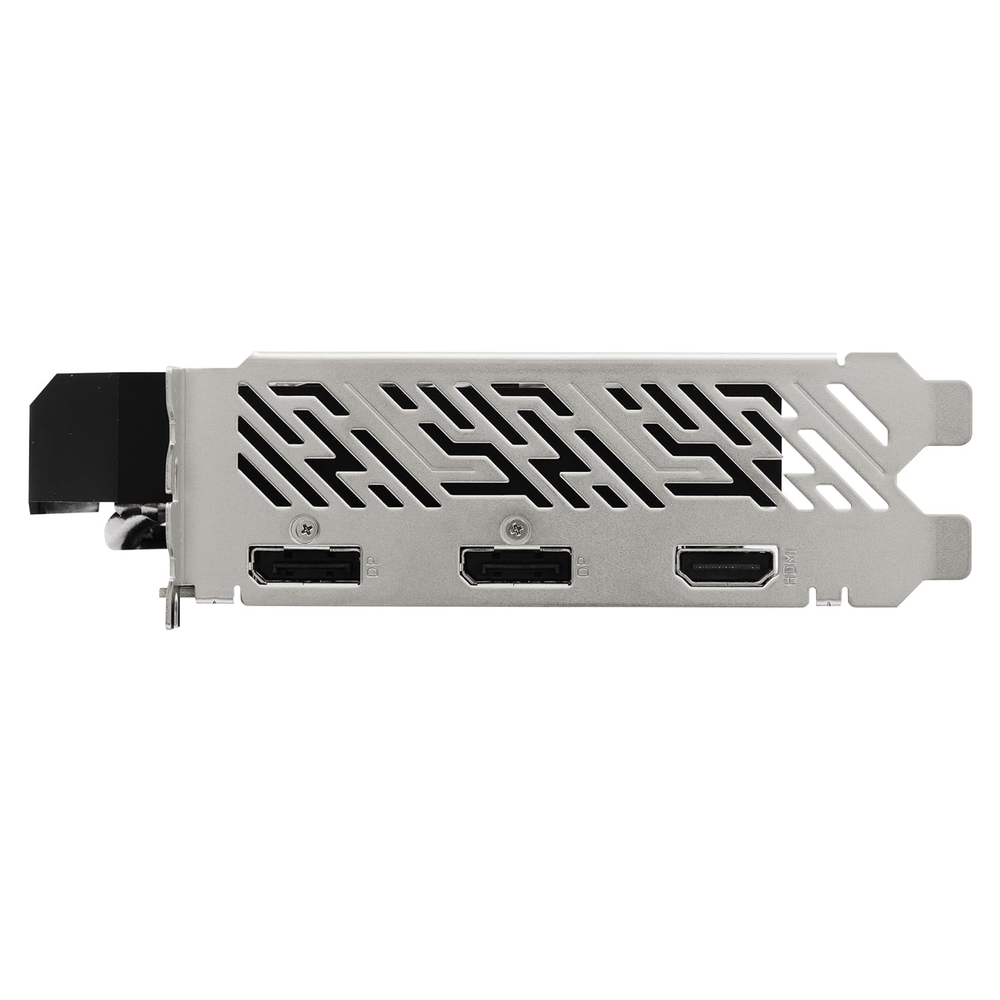

>Display Outputs: 2x DisplayPort 2.1a, 1x HDMI 2.1b — up to 3 displays, 8K max resolution

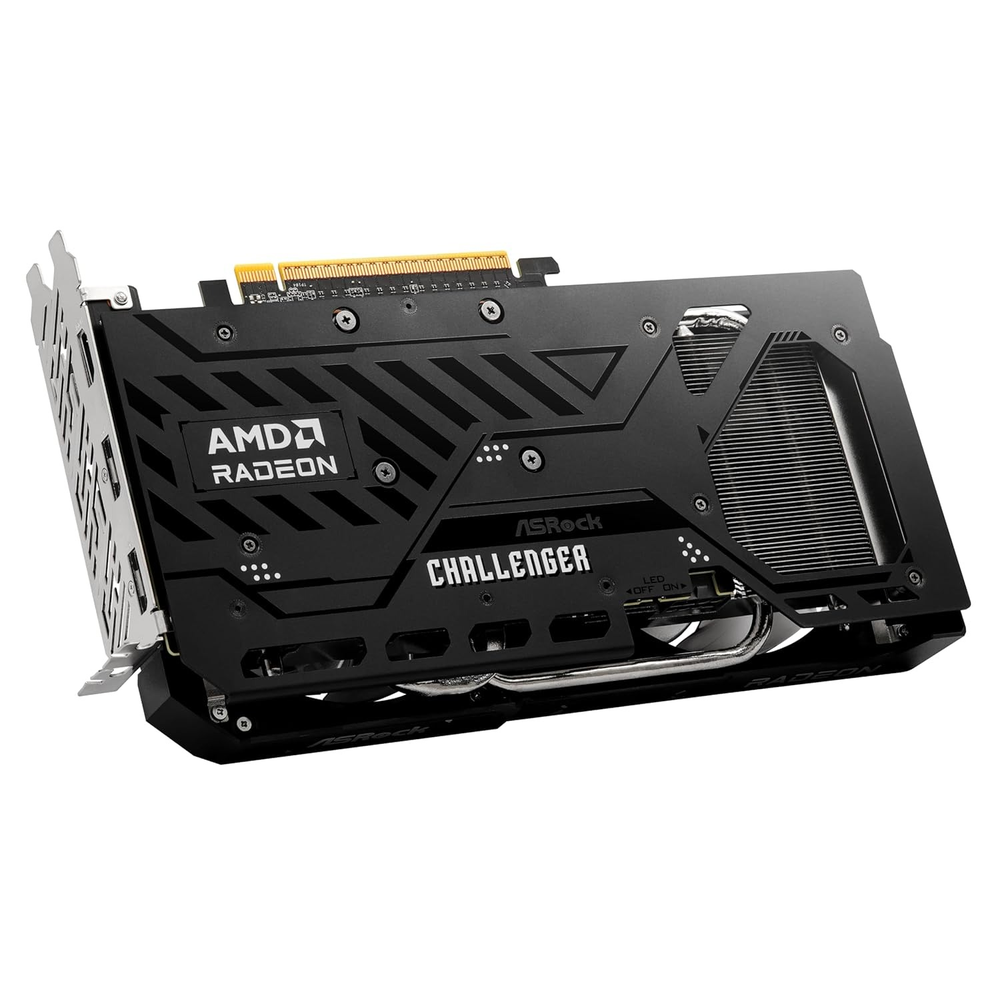

>Stylish metal backplate, LED On/Off switch, LED indicator, Super Alloy components
>AMD FSR 4, AMD HYPR-RX, Smart Access Memory, FreeSync Premium, DirectX 12 Ultimate, PCIe Gen 5
| Spec | Detail |
|---|---|
| Brand | ASRock |
| Model Number | RX9060XT CL 16GO |
| GPU | AMD Radeon RX 9060 XT |
| Architecture | AMD RDNA 4 |
| Stream Processors | 2048 |
| Compute Units | 32 |
| Boost Clock | Up to 3290 MHz |
| Game Clock | 2700 MHz |
| Memory | 16GB GDDR6 |
| Memory Speed | 20 Gbps |
| Memory Bus | 128-bit |
| Memory Bandwidth | 322 GB/s |
| Interface | PCI Express 5.0 x16 |
| Display Outputs | 2x DisplayPort 2.1a, 1x HDMI 2.1b |
| Max Resolution | 7680 x 4320 (8K) |
| Max Displays | 3 |
| Power Consumption | 150W TDP |
| Power Connector | 1x 8-pin PCIe |
| Recommended PSU | 550W |
| Cooling | Dual Striped Axial fans, 0dB fan-stop at idle |
| Backplate | Stylish metal backplate with LED On/Off Switch + LED Indicator |
| Slot Width | 2.2-slot |
| DirectX | 12 Ultimate |
| OpenGL | 4.6 |
| FreeSync | AMD FreeSync Premium |
| Dimensions | 249 x 132 x 41 mm |
| Net Weight | 645 g |
| Accessories | 1x Quick Installation Guide |
| Warranty | 3 Years ASRock India |
| OS Support | Windows 10 / 11 64-bit |
