Description
ASRock RX 9070 Challenger 16GB — 3584 Stream Processors, 16GB GDDR6 256-bit 20Gbps, PCIe 5.0 x16, Boost 2520MHz / Game 2070MHz, 220W TDP, 2x 8-pin, 3x DP 2.1a + 1x HDMI 2.1b, 700W PSU Recommended.

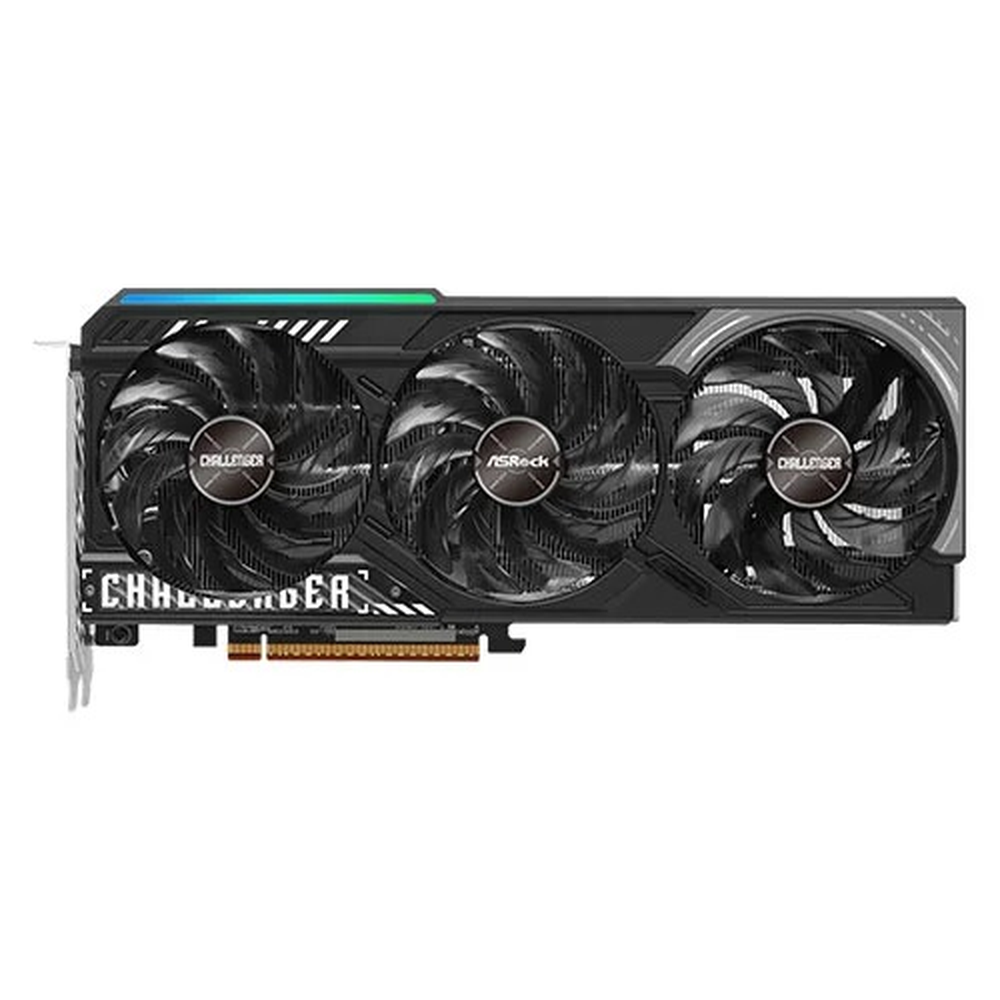

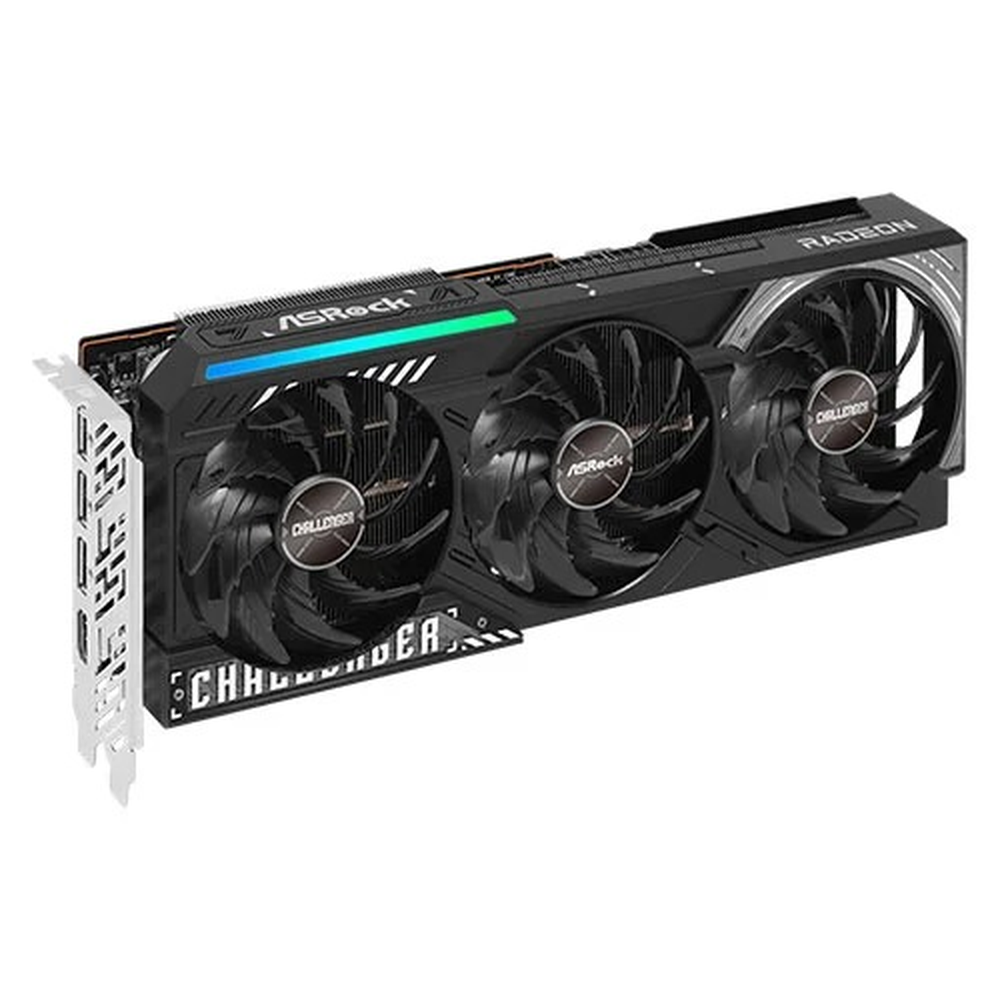

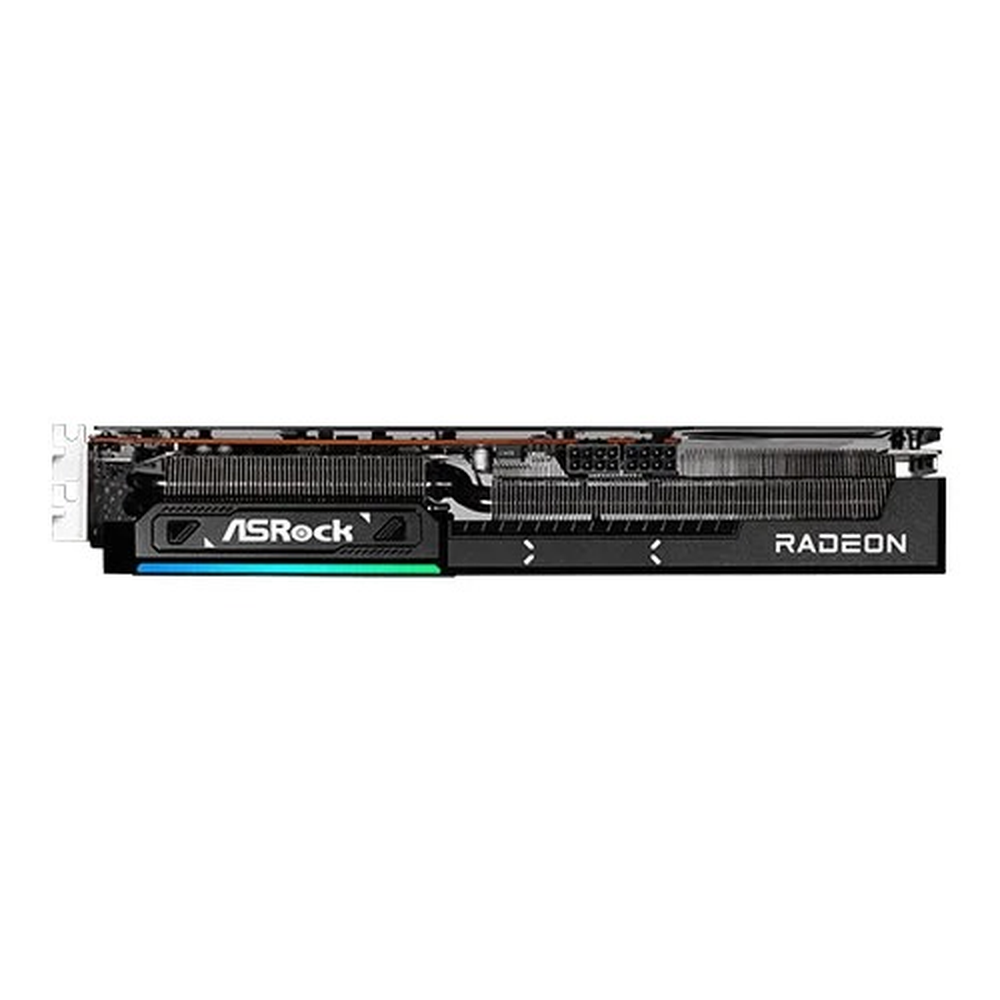

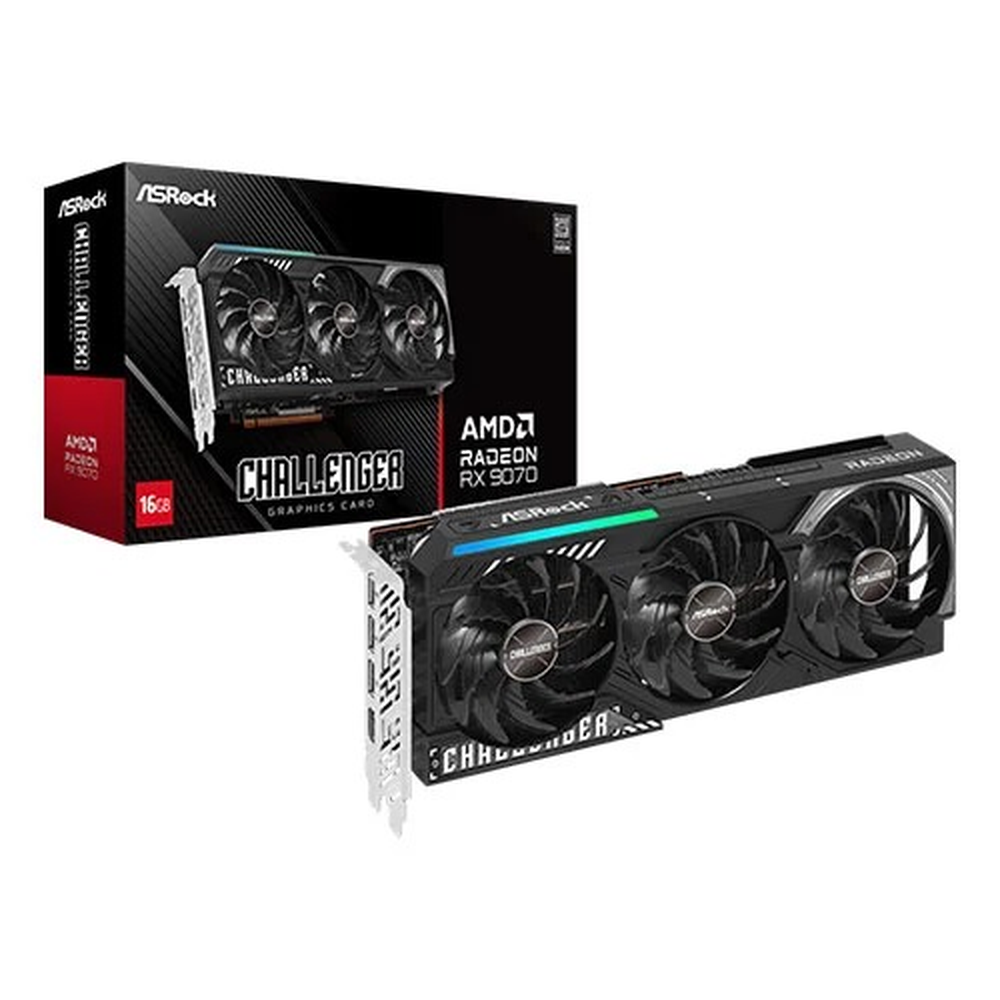

The ASRock Radeon RX 9070 Challenger 16GB is a compact triple-fan AMD RDNA 4 GPU delivering strong 1440p and solid 4K gaming performance at a competitive price. With 3584 Stream Processors, 56 Compute Units, 16GB GDDR6 on a 256-bit bus, 3rd-gen RT Cores, 2nd-gen AI Accelerators, and FSR 4, it handles demanding modern titles and creator workloads with ease. The Challenger triple-fan design with Striped Axial fans, Ultra-fit heatpipes, 0dB fan-stop, stylish metal backplate, and LED On/Off switch keeps it quiet, cool, and clean in any mid-range gaming build.
-
>AMD RDNA 4 Architecture — 3584 Stream Processors, 56 Compute Units with 3rd-gen RT Cores and 2nd-gen AI Accelerators
>16GB GDDR6 — 256-bit, 20Gbps for smooth 1440p and capable 4K gaming with high VRAM headroom
>Core Clocks: Boost up to 2520 MHz / Game 2070 MHz
>Challenger Triple-Fan Cooler — Striped Axial fans, Ultra-fit heatpipes, 0dB fan-stop at idle
>220W TDP — 2x 8-pin PCIe connectors, 700W PSU recommended
>Display Outputs: 3x DisplayPort 2.1a, 1x HDMI 2.1b — up to 4 displays, 8K max resolution
>Stylish metal backplate, LED indicator, LED On/Off switch, AMD FSR 4, HYPR-RX, Smart Access Memory, FreeSync Premium
| Spec | Detail |
|---|---|
| Brand | ASRock |
| Model Number | RX9070 CL 16G |
| GPU | AMD Radeon RX 9070 |
| Architecture | AMD RDNA 4 |
| Stream Processors | 3584 |
| Compute Units | 56 |
| Boost Clock | Up to 2520 MHz |
| Game Clock | 2070 MHz |
| Memory | 16GB GDDR6 |
| Memory Speed | 20 Gbps |
| Memory Bus | 256-bit |
| Memory Bandwidth | 576 GB/s |
| Interface | PCI Express 5.0 x16 |
| Display Outputs | 3x DisplayPort 2.1a, 1x HDMI 2.1b |
| Max Resolution | 7680 x 4320 (8K) |
| Max Displays | 4 |
| Power Consumption | 220W TDP |
| Power Connector | 2x 8-pin PCIe |
| Recommended PSU | 700W |
| Cooling | Triple Striped Axial fans, Ultra-fit heatpipes, 0dB fan-stop at idle |

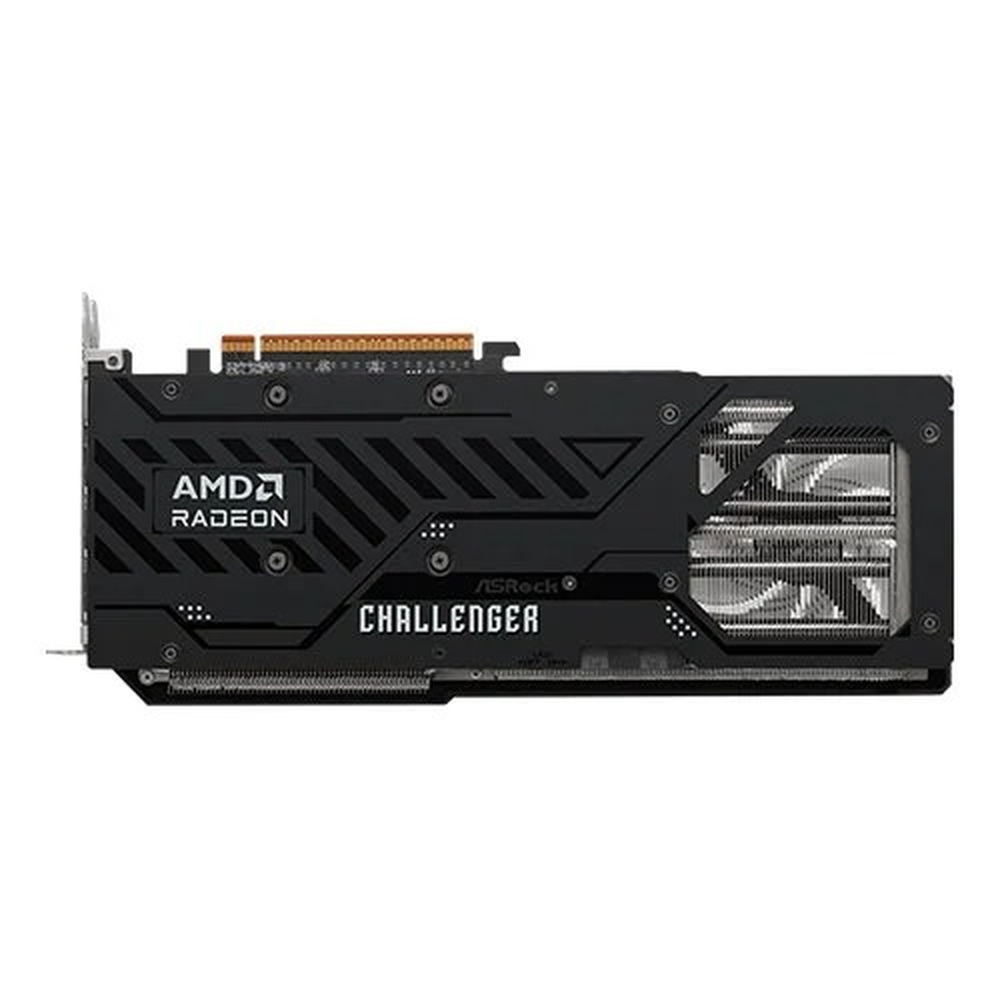

| Backplate | Stylish metal backplate with LED indicator + LED On/Off Switch |
| DirectX | 12 Ultimate |
| OpenGL | 4.6 |
| FreeSync | AMD FreeSync Premium |
| Dimensions | 290 x 123 x 51 mm |
| Net Weight | 918 g |
| Accessories | 1x Quick Installation Guide |
| Warranty | 3 Years ASRock India |
| OS Support | Windows 10 / 11 64-bit |
