Description
ASRock RX 9070 XT Steel Legend Dark 16GB — 4096 Stream Processors, 16GB GDDR6 256-bit 20Gbps, PCIe 5.0 x16, Boost 2970MHz / Game 2400MHz, 304W TDP, 2x 8-pin, 3x DP 2.1a + 1x HDMI 2.1b, 800W PSU Recommended.

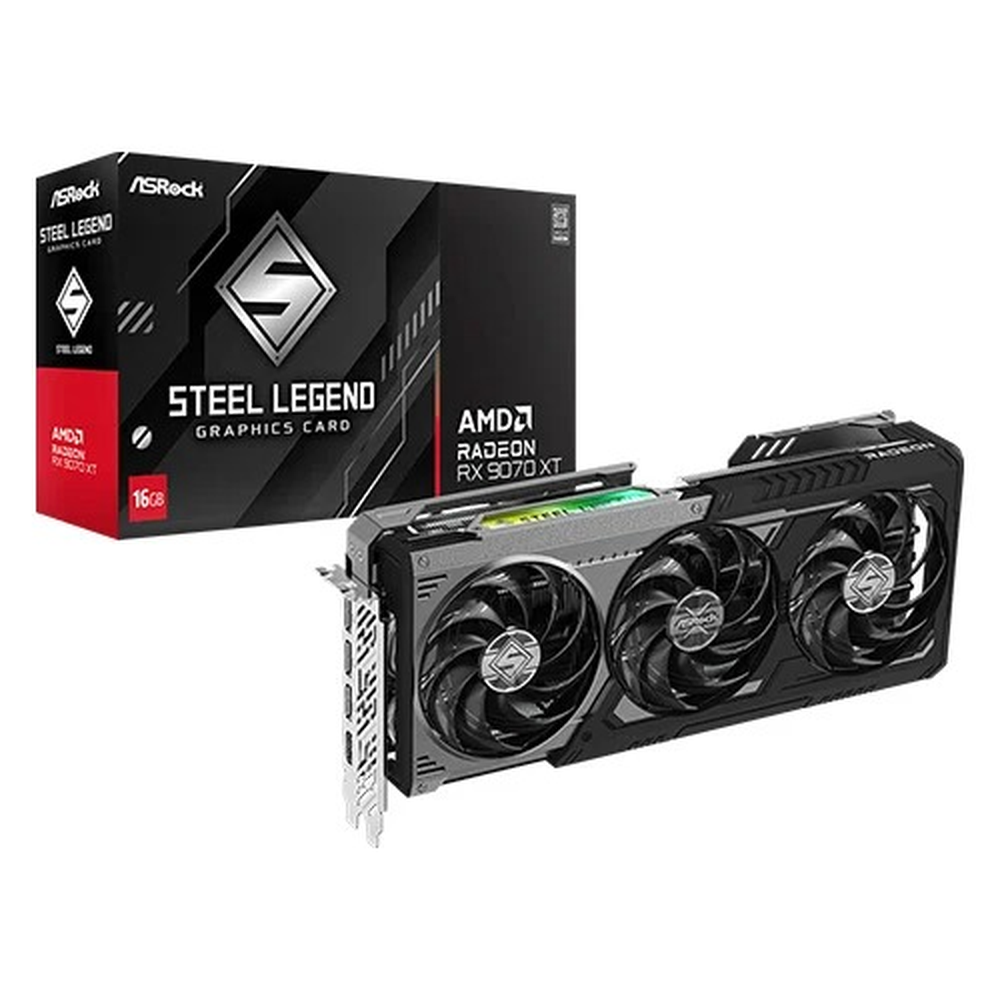

The ASRock Radeon RX 9070 XT Steel Legend Dark 16GB is the aggressive dark-themed variant of ASRock's Steel Legend 3X GPU, delivering the same flagship AMD RDNA 4 performance in a blacked-out shroud with dark accents and RGB. With 4096 Stream Processors, 64 Compute Units, 16GB GDDR6 on a 256-bit bus at 645 GB/s bandwidth, 3rd-gen RT Cores, 2nd-gen AI Accelerators, FSR 4, and AMD HYPR-RX, it handles high-refresh 1440p and strong 4K gaming effortlessly. The Steel Legend 3X Dark triple-fan cooler with dark camo-style shroud, Polychrome SYNC ARGB, Ultra-fit heatpipes, 0dB fan-stop, and premium metal backplate makes it perfect for dark-themed and black-and-red builds.
-
>AMD RDNA 4 Architecture — 4096 Stream Processors, 64 Compute Units with 3rd-gen RT Cores and 2nd-gen AI Accelerators
>16GB GDDR6 — 256-bit, 20Gbps, 645 GB/s bandwidth for smooth 1440p and capable 4K gaming
>Core Clocks: Boost up to 2970 MHz / Game 2400 MHz

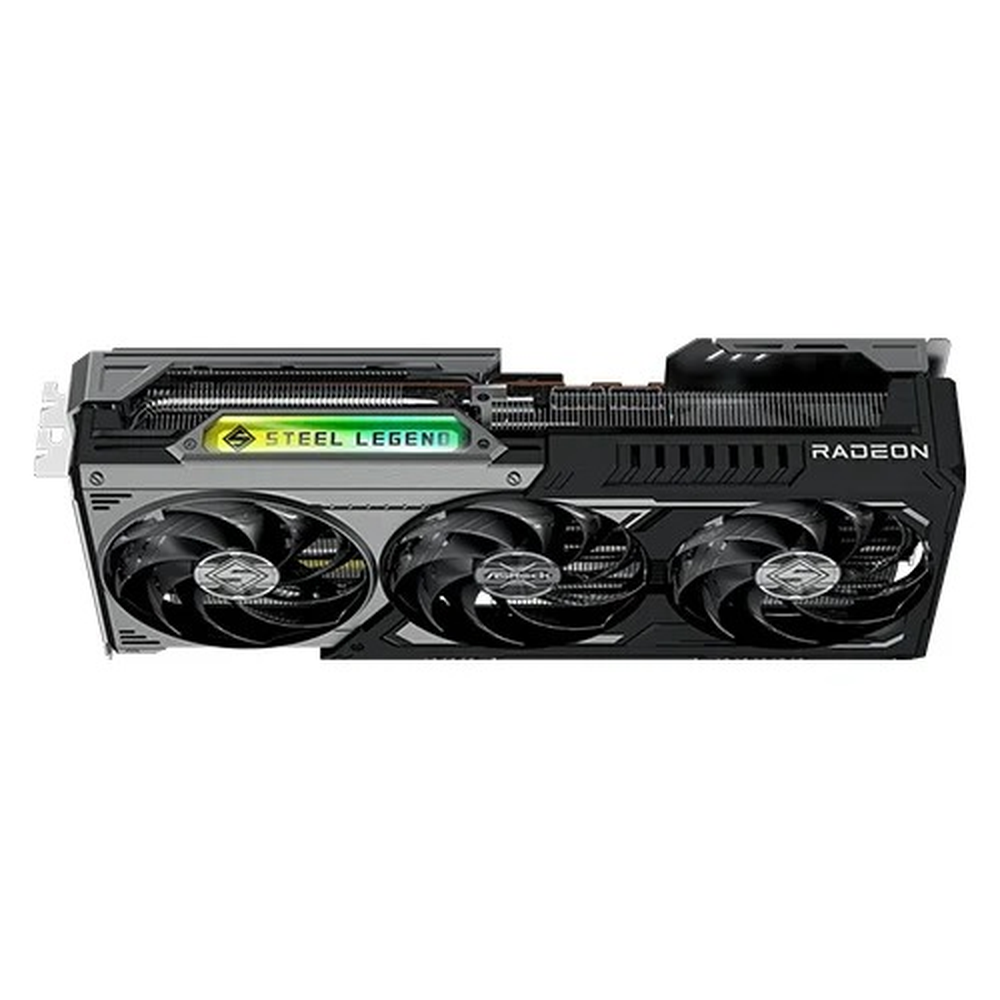

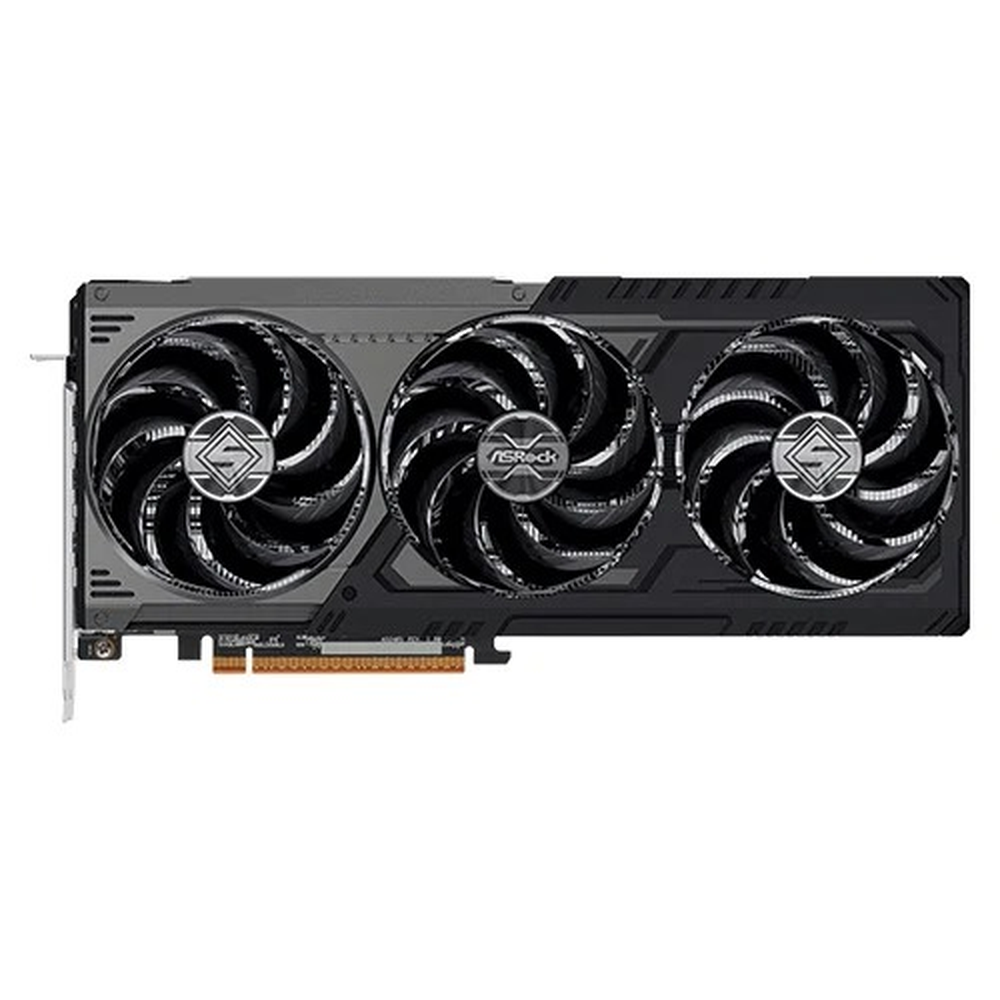

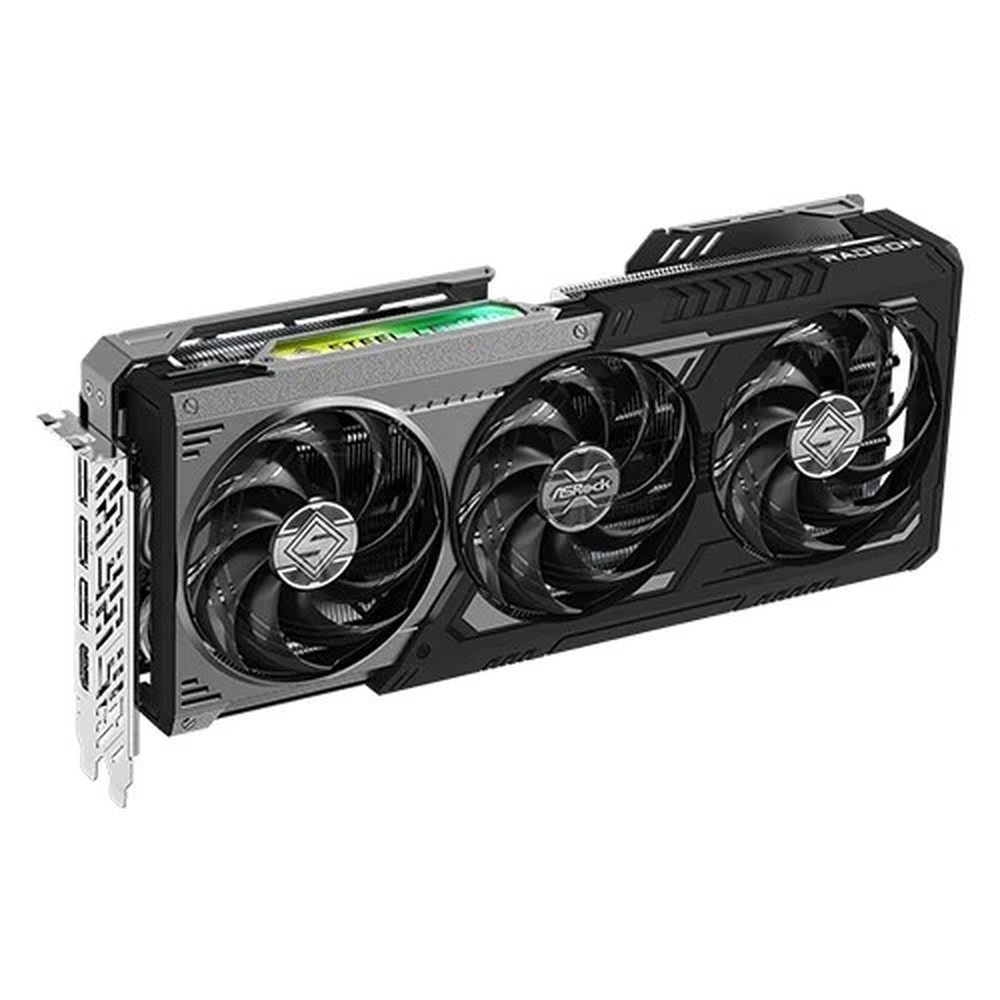

>Steel Legend Dark 3X Triple-Fan Cooler — Striped Ring fans with dark camo shroud, Ultra-fit heatpipes, 0dB fan-stop at idle

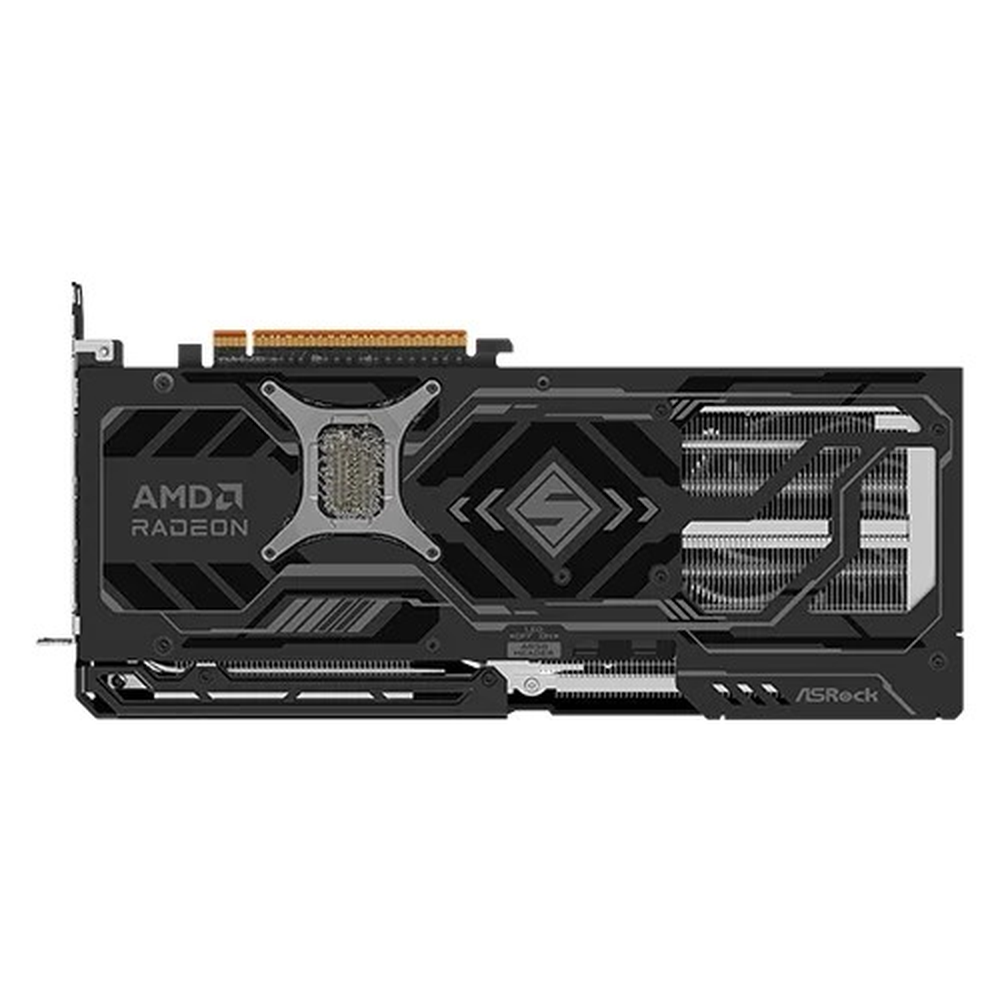

>Polychrome SYNC ARGB on shroud and dark metal backplate with LED On/Off switch
>304W TDP — 2x 8-pin PCIe connectors, 800W PSU recommended
>Display Outputs: 3x DisplayPort 2.1a, 1x HDMI 2.1b — up to 4 displays, 8K max resolution
>AMD FSR 4, HYPR-RX, Smart Access Memory, FreeSync Premium, DirectX 12 Ultimate, PCIe Gen 5
| Spec | Detail |
|---|---|
| Brand | ASRock |
| Model Number | RX9070XT SLD 16G |
| GPU | AMD Radeon RX 9070 XT |
| Architecture | AMD RDNA 4 |
| GPU Chip | Navi 48 XTX |
| Process Node | 4nm |
| Stream Processors | 4096 |
| Compute Units | 64 |
| Boost Clock | Up to 2970 MHz |
| Game Clock | 2400 MHz |
| Base Clock | 1660 MHz |
| Memory | 16GB GDDR6 |
| Memory Speed | 20 Gbps |
| Memory Bus | 256-bit |
| Memory Bandwidth | 645 GB/s |
| Interface | PCI Express 5.0 x16 |
| Display Outputs | 3x DisplayPort 2.1a, 1x HDMI 2.1b |
| Max Resolution | 7680 x 4320 (8K) |
| Max Displays | 4 |
| Power Consumption | 304W TDP |
| Power Connector | 2x 8-pin PCIe |
| Recommended PSU | 800W |
| Cooling | Triple Striped Ring fans (dark camo shroud), Ultra-fit heatpipes, 0dB fan-stop at idle |
| Lighting | Polychrome SYNC ARGB (shroud + dark backplate) + LED On/Off Switch |
| Slot Width | 2.9-slot |
| DirectX | 12 Ultimate |
| OpenGL | 4.6 |
| FreeSync | AMD FreeSync Premium |
| Dimensions | 298 x 131 x 58 mm |
| Net Weight | 1155 g |
| Accessories | 1x Quick Installation Guide |
| Warranty | 3 Years ASRock India |
| OS Support | Windows 10 / 11 64-bit |
