Colorful iGame Z890 VULCAN X V20 WiFi7 Intel Z890 LGA1851 DDR5 EATX Motherboard

Colorful iGame Z890 VULCAN X V20 — Premium Intel Z890 E-ATX Motherboard

The Colorful iGame Z890 VULCAN X V20 is a flagship E-ATX gaming motherboard built on the Intel Z890 chipset with the LGA 1851 socket, designed exclusively for Intel Core Ultra 200 Series (Arrow Lake-S) processors. Featuring a robust 20+1+1+1 phase Dr. MOS 105A power delivery, DDR5-8800(OC) memory support, PCIe 5.0 connectivity, dual-band wired networking, and Intel BE200 WiFi 7 — this board is built for enthusiast gamers and content creators who demand maximum performance.

Compatible Processors (LGA 1851 Socket)

This motherboard supports Intel Core Ultra 200 Series (Arrow Lake-S) processors only. It is not compatible with Intel 12th, 13th, or 14th Gen (LGA 1700) CPUs.

• Intel Core Ultra 9 285K (24 Cores, up to 5.7GHz)
• Intel Core Ultra 7 265K / 265KF (20 Cores, up to 5.5GHz)
• Intel Core Ultra 7 265 / 265F (20 Cores)
• Intel Core Ultra 5 245K / 245KF (14 Cores, up to 5.2GHz)
• Intel Core Ultra 5 245 / 245F (14 Cores)

Always verify your specific CPU on the official Colorful QVL/support list at colorful.cn before purchase.

Compatible Memory (DDR5 Only)

• 4x DDR5 DIMM slots — up to 192GB total (48GB per slot max)
• Speed support: DDR5-4800 up to DDR5-8800 (OC)
• Supports Intel XMP 3.0 profiles
• Dual-channel memory architecture
• Not compatible with DDR4 RAM

Compatible Storage

• M.2_1: PCIe 5.0 x4 (CPU) — supports 2280/22110
• M.2_2: PCIe 4.0 x4 (CPU) — supports 2280/22110
• M.2_3 & M.2_4: PCIe 4.0 x4 (PCH) — supports 2280/22110
• M.2_5: PCIe 4.0 x4 / SATA (PCH) — supports 2242/2260/2280
• 6x SATA 6Gbps ports — supports RAID 0/1/5/10

Compatible Graphics Cards (PCIe Slots)

• 1x PCIe 5.0 x16 slot — primary GPU (NVIDIA RTX 40/50 Series, AMD RX 7000/9000 Series)
• 1x PCIe 5.0 x8 slot — secondary GPU or add-in card
• 1x PCIe 4.0 x4 slot — expansion cards
• Note: When PCIe 5.0 x8 slot is occupied, the x16 slot runs at x8 mode

Key Specifications

• Chipset: Intel Z890
• Socket: LGA 1851 (Intel Core Ultra 200 Series)
• Form Factor: E-ATX (305 x 277mm)
• Power Phases: 20+1+1+1 Dr. MOS 105A
• Memory: 4x DDR5, up to 192GB, DDR5-8800(OC)
• Storage: 5x M.2 + 6x SATA 6Gbps, RAID 0/1/5/10
• Network: Realtek RTL8125BG 2.5G LAN + RTL8126-CG 5G LAN + Intel BE200 WiFi 7 + Bluetooth 5.4
• Audio: Realtek ALC1220, up to 7.1 channels
• BIOS: 256M UEFI, multi-language

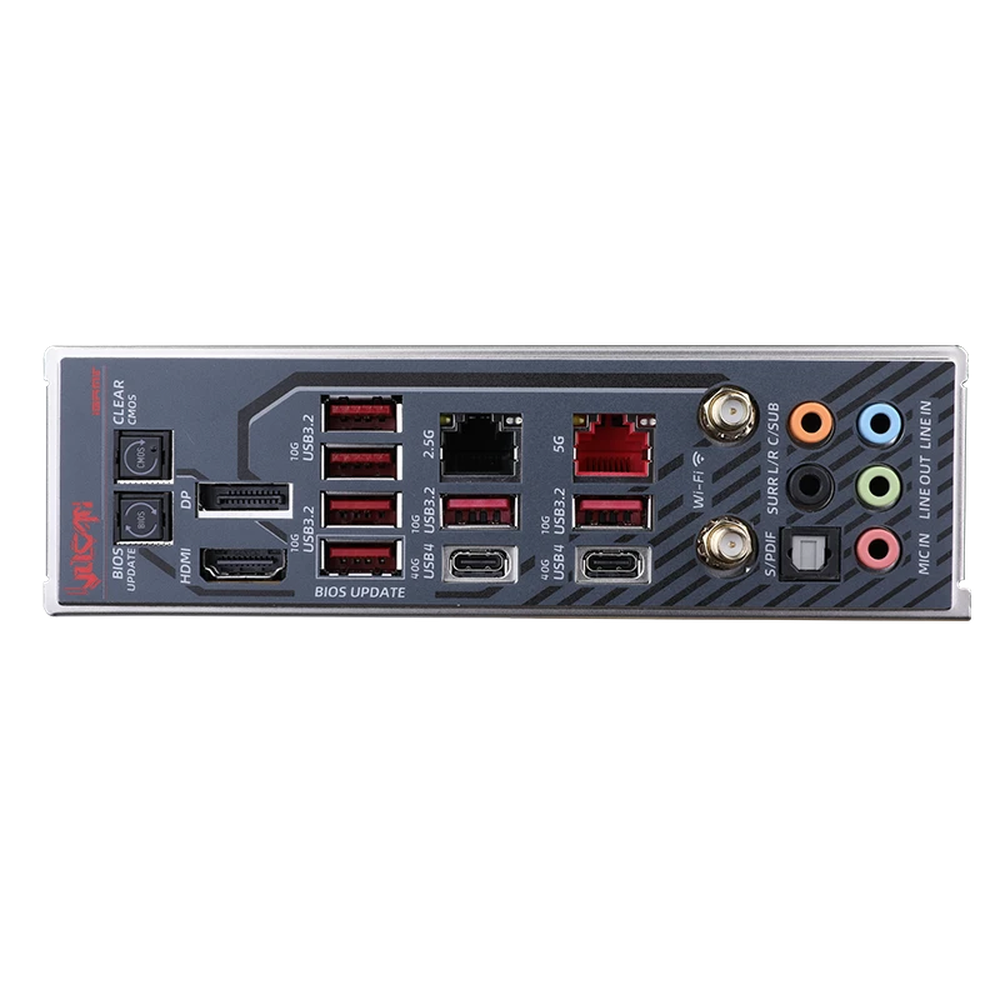

Rear I/O Ports

• 6x USB 3.2 Gen 2 10Gbps Type-A
• 2x USB4 40Gbps Type-C (supports video output up to 4K 60Hz)
• 1x DisplayPort 1.4 (up to 8K 60Hz)
• 1x HDMI 2.0 (up to 4K 60Hz)
• 1x 2.5G LAN + 1x 5G LAN
• 2x WiFi 7 antenna ports
• 5x Audio jacks + 1x S/PDIF
• 1x BIOS Update button + 1x CMOS Clear button

Onboard Features

• iGame Center RGB lighting control software
• Power / Reset / Retry buttons onboard
• LN2 Mode, Safe Start, BCLK tuning support
• LCD screen header support
• 3x 5V 3-pin ARGB + 1x 12V 4-pin RGB headers
• 2x CPU fan + 4x System fan + 1x Water pump header
• Front USB 3.2 Gen 2x2 20Gbps Type-C header (PD 3.0 @60W)

What's in the Box

• iGame Z890 VULCAN X V20 Motherboard
• User manual and quick installation guide
• SATA cables, M.2 screws
• WiFi 7 antenna
• iGame branded accessories
