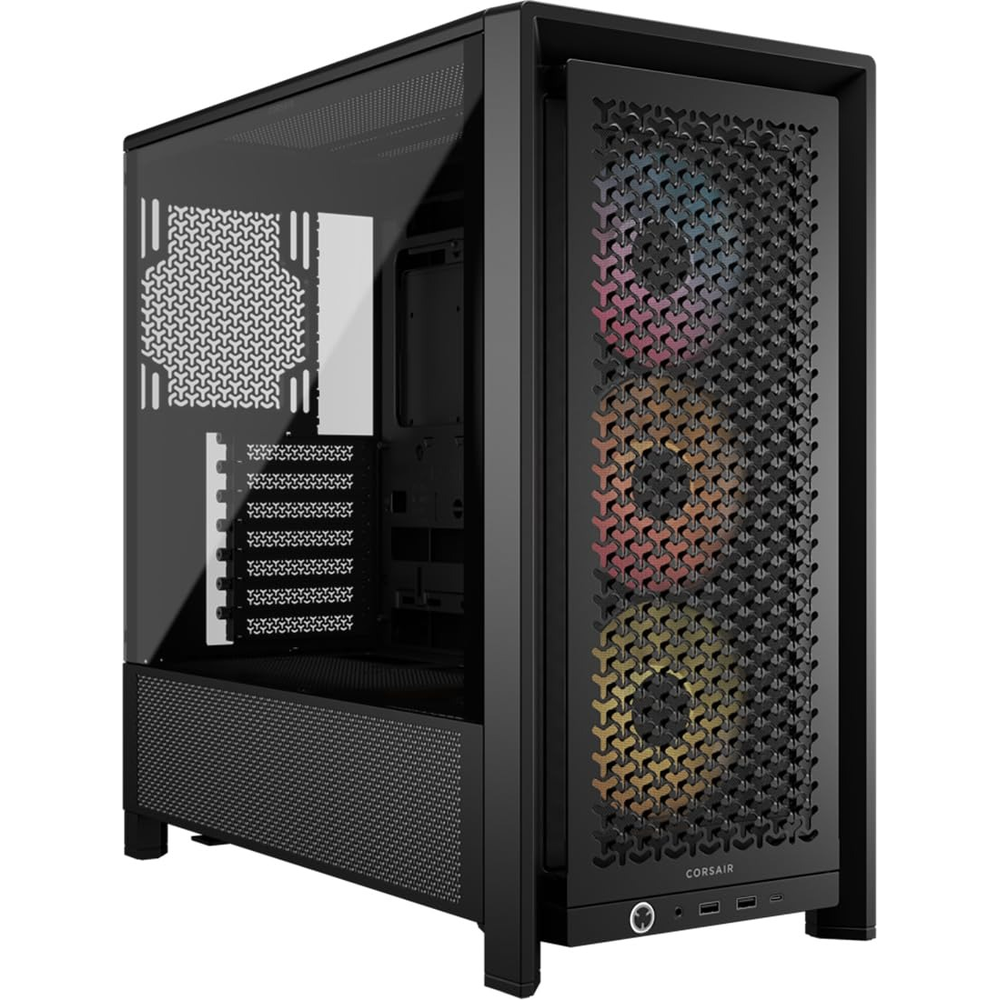

Corsair Chassis FRAME 4000D LCD RS ARGB Premium Mid-Tower PC Case without PSU

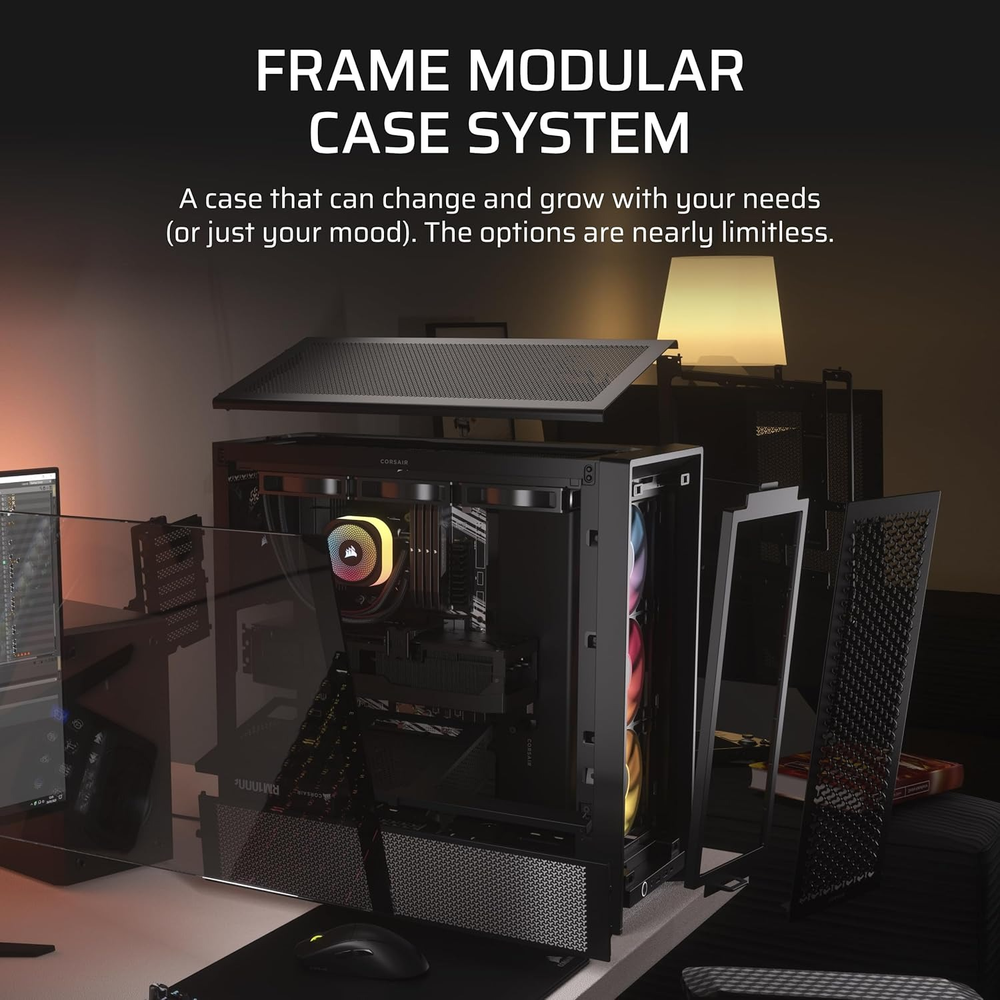

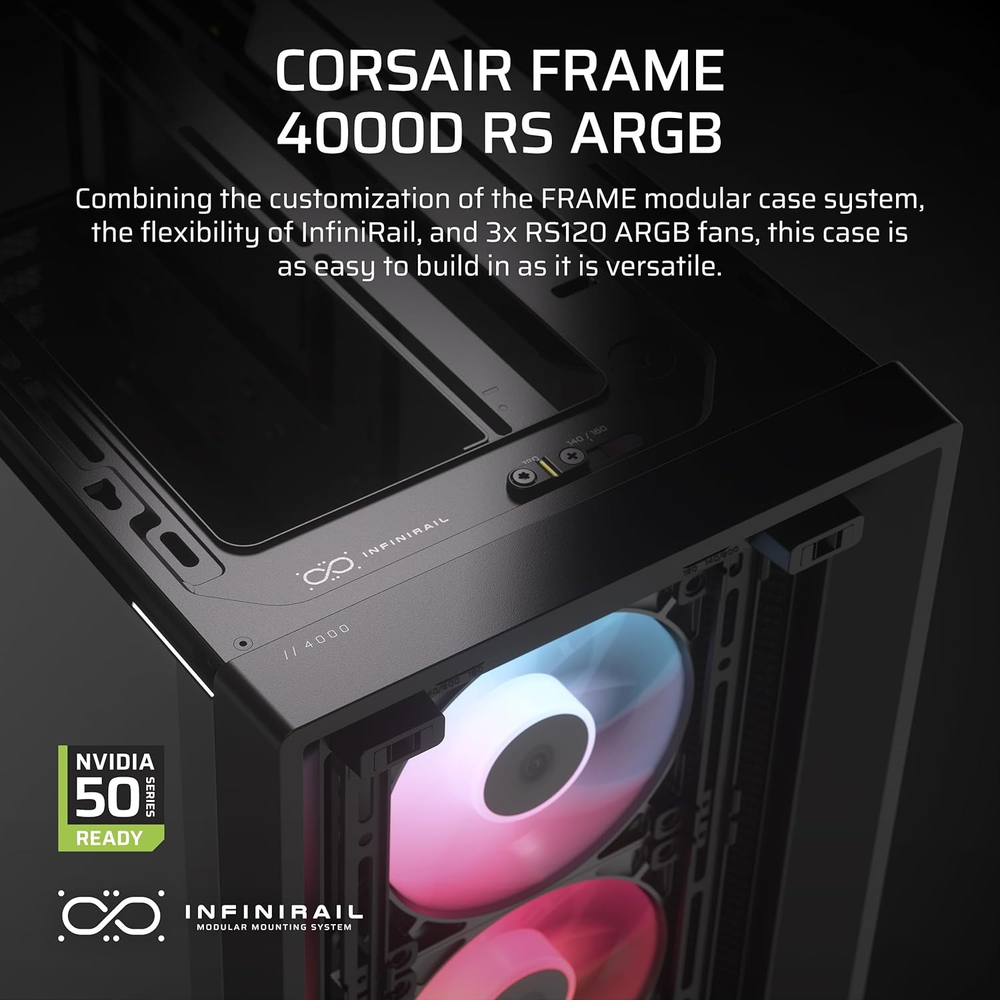

The Corsair FRAME 4000D LCD RS ARGB Black is a revolutionary premium mid-tower PC case featuring a fully functional pre-installed XENEON EDGE 14.5-inch LCD touchscreen, four RS120 PWM ARGB fans for exceptional cooling, and modern front I/O with three USB Type-C ports. Built on Corsair's innovative FRAME modular system, this case combines cutting-edge display technology with superior airflow, premium tempered glass aesthetics, and reverse-connector motherboard compatibility for the ultimate enthusiast build.

Key Features:

• Pre-installed XENEON EDGE 14.5" LCD Touchscreen display with vibrant 1920x1200 resolution
• Fully functional touchscreen for system monitoring, streaming controls, Discord, Spotify, and more
• 4x RS120 PWM ARGB fans included (3 front intake, 1 rear exhaust) for powerful out-of-the-box cooling

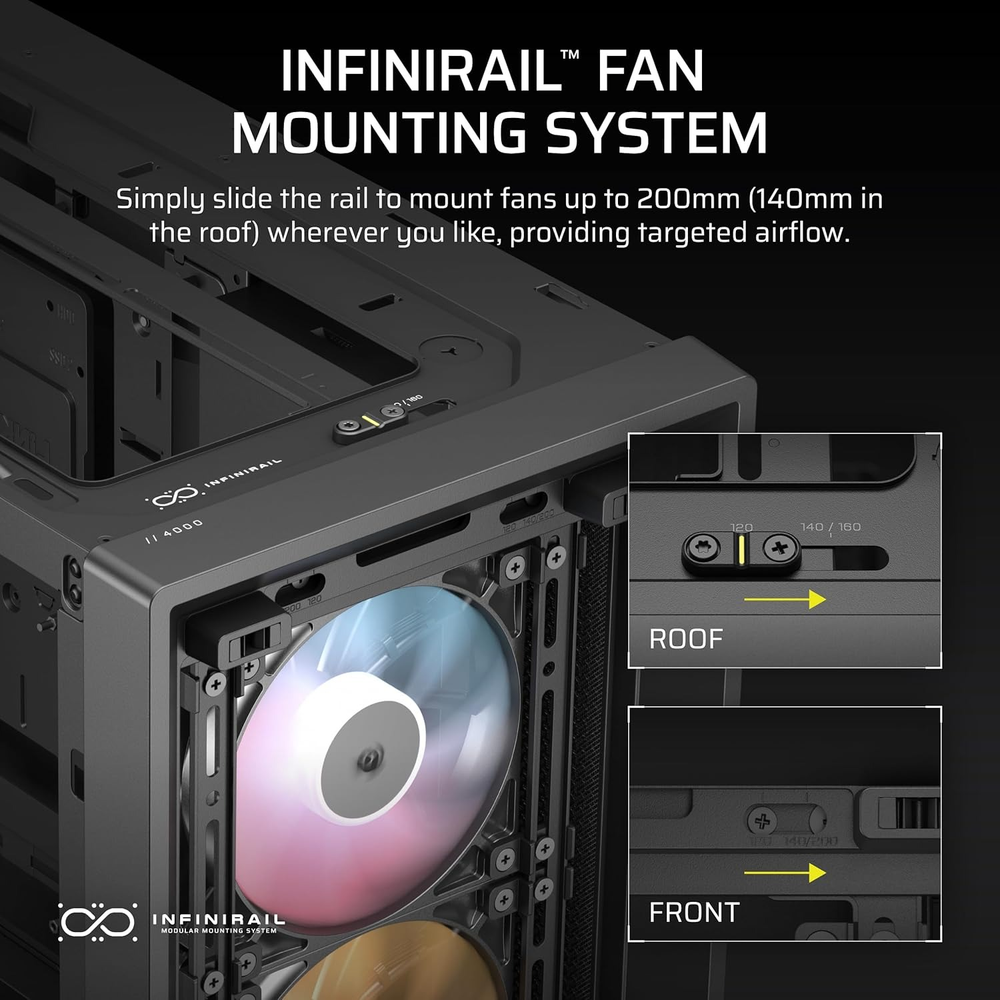

• InfiniRail™ Fan Mounting System supports up to 13x 120mm or 5x 140mm fans
• Triple 360mm radiator support (front, top, bottom) for advanced liquid cooling configurations
• Modern front I/O panel with 3x USB Type-C ports (one 20Gb/s for high-speed data and charging)

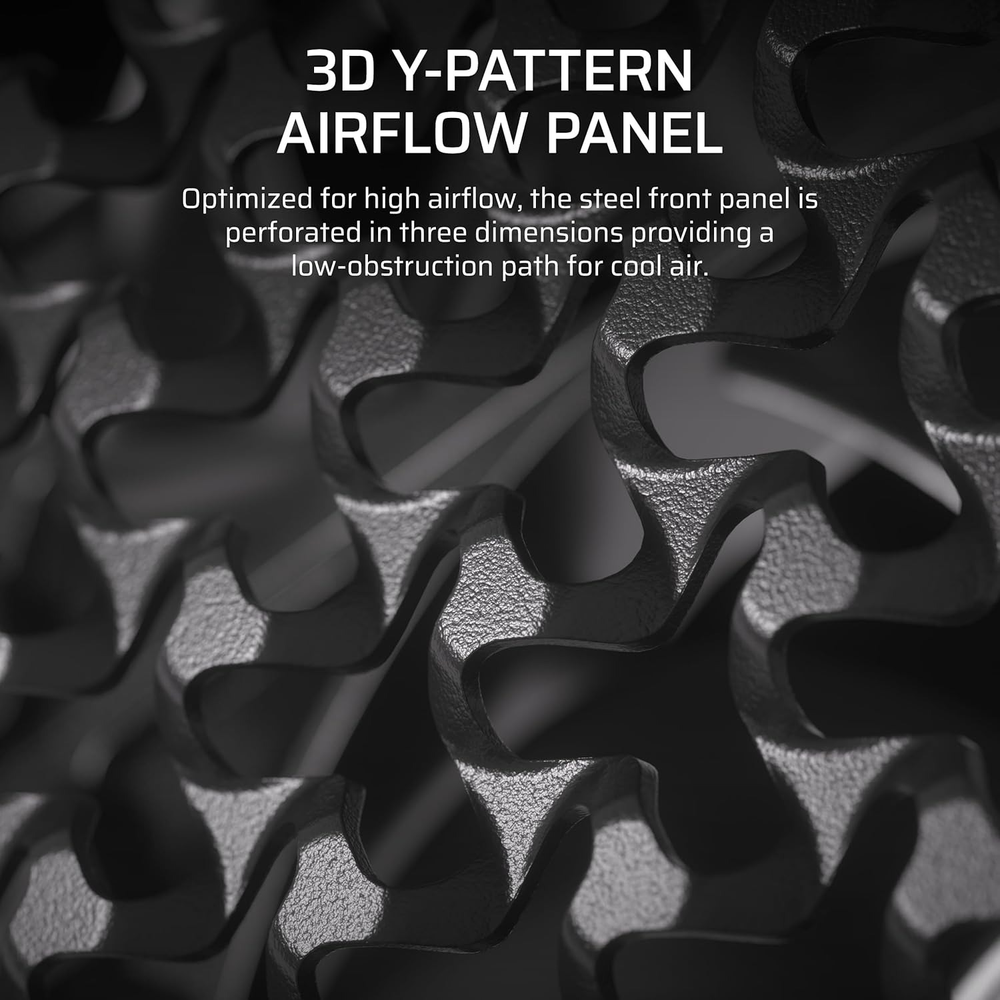

• 3D-Y Airflow front panel with optimized mesh pattern for maximum intake airflow
• Tempered glass side panel showcases your build and RGB lighting
• Full compatibility with reverse-connector motherboards (ASUS BTF, MSI Project Zero, GIGABYTE Project Stealth)
• Supports E-ATX (305mm x 277mm), ATX, Micro-ATX, and Mini-ITX motherboards
• Accommodates graphics cards up to 430mm in length
• CPU cooler clearance up to 170mm height
• PSU support up to 220mm length (ATX, not included)
• Integrated GPU anti-sag support arm prevents graphics card droop
• Multiple storage mounting options: 2x 3.5" HDD, 4x 2.5" SSD
• Tool-free tempered glass side panel removal for easy access
• Premium steel construction with sleek black finish
• Cable management channels and tie-down points for clean builds
• Dust filters on front, top, and bottom for component protection

Technical Specifications:

Model Number	CC-9011326-WW
Brand	Corsair
Series	FRAME 4000D LCD RS ARGB
Form Factor	Mid-Tower ATX
Color	Black
Materials	Steel, Tempered Glass, LCD Panel, Plastic
Integrated Display	XENEON EDGE 14.5" LCD Touchscreen (1920x1200)
Included Fans	4x RS120 PWM ARGB Fans (3 front, 1 rear)
Maximum Fans Supported	13x 120mm or 5x 140mm
Fan Mounting Locations	Front: 3x 120mm or 2x 140mm, Top: 3x 120mm or 2x 140mm, Side: 3x 120mm or 2x 140mm, Bottom: 2x 120mm, Rear: 1x 120mm or 140mm
Radiator Support	Front: Up to 360mm, Top: Up to 360mm, Bottom: Up to 360mm
Motherboard Compatibility	Mini-ITX, Micro-ATX, ATX, E-ATX (305mm x 277mm)
Reverse-Connector Compatible	Yes (ASUS BTF, MSI Project Zero, GIGABYTE Project Stealth)
Expansion Slots	7 Horizontal / 3 Vertical
Maximum GPU Length	430 mm
Maximum CPU Cooler Height	170 mm
Maximum PSU Length	220 mm
PSU Type	ATX (not included)
Drive Bays	2x 3.5" HDD, 4x 2.5" SSD
Front I/O	3x USB Type-C (1x 20Gb/s, 2x standard), 1x Audio/Mic Combo Jack
Side Panel	Tempered Glass (Left)
Dimensions (H x W x D)	486 x 239 x 490 mm / 19.1 x 9.4 x 19.3 inches
Weight	Approx. 10 kg
Warranty	2 Years

Package Contents:

• FRAME 4000D LCD RS ARGB Case (Black)
• XENEON EDGE 14.5" LCD Touchscreen (pre-installed)
• 4x RS120 PWM ARGB Fans (pre-installed)
• Mounting Hardware and Screws
• Cable Ties
• User Manual

Note: Power supply (PSU) not included.

Perfect for enthusiast PC builders, content creators, streamers, gamers, and system integrators who demand cutting-edge features, exceptional cooling performance, and stunning visual presentation in a premium mid-tower package. The FRAME 4000D LCD RS ARGB Black represents the pinnacle of modern PC case design by integrating a fully functional 14.5-inch XENEON EDGE touchscreen display directly into the front panel. This isn't just a decorative screen—it's a powerful secondary display running Windows or macOS that can show system monitoring stats (temps, FPS, usage), control streaming software like OBS or Streamlabs, display Discord chat, play Spotify, show custom GIFs and animations, or even serve as a mini secondary monitor for any application. The vibrant 1920x1200 resolution touchscreen brings unprecedented functionality and personalization to your build. Cooling performance is exceptional right out of the box with four included RS120 PWM ARGB fans featuring eight addressable RGB LEDs per fan, daisy-chainable connections, and motherboard-controlled RGB synchronization. The revolutionary InfiniRail™ fan mounting system eliminates traditional fixed fan mounting points, allowing you to slide fans to any position along the rail for optimal placement and support for up to 13 fans total. Triple 360mm radiator support (front, top, bottom) enables extreme liquid cooling configurations for high-end CPUs and GPUs. The updated front I/O panel features three USB Type-C ports including one 20Gb/s connector for lightning-fast data transfer and device charging—essential for modern peripherals and high-speed storage devices. The 3D-Y patterned airflow front panel maximizes intake while maintaining a sleek aesthetic. Full compatibility with reverse-connector motherboards from ASUS, MSI, and GIGABYTE allows for ultra-clean cable routing with cables hidden behind the motherboard tray. Support for E-ATX motherboards up to 305mm x 277mm, graphics cards up to 430mm, and tower coolers up to 170mm ensures compatibility with the most powerful components. The integrated GPU anti-sag support arm prevents graphics card droop, protecting your expensive hardware investment. Premium tempered glass showcases your components and RGB lighting with tool-free removal for easy maintenance. Build your dream gaming or workstation PC with the most feature-rich case Corsair has ever created—FRAME 4000D LCD RS ARGB Black.
