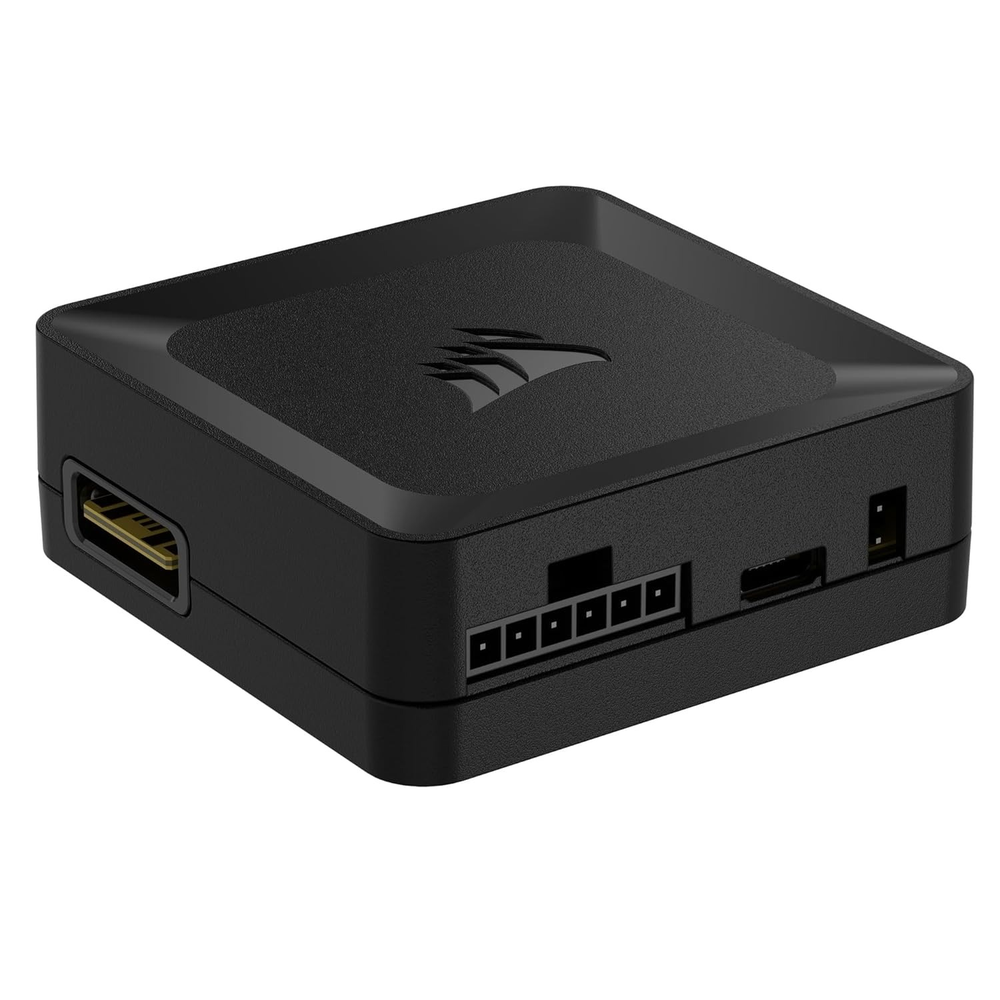

Corsair Control Hub CORSAIR iCUE LINK System Hub
Price inclusive of all taxes
Technical specification
Key Features:
-
>Connect up to 24 iCUE LINK devices per hub (updated from 14 devices as of April 2024)
>Two channels supporting up to 12 devices each (originally 7 per channel)
>Innovative single-cable solution drastically reduces cable clutter
>Daisy-chain fans, AIO coolers, and RGB devices with reversible iCUE LINK cables
>Auto detection and installation - iCUE software automatically detects and configures connected devices
>Compact 2x2-inch (5x5 cm) design for easy installation
>Magnetic attachment - mount to any metal surface in your case
>Included adhesive mounting strips for non-magnetic surfaces

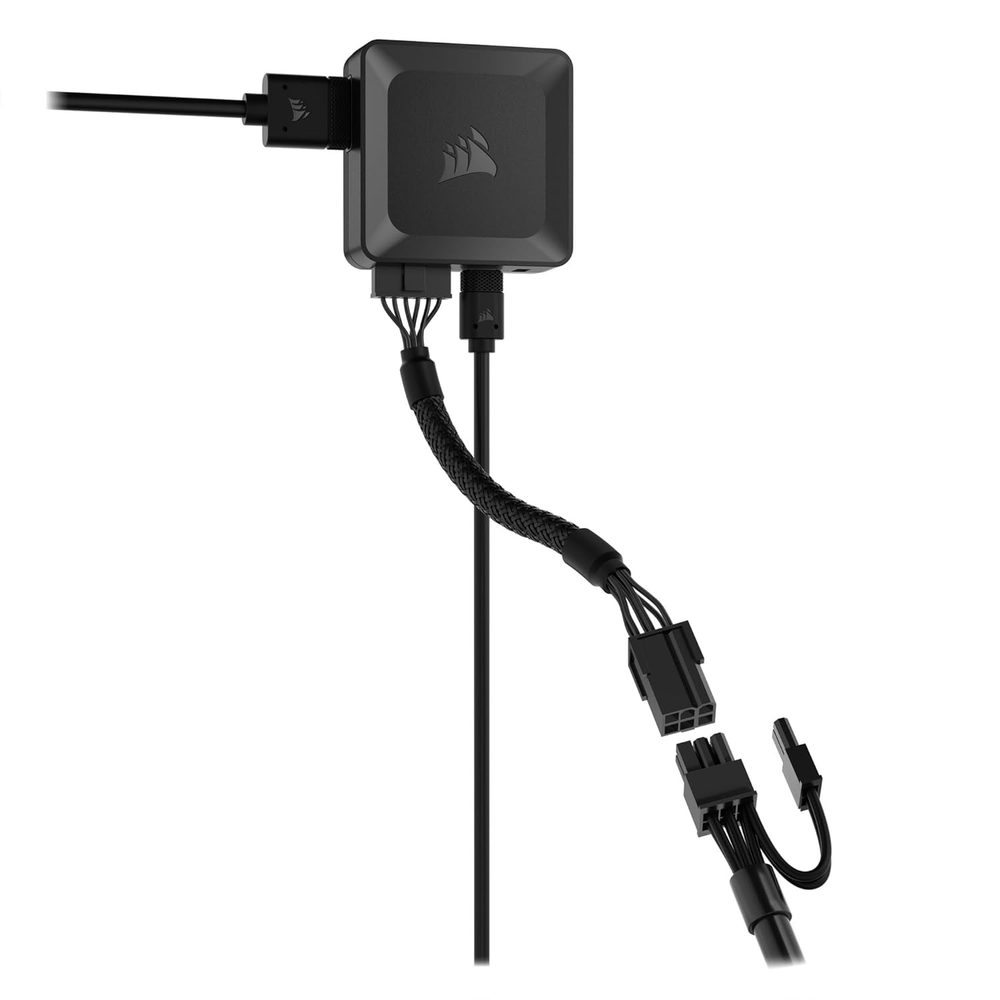

>PCIe 6-pin power input (168W total, 84W per channel)
>USB 2.0 header connection for software control
>Compatible with all iCUE LINK fans, AIO coolers, LCD upgrade kits, and accessories
>Powerful iCUE software - sync RGB lighting, adjust fan speeds, set custom fan curves, monitor temps
>Multiple hubs supported - daisy-chain hubs for builds with 24+ devices
>Reversible cables for flexible routing
>2-year warranty
Specifications:
| Model | iCUE LINK System Hub, CL-9011116-WW |
| Color | Black (White version: CL-8930014-WW) |
| Max Devices | Up to 24 iCUE LINK devices (12 per channel) |
| Channels | 2 channels |
| Power Input | PCIe 6-pin (168W total, 84W per channel) |
| Data Connection | USB 2.0 header (9-pin to motherboard) |
| Dimensions (L x W x H) | 2.05" x 2.05" x 0.71" (5x5x1.8 cm) |
| Weight | 3.17 oz (90g / 0.195kg including cables) |
| Mounting | Magnetic or adhesive strips |
| PWM Control | No (direct control via iCUE software) |
| Compatibility | iCUE LINK fans, AIOs, LCD kits, RGB accessories |
| Software | CORSAIR iCUE (Windows/macOS) |
| Warranty | 2 Years |
| Country of Origin | China |
What's Included:
-

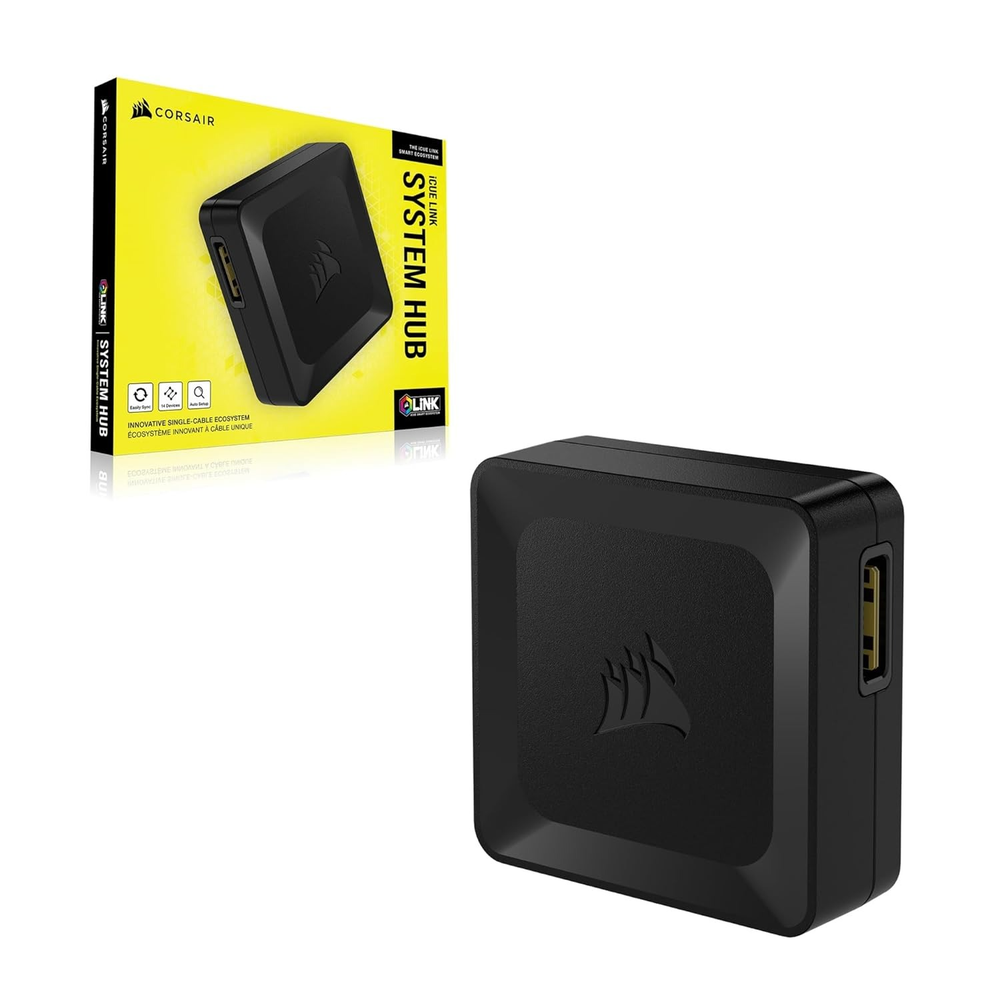

>1x CORSAIR iCUE LINK System Hub

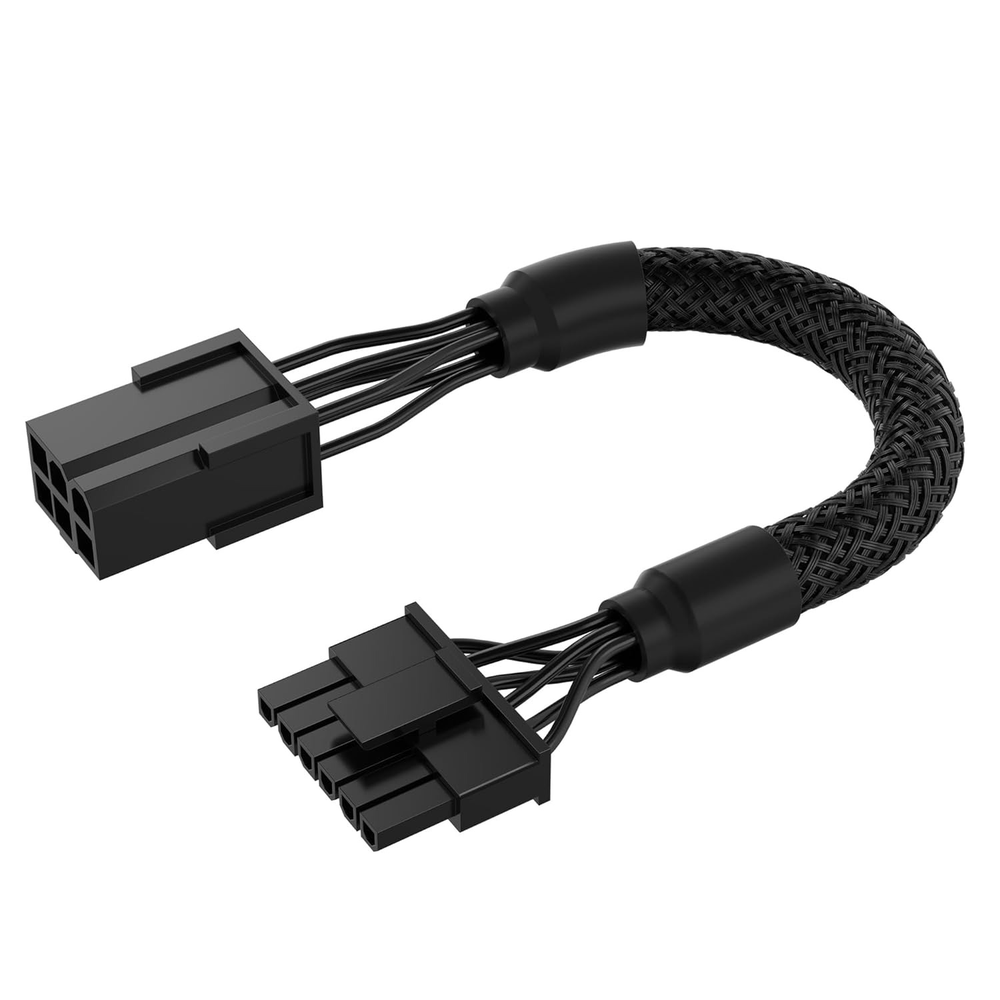

>1x PCIe 6-pin power cable

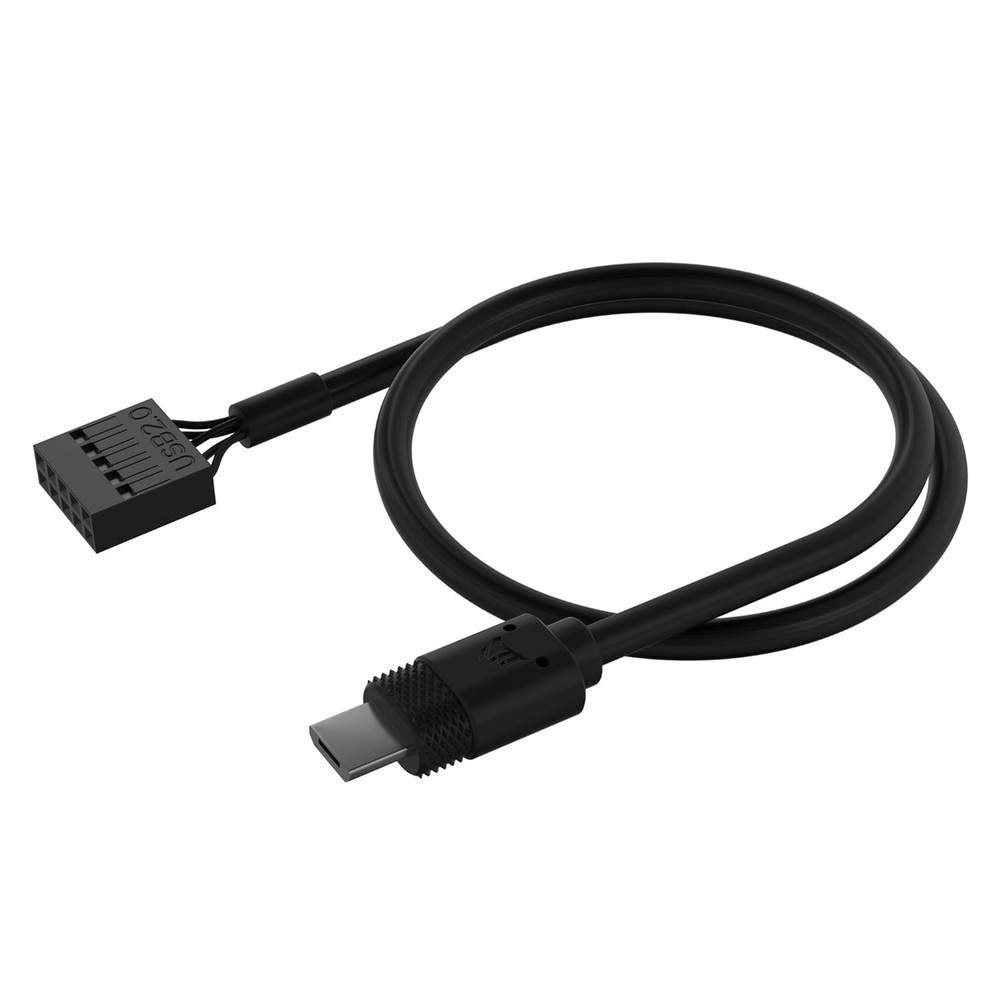

>1x USB 2.0 header cable (9-pin)

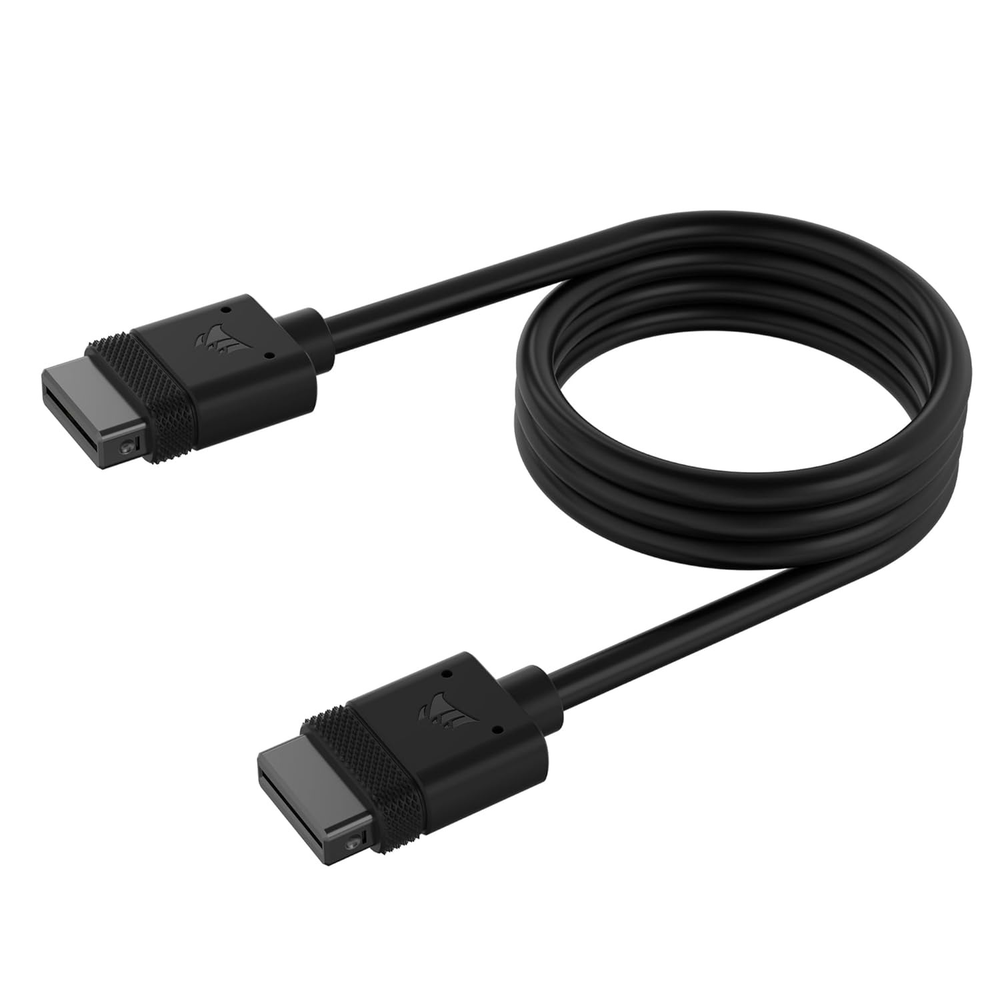

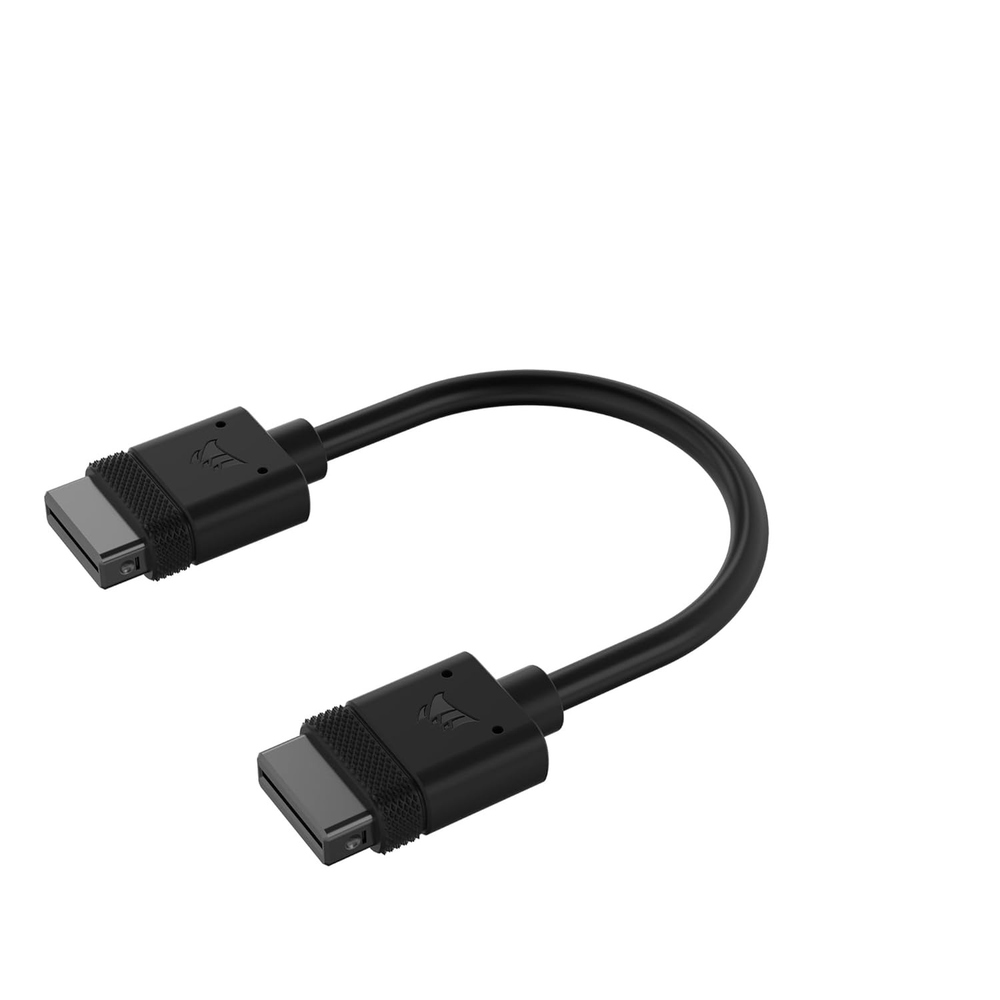

>1x iCUE LINK cable, 600mm
>1x iCUE LINK cable, 100mm
>2x Adhesive mounting strips
>Warranty guide
>Safety and compliance information
Compatible Devices:
-
>iCUE LINK QX RGB fans (120mm, 140mm)
>iCUE LINK RX RGB fans (120mm, 140mm)
>iCUE LINK H-Series AIOs (H100i, H115i, H150i, H170i)
>iCUE LINK LCD upgrade kits
>iCUE LINK XD5 RGB pump/reservoir combo
>iCUE LINK XC7 RGB CPU water blocks
>Future iCUE LINK accessories
Perfect for simplifying PC builds, RGB lighting setups, custom water cooling loops, multi-fan configurations, AIO liquid cooler installations, and enthusiast builds demanding clean cable management. CORSAIR iCUE LINK System Hub redefines DIY PC building with groundbreaking single-cable technology that automatically detects and configures fans, CPU coolers, and RGB components. Say goodbye to cable clutter—connect up to 24 devices with minimal wiring using reversible daisy-chain cables. Compact magnetic design mounts anywhere in your case. iCUE software provides complete control over RGB synchronization, fan speeds, custom curves, temperature monitoring, and more. Build better. Build smarter. Priced at $59.99 USD (₹4,999-₹5,089 in India).
