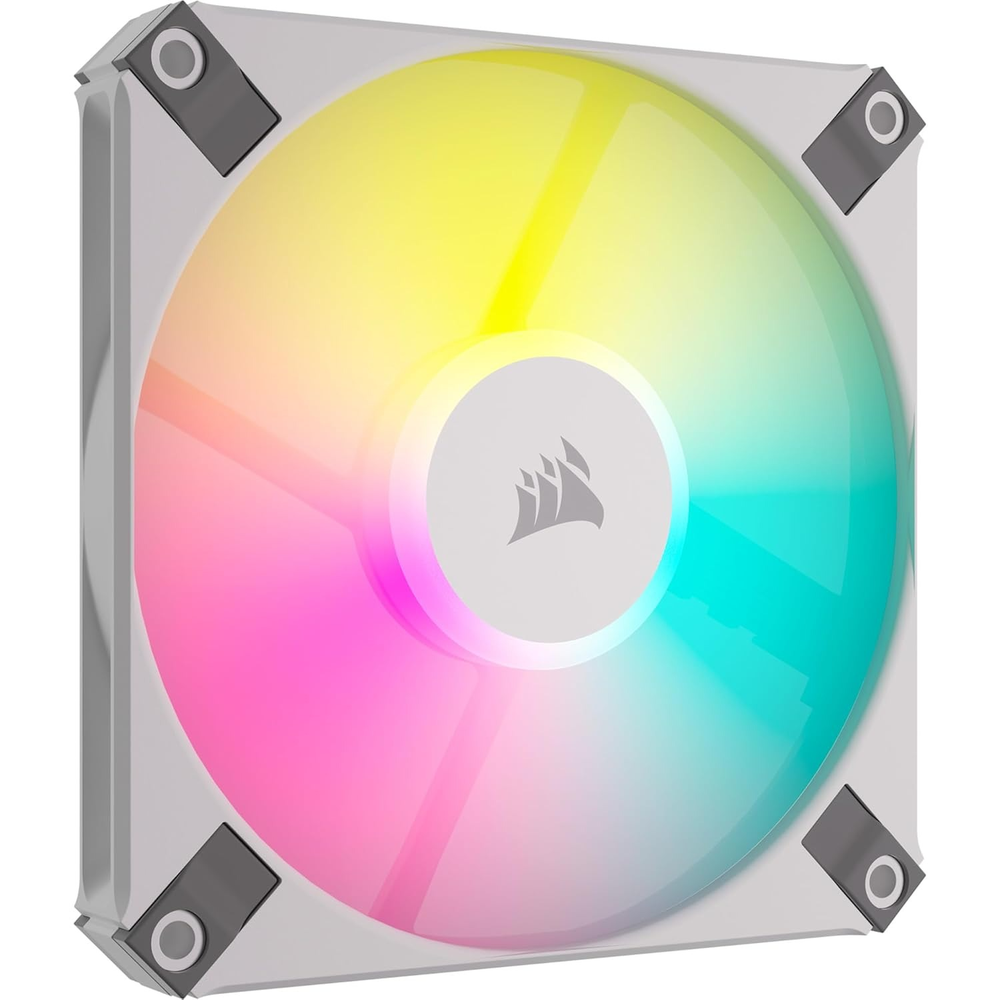

Corsair Fan iCUE AF120 RGB SLIM

The Corsair iCUE AF120 RGB SLIM is an ultra-thin 15mm profile 120mm PWM fan designed specifically for small-form-factor and Mini-ITX builds where space is at a premium. With speeds up to 2000 RPM, 56.3 CFM airflow, 8 individually addressable RGB LEDs, Fluid Dynamic Bearing, Zero RPM mode, and iCUE LINK RGB compatibility, this slim fan delivers exceptional cooling performance and brilliant RGB lighting in compact builds. Available in Black or White.

Key Features:

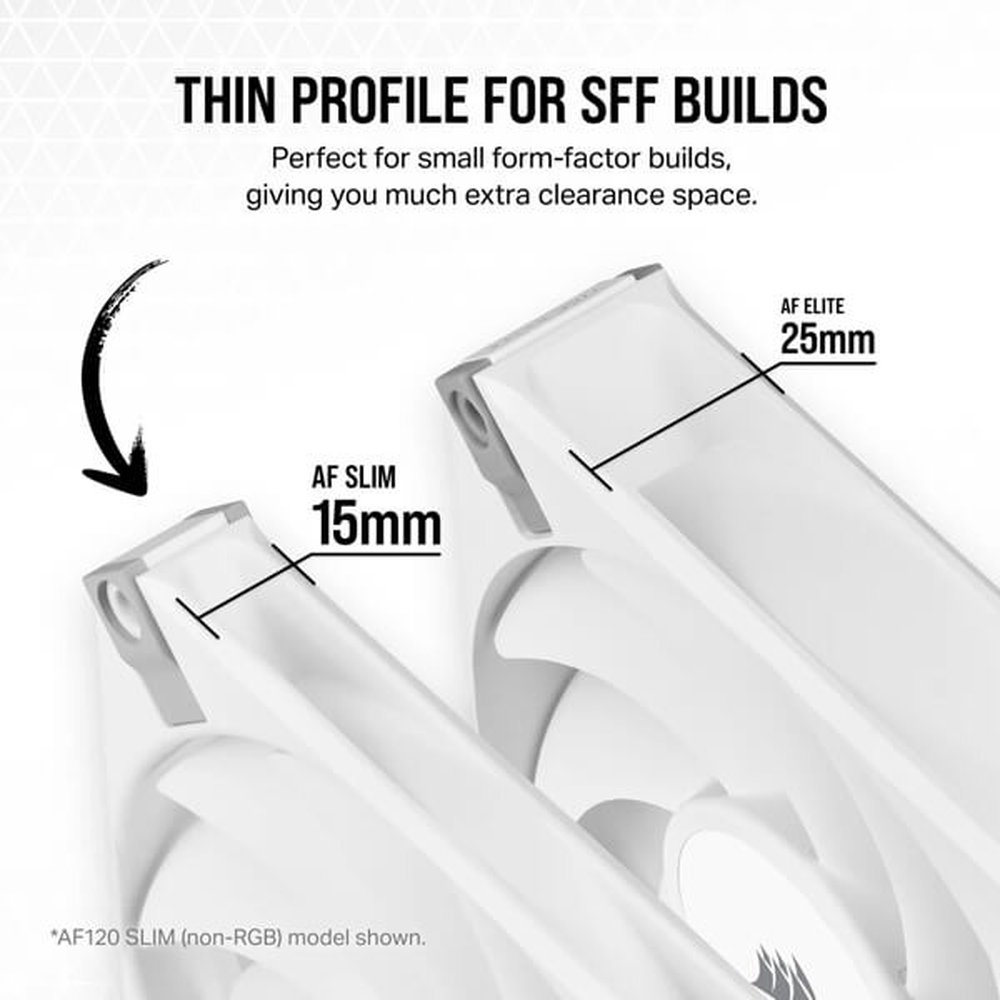

• Ultra-thin 15mm profile (vs standard 25mm) fits small-form-factor and Mini-ITX cases
• Fits any standard 120mm fan mount despite slim design
• PWM control allows precise fan speed from 600-2000 RPM
• Airflow: 13.4 to 56.3 CFM for effective cooling in compact spaces
• Static pressure: 0.2 to 1.9 mm-H2O for radiator compatibility
• 8 individually addressable RGB LEDs per fan for vibrant customizable lighting
• Requires CORSAIR iCUE Lighting Node CORE or iCUE Commander controller (sold separately) for RGB control
• Compatible with CORSAIR iCUE software for full RGB customization and synchronization
• Fluid Dynamic Bearing for low-noise operation, exceptional durability, and minimal friction
• Zero RPM mode stops fan completely at low loads for total silence
• Low noise operation: 27.5 dBA maximum
• Available in Black or White to match your build
• 2-year warranty

Technical Specifications:

Model Number	CO-9050163-WW (Black Twin Pack), CO-9050165-WW (White Twin Pack)
Brand	Corsair
Series	iCUE AF RGB SLIM Series
Fan Model	AF Series
Color	Black or White
Fan Size	120mm x 120mm x 15mm (ultra-thin)
Bearing Type	Fluid Dynamic Bearing (FDB)
Fan Speed Range	600-2000 RPM ±10%
Airflow	13.4 - 56.3 CFM
Static Pressure	0.2 - 1.9 mm-H2O
Flow Type	Static Pressure
Noise Level	27.5 dBA (max)
PWM Control	Yes (4-pin)
Zero RPM Mode	Yes
Power Draw	0.55A (12V DC)
LED Type	RGB (individually addressable)
LED Count	8 LEDs per fan
RGB Controller Required	Yes (iCUE Lighting Node CORE or iCUE Commander, sold separately)
CORSAIR LINK Compatibility	Yes
LINK Compatibility	RGB
Control Software	CORSAIR iCUE
Voltage	12V DC
Weight (Twin Pack)	0.386 kg
Weight (Single Fan)	0.164 kg
Warranty	2 Years

Package Contents (Twin Pack):

• 2x iCUE AF120 RGB SLIM Fans (Black or White)
• 8x Mounting Screws
• User Manual

Note: Requires CORSAIR iCUE Lighting Node CORE or iCUE Commander (sold separately) to control RGB lighting. PWM fan control works with standard motherboard 4-pin PWM headers.

Perfect for small-form-factor builds, Mini-ITX cases, compact gaming rigs, HTPC builds, slim radiators, space-constrained builds, and anyone seeking RGB lighting in ultra-thin fan slots. The Corsair iCUE AF120 RGB SLIM solves the challenge of adding RGB cooling to space-constrained builds with its revolutionary ultra-thin 15mm profile—40% thinner than standard 25mm fans while still delivering impressive 56.3 CFM airflow and 1.9 mm-H2O static pressure. This slim design fits perfectly in small-form-factor and Mini-ITX cases where standard fans won't fit, including tight radiator mounts, sandwich-style layouts, and compact chassis with minimal clearance. Despite the slim profile, the AF120 RGB SLIM fits standard 120mm fan mounting holes, making installation straightforward without special brackets. PWM control provides precise fan speed adjustment from 600 to 2000 RPM, allowing you to balance cooling performance with noise levels. Zero RPM mode stops the fan completely at low loads for total silence during light workloads. Eight individually addressable RGB LEDs per fan create vibrant lighting effects controlled through CORSAIR iCUE software (requires iCUE Lighting Node CORE or iCUE Commander sold separately), synchronizing with other iCUE-compatible components for cohesive RGB ecosystems. The Fluid Dynamic Bearing uses lubricant between shaft and bearing to greatly reduce friction, ensuring exceptional durability, minimal noise, and whisper-quiet operation maxing out at just 27.5 dBA. Available in Black or White to match your build aesthetics. Build a stunning, compact RGB system with space-saving cooling in the Corsair iCUE AF120 RGB SLIM.
