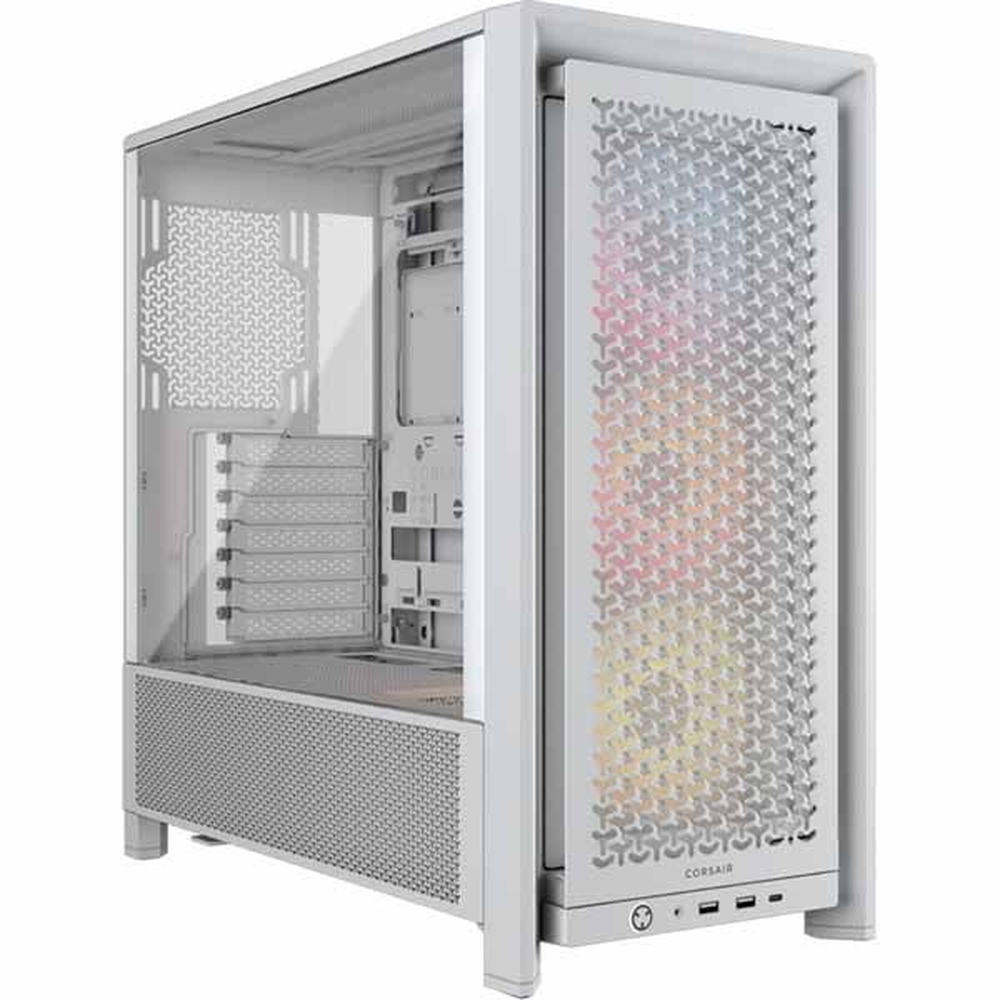

CORSAIR FRAME 4000D RS ARGB Modular Mid-Tower PC Case, White

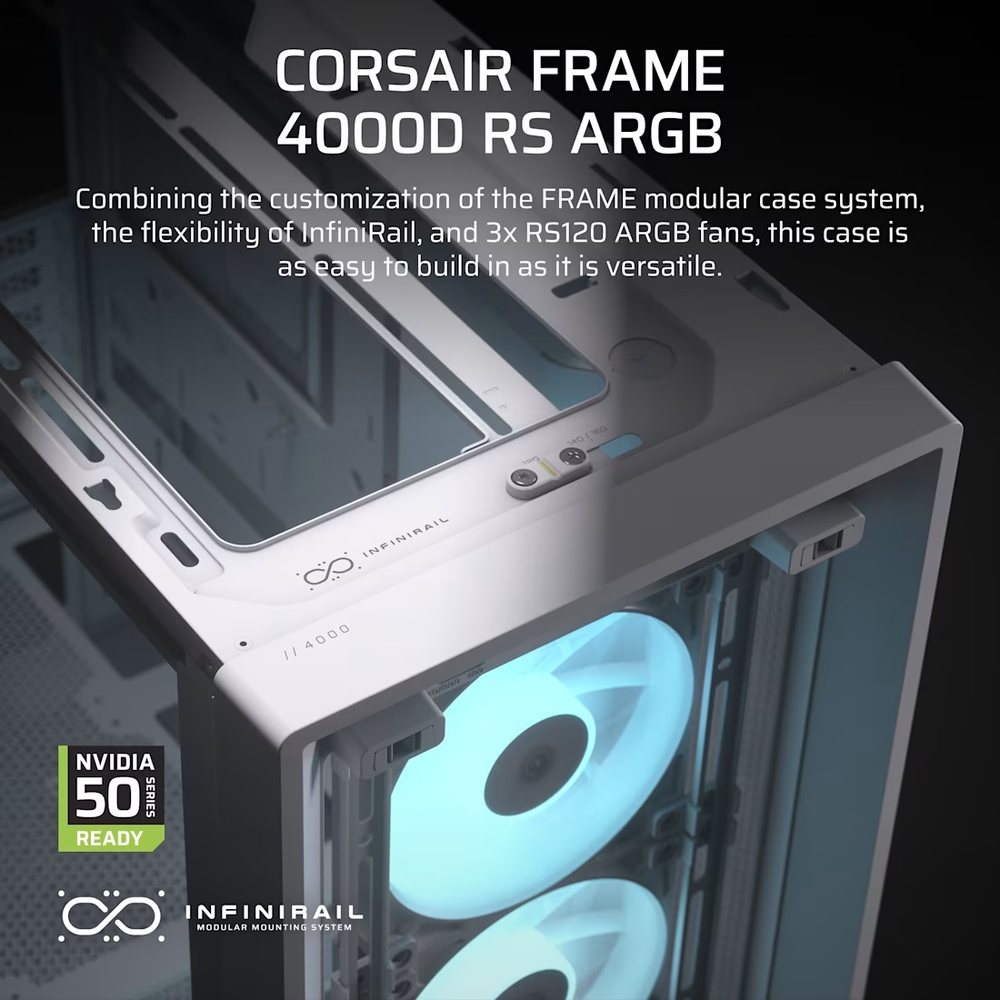

The Corsair FRAME 4000D RS ARGB White is a fully-modular and spacious mid-tower PC case featuring the innovative InfiniRail™ Fan Mounting System, three pre-installed RS120 ARGB PWM fans, and full compatibility with reverse-connector motherboards. Built on Corsair's revolutionary FRAME modular platform in an elegant white finish, this high-airflow case delivers exceptional cooling performance, extensive customization options, and a GPU anti-sag stabilization arm for hassle-free builds.

Key Features:

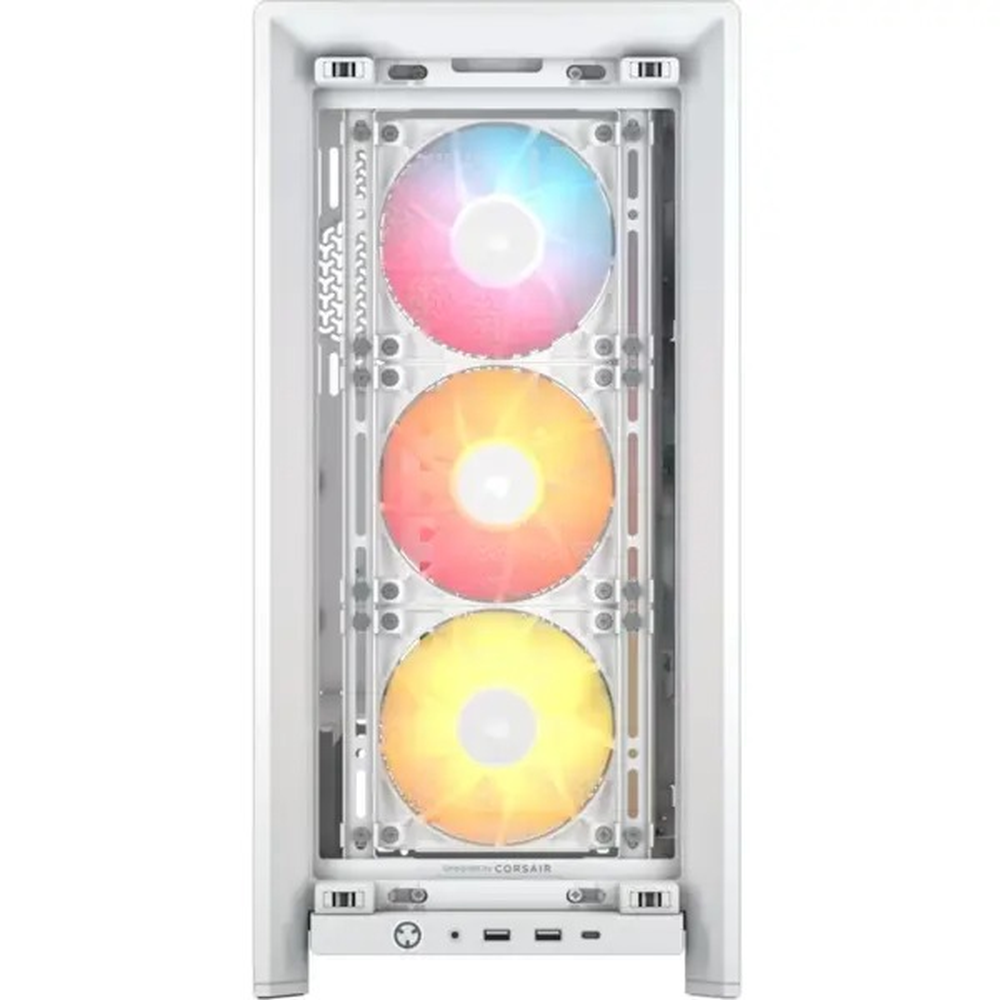

• 3x RS120 ARGB PWM fans pre-installed in front for powerful, colorful cooling out of the box

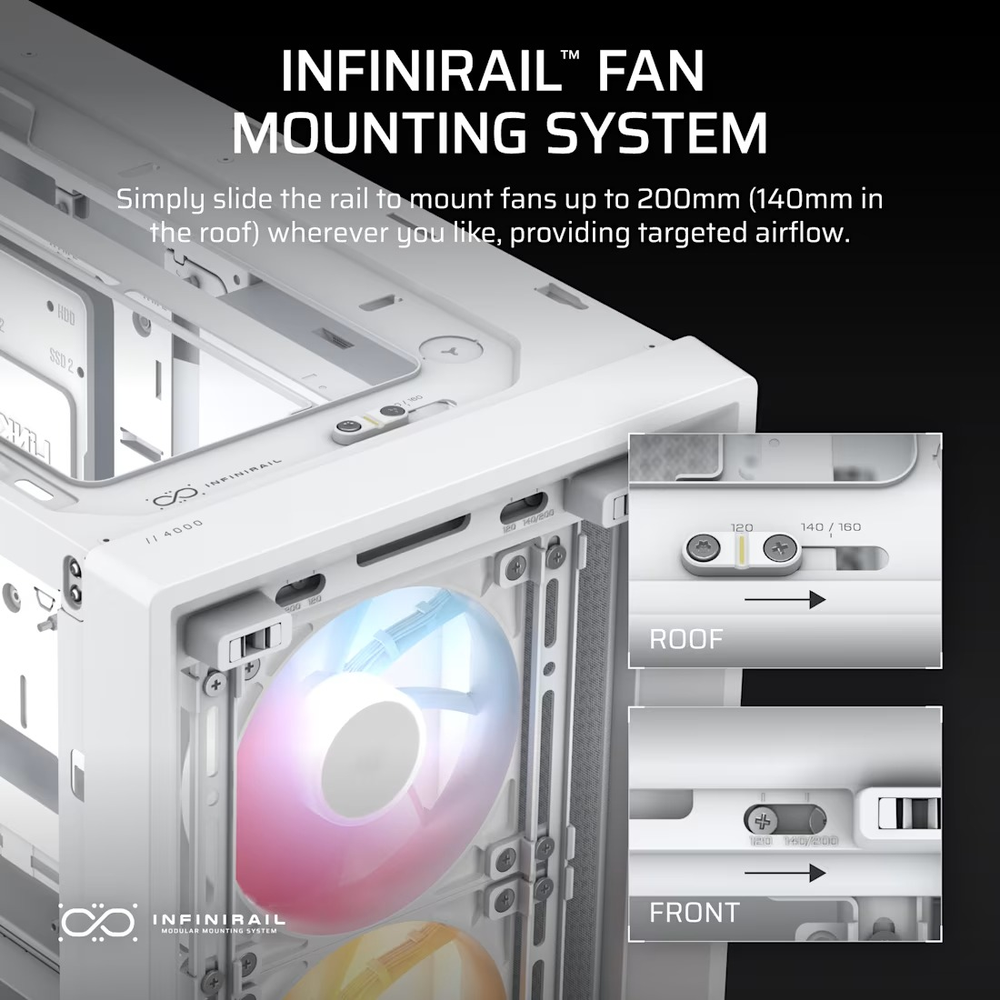

• InfiniRail™ Fan Mounting System allows flexible fan placement anywhere along continuous rails
• Support for up to 12x 120mm fans total with mounting locations on front, top, side, rear, bottom, and PSU shroud

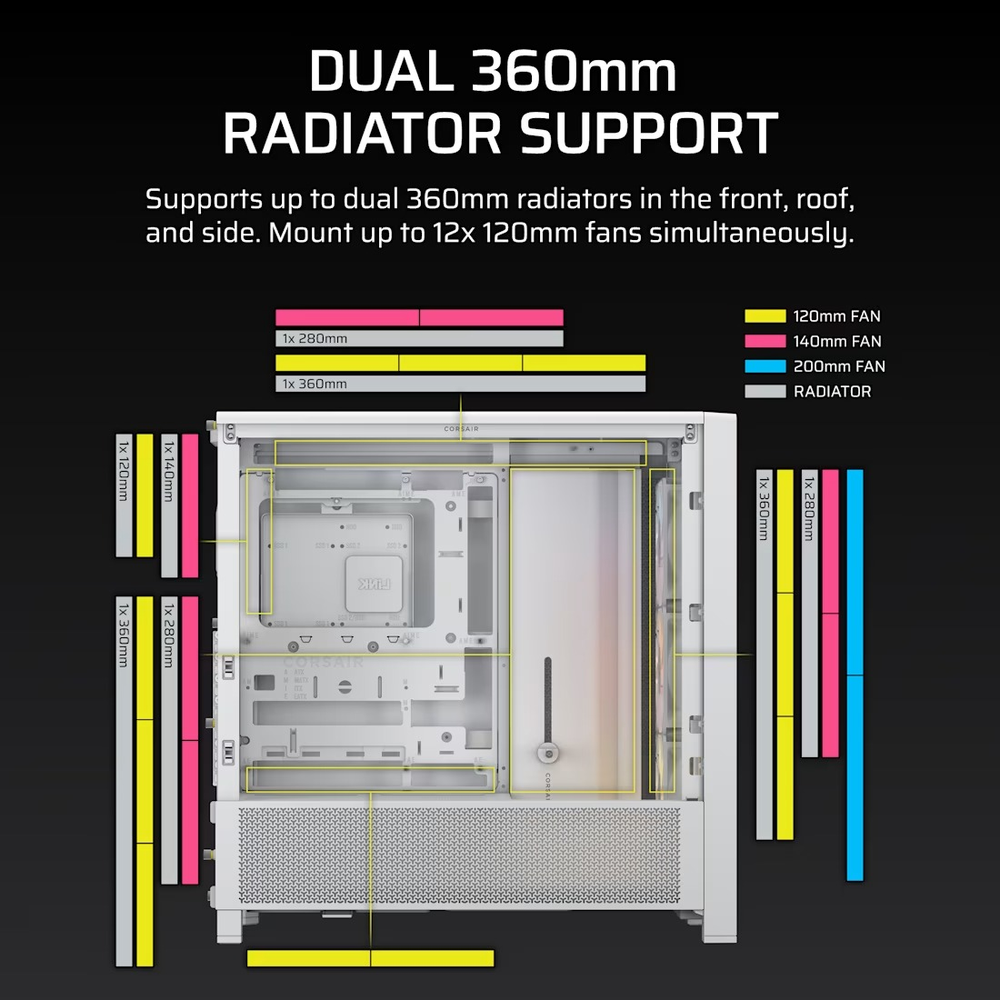

• Dual 360mm radiator support (front and top) for advanced liquid cooling configurations
• Additional 360mm radiator support on side panel for triple-radiator extreme builds

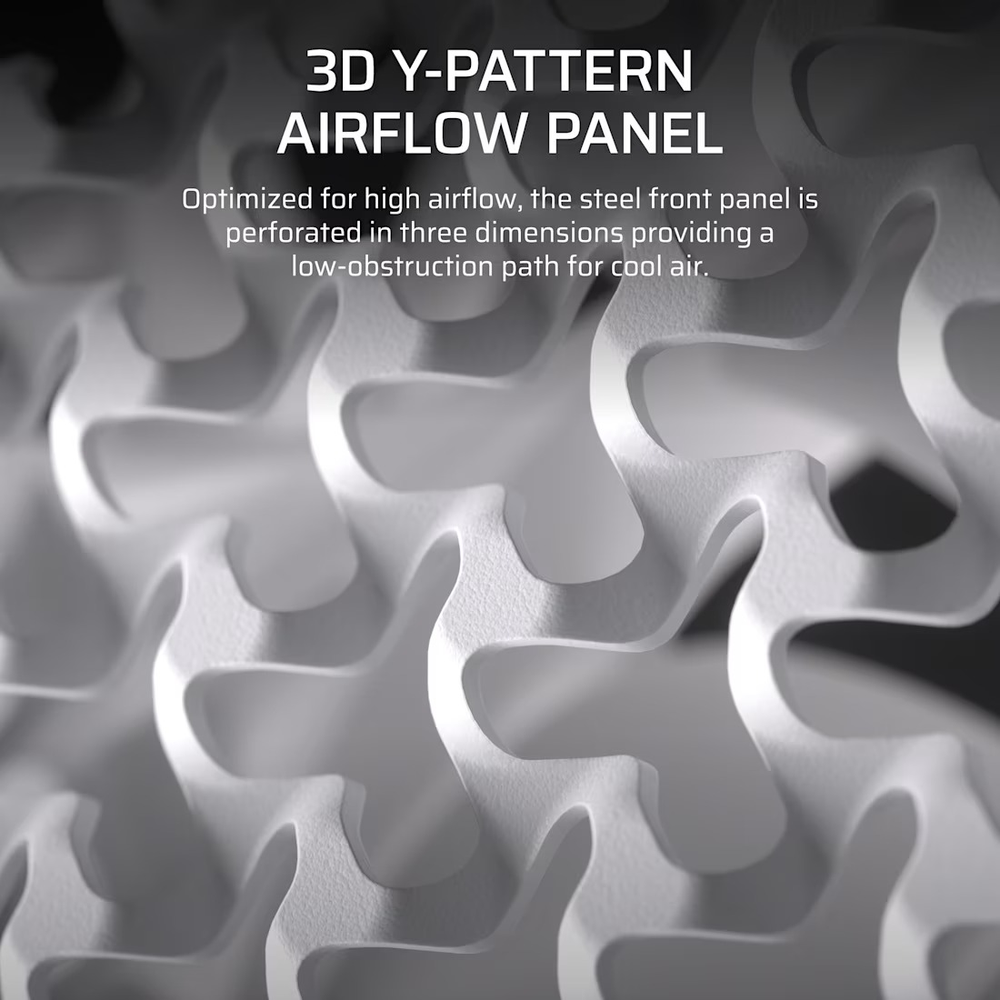

• 3D-Y Airflow front panel with optimized mesh pattern for maximum intake with minimal restriction

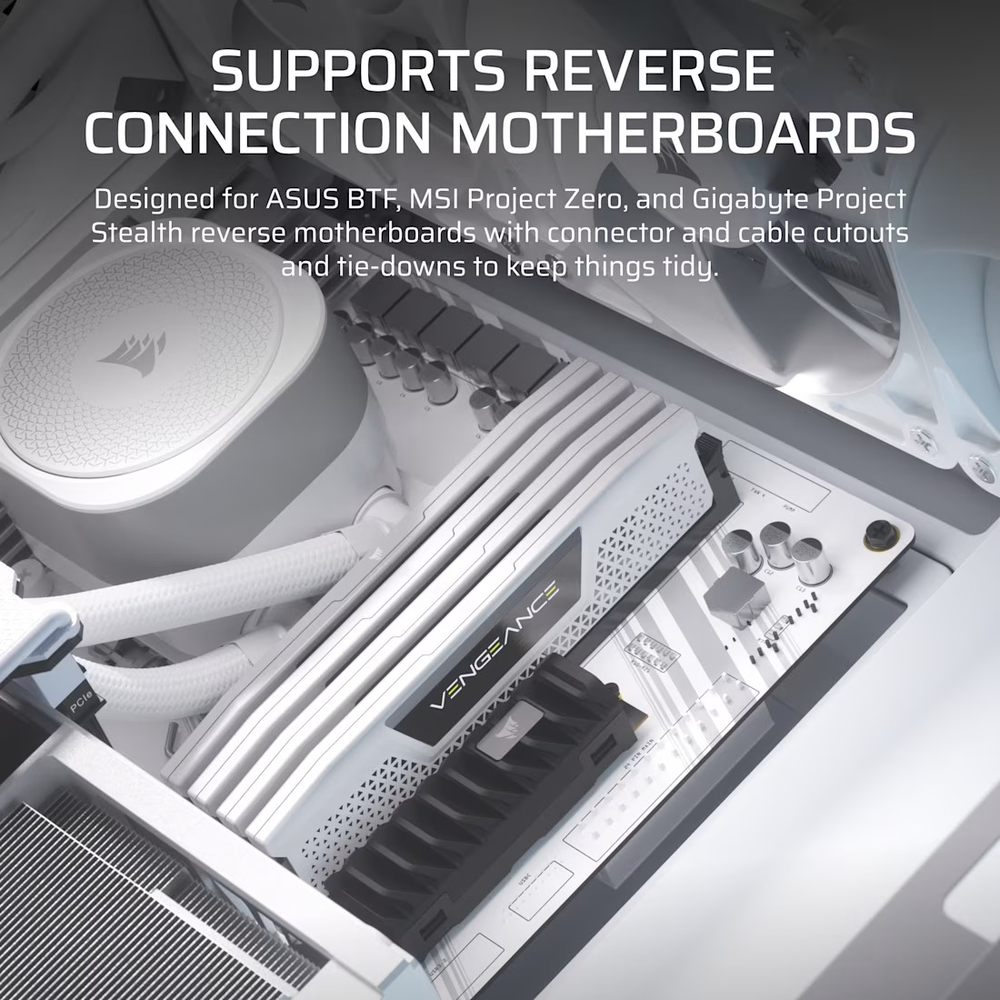

• Compatible with reverse-connector motherboards (ASUS BTF, MSI Project Zero, GIGABYTE Project Stealth)

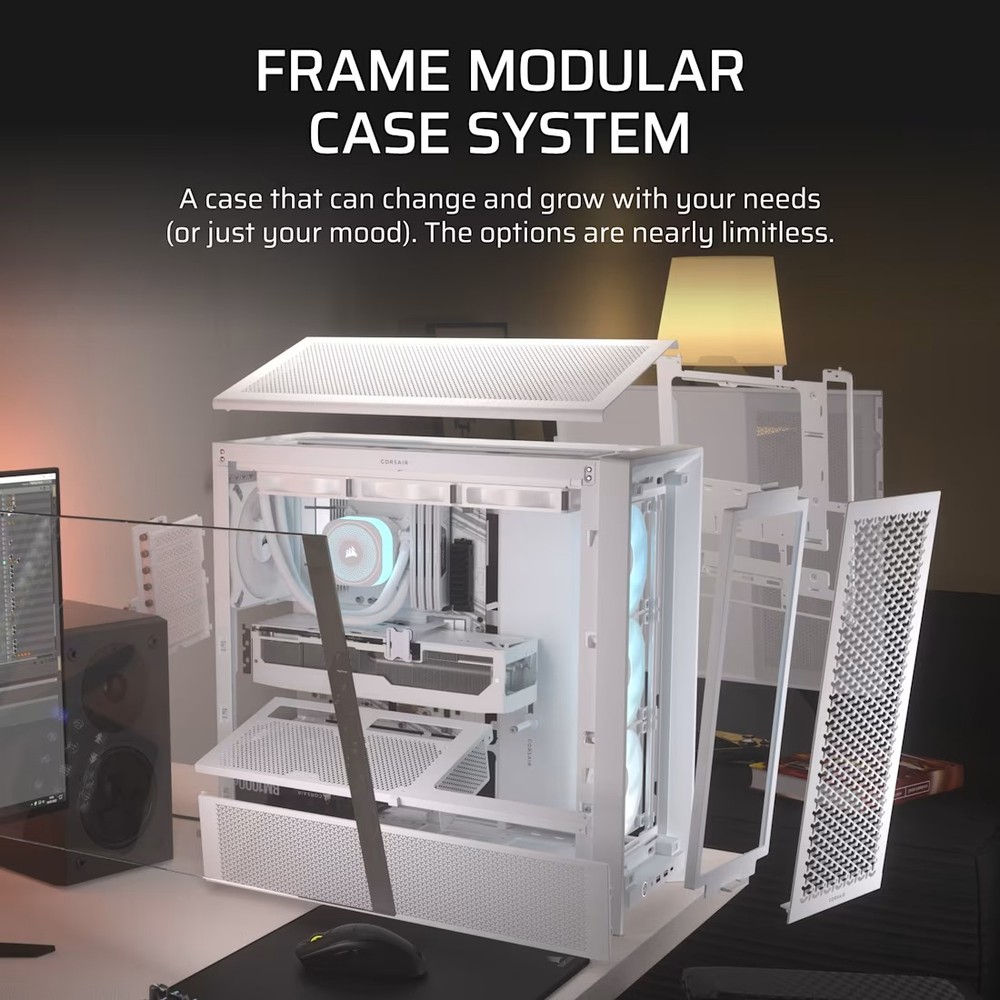

• Fully modular FRAME system allows upgrades to motherboard tray, front I/O panel, and side panels
• Tempered glass side panel showcases your components and RGB lighting

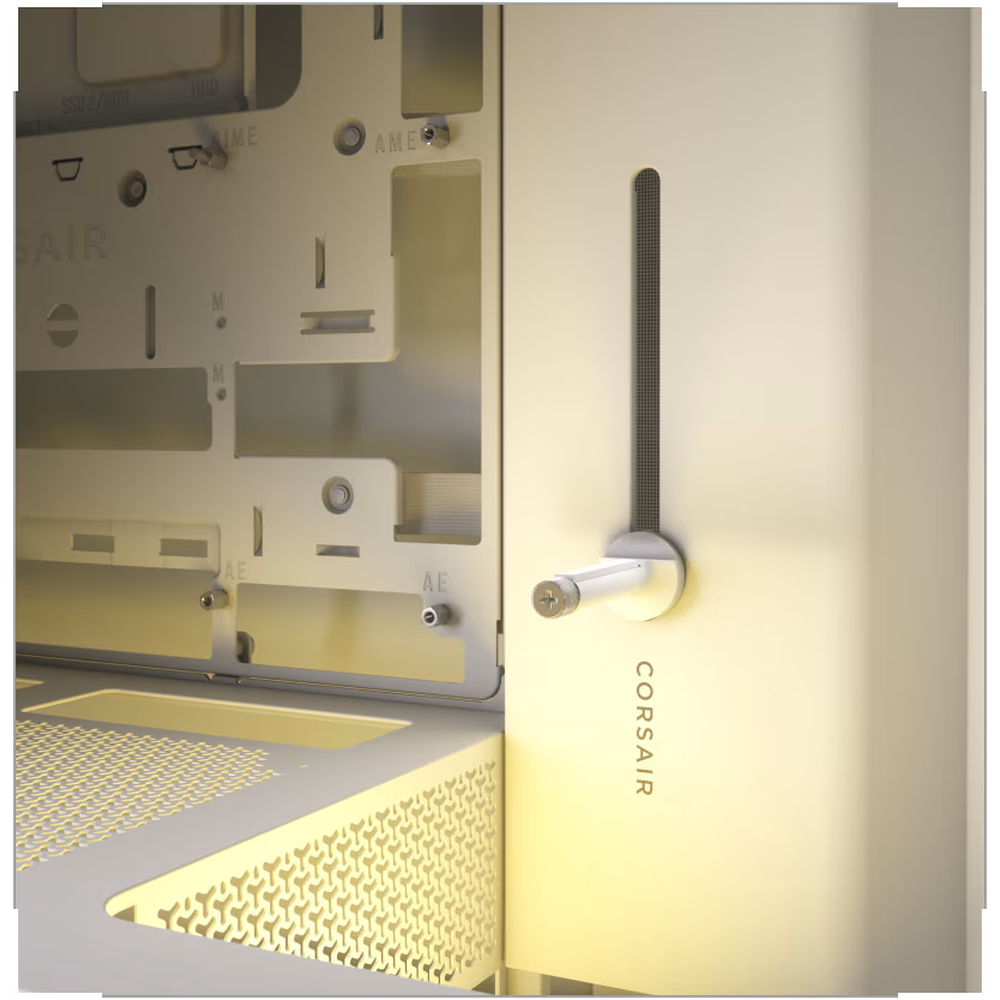

• Integrated GPU anti-sag stabilization arm prevents graphics card droop

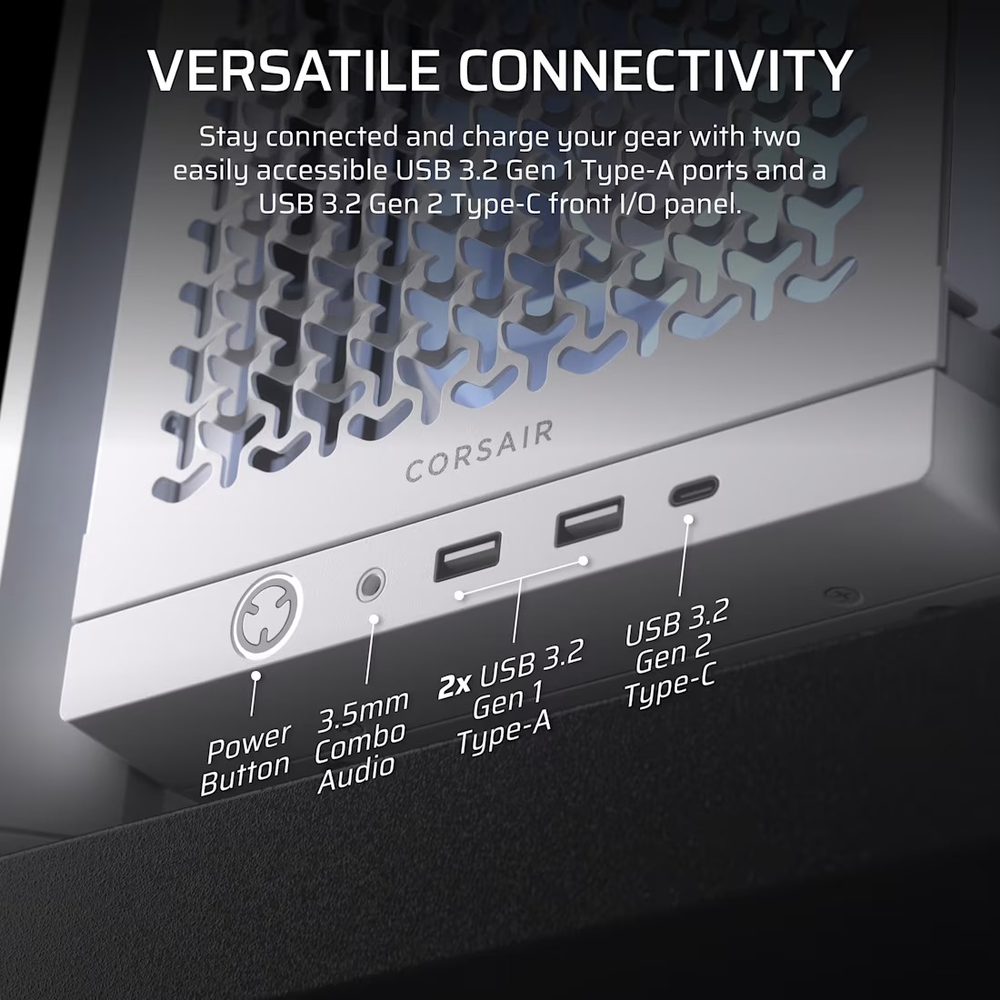

• Front I/O panel with 2x USB 3.2 Gen 1 Type-A, 1x USB 3.2 Gen 2 Type-C, audio combo jack
• Supports E-ATX motherboards up to 305mm x 277mm
• Accommodates graphics cards up to 430mm in length
• CPU cooler clearance up to 170mm height
• PSU support up to 220mm length (ATX, not included)
• Storage options: 2x 3.5" HDD, 4x 2.5" SSD

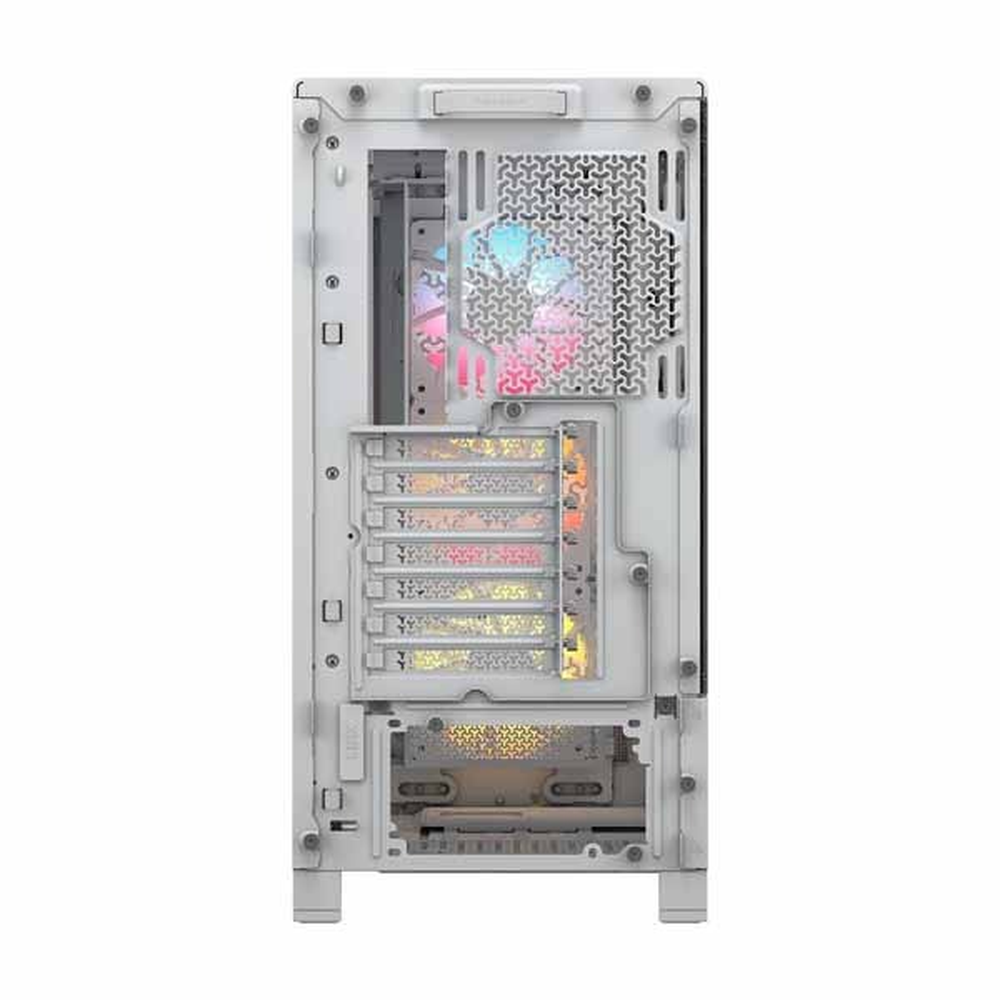

• 7 horizontal or 3 vertical expansion slots
• 37mm rear cable routing space for clean cable management
• Dust filters on front, side, and PSU shroud
• Premium white finish with clean, modern aesthetics
• Tool-free tempered glass side panel removal

Technical Specifications:

Model Number	CC-9011297-WW
Brand	Corsair
Series	FRAME 4000D RS ARGB
Form Factor	Mid-Tower ATX
Color	White
Materials	Steel, Tempered Glass, 3D-Y Airflow Steel, Plastic
Included Fans	3x RS120 ARGB PWM Fans (120mm)
Fan Mounting System	InfiniRail™ (flexible positioning)
Maximum Fan Support	12x 120mm fans
Fan Mounting Locations	Front: 3x 120mm or 2x 140mm or 2x 200mm, Top: 3x 120mm or 2x 140mm, Side: 3x 120mm or 2x 140mm, Rear: 1x 120mm or 140mm, Bottom: 2x 120mm, PSU Shroud: Variable
Radiator Support - Front	360mm, 280mm, 240mm
Radiator Support - Top	360mm, 280mm, 240mm
Radiator Support - Side	360mm, 280mm, 240mm
Radiator Compatibility	120mm, 140mm, 240mm, 280mm, 360mm
Motherboard Compatibility	Mini-ITX, Micro-ATX, ATX, E-ATX (305mm x 277mm)
Reverse-Connector Compatible	Yes (ASUS BTF, MSI Project Zero, GIGABYTE Project Stealth)
Expansion Slots	7 Horizontal or 3 Vertical
Maximum GPU Length	430 mm
Maximum CPU Cooler Height	170 mm
Maximum PSU Length	220 mm
PSU Type	ATX (not included)
Drive Bays	2x 3.5" HDD, 4x 2.5" SSD
Front I/O	2x USB 3.2 Gen 1 Type-A, 1x USB 3.2 Gen 2 Type-C, 1x Audio/Mic Combo Jack
Side Panel	Tempered Glass (Left)
Rear Cable Routing Space	37 mm
Dust Filtration	Front, Side, PSU Shroud

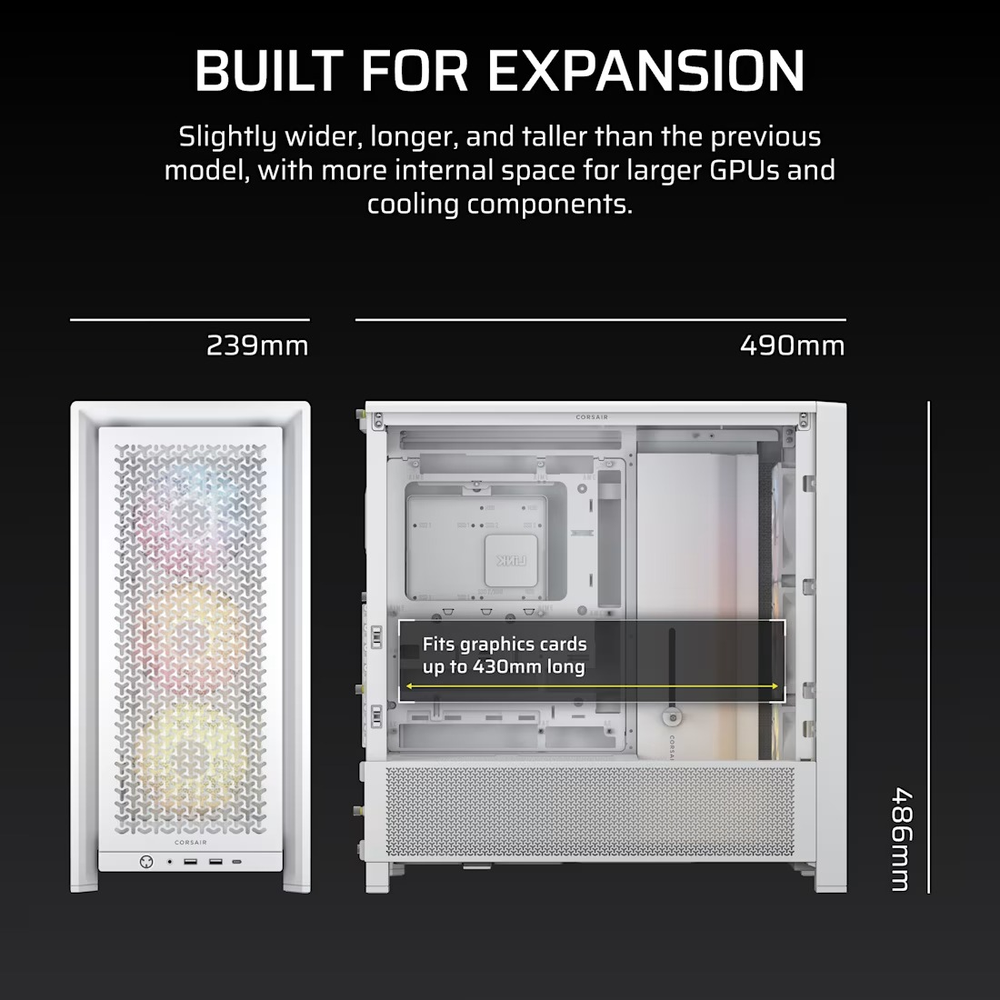

Dimensions (H x W x D)	486 x 239 x 490 mm / 19.1 x 9.4 x 19.3 inches
Weight	10.38 kg / 22.88 lbs
Compatible Liquid Coolers	H60, H100, H115, H150, NAUTILUS, TITAN series
Warranty	2 Years

Package Contents:

• FRAME 4000D RS ARGB Case (White)
• 3x RS120 ARGB PWM Fans (pre-installed)
• Tempered Glass Side Panel
• Mounting Hardware and Screws
• Cable Ties
• User Manual

Note: Power supply (PSU) not included.

Perfect for PC builders, gamers, enthusiasts, and system integrators seeking a versatile, high-performance mid-tower case with exceptional cooling potential, extensive modularity, and modern features in a pristine white aesthetic. The FRAME 4000D RS ARGB White builds on Corsair's popular 4000D foundation with crucial upgrades that enhance cooling performance, flexibility, and ease of building. The revolutionary InfiniRail™ fan mounting system eliminates traditional fixed mounting points, allowing you to slide 120mm, 140mm, or even 200mm fans to any position along continuous mounting rails on the front, top, side, and rear. This flexibility enables perfect fan alignment with radiators, optimal airflow positioning, and easier cable routing without constraints. Out of the box, you get three high-performance RS120 ARGB PWM fans pre-installed in the front, featuring eight addressable RGB LEDs per fan, daisy-chainable connections that simplify wiring, and motherboard-controlled RGB synchronization via a single 5V ARGB header. The 3D-Y patterned airflow front panel maximizes intake with an optimized mesh design that provides minimal restriction while maintaining clean aesthetics. Cooling potential is exceptional—support for dual 360mm radiators simultaneously on the front and top, plus an additional side-mounted 360mm radiator option, enables triple-radiator custom water cooling loops for extreme builds. Total fan support of up to 12x 120mm fans ensures your components stay cool under the heaviest loads. Full compatibility with reverse-connector motherboards from ASUS, MSI, and GIGABYTE allows cables to hide completely behind the motherboard tray for ultra-clean builds. The fully modular FRAME platform means you can upgrade components like the motherboard tray or front I/O panel in the future as new standards emerge. The integrated GPU anti-sag stabilization arm prevents graphics card droop, protecting expensive GPUs from PCIe slot damage. Spacious interior accommodates E-ATX motherboards up to 305mm x 277mm, massive graphics cards up to 430mm (like RTX 4090 models), tower CPU coolers up to 170mm, and PSUs up to 220mm. With 37mm of rear cable routing space, ample storage options (2x 3.5" HDD + 4x 2.5" SSD), and tool-free tempered glass removal, the FRAME 4000D RS ARGB makes building effortless. The premium white finish with clean lines creates a modern, elegant appearance perfect for white-themed builds or minimalist setups. Build your high-performance white-themed gaming rig or workstation with vibrant RGB lighting, superior cooling, and future-proof modularity in the Corsair FRAME 4000D RS ARGB White.
