CORSAIR iCUE COMMANDER CORE XT Smart RGB Lighting and Fan Speed Controller

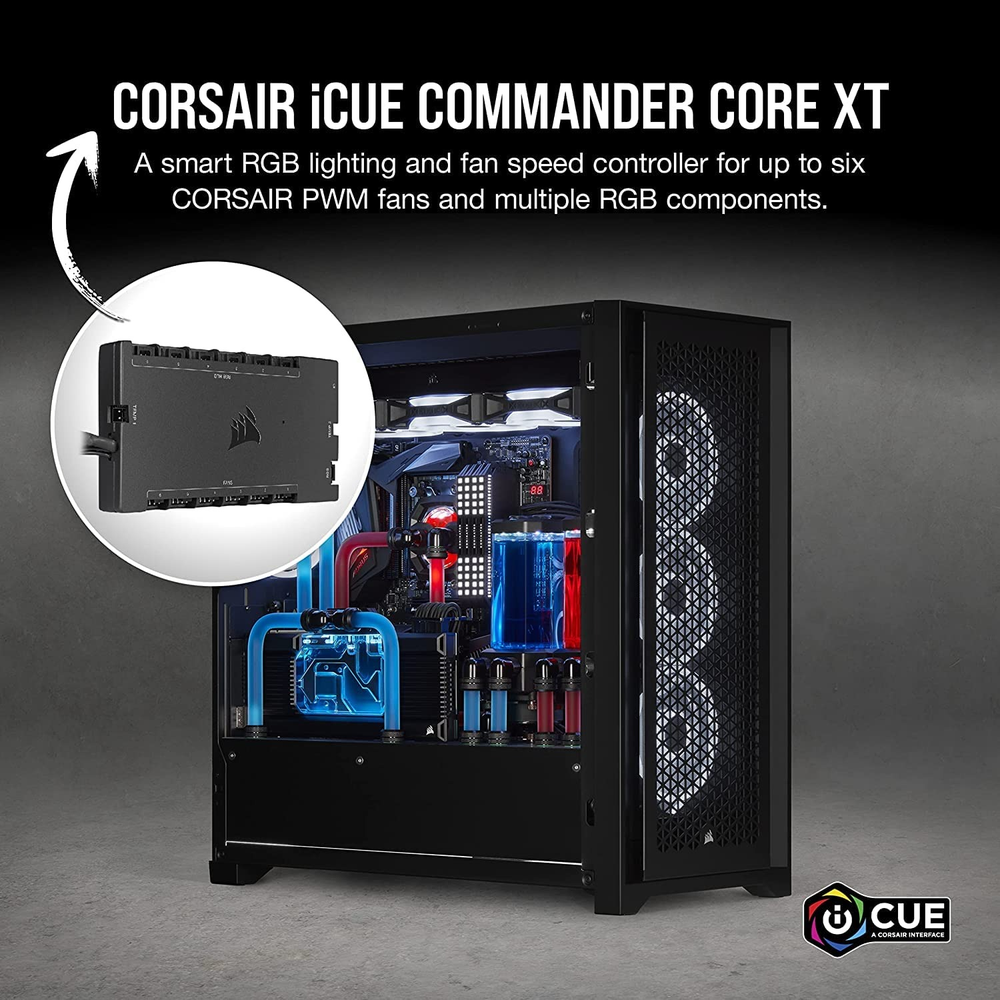

The Corsair iCUE COMMANDER CORE XT is both a PWM fan controller and RGB lighting controller in one smart hub, transforming your PC case into an intelligently controlled system. Control up to six PWM fans with precise speed adjustment, manage up to 264 RGB LEDs across multiple components, monitor temperatures with two included sensors, and create custom fan curves and lighting profiles—all through CORSAIR iCUE software in a single convenient device.

Key Features:

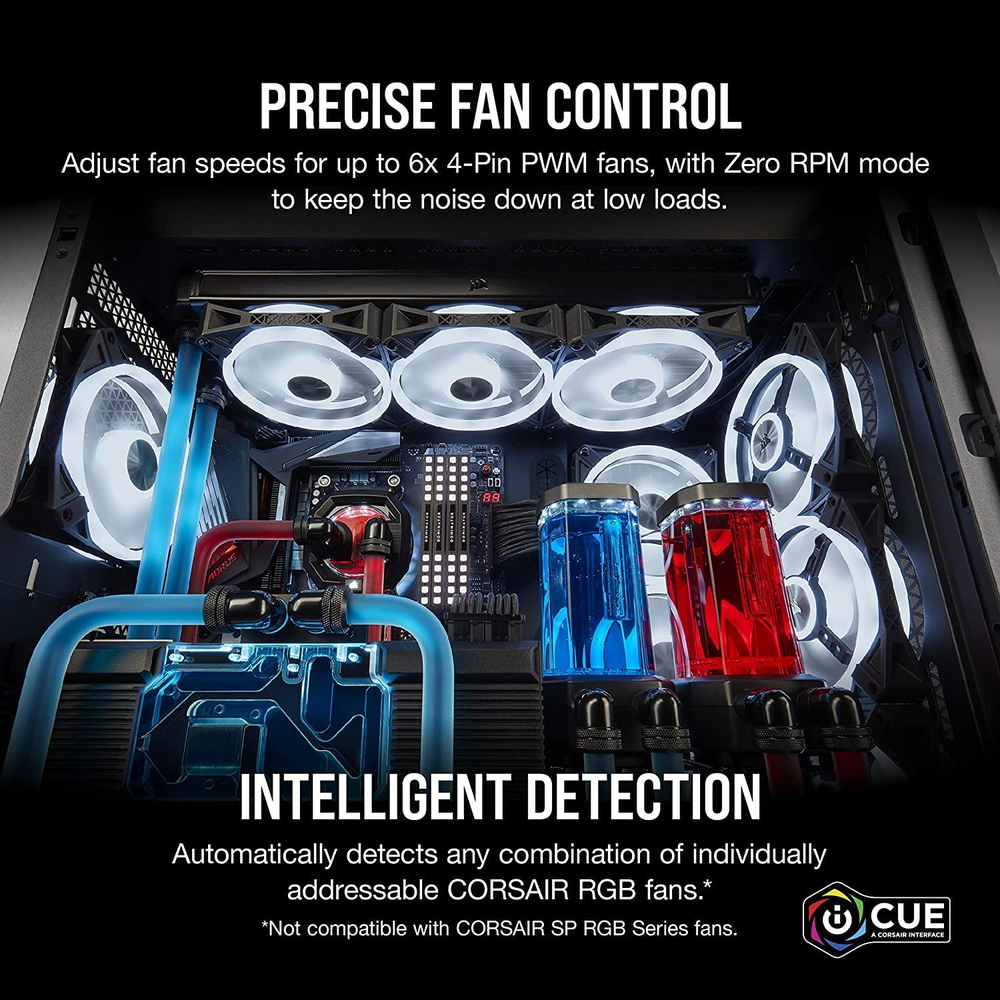

• Controls up to 6 PWM fans with precise speed control via iCUE software
• Intelligent automatic fan detection recognizes and configures any combination of Corsair RGB fans
• Zero RPM mode support keeps noise down at low loads by stopping fans completely

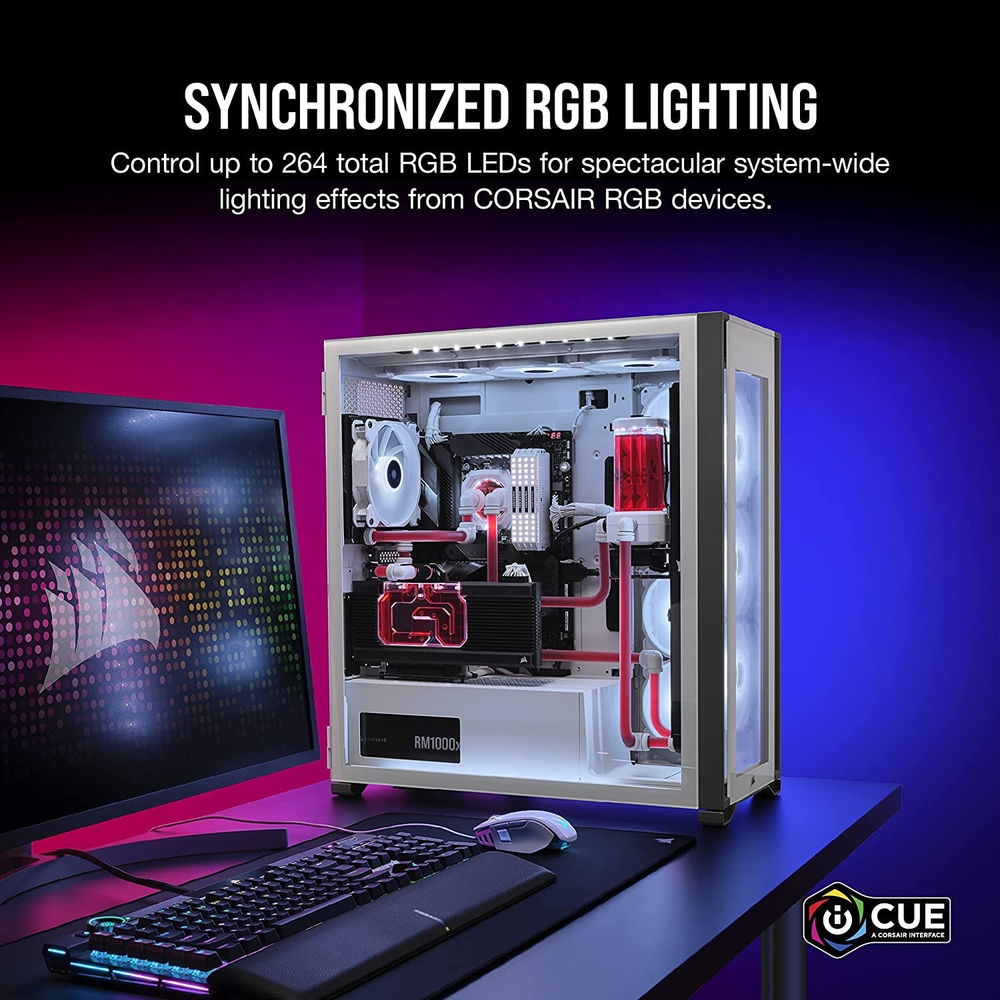

• Controls up to 264 RGB LEDs out of the box across multiple components
• 6 RGB fan connectors for direct connection to Corsair RGB fans (Corsair proprietary RGB connector)
• 1 additional RGB lighting channel for other Corsair RGB devices (LED strips, Hydro X components, etc.)

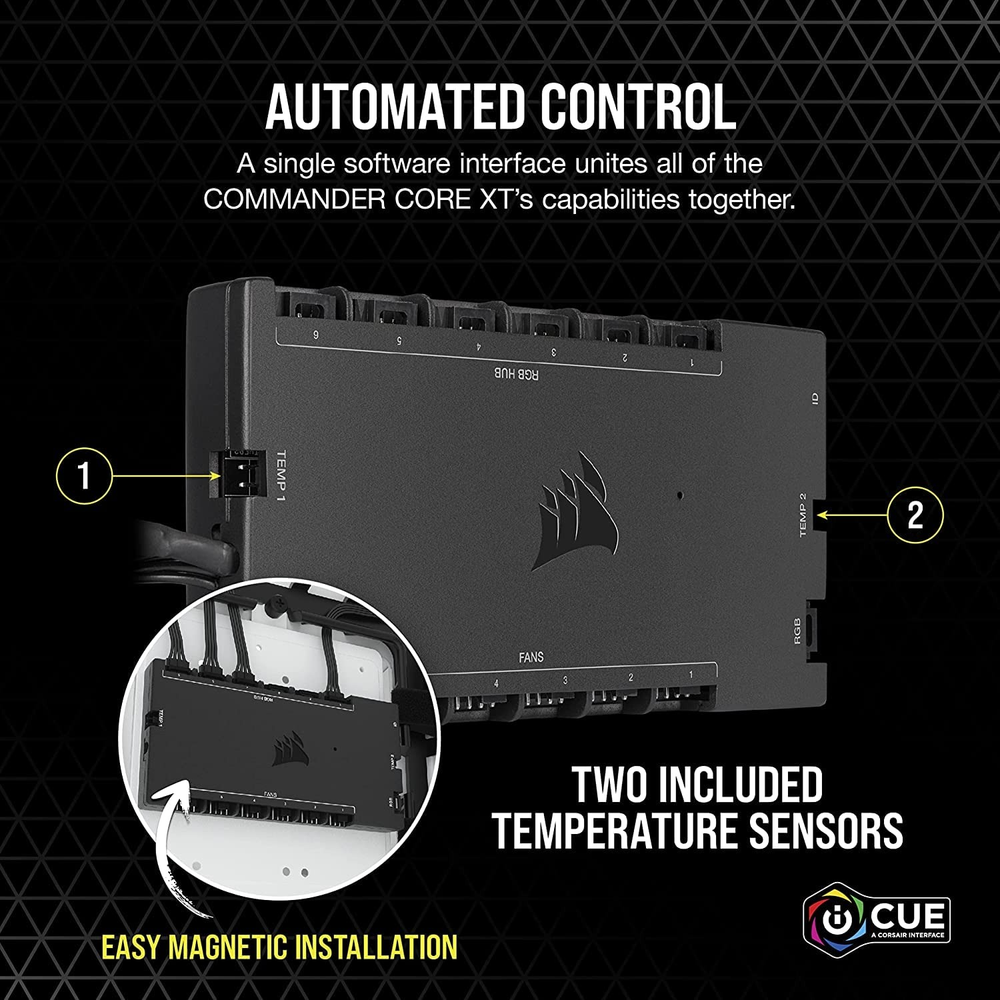

• 2 included repositionable temperature sensors for accurate system temperature monitoring
• Automatically adjusts fan speeds and RGB lighting based on system temperatures

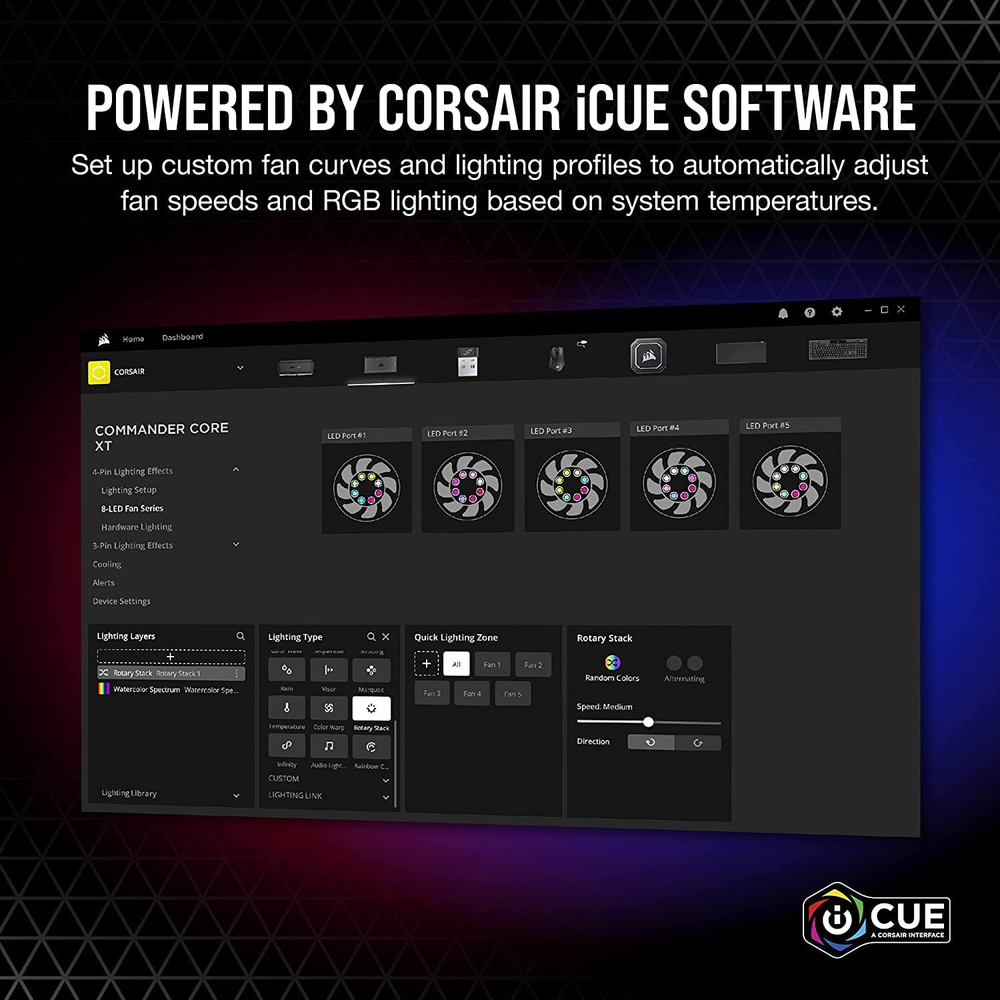

• Create custom fan curves and lighting profiles in iCUE software
• USB 2.0 pass-through port allows daisy-chaining additional iCUE devices
• Compatible with all Corsair RGB fans and RGB components
• SATA power connection for reliable power delivery
• Compact design fits easily in most PC cases
• Comprehensive control through intuitive iCUE software interface
• 2-year warranty

Technical Specifications:

Model Number	CL-9011112-WW
Brand	Corsair
Product Type	Smart RGB Lighting and Fan Speed Controller

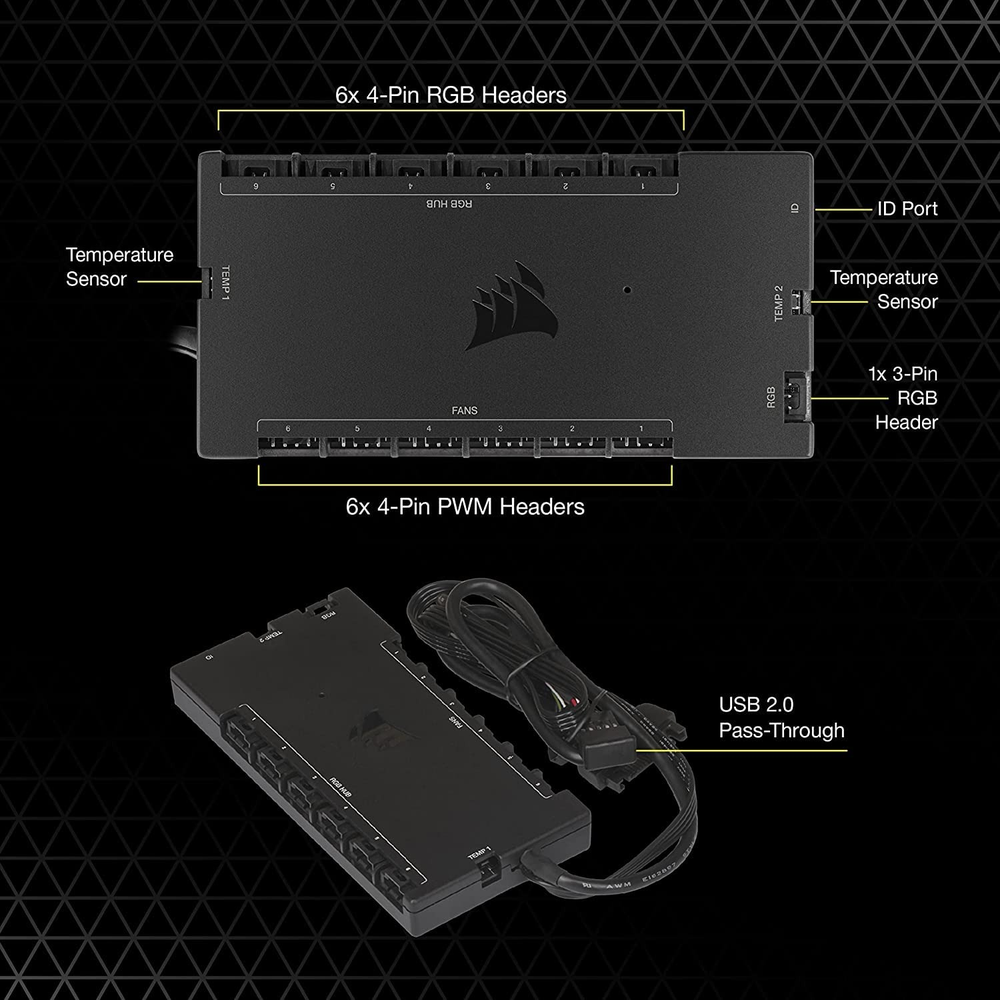

PWM Fan Channels	6 (4-pin PWM connectors)
PWM Fan Control	Yes (full speed control via iCUE, 0-100%)
Zero RPM Mode Support	Yes
RGB Fan Channels	6 (Corsair proprietary RGB connector)
Additional RGB Channels	1 (3-pin connector for LED strips, Hydro X, etc.)
Total RGB Channels	7
Maximum RGB LEDs	264 LEDs (out of the box)
Temperature Sensor Ports	2 (labeled TEMP 1, TEMP 2)
Included Temperature Sensors	2 (repositionable)
Intelligent Fan Detection	Yes (automatic or manual setup)
Power Connection	SATA power (from PSU)
Motherboard Connection	Internal USB 2.0 9-pin header
USB Pass-Through	Yes (Internal male USB 2.0 9-pin for daisy-chaining)
Compatible Fans	All Corsair RGB fans (QL, LL, ML, SP RGB, iCUE LINK with adapter)
Compatible RGB Devices	Corsair RGB LED strips, Hydro X components, Lighting Node PRO expansion kits
Control Software	CORSAIR iCUE (required)
Dimensions	10.9 x 6.6 x 1.4 cm (L x W x H)
Weight	0.249 kg
Warranty	2 Years

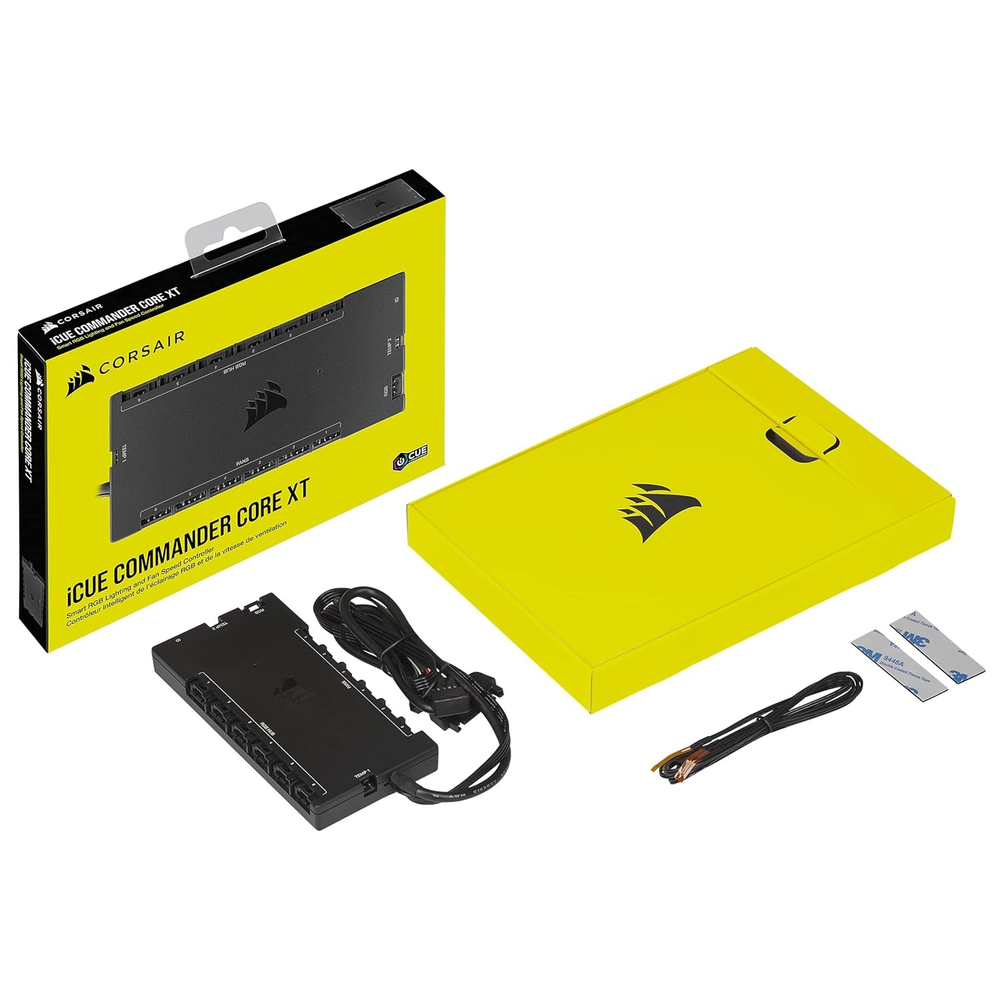

Package Contents:

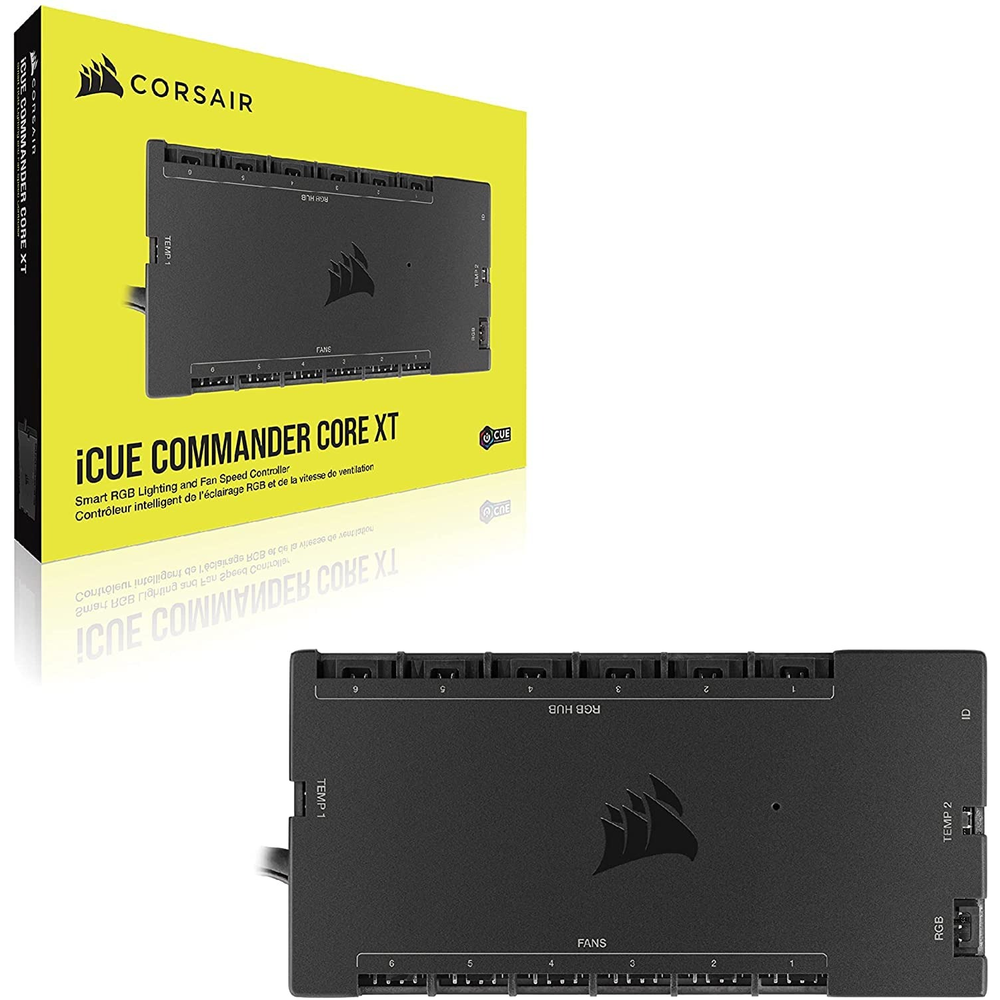

• 1x iCUE COMMANDER CORE XT Controller
• 2x Temperature Sensor Probes
• Mounting Hardware
• Quick Start Guide

Note: Requires CORSAIR iCUE software (free download) for configuration and control. Requires internal USB 2.0 9-pin motherboard header and SATA power connector.

Perfect for RGB builds, custom fan configurations, multi-fan systems, temperature-based cooling, Corsair RGB ecosystem users, AIO liquid cooler setups with additional fans, and anyone seeking centralized control of fans and RGB lighting. The Corsair iCUE COMMANDER CORE XT transforms your PC case into a smart system by combining PWM fan control and RGB lighting management in a single compact hub. Control up to six PWM fans with precise speed adjustment from 0-100% (including Zero RPM mode for silent operation at low loads), while intelligent automatic fan detection recognizes and configures any combination of Corsair RGB fans—whether you're mixing QL, LL, ML, or SP RGB fans, the COMMANDER CORE XT automatically identifies each fan type and configures them appropriately, or you can set them up manually. Manage up to 264 RGB LEDs across multiple components by connecting up to six Corsair RGB fans directly to the RGB fan hub, plus an additional RGB lighting channel for other Corsair RGB devices like LED strips, Hydro X components, or Lighting Node PRO expansion kits—perfect for comprehensive RGB ecosystems. Two included repositionable temperature sensors allow you to accurately monitor temperatures throughout your system, placing probes wherever you need thermal data (CPU area, GPU zone, case ambient, etc.). Create intelligent cooling profiles in iCUE software that automatically adjust fan speeds and RGB lighting based on real-time temperature readings—set custom fan curves for optimal cooling efficiency, configure RGB effects to change color based on temps, or set up alerts and emergency shutdowns if temperatures exceed safe thresholds. The USB 2.0 pass-through port allows daisy-chaining additional iCUE devices like AIO coolers without occupying extra motherboard USB headers. Installation is straightforward: mount the controller in your case using included hardware, connect the SATA power cable from your PSU, connect the internal USB 2.0 cable to your motherboard header, plug in your PWM fan cables to the six fan ports, connect RGB fan lighting cables to the six RGB hub ports, optionally connect temperature sensors and additional RGB devices, then configure everything through the intuitive iCUE software interface. Comprehensive control through iCUE includes preset cooling profiles, custom fan curves, per-fan speed control, lighting effects synchronization across all Corsair RGB components, temperature monitoring dashboards, and alert configuration. Compatible with all Corsair RGB fans and RGB components. Note: 3-pin fans can be connected to PWM ports but will run at full speed (no speed control). Centralize your fan and RGB control with the smart, versatile Corsair iCUE COMMANDER CORE XT.
