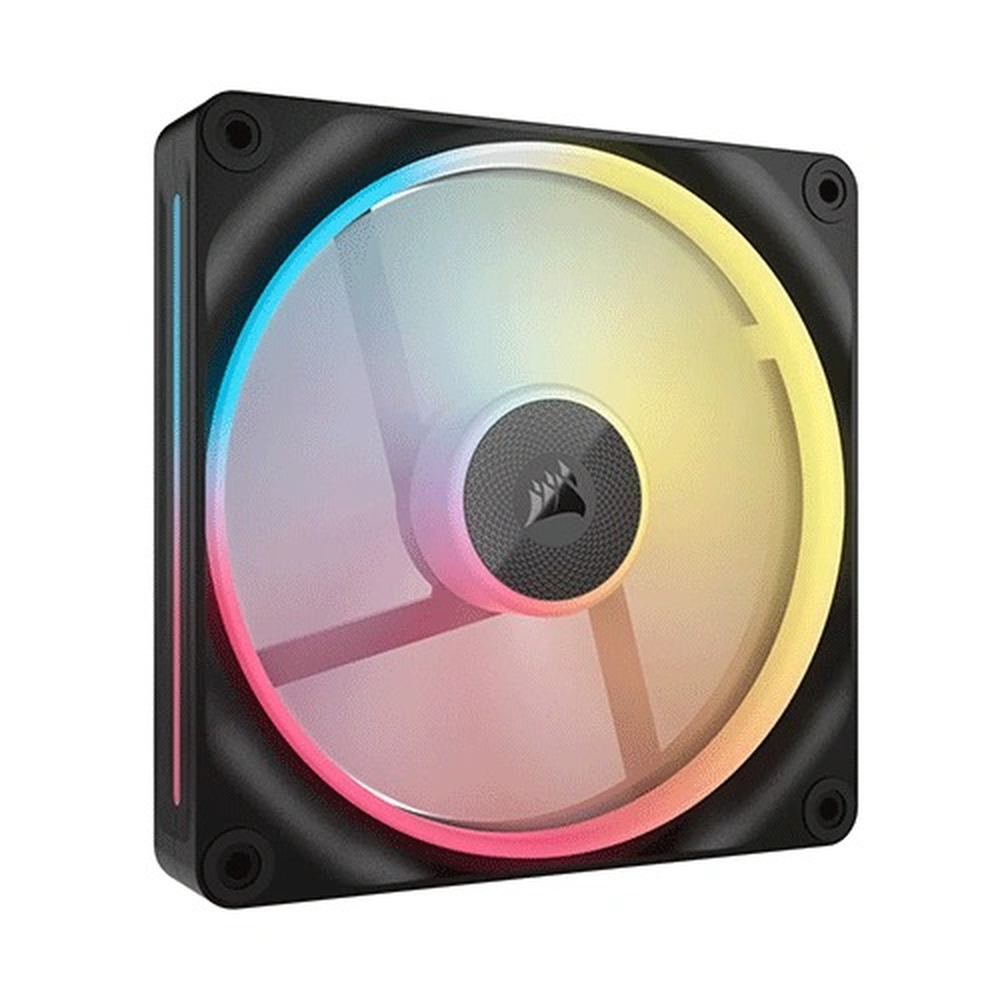

CORSAIR LX-R RGB Series, iCUE LINK LX140-R RGB, 140mm RGB Fan, Single Fan

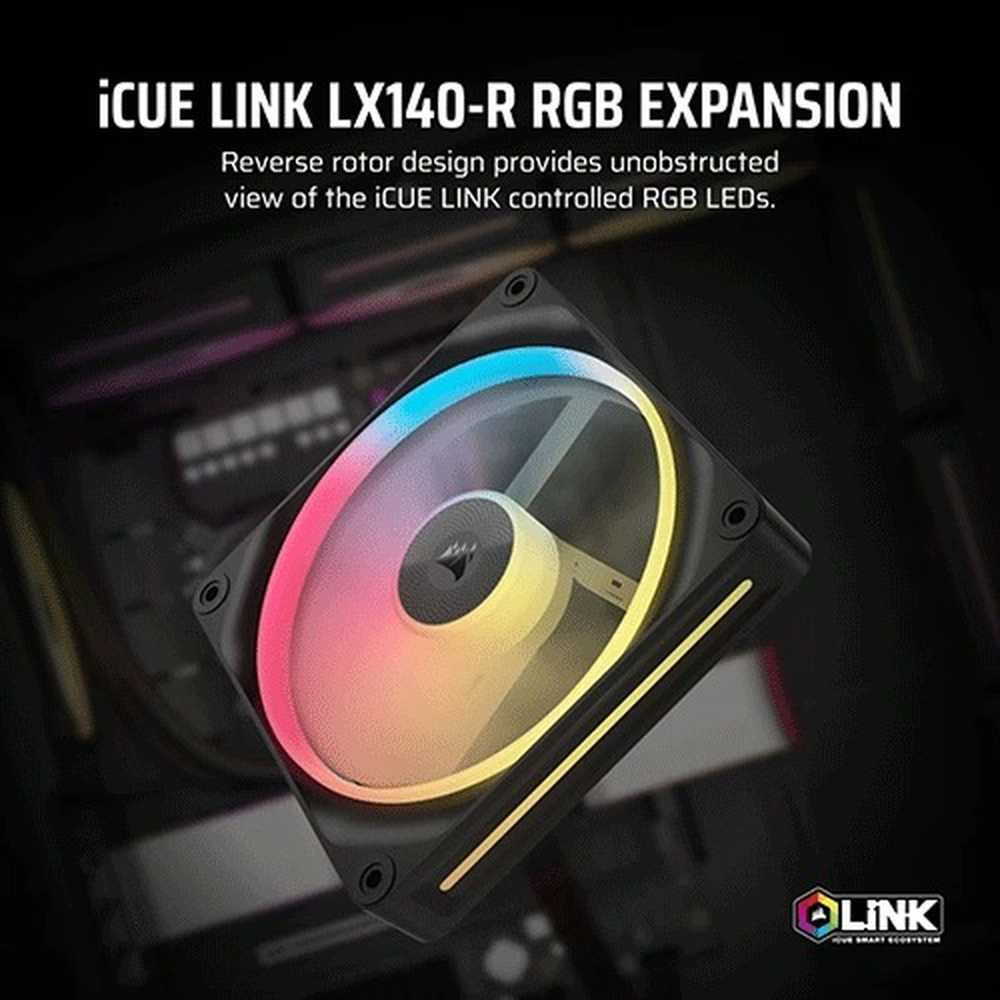

The Corsair iCUE LINK LX140-R RGB 140mm PWM Reverse Fan features an innovative reversed rotor design that keeps RGB lighting fully visible when used as an intake fan, eliminating motor hub obstruction. With 18 individually addressable RGB LEDs across dual light loops, simplified iCUE LINK connectivity, speeds up to 2000 RPM, 90.6 CFM airflow, Magnetic Dome bearing, and compatibility with Time Warp lighting mode, this expansion fan delivers exceptional cooling performance with stunning, unobstructed RGB aesthetics. Available in Black or White.

Key Features:

>Revolutionary reversed rotor design positions motor behind fan blades for flawless, unobstructed RGB visibility as intake fan >18 individually addressable RGB LEDs per fan spread across dual light loops (inner and outer) >Simplified iCUE LINK single-cable connectivity eliminates traditional daisy-chaining—connects to iCUE LINK System Hub >Exclusive Time Warp lighting mode creates captivating optical illusions unique to iCUE LINK ecosystem >Fully customizable RGB lighting effects via iCUE software >CORSAIR Magnetic Dome bearing for ultra-low friction, minimal noise, and exceptional longevity (50,000 hours MTBF) >PWM control allows precise fan speed adjustment from 350-2000 RPM >High static pressure design: 0.11 to 4.22 mm-H2O for effective radiator cooling >Airflow: 13.1 to 90.6 CFM (max) for efficient case ventilation >Quiet operation: 10 to 38.3 dBA noise level >140mm x 25mm standard size fits most cases and radiators >600mm cable length for flexible installation >Single fan expansion pack (no iCUE LINK System Hub included—requires existing hub or starter kit) >Available in Black or White >5-year warranty

Technical Specifications:

Model Number	CO-9051051-WW (Black), CO-9051055-WW (White)
Brand	Corsair
Series	iCUE LINK LX-R RGB Series
Fan Model	LX SERIES (Reverse Rotor)
Color	Black or White
Package Type	Single Fan Expansion (no hub included)
Fan Size	140mm x 140mm x 25mm

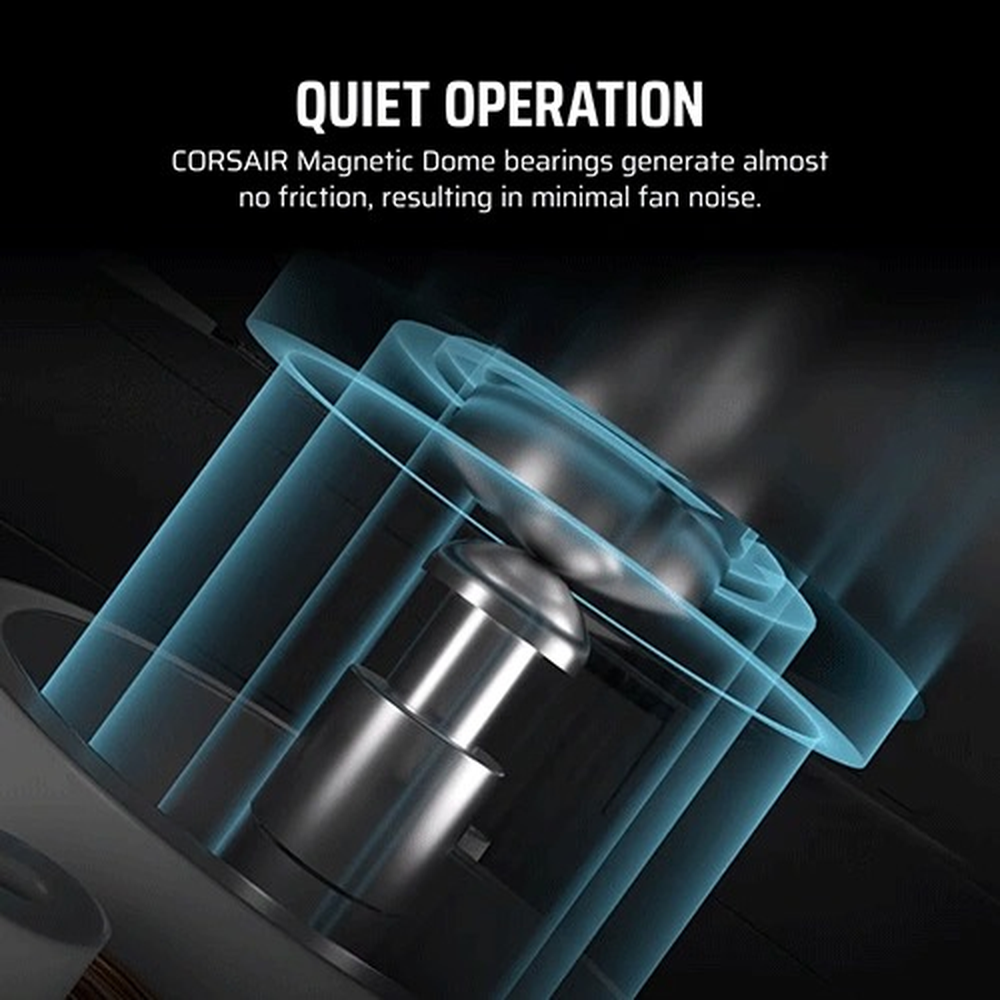

Bearing Type	Magnetic Dome
MTBF (Life Expectation)	50,000 hours

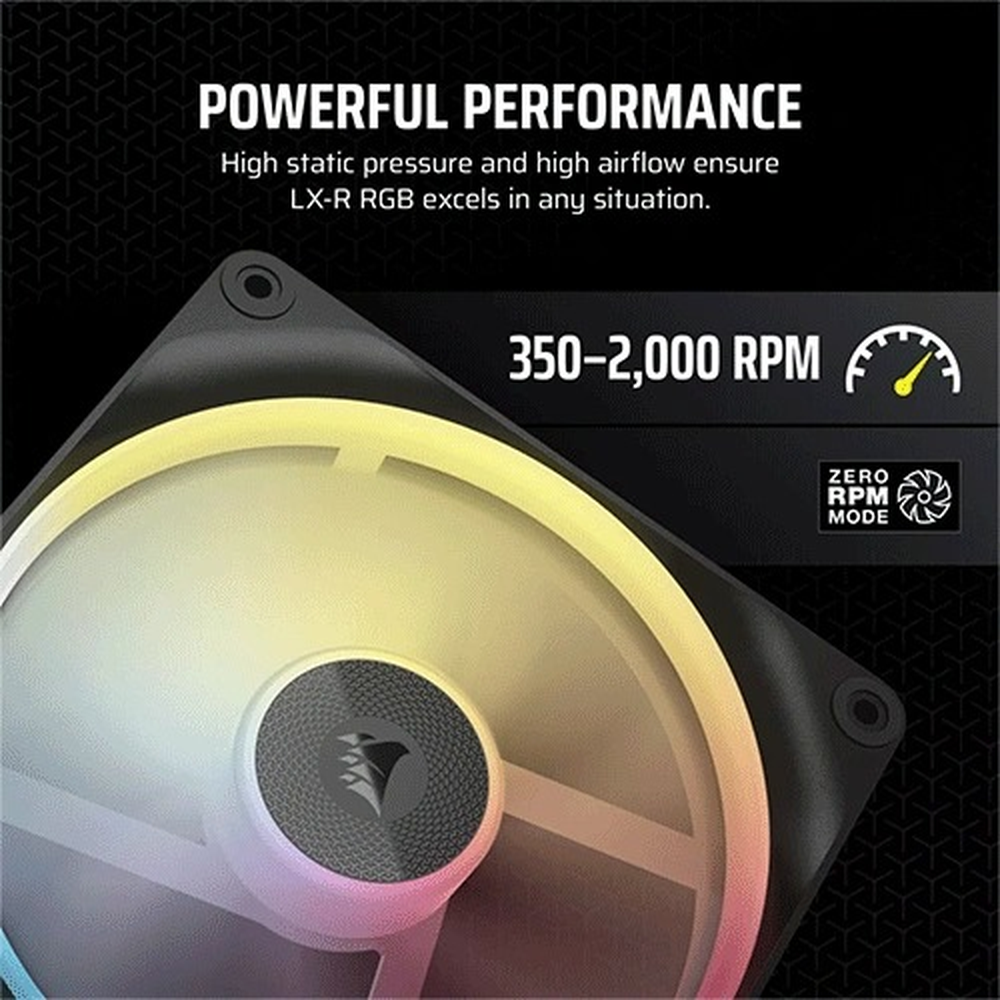

Fan Speed Range	350-2000 RPM ±10%
Airflow	13.1 - 90.6 CFM
Static Pressure	0.11 - 4.22 mm-H2O
Flow Type	Static Pressure Optimized
Noise Level	10 - 38.3 dBA
PWM Control	Yes (via iCUE LINK System Hub)
Power Draw	0.45A (12V DC, fan motor)
LED Type	RGB (individually addressable)
LED Count	18 LEDs per fan (dual light loops)
Connector Type	iCUE LINK (single proprietary connector)
LINK Compatibility	RGB (requires iCUE LINK System Hub)
Cable Length	600 mm
Control Software	iCUE Software
Voltage	12V DC
Weight	0.324 kg
Warranty	5 Years

Package Contents:

>1x iCUE LINK LX140-R RGB Fan (Black or White) >4x Mounting Screws >User Manual

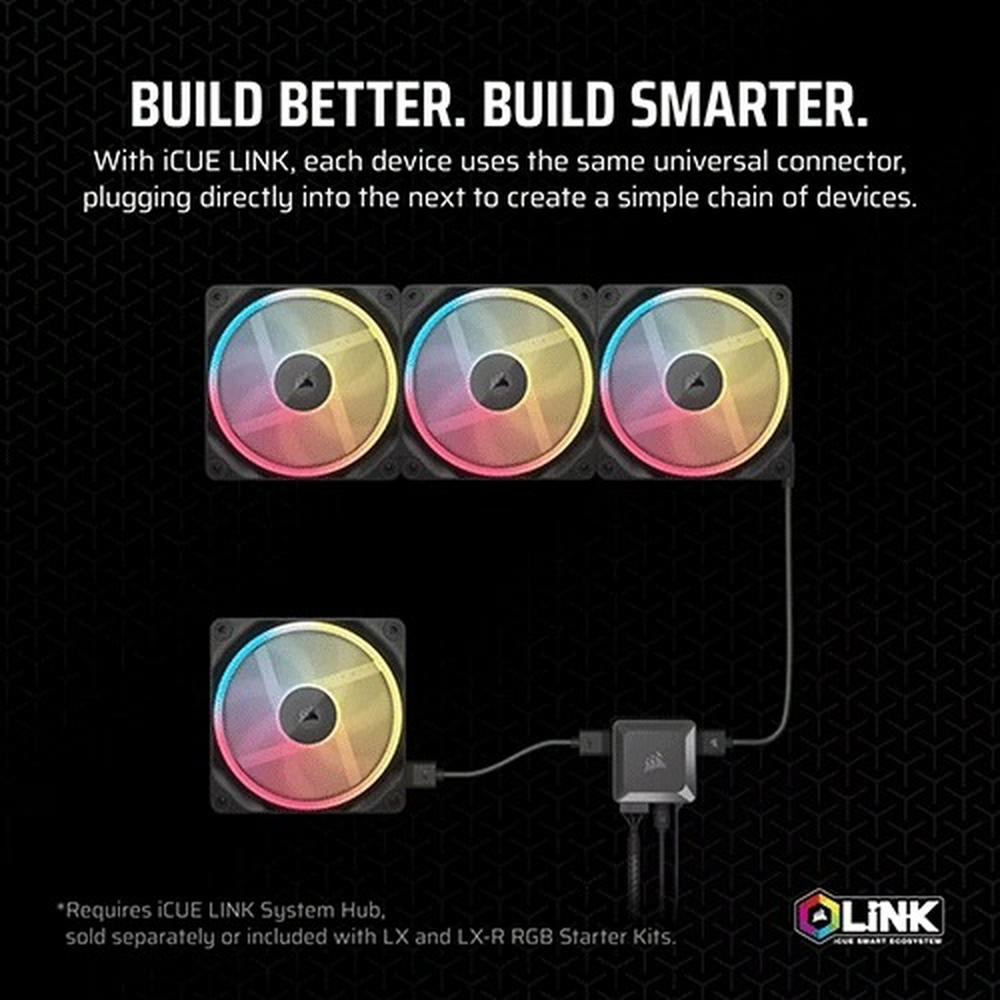

Note: This is an expansion fan. Requires existing iCUE LINK System Hub (sold separately or included in starter kits). For first-time iCUE LINK users, consider the LX140-R RGB Starter Kit which includes the System Hub.

Perfect for intake fan positions, radiator fans, iCUE LINK ecosystem expansion, high-performance cooling, showcase RGB builds, and anyone seeking unobstructed RGB lighting with exceptional cooling. The Corsair iCUE LINK LX140-R RGB 140mm PWM Reverse Fan represents a breakthrough in RGB fan design with its revolutionary reversed rotor architecture—unlike traditional fans where the motor hub blocks the center RGB lighting when used as intake fans, the LX-R positions the motor behind the fan blades, allowing the 18 RGB LEDs across dual light loops to remain fully visible from the front without any motor hub obstruction, creating crystal-clear, stunning RGB effects. This reversed rotor design is specifically optimized for intake fan positions where the fan pulls air into the case, ensuring the RGB lighting faces outward for maximum visual impact. Each fan features 18 individually addressable RGB LEDs arranged in both inner and outer light loops, delivering immersive, fully customizable lighting effects through iCUE software—including the exclusive Time Warp mode that creates mesmerizing optical illusions unique to the iCUE LINK ecosystem. The simplified iCUE LINK connectivity uses a single proprietary connector per fan that carries both power and RGB data, eliminating traditional PWM and ARGB cable daisy-chaining—just connect each fan to an iCUE LINK System Hub (sold separately or included in starter kits) using the included 600mm cable. The CORSAIR Magnetic Dome bearing delivers ultra-low friction operation for whisper-quiet performance, exceptional longevity (50,000 hours MTBF), and higher speeds—all LX-R fans are backed by a 5-year warranty. PWM control via iCUE software allows precise fan speed adjustment from 350 to 2000 RPM for optimal balance between cooling and noise. With 90.6 CFM maximum airflow and 4.22 mm-H2O static pressure, the LX140-R excels as both a high-performance case fan and radiator fan, pushing air effectively through dense radiators and heatsinks. The larger 140mm size provides increased airflow and quieter operation compared to 120mm fans at equivalent performance levels. Available in Black or White to match your build aesthetics. Expand your iCUE LINK ecosystem with exceptional cooling and unobstructed RGB beauty in the Corsair LX140-R RGB Reverse Fan.
