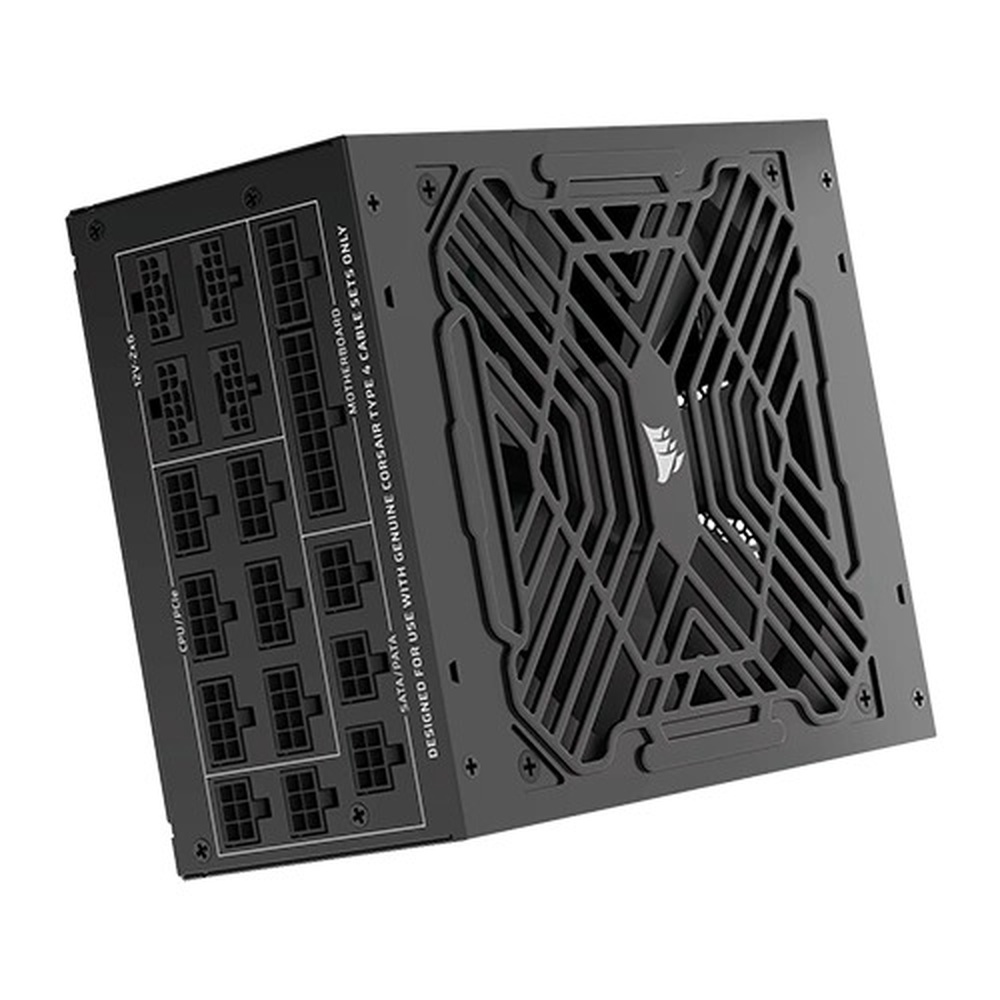

Corsair PSU. WS3000 3000W ATX 3.1 Fully Modular Workstation Power Supply

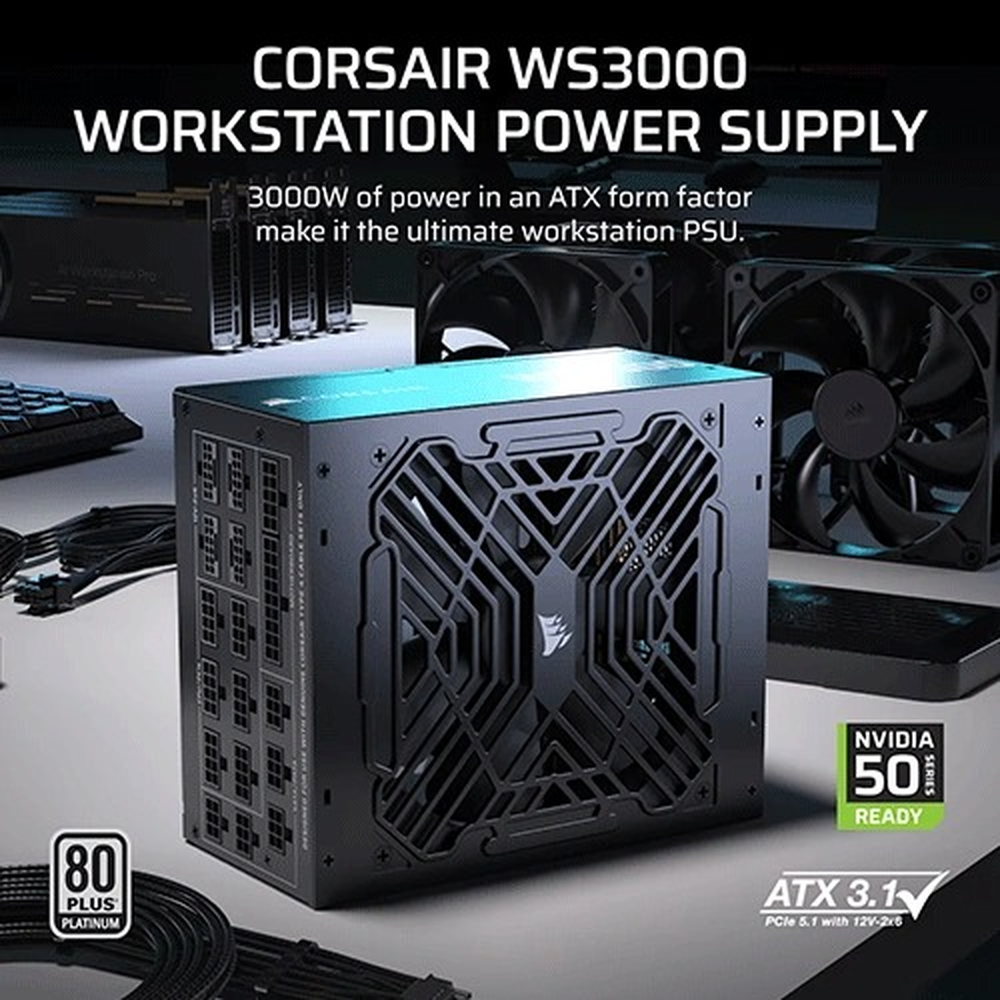

The Corsair WS3000 3000W ATX 3.1 Fully Modular Workstation Power Supply delivers absolute power for multi-GPU workstations and demanding professional workloads. With 3000W total output, four native 12V-2x6 connectors, 80 PLUS Platinum efficiency (up to 94%), ATX 3.1/PCIe 5.1 compliance, fully modular Type 4 cabling, 140mm dual ball bearing fan, and 105°C Japanese capacitors, this flagship workstation PSU provides reliable, clean power delivery for AI/ML, 3D rendering, and pro content creation builds.

Key Features:

• 3000W total power output for demanding workloads
• Single +12V rail, 250A (3000W)

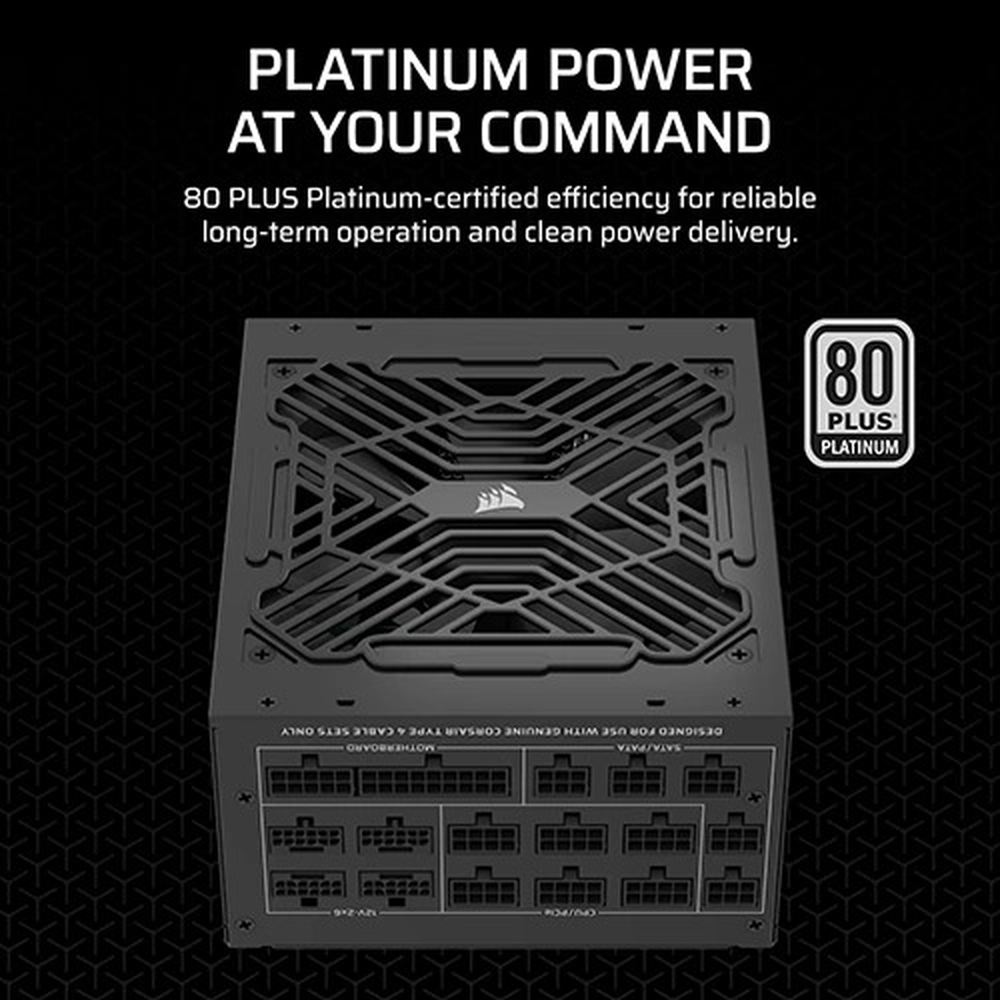

• 80 PLUS Platinum - up to 94% efficiency at 230V
• ATX 3.1 compliant, PCIe 5.1 ready
• Four native 12V-2x6 (12+4-pin) connectors
• Eight traditional 8-pin PCIe connectors
• Powers up to four RTX 5090 GPUs
• Fully modular Type 4 cabling
• 140mm dual ball bearing fan
• 100% Japanese main capacitors (105°C)
• Compact 175mm length
• 220-240V AC only (16A input)
• Two EPS12V connectors
• Multi-GPU ready for professional workloads
• 100,000 hours MTBF
• 10-year warranty

Specifications:

Model	RPS0237, CP-9020312-NA (NA), CP-9020312-WW (WW), CP-9020312-EU (EU)
Part Number	75-006861
Wattage	3000W
Efficiency	80 PLUS Platinum (up to 94% at 230V)
ATX Version	ATX 3.1 (ATX12V v3.1)
PCIe Version	PCIe 5.1
AC Input	220-240V AC only (16A)
Frequency	47-63Hz
+12V Rail	250A (3000W)
+3.3V / +5V	25A each (130W combined)
-12V	0.8A (9.6W)
+5Vsb	3.0-3.5A (15W)
Modularity	Fully Modular
Cable Type	Type 4
Fan	140mm Dual Ball Bearing
Zero RPM Mode	No
Dimensions (L x W x H)	175mm x 150mm x 86mm
Weight	4.465-4.5 kg
MTBF	100,000 hours
Warranty	10 Years

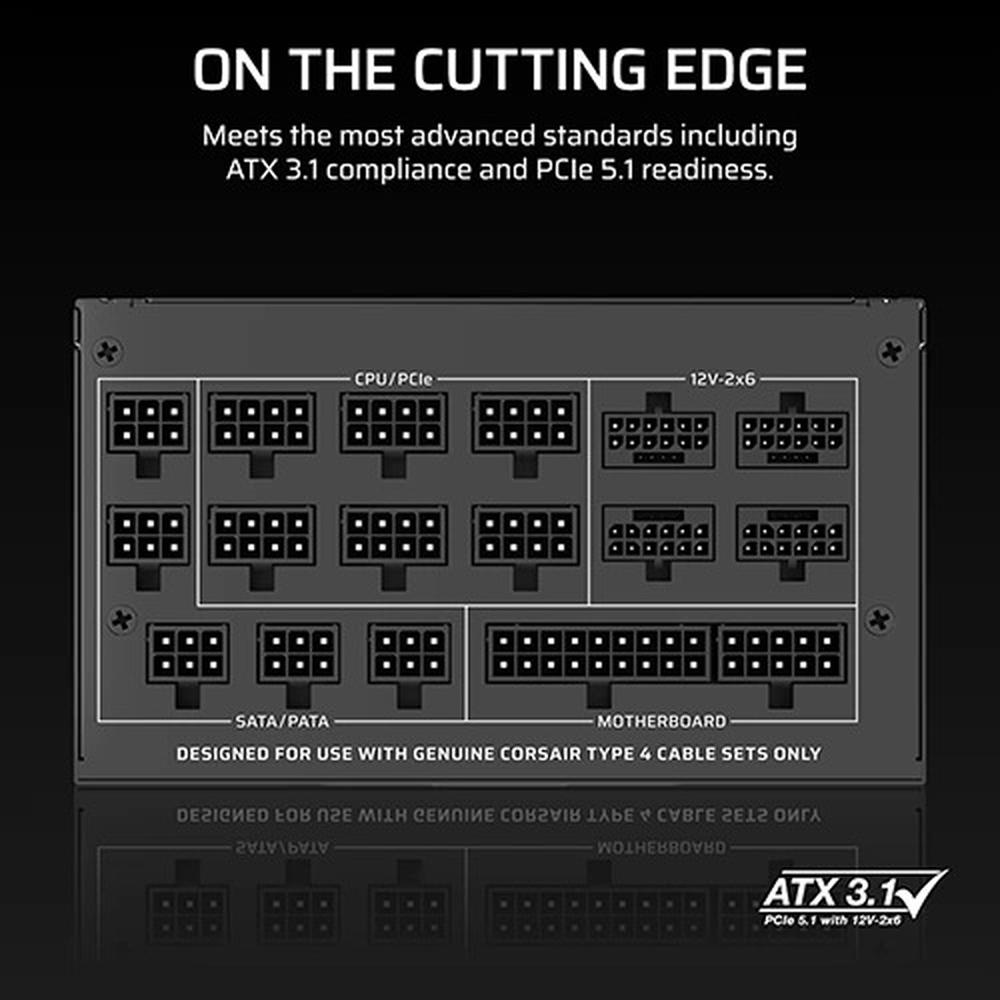

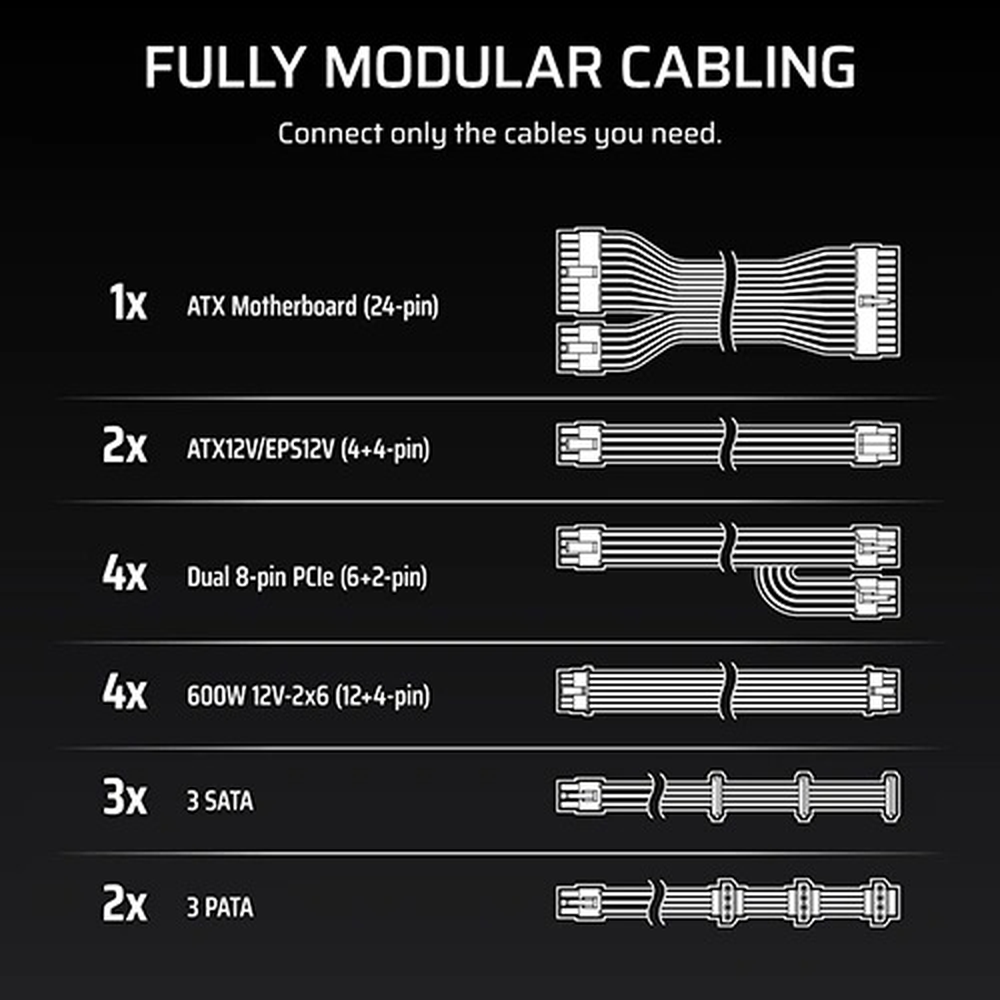

Connectors:

ATX 24-Pin	1
EPS 4+4-Pin	2
PCIe 6+2-Pin	8
12V-2x6 (16-pin)	4 (12+4-pin, native)
SATA	9
Molex/PATA	6

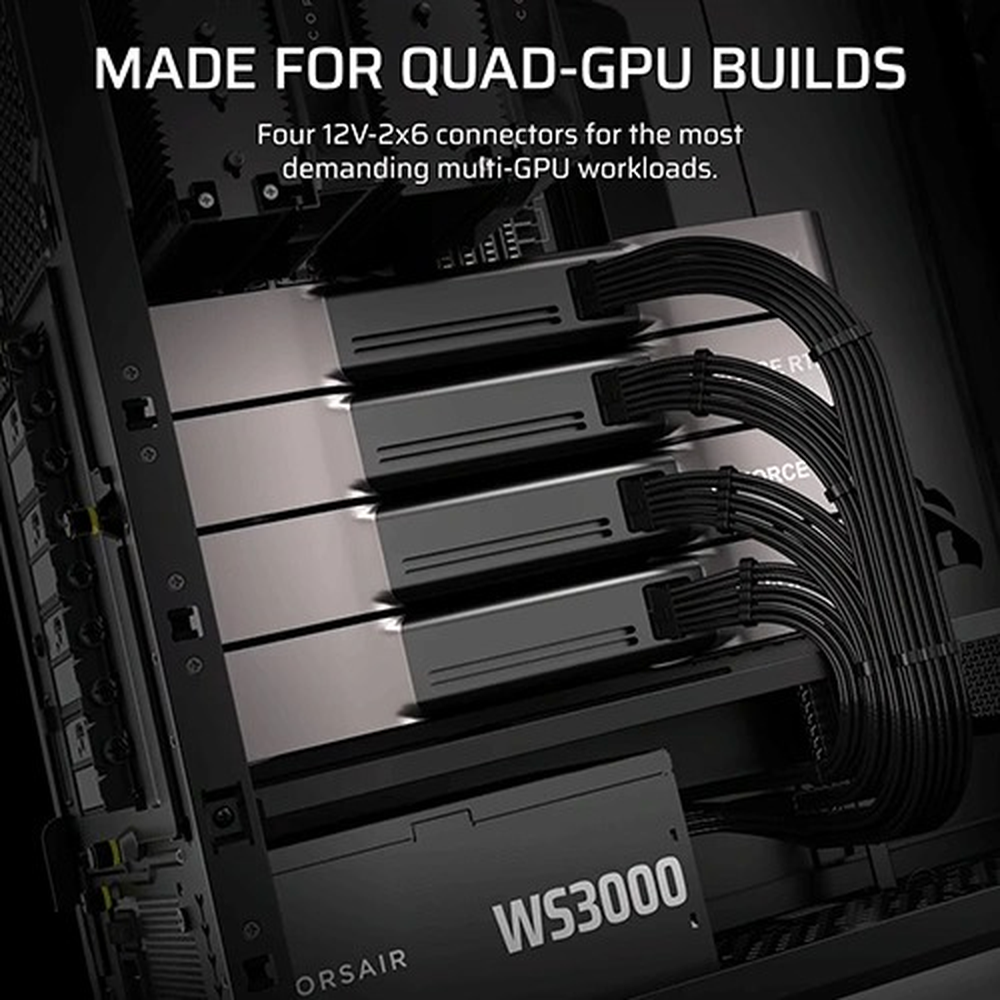

CORSAIR's first PSU rated above 1600W, the WS3000 is purpose-built for multi-GPU workstations requiring serious, sustained power delivery—AI/ML training, 3D rendering, CAD design, and professional content creation. With 3000W capacity and four 12V-2x6 outputs, it can power four RTX 5090 GPUs. 80 PLUS Platinum certified delivers up to 94% efficiency at 230V for lower consumption and cooler operation. Compact 175mm design with fully modular Type 4 cabling. **Requires 220-240V AC circuit (16A)—not compatible with 110/120V regions without appropriate circuit.**
