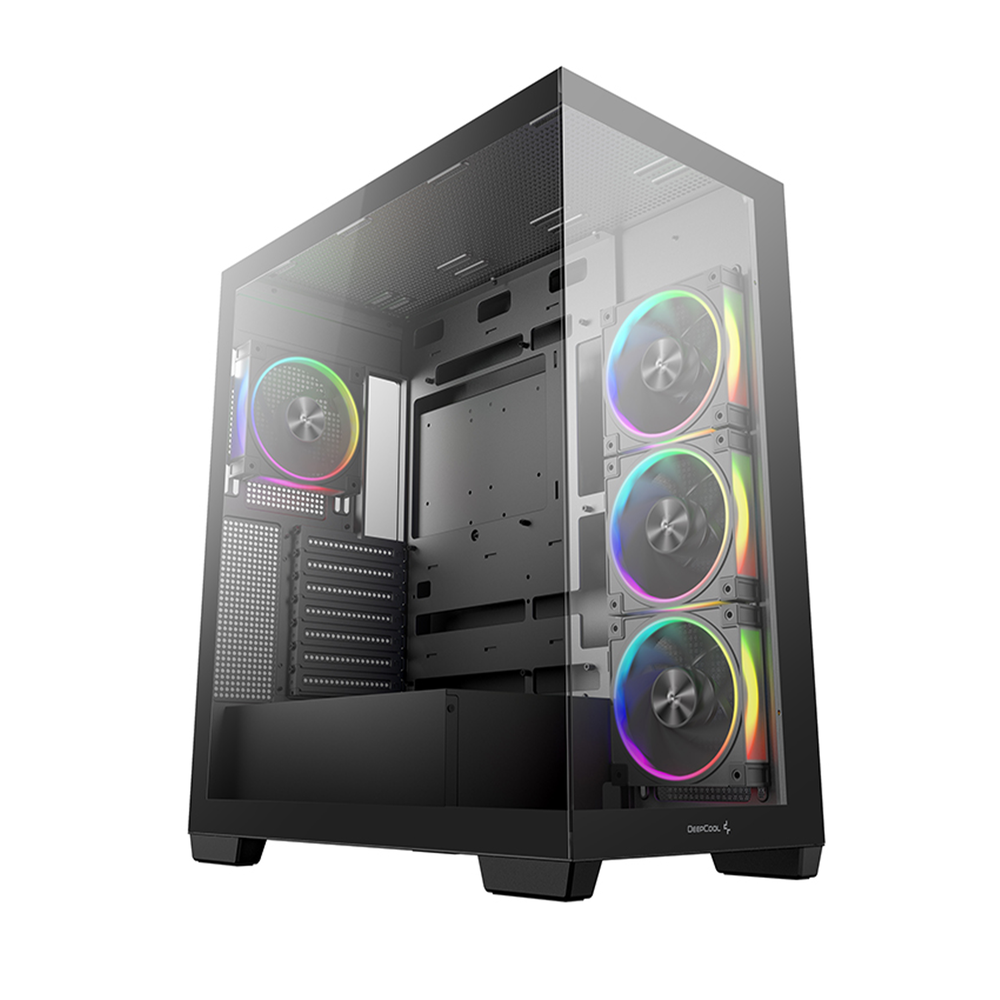

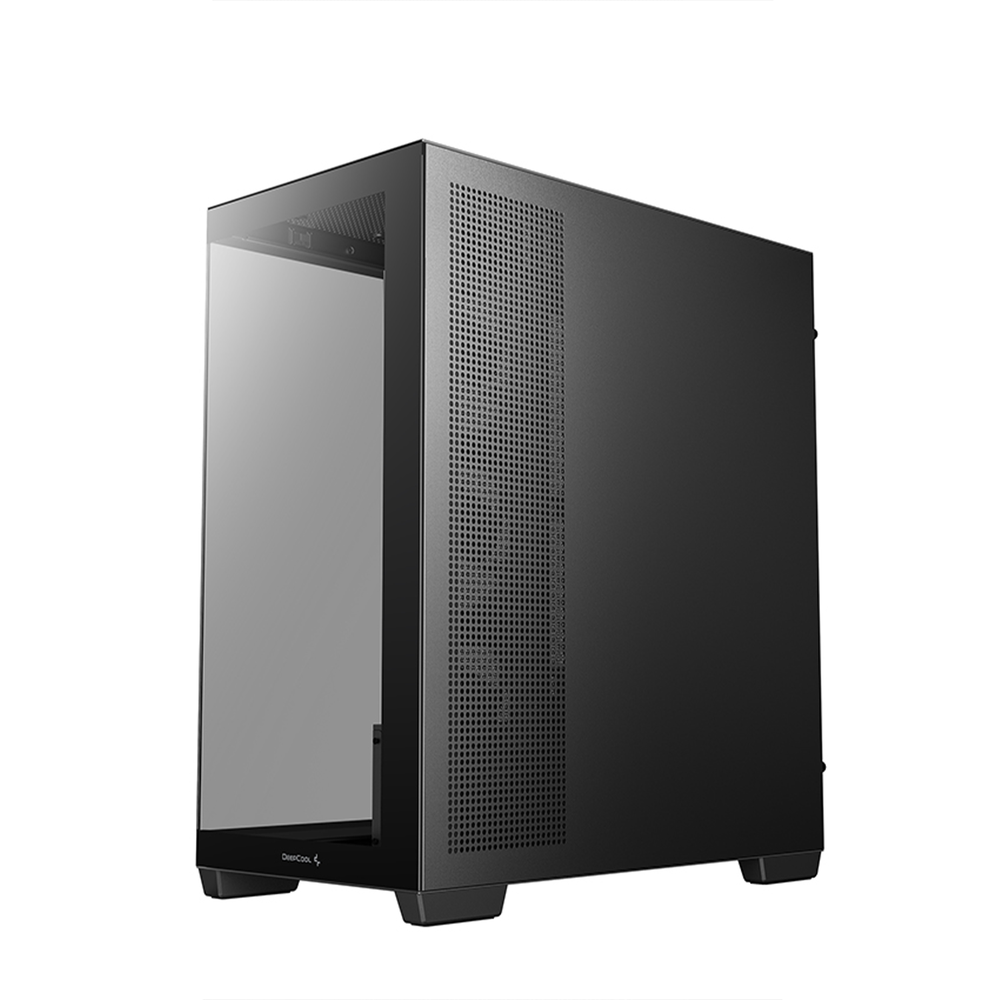

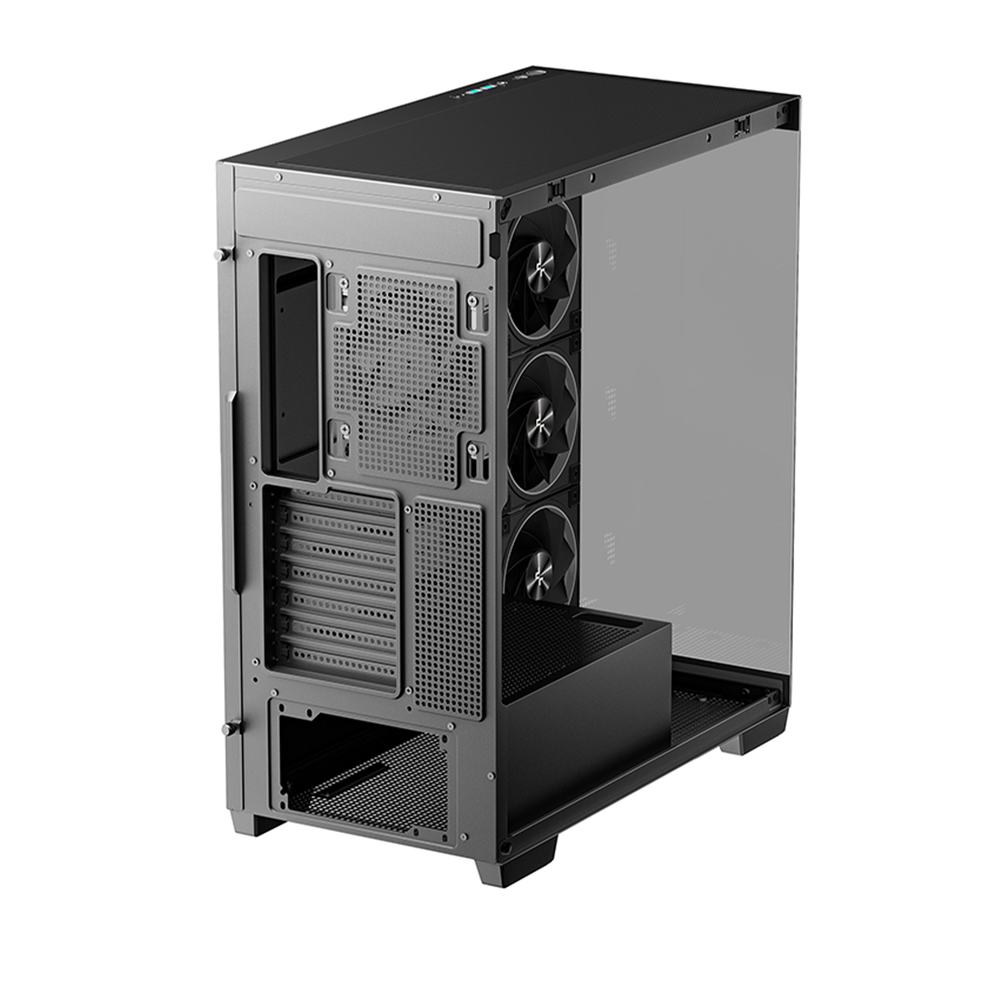

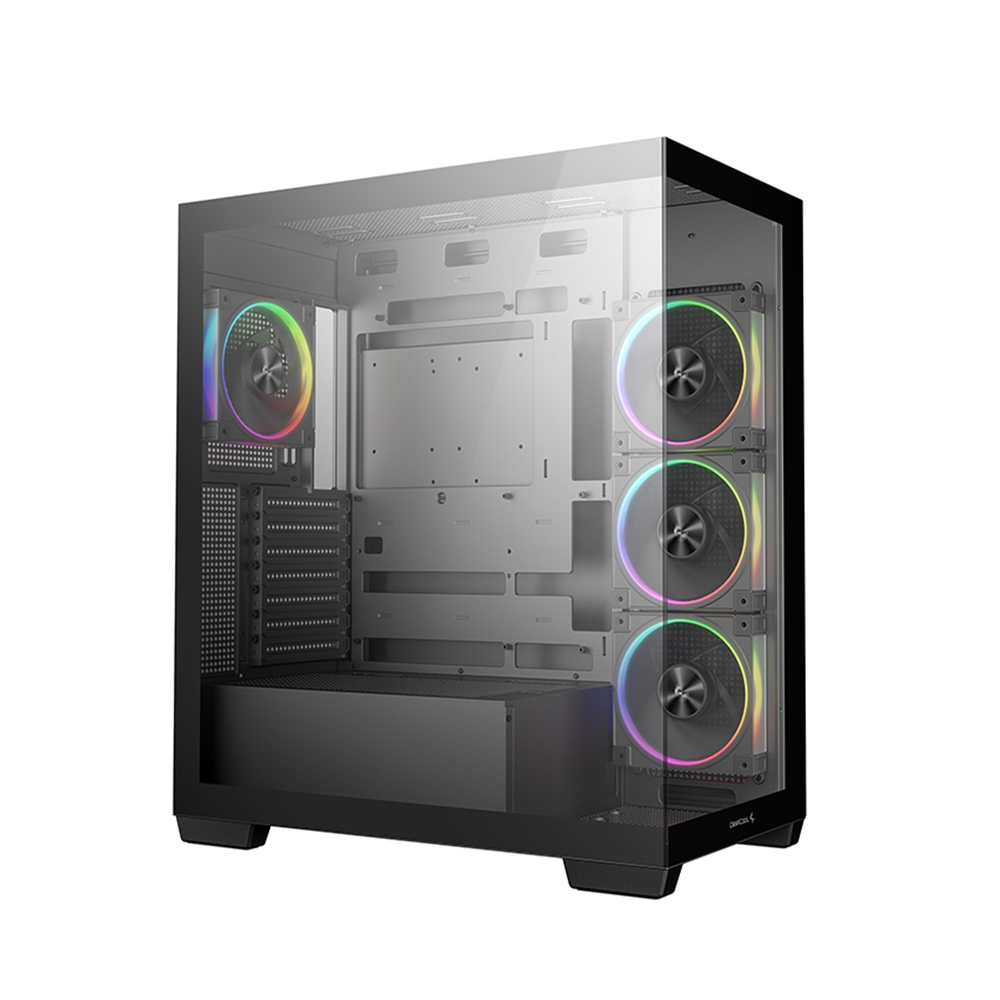

DEEPCOOL CG580 4F V2 Black Panoramic ATX Case

The DeepCool CG580 4F V2 Black is a panoramic single‑chamber ATX case built in a “fish‑tank” style with a seamless 270° glass view, designed to show off your GPU, cooling, and lighting while keeping the layout clean. It comes pre‑equipped with four 120 mm ARGB PWM fans (three side reverse‑blade and one rear) for strong, quiet airflow straight across the main hardware zone, ready for both gaming and creator builds. With support for top and side 360 mm radiators, plus bottom and rear fan mounts, you get plenty of flexibility for high‑end air or liquid‑cooled setups.

Key Specifications

• Model: DeepCool CG580 4F V2 ATX Mid Tower Case (Black)

• Form factor: ATX mid tower, single‑chamber panoramic design

• Motherboard support: ATX, Micro‑ATX, ITX

• GPU clearance: Up to 410 mm (limited to about 262 mm with a 360 mm side radiator + fans installed)

• CPU cooler clearance: Up to 176 mm

• PSU support: ATX PS2, up to 210 mm, bottom‑mounted

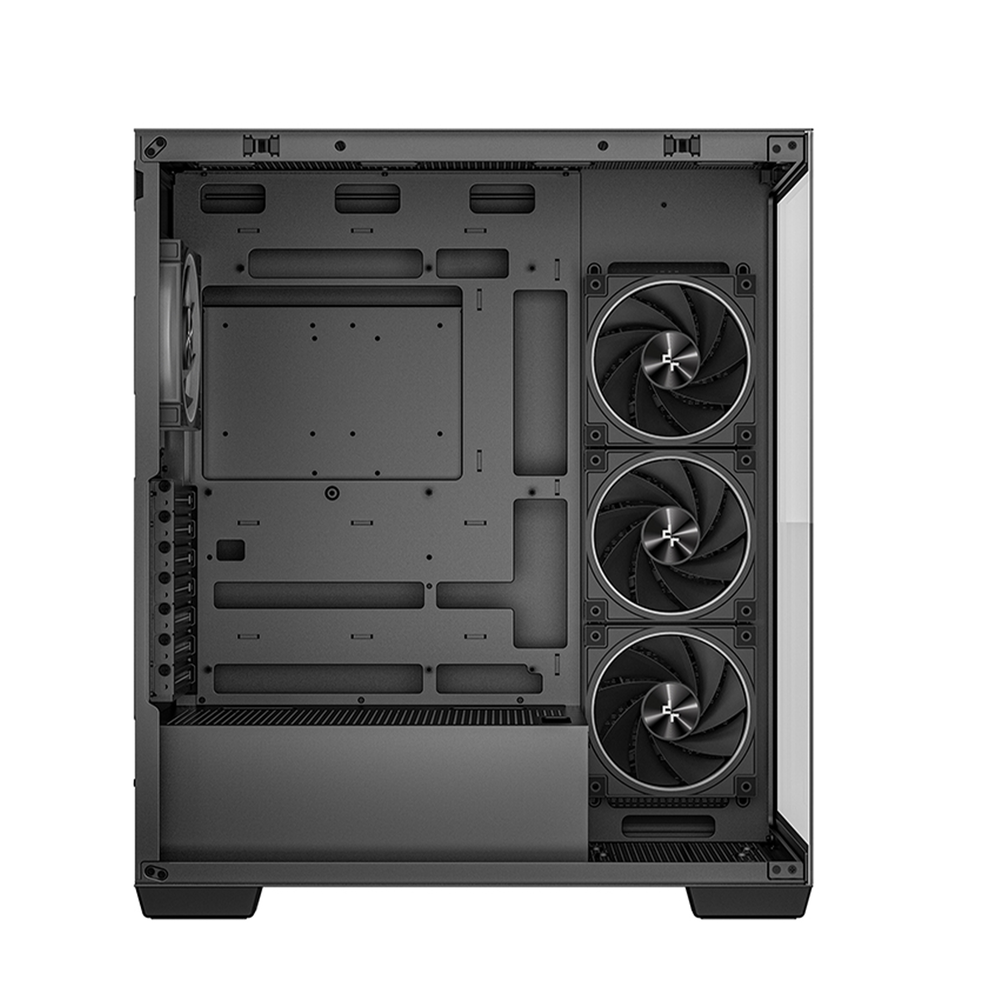

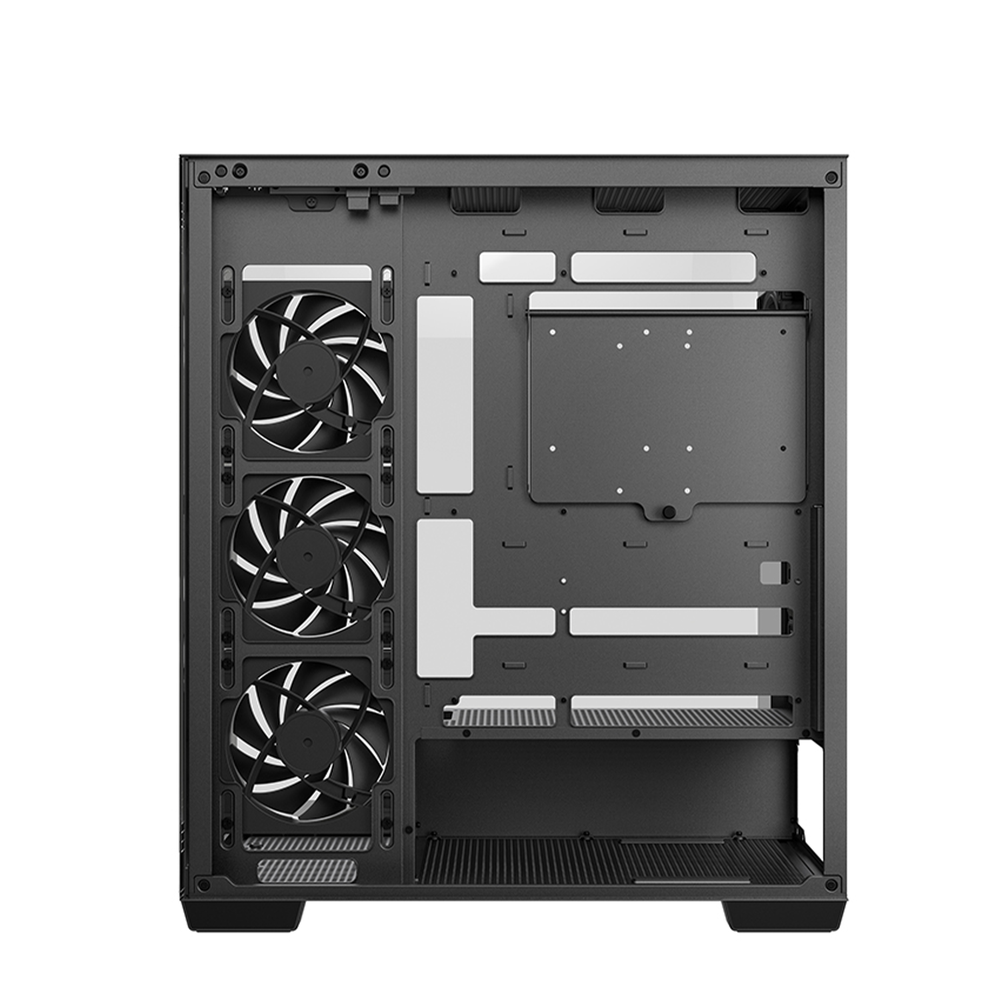

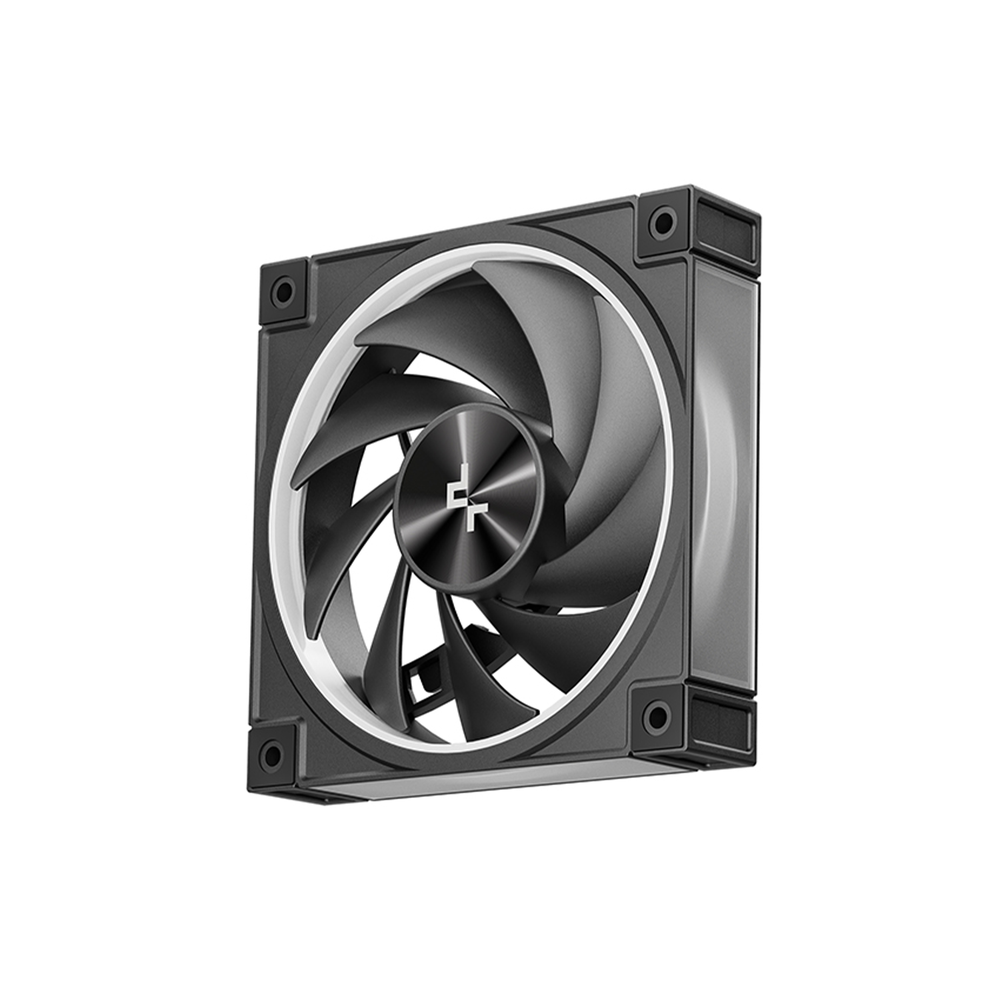

• Pre‑installed fans: 4 × 120 mm ARGB PWM (3 × side reverse‑blade, 1 × rear)

• Fan support:

  • Top: 3 × 120 mm or 2 × 140 mm

  • Side: 3 × 120 mm

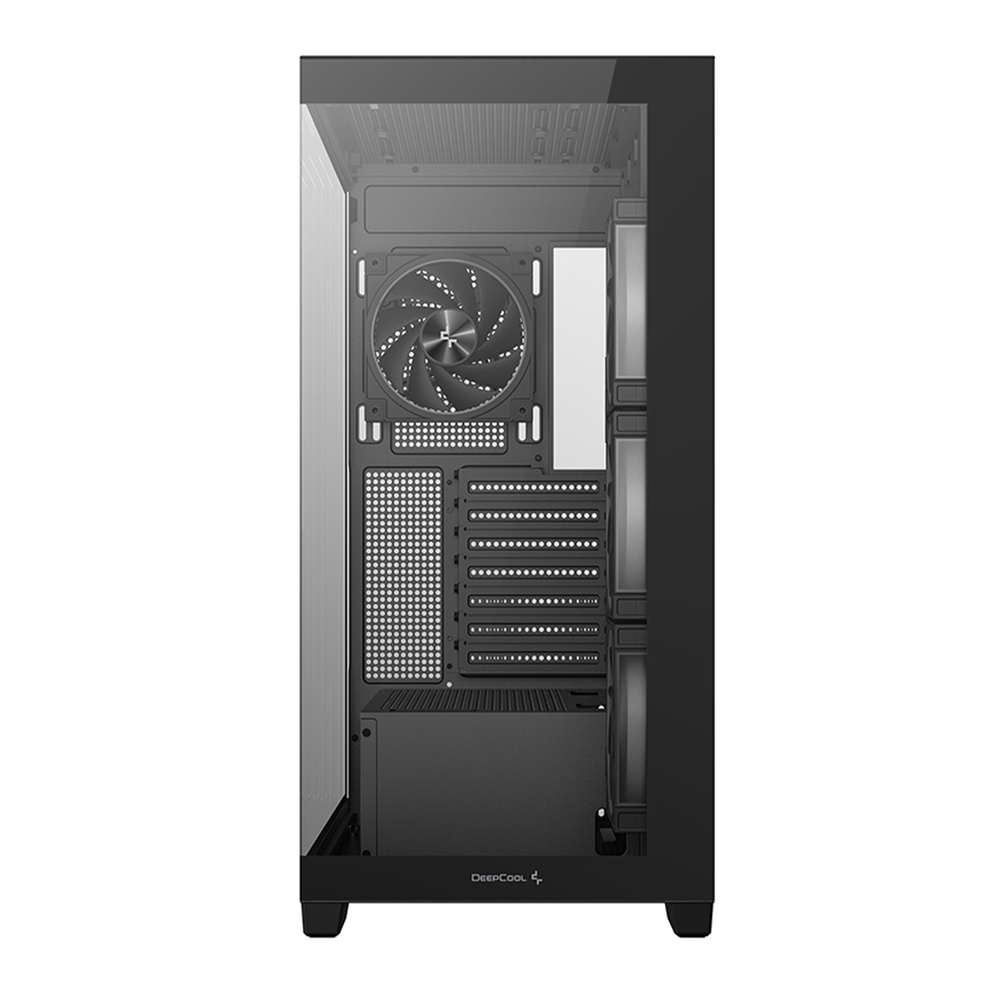

  • Rear: 1 × 120 / 1 × 140 mm

  • Bottom: up to 2 × 120 mm

• Radiator / AIO support:

  • Top: 120 / 140 / 240 / 280 / 360 mm

  • Side: 120 / 240 / 360 mm

  • Rear: 120 / 140 mm

• Drive support: 2 × 3.5" HDD + 2 × 2.5" SSD (4 total drives)

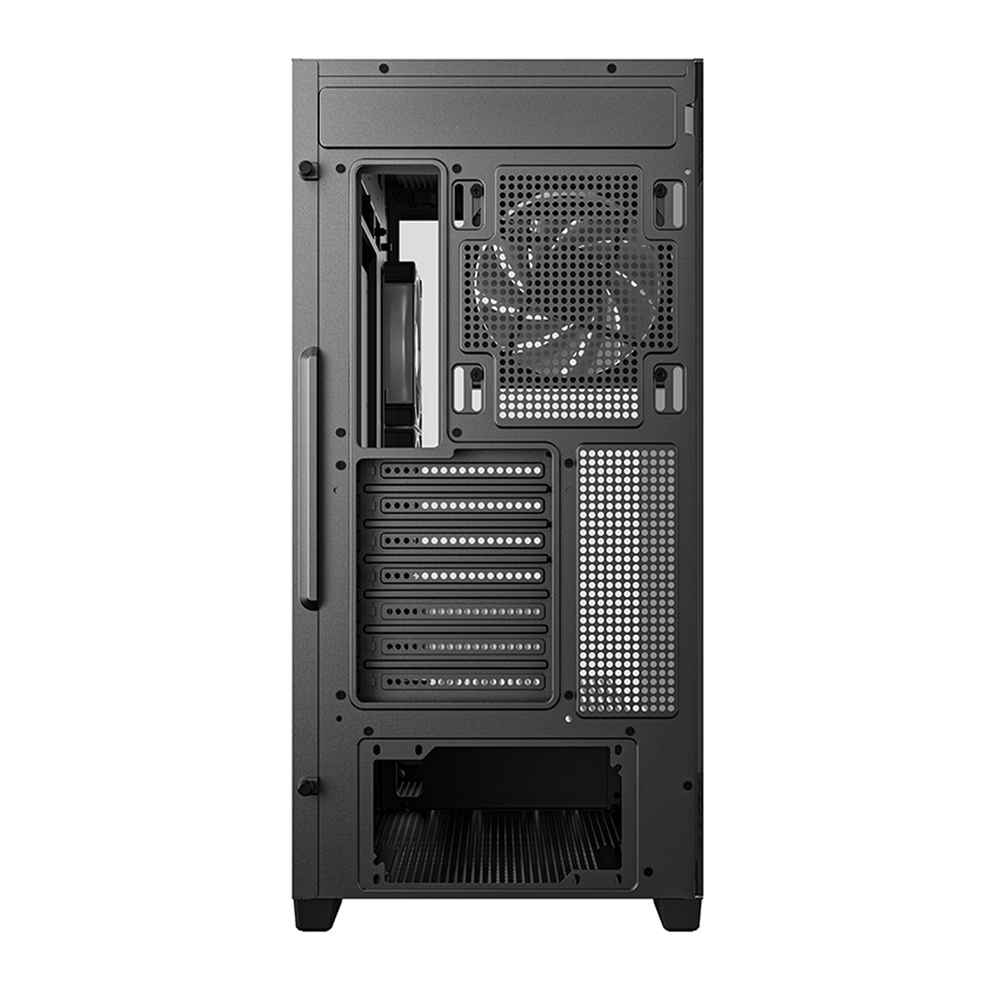

• Expansion slots: 7

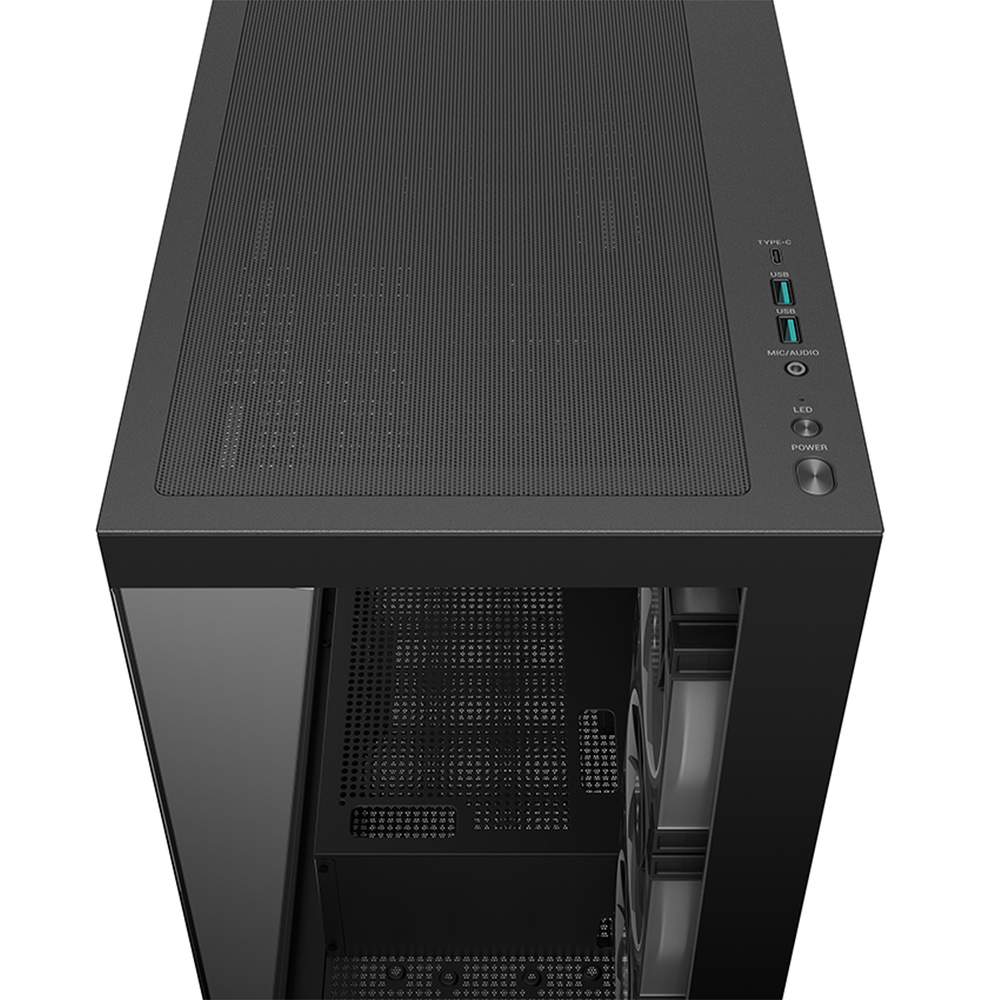

• Front I/O: 2 × USB 3.2 Gen1 Type‑A, 1 × USB 3.2 Gen2 Type‑C, 1 × combo audio, power + RGB control button

• Dimensions: 437 × 235 × 501 mm (L × W × H)

• Weight: Approx. 7.9–8.8 kg (use the value matching your supplier sheet; many list ~8.8 kg)

• Materials: ABS, SGCC/steel, tempered glass

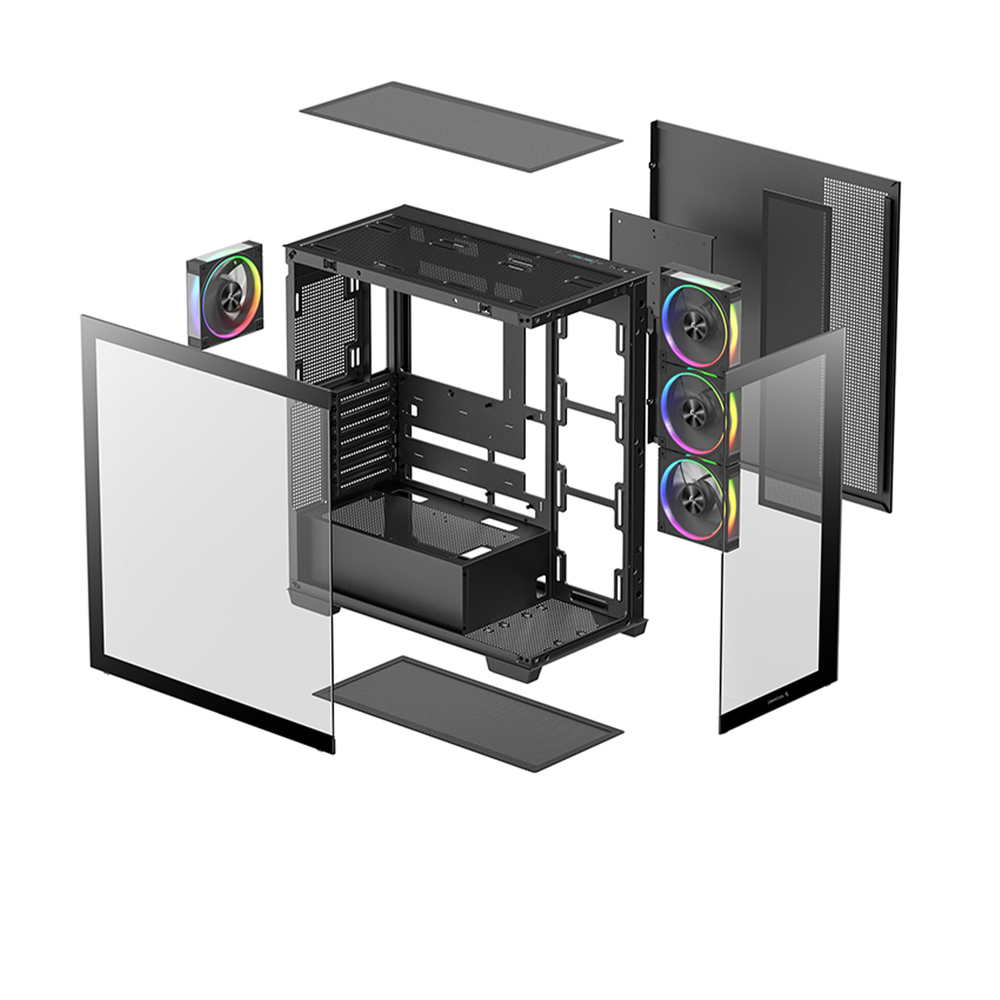

• Panels: Panoramic tempered glass side + front, no A‑pillar

• Dust filters: Top and bottom dust filters

• Color options: Black (this listing); white V2 variant sold separately

• Warranty: Typically 2–3 years depending on region/seller (match your store policy)

About the DEEPCOOL CG580 4F V2 Black
The CG580 4F V2 Black is aimed at builders who want a premium fish‑tank‑style ATX case with four ARGB PWM fans included, strong radiator support, and modern front I/O including USB‑C. It is a strong fit for high‑end gaming rigs, creator PCs, or café showcase builds where component visibility, clean cable management, and cooling performance all matter.
