DEEPCOOL CG580 4F White Panoramic ATX Case

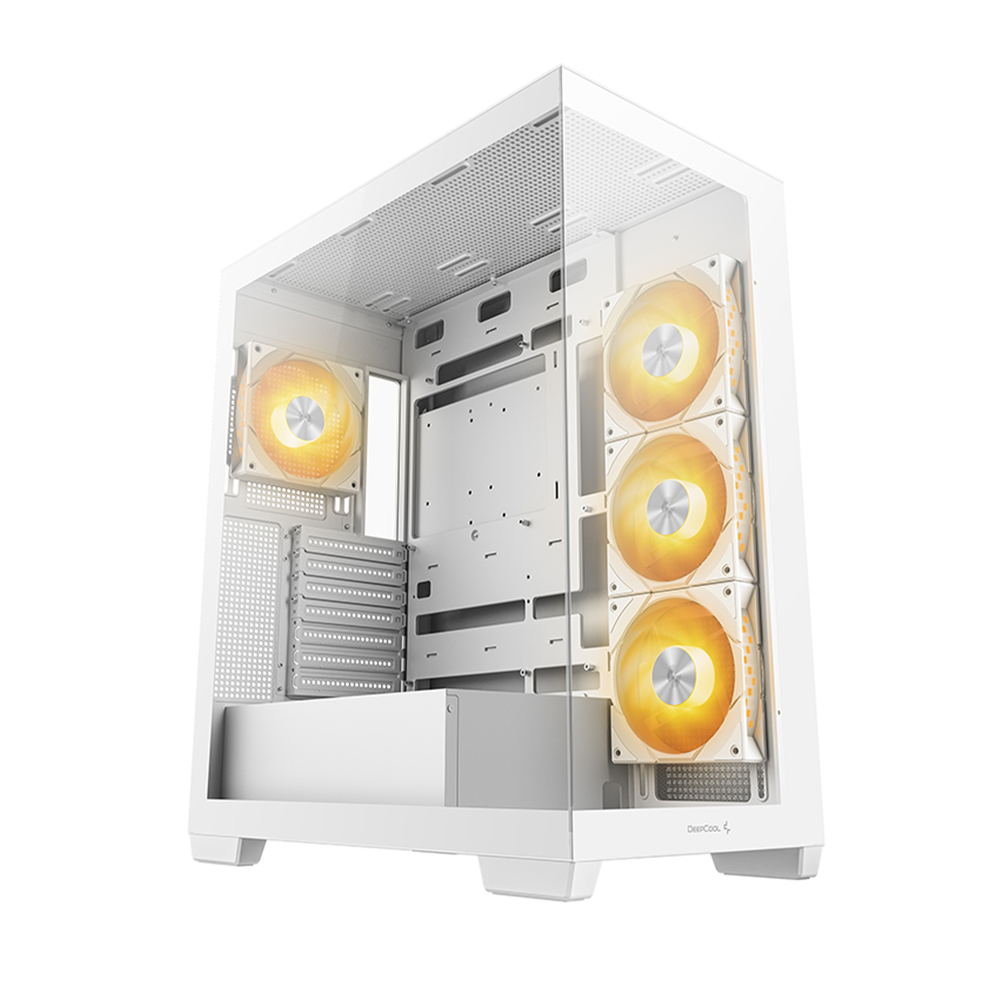

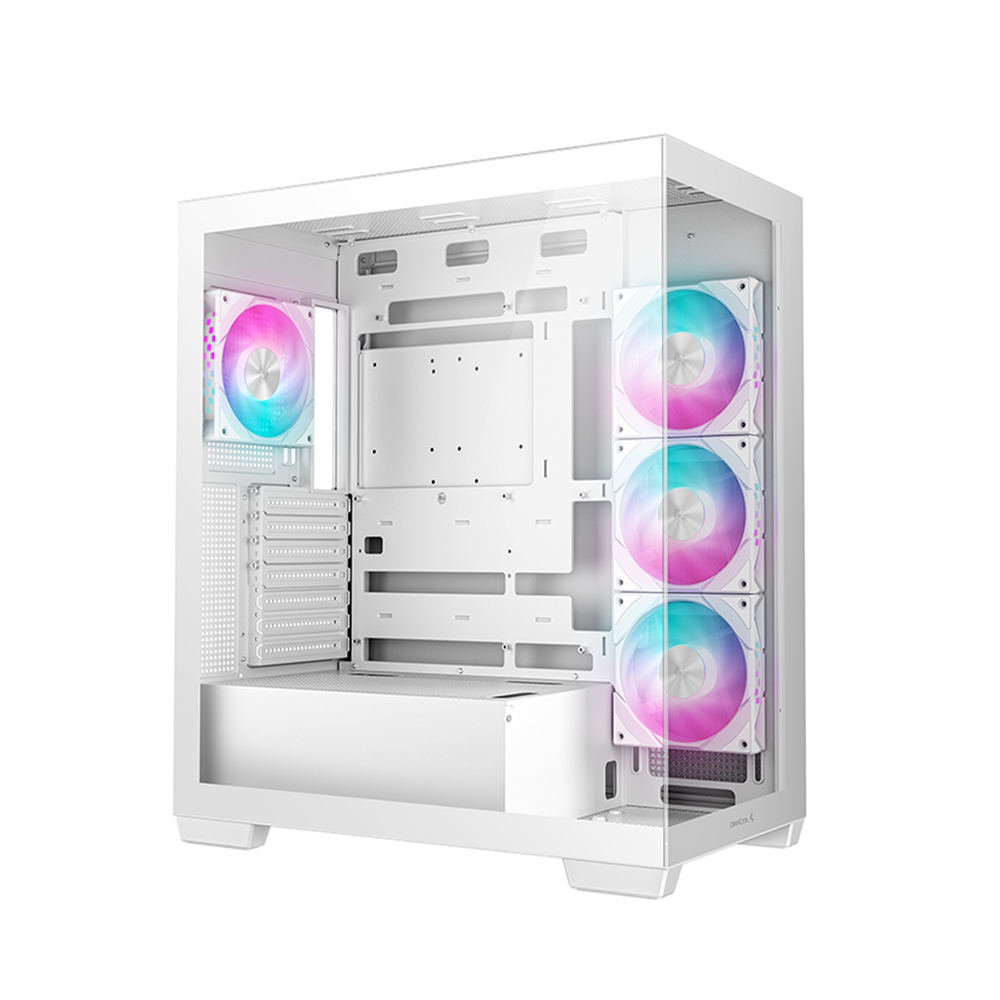

The DeepCool CG580 4F White is a single‑chamber panoramic ATX case that uses a no‑A‑pillar 270° tempered‑glass design to keep your builds on display from every café seat or desk angle. Pre‑installed with four 120 mm ARGB fans (three reverse‑flow on the side, one at the rear), it pushes air straight across the GPU and CPU while giving you clean, synced lighting that looks premium in rows of café systems. With support for 360 mm radiators on the top and side, tower coolers up to 176 mm, and GPUs up to 410 mm, it’s ideal for high‑end gaming rigs and creator PCs where uptime and thermals matter as much as aesthetics.

Key Specifications

• Model: DeepCool CG580 4F WH Panoramic ATX Case (White)

• Form factor: ATX mid tower, single‑chamber panoramic design

• Motherboard support: ITX, Micro‑ATX, ATX, ATX (rear connector), Micro‑ATX (rear connector)

• GPU clearance: Up to 410 mm (limited to 262 mm with 360 mm side radiator + fans)

• CPU cooler clearance: Up to 176 mm

• PSU support: ATX PS2, bottom‑mounted, max length 210 mm

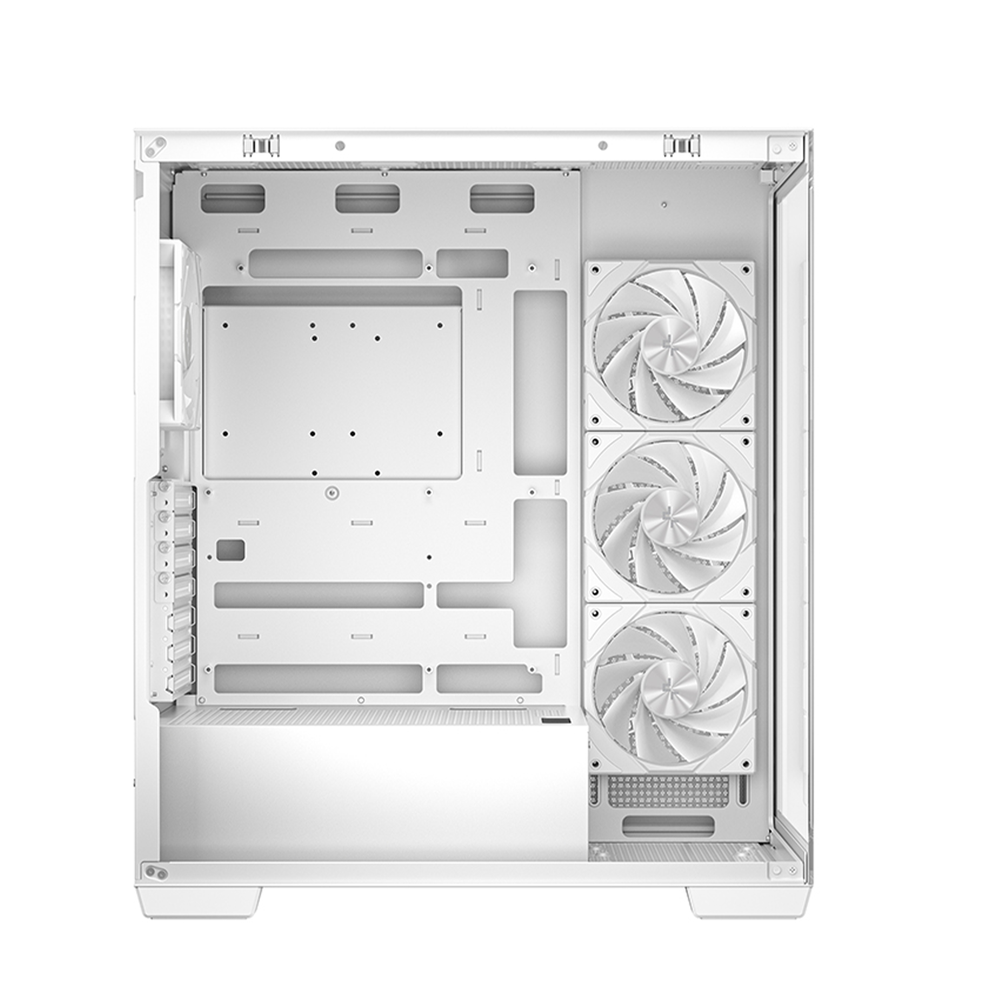

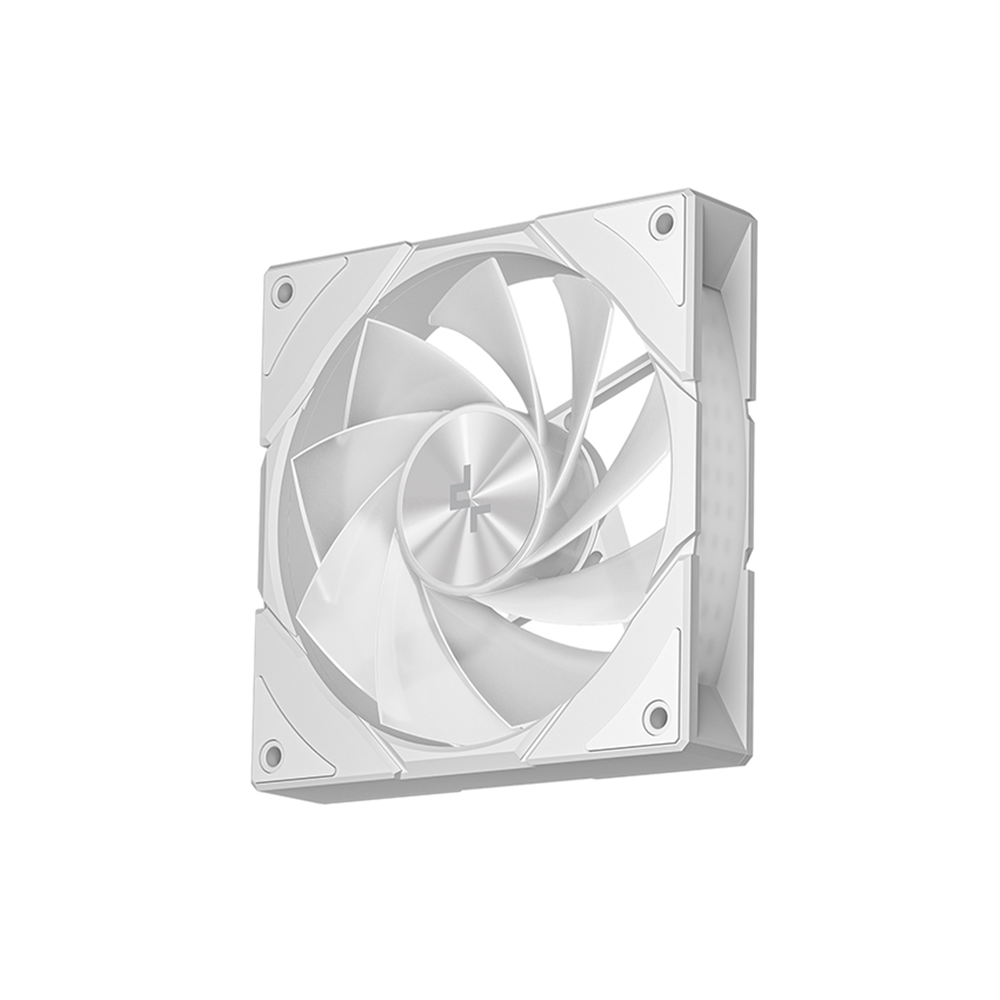

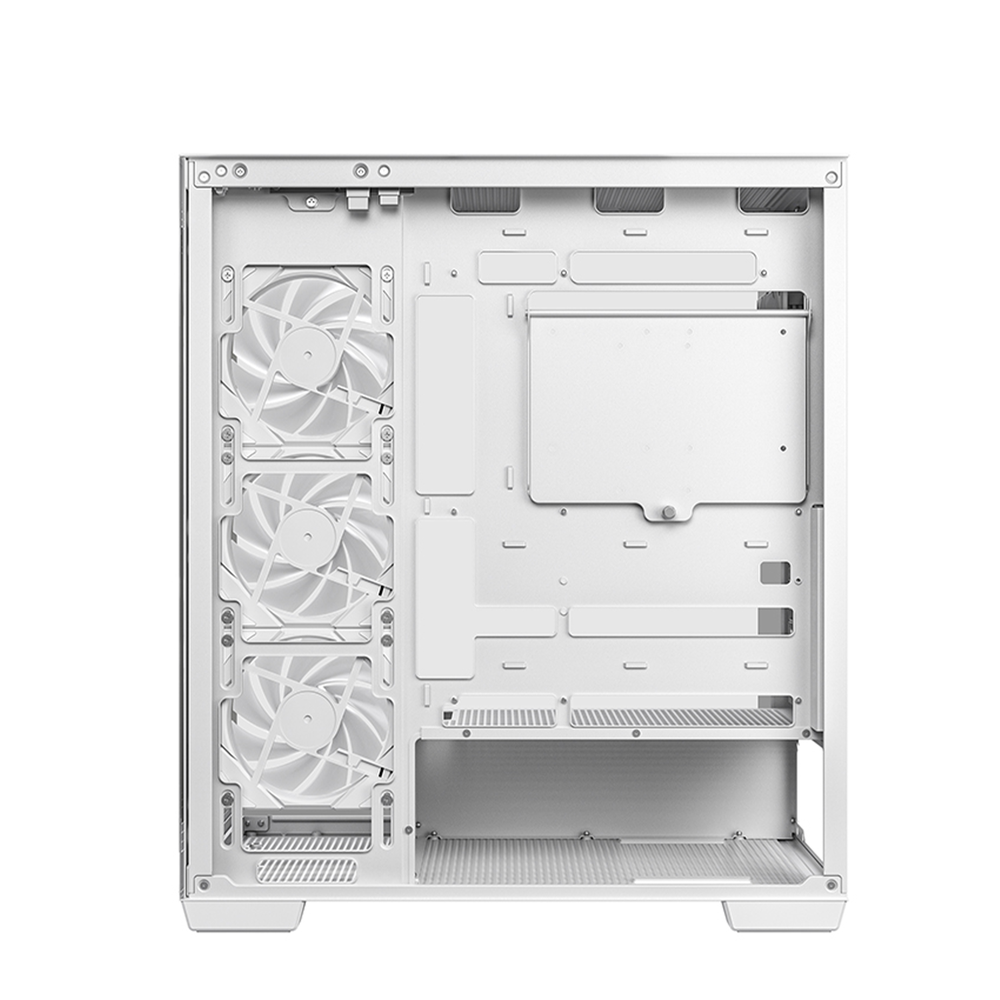

• Pre‑installed fans: 4 × 120 mm ARGB (Side: 3 × PWM + ARGB reverse‑blade, Rear: 1 × PWM + ARGB)

• Fan support:

  • Front: N/A

  • Top: 3 × 120 mm or 2 × 140 mm

  • Side: 3 × 120 mm

  • Rear: 1 × 120 mm or 1 × 140 mm

  • Bottom: 1 × 120 mm (shared with 3.5" HDD position, one of two)

  • PSU shroud: 2 × 120 mm

• Radiator / AIO support:

  • Top: 120 / 140 / 240 / 280 / 360 mm

  • Side: 120 / 240 / 360 mm

  • Rear: 120 / 140 mm

• Drive support: 2 × 3.5" HDD + 2 × 2.5" SSD

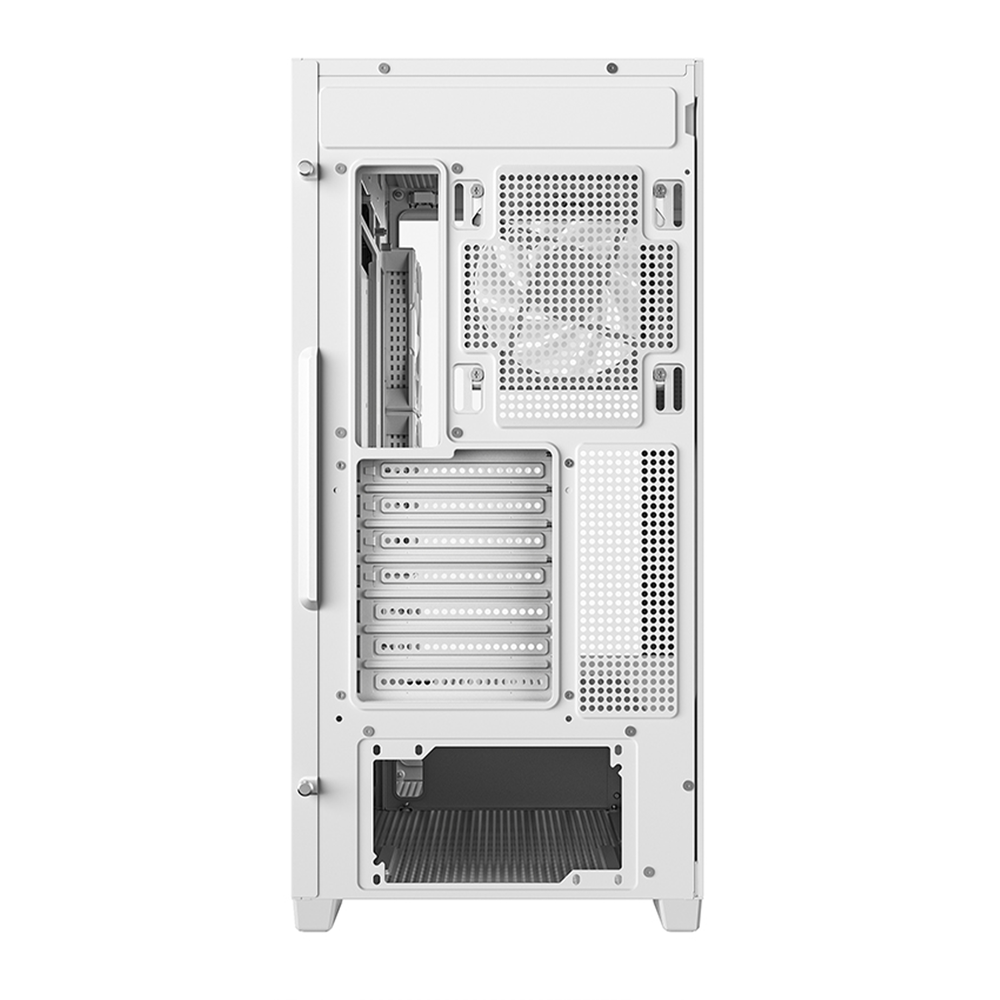

• Expansion slots: 7

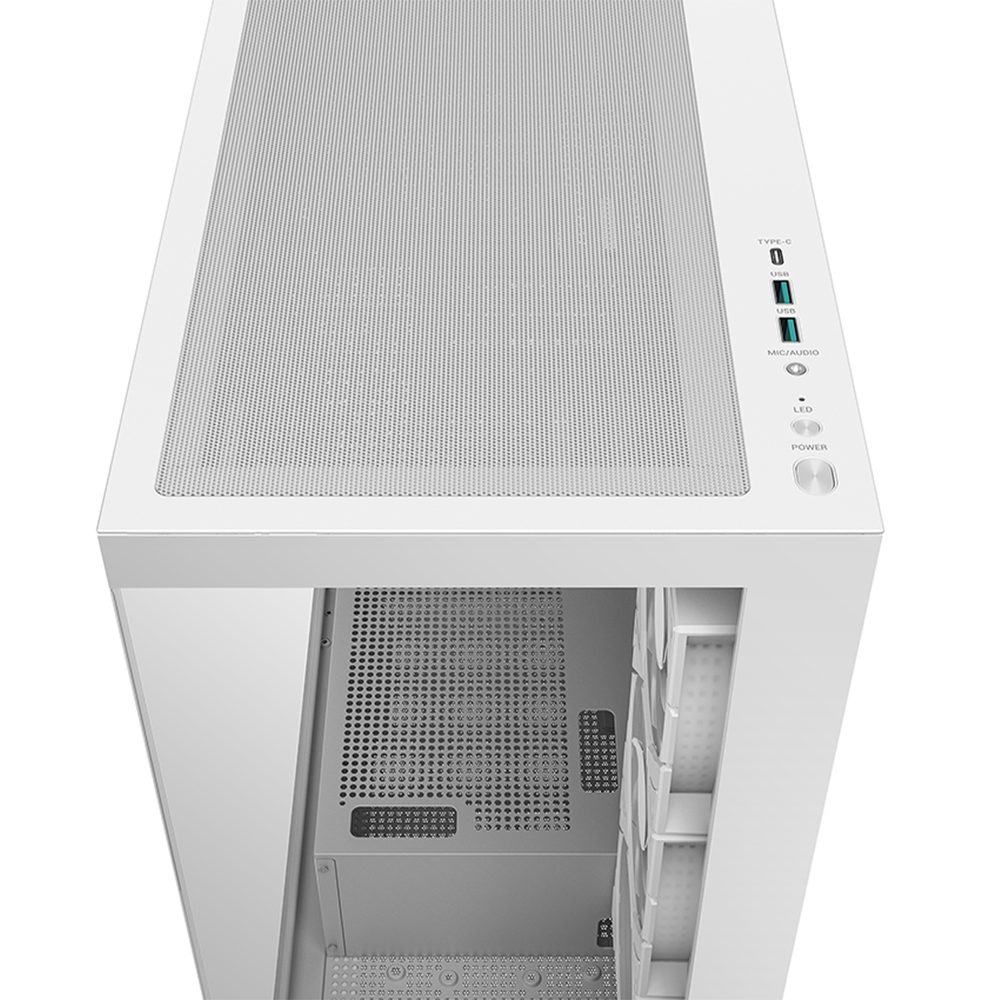

• Front I/O: 2 × USB 3.0, 1 × USB Type‑C (Gen2), 1 × audio & mic combo, power + RGB button

• Dimensions: 437 × 235 × 501 mm (L × W × H)

• Net weight: Approx. 8.7 kg

• Materials: ABS, SPCC/SGCC steel, tempered glass

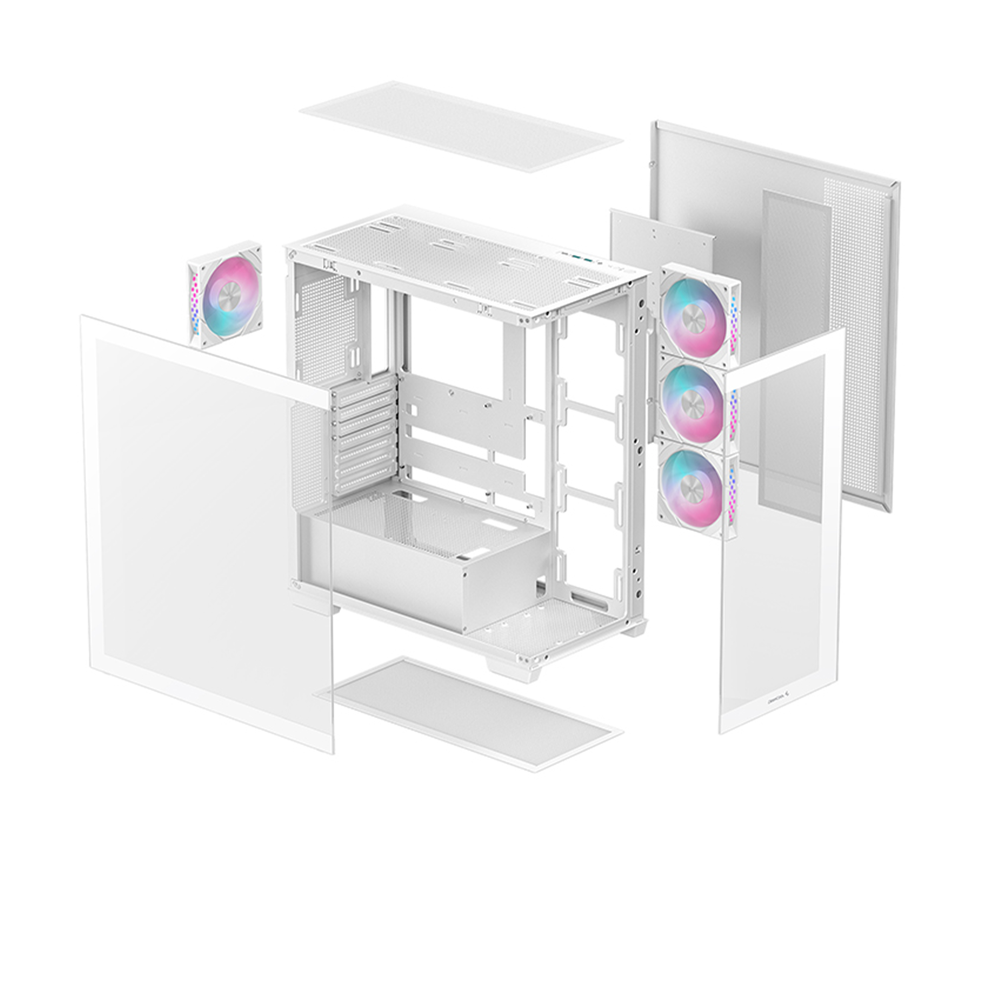

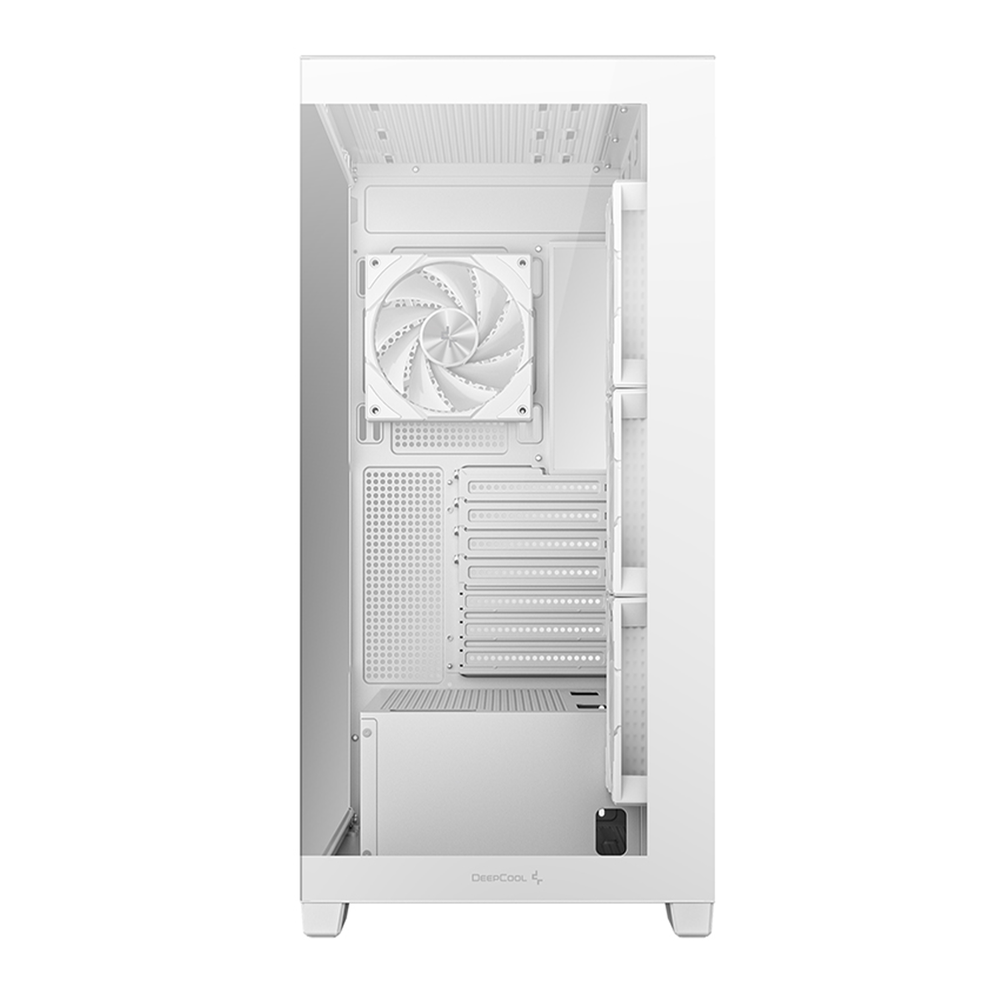

• Panels: Panoramic tempered glass side + front, no A‑pillar

• Dust filters: Top and bottom dust filters

• Color options: White (this listing); black 4F version sold separately

• Warranty: Typically 1–3 years depending on region/seller (match your store policy)

About the DEEPCOOL CG580 4F White
The CG580 4F White suits cafés and gaming centers that want a uniform wall of clean white systems with strong airflow, easy‑to‑see components, and minimal maintenance thanks to dust filters and pre‑installed ARGB fans. It’s also a great choice for home builders who want a premium panoramic white case with full 360 mm radiator support and modern front I/O including USB‑C.
