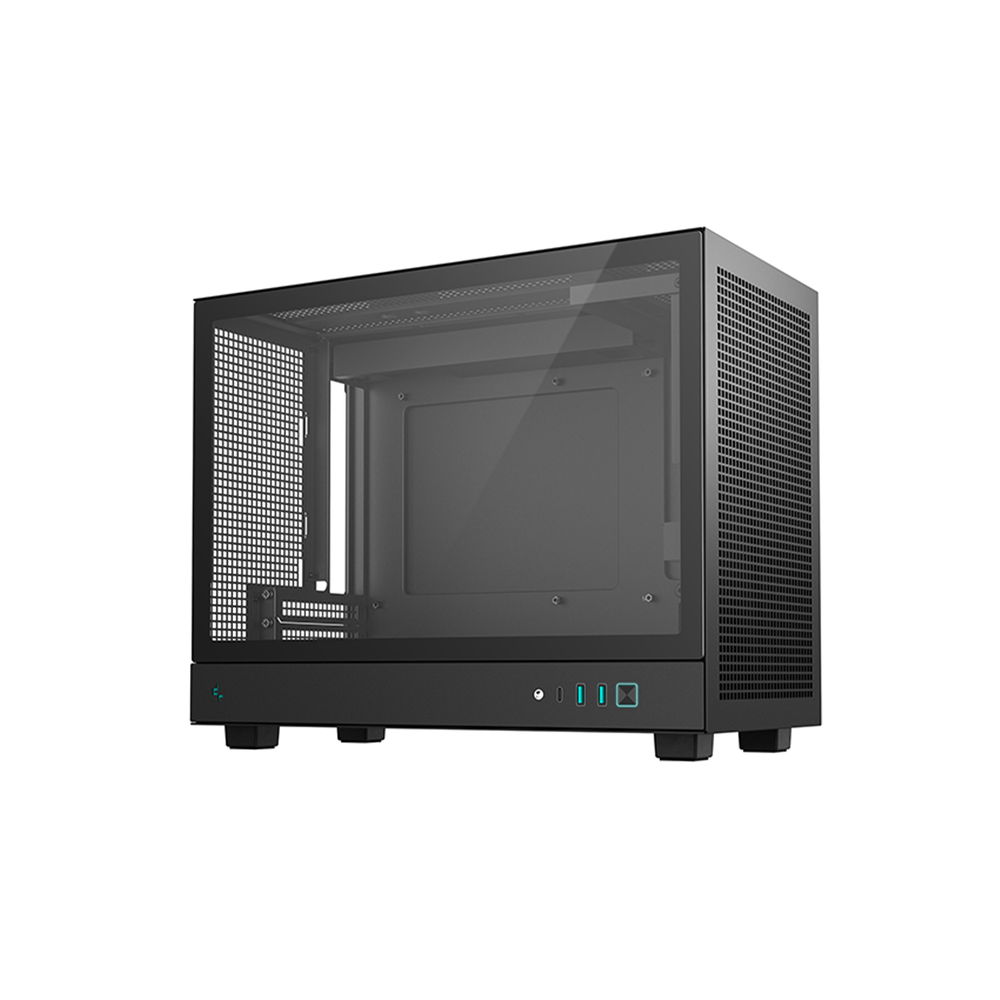

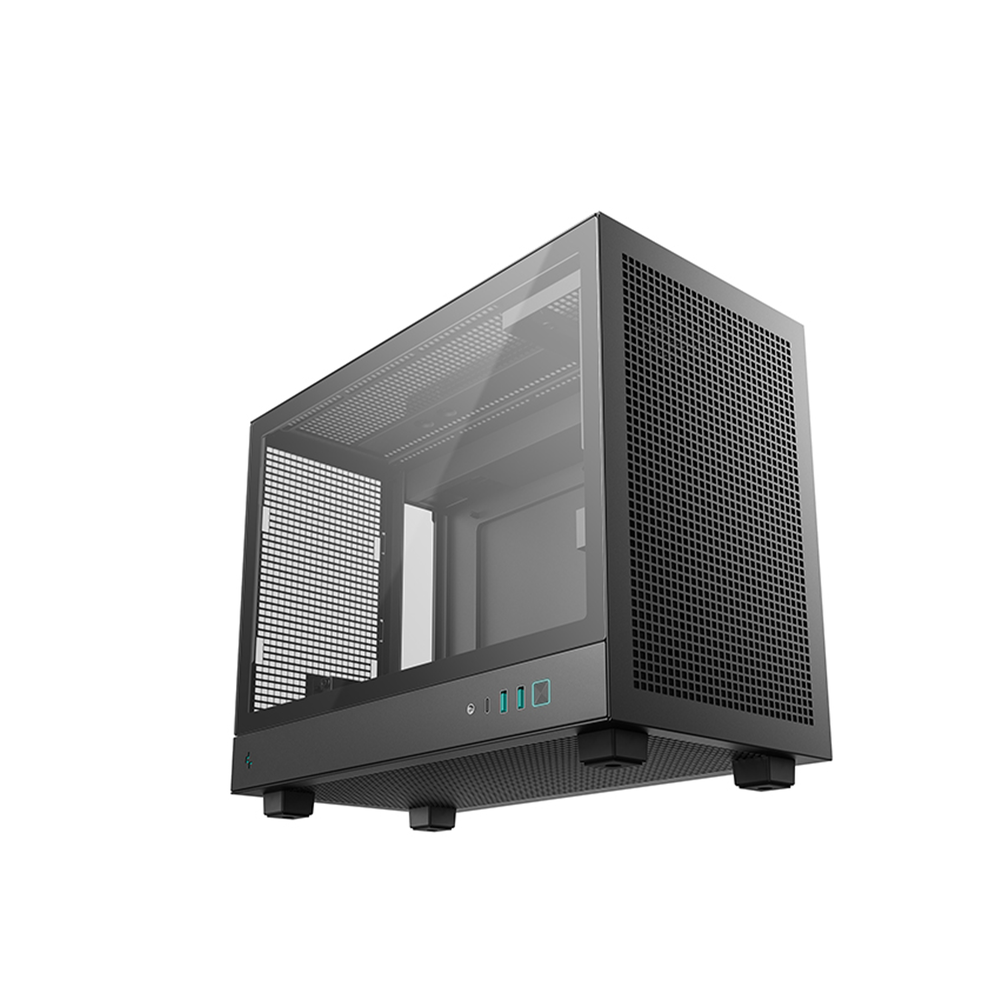

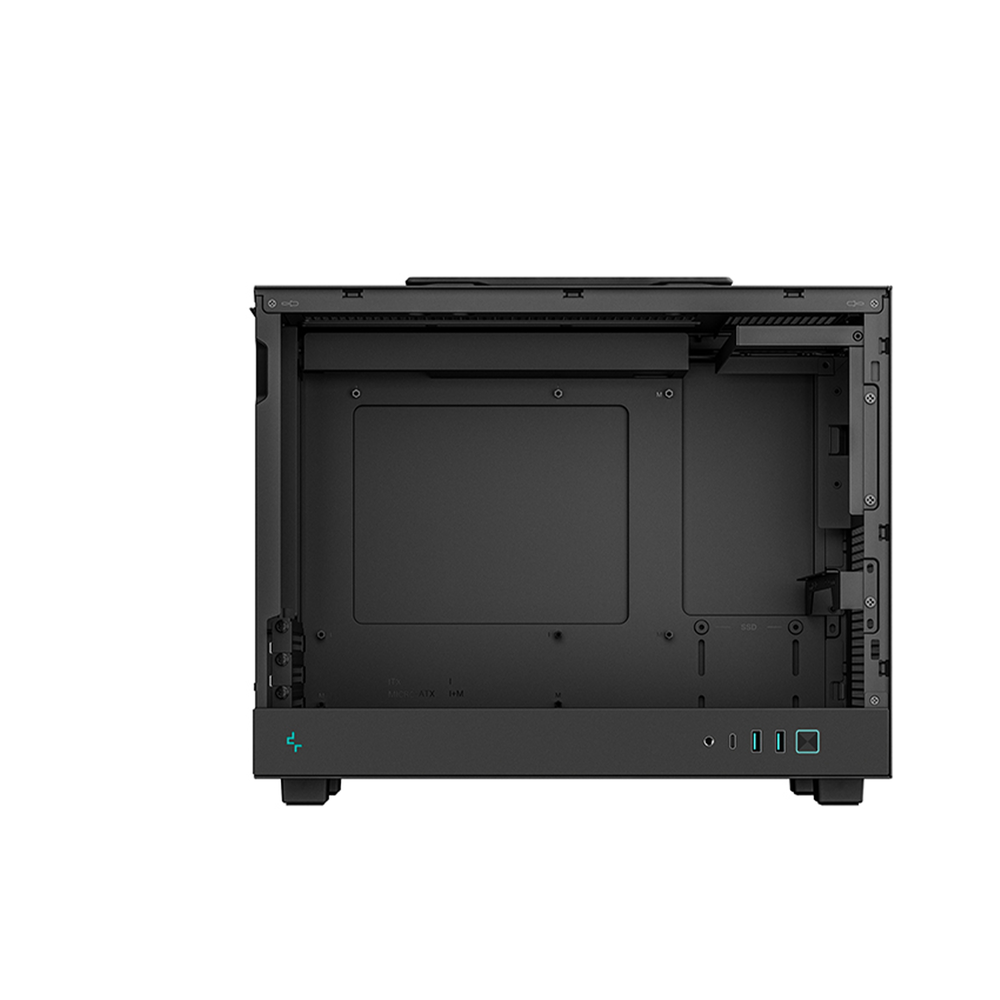

DEEPCOOL CH160 PLUS Black Portable mATX Compact Case

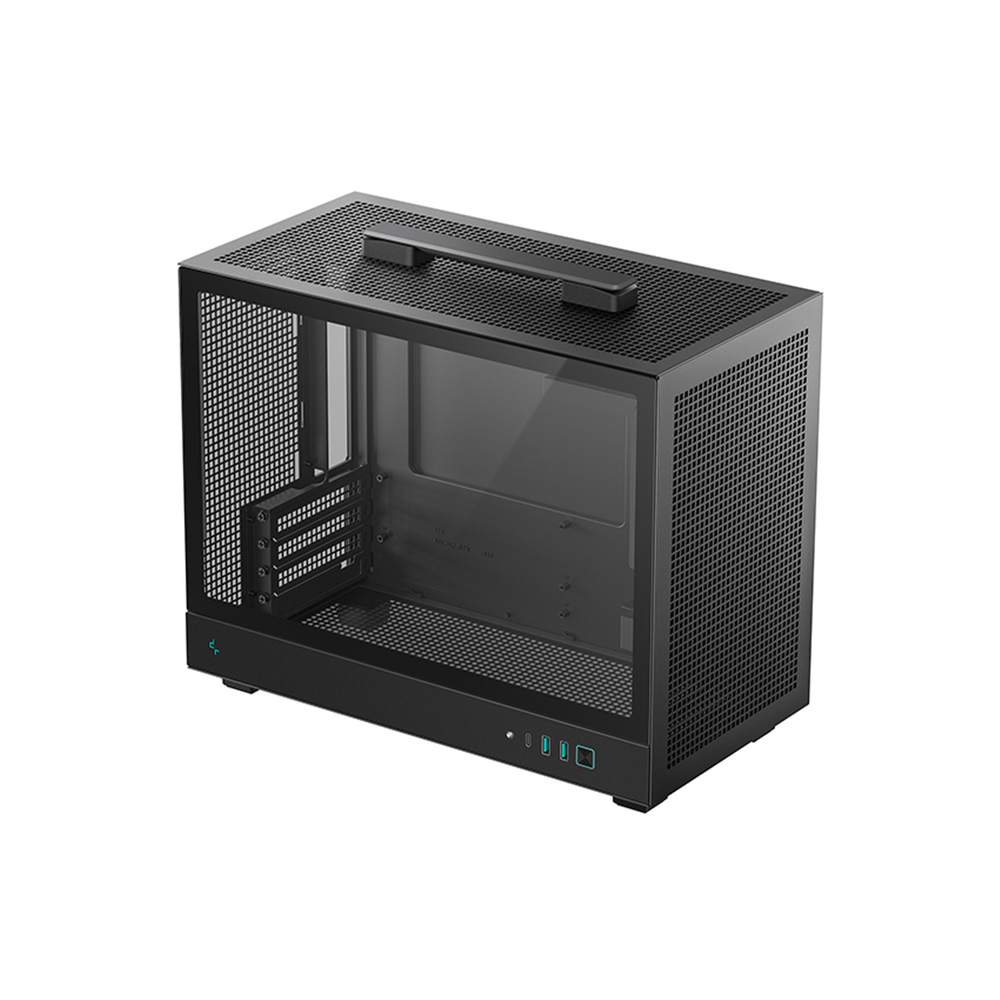

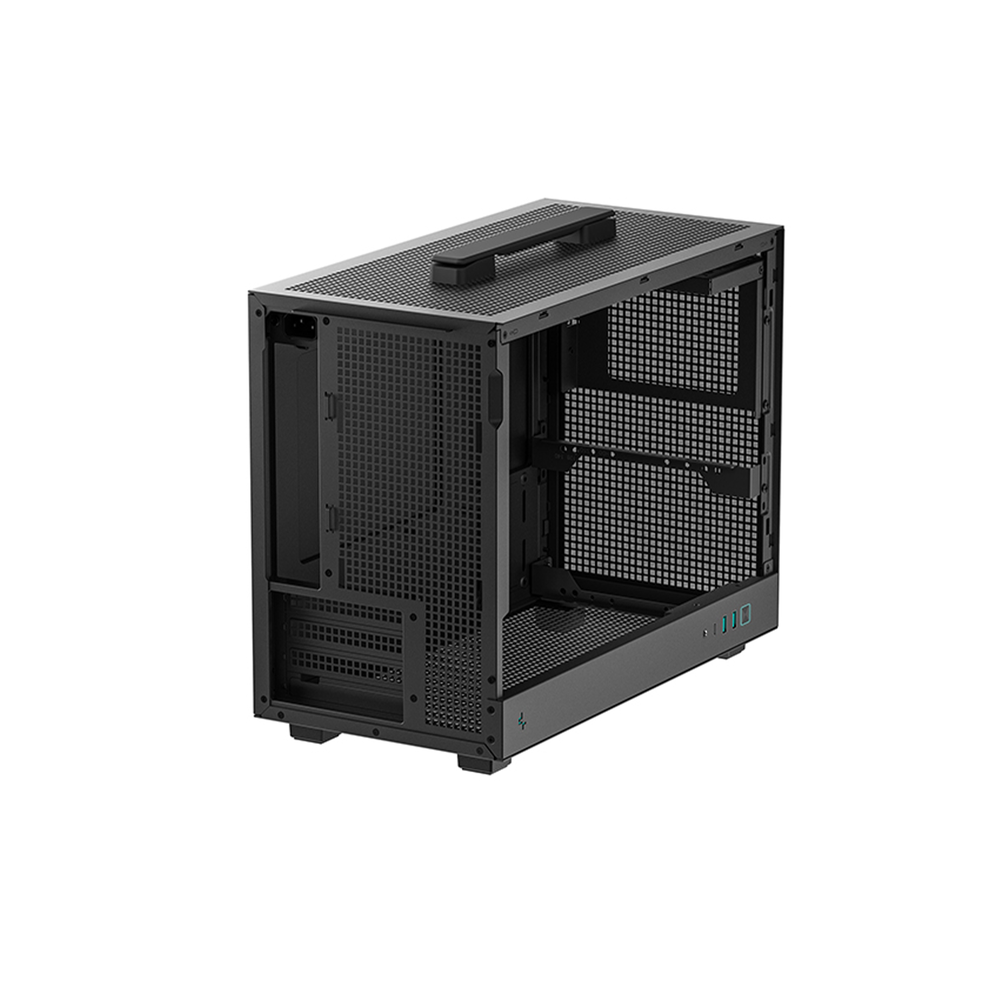

The DeepCool CH160 PLUS Black is a compact 21‑liter case built for powerful café and home setups that need easy relocation, clean airflow, and Micro‑ATX support in a very small footprint. Mesh panels on multiple sides plus support for 240 mm top AIOs and tall air coolers keep thermals in check even in tight café rows, while the integrated handle makes it simple to move systems between tables or events. With room for GPUs up to 342 mm and ATX or SFX PSUs, it comfortably handles modern mid‑range and high‑end cards in a compact chassis that still looks premium on the front counter.

Key Specifications

• Model: DeepCool CH160 PLUS (Black)

• Form factor: Portable compact tower, ~21 L volume

• Motherboard support: Mini‑ITX, Micro‑ATX

• GPU clearance: Up to 342 mm (around 328 mm with a front fan installed, per press notes)

• CPU cooler clearance: Up to 164 mm

• PSU support: ATX PS2 (max length 140 mm), SFX, SFX‑L

• Pre‑installed fans: None (you choose your own setup)

• Fan support:

  • Front: 1 × 120 mm or 1 × 140 mm (140 mm only with SFX PSU)

  • Top: 2 × 120 mm

  • Rear: 1 × 120 mm

• Radiator / AIO support: Top 120 / 240 mm; Rear 120 mm

• Drive support: 1 × 3.5" HDD + 1 × 2.5" SSD (plus an extra shared 2.5" position in some configs)

• Expansion slots: 4

• Front I/O: 2 × USB 3.0, 1 × USB Type‑C (Gen2), 1 × audio/mic combo jack

• Dimensions: 375 × 195 × 323.5 mm (L × W × H)

• Net weight: Approx. 4.2 kg

• Materials: ABS, SPCC steel, tempered glass

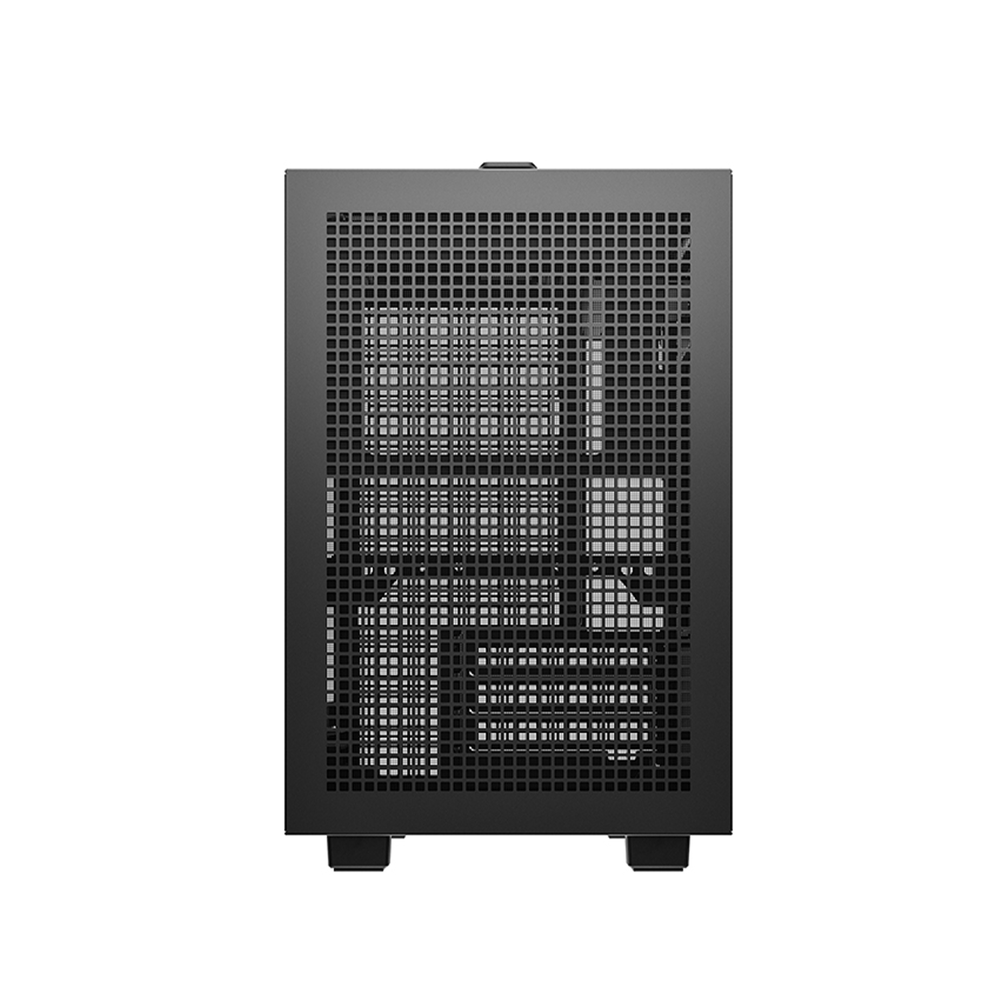

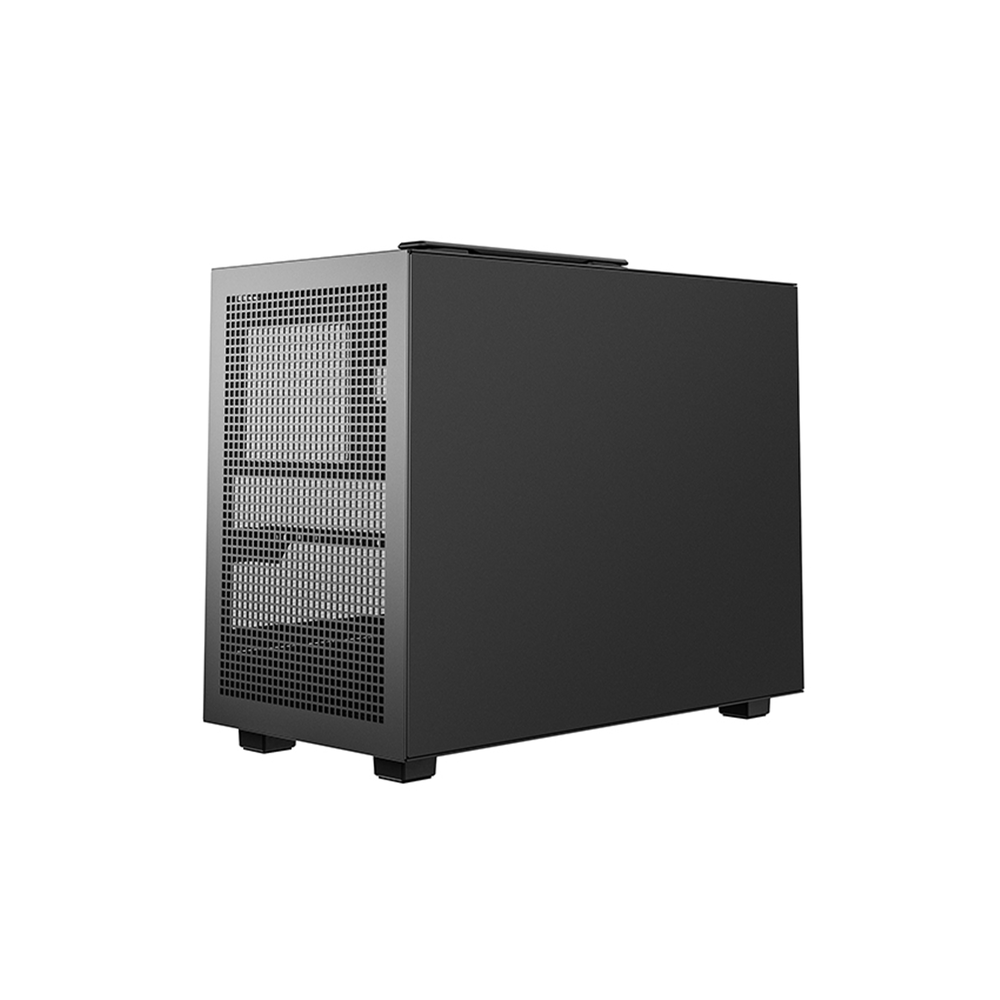

• Panels: Tempered‑glass side panel with mesh elsewhere for airflow

• Dust filters: Multiple dust filters (varies by region listing; top/side mesh and bottom PSU area)

• Color options: Black (this listing); white CH160 PLUS WH sold separately

• Warranty: Typically 2 years (match your store policy)

About the DEEPCOOL CH160 PLUS Black
The CH160 PLUS Black is a strong fit for café and LAN setups that need compact systems with full‑size GPUs, easy carrying, and good airflow, without jumping to expensive custom SFF cases. It also suits home builders who want a portable, console‑style Micro‑ATX/ITX rig that still supports 240 mm AIOs, ATX/SFX PSUs, and modern long graphics cards.
