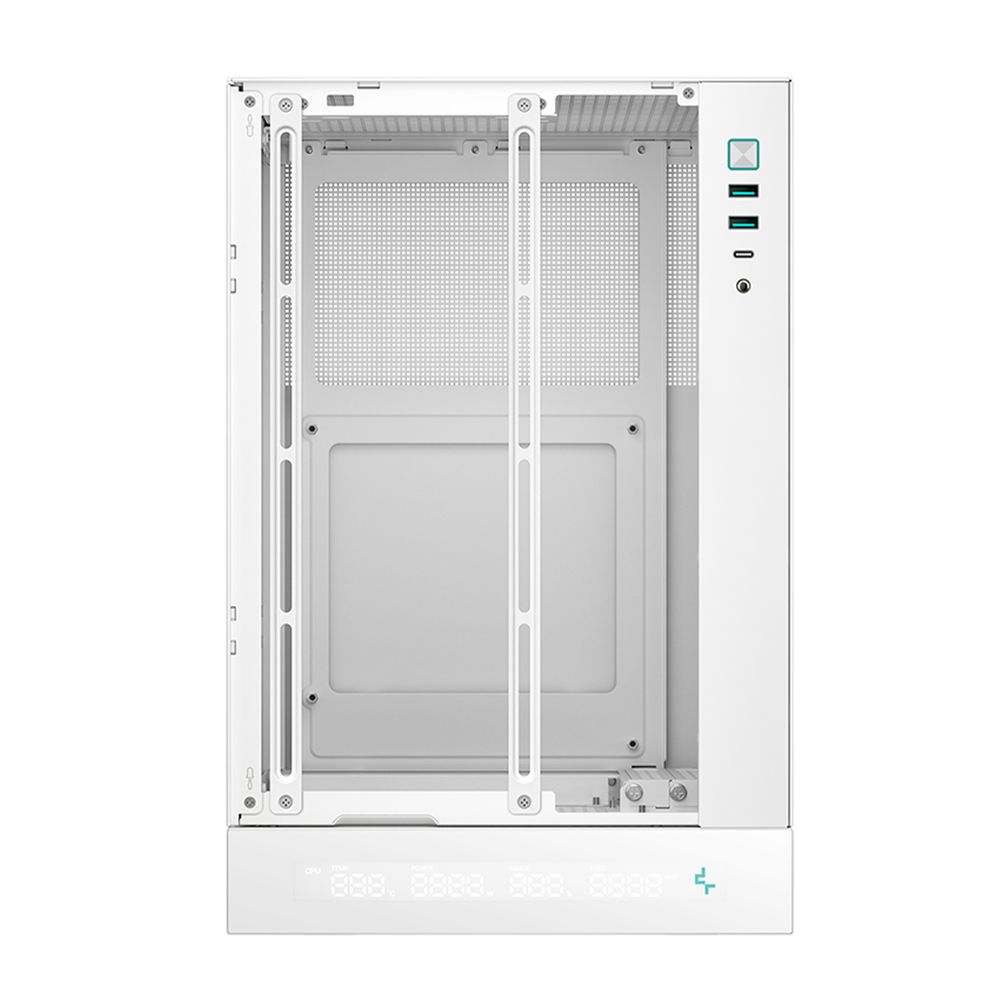

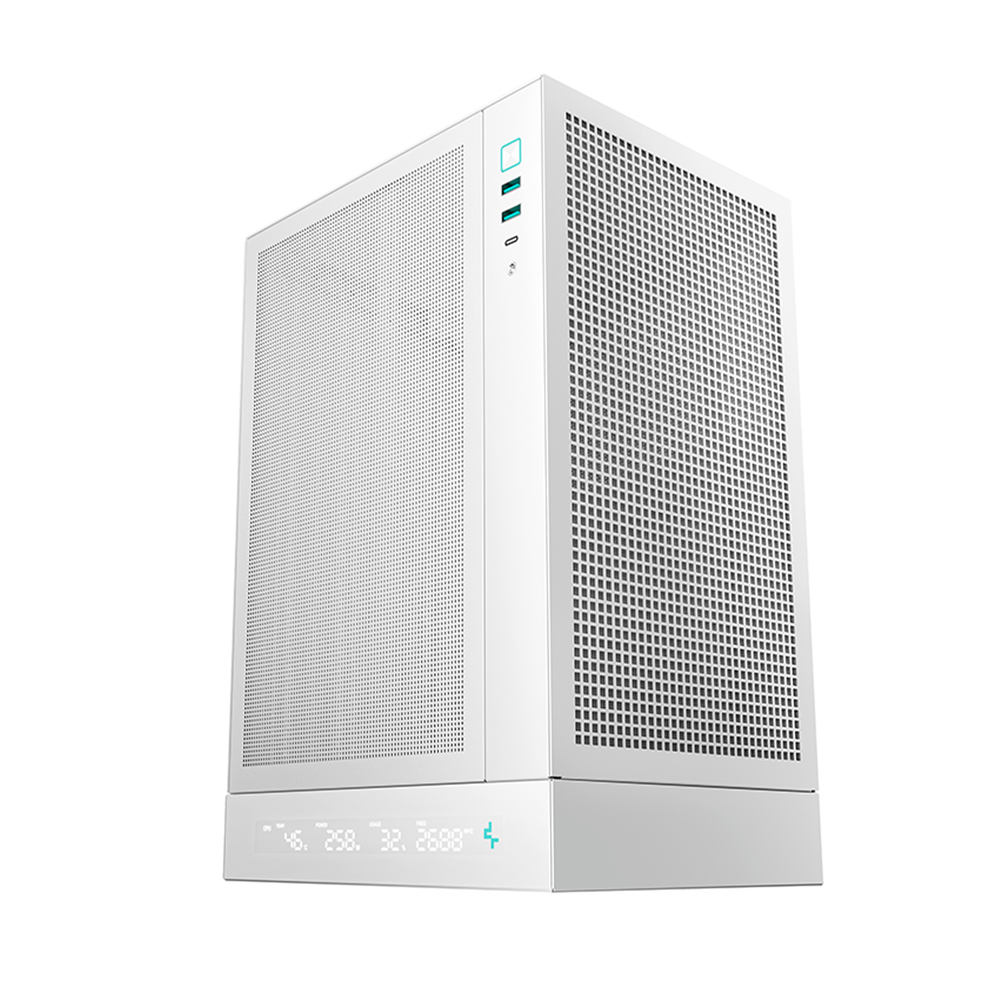

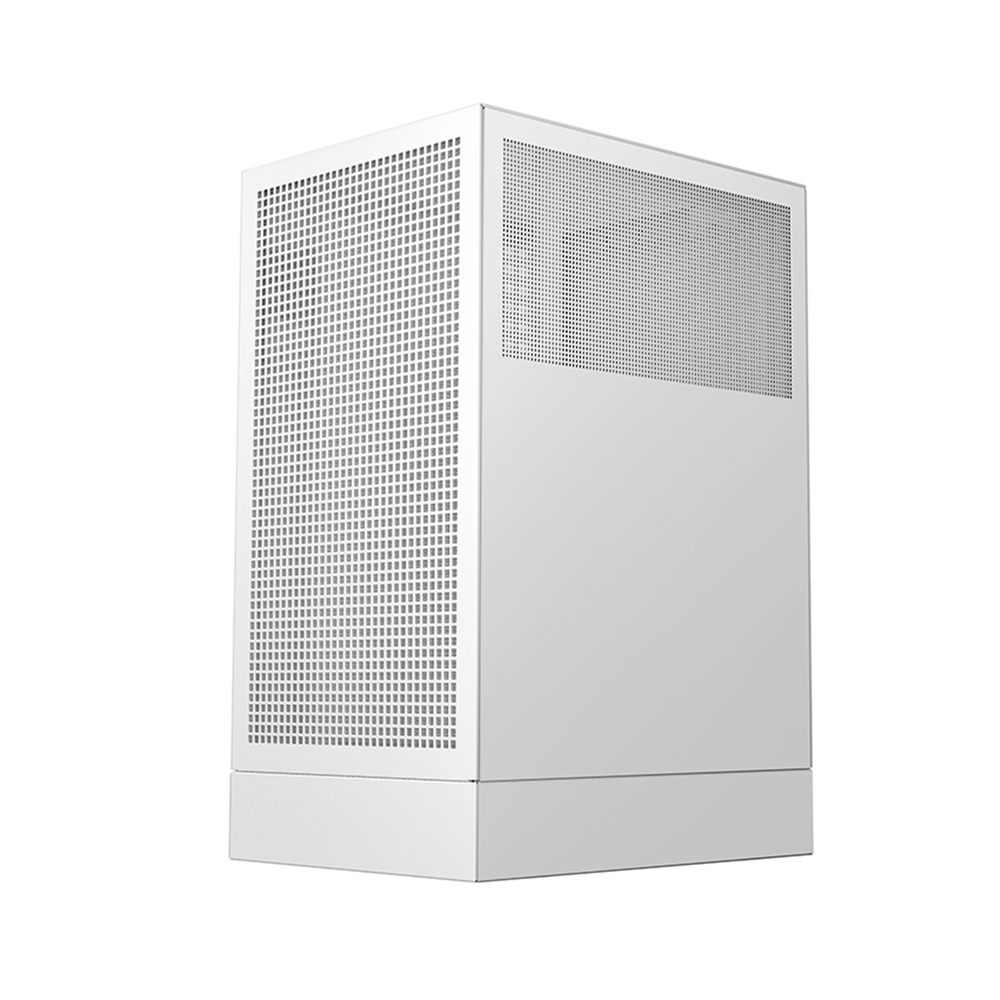

DEEPCOOL CH170 DIGITAL White Vertical Mini‑ITX Case with Screen

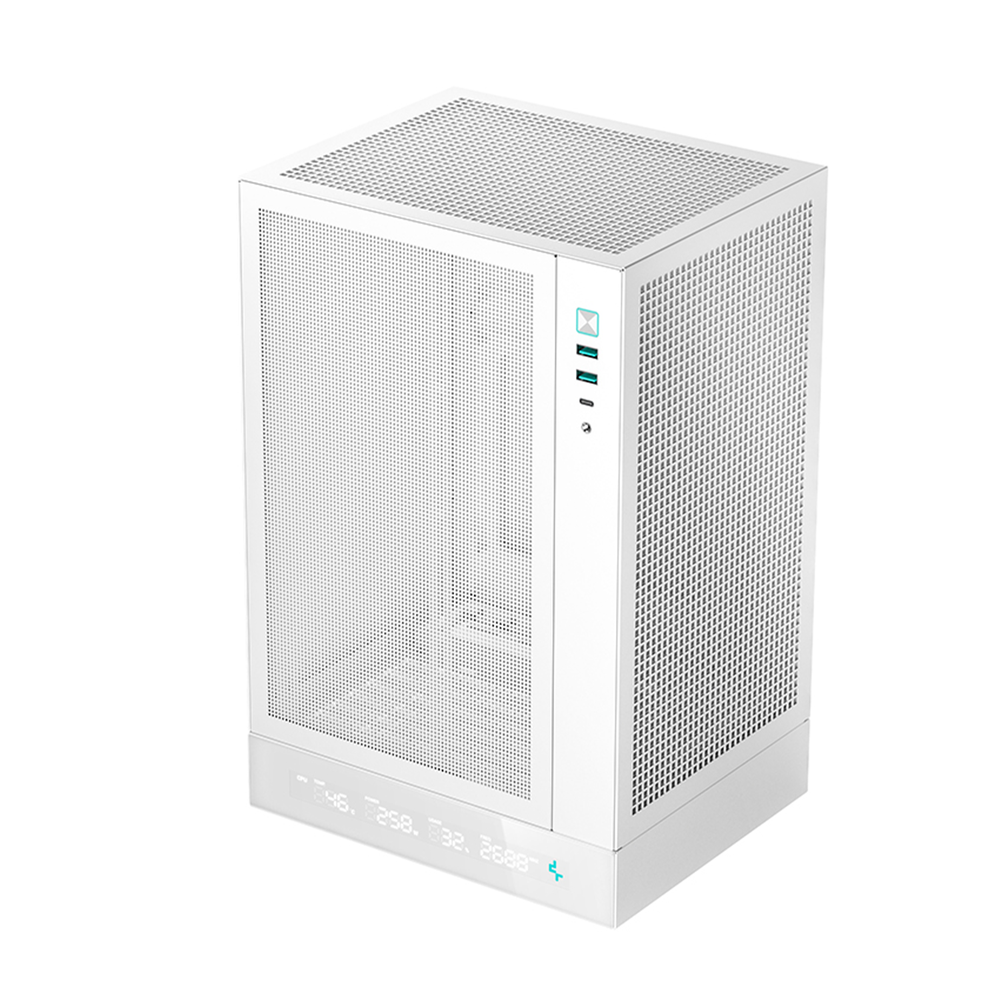

The DeepCool CH170 DIGITAL White is a vertical Mini‑ITX case that brings high‑airflow SFF design into a tiny footprint, perfect for clean white café rows or compact creator desks. Mesh panels on all sides plus support for a 240 mm side radiator or a 172 mm air cooler keep temps in check, while the integrated digital base screen shows live CPU, GPU, and PSU stats so staff can spot issues without opening software. With support for GPUs up to 305 mm (with SFX/SFX‑L PSUs) and ATX PSUs up to 140 mm, it runs serious hardware without needing a riser cable or exotic parts.

Key Specifications

• Model: DeepCool CH170 DIGITAL WH (R‑CH170‑WHNPI0D‑G‑1)

• Case type: Small‑form‑factor vertical Mini‑ITX tower

• Motherboard support: Mini‑ITX only

• GPU support: Length up to 305 mm with SFX/SFX‑L PSU or 230 mm with ATX PSU; height 138 mm; width 65 mm (3‑slot)

• CPU cooler clearance: Up to 172 mm

• PSU support: ATX PS2 (max 140 mm), SFX, SFX‑L

• Pre‑installed fans: None

• Fan support: Top 1 × 120 mm; Rear 2 × 120 mm; Bottom 1 × 120 mm; Side 2 × 120 mm

• Radiator / AIO support: Side up to 240 mm

• Drive support: 1 × combo bay (2.5" SSD / 3.5" HDD / front 120 mm fan – choose one) + 1 × 2.5" SSD bay

• Expansion slots: 3 (direct GPU mount, no riser)

• Front I/O: 2 × USB 3.0 Type‑A, 1 × USB Gen2 Type‑C, 1 × audio jack

• Dimensions: 250 × 200 × 380 mm (L × W × H)

• Net weight: Approx. 3.3–3.4 kg

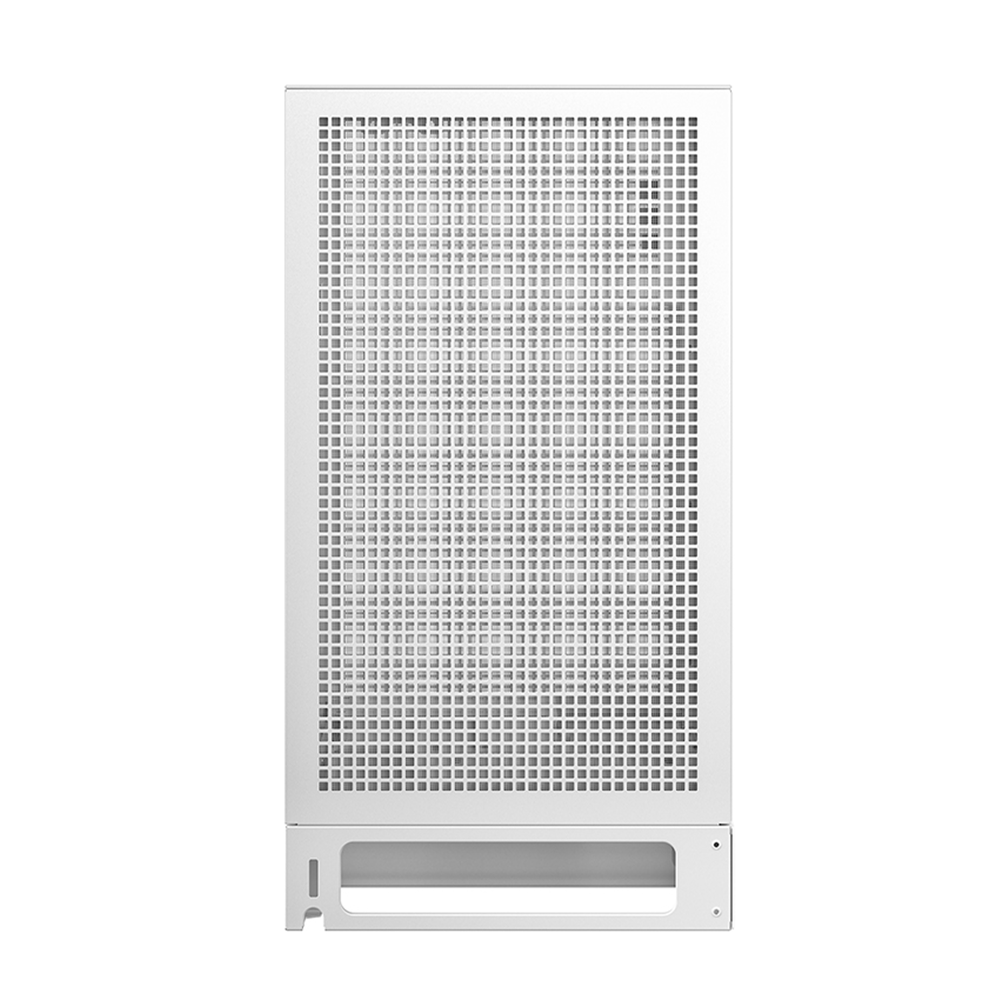

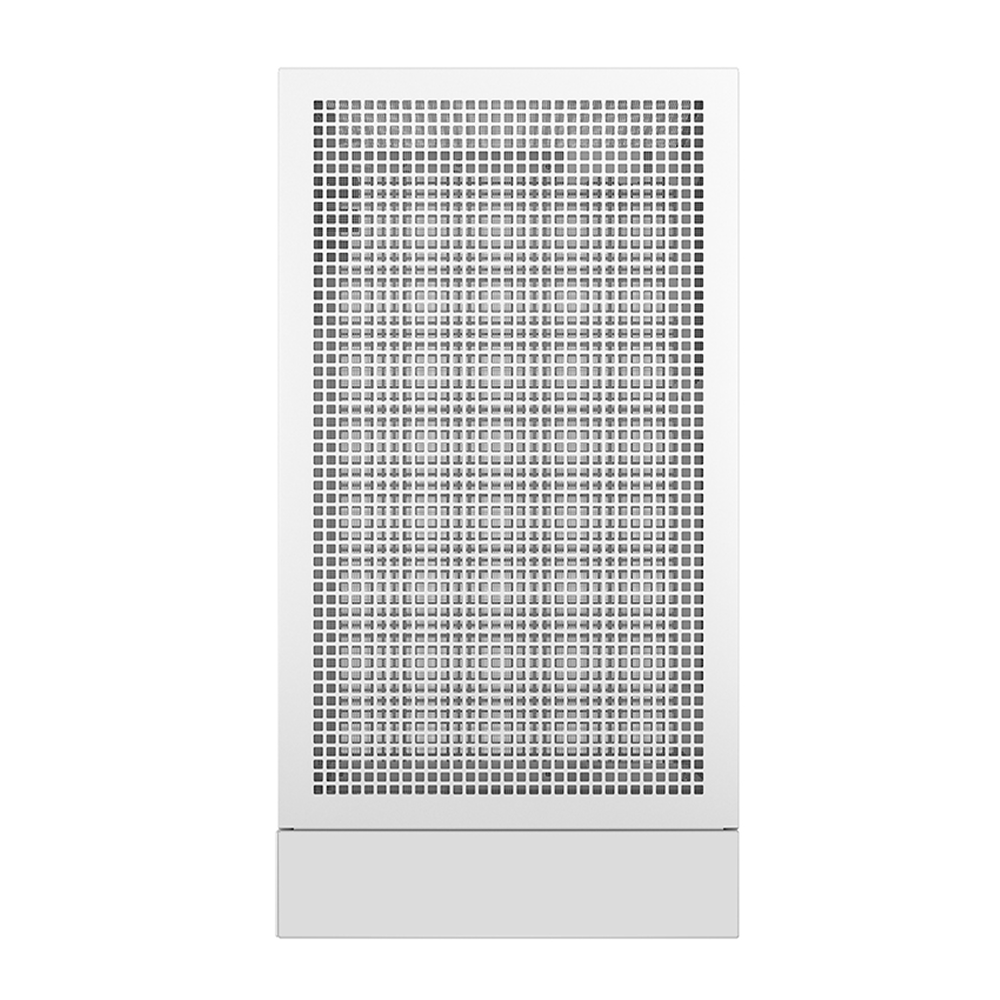

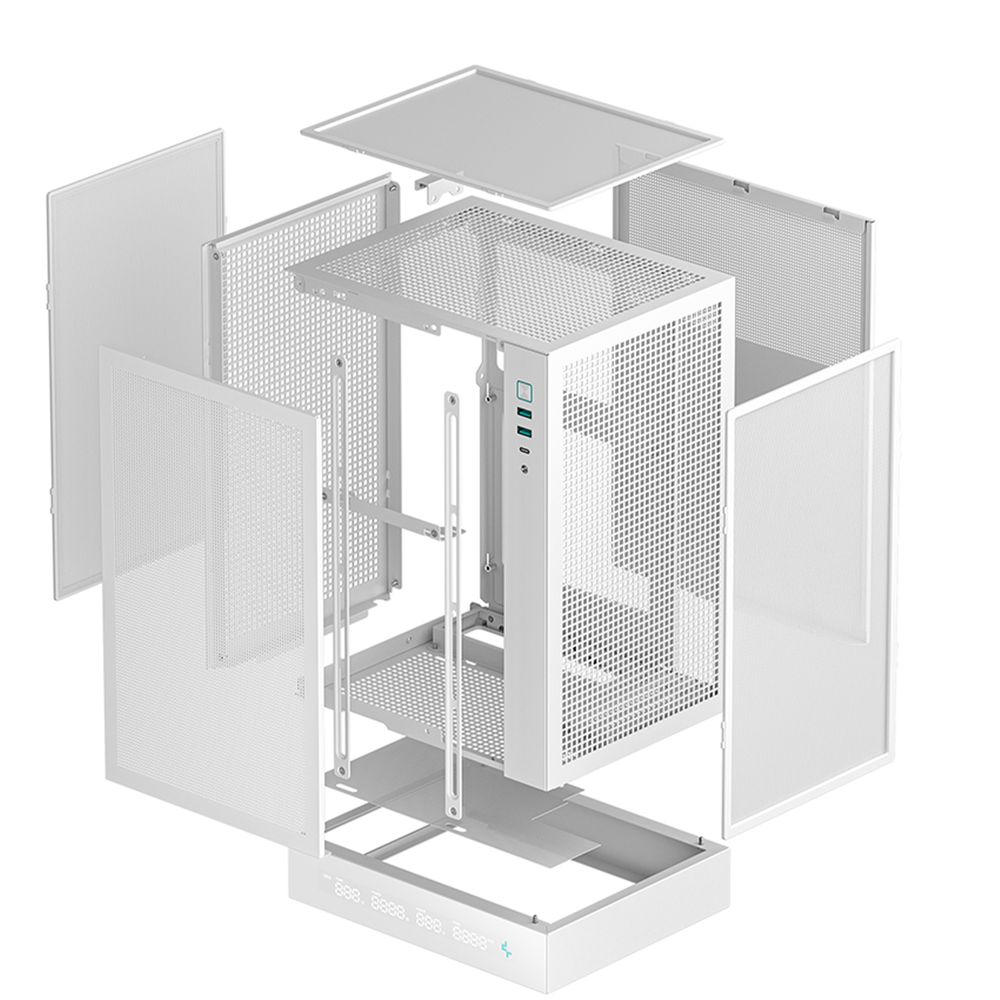

• Materials: ABS + SPCC steel, mesh panels all around

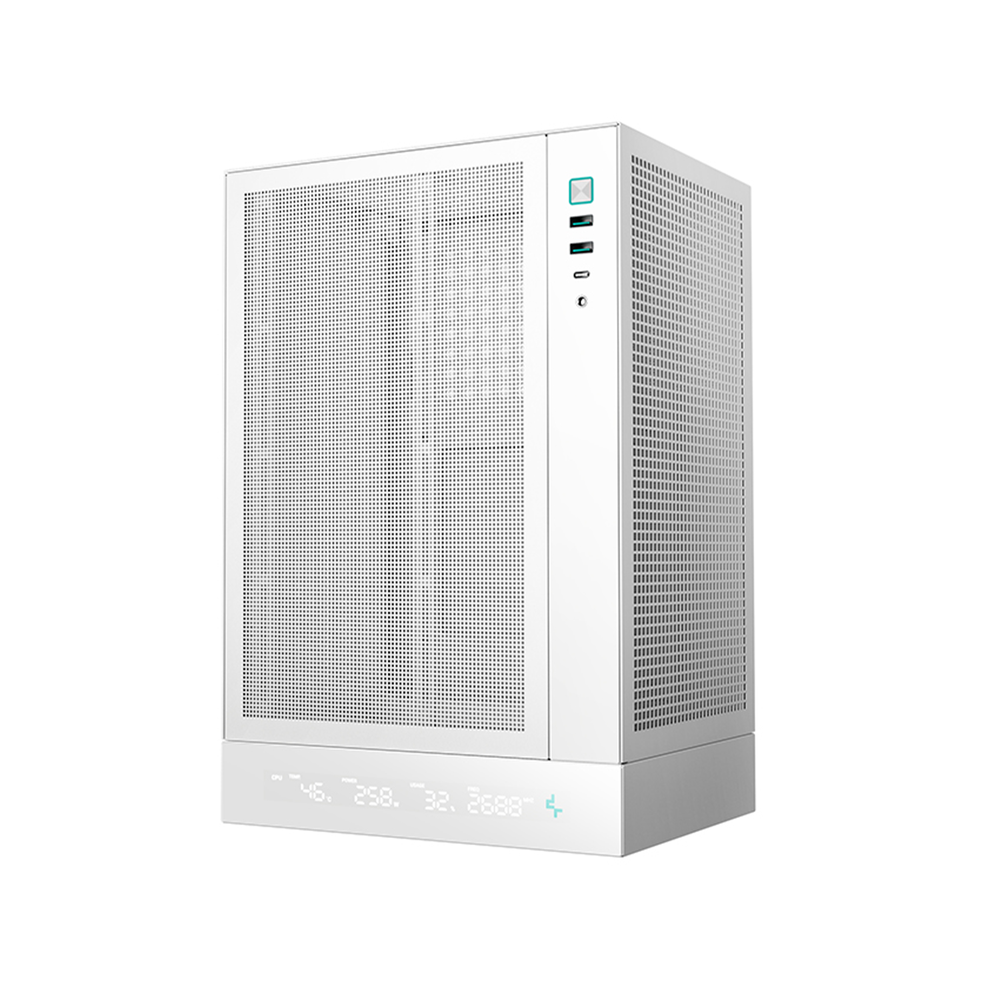

• Special feature: Digital base with real‑time CPU/GPU/PSU temps, power, and fan data, cycling through multiple data points automatically

• Color options: White (this listing); black CH170 DIGITAL sold separately

• Warranty: Typically 1–3 years depending on seller (India listings often show 1–2 years; match your policy)

About the DEEPCOOL CH170 DIGITAL White
The CH170 DIGITAL White is ideal for premium white SFF café builds where you want super‑compact vertical systems, strong airflow, and a built‑in monitor screen so staff can check temps and power at a glance. It also suits home ITX enthusiasts who want a stylish white tower that fits big GPUs, a 240 mm AIO or tall air cooler, and standard ATX/SFX PSUs without dealing with riser cables.
