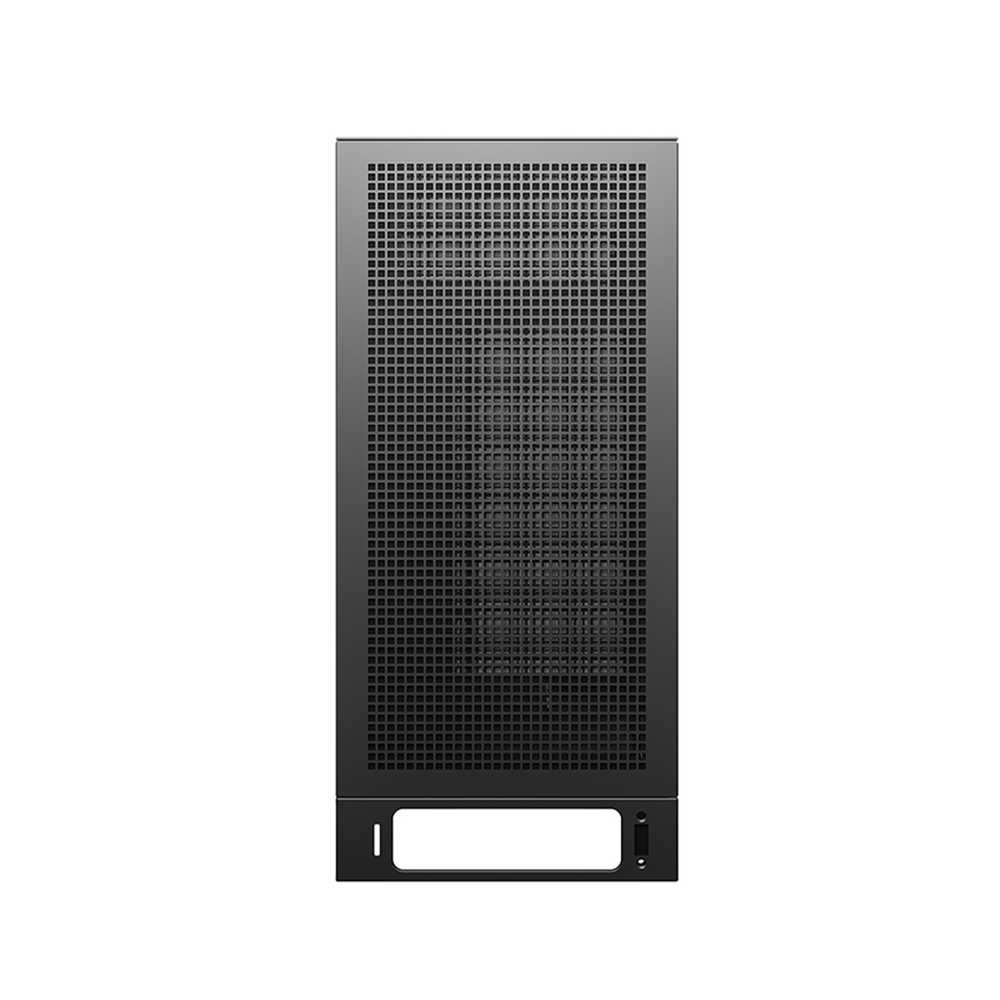

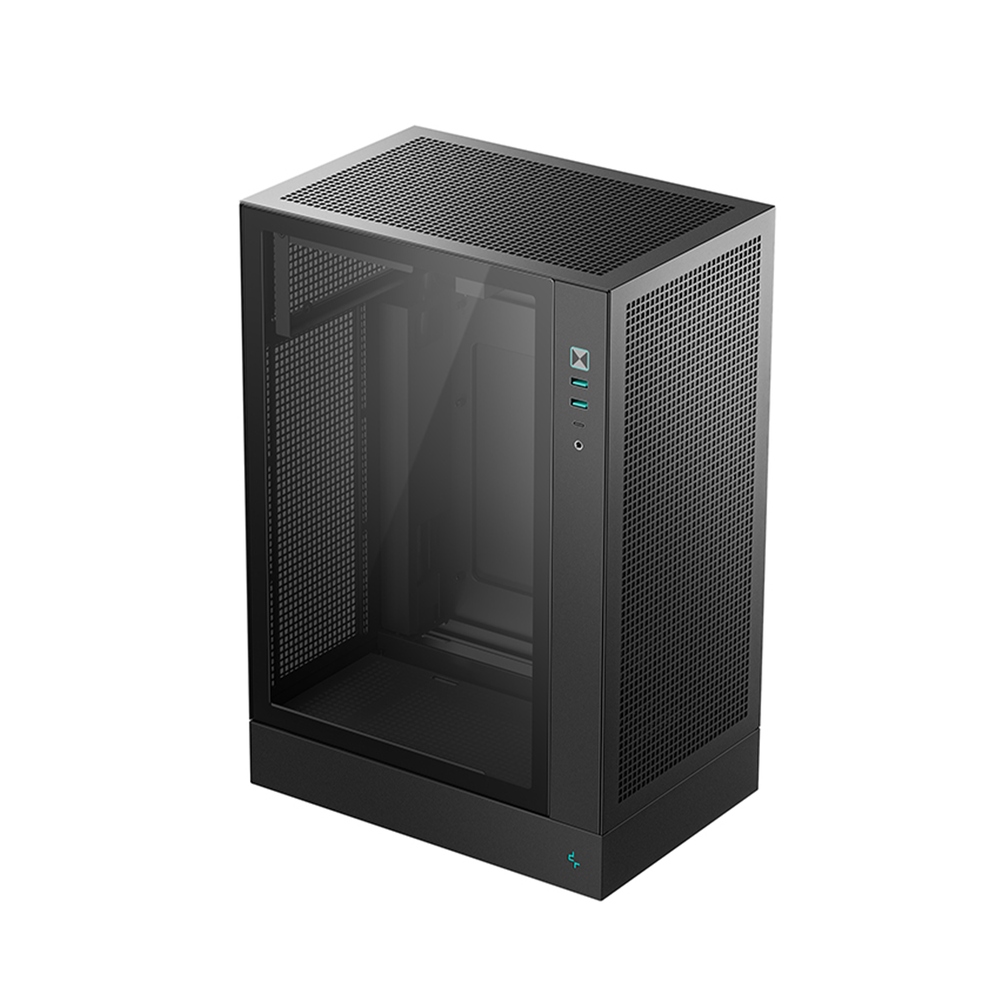

DEEPCOOL CH170 PLUS Black Vertical mATX Compact Case

Title

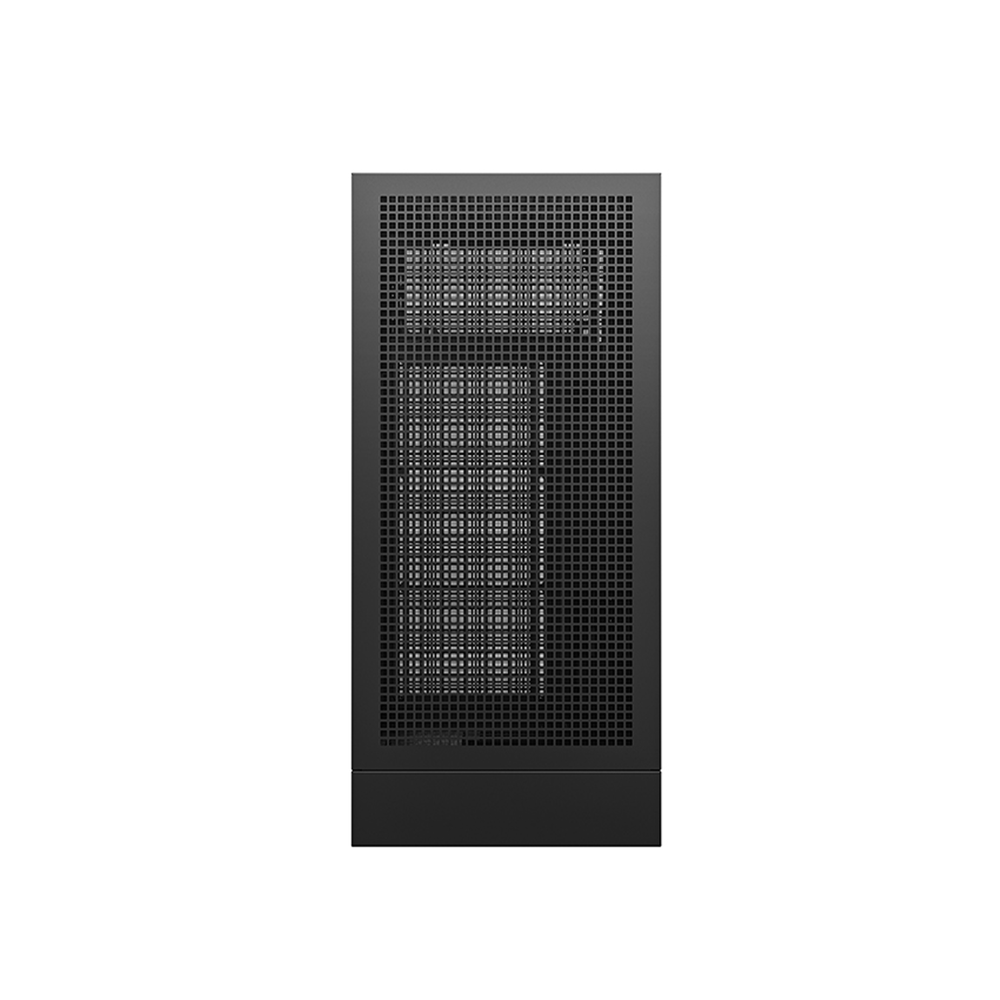

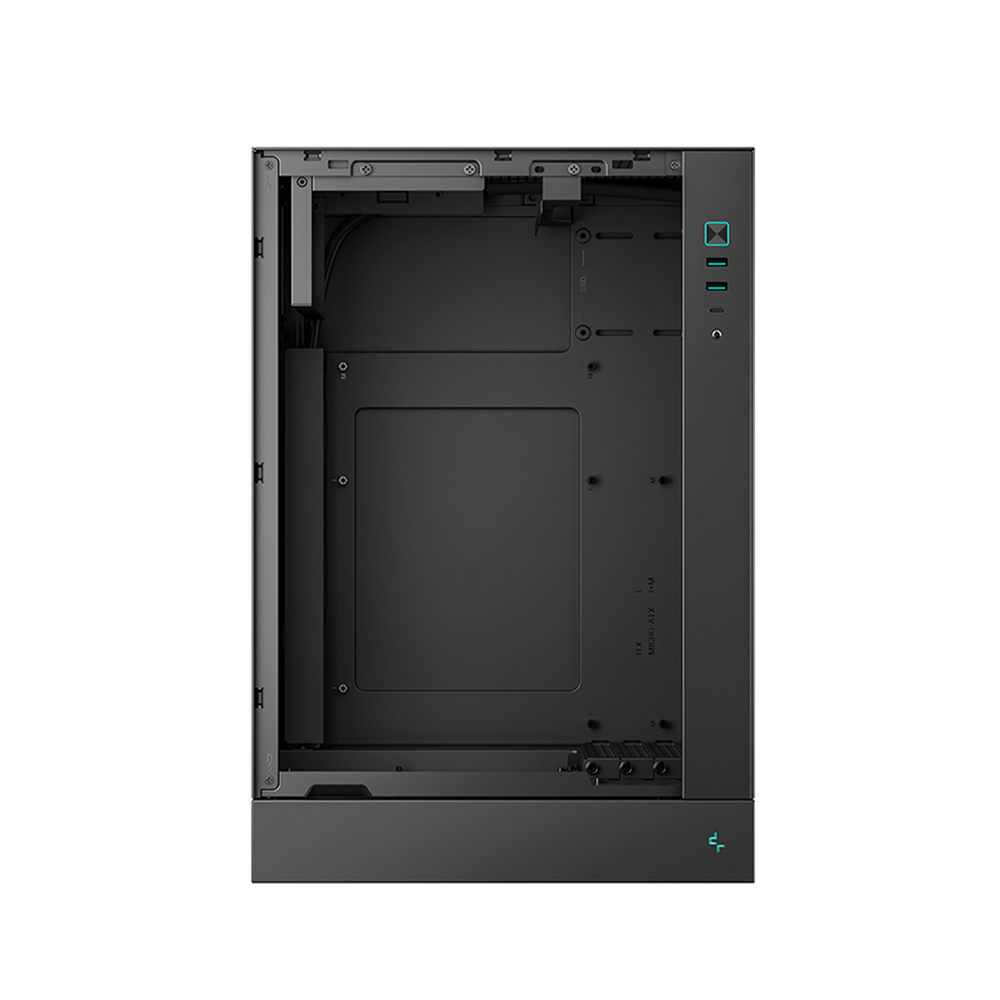

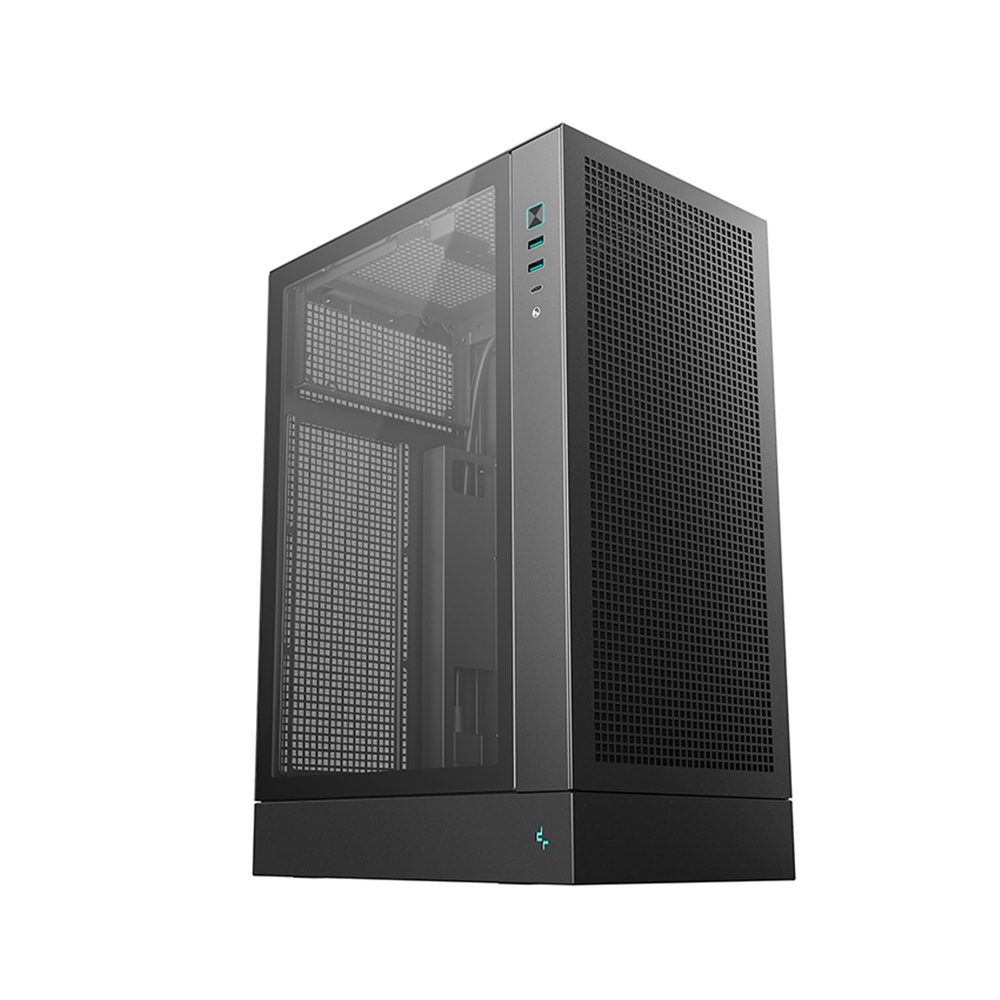

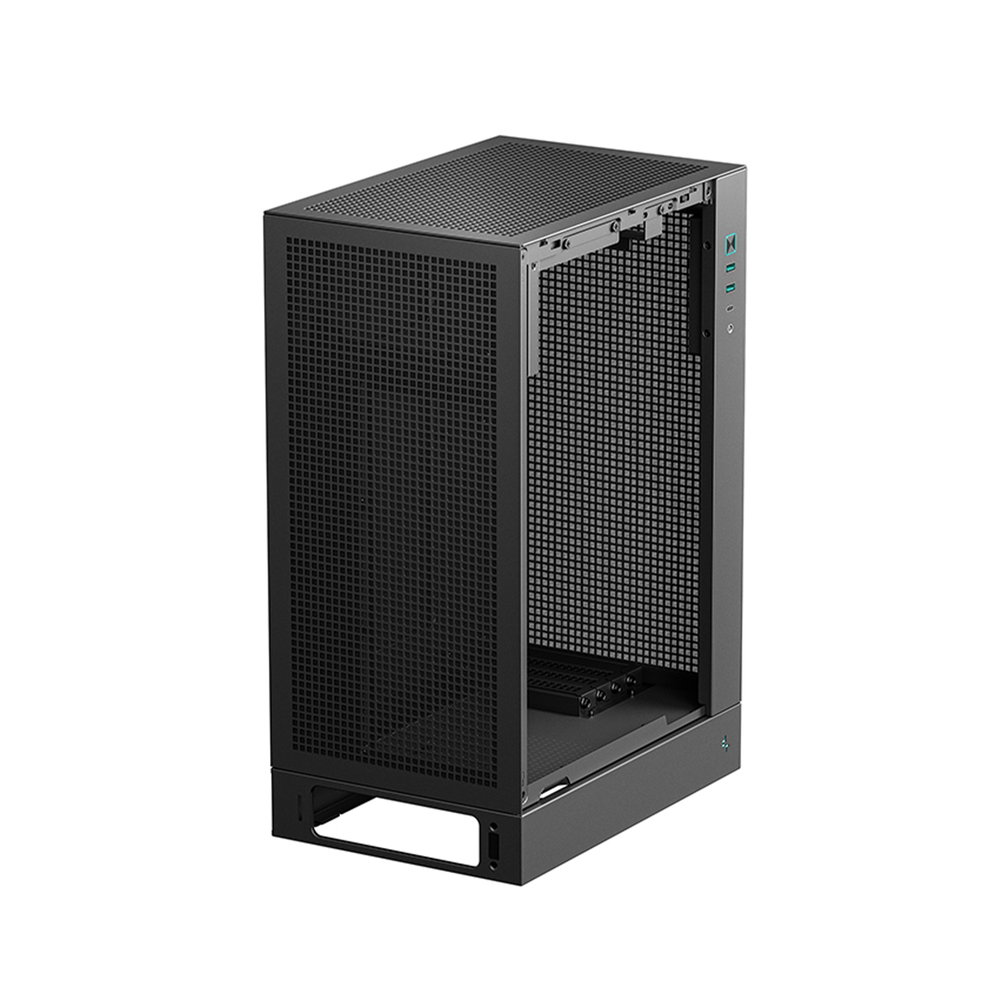

DEEPCOOL CH170 PLUS Black Vertical mATX Compact Case

Description
The DeepCool CH170 PLUS Black is a vertical Micro‑ATX case built for compact café and home rigs that still need proper airflow, full‑size GPUs, and standard components. Mesh on multiple sides plus support for a 240 mm side radiator and 164 mm air coolers lets you run solid gaming configs in tight rows without cooking the systems. With room for GPUs up to 342 mm and ATX PSUs up to 140 mm, it suits café builds that want small footprints on the table but don’t want the headache of exotic SFF parts.

Key Specifications

• Model: DeepCool CH170 PLUS Black

• Case type: Vertical Micro‑ATX compact mini‑tower

• Motherboard support: Micro‑ATX, Mini‑ITX

• GPU clearance: Up to 342 mm

• CPU cooler clearance: Up to 164 mm

• PSU support: ATX PS2, max length 140 mm

• Pre‑installed fans: None

• Fan support:

  • Side: 2 × 120 mm

  • Bottom: 1 × 120 mm

  • Rear / top area: up to 1 × 120 mm (varies slightly by listing; total fan count up to 4)

• Radiator / AIO support: Side 120 / 240 mm; Bottom 120 mm

• Drive support: 1 × 3.5" HDD + 1 × 2.5" SSD + 1 extra shared 2.5" position (varies by tray use)

• Expansion slots: 4

• Front I/O: 2 × USB 3.0, 1 × USB Gen2 Type‑C, 1 × audio/mic combo jack

• Dimensions: 290 × 195 × 424.5 mm (L × W × H)

• Net weight: Approx. 4.4 kg

• Materials: ABS, SPCC steel, tempered glass

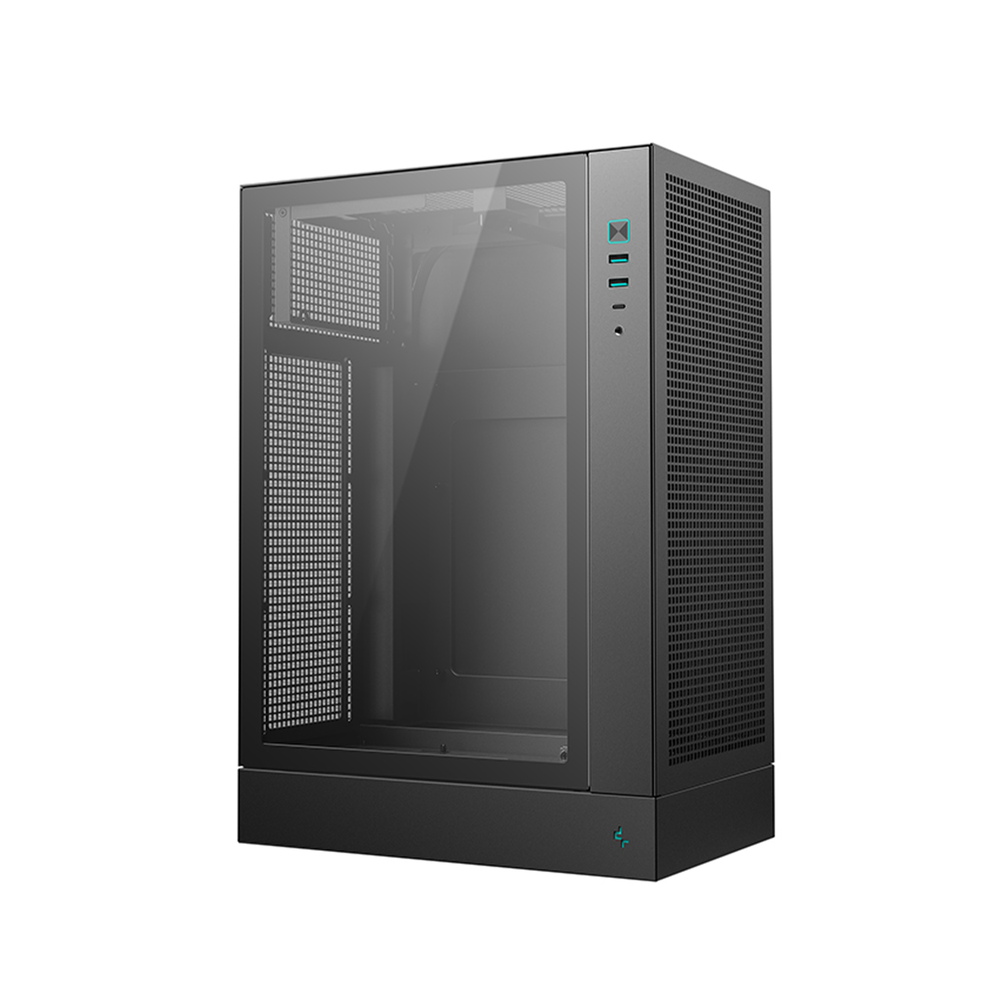

• Panels: Tempered‑glass side panel, high‑airflow mesh elsewhere

• Dust filters: Top, bottom, front, rear (multi‑side filtering to cut café dust buildup)

• Color options: Black (this listing); white CH170 PLUS WH sold separately

• Warranty: Typically 1 year from most retailers (match your store policy)

About the DEEPCOOL CH170 PLUS Black
The CH170 PLUS Black is a good fit for café and LAN setups that want small vertical mATX systems with full‑length GPUs, 240 mm AIO support, and easy dust control via filters on all sides. It also works well for home builders chasing a compact, console‑style tower that still takes Micro‑ATX boards, standard ATX PSUs, and proper air or liquid cooling.
