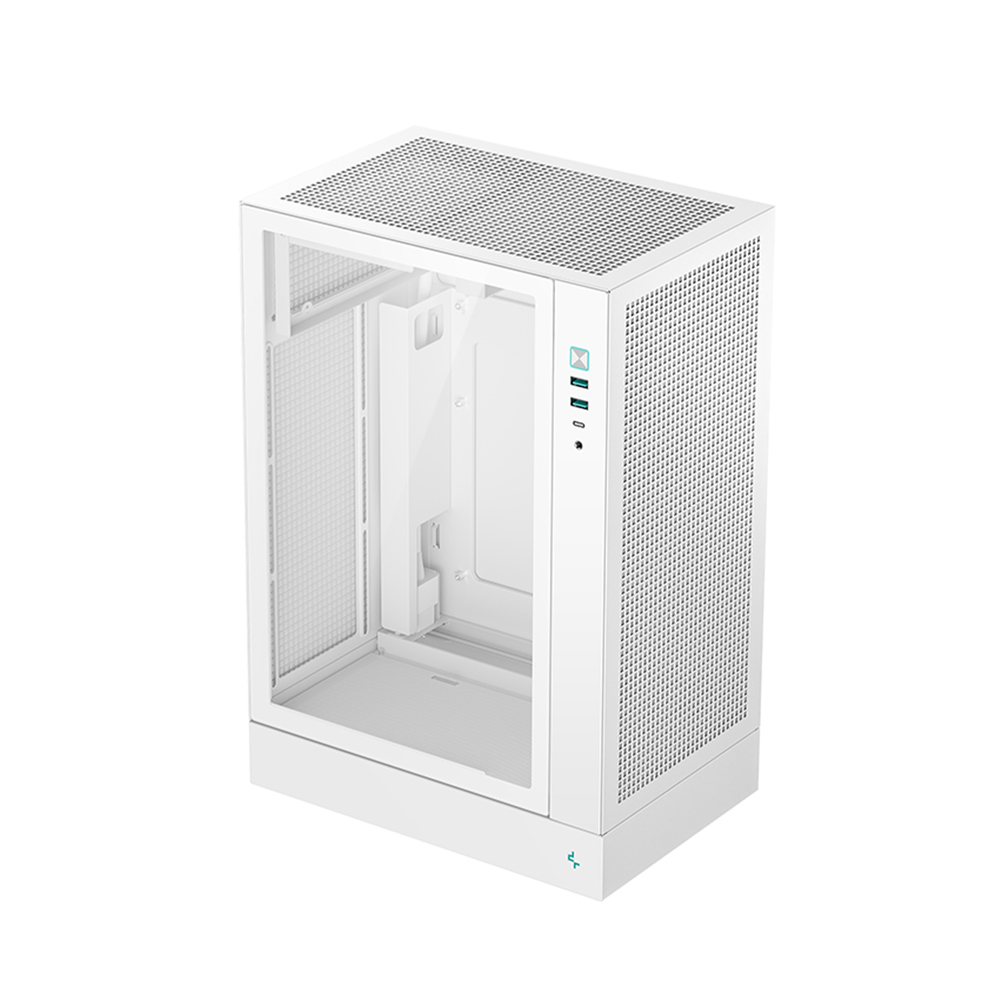

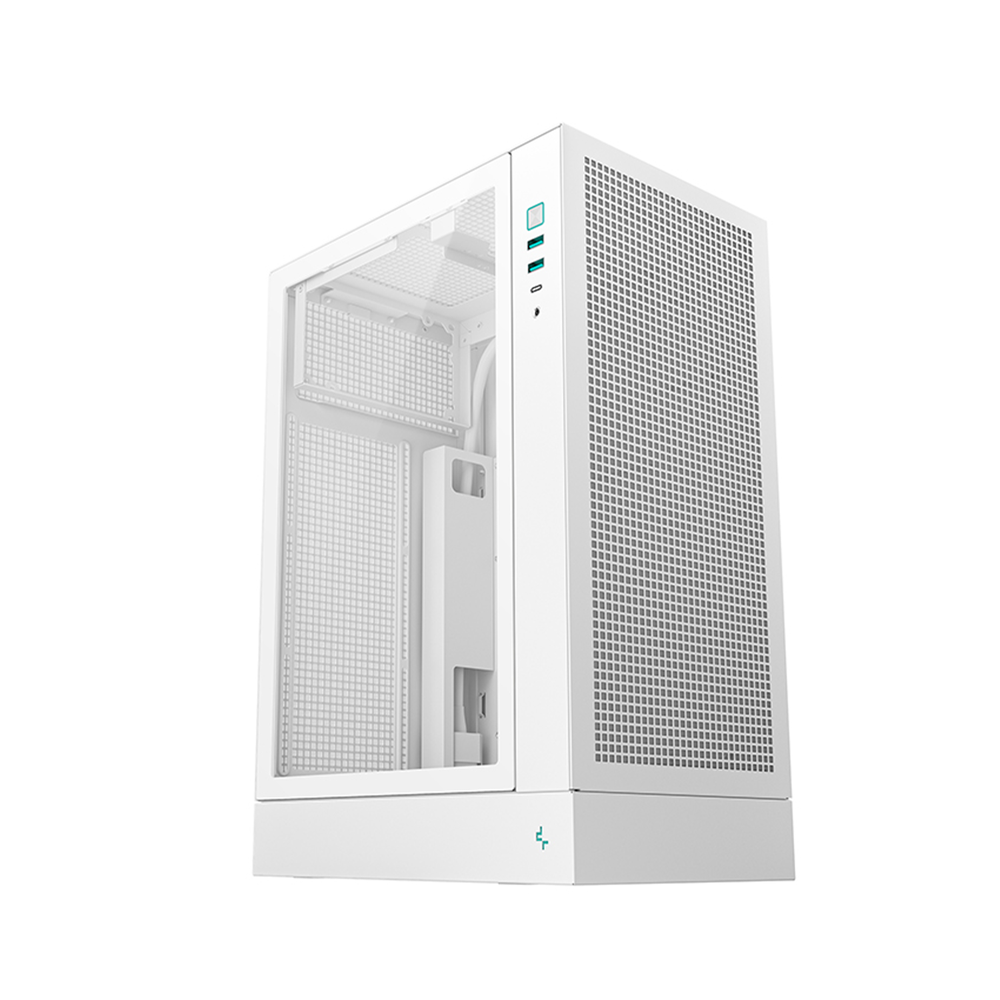

DEEPCOOL CH170 PLUS White Vertical mATX Compact Case

The DeepCool CH170 PLUS White is a vertical Micro‑ATX case built for compact café and home rigs that want a bright, clean look without giving up full‑length GPU and standard PSU support. Mesh panels on multiple sides plus support for a 240 mm side radiator and 164 mm air coolers keep systems cool even when packed close together, while the small 290 × 195 mm footprint frees up desk or café table space. With GPU clearance up to 342 mm and support for ATX, SFX, and SFX‑L PSUs, it fits serious mid‑range and high‑end builds without the hassle of exotic SFF hardware.

Key Specifications

• Model: DeepCool CH170 PLUS WH (White, P/N R‑CH170‑WHNGM0‑G)

• Case type: Vertical Micro‑ATX compact mini‑tower

• Motherboard support: Mini‑ITX, Micro‑ATX

• GPU length limit: Up to 342 mm (around 328 mm with top 120/140 mm fan installed)

• CPU cooler height limit: Up to 164 mm

• PSU support: ATX PS2 (maximum length 140 mm), SFX, SFX‑L

• Pre‑installed fans: None

• Fan support:

  • Top: 1 × 120 mm or 1 × 140 mm (140 mm only with SFX PSU)

  • Side: 2 × 120 mm

  • Bottom: 1 × 120 mm

• Radiator / AIO support: Side 120 / 240 mm; Bottom 120 mm

• Drive support: 1 × 3.5" HDD + 1 + 1 × 2.5" SSD (1 dedicated + 1 shared position)

• Expansion slots: 4

• Front I/O: 2 × USB 3.0, 1 × USB Gen2 Type‑C, 1 × audio/mic combo jack

• Product dimensions: 290 × 195 × 424.5 mm (L × W × H)

• Net weight: 4.4 kg

• Materials: ABS, SPCC steel, tempered glass

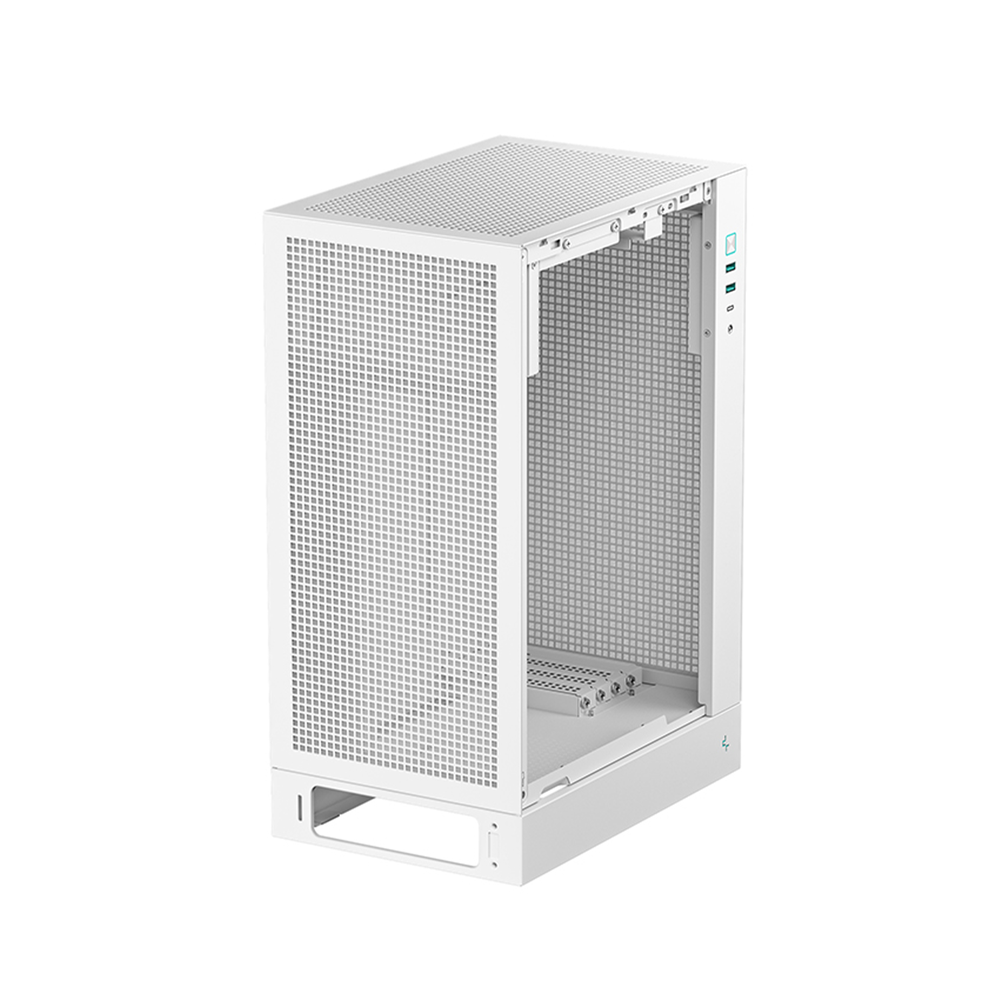

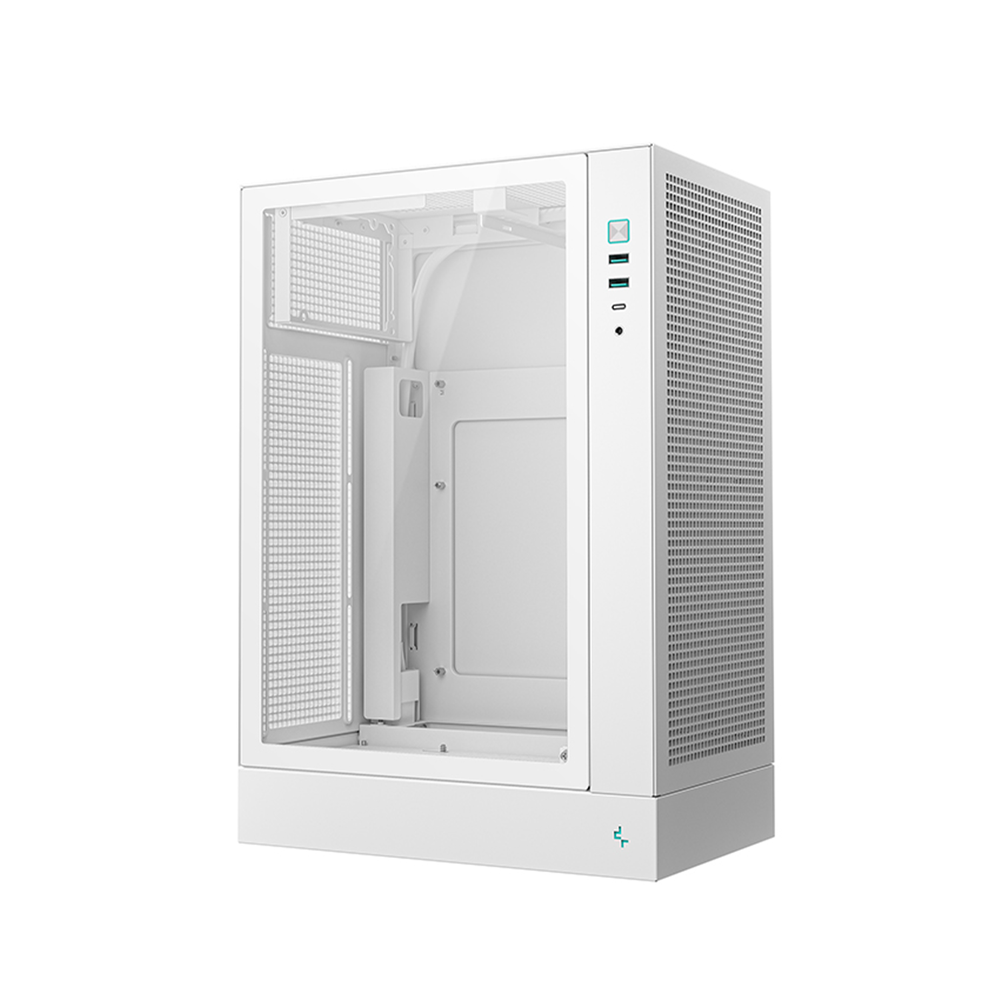

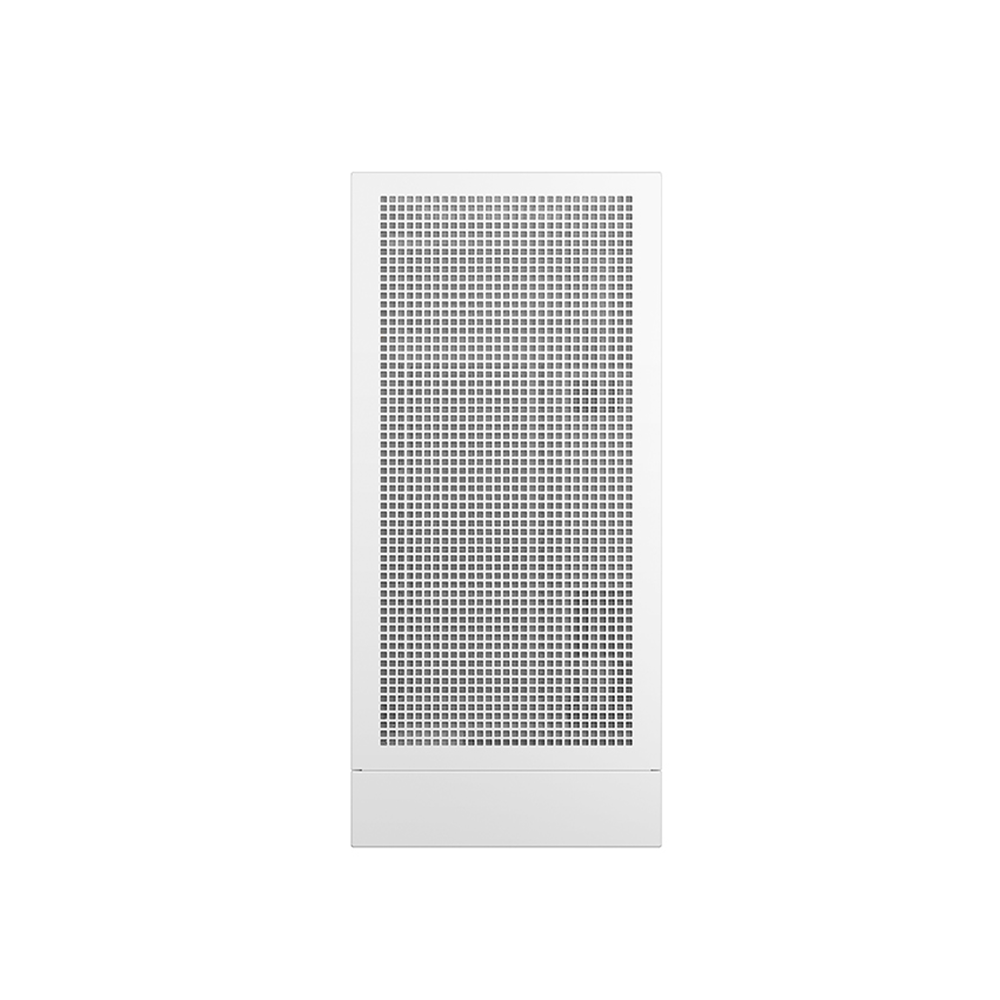

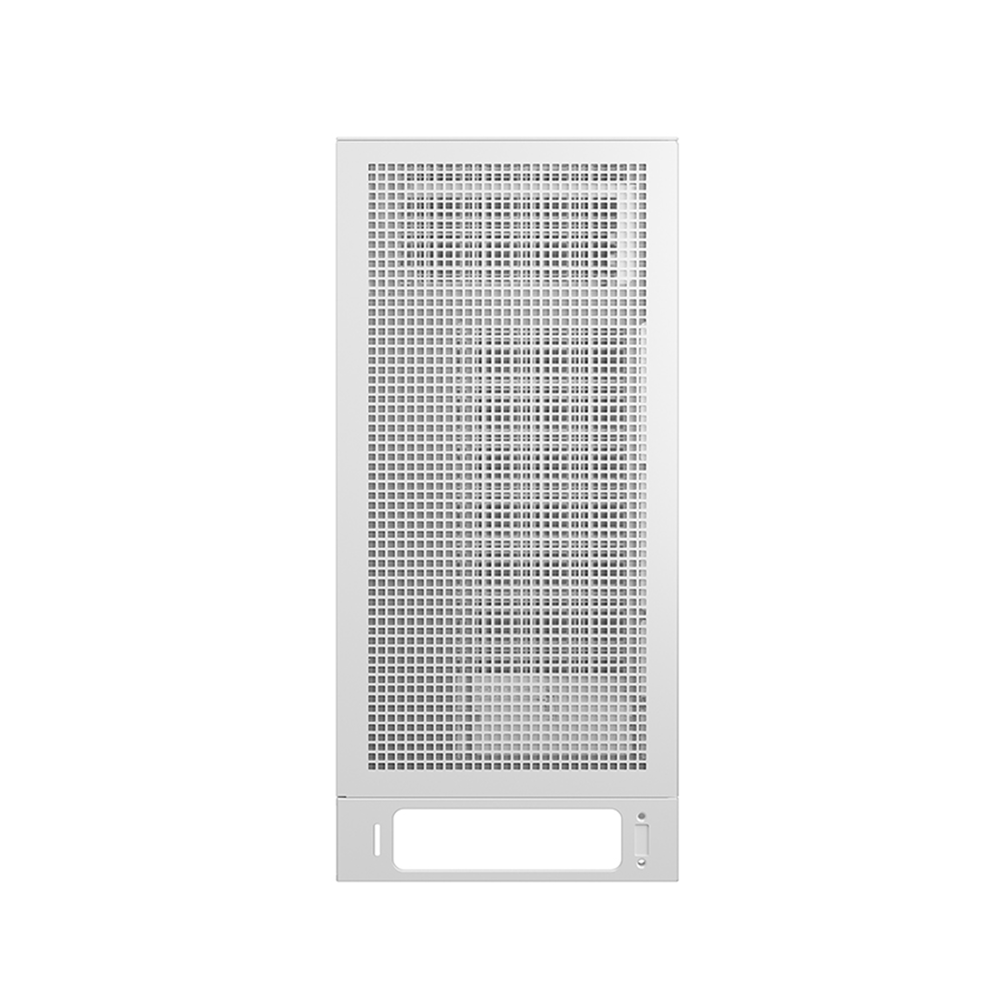

• Panels: Tempered‑glass side panel with high‑airflow mesh elsewhere

• Dust filters: Top, bottom, and other intake areas (multi‑side filtering per DeepCool design, reduces café dust buildup)

• Color options: White (this listing); black CH170 PLUS sold separately

• Warranty: Typically 2 years from many retailers (match your store policy)

About the DEEPCOOL CH170 PLUS White
The CH170 PLUS White works well for café and LAN setups that want slim vertical systems with consistent white aesthetics, full‑length GPUs, and easy dust management through multiple filters. It also suits home builders chasing a compact, console‑style white tower that still supports Micro‑ATX boards, 240 mm AIOs, and standard ATX/SFX PSUs.
