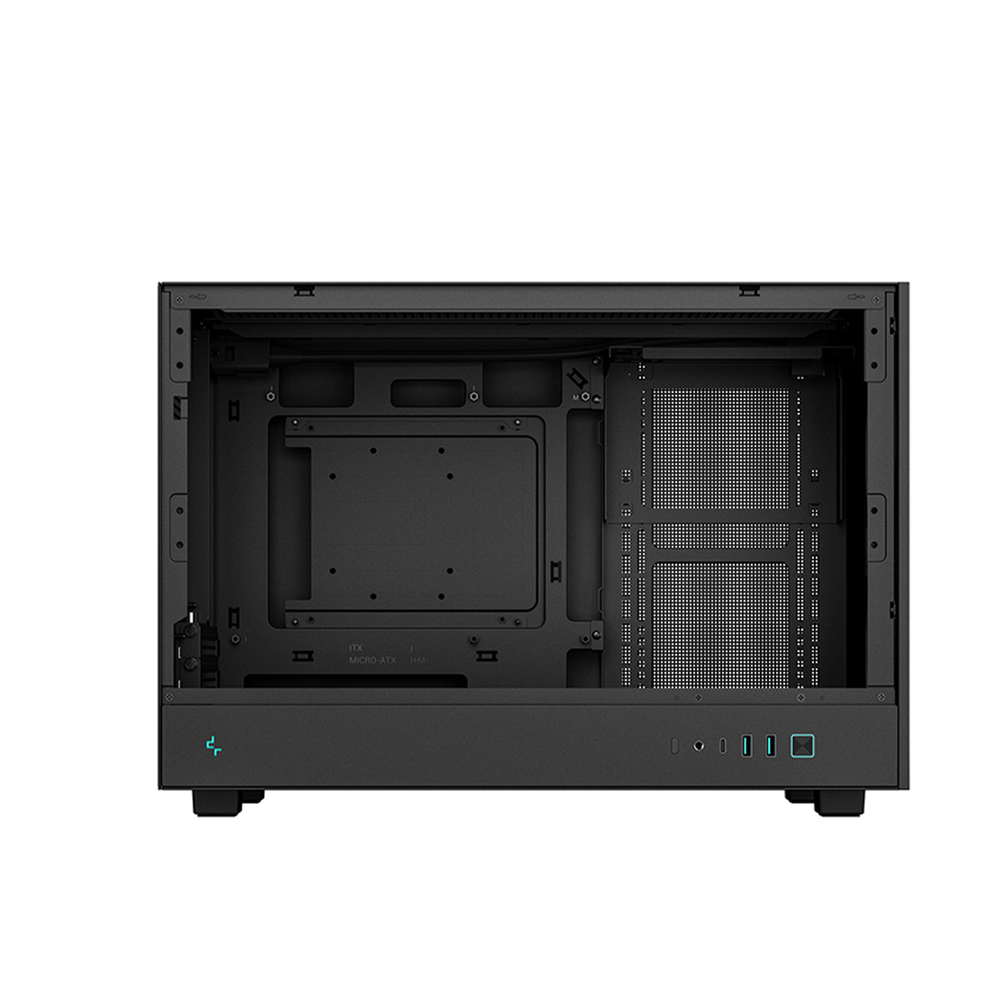

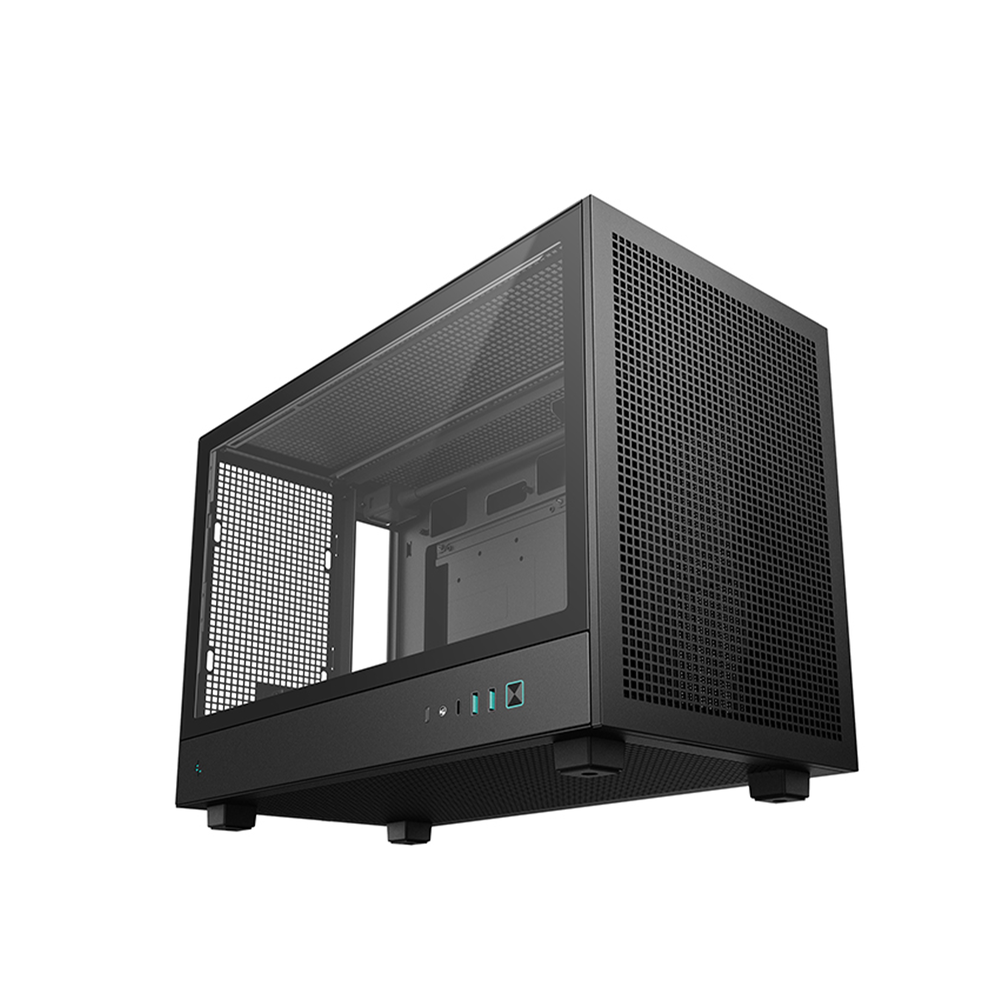

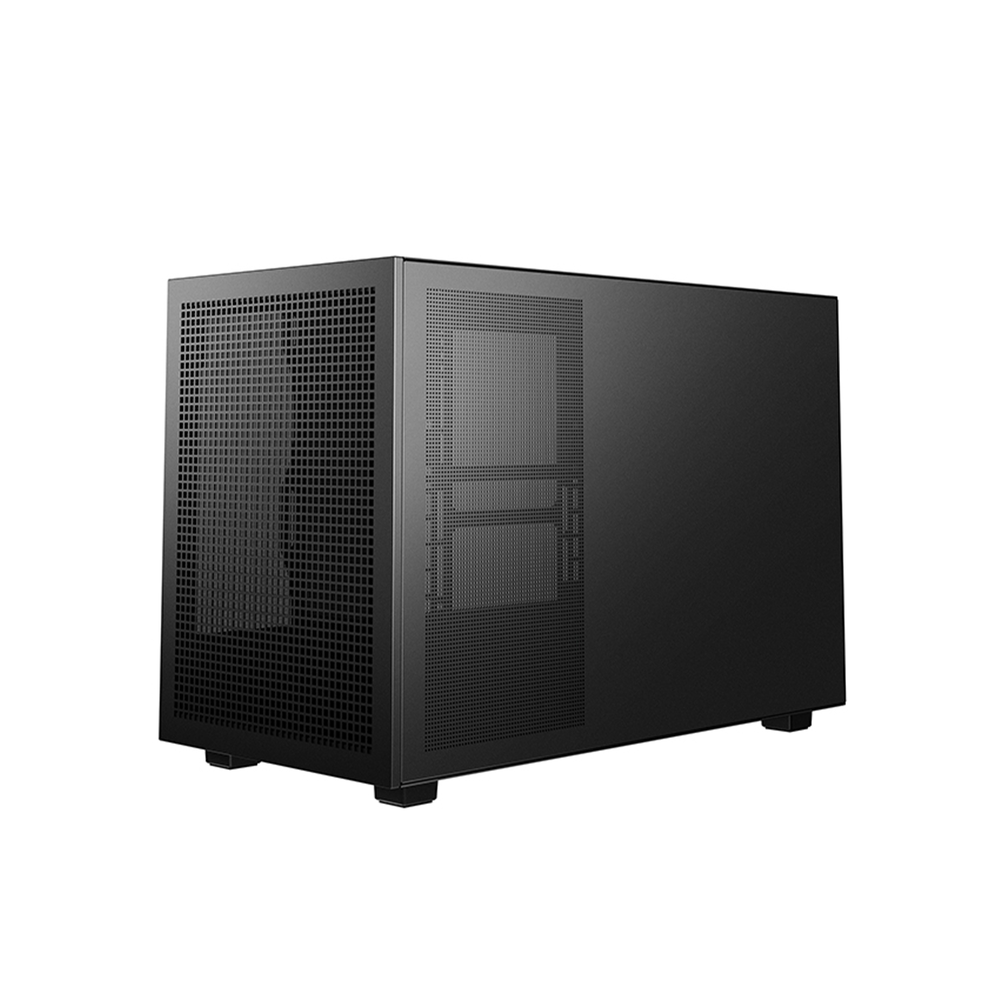

DEEPCOOL CH260 Black High‑Airflow M‑ATX Compact Case

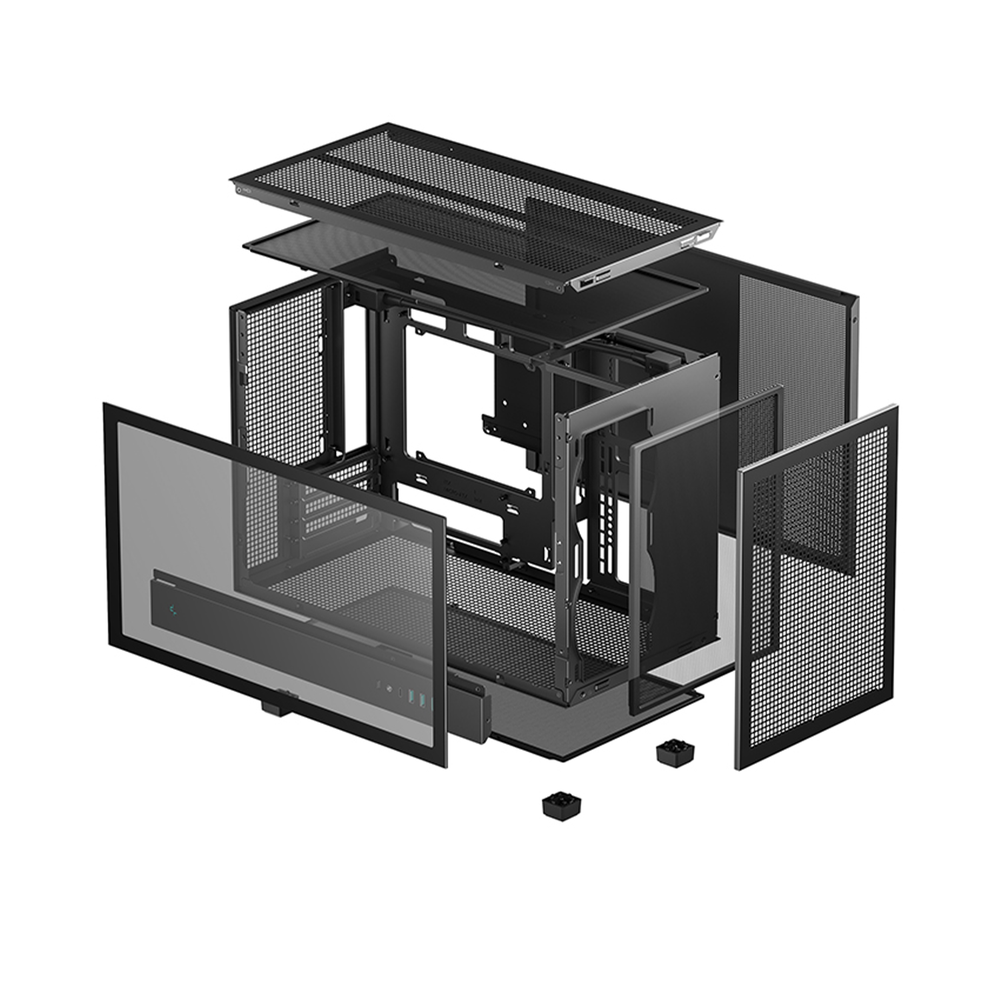

The DeepCool CH260 Black is a compact Micro‑ATX case built as a scaled‑up CH160 with full‑mesh panels, making it ideal for café rows or home setups that need strong airflow in a small footprint. Despite its size, it supports full‑length GPUs up to 388 mm (or 413 mm with no front fans) and ATX PSUs up to 150 mm, so you can run serious mid‑range and high‑end configs without moving to a big tower. Tool‑free tempered glass, removable PSU bracket, and top dust filter make installs and maintenance quick for staff handling multiple café machines.

Key Specifications

• Model: DeepCool CH260 Black (R‑CH260‑BKNGM0‑G‑1)

• Form factor: M‑ATX mini tower, high‑airflow compact design

• Motherboard support: Micro‑ATX, Mini‑ITX, plus Micro‑ATX rear‑connector boards

• GPU length limit: 388 mm standard, up to 413 mm with no front fans installed

• CPU cooler height limit: 174 mm

• PSU support: ATX PS2, maximum length 150 mm, with removable bracket for easier install/cable management

• Pre‑installed fans: None

• Fan support:

  • Front: 2 × 120 mm

  • Top: 3 × 120 mm or 2 × 140 mm

  • Rear: 1 × 120 mm

• Radiator / AIO support:

  • Top: 120 / 140 / 240 / 280 / 360 mm

  • Rear: 120 mm

  • Front / bottom: not supported for radiators

• Drive support: 1 × 3.5" HDD + 1 × 2.5" SSD

• Expansion slots: 4

• Front I/O: 2 × USB 3.0, 1 × USB Gen2 Type‑C, 1 × audio/mic combo jack, power button

• Dimensions: 438 × 225 × 312.5 mm (L × W × H)

• Net weight: Approx. 5.3–6.0 kg (list 5.3 kg if you follow DeepCool spec, 6 kg if using some retailer sheets)

• Materials: ABS, SPCC steel, tempered glass

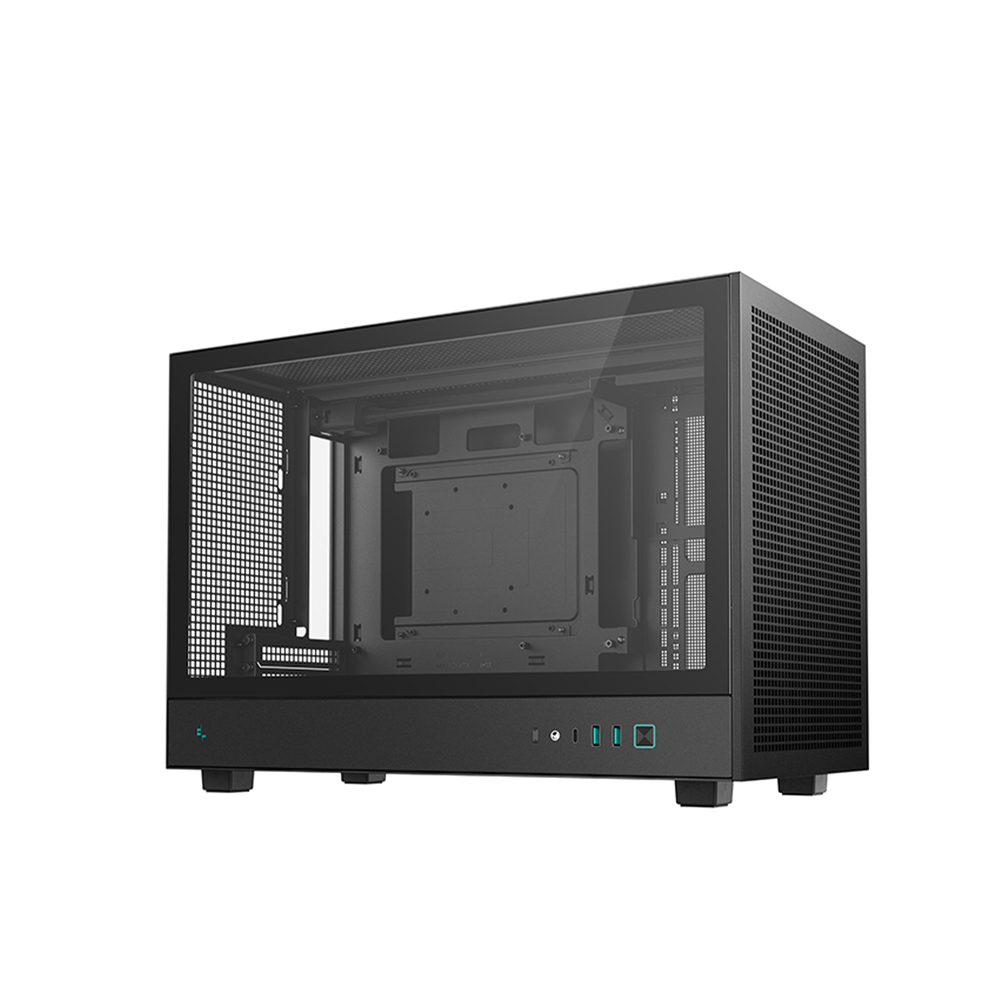

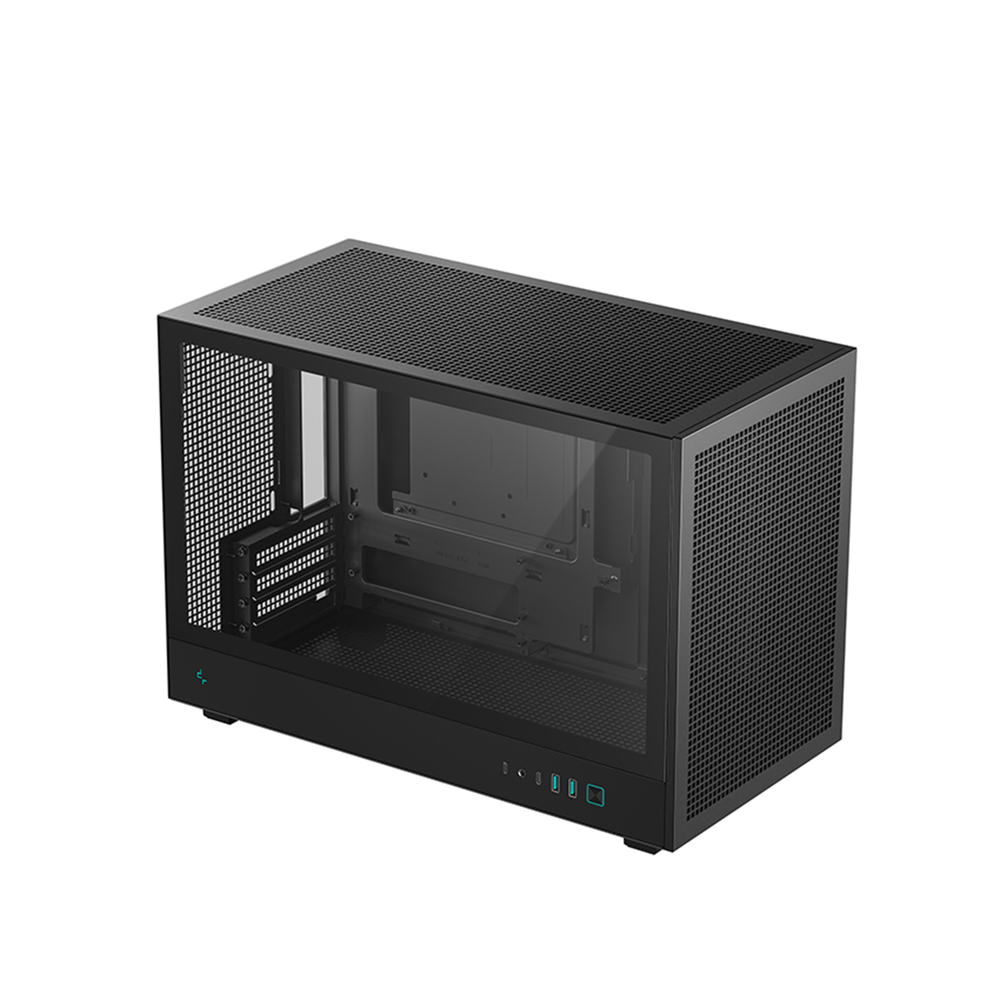

• Panels: Curved front tempered‑glass side panel with wraparound steel mesh for airflow

• Dust filters: Top (magnetic) and bottom/PSU area; mesh front helps block larger dust

• Color options: Black (this listing); white CH260 variant sold separately

• Warranty: Typically 1 year from most India retailers (match your policy)

About the DEEPCOOL CH260 Black
The CH260 Black is a strong choice for café and budget‑to‑mid gaming builds that need mATX support, long GPUs, and easy cleaning, without paying fish‑tank/panoramic premiums. It also fits home users who want “small outside, full‑size inside” with 360 mm top radiator support and standard ATX PSUs, while still getting proper airflow from the full‑mesh design.
