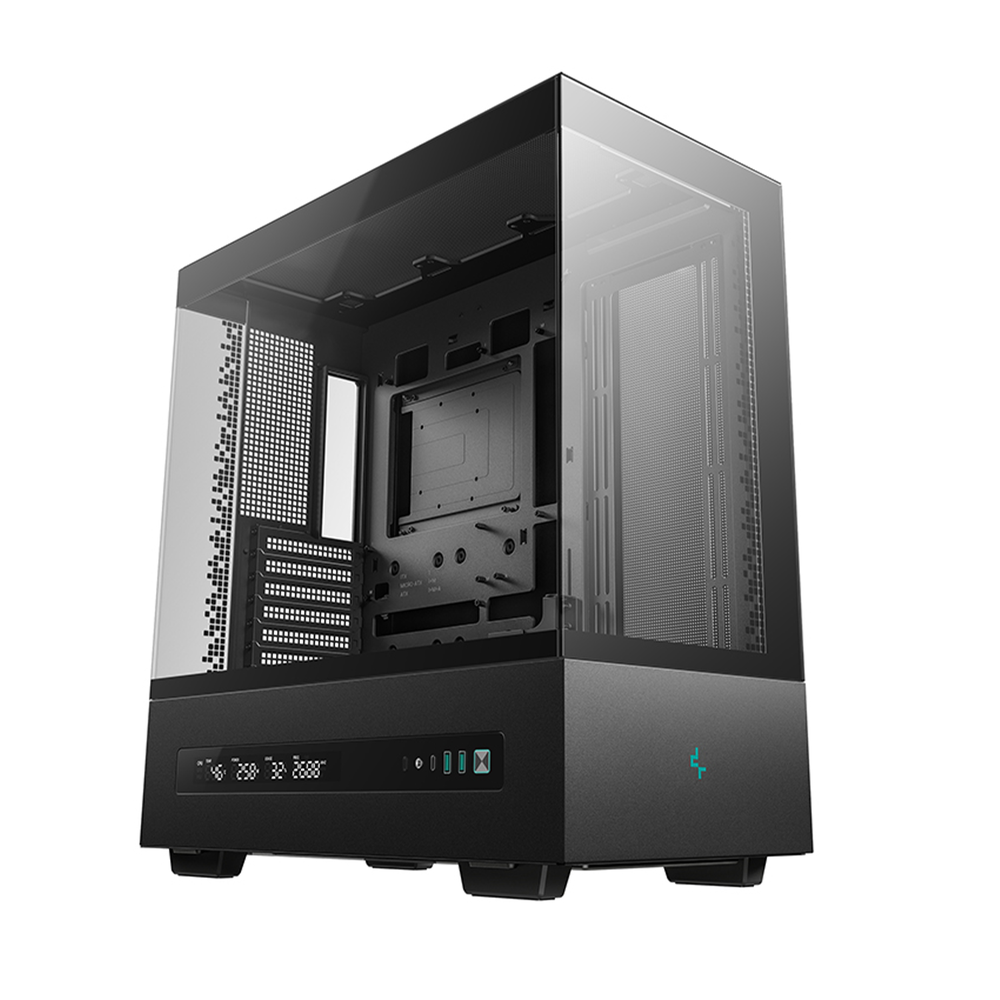

DEEPCOOL CH690 Digital Black ATX Mid‑Tower Case with Display

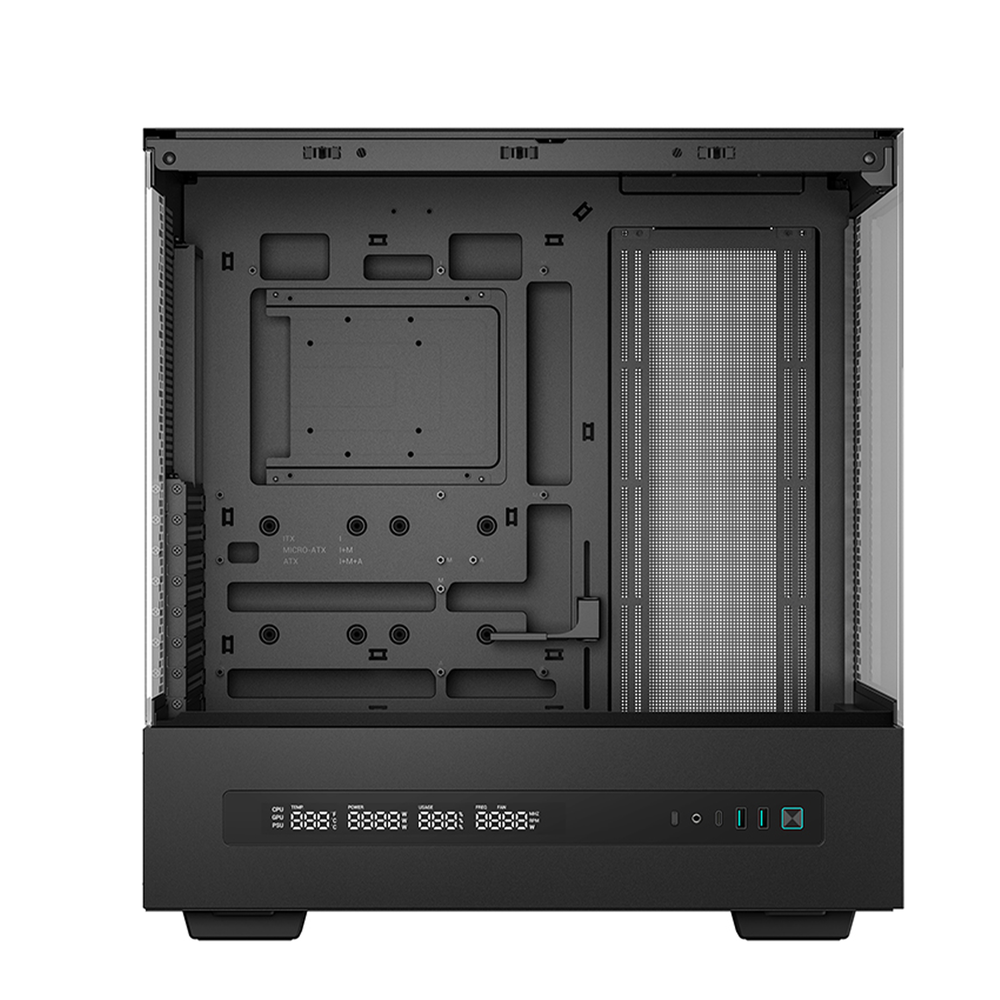

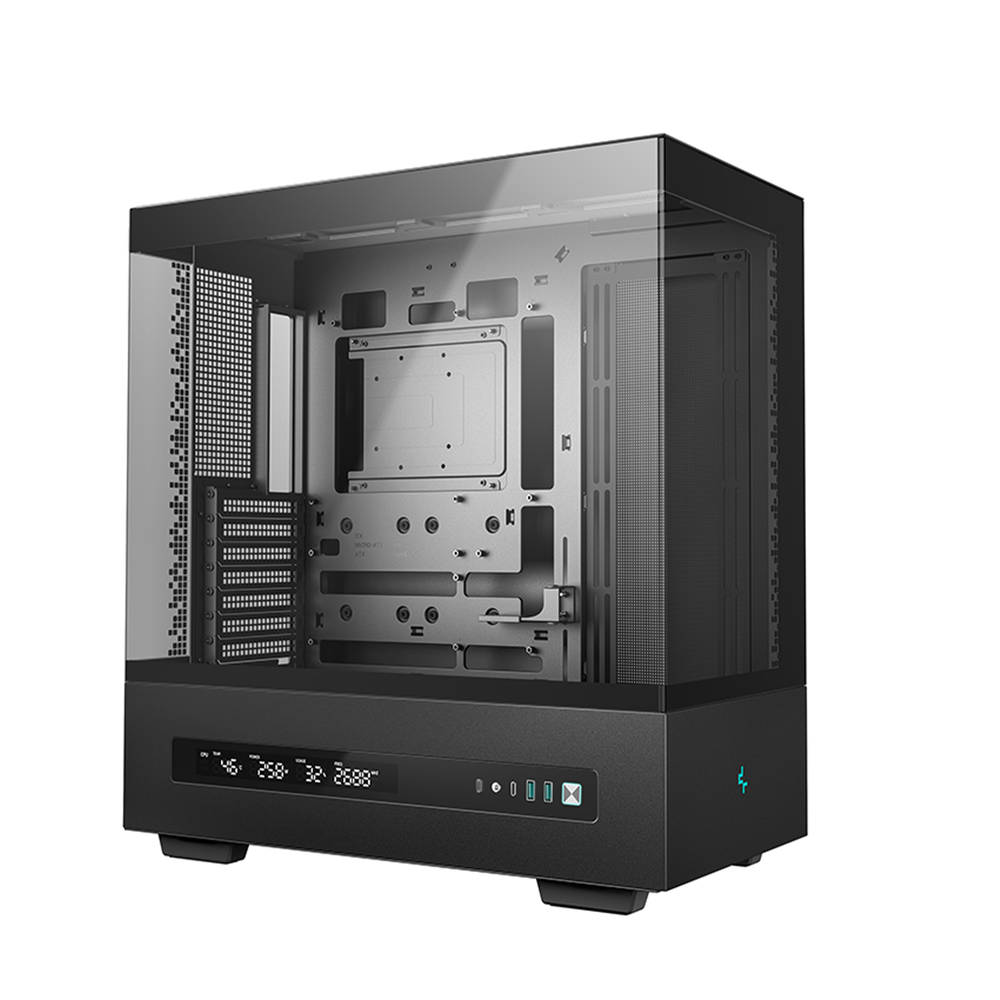

The DeepCool CH690 Digital Black is a panoramic single‑chamber ATX case with glass on the front, side, and even rear, built for high‑end café and showcase rigs where the whole build is meant to be seen. An integrated digital display on the front shroud shows live CPU, GPU, and PSU temps, usage, power, and fan data, so staff can spot overheating or power issues at a glance without opening any software. With support for 420 mm top radiators, 450 mm GPUs, and 180 mm PSUs, plus mesh over the PSU shroud for vertical airflow, it easily handles flagship GPU + AIO combos in long‑hour café or studio use.

Key Specifications

• Model: DeepCool CH690 DIGITAL Black (P/N R‑CH690‑BKNNA0D‑G‑1)

• Form factor: ATX mid tower, panoramic semi‑glass design

• Motherboard support: Mini‑ITX, Micro‑ATX, ATX, ATX (rear connector), Micro‑ATX (rear connector), some E‑ATX / extended boards per retailers

• GPU length limit: Up to 450 mm

• CPU cooler height limit: Up to 182 mm

• PSU support: ATX PS2, maximum length 180 mm

• Pre‑installed fans: None (you populate your own config)

• Fan support:

  • Top: 3 × 120 mm or 3 × 140 mm

  • Side: 3 × 120 mm or 3 × 140 mm

  • PSU shroud: 3 × 120 mm or 3 × 140 mm

  • Rear: 1 × 120 mm or 1 × 140 mm

• Radiator / AIO support:

  • Top: 120 / 140 / 240 / 280 / 360 / 420 mm

  • Side: 120 / 140 / 240 / 280 mm

  • Bottom (PSU shroud): 120 / 240 / 360 mm

• Drive support: 1 × 3.5" HDD + 2 + 1 × 2.5" SSD (2 dedicated + 1 shared position, varies by tray use)

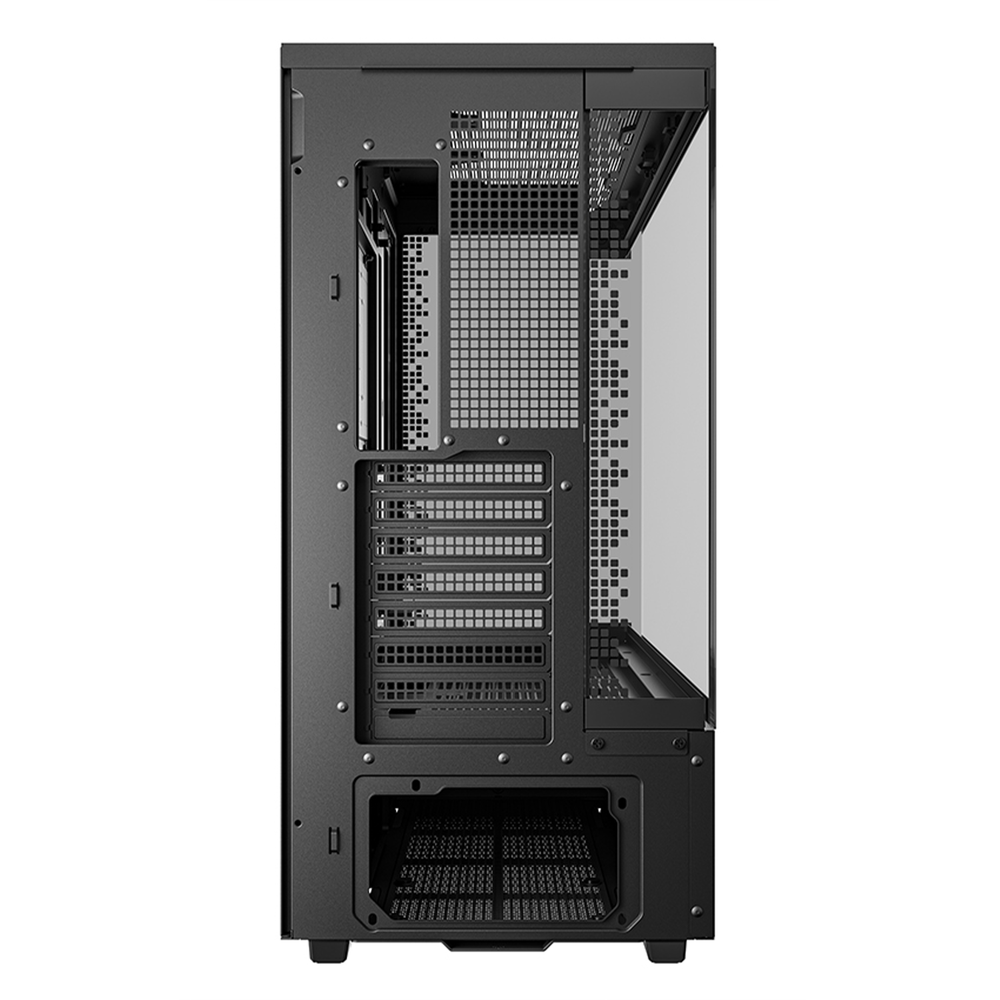

• Expansion slots: 8

• Front I/O: 2 × USB 3.0 Type‑A, 1 × USB 3.2 Gen2 Type‑C, 1 × audio/mic combo jack, power button

• Product dimensions: 481 × 240 × 516 mm (L × W × H)

• Net weight: Approx. 9.8 kg

• Materials: ABS, SPCC steel, tempered glass

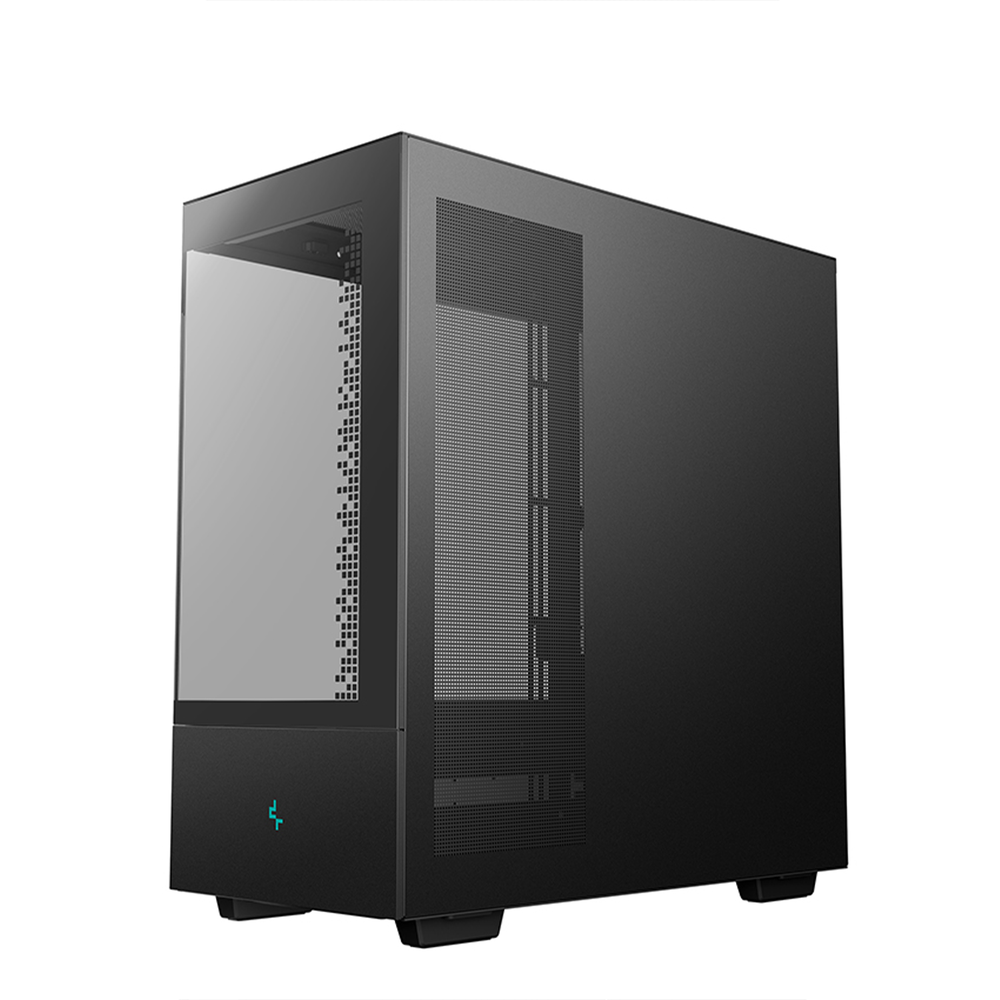

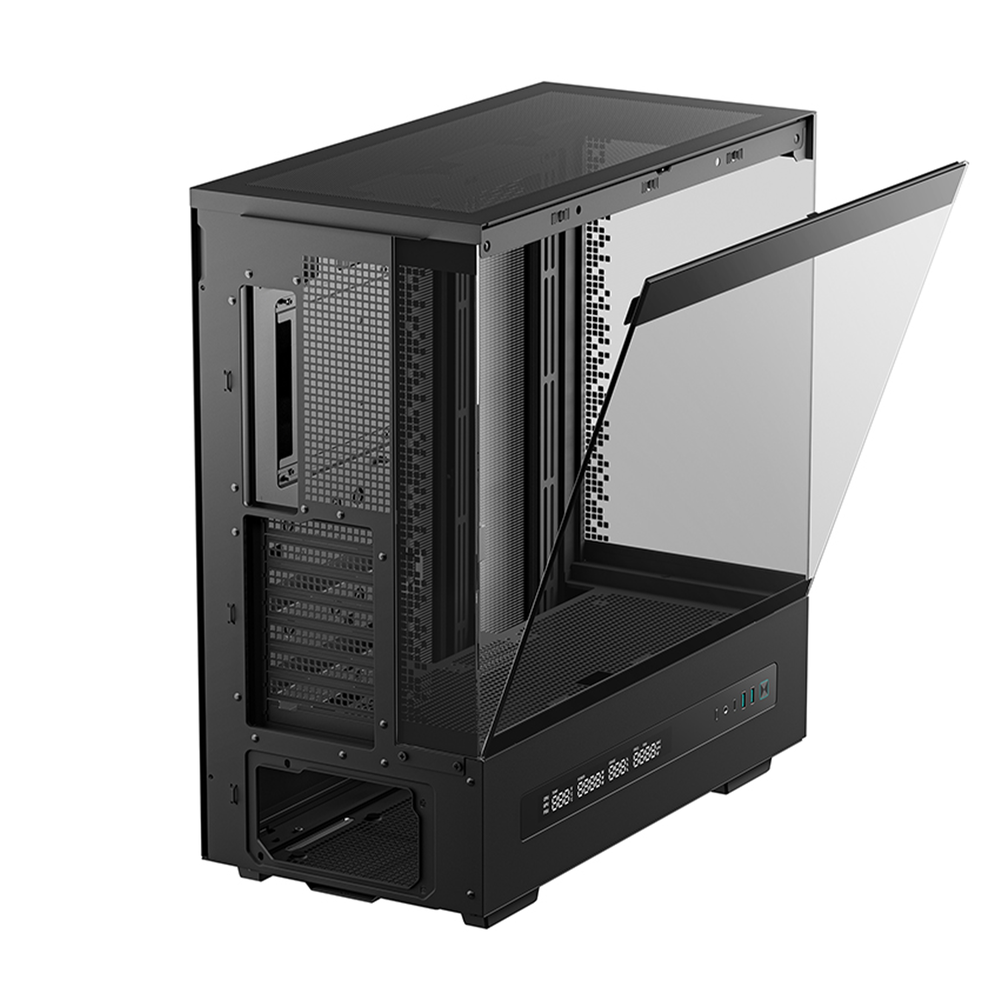

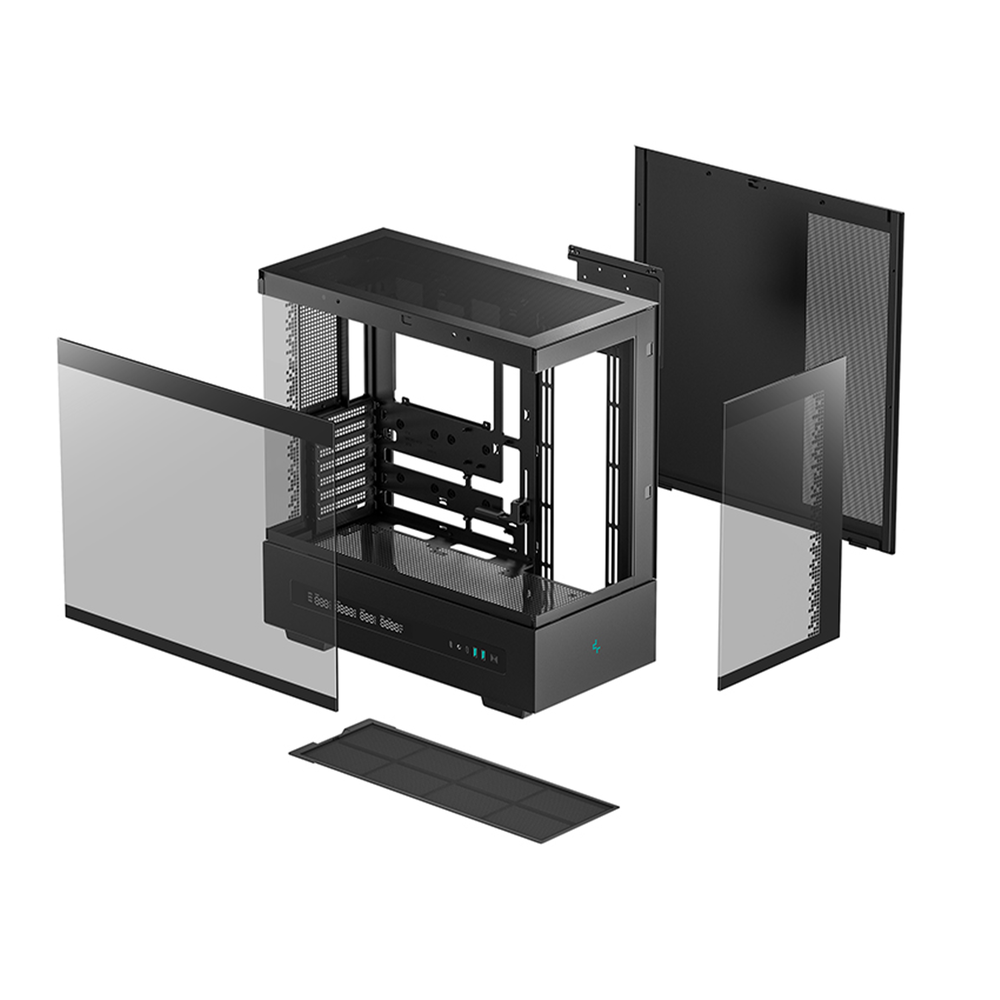

• Panels: Semi‑glass front/side with optional rear mesh/fan‑bracket swap for extra airflow

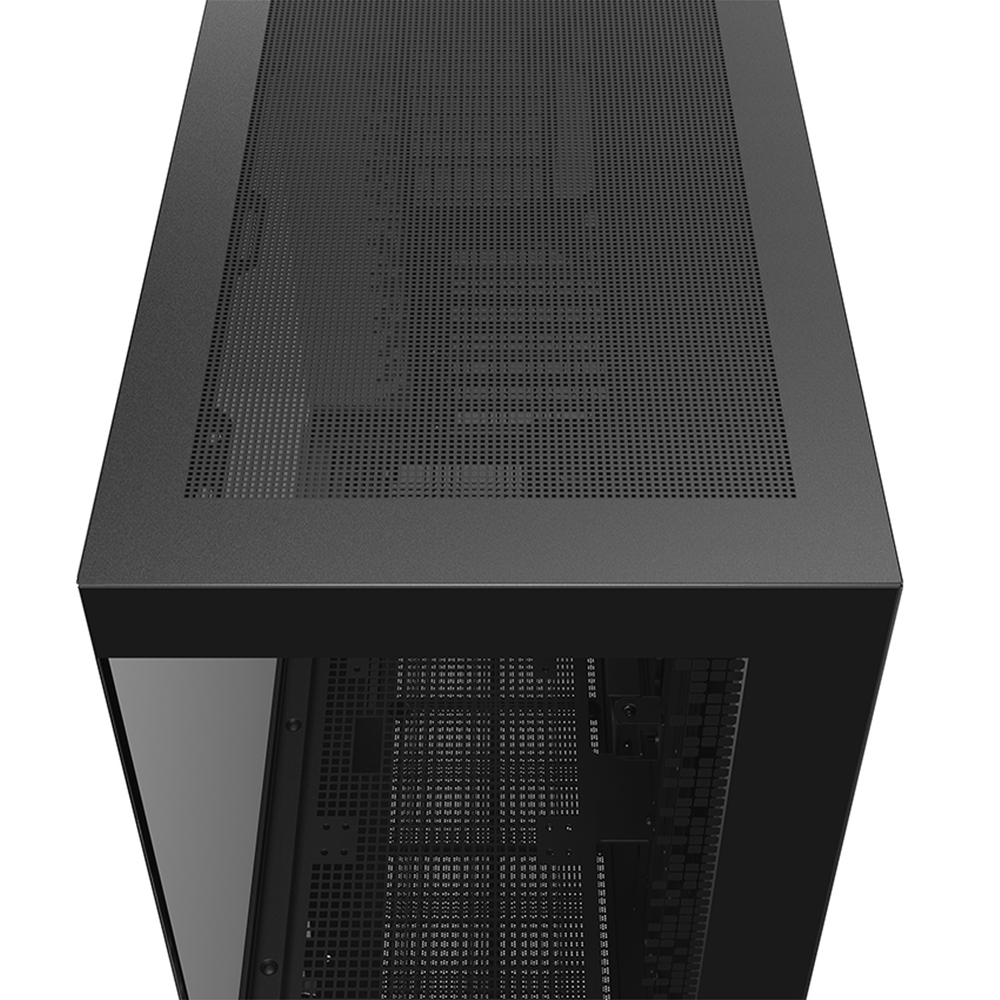

• Dust filters: Magnetic bottom filter; top and shroud fan areas rely on mesh for dust control

• Special features:

  • Built‑in digital display for CPU/GPU/PSU temps, power, usage, fan speeds

  • Adjustable GPU holder to prevent sag

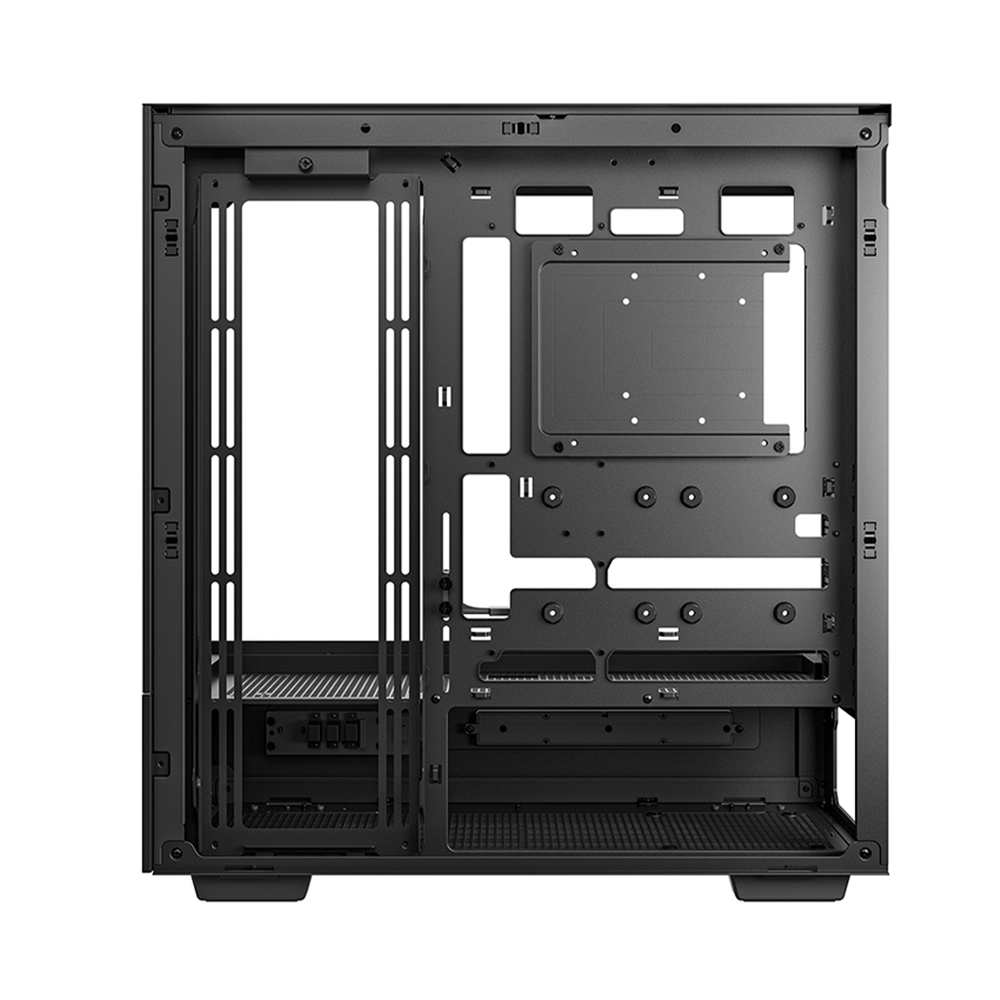

  • 36.5 mm cable‑management space behind motherboard

• Color options: Black (this listing); white CH690 Digital WH sold separately

• Warranty: Typically 1 year from most India retailers (match your store policy)

About the DEEPCOOL CH690 Digital Black
The CH690 Digital Black is ideal for premium café, esports, and creator builds where you want a full‑view glass case, top‑tier cooling support, and on‑case telemetry to keep an eye on temps and power draw. It’s also a strong choice for home enthusiasts building high‑end ATX rigs with big GPUs and 360/420 mm AIOs who want a cleaner, smarter alternative to basic glass mid‑towers.
