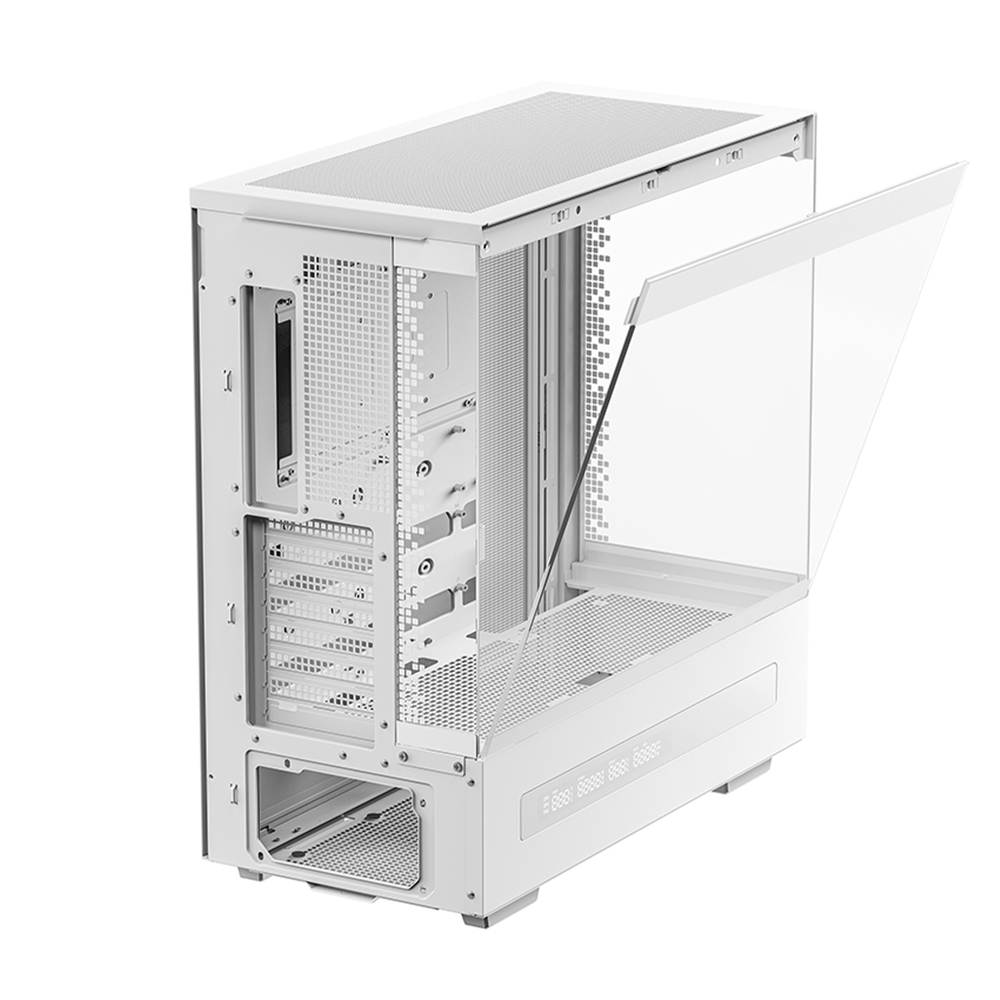

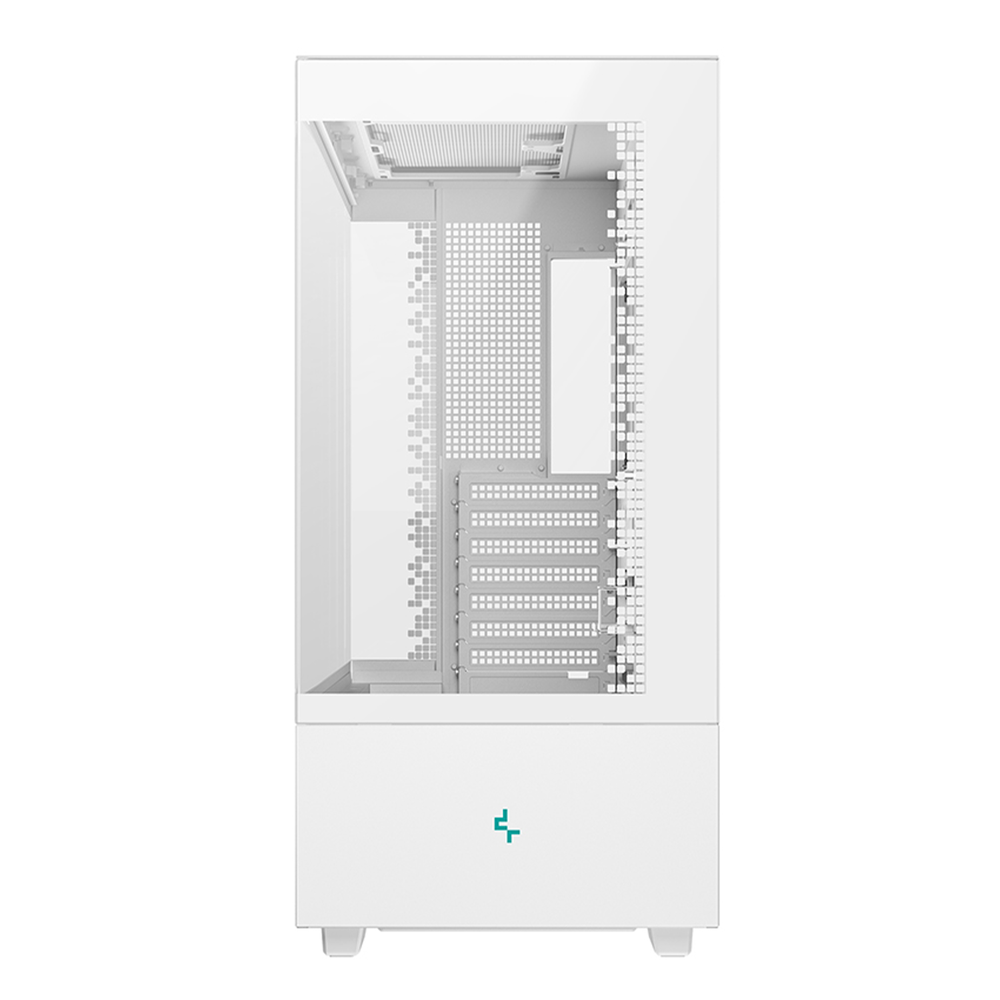

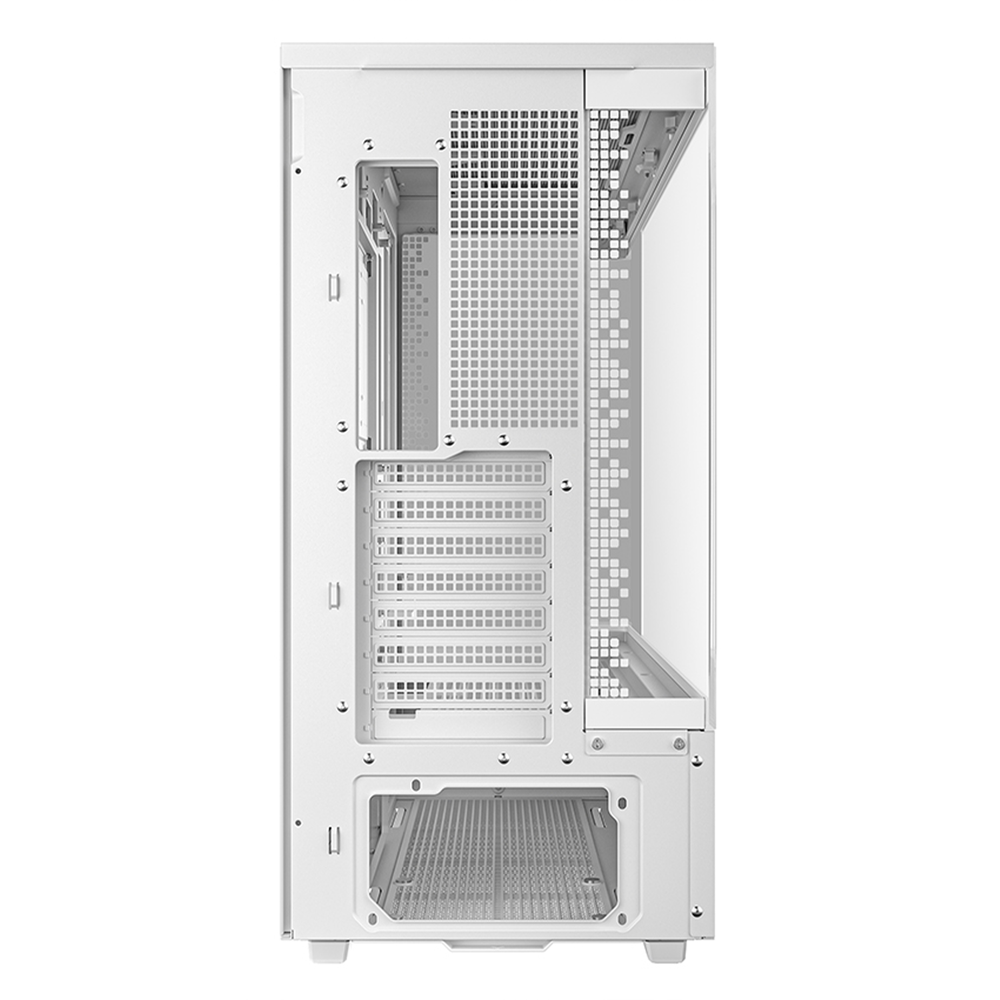

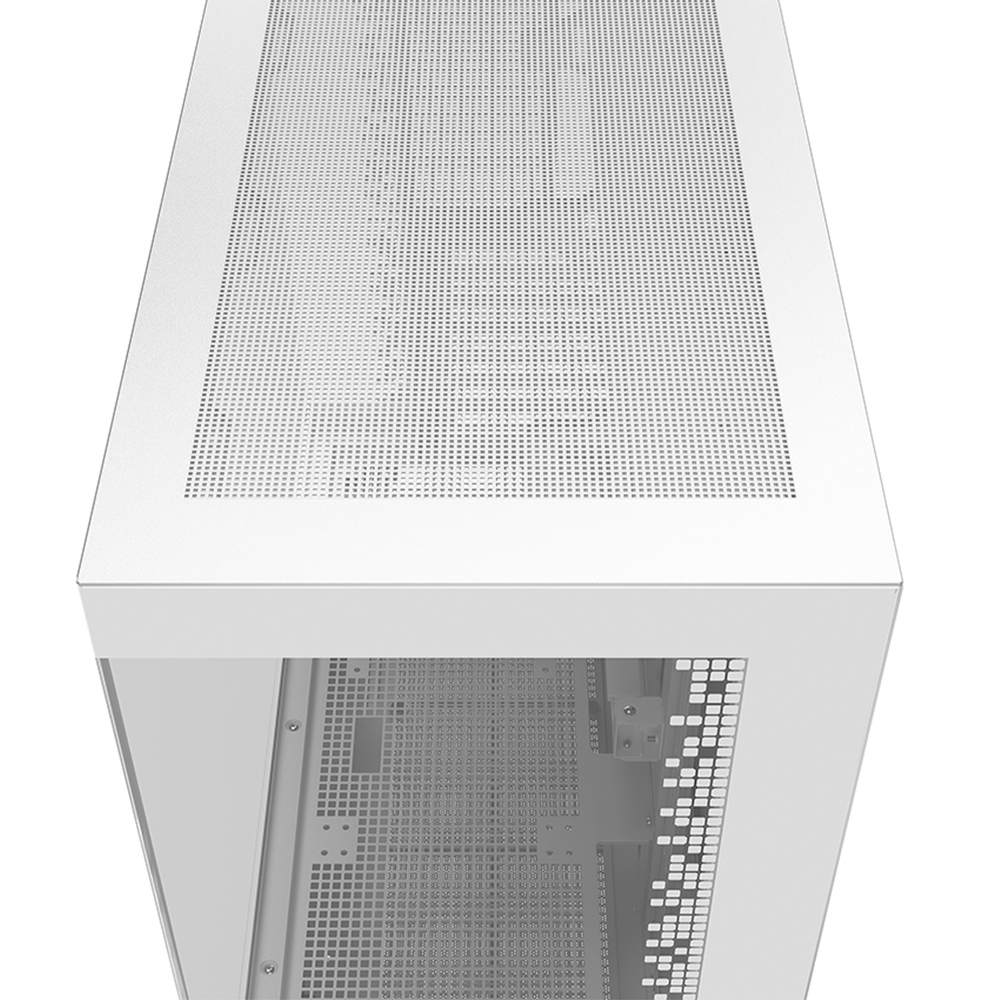

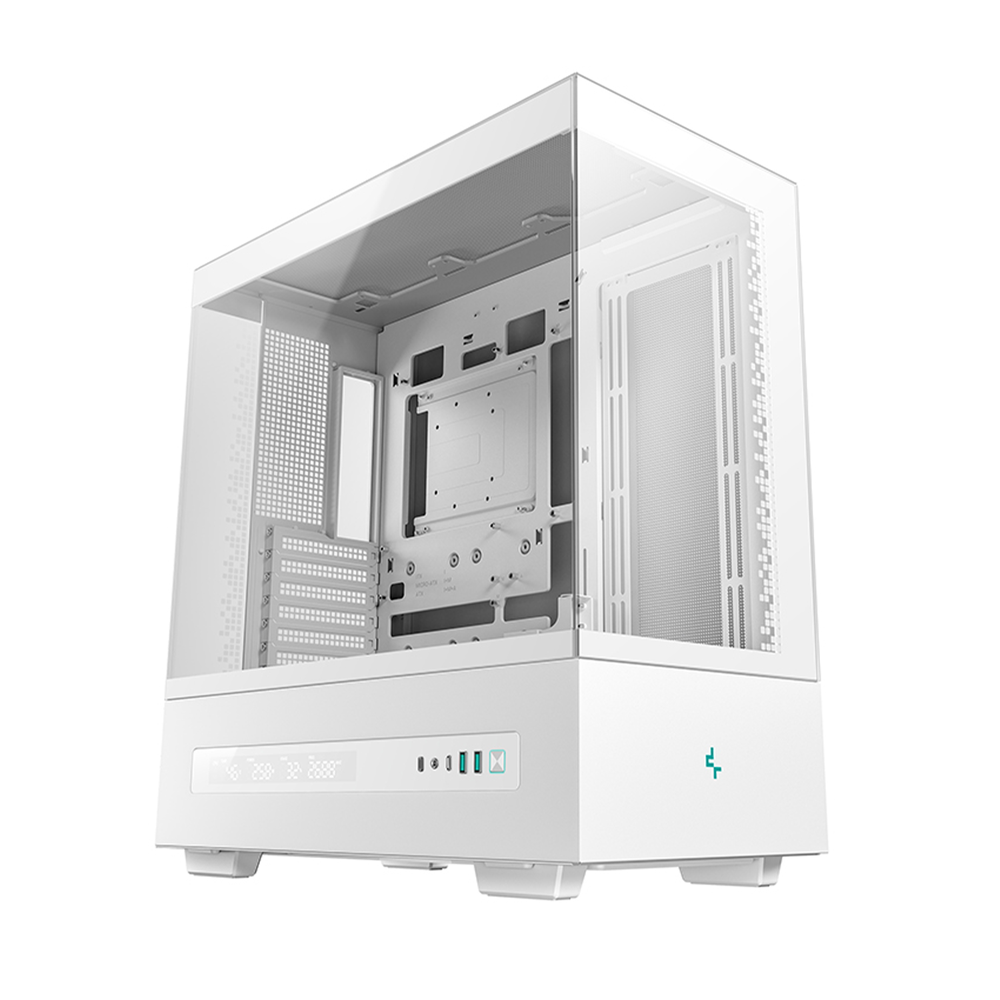

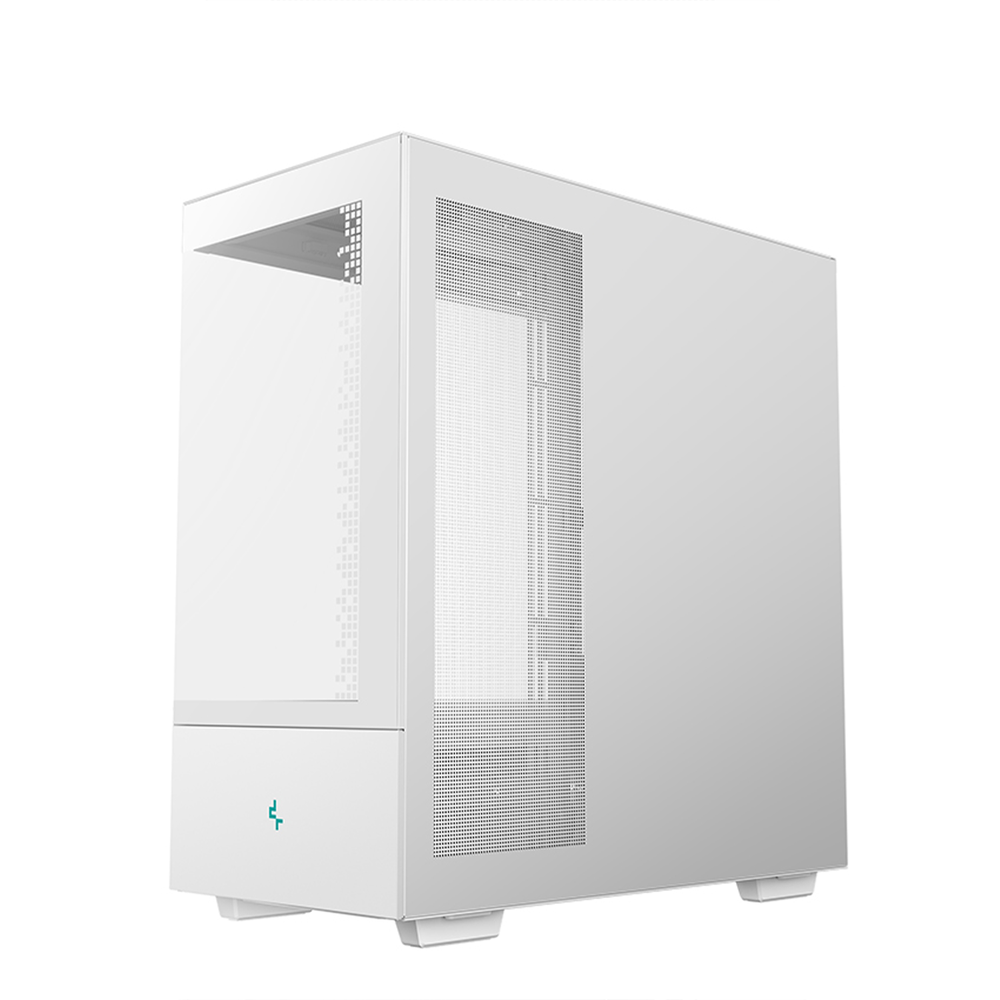

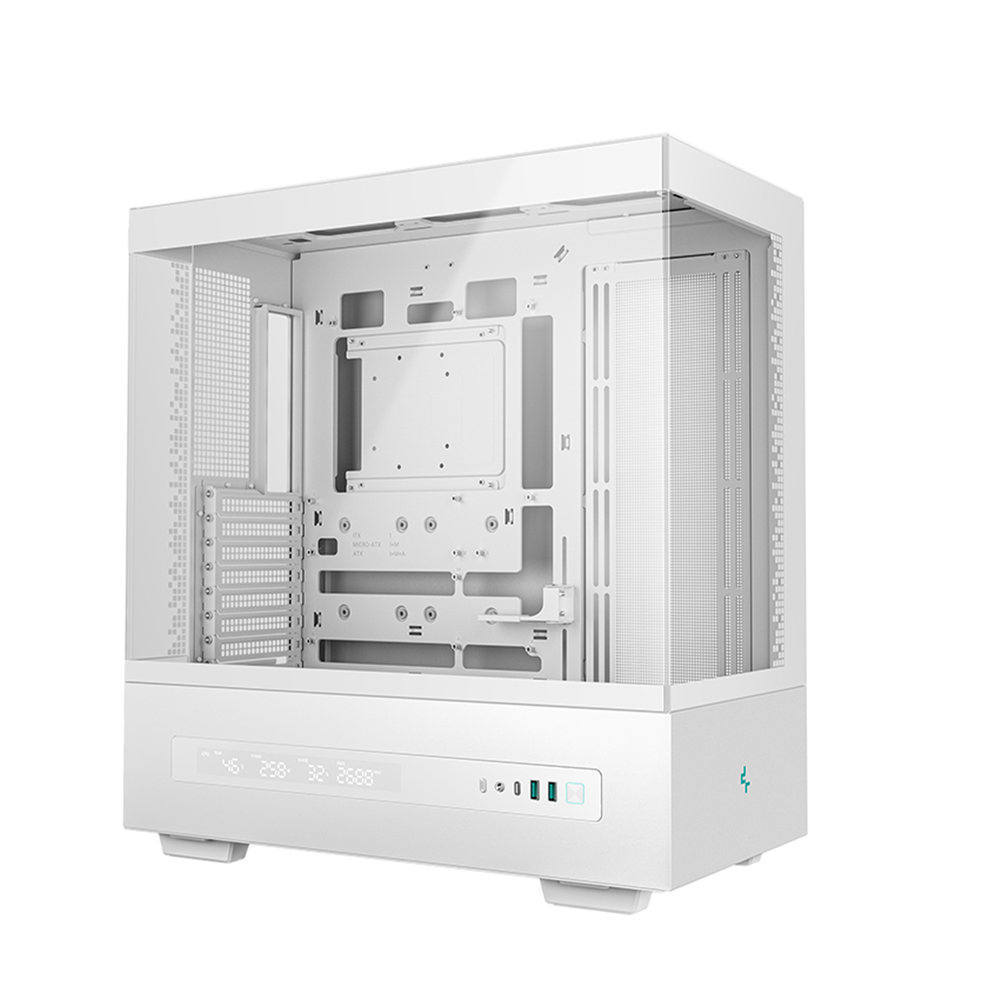

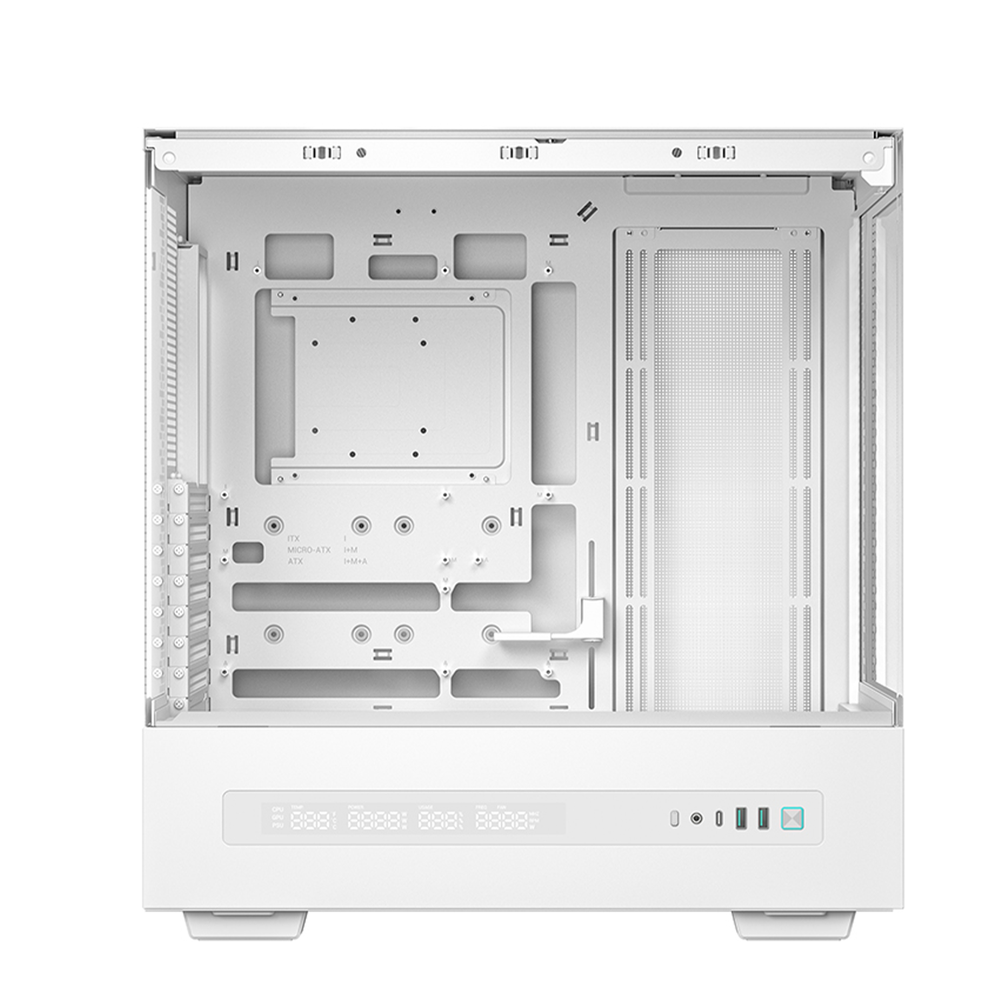

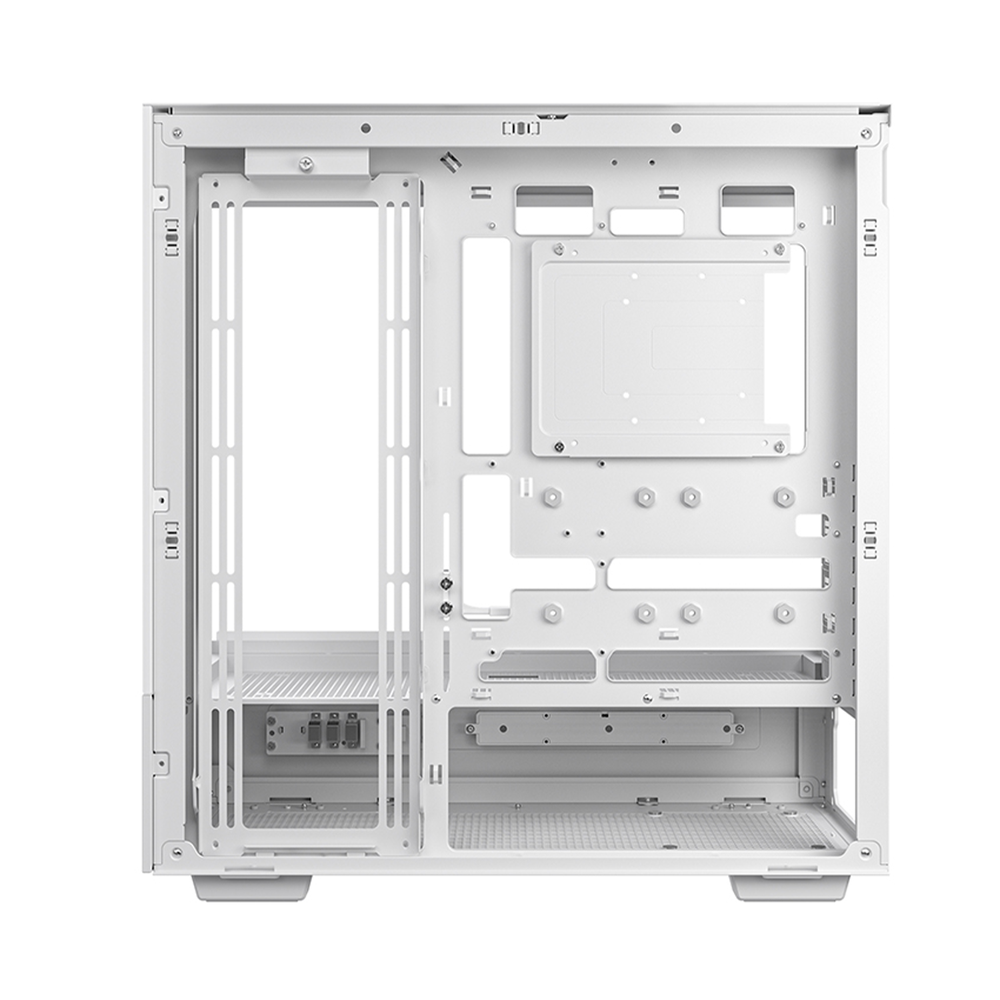

DEEPCOOL CH690 Digital White ATX Mid‑Tower Case with Display

The DeepCool CH690 Digital White is a panoramic single‑chamber ATX case in a clean white finish, with glass front/side and a built‑in digital display for real‑time system monitoring. It supports 420 mm top radiators, 450 mm GPUs, and 180 mm PSUs, making it ideal for premium café, esports, and creator rigs that run high‑end hardware for long hours. The digital screen on the shroud shows live CPU/GPU/PSU temperature, power, usage, and fan data, so staff can instantly see if a café system is running hot or unstable.

Key Specifications

• Model: DeepCool CH690 DIGITAL WH (P/N R‑CH690‑WHNNA0D‑G‑1)

• Form factor: ATX mid tower, single‑chamber panoramic/semi‑glass design

• Motherboard support: Mini‑ITX, Micro‑ATX, ATX, ATX (rear connector), Micro‑ATX (rear connector)

• GPU length limit: Up to 450 mm

• CPU cooler height limit: Up to 182 mm

• PSU support: ATX PS2, maximum length 180 mm

• Pre‑installed fans: None (design assumes you choose your own config; some third‑party bundles add RGB fans separately)

• Fan support:

  • Top: 3 × 120 mm or 3 × 140 mm

  • Side: 3 × 120 mm or 3 × 140 mm

  • PSU shroud: 3 × 120 mm or 3 × 140 mm

  • Rear: 1 × 120 mm or 1 × 140 mm

• Radiator / AIO support:

  • Top: 120 / 140 / 240 / 280 / 360 / 420 mm

  • Side: 120 / 140 / 240 / 280 mm

  • Bottom (PSU shroud): 120 / 240 / 360 mm

• Drive support: 1 × 3.5" HDD + 2 + 1 × 2.5" SSD (2 dedicated + 1 shared position)

• Expansion slots: 8

• Front I/O: 2 × USB 3.0 Type‑A, 1 × USB 3.2 Gen2 Type‑C, 1 × audio/mic combo jack, power button

• Product dimensions: 481 × 240 × 516 mm (L × W × H)

• Net weight: 9.8 kg

• Materials: ABS, SPCC steel, tempered glass

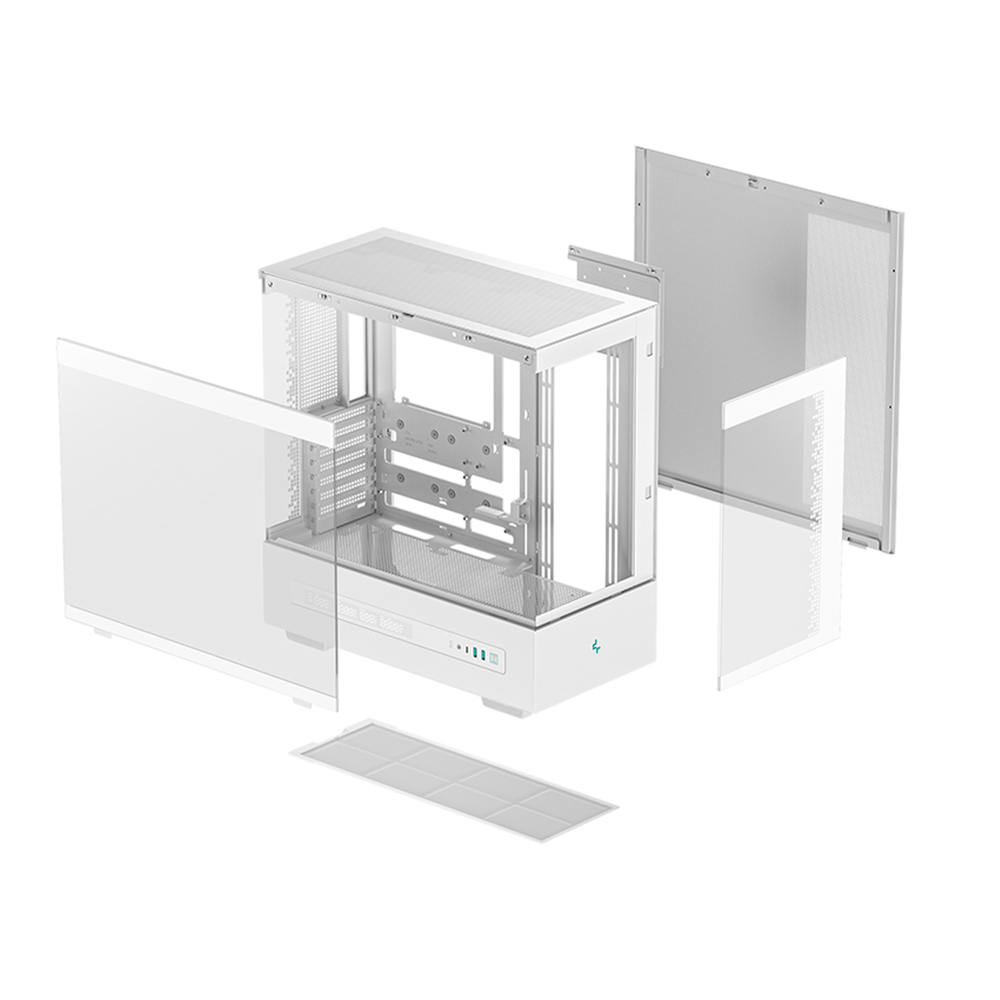

• Panels: Semi‑glass side with optional rear mesh/fan‑bracket swap for more airflow; mesh‑designed PSU shroud for vertical airflow

• Dust filters: Magnetic bottom air filter; mesh over PSU shroud and intakes for dust control

• Special features:

  • Integrated digital display (CPU/GPU/PSU temps, power, usage, fan speeds, °C/°F modes)

  • Adjustable GPU holder to reduce sag

  • Integrated light‑strip slot for extra lighting on white builds

• Color options: White (this listing); black CH690 Digital Black sold separately

• Warranty: 1 year (per DeepCool and most India retailers; match your store policy)

About the DEEPCOOL CH690 Digital White
The CH690 Digital White is ideal for premium white café and studio setups that want a showcase case with huge radiator and GPU support plus a built‑in screen for live telemetry. It’s also a strong pick for home enthusiasts building high‑end white ATX rigs with 360/420 mm AIOs who want something cleaner and smarter than a basic glass mid‑tower.
