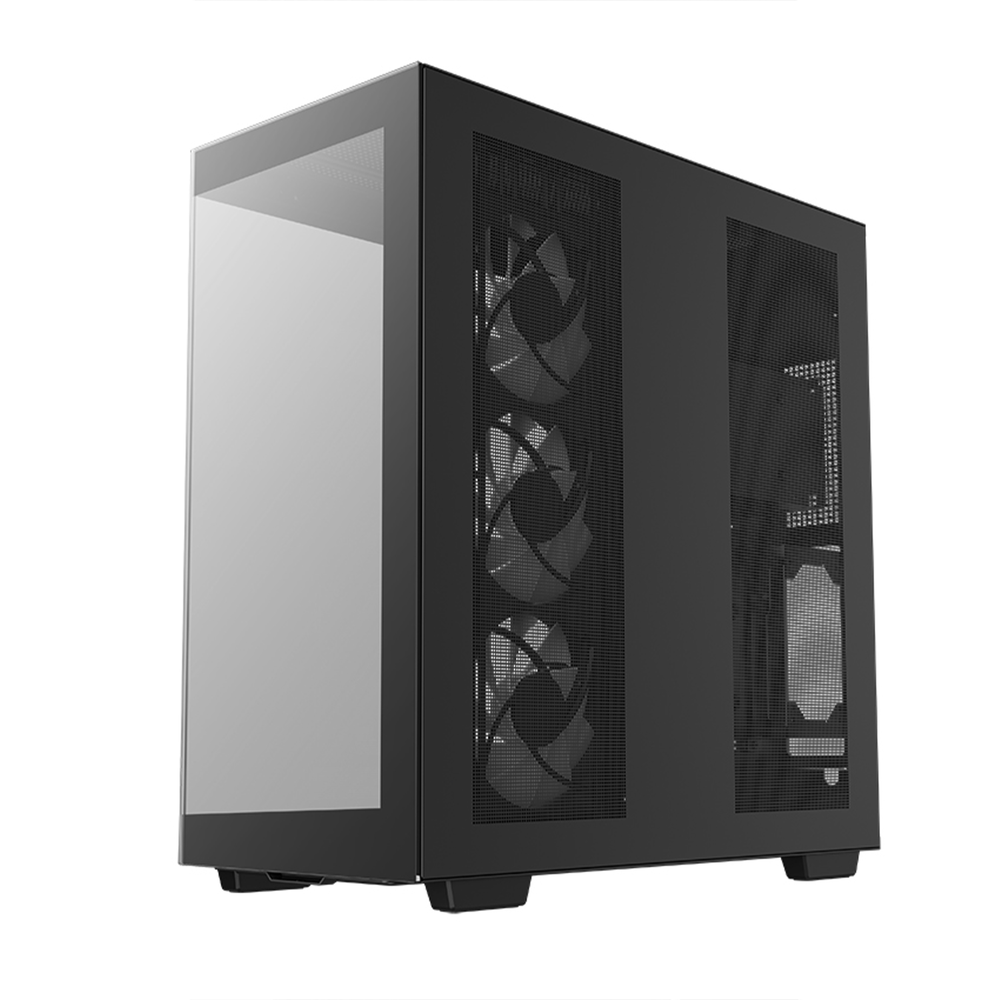

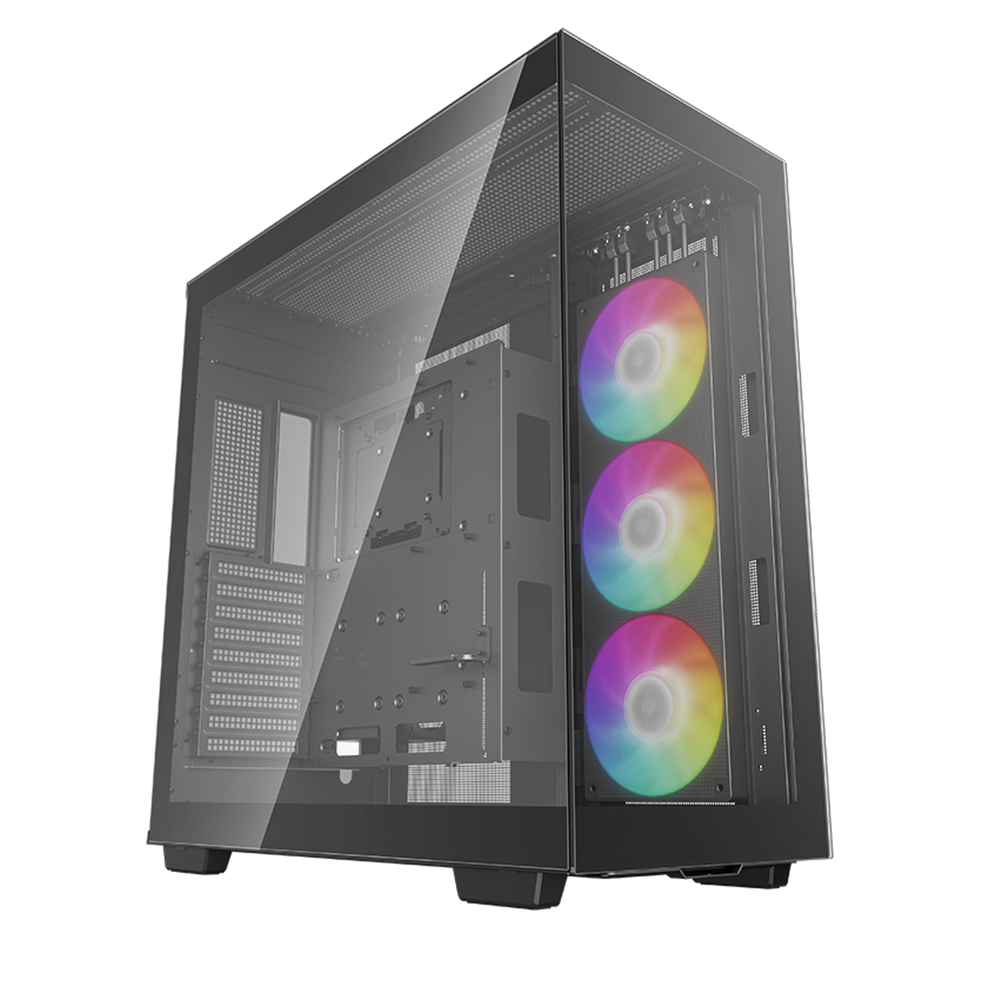

DEEPCOOL CH780 Black Panoramic E‑ATX Full Tower Case

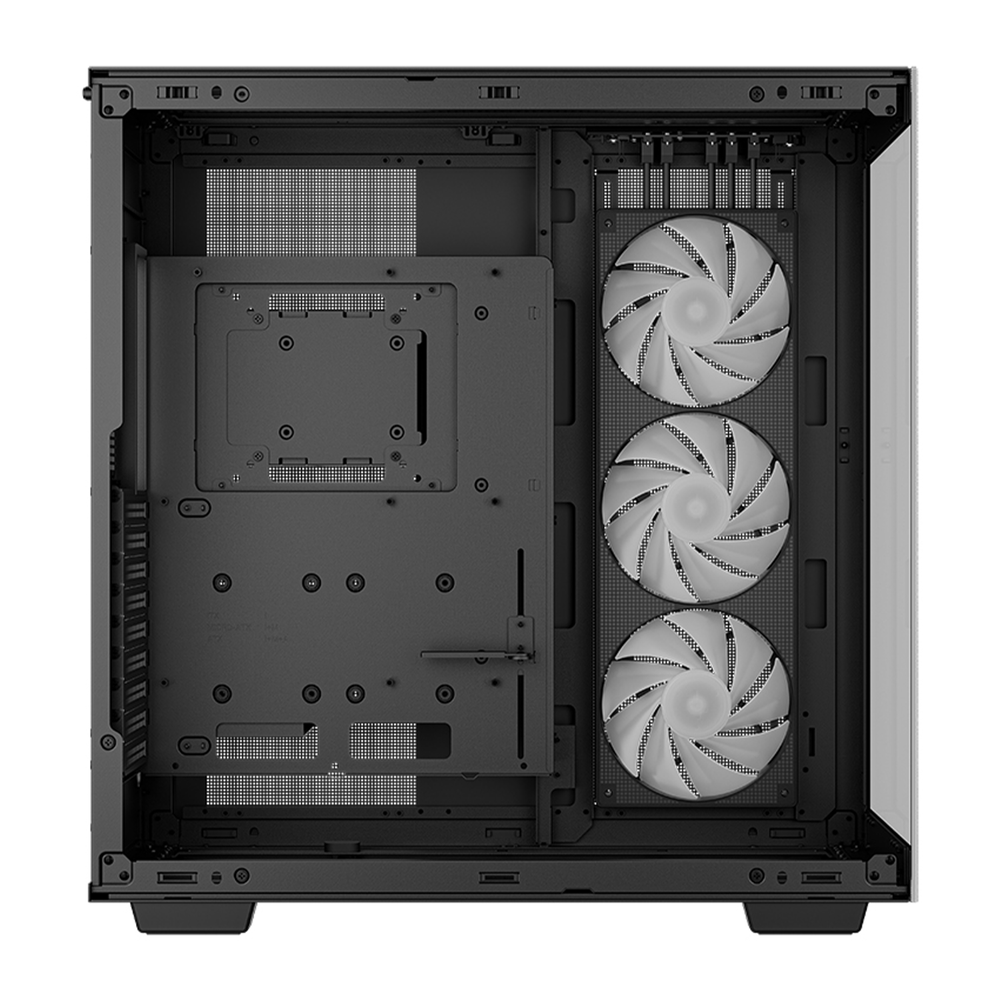

The DeepCool CH780 Black is a premium panoramic case built for high‑end café, esports, and studio rigs that need E‑ATX support, vertical GPU, and extreme cooling options in a dual‑chamber layout. With support for up to three 420 mm radiators, four 200 mm or nine 140 mm fans, and GPUs up to 480 mm, it’s designed for flagship builds that run heavy loads all day without airflow compromises. The dual‑chamber design hides PSU and cables in the rear, so front‑facing café systems look clean even when staff are swapping parts and routing wires under pressure.

Key Specifications

• Model: DeepCool CH780 Black (P/N R‑CH780‑BKADE41‑G‑1)

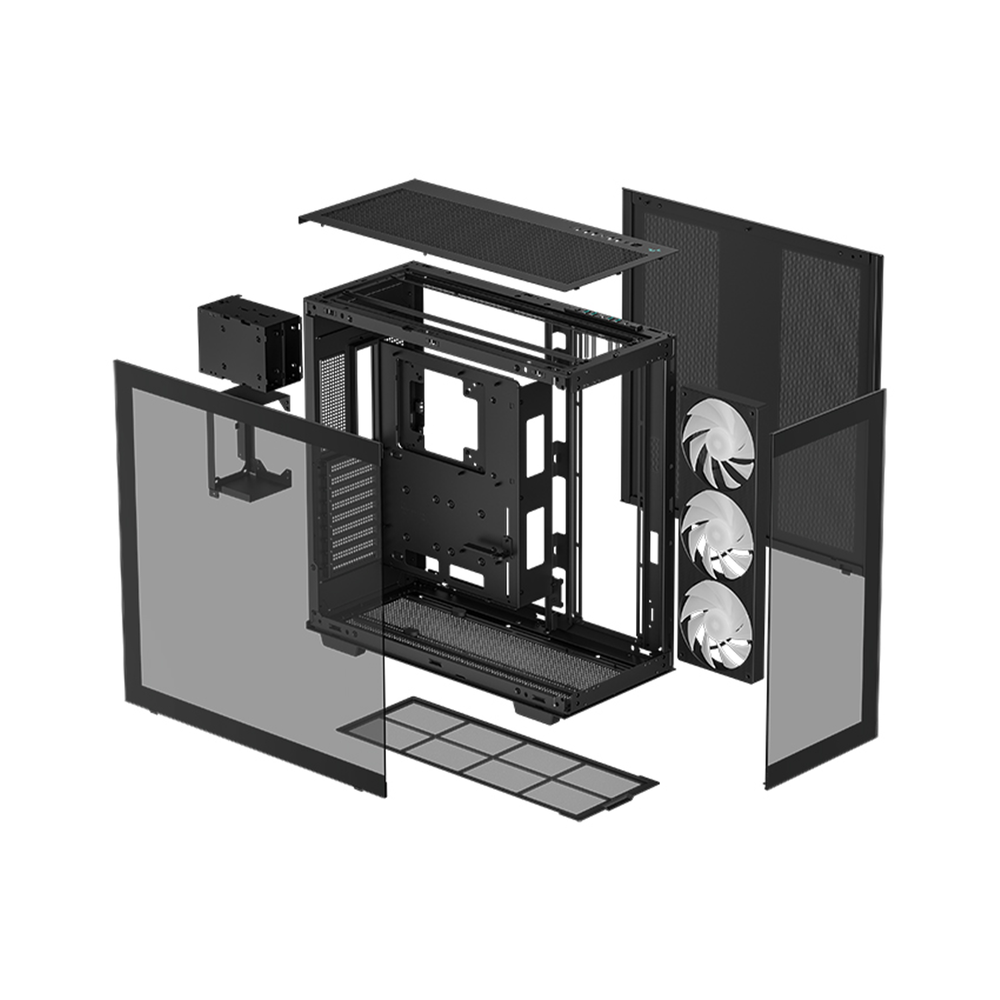

• Form factor: E‑ATX full tower, panoramic tempered‑glass, dual‑chamber layout

• Motherboard support: Mini‑ITX, Micro‑ATX, ATX, E‑ATX

• GPU length limit: Up to 480 mm (vertical mount via included PCIe 4.0 riser)

• CPU cooler height limit: Up to 132–168 mm depending on fan/radiator layout (DeepCool spec lists 132 mm hard limit with internal rad setups – build accordingly)

• PSU support: ATX PS2, maximum length 180 mm, mounted in rear chamber

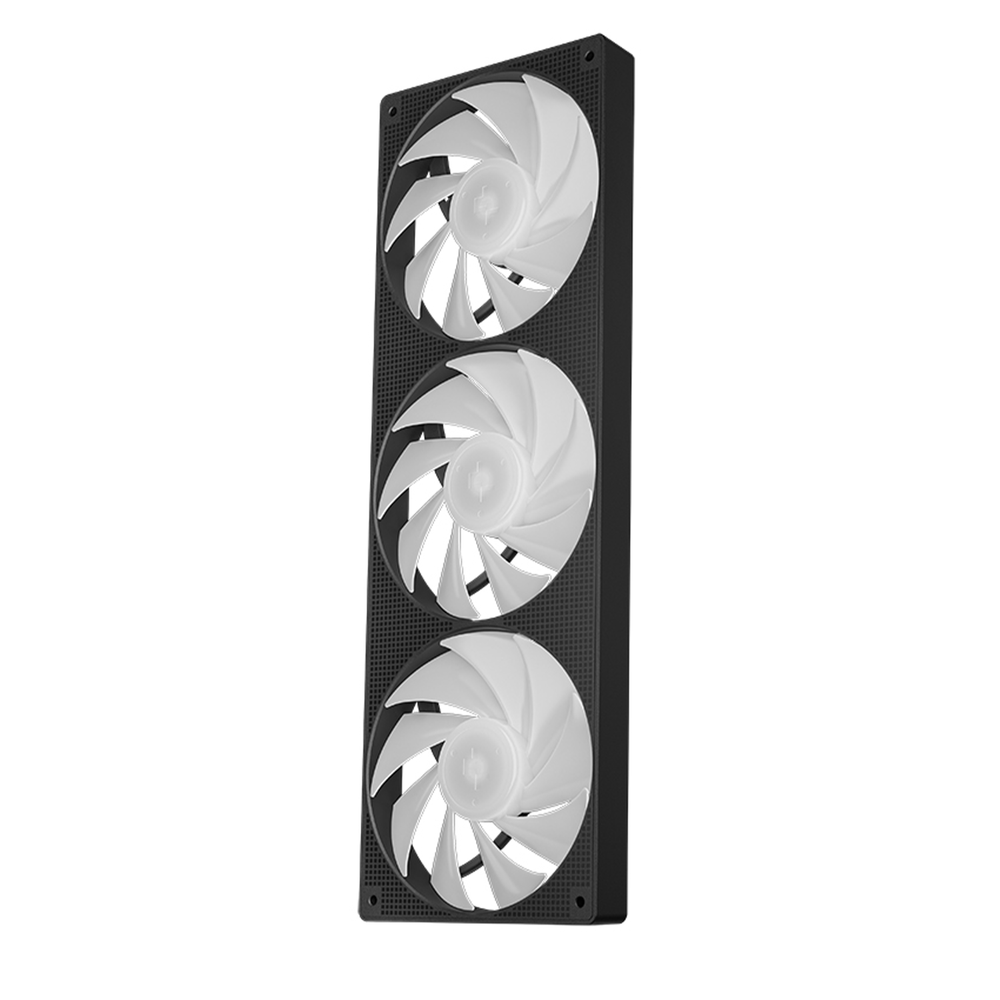

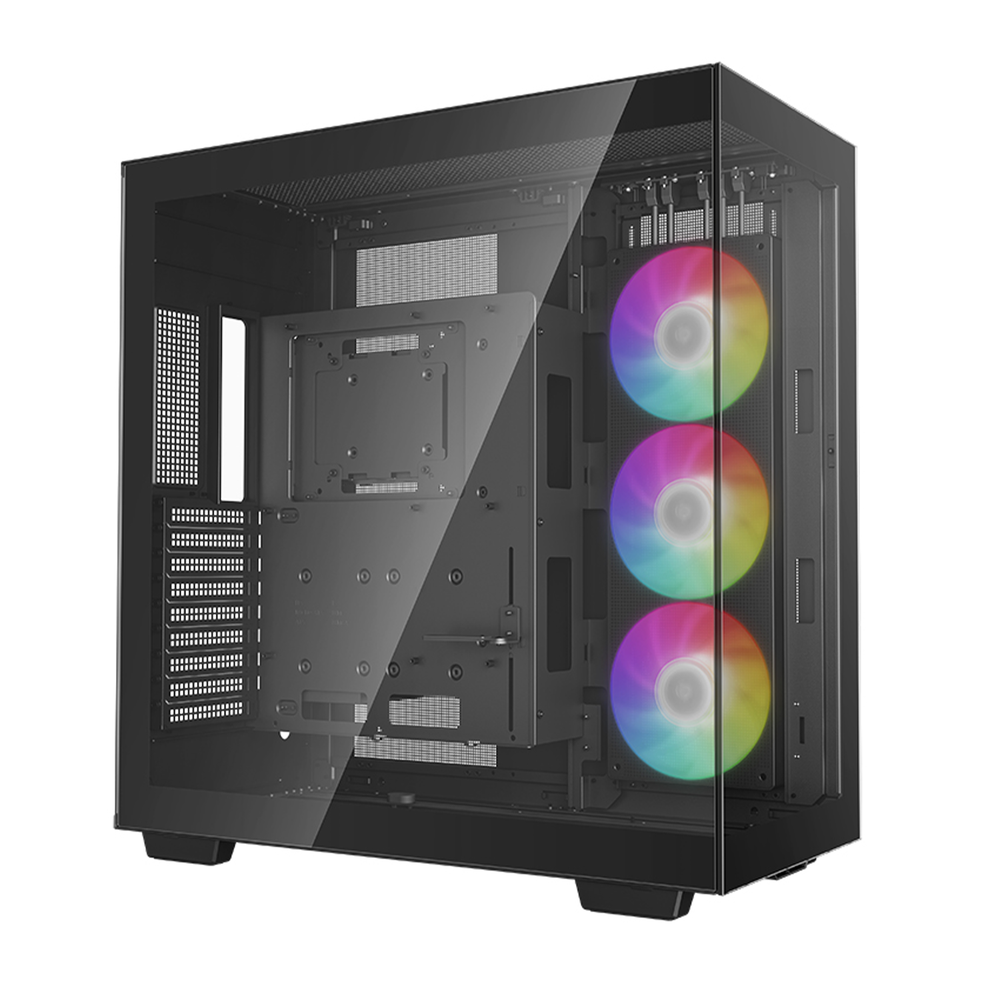

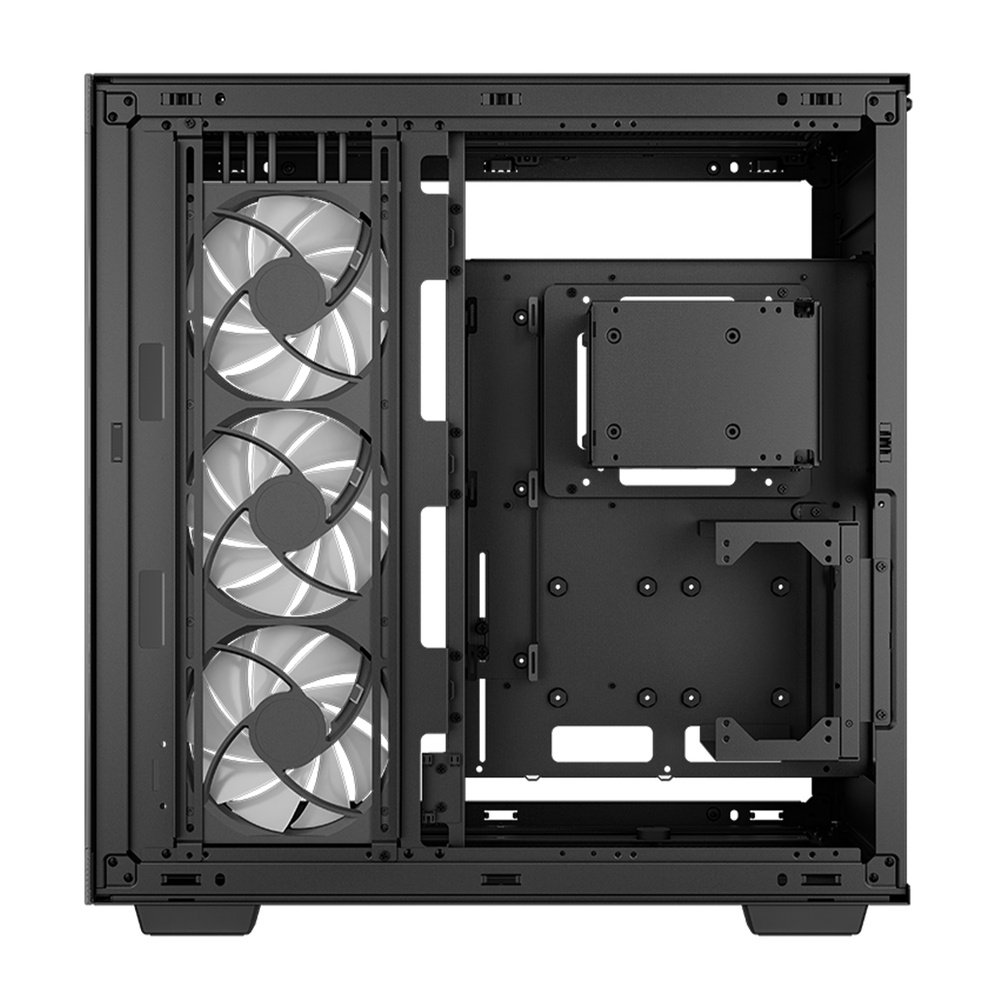

• Pre‑installed fans: 1 × 420 mm ARGB fan wall (effectively triple‑140 mm ARGB unit on side)

• Fan support:

  • Top: 3 × 120 mm / 3 × 140 mm / 2 × 180 mm / 2 × 200 mm

  • Side (main chamber): 3 × 120 mm / 3 × 140 mm

  • Bottom: 3 × 120 mm / 3 × 140 mm / 2 × 180 mm / 2 × 200 mm

• Radiator support:

  • Top: 120 / 140 / 240 / 280 / 360 / 420 mm

  • Side: 120 / 140 / 240 / 280 / 360 / 420 mm

  • Bottom: 120 / 140 / 240 / 280 / 360 / 420 mm (supports up to three 420 mm rads simultaneously in extreme loops)

• Drive support: 2 × 3.5" HDD + 2 + 1 × 2.5" SSD (2 dedicated + 1 shared)

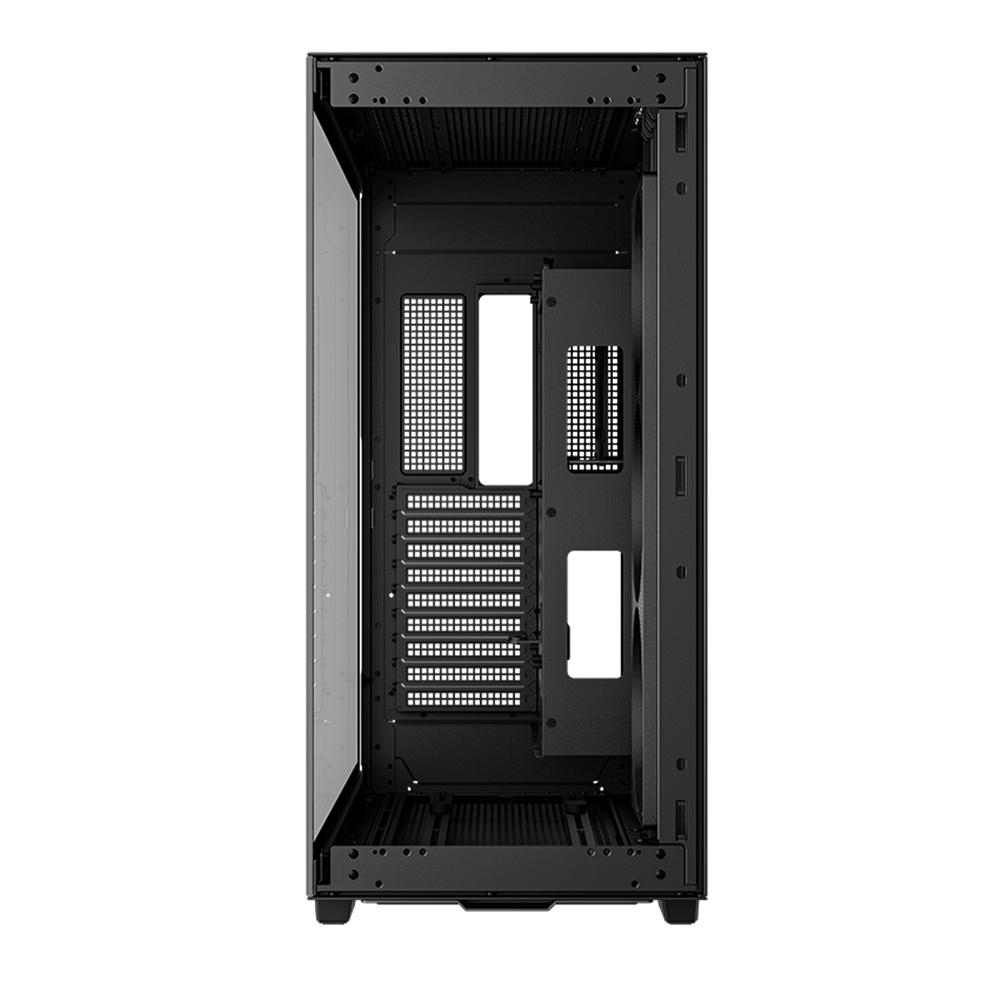

• Expansion slots: 3 vertical GPU slots (case is designed for vertical mounting; traditional horizontal slot count varies, treat as vertical‑first design)

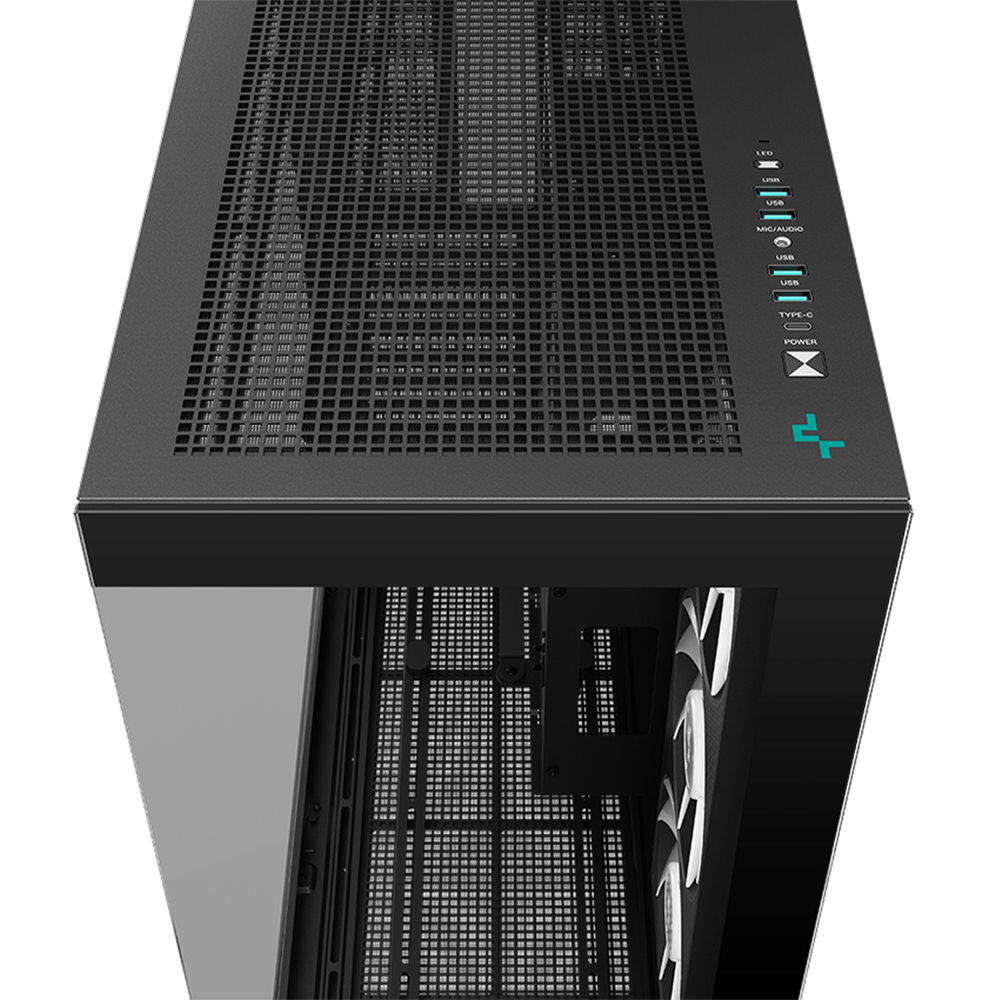

• Front I/O: 4 × USB 3.0 Type‑A, 1 × USB Type‑C, 1 × audio jack, power button

• Product dimensions: 528 × 250 × 551 mm (L × W × H)

• Net weight: 13.7 kg

• Materials: ABS, SPCC steel, tempered glass

• Panels: Panoramic tempered glass on front and side, steel/mesh in the rear chamber for PSU airflow

• Dust filters: Bottom PSU/filtering; other intakes rely on mesh and high positive pressure (most builds run intake‑heavy with large bottom fans)

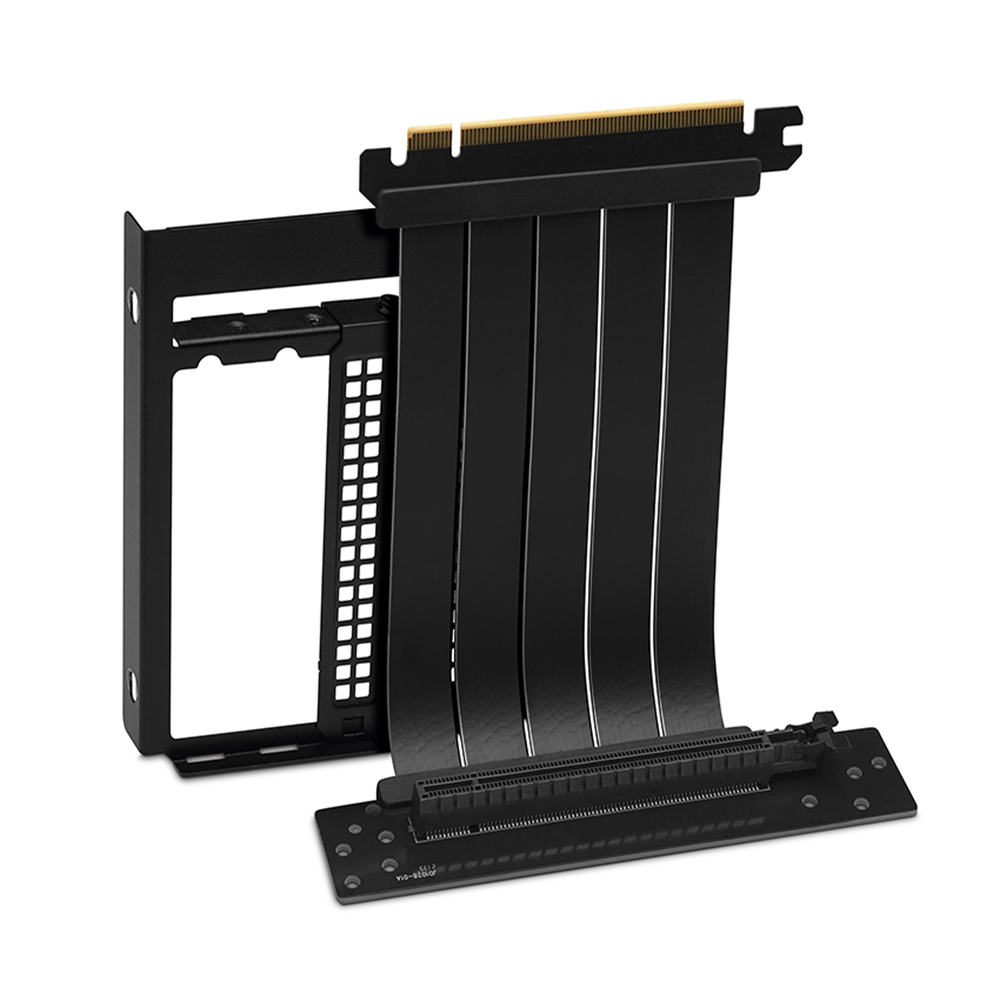

• Included accessories: PCIe 4.0 riser cable and vertical GPU mount bracket

• Color options: Black (this listing); white CH780 WH sold separately

• Warranty: Typically 1 year from most retailers (match your store policy)

About the DEEPCOOL CH780 Black
The CH780 Black is best for ultra‑high‑end café or showcase builds where you want full‑view glass, vertical flagship GPUs, and massive radiator/fan capacity for quiet, cool systems that still look insane on display. It’s equally suited to enthusiasts building custom‑loop or multi‑radiator rigs who need E‑ATX support, triple‑420 mm radiator options, and a clean dual‑chamber layout.
