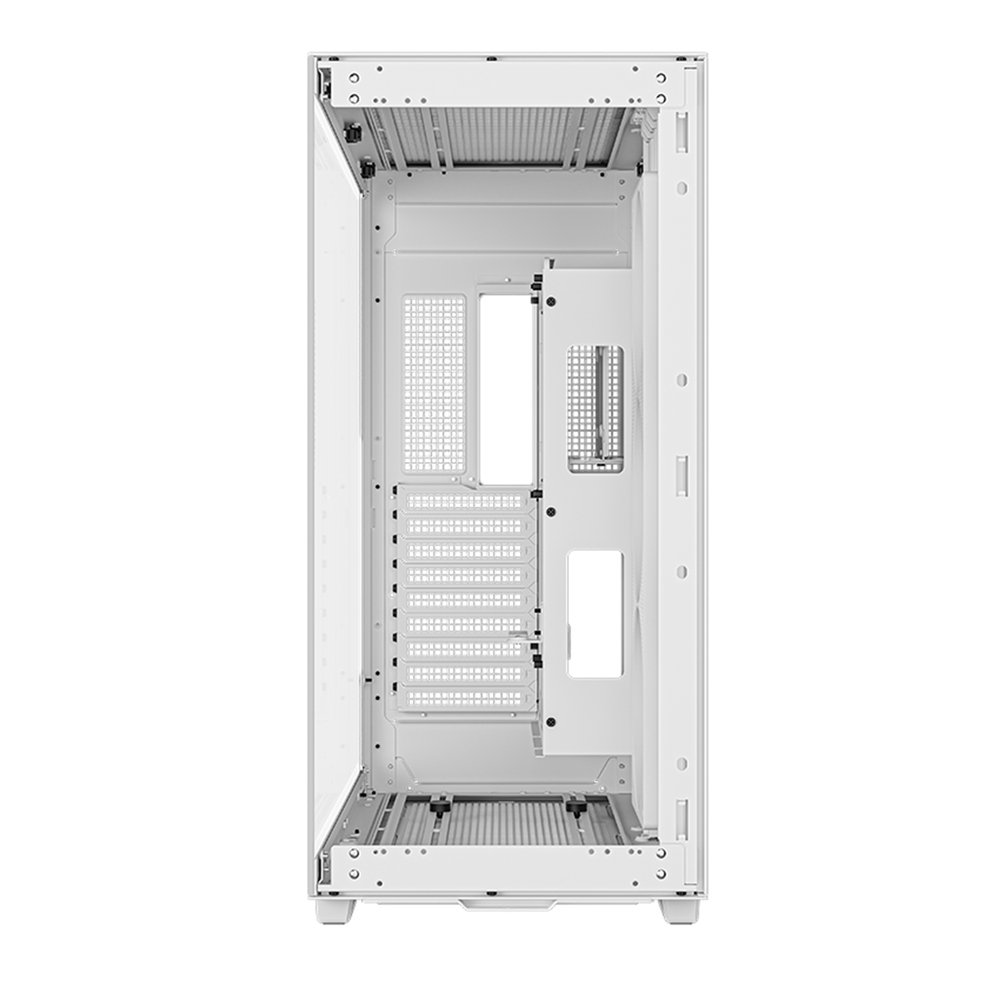

DEEPCOOL CH780 White Panoramic E‑ATX Full Tower Case

The DeepCool CH780 White is a premium panoramic case that uses dual‑chamber layout and no front A‑pillar to give a clean, full‑view look of high‑end hardware, perfect for showcase café rows and flagship creator rigs. It supports up to three 420 mm radiators, four 200 mm or nine 140 mm fans, and GPUs up to 480 mm, so you can run top‑tier builds cool and quiet even under long gaming‑café hours. With PSU and cables hidden in the rear chamber and an included PCIe 4.0 riser for vertical GPU, front‑facing systems stay neat and impressive while still being easy to service.

Key Specifications

• Model: DeepCool CH780 WH (White, P/N R‑CH780‑WHADE41‑G‑1)

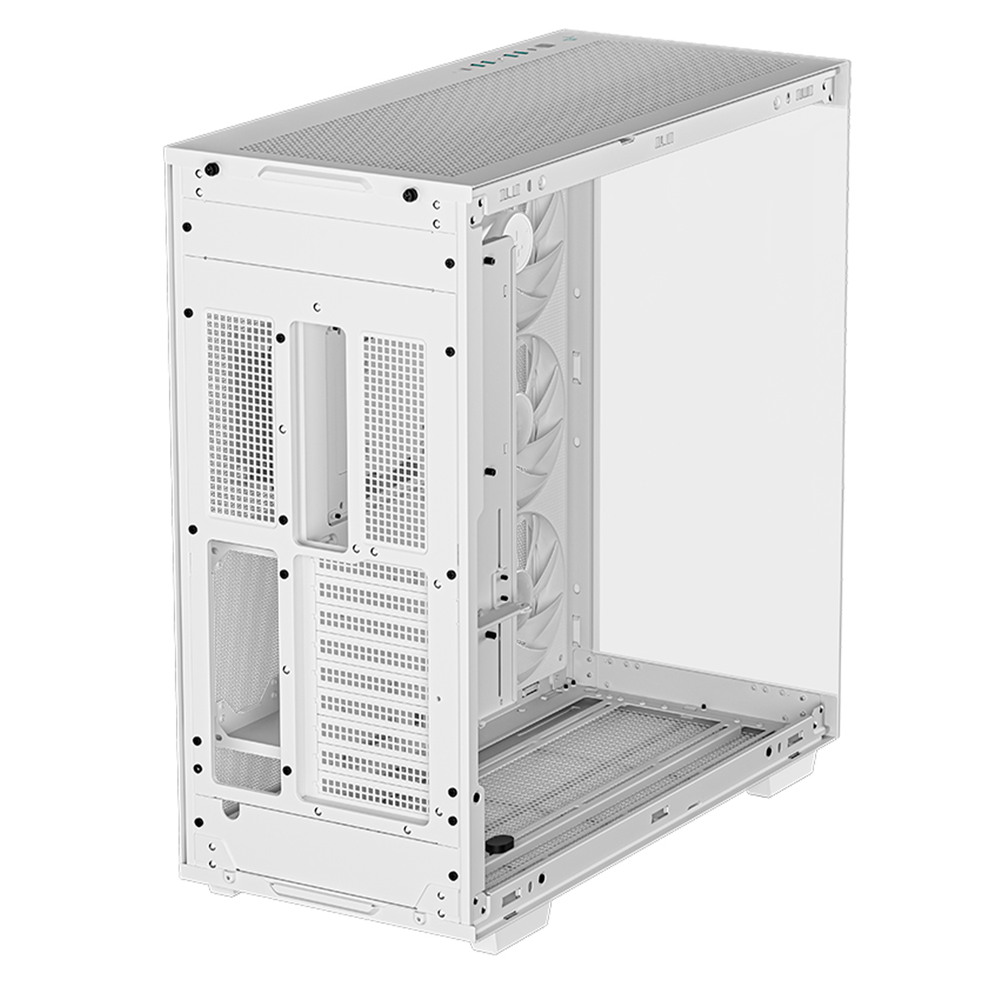

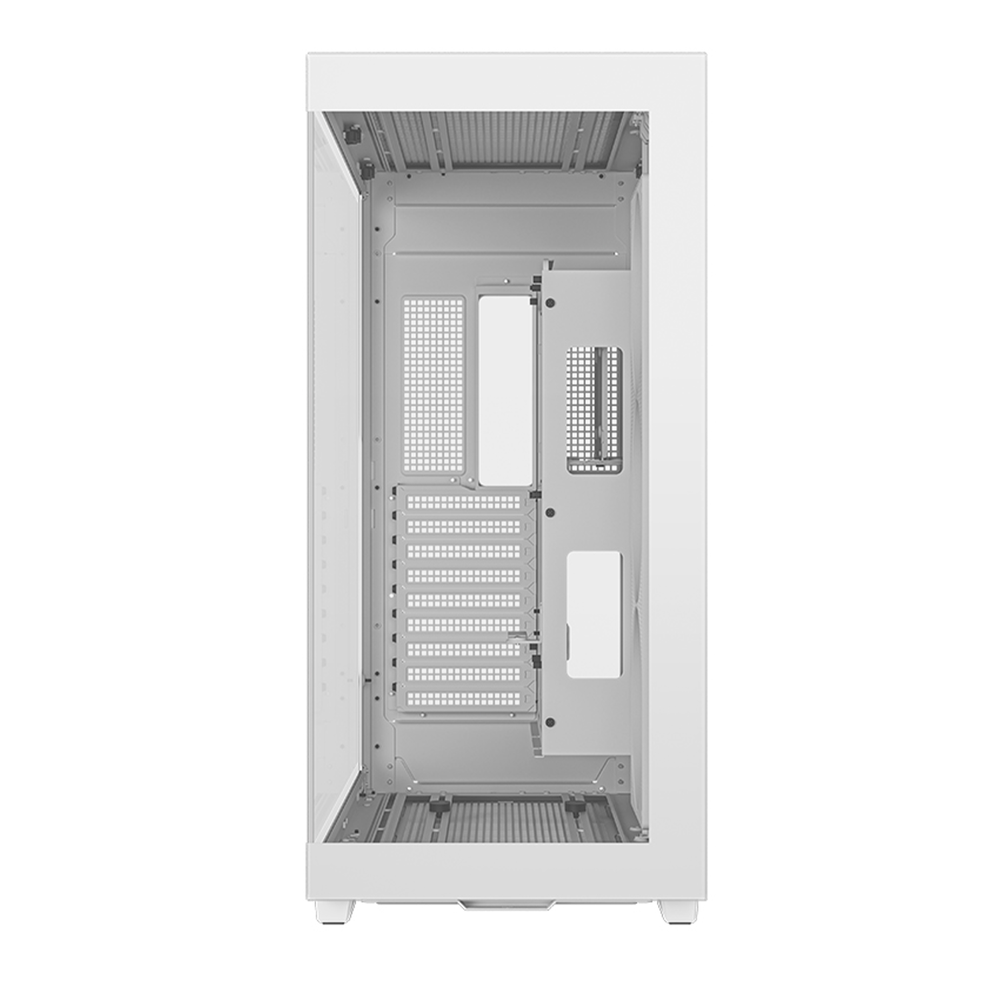

• Form factor: E‑ATX full tower, panoramic tempered‑glass, dual‑chamber design

• Motherboard support: Mini‑ITX, Micro‑ATX, ATX, E‑ATX

• GPU length limit: Up to 480 mm (vertical mount only, PCIe 4.0 riser and bracket included)

• CPU cooler height limit: 132 mm (due to internal 420 mm radiator support and layout)

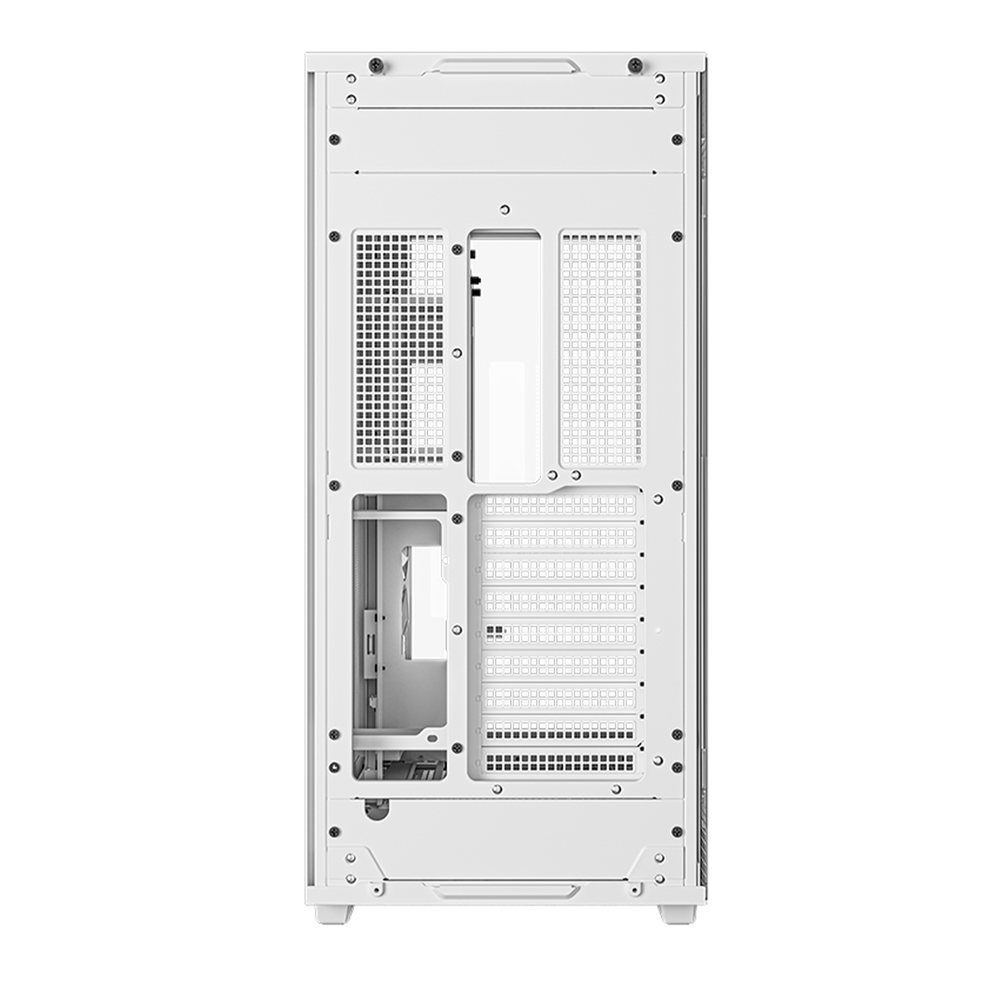

• PSU support: ATX PS2, maximum length 180 mm, mounted in rear chamber

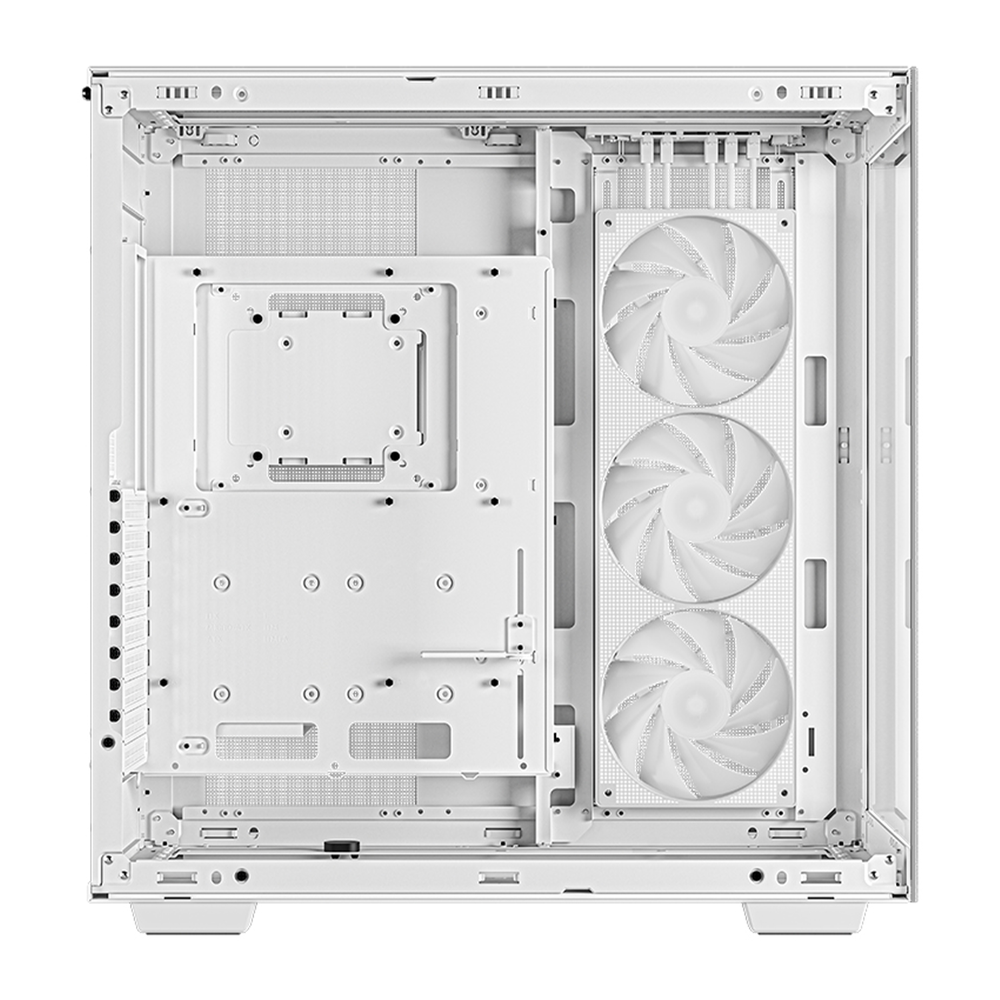

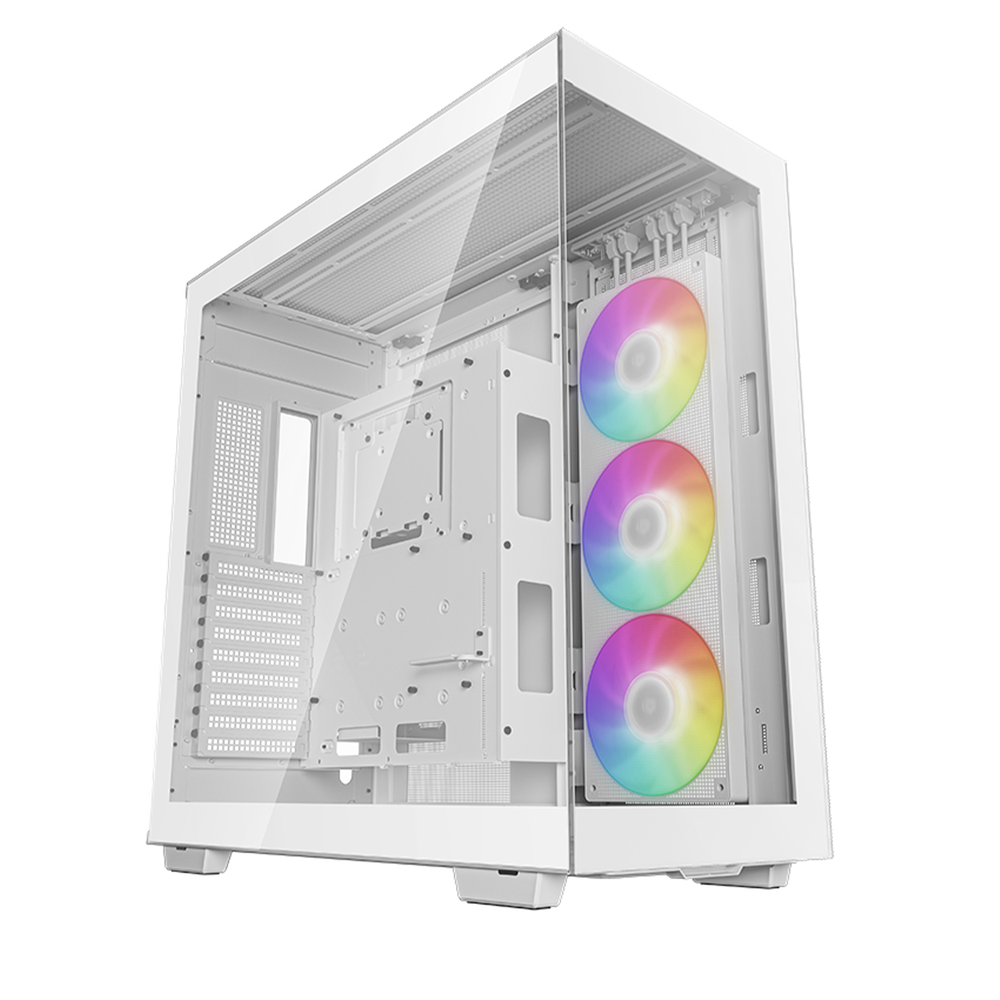

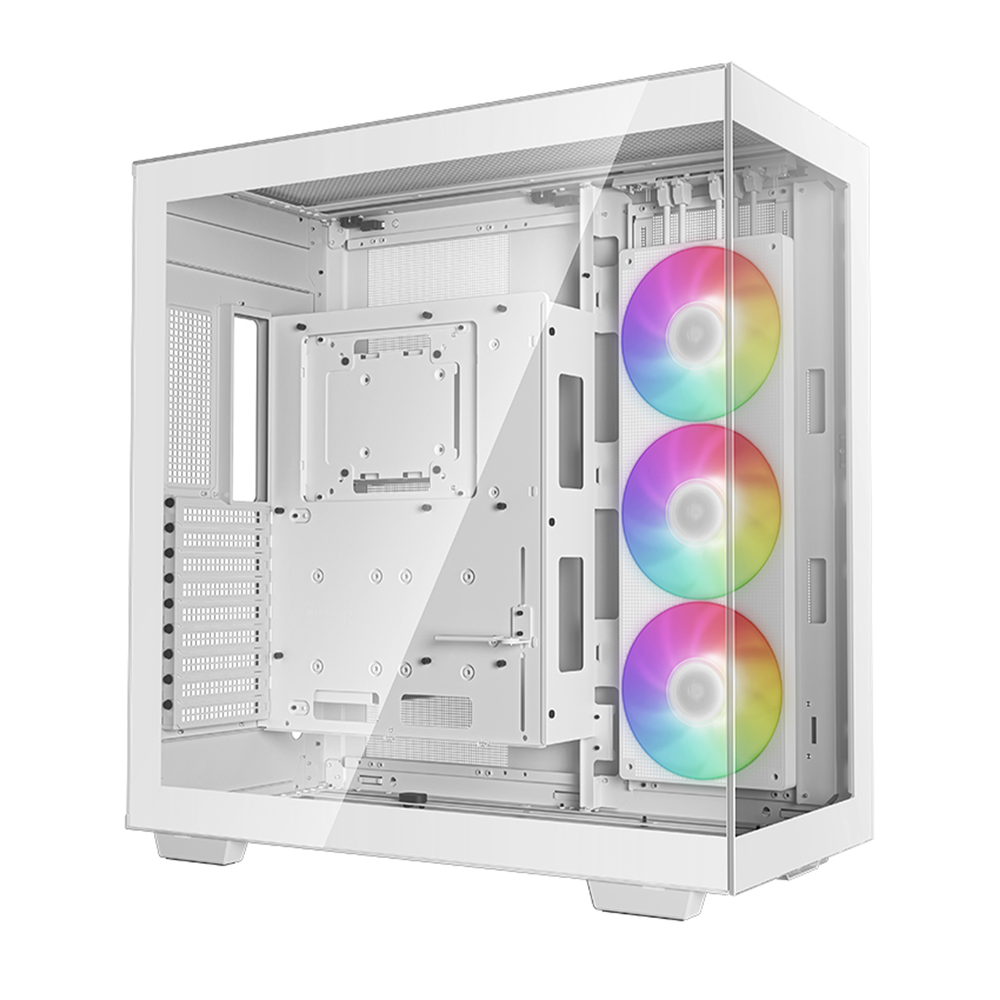

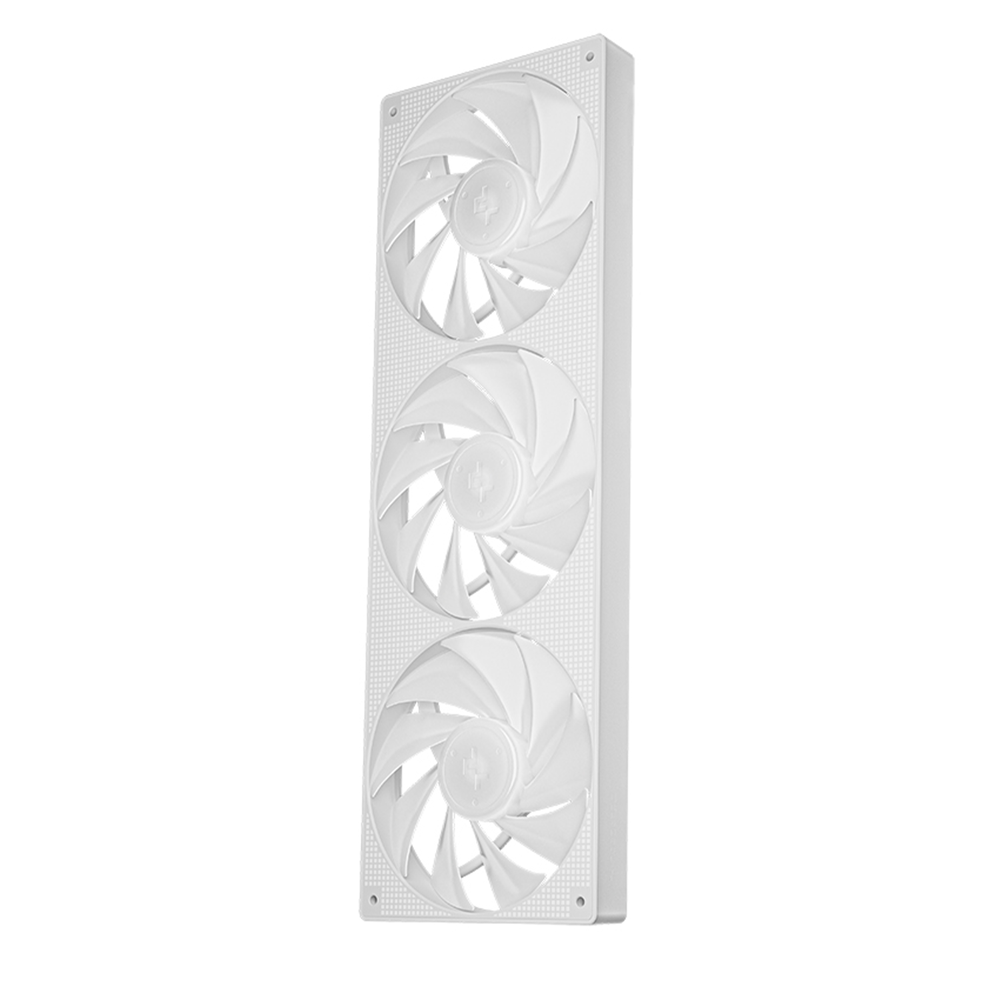

• Pre‑installed fans: Side: 1 × 420 mm ARGB fan unit (triple‑140 mm ARGB wall) – some regions bundle as 3 × 140 mm ARGB fans

• Fan support:

  • Top: 3 × 120 mm or 3 × 140 mm or 2 × 180 mm or 2 × 200 mm

  • Side: 3 × 120 mm or 3 × 140 mm

  • Bottom: 3 × 120 mm or 3 × 140 mm or 2 × 180 mm or 2 × 200 mm

• Radiator support:

  • Top: 120 / 140 / 240 / 280 / 360 / 420 mm

  • Side: 120 / 140 / 240 / 280 / 360 / 420 mm

  • Bottom: 120 / 140 / 240 / 280 / 360 / 420 mm (up to three 420 mm radiators simultaneously)

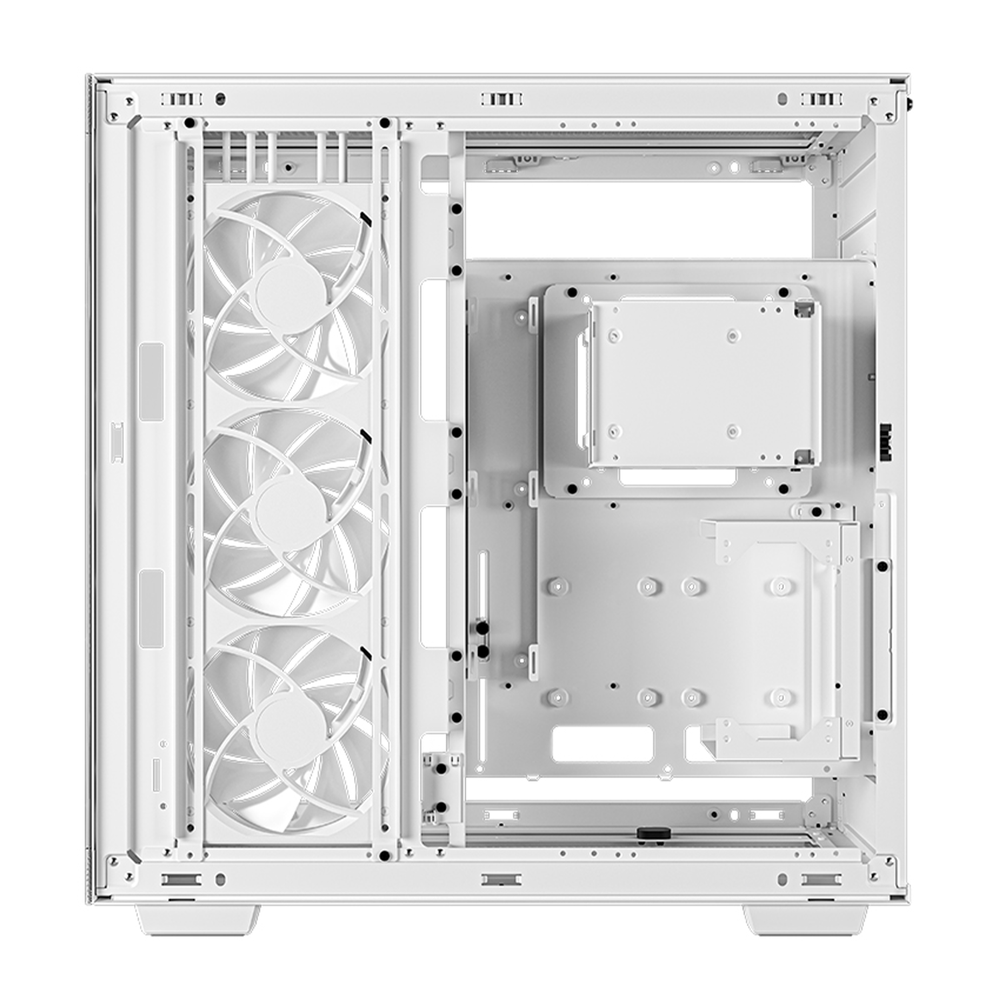

• Drive support: 2 × 3.5" HDD + 2 + 1 × 2.5" SSD (2 dedicated + 1 shared position)

• Expansion slots: 9 (vertical‑GPU‑oriented layout)

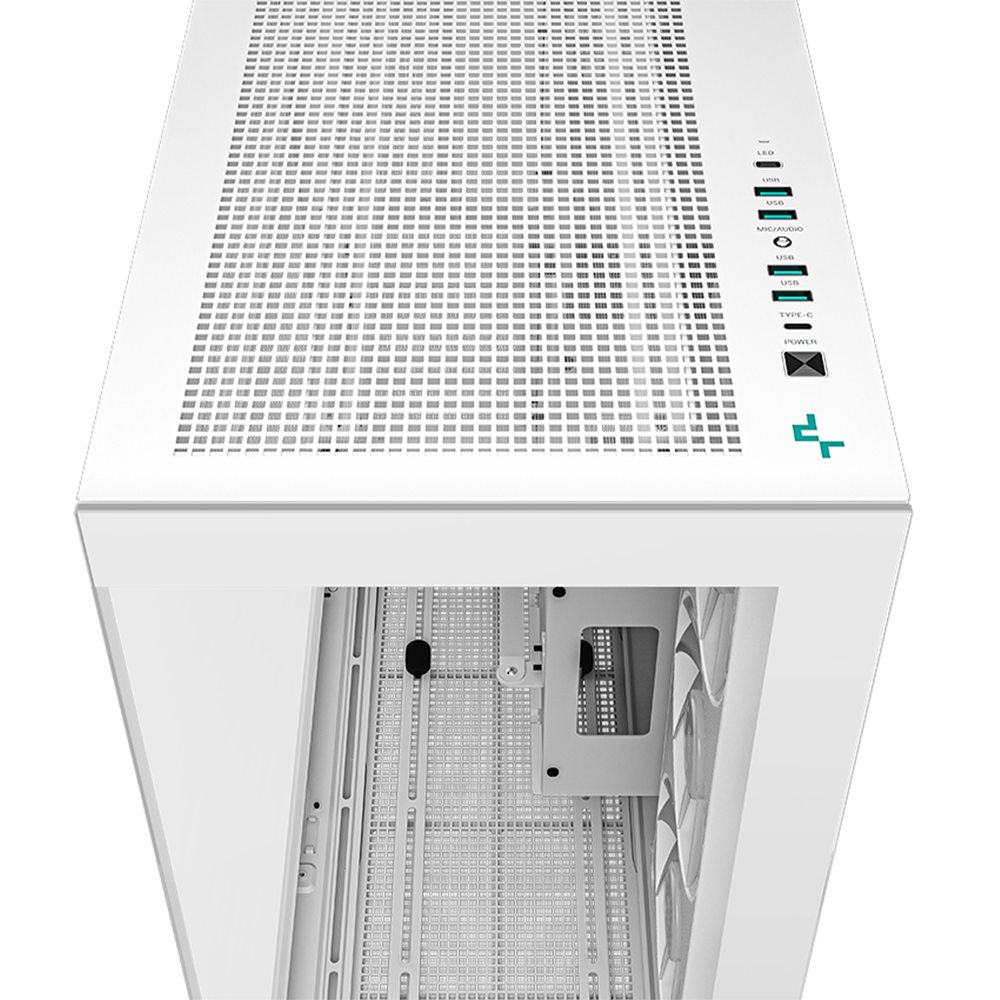

• Front I/O: 4 × USB 3.0 Type‑A, 1 × USB 3.2 Gen2 Type‑C, 1 × audio jack, power button

• Product dimensions: 528 × 250 × 551 mm (L × W × H)

• Net weight: 13.7 kg

• Materials: ABS, SPCC steel, tempered glass

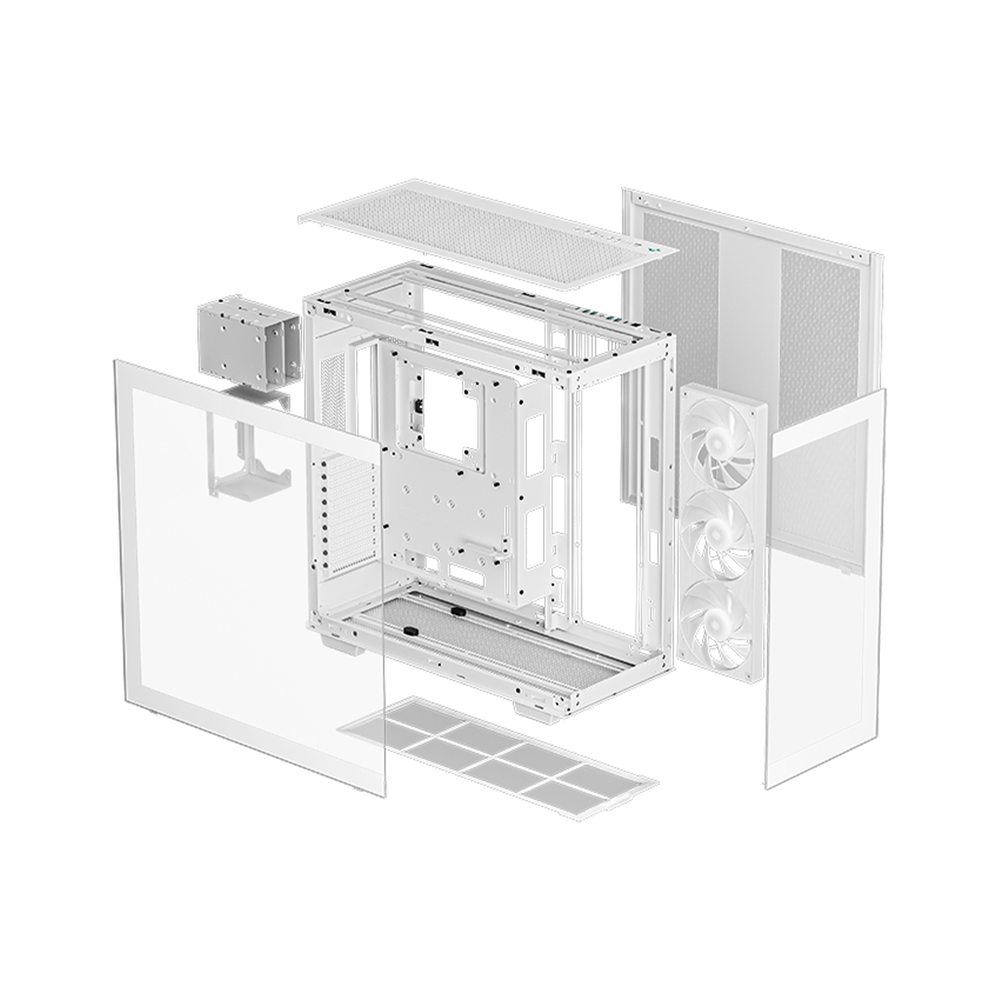

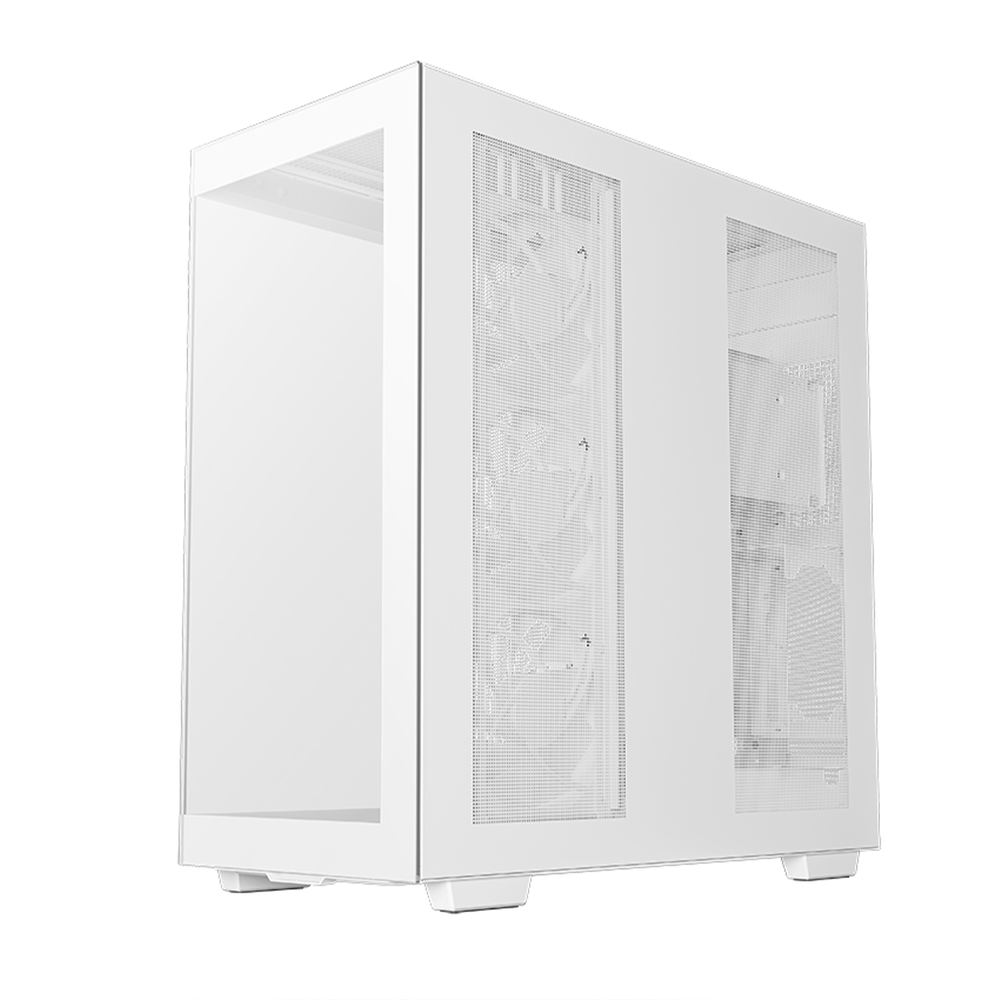

• Panels: Panoramic tempered glass on front and side, with magnetic side glass and optional screw locking for extra security

• Dust filters: Magnetic top mesh filter and bottom/PSU filter; mesh and large‑fan setups handle other intakes

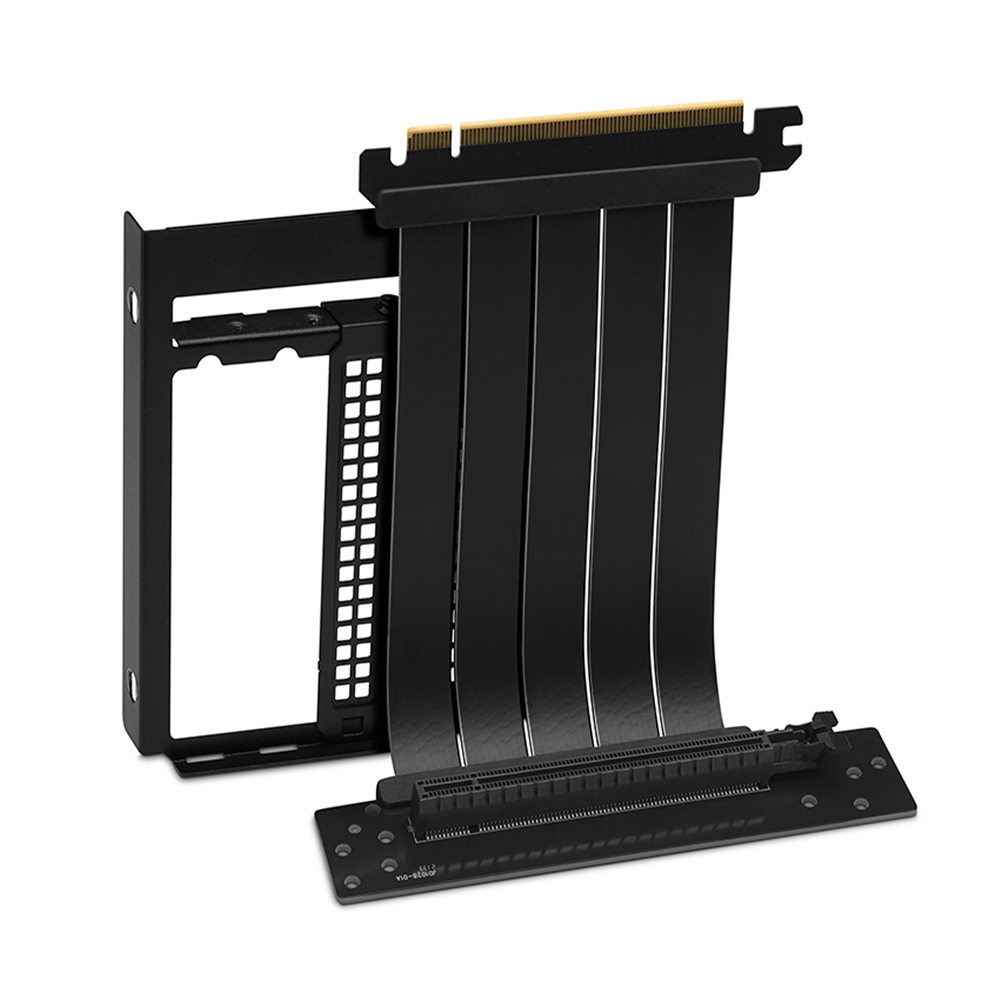

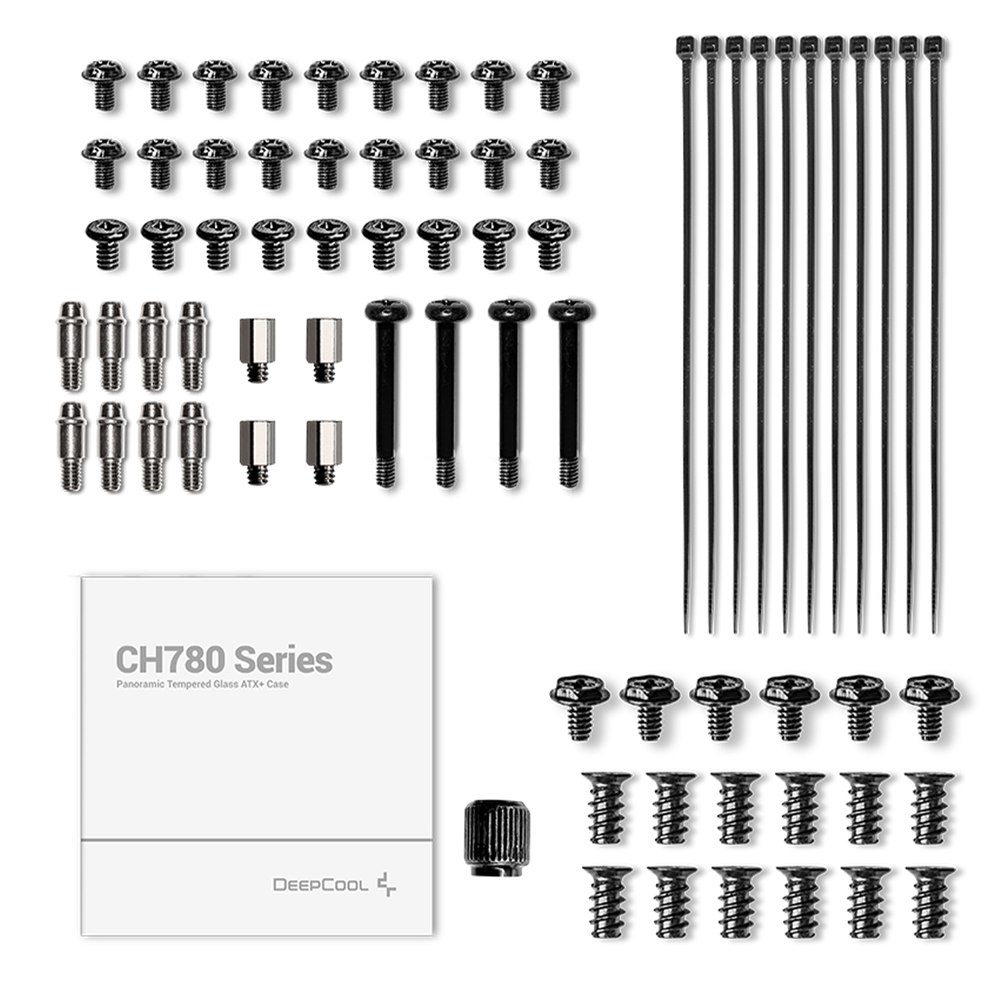

• Included accessories: PCIe 4.0 riser cable and vertical GPU mount, GPU support arm

• Color options: White (this listing); black CH780 Black sold separately

• Warranty: 1 year (per DeepCool and most India retailers; match your store policy)

About the DEEPCOOL CH780 White
The CH780 White is aimed at ultra‑high‑end café, studio, and enthusiast builds where you want full‑view white systems, vertical flagship GPUs, and huge radiator/fan capacity for quiet, cool operation. It’s ideal for custom‑loop and showcase white rigs that need E‑ATX support, triple‑420 mm radiator options, and a clean dual‑chamber layout that keeps the “ugly stuff” hidden.
