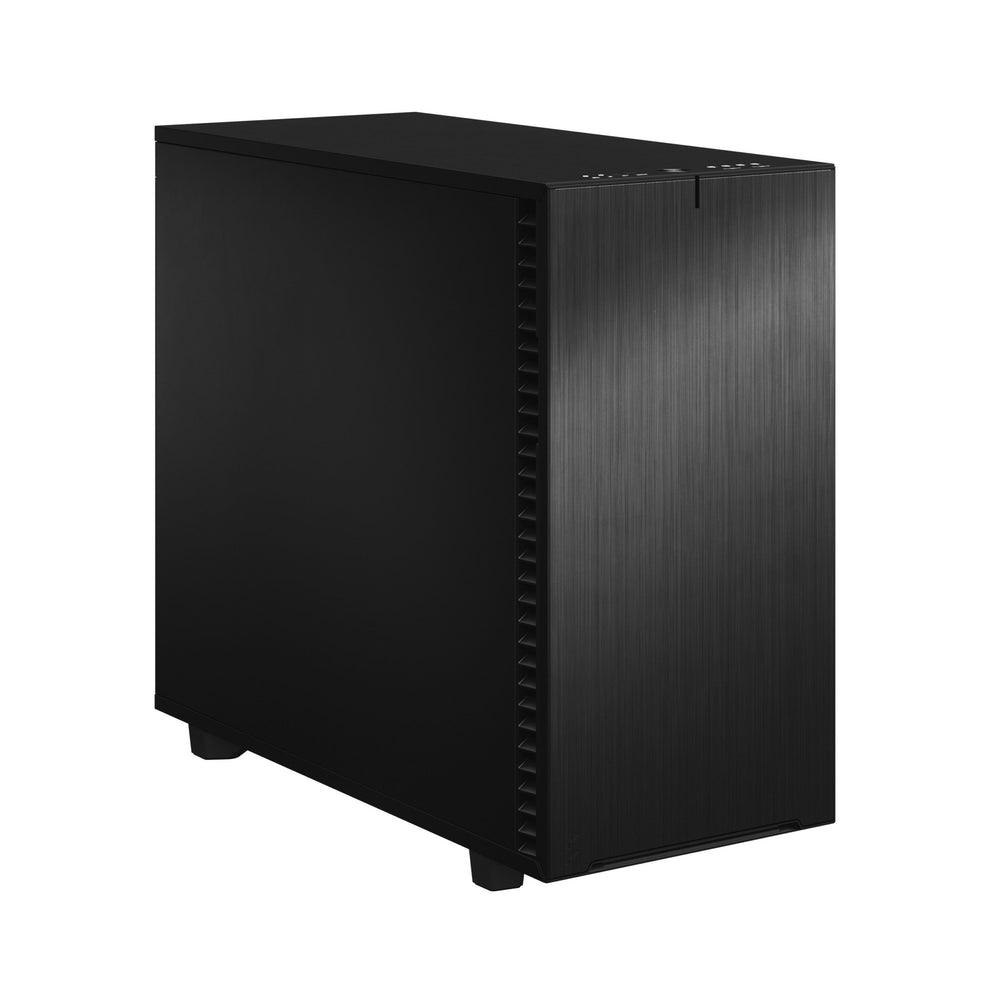

Fractal Design Define 7 Mid-Tower Case
Technical specification
Silent E-ATX Mid Tower — Sound-Dampened Panels, Dual-Layout Interior, 3x Dynamic X2 GP-14 Fans Included, Solid Steel Side Panel, Supports E-ATX (285mm) / ATX / mATX / ITX, Up to 420mm Top & 360mm Front Radiator, 467mm GPU.
The Fractal Design Define 7 Black Solid is a premium silent mid tower that evolves the renowned Define series with a fully modular, dual-layout interior and outstanding build quality. Anodized aluminium front door with reversible hinges, industrial sound-dampened front, top and side panels, and a new chassis that opens up to fully expose the interior make building and maintenance easier while keeping noise to a minimum.[web:990][web:993]
Define 7 supports motherboards up to 285 mm wide E‑ATX, long GPUs up to 467 mm (open layout), CPU coolers up to 185 mm tall and extensive water-cooling with radiators up to 420 mm in the top, 360/280 mm in the front and 280 mm in the base. Out of the box it includes three 140 mm Dynamic X2 GP‑14 fans and the compact Nexus+ 2 fan hub for flexible fan control.[web:990][web:999] With support for up to 14 HDDs plus 4 SSDs in Storage Layout and a wealth of cable management features, Define 7 Black Solid is ideal for high-end quiet gaming PCs, workstations and creator rigs.[web:990][web:993]
-
>Silence-optimized construction — Sound-dampened front, top and solid steel side panels, plus a fully enclosed default top for near-silent operation.[web:990][web:999]
>Dual-layout interior — Choose Open Layout for maximum GPU and radiator space or Storage Layout for up to 14 HDDs and 4 SSDs with the included drive brackets.[web:990][web:993]
>Modular, openable chassis — New chassis design opens to fully expose the interior on three sides; removable top panel gives unhindered access for building and cable routing.[web:990]
>Three Dynamic X2 GP-14 fans included — Comes with 3x 140 mm Dynamic X2 GP‑14 fans, pre-tuned for high airflow and low noise.[web:990][web:993][web:995]
>Excellent airflow & filtration — Up to 9 x 140/120 mm fan mounts and easy-to-clean high-airflow nylon filters with full PSU coverage and convenient front access.[web:990][web:993]
>Radiator support — Front: up to 360/280 mm; Top: up to 360/420 mm; Rear: 120 mm; Bottom: up to 240/280 mm, supporting ambitious custom loops.[web:990][web:999]
>Component clearance — Open layout supports GPUs up to 470 mm (about 467 mm with front fan), CPU coolers up to 185 mm and PSUs up to 250 mm with HDD cage installed.[web:990][web:999]
>Superlative storage options — 6 universal 3.5"/2.5" drive brackets included (14 positions total) plus 2 dedicated 2.5" SSD brackets (4 positions total) and 1 Multibracket for HDD/SSD or pump mounting.[web:990][web:993]
>Versatile front I/O with USB‑C — 1 x USB 3.2 Gen 2x2 Type‑C (20 Gbps), 2 x USB 3.0, 2 x USB 2.0, audio I/O, power and reset buttons on the front/top panel.[web:990][web:999][web:1001]
>Nexus+ 2 fan hub — Ultra‑slim hub connects up to 3 PWM fans and 6 3‑pin fans for centralised control from your motherboard or fan controller.[web:990][web:999]
>Strong cable management — 30 mm of cable-routing space, integrated cable guides and pre‑installed Velcro straps simplify clean cable runs.[web:990][web:993]
>Solid front door & panels — Brushed aluminium front with reversible dual‑handed hinges and magnetic latching; solid sound‑dampened steel on both side panels.[web:990][web:1001]
>Tool-less, latching side panels — Top-latching mechanism allows quick, screwless removal of both side panels.[web:990][web:999]
>2‑year warranty — Backed by a 2‑year manufacturer warranty from Fractal Design.[web:990]
| Spec | Detail |
|---|---|
| Model | Fractal Design Define 7 Black Solid |
| Product code (SKU) | FD-C-DEF7A-01 |
| Cabinet type | E‑ATX Silent Modular Mid Tower |
| Color | Black (solid sound‑dampened panels) |
| Motherboard support | E‑ATX (max 285 mm), ATX, Micro‑ATX, Mini‑ITX |
| Side panels | Left: Sound‑dampened steel; Right: Sound‑dampened steel |
| Pre-installed fans | 3 x 140 mm Dynamic X2 GP‑14 (2 front, 1 rear) |
| Total fan mounts | 9 x 140/120 mm (Front 3, Top 3, Rear 1, Bottom 2) |
| Radiator support | Front: up to 360/280 mm; Top: up to 360/420 mm; Rear: 120 mm; Bottom: up to 240/280 mm |
| Max GPU length | Storage layout: 290 mm; Open layout: 470 mm (≈467 mm with front fan) |
| Max CPU cooler height | 185 mm |
| Max PSU length | 250 mm (with HDD cage) |
| 3.5"/2.5" universal brackets | 6 included, 14 positions total |
| Dedicated 2.5" brackets | 2 included, 4 positions total |
| 5.25" bay | 1 external (convertible to 140 mm front fan mount) |
| Expansion slots | 7 + 2 vertical |
| Cable routing space | 30 mm behind motherboard tray |
| Front / top I/O | 1 x USB 3.2 Gen 2x2 Type‑C, 2 x USB 3.0, 2 x USB 2.0, audio I/O, power, reset |
| Dust filters | High‑airflow nylon filters front, top (when ventilated panel used) and full‑length PSU/bottom |
| Case dimensions (L x W x H) | 547 x 240 x 475 mm |
| Dimensions w/ feet & protrusions | 547 x 240 x 475 mm (approx, incl. feet/top) |
| Net weight | ~13.5 kg (Black Solid, mid tower) |
| EAN | 7340172702191 |
| Warranty | 2 Years |
