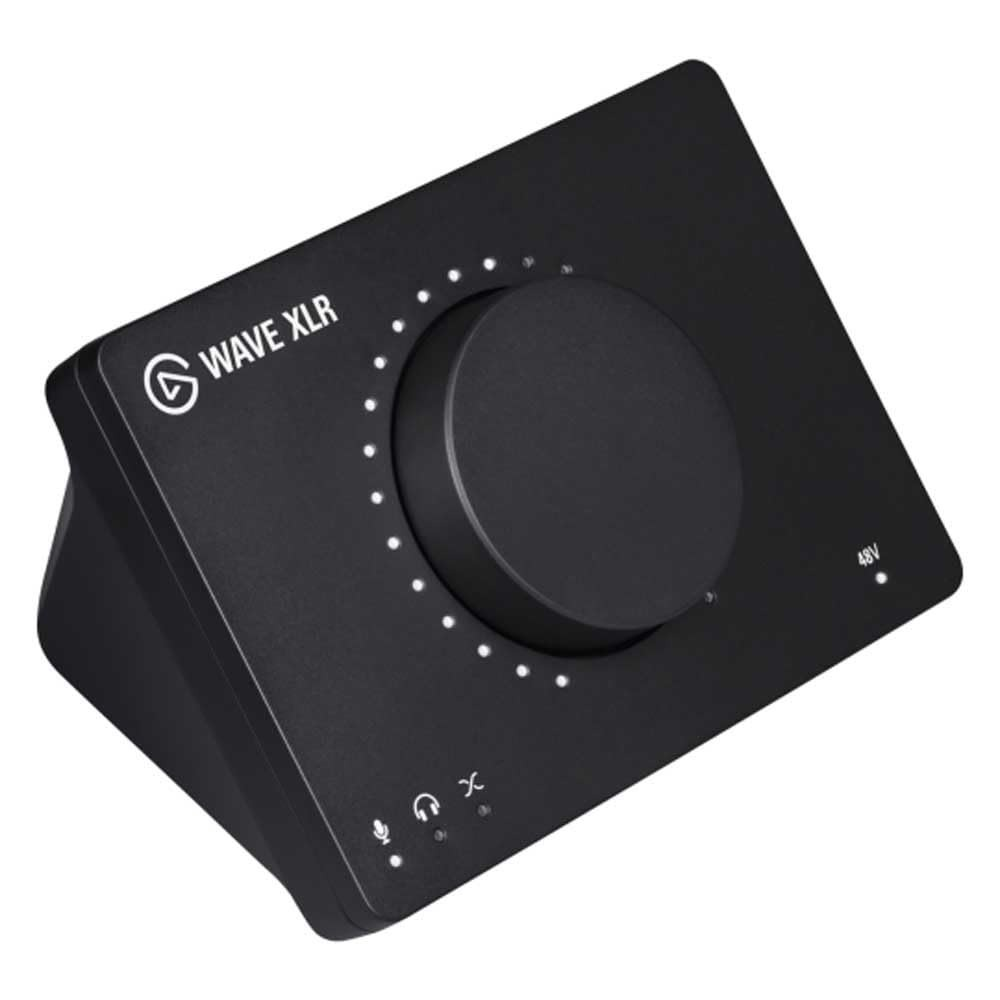

Elgato Wave XLR - Premium USB-C Audio Interface with 75dB Preamp, 48V Phantom Power, and Wave Link Software
Price inclusive of all taxes
Technical specification
Key Features:
-
>Premium XLR to USB-C audio interface for professional microphone connectivity
>Up to 75dB of ultra-low-noise gain (52dB analog + 23dB digital) - powers demanding mics like Shure SM7B without external preamps
>48V phantom power for condenser microphones
>24-bit / 96kHz audio resolution for broadcast-quality sound
>Proprietary Clipguard technology prevents distortion with 20dB additional headroom (120dB dynamic range engaged)
>Wave Link app creates two independent mixes - one for you, one for your audience
>Mix Wave XLR with up to seven other audio sources simultaneously
>Capacitive mute button for instant, silent mic control with LED feedback
>Multifunctional control dial adjusts mic gain, headphone volume, and mic/PC mix balance
>Two selectable low-cut filters (75Hz, 150Hz) remove low frequencies for optimal voice clarity
>High-power 3.5mm headphone jack (77mW @ 16Ω) for zero-latency monitoring
>Swappable faceplate and control dial for customization
>Compact, portable design powered entirely via USB-C
>Compatible with OBS, Streamlabs, XSplit, Discord, Zoom, and all streaming/recording apps
Technical Specifications:
| Model Number | 10MAG9901 |
| Brand | Elgato |
| Type | USB-C Audio Interface / XLR Preamp |
| Resolution | 24-bit |
| Sample Rate | 48 kHz / 96 kHz |
| Frequency Response | 20 Hz - 20,000 Hz |
| Gain Range | 0 - 75 dB (52 dB analog + 23 dB digital) |
| Phantom Power | 48V DC, 7mA |
| Dynamic Range | 100 dB (120 dB with Clipguard engaged) |
| Equivalent Input Noise (EIN) | -130 dBV @ 60 dB gain |
| Maximum Input Level | 10 V @ 0 dB gain (Clipguard engaged) |
| Low-Cut Filters | 75 Hz, 150 Hz (switchable) |

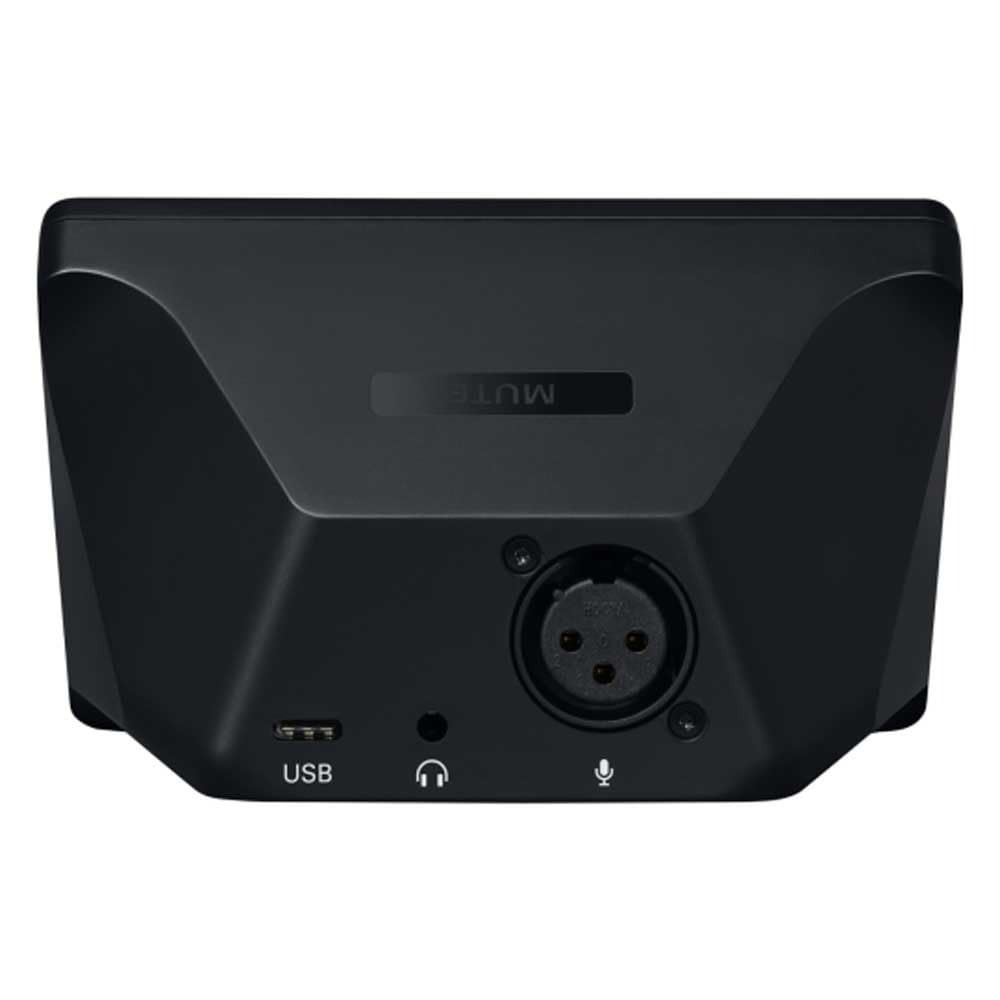

| Inputs | 1 x XLR (3-pin) microphone input |
| Outputs | 1 x 3.5mm headphone jack |
| Headphone Output | 77 mW @ 16Ω, 16/24-bit, 48/96 kHz |
| Interface | USB-C |
| Controls | Capacitive mute button, multifunctional dial |
| Dimensions | 84 x 88 x 118 mm / 3.31 x 3.46 x 4.65 inches |
| Weight | Approx. 0.3 kg |
| Color | Black |
| Power Source | USB-C bus powered |
| System Requirements | Windows 10 64-bit or macOS 10.15 or newer, USB 2.0 port |
| Compatible Software | Wave Link, OBS Studio, Streamlabs, XSplit, Discord, Zoom, Teams, and all audio applications |
| Country of Origin | China |
| Warranty | 2 Years |
Package Contents:
-
>Wave XLR Audio Interface
>USB-C to USB-A Cable (1.8m / 5.9 ft)
>Quick Start Guide
Perfect for Twitch streamers, YouTube creators, podcasters, voice actors, musicians, and broadcasters who want to use professional XLR microphones like the Shure SM7B, Electrovoice RE20, Audio-Technica AT2020, or Rode PodMic with their computer without investing in expensive, complex studio interfaces. The Wave XLR delivers 75dB of ultra-clean gain—enough to drive even the notoriously gain-hungry Shure SM7B to optimal levels without requiring a Cloudlifter or FetHead. The 52dB of analog gain is perfectly clean, and the additional 23dB of digital gain is processed cleanly in the digital domain for noise-free amplification. Clipguard technology is revolutionary—it automatically routes audio to a secondary, high-headroom signal path when levels peak, preventing clipping and distortion even when you get loud or excited during streams. The capacitive mute button provides instant, silent mic control with visual LED feedback. The multifunctional dial offers tactile control over gain, headphone volume, and mic/PC audio balance. Wave Link app elevates your audio game by letting you mix multiple sources (game audio, Discord, music, browser, mic) with individual volume controls and create two independent mixes—customize what you hear vs. what your audience hears. The two selectable low-cut filters (75Hz for close mic positions, 150Hz for distant positions) remove rumble and proximity effect for broadcast-ready vocals. Compact, USB-powered, and compatible with all streaming software—Wave XLR is the ultimate XLR audio solution for digital creators.
