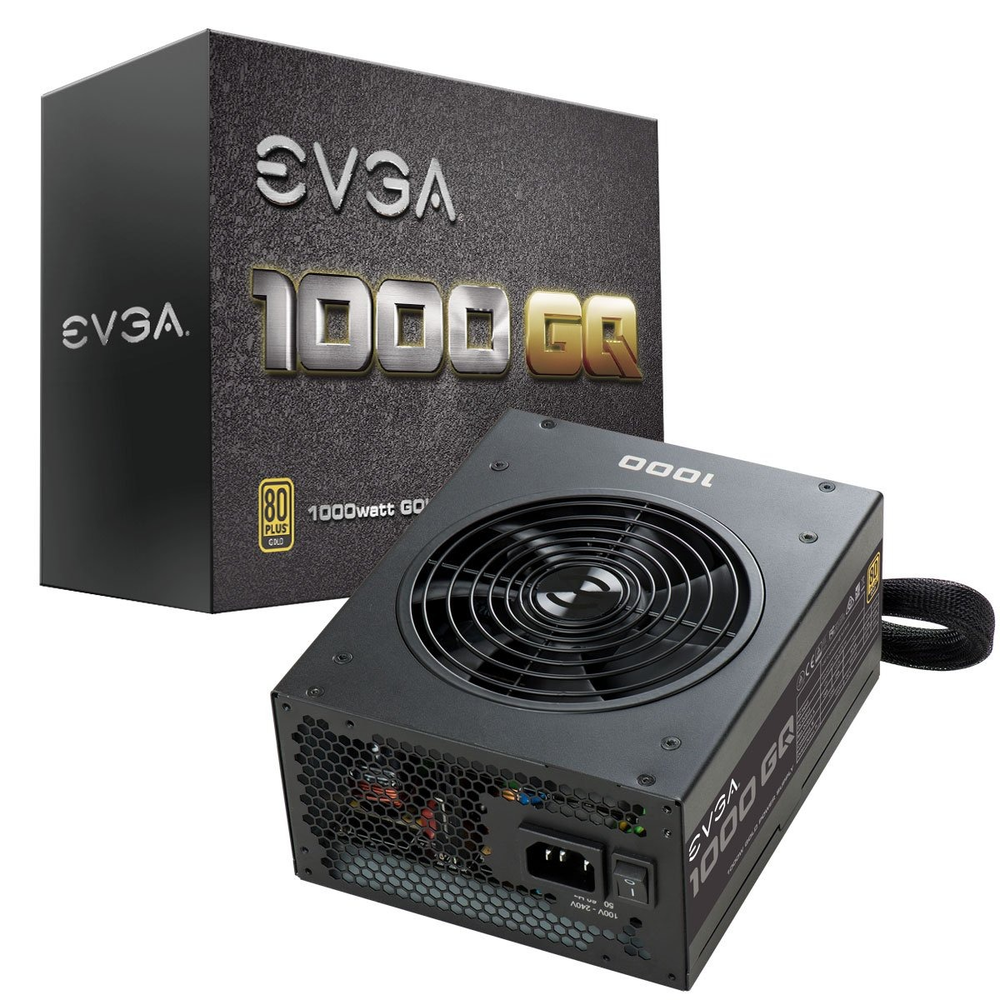

EVGA 1000 GQ 1000W 80+ Gold Semi‑Modular ATX Power Supply

The EVGA 1000 GQ (1000W) is an 80 Plus Gold semi‑modular power supply that balances high efficiency, strong performance and value for powerful gaming PCs and workstations. With up to 90–92% efficiency, a single +12 V rail, 100% Japanese capacitors and EVGA ECO fan mode, it delivers reliable, quiet power backed by a 5‑year warranty. [web:1310][web:1314][web:1309]

• 80 Plus Gold efficiency: Up to 90% efficiency at 115 V and 92% at 220–240 V under typical loads, reducing wasted power and heat. [web:1310][web:1314][web:1316]
• 1000W single‑rail design: Single +12 V rail rated up to 83.3 A delivers stable power for modern high‑end GPUs and CPUs. [web:1314][web:1313]

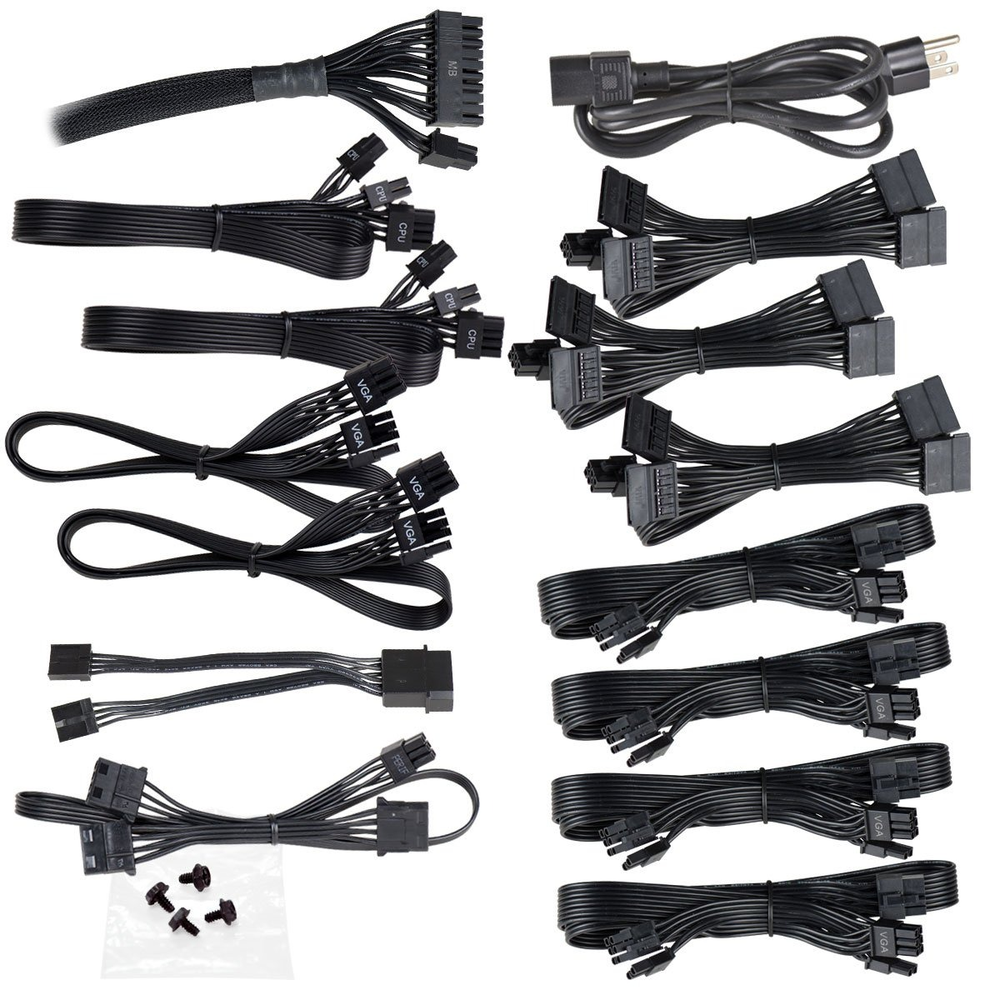

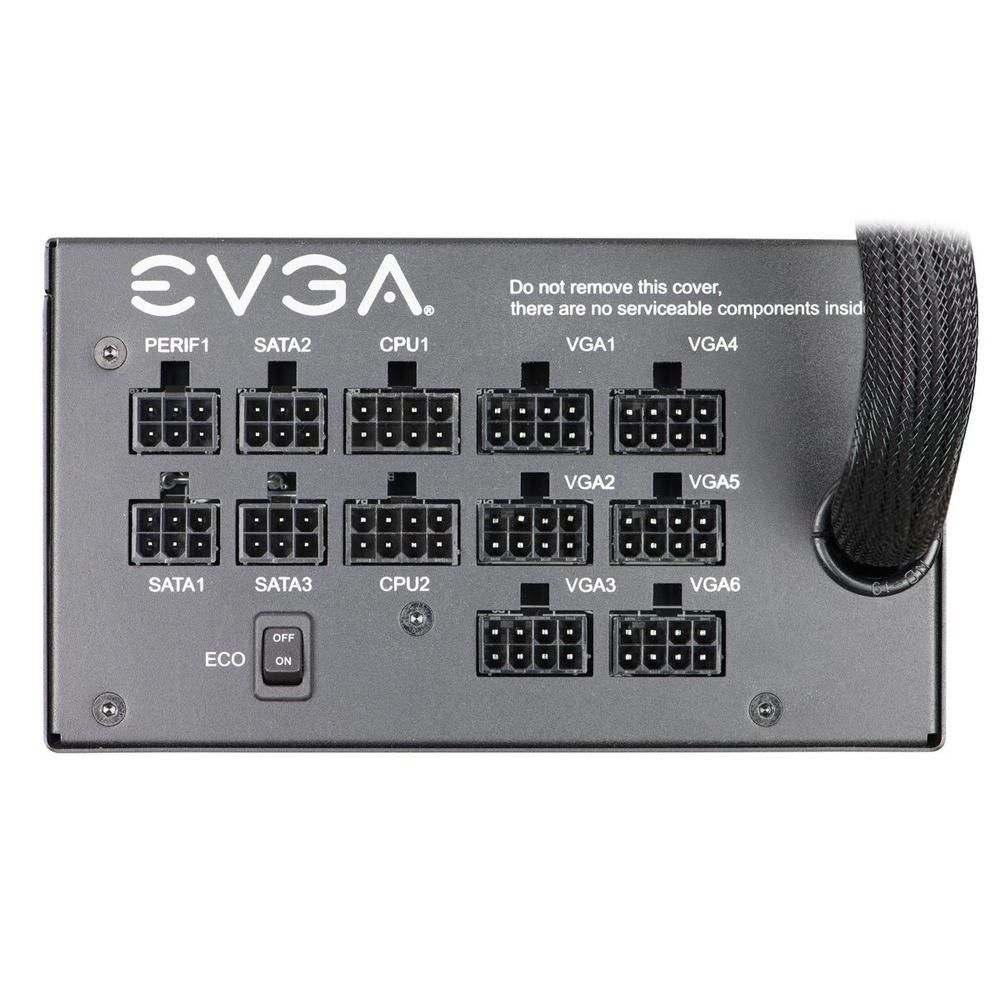

• Semi‑modular cabling: Fixed 24‑pin and EPS cables with modular PCIe, SATA and peripheral cables to reduce clutter while keeping key leads always available. [web:1310][web:1314]
• 100% Japanese capacitors: High‑quality Japanese capacitors ensure long‑term reliability and tighter voltage regulation. [web:1310][web:1314][web:1316]
• 135 mm FDB fan with ECO mode: Whisper‑silent 135 mm Fluid Dynamic Bearing fan plus EVGA ECO Intelligent Thermal Control keeps the fan off at low–medium loads. [web:1310][web:1314]
• Heavy‑duty protections: OVP, UVP, OCP, OPP, SCP and OTP help protect your system from power anomalies. [web:1310][web:1314]

### Technical Specifications ```html [2][1] [3][2] [2][3] [4][1][3] [3][2] [2][3] [3] [2][3] [3][2] [3] [3] [3] [3] [3] [2][3] [2][3] [5] [4][3] [4][3] [4][3] [4][3] [4][3] [2][3] [6][2][3] [5] [5] [1][2][3]

Specification	Detail
Brand	EVGA
Series	GQ
Model	1000 GQ
Part Number	210-GQ-1000-V1
Wattage	1000 W
80 Plus Rating	80 Plus Gold
Form Factor	ATX12V / EPS12V
Modularity	Semi‑modular

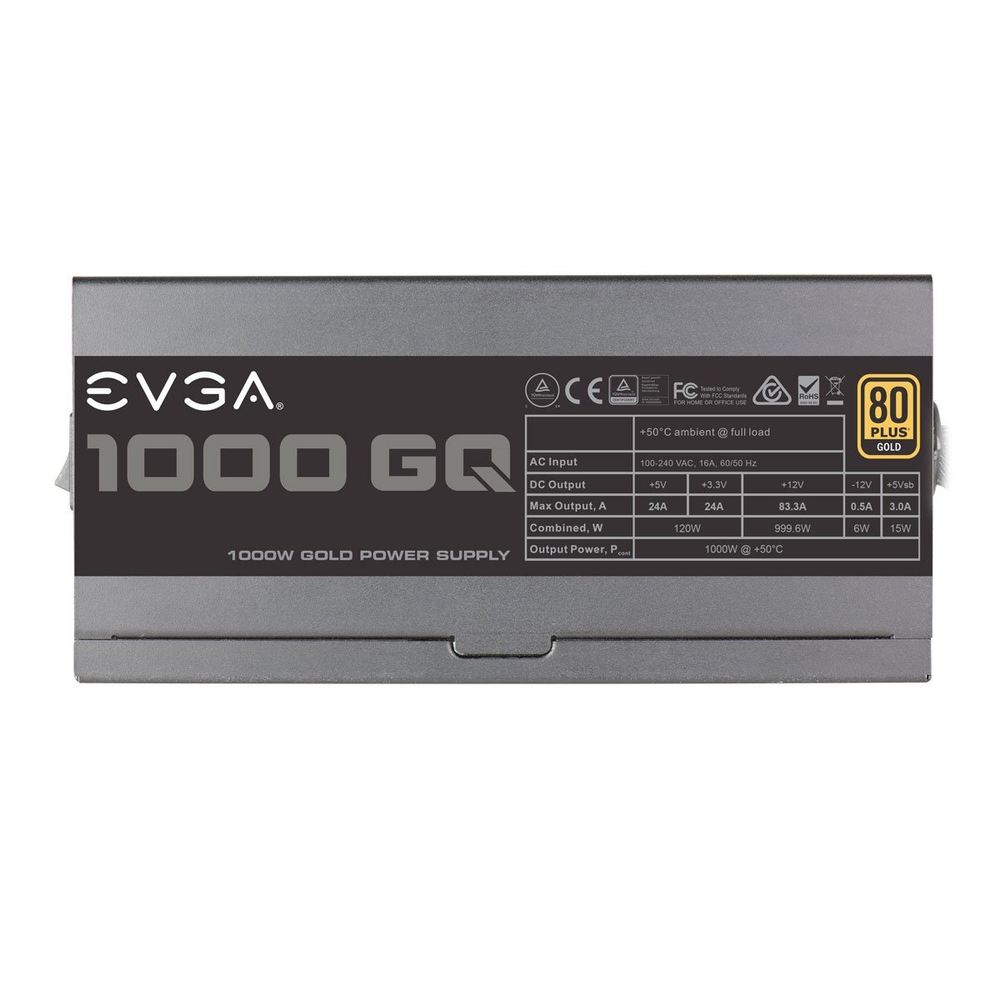

AC Input	100–240 V~, 15–8 A, 50/60 Hz
DC Output Rails	+3.3 V, +5 V, +12 V, -12 V, +5 Vsb
Max Output (3.3 V / 5 V)	24 A / 24 A (combined 120 W)
Max Output (+12 V)	83.3 A (999.6 W) single rail
Max Output (-12 V)	0.5 A (6 W)
Max Output (+5 Vsb)	3 A (15 W)
Fan	135 mm Fluid Dynamic Bearing fan
Fan Mode	EVGA ECO Intelligent Thermal Control (semi‑fanless)
MTBF	100,000 hours
24‑pin ATX	1 × 24‑pin ATX (fixed)
CPU / EPS	2 × 8‑pin (4+4) EPS/CPU (fixed)
PCIe (GPU)	4 × 8‑pin (6+2) PCIe modular cables
SATA	3 × SATA cable runs (multiple connectors each)
Peripheral (Molex)	Modular 4‑pin peripheral connectors
Protections	OVP, UVP, OCP, OPP, SCP, OTP
Efficiency (typical)	≈90% (115 V) / 92% (220–240 V)
Dimensions	85 × 150 × 180 mm (H × W × L)
Net Weight	Approx. 7 lbs (~3.2 kg)
Warranty	5‑Year limited warranty

```

Ideal For: High‑end single‑GPU gaming rigs and workstations that need a 1000 W 80+ Gold PSU with semi‑modular cabling and strong value. [web:1309][web:1310][web:1314]
