The EVGA SuperNOVA 1300 G+ (1300W) is an 80 Plus Gold fully modular ATX power supply built for extreme gaming PCs, multi‑GPU rigs and heavy workstation loads. With up to 90–92% efficiency, a powerful single +12 V rail, 100% Japanese capacitors and EVGA ECO mode, it delivers clean, stable power backed by a 10‑year warranty.

[2][3][1]

• 80 Plus Gold efficiency: Certified for 90% efficiency or higher under typical loads at 115 V, and up to around 92% at 220–240 V, reducing wasted power and heat.
[4][1][2]
• 1300W single‑rail design: Single +12 V rail rated for the full 1300 W output provides excellent stability for today’s high‑draw GPUs and CPUs.
[3][1][2]

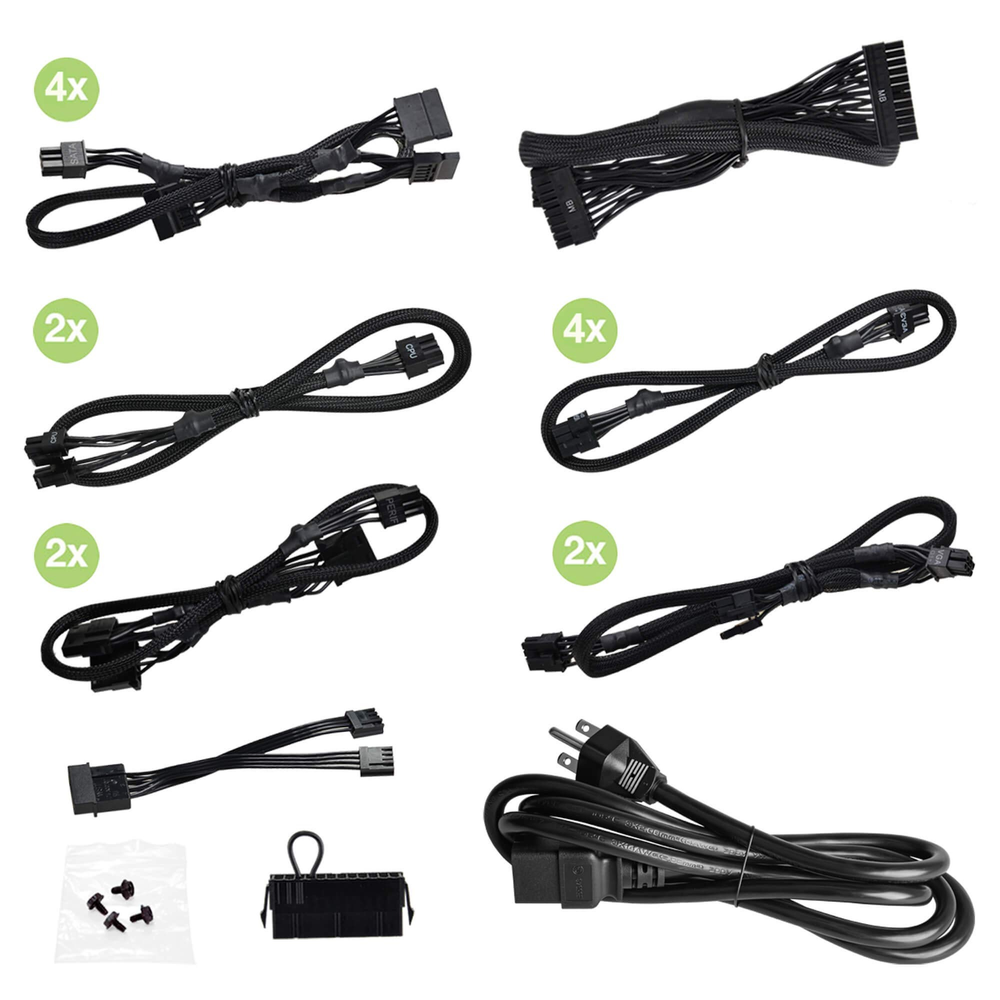

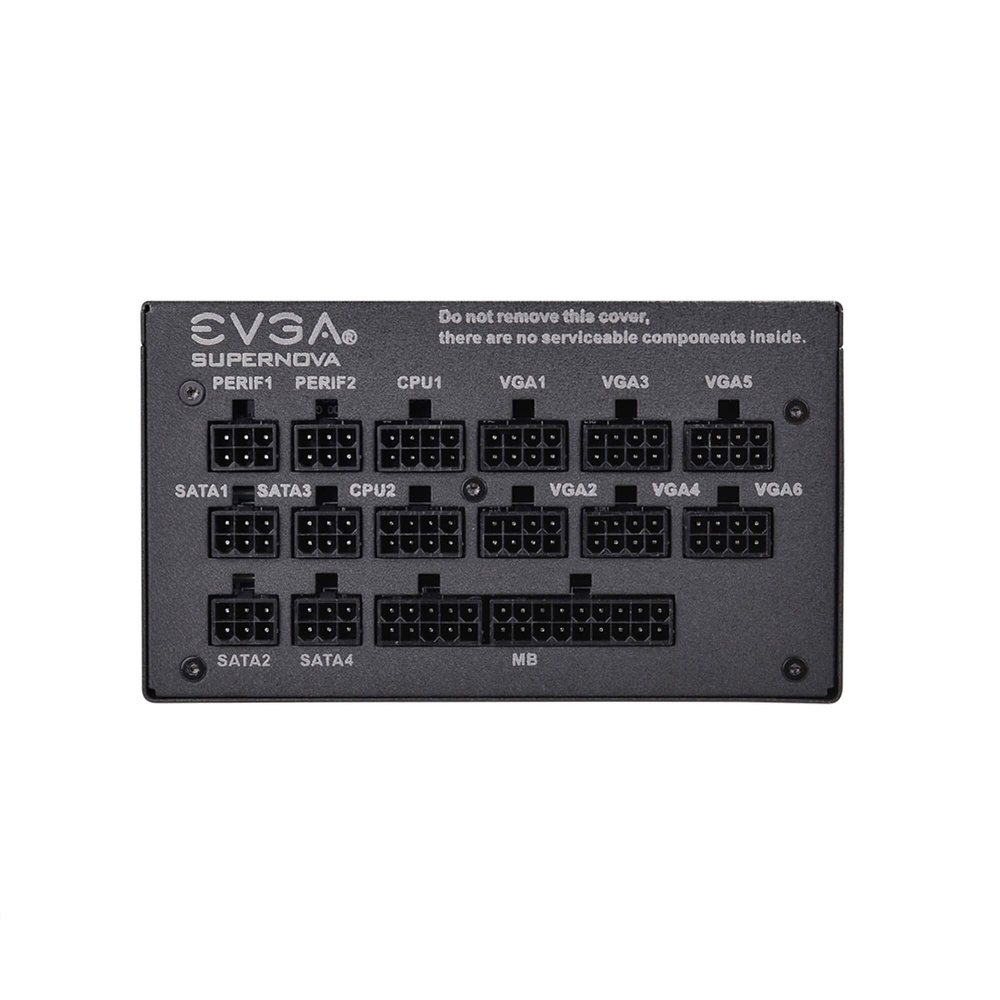

• Fully modular cabling: Fully modular interface lets you connect only the cables you need for cleaner routing and improved airflow.
[1][2][3]
• 100% Japanese capacitors: Premium Japanese capacitors and DC‑DC converters on minor rails improve voltage stability and long‑term reliability.
[5][2][1]
• Quiet FDB fan with ECO mode: Fluid Dynamic Bearing fan and EVGA ECO mode keep the PSU near‑silent at low–medium loads by disabling the fan until required.
[6][2][1]
• Heavy‑duty protections: OVP, UVP, OCP, OPP, SCP and OTP safeguard your system against power faults.
[4][2][1]

[1] [2][3] [3][1] [4][3][1] [3][1] [1][4][3] [4][3] [3][1][4] [2][1] [7][1][4] [4][3] [3][4] [4][3] [4] [4] [6][2] [2][1] [3] [3] [2][3] [2][3] [2][3] [3] [1][2][4] [8][2] [7][4] [1][2][3]

Specification	Detail
Brand	EVGA
Series	SuperNOVA G+
Model	1300 G+
Part Number	220-GP-1300-X1
Wattage	1300 W
80 Plus Rating	80 Plus Gold
Form Factor	ATX / ATX12V / EPS12V
Modularity	Fully modular
AC Input	100–240 V~, 15–8 A, 50/60 Hz
Efficiency (typical)	≈90% @ 115 V, ≈92% @ 220–240 V
DC Output Rails	+3.3 V, +5 V, +12 V, -12 V, +5 Vsb
Max Output (3.3 V / 5 V)	24 A / 24 A (combined 120 W)
Max Output (+12 V)	108.3 A (1300 W) single rail
Max Output (-12 V)	0.5 A (6 W)
Max Output (+5 Vsb)	3 A (15 W)
Fan	135 mm Fluid Dynamic Bearing (FDB) fan
Fan Mode	EVGA ECO Mode (semi‑fanless operation)
24‑pin ATX	1 × 24‑pin ATX
CPU / EPS	2 × 8‑pin (4+4) EPS/CPU
PCIe (GPU)	6 × 8‑pin (6+2) PCIe connectors
SATA	9 × SATA power connectors (typical bundle)
Peripheral (Molex)	4 × 4‑pin peripheral connectors
Floppy	1 × floppy adapter
Protections	OVP, UVP, OCP, OPP, SCP, OTP
Operating Temp	0–50 °C
Dimensions	Approx. 3.4 × 5.9 × 7.1 in (H × W × L)
Warranty	10‑Year limited warranty with registration

```

Ideal For: Extreme gaming PCs, multi‑GPU or high‑core workstation setups that need a high‑capacity, 80+ Gold, fully modular PSU with long‑term reliability. [web:1296][web:1302]
