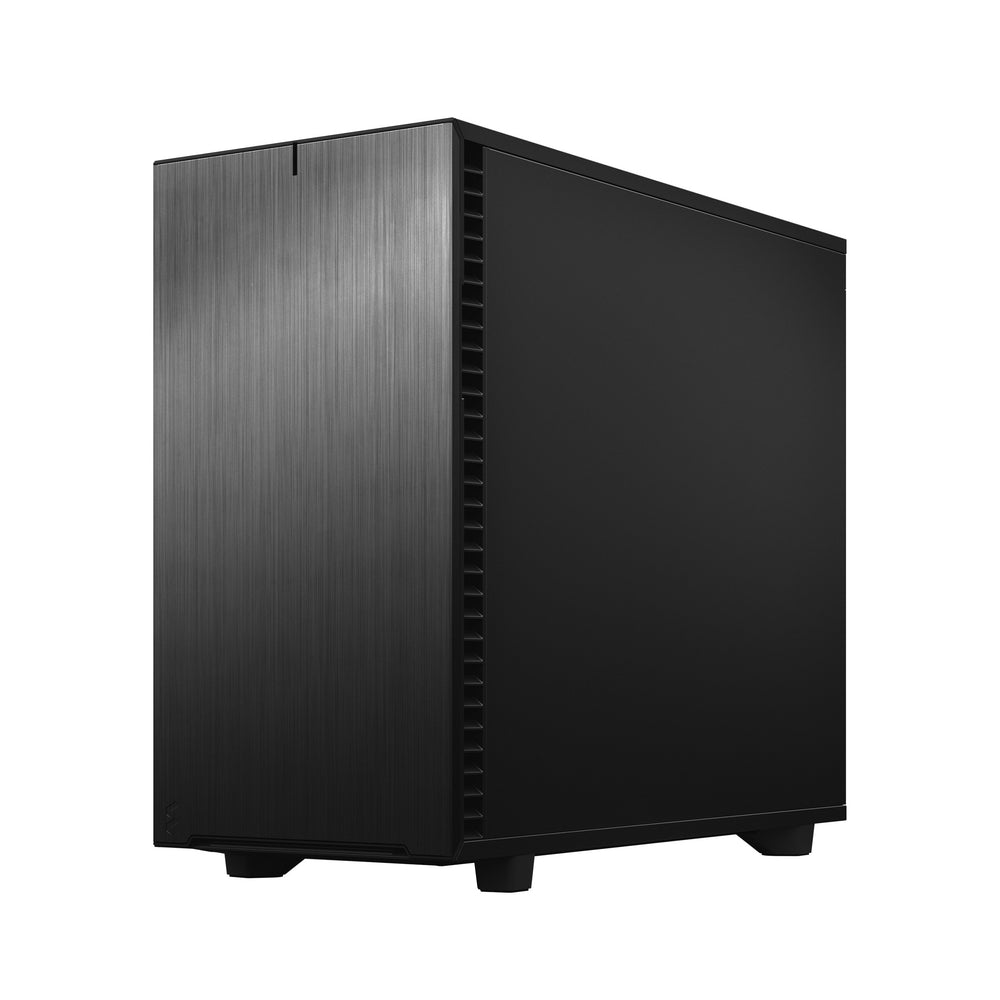

Fractal Design Define 7 Black TG Dark Tint E-ATX Silent Modular Mid Tower PC Case
Technical specification
Silent E-ATX Mid Tower — Dark-Tinted Tempered Glass Side Panel, Sound-Dampened Steel Panels, Dual-Layout Interior, 3x Dynamic X2 GP-14 Fans Included, Supports E-ATX (285mm) / ATX / mATX / ITX, Up to 420mm Top & 360mm Front Radiator, 467mm GPU.
The Fractal Design Define 7 Black TG Dark Tint is a premium silent mid tower that combines the renowned Define acoustics with a full-length dark-tinted tempered glass side panel. The new Define 7 chassis opens up completely for unhindered access, while modular top panels let you choose between a fully closed, noise-optimised top or a ventilated top for maximum airflow.[web:990][web:1002] Thick sound-dampening material on the front, top and right side panel helps keep powerful systems quiet without sacrificing cooling performance.[web:990][web:1008]
Define 7 Black TG Dark Tint supports motherboards up to 285 mm wide E‑ATX, graphics cards up to 467 mm long in Open Layout, CPU coolers up to 185 mm tall and extensive water-cooling with radiators up to 420 mm in the top, 360/280 mm in the front and 280 mm in the base.[web:990][web:999] Three pre‑installed Dynamic X2 GP‑14 140 mm fans and the included Nexus+ 2 fan hub provide efficient, quiet airflow and flexible fan control. With a dual‑layout interior that can be reconfigured for up to 14 HDDs plus 4 SSDs, Define 7 Black TG Dark Tint is ideal for high-end silent gaming PCs, content creation workstations and storage‑heavy builds.[web:990][web:993][web:1008]
-
>Dark-tinted tempered glass — Full-length dark-tinted TG left panel showcases your components and lighting while maintaining a stealthy, low-glare appearance.[web:990][web:1000][web:1002]
>Silence-optimised construction — Sound-dampened steel front, top (in solid configuration) and right side panel, plus a closed default top for near‑silent operation.[web:990][web:1008]
>Dual-layout interior (Open/Storage) — Open Layout maximises GPU and radiator space, while Storage Layout adds additional drive brackets for up to 14 HDDs and 4 SSDs.[web:990][web:993]
>Modular, openable chassis — The top and both side panels can be removed, and the new chassis design opens up to fully expose the interior for easy building and cable routing.[web:990][web:1000]
>Three Dynamic X2 GP-14 fans included — Ships with 3x 140 mm Dynamic X2 GP‑14 fans (2 front, 1 rear) tuned for high airflow and low noise.[web:990][web:993][web:1008]
>Excellent airflow & filtration — Up to 9 fan positions (Front 3, Top 3, Bottom 2, Rear 1) and easy‑to‑clean high-airflow nylon filters with full PSU coverage and convenient front access.[web:990][web:1008][web:1017]
>Radiator support — Front: up to 360/280 mm; Top: up to 360/420 mm; Rear: 120 mm; Bottom: up to 240/280 mm, supporting ambitious custom liquid-cooling loops.[web:990][web:999]
>Component clearance — Open layout supports GPUs up to 467–470 mm, CPU coolers up to 185 mm tall and PSUs up to 250 mm with HDD cage installed.[web:990][web:999][web:1015]
>Versatile storage options — 6 universal 3.5"/2.5" drive brackets included (14 positions total), 2 dedicated 2.5" SSD brackets (4 positions total), plus 1 Multibracket for HDD/SSD or pump mounting.[web:990][web:993]
>Nexus+ 2 fan hub — Ultra‑slim hub supports up to 3 PWM fans and 6 3‑pin fans for centralised control from your motherboard or fan controller.[web:990][web:999][web:1014]
>Rich front I/O with USB‑C — 1 x USB 3.2 Gen 2x2 Type‑C (20 Gbps), 2 x USB 3.0, 2 x USB 2.0, audio I/O, power and reset buttons.[web:990][web:999][web:1001]
>Strong cable management — Approximately 30 mm of routing space behind the motherboard tray with integrated cable guides and pre‑installed Velcro straps.[web:990][web:993]
>Premium front door — Brushed aluminium front door with reversible dual‑handed hinges and magnetic latching for easy access to front storage bay and filters.[web:990][web:1008]
>Tool-less, latching side panels — Top‑latching mechanism allows quick, screwless removal of both side panels, with an extra locking tab for the TG side if desired.[web:990][web:1002]
>2‑year warranty — Backed by a 2‑year manufacturer warranty from Fractal Design.[web:990][web:1008]
| Spec | Detail |
|---|---|
| Model | Fractal Design Define 7 Black TG Dark Tint |
| Product code (SKU) | FD-C-DEF7A-03 |
| Cabinet type | E‑ATX Silent Modular Mid Tower |
| Color | Black (dark-tinted tempered glass side) |
| Motherboard support | E‑ATX (max 285 mm), ATX, Micro‑ATX, Mini‑ITX |
| Side panels | Left: Dark-tinted tempered glass; Right: Sound‑dampened steel |
| Pre-installed fans | 3 x 140 mm Dynamic X2 GP‑14 (2 front, 1 rear) |
| Total fan mounts | 9 x 120/140 mm (Front 3, Top 3, Rear 1, Bottom 2) |
| Radiator support | Front: up to 360/280 mm; Top: up to 360/420 mm; Rear: 120 mm; Bottom: up to 240/280 mm |
| Max GPU length | Storage layout: 315 mm; Open layout: up to 467–470 mm (with front fan) |
| Max CPU cooler height | 185 mm |
| Max PSU length | 250 mm (with HDD cage) |
| 3.5"/2.5" universal brackets | 6 included, 14 positions total |
| Dedicated 2.5" brackets | 2 included, 4 positions total |
| 5.25" bay | 1 external (convertible to 140 mm front fan mount) |
| Expansion slots | 7 + 2 vertical |
| Cable routing space | ~30 mm behind motherboard tray |
| Front / top I/O | 1 x USB 3.2 Gen 2x2 Type‑C, 2 x USB 3.0, 2 x USB 2.0, audio I/O, power, reset |
| Dust filters | High‑airflow nylon filters at front, top (when ventilated top used) and full‑length PSU/bottom |
| Case dimensions (L x W x H) | 547 x 240 x 475 mm |
| Net weight (TG) | 13.45 kg (TG version, vs 13.49 kg Solid)[web:990] |
| Package weight (TG) | 15.94 kg[web:990][web:1008] |
| EAN | 7340172702214 |
| Warranty | 2 Years |
