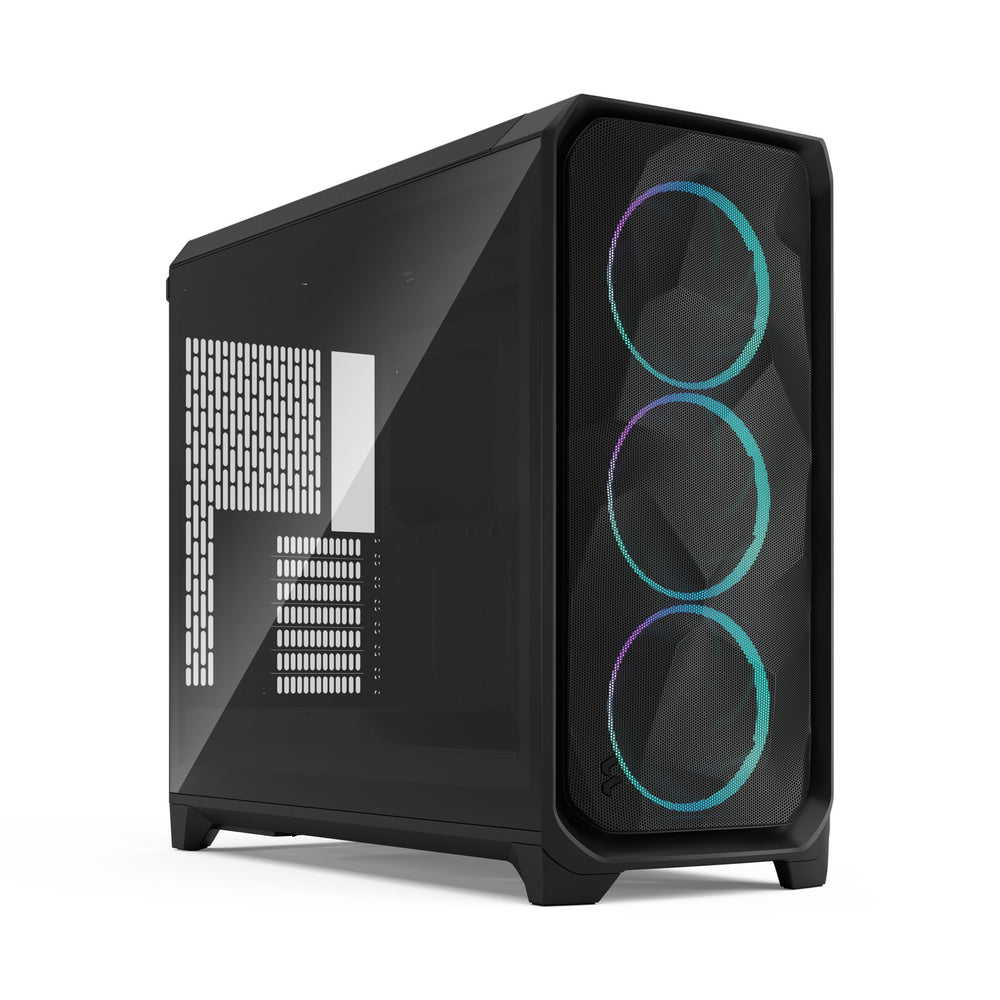

Fractal Design Meshify 3 XL Black RGB TG Light Tint E-ATX Full Tower High Airflow PC Case
Technical specification
E-ATX / SSI-EEB Full Tower RGB Case — High-Airflow Rockface Mesh Front, 3x Momentum 14 RGB Fans Included, Light-Tinted Tempered Glass Side Panel, Supports E-ATX / EE-ATX / SSI-EEB / SSI-CEB / ATX / mATX / Mini‑ITX, Up to 420mm Top & 360mm Front/Side Radiators, 512mm GPU.
The Fractal Design Meshify 3 XL Black RGB TG Light Tint is a spacious, high-airflow full tower that combines Meshify’s mesh performance engineering with addressable RGB lighting and a lightly tinted tempered glass side panel. An aerodynamic rockface-inspired mesh front, fully ventilated top panel and internal air guide deliver strong, focused airflow over high-end GPUs and CPUs, while three pre‑installed Momentum 14 RGB fans showcase your build with vivid ARGB lighting.[web:896][web:940][web:956]
With support for E‑ATX, EE‑ATX, SSI‑EEB and SSI‑CEB motherboards, GPUs up to 512 mm long, CPU coolers up to 182 mm tall and multiple large radiators (up to 420 mm in the top and 360 mm in the front and side), Meshify 3 XL Black RGB TG Light Tint is ideal for enthusiast‑level gaming rigs, creator workstations and complex custom loops.[web:896][web:940][web:942] Standard 3‑pin 5 V ARGB connectors make it easy to sync lighting with your motherboard software, while generous 37.5 mm cable-routing space, a cable cover and tool‑less panels simplify building and maintenance.[web:896][web:940]
-
>RGB tempered glass showcase — Light-tinted tempered glass left panel provides a clear view of your hardware and RGB lighting with a subtle smoked finish.[web:896][web:956]
>Three Momentum 14 RGB fans — Includes 3x 140 mm Momentum RGB fans using advanced blade geometry and FDB bearings for quiet, high-performance airflow with addressable lighting.[web:896][web:940][web:956]
>ARGB-ready lighting — Built-in addressable RGB lighting connects via standard 3‑pin 5 V ARGB headers, allowing easy sync with major motherboard RGB ecosystems.[web:896][web:956][web:958]
>Rockface mesh front — High-airflow rockface-inspired mesh front panel boosts intake performance while filtering dust and preserving the Meshify look.[web:896][web:941]
>Spacious full-tower layout — Designed for large motherboards, long GPUs and multiple radiators, ideal for custom-loop or multi‑GPU configurations.[web:896][web:940][web:942]
>Extreme radiator support — Supports up to 420/360 mm radiators at the top, 360/280 mm at the front and up to 360 mm at the side, plus 120/140 mm at the rear, with removable brackets for easier installation.[web:896][web:940][web:944]
>Huge GPU & PSU clearance — Fits graphics cards up to 512 mm and power supplies up to 230 mm, covering even the largest current hardware.[web:896][web:942][web:953]
>Extensive motherboard support — Compatible with E‑ATX, EE‑ATX, SSI‑EEB, SSI‑CEB, ATX, Micro‑ATX and Mini‑ITX motherboards.[web:896][web:940]
>Advanced airflow & air guide — Internal air guide directs fresh air to the GPU area, improving thermals for high‑power graphics cards.[web:896][web:940][web:941]
>Generous cable management — 37.5 mm behind the motherboard tray plus a cable cover, multiple Velcro straps and cable aligners help you maintain a clean build.[web:896][web:940]
>Modern front/top I/O — Front/top I/O includes 1 x USB Type‑C 20 Gbps, 2 x USB Type‑A 5 Gbps and a 3.5 mm combo audio jack, plus power button.[web:896][web:940][web:944]
>Tool-less access — Push‑to‑lock side panels, front and top panels, bottom PSU filter and PSU bracket, with captive screws on radiator brackets for easy servicing.[web:896][web:940]
>Fan capacity — Supports up to 10 x 140 mm or 7 x 120 mm fans across front, top, rear and side positions for extreme air‑cooled setups.[web:896][web:940]
>Dust management — Removable bottom PSU dust filter and easy‑to‑clean mesh intakes help keep the system clean.[web:896][web:940][web:952]
>2‑year warranty — Covered by a 2‑year manufacturer warranty from Fractal Design.[web:896][web:940]
| Spec | Detail |
|---|---|
| Model | Fractal Design Meshify 3 XL Black RGB TG Light Tint |
| Product code (SKU) | FD-C-MES3X-04 |
| Cabinet type | E‑ATX / EE‑ATX High-Airflow Full Tower |
| Color | Black (light-tinted RGB tempered glass side) |
| Motherboard support | E‑ATX, EE‑ATX, SSI‑EEB, SSI‑CEB, ATX, Micro‑ATX, Mini‑ITX |
| Side panels | Left: Tempered glass light tint; Right: Steel |
| Pre-installed fans | 3 x 140 mm Momentum RGB fans |
| Total fan mounts | Up to 10 x 140 mm or 7 x 120 mm fans |
| Radiator support | Top: up to 360/420 mm; Front: up to 280/360 mm; Side: up to 360 mm; Rear: 120/140 mm |
| Max GPU length | 512 mm |
| Max CPU cooler height | 182 mm |
| Max PSU length | 230 mm |
| Cable routing space | 37.5 mm behind motherboard tray |
| Front / top I/O | 1 x USB Type‑C 20 Gbps, 2 x USB Type‑A 5 Gbps, 1 x combo audio jack, power button |
| Dust filters | Bottom (PSU); mesh front provides filtered intake |
| Tool-less features | Push‑to‑lock side panels, front & top panels, bottom filter, PSU bracket |
| Case dimensions (L x W x H) | 575 x 245 x 515 mm |
| Dimensions w/o feet/protrusions | 565 x 245 x 515 mm |
| Package dimensions | 596 x 350 x 550 mm |
| Net weight | 10.9 kg (RGB/TG) |
| Gross weight | 12.9 kg (RGB/TG) |
| EAN | 7340172709527 |
| Warranty | 2 Years |
